基于深度神经网络的蒙古国色楞格河流域水体信息提取

姚锦一¹^,²(), 王卷乐¹^,⁴^,^*(), 严欣荣¹^,³, 魏海硕¹, Altansukh Ochir⁵, Davaadorj Davaasuren⁶

1.中国科学院地理科学与资源研究所中国科学院资源与环境信息系统国家重点实验室,北京 100101
2.山东理工大学建筑工程学院, 淄博 255049
3.中国科学院大学,北京 100049
4.江苏省地理信息资源开发与利用协同创新中心,南京 210023
5.蒙古国立大学工程与应用科学学院,乌兰巴托 210646
6.蒙古国立大学艺术与科学学院,乌兰巴托 210646

收稿日期:2021-01-20 修回日期:2021-03-20 出版日期:2022-05-25 发布日期:2022-07-25
通讯作者: * 王卷乐（1976— ）,男,河南洛阳人,博士,研究员,主要从事资源环境科学数据集成与共享研究。 E-mail: wangjl@igsnrr.ac.cn
作者简介:姚锦一（1996— ）,男,江苏苏州人,硕士生,主要从事遥感科学与技术方面的研究。E-mail: yaojy@lreis.ac.cn
基金资助:
国家自然科学基金面上项目(41971385);中国科学院A类战略性先导科技专项(XDA2003020302);中国工程科技知识中心建设项目(CKCEST-2021-2-18)

Water Information Extraction of Selenga River Basin in Mongolia based on Deep Neural Network

YAO Jinyi¹^,²(), WANG Juanle¹^,⁴^,^*(), YAN Xinrong¹^,³, WEI Haishuo¹, Altansukh Ochir⁵, Davaadorj Davaasuren⁶

1. State Key Laboratory of Resources and Environmental Information System, Institute of Geographic Sciences and Natural Resources Research, Chinese Academy of Sciences, Beijing 100101, China
2. School of Civil and Architectural Engineering, Shandong University of Technology, Zibo 255049, Shandong
3. China University of Chinese Academy of Sciences, Beijing 100049, China
4. Jiangsu Center for Collaborative Innovation in Geographical Information Resource Development and Application, Nanjing 210023,China
5. School of Engineering and Applied Sciences,National University of Mongolia, Ulaanbaatar 210646, Mongolia
6. School of Art & Sciences, National University of Mongolia, Ulaanbaatar 210646, Mongolia

Received:2021-01-20 Revised:2021-03-20 Online:2022-05-25 Published:2022-07-25
Supported by:
National Natural Science Foundation of China(41971385);Strategic Priority Research Program (Class A) of the Chinese Academy of Sciences(XDA2003020302);Construction Project of the China Knowledge Center for Engineering Sciences and Technology(CKCEST-2021-2-18)

摘要/Abstract

摘要：

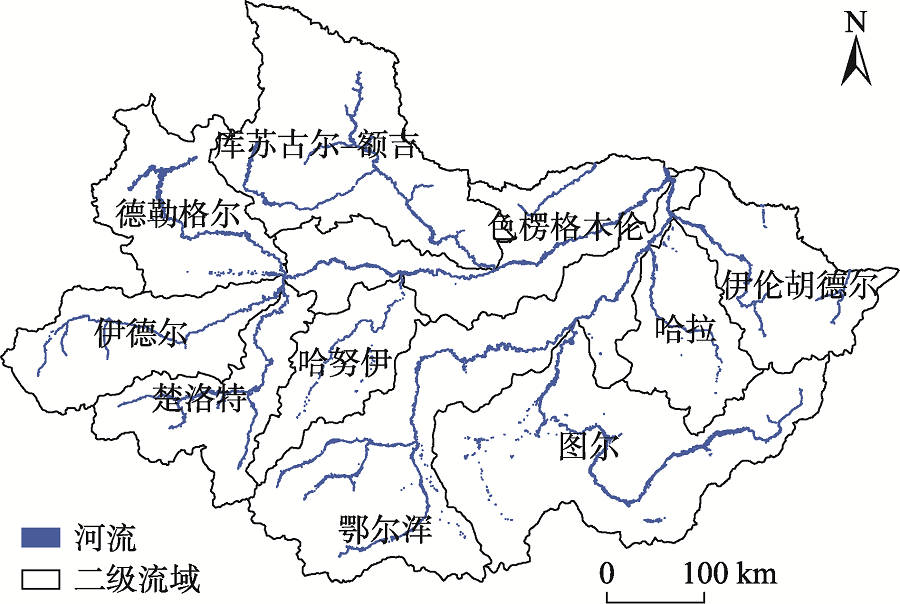

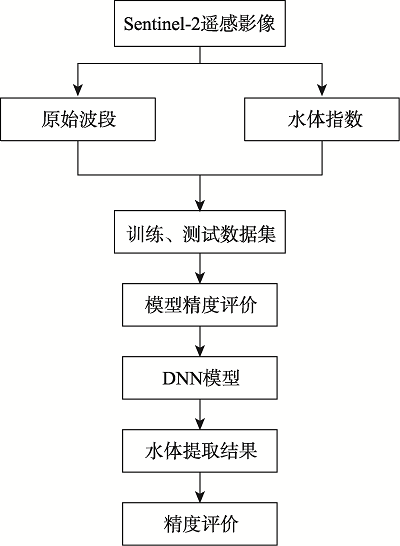

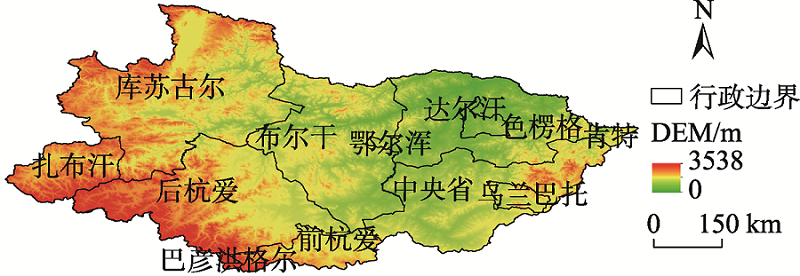

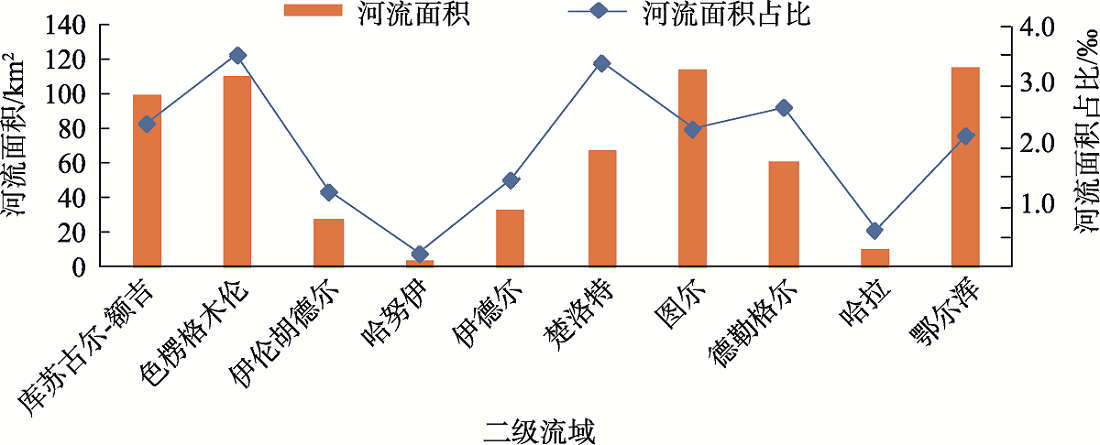

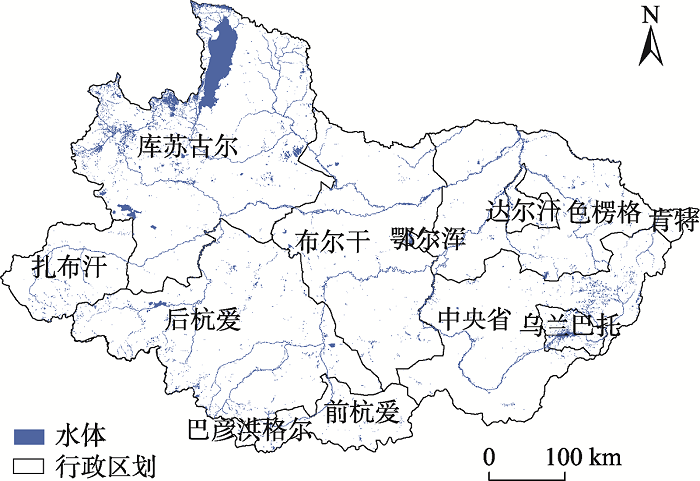

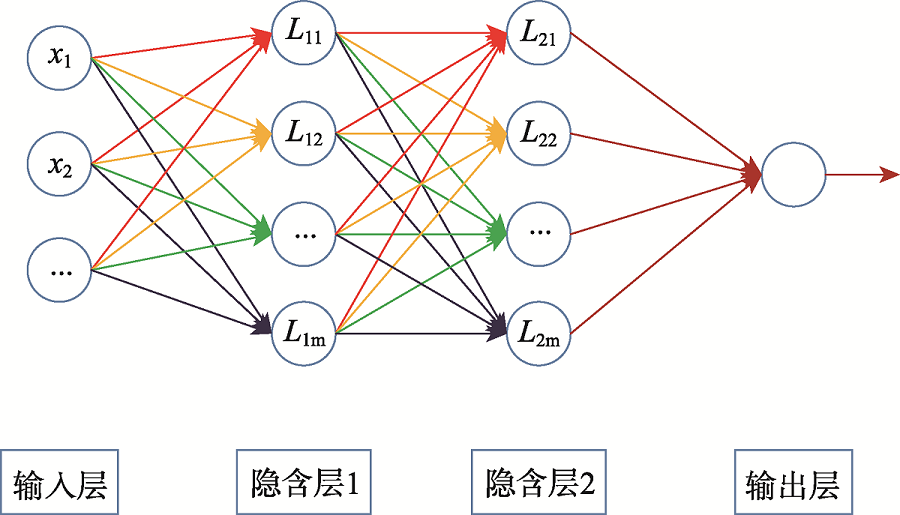

蒙古高原地处干旱半干旱地区,河流水系对该区域的资源环境格局及其生态环境影响重大。发源于蒙古国的色楞格河是蒙古高原最主要的水资源来源,准确掌握该流域的水体信息对东北亚地区生态环境问题及资源保护具有重要意义。本文以蒙古高原色楞格河流域为研究对象,基于谷歌地球引擎（Google Earth Engine,GEE）云平台,使用 Sentinel-2 多光谱卫星遥感影像,利用深度神经网络（Deep Neural Network, DNN）方法对色楞格河流域的水体信息进行提取,并与支持向量机方法进行对比;利用全球30 m SRTM数据生成水系分布矢量图,通过空间分析形成河流提取目标区,结合深度神经网络分类结果,绘制蒙古国色楞格河流域2019年河流分布图。研究结果表明：① 该方法能够准确地完成大流域范围内的水体制图,提取结果能够体现色楞格河流域河流的空间分布,且能够减少河流断流、空洞现象;② 深度神经网络模型中批量大小设置为8时,在处理数据速度与精度中达到最优,而神经网络结构中隐含层数达到4层时,在精度评价指标测试数据集上达到0.9666,保证了模型特征挖掘能力;③ 经样本点的验证,结果总体精度达到97.65%,可以满足实际应用需求。本研究预期可以为蒙古高原的水体提取提供方法支持和相关数据支持。

关键词: 高原水体提取, 深度神经网络, 遥感解译, 色楞格河, 蒙古高原, 中蒙俄经济走廊, Google Earth Engine, 水体指数

Abstract:

Arid and semi-arid climate zones of the Mongolian Plateau support multiple river systems that significantly impact the distribution of resources and ecological environments of the region. The Selenga River is the most important water resource on the Mongolian Plateau and the only river that enters the largest freshwater lake in the world——Lake Baikal in Russia. Thus, an accurate understanding of the hydrologic characteristics of the Selenga River Basin is critical in monitoring the ecology, environment, and water resources in Northeast Asia. Obtaining the plane morphology of curved rivers in the upper reaches of the plateau region is helpful to analyze the mathematical and physical mechanism of the evolution of curved rivers, which is of great significance to the study of river geomorphology. In this study, the Selenga River Basin in the Mongolia was taken as the study area. Based on the Google Earth Engine (GEE) cloud platform, Sentinel-2 multi-spectral satellite remote sensing images, Normalized Difference Water Index (NDWI), Modified Normalized Difference Water Index (MNDWI), and automated Water Extraction Index (AWEI) were used to construct a deep neural network model for the extraction of fine water body data in the Selenga River Basin. Three different types of water bodies, including lakes, main streams, and tributaries, were selected to compare the extraction results of deep neural network with the extraction results of support vector machines and Global Surface Water data. Global 30 m SRTM data were then used to generate a river system vector distribution map, identify river extraction target areas, and draw a 10 m spatial resolution river distribution map for the 2019 Selenga River Basin using output from the deep neural network model. Results indicate that, firstly, this method can accurately produce a water regime map for a large basin. The extraction results can reflect the spatial distribution of rivers in the Selenga River Basin in Mongolia, as well as reduce the drying-up and empty phenomenon of rivers. Secondly, the batch size of eight in the deep neural network model optimize data processing speed and accuracy while the four hidden layers in the neural network structure produce an accuracy evaluation index of 0.9666, which guarantees feature mining capabilities of models. Thirdly, after the verification of sample points, the overall accuracy reaches 97.65%, meeting actual application requirements. Thus, this research provides a method and data support for water body extraction for the Mongolian Plateau, which will play an important role in revealing long-term changes in river hydrological conditions, and impact related research on resources and environmental benefits.

Key words: water extraction of plateau, deep neural network, remote sensing interpretation, selenga river, mongolian plateau, China-Mongolia-Russia Economic Corridor, Google Earth Engine, water index

姚锦一, 王卷乐, 严欣荣, 魏海硕, Altansukh Ochir, Davaadorj Davaasuren. 基于深度神经网络的蒙古国色楞格河流域水体信息提取[J]. 地球信息科学学报, 2022, 24(5): 1009-1017.DOI:10.12082/dqxxkx.2022.210031

YAO Jinyi, WANG Juanle, YAN Xinrong, WEI Haishuo, Altansukh Ochir, Davaadorj Davaasuren. Water Information Extraction of Selenga River Basin in Mongolia based on Deep Neural Network[J]. Journal of Geo-information Science, 2022, 24(5): 1009-1017.DOI:10.12082/dqxxkx.2022.210031
