OGC SLD/SE标准在专题制图方面的不足与扩展研究

doi:10.12082/dqxxkx.2022.210114

摘要/Abstract

摘要：

网络地图制图目前已成为网络地理信息科学发展的重要方向,专题地图的网络制作尤为重要。OGC提出的SLD/SE标准是目前网络地图制图的标准和规范,但其描绘的地图质量不高,并且在描绘专题地图方面存在很多缺陷。随着网络地图制图的发展,一些SLD/SE标准外的网络地图样式语言逐渐兴起。与SLD/SE标准相比,新兴地图样式语言在制作专题地图方面存在优势。本研究从现有新兴地图样式语言中选择Mapbox GL和CartoCSS地图样式语言与SLD/SE标准进行对比,并总结当前标准的在专题制图方面的缺陷。研究发现,SLD/SE标准当中缺少设置分类方法的功能,同时还缺少用于准确表达未分类比例符号图的功能。针对这些缺陷,本文提出Classify和ProportionalSymbol扩展方案,将扩展后的SLD/SE标准应用于荷兰上艾瑟尔省的点、面矢量数据与使用当前标准描绘的地图进行对比应用研究,证明了本文提出的扩展在描绘专题地图方面更具优势。同时采用北京地区的点、面矢量数据并验证了扩展的普适性。SLD/SE标准目前仍处于不断改进的阶段,在未来的标准更新中,本文提出的2种扩展方案能在很大程度上简化制图者使用SLD/SE标准制图的工作量,并能改进SLD/SE标准不能描绘未分类的比例符号图的缺陷。

关键词: OGC, SLD/SE标准, 专题地图, 扩展, 新兴地图样式语言

Abstract:

Nowadays, web cartography or web mapping has become an important direction for the development of web GIS. The production of thematic maps on the web is extremely important. The SLD/SE standard proposed by the OGC is currently the standard and specification of web mapping. However, SLD/SE standard is often at a fundamental level, which leads to poor quality of maps. With web cartography development, besides the SLD/SE standard, some new web styling languages are emerging. Compared with the SLD/SE standard, the emerging map styling languages have advantages in making thematic maps. This research selects Mapbox GL and CartoCSS from the existing emerging map styling languages for comparison with the SLD/SE standard, and then summarizes the defects of the SLD/SE standard in expressing thematic maps. The study found that the SLD/SE standard lacks the function of setting a classification method. Meanwhile, it also lacks the function of accurately expressing the unclassified proportional symbol map. Because of the shortcomings, this study proposed the extensions of Classify and ProportionalSymbol. Example data of Overijssel province in Netherlands were used to prove that the new extensions were feasible, while the verification data of Beijing were used to prove that the extensions were applicable to all vector data used to create thematic maps. The SLD/SE standard is still in the stage of continuous development. In future standardisation, the two extensions proposed in this research can greatly simplify the work of cartographers and improve the ability of current standard to express unclassified proportional symbol maps.

Key words: OGC, SLD/SE standard, thematic maps, extensions, emerging styling languages

田欣, 赵文吉. OGC SLD/SE标准在专题制图方面的不足与扩展研究[J]. 地球信息科学学报, 2022, 24(2): 352-364.DOI:10.12082/dqxxkx.2022.210114

TIAN Xin, ZHAO Wenji. Research on the Deficiency and Extension of OGC SLD/SE Standard in Thematic Cartography[J]. Journal of Geo-information Science, 2022, 24(2): 352-364.DOI:10.12082/dqxxkx.2022.210114

图/表 16

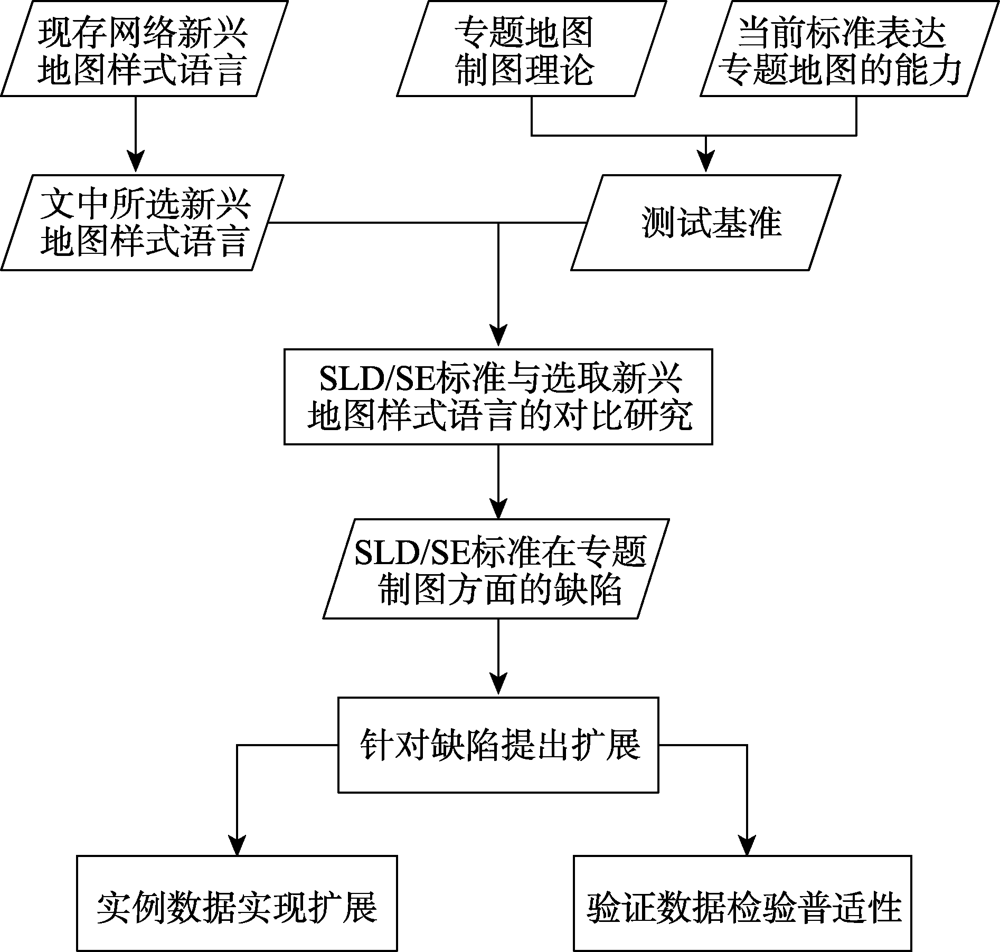

图1

表1

表2

表3

表4

图2

图3

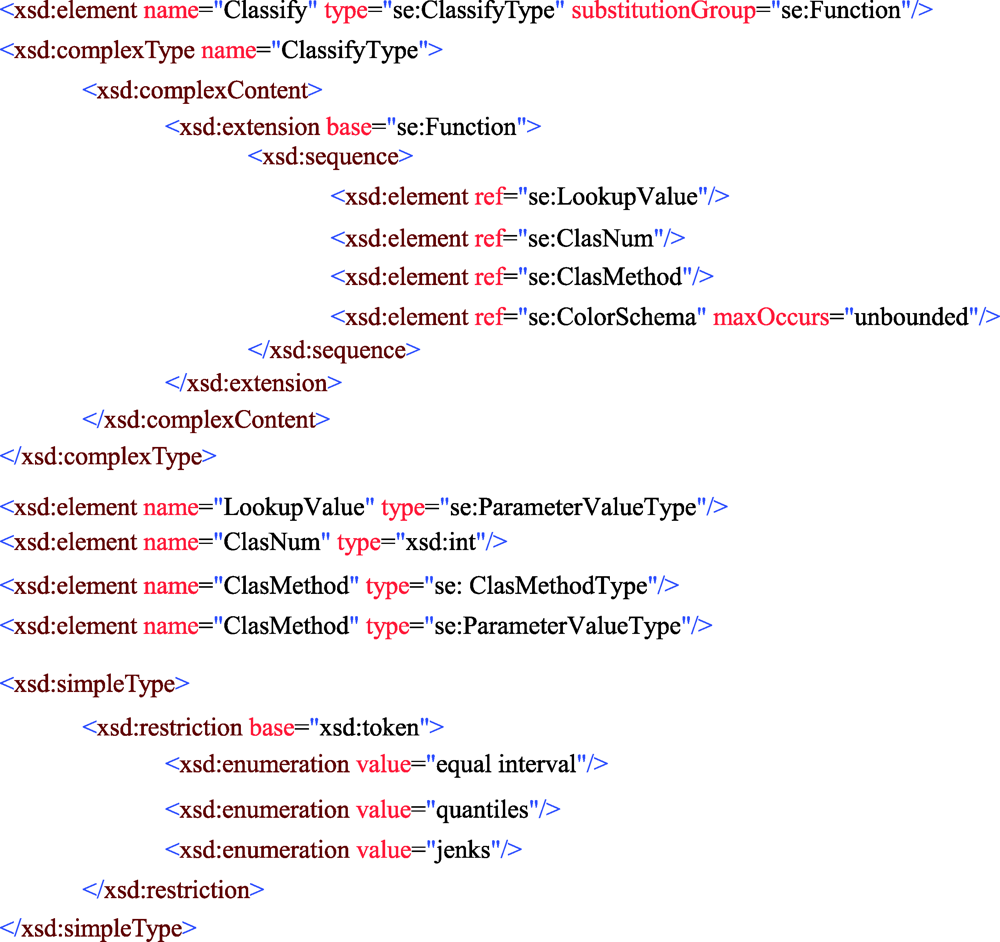

图4

图5

图6

图7

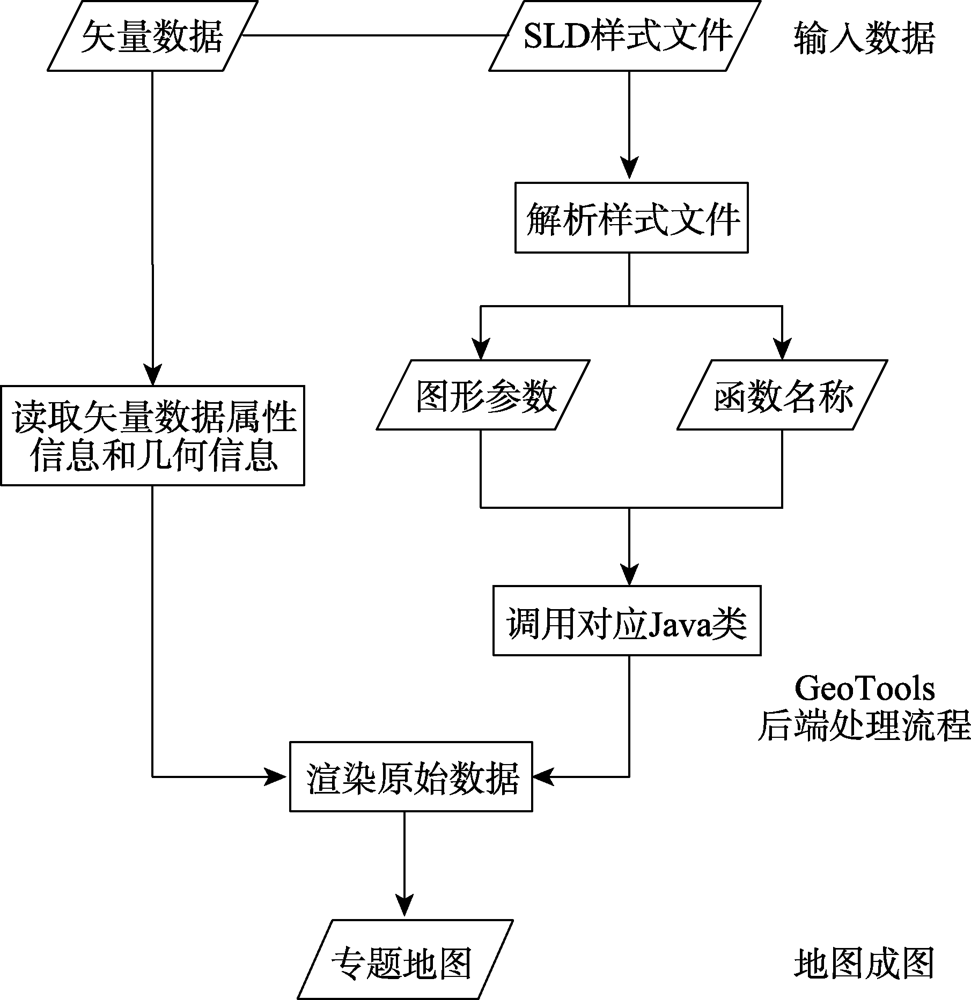

图8

图9

图10

图11

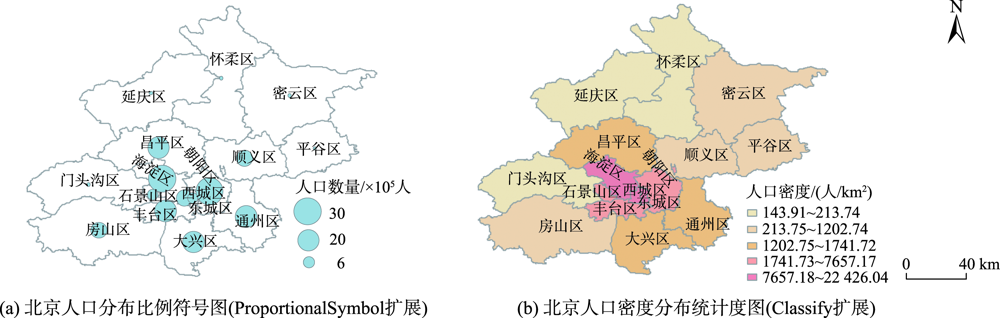

图12

参考文献 38

[1]	OGC. The Home of Location Technology Innovation and Collaboration[EB/OL]. 2021. from https://www.ogc.org/.
[2]	王金传. 基于OGC标准的分布式地理信息服务链构建方法研究[D]. 济南:山东师范大学, 2019.
	[ Wang J C. Research on method of distributed geographic information service chain construction based on OGC standard[D]. Jinna: ShanDong Normal University, 2019. ]
[3]	Mishra S S, Chander R, Pradhan, et al. WebGIS for water level monitoring and flood forecasting using Open Source Technology[J]. Journal of Geomatics, 2020, 14(1):49-54.
[4]	Lupp M. Styled layer descriptor profile of the web map service implementation specification [Corrigendum][S]. Version 1.1. 0 (revision 4), 2007.
[5]	Muller M. Symbology encoding implementation specification[S]. Version 1.1. 0.(revision 4), 2006.
[6]	Bocher E, Ertz O. A redesign of OGC symbology encoding standard for sharing cartography[J]. PeerJ Computer Science, 2018, 4:e143. DOI: 10.7717/peerj-cs.143 doi: 10.7717/peerj-cs.143
[7]	Homburg T. Towards a linked-data powered, INSPIRE-based national data infrastructure: The case of the Federal Agency for Cartography Germany[J]. International Journal of Spatial Data Infrastructures Research, 2020, 15.
[8]	Christophe S, Duménieu B, Turbet J, et al. Map style formalization: Rendering techniques extension for cartography[C]. Expressive 2016 the joint symposium on computational aesthetics and sketch-based interfaces and modeling and non-photorealistic animation and rendering, 2016.
[9]	Neubauer S, Zipf A. Suggestions for extending the OGC Styled Layer Descriptor (SLD) specification into 3D-towards visualization rules for 3D city models[M]// Urban and Regional Data Management. CRC Press, 2007:145-454.
[10]	Iosifescu I M. Hugentobler, Hurni L. Cartographic web services and cartographic rules: A new approach for web cartography[Z]. XXIV international cartographic conference, Santiago 2009:1-10.
[11]	Neubauer S, Zipf A. Suggestions for extending the OGC Styled Layer Descriptor (SLD) specification into the third dimension: An analysis of possible visualization rules for 3D city models[C]. 26^th Urban Data Management Symposium, 2007.
[12]	Semmo A, Kyprianidis J E, Trapp M, et al. Real-time rendering of water surfaces with cartography-oriented design[Z]. Proceedings of the Symposium on Computational Aesthetics 2013.
[13]	亢孟军, 徐召硕, 朱军, 等. 一种数据驱动的专题地图自动编制方法[J/OL]. 测绘科学, 2021:1-9.
	[ Kang M J, Xu Z S, Zhu J, et al. A new approach for data-driven automatic rendering of thematic maps[J/OL]. Science of Surveying and Mapping, 2021:1-9] DOI: 10.7717/peerj-cs.143 doi: 10.7717/peerj-cs.143
[14]	Dent B, Torguson J, Hodler T. Thematic map design[M]. McGraw-Hill New York, New York, NY 2008.
[15]	詹梅香. 专题地图符号表示方法的探讨[J]. 现代测绘, 2010, 33(1):57-58,61.
	[ Zhan M X. The matic map of symbolic representation[J]. Modern Surveying and Mapping, 2010, 33(1):57-58,61. ]
[16]	Mapbox. COVID-19[EB/OL]. 2020. from https://www.mapbox.cn/coronavirusmap/#3.35/28.47/109.74.
[17]	Li R. Visualizing COVID-19 information for public: Designs, effectiveness, and preference of thematic maps[J]. Human Behavior and Emerging Technologies, 2021, 3(1):97-106. DOI: 10.1002/hbe2.248 doi: 10.1002/hbe2.248
[18]	Mocnik F-B., Raposo P, Feringa W, et al. Epidemics and pandemics in maps: The case of COVID-19[J]. Journal of Maps, 2020, 16(1):144-152. DOI: 10.1080/17445647.2020.1776646 doi: 10.1080/17445647.2020.1776646
[19]	Mapbox. Mapbox style specification[EB/OL]. https://docs.mapbox.com/mapbox-gl-js/style-spec/.
[20]	Carto. Styling[EB/OL]. https://carto.com/developers/styling/cartocss/.
[21]	OpenStreetMap. MapCSS/0.2[EB/OL]. 2017. https://wiki.openstreetmap.org/wiki/MapCSS/0.2.
[22]	Dietze L, Zipf A. Extending OGC Styled Layer Descriptor (SLD) for Thematic Cartography[Z]. Proc. Symp. on LBS and Telecartography 2007.
[23]	Sae-Tang A, Ertz O. Towards web services dedicated to thematic mapping[J]. OSGeo Journal, 2007, 3(1):31-34.
[24]	Peterson M P. Online maps with APIs and WebServices[M]. Springer Science & Business Media, 2012. DOI: 10.1007/978-3-642-27485-5 doi: 10.1007/978-3-642-27485-5
[25]	Howard H H, McMaster R B, Slocum T A, et al. Thematic cartography and geovisualizationl[M] Upper Saddle River, New Jersey:Prentice Hall, 2008.
[26]	Iosifescu-Enescu I, Hugentobler M, Hurni L. Web cartography with open standards-A solution to cartographic challenges of environmental management[J]. Environmental Modelling & Software, 2010, 25(9):988-999. DOI: 10.1016/j.envsoft.2009.10.017 doi: 10.1016/j.envsoft.2009.10.017
[27]	Ayca S S. Thematic mapping with CARTO[EB/OL]. 2019. https://www.gislounge.com/thematic-mapping-with-carto/.
[28]	Mapbox. Thematic map types[EB/OL]. https://labs.mapbox.com/education/thematic-map-types/.
[29]	Raposo P, Touya G, Bereuter P. A change of theme:The role of generalization in thematic mapping[J]. ISPRS International Journal of Geo-information, 2020, 9(6):371. DOI: 10.3390/ijgi9060371 doi: 10.3390/ijgi9060371
[30]	Talbi F Z, Nouayti N, Omari H E, et al. Thematic maps of the impact of urbanization and socioeconomic factors on the distribution of the incidence of cutaneous leishmaniasis cases in Sefrou Province, Central North of Morocco (2007-2011)[J]. Interdisciplinary Perspectives on Infectious Diseases, 2020. DOI: 10.1155/2020/8673091 doi: 10.1155/2020/8673091
[31]	Kraak M J, Ormeling F. Cartography: Visualization of geospatial data[M]. CRC Press, 2020.
[32]	Nicole DeLorenzo A D. Choropleth Map[EB/OL]. 2012. https://www.arcgis.com/apps/MapJournal/index.html?appid=75eff041036d40cf8e70df99641004ca.
[33]	Rita E, Borbinha J, Martins B. Extending SLD and SE for cartograms[J]. Proceedings of the GSDI, 2010, 12.
[34]	Rautenbach V, Coetzee S, Iwaniak A. Orchestrating OGC web services to produce thematic maps in a spatial information infrastructure[J]. Computers, Environment and Urban Systems, 2013, 37:107-120. DOI: 10.1016/j.compenvurbsys.2012.08.001 doi: 10.1016/j.compenvurbsys.2012.08.001
[35]	Society T R G. A Guide to Isoline Maps[EB/OL]. https://www.rgs.org/schools/teaching-resources/a-student-guide-to-the-a-level-independent-investi/.
[36]	OSGF. GeoServer is an open source server for sharing geospatial data[EB/OL]. 2021. http://geoserver.org/.
[37]	Mapbox. Design beautiful maps with Mapbox Studio[EB/OL]. 2021. https://www.mapbox.com/mapbox-studio.
[38]	Carto. Unlock the power of spatial analysis[EB/OL]. 2021. https://carto.com/.

新兴样式语言（编码格式）	使用的网络制图平台
MapCSS (类CSS格式)	OpenStreetMap
CartoCSS (类CSS格式)	OpenStreetMap、Carto
Mapbox GL (基于JSON格式)	Mapbox,Kepler.gl,Deck.gl,Luma.gl,react-map-gl

地图样式语言	编码格式	优势	劣势
SLD/SE标准	XML格式	可扩展性、可互操作性	编码冗长,样式定义单一
CartoCSS	类CSS格式	编码简短,易读性强	缺乏可互操作性
Mapbox GL	基于JSON格式	编码简洁,易读性强数据驱动编码利于处理矢量图层的属性信息	缺乏可互操作性

专题地图类型		是否能被SLD/SE标准描绘
分区着色图		是
分级统计图	分类的	是
分级统计图	未分类的	是
比例符号图	分类的	是
比例符号图	未分类的	是
图表统计图		否
价值-区域图		否
叠置符号图		是
并置符号图		否
点密度图		否
标准等值线图		是
等值区填充图		否
流向图		否

基准		SLD/SE		CartoCSS	Mapbox GL
分区统计图	分类的	<Rule>元素和 <Filter>元素		Filters	Case语句
	分类的	Categories函数		Ramp()函数	Step函数
	未分类的	Interpolation函数		-	Interpolation函数
	未分类的	为每一属性值设置对应颜色
比例符号图	分类的	<Rule>元素和<Filter>元素		Filters	Case语句
	分类的	Categories函数		Ramp()函数	Step函数
	未分类的	Interpolation函数		-	Sqrt()函数
	未分类的		为每一属性值设置对应符号大小
图表统计图		不包含可表达该类型专题地图的机制
等值线填充图		不包含可表达该类型专题地图的机制
