基于三维模型的城市局地微气候模拟

doi:10.3724/SP.J.1047.2016.01199

摘要/Abstract

摘要：

随着城市化进程的不断深入,城市热岛效应及其所引发的一系列环境问题日趋严重,本文尝试性地将新兴三维建模技术与微气候模拟相结合应用于城市局地微气候研究,以期获得的模拟数据及模型能够帮助城市管理者提供改善城市微气候质量的有效途径。本文选定珠江新城西区为研究区域,以规则建模手段构建城市三维模型,总结微气候模拟的相关子模型,并利用局地微气候模拟软件对研究区进行温度、湿度、风速、风向等气候要素的模拟,最后将二者的结果整合进行可视化展示。微气候模拟结果结合目标区域三维模型,能够直观地分析出建筑高度、密度和布局对目标区域城市微气候分布状况的影响,并提出相应的改善建议与规划策略。该方法克服了以往微气候研究局限于实地测量与单纯依靠过往气象数据的不足。规则建模对城市建筑布局、结构方面的具体呈现与ENVI-met在微气候分布模拟的结合,使城市局地微气候研究可以逐渐与三维建模相结合的方向发展,为不同地区的城市规划与微气候模拟研究提供了新思路与辅助决策工具。在城市建筑结构、布局对城市微气候的影响研究上也提供了更直观的可视化效果。

关键词: CityEngine, CGA, 城市微气候, ENVI-met, 珠江新城

Abstract:

With the continuous advancement of urbanization, the aggravating urban heat island effect and a series of environmental problems caused by it is becoming severe, which hurdles the progress of urbanization gradually. The urban local micro-climate study tentatively combines the burgeoning 3D modeling with micro-climate simulation, so as to help the city managers to find an effective way to improve the urban micro-climate quality through adopting the simulation data and the model generated in the study. By taking the Zhujiang New Town Western District as an example, this study builds a 3D model of the city using the CGA rules, summarizes the related sub-models of micro-climate simulation, and runs a simulation of the study area with the weather factors such as temperature, humidity, wind speed and wind direction by using the local micro-climate simulation software. At last, it integrates the results and produces a visual presentation. The micro-climate simulation result is combined with the 3D model of the study area. It gives a visual analysis on the impacts of construction height, density and layout to the local micro-climate weather distribution, and gives the corresponding development advices and planning strategy. This method has overcome the limits of previous micro-climate studies which were constrained to field measurement and depended on previous climate data. The modeling approach gives a detailed presentation of the city construction layout and structure, and integrates ENVI-met into the micro-climate simulation, thus the urban micro-climate study can be improved to incorporate the trend of integrating 3D modeling. It provides a new way of thinking and a new assistant decision-making tool for the urban planning and micro-climate simulation studies in different regions. In terms of the relationship between the structure and the layout of urban construction and urban micro-climate, it presents a more visualized result.

Key words: CityEngine, CGA, urban microclimate, ENVI-met, Zhujiang New Town

郑子豪, 陈颖彪, 千庆兰, 李勇, 谢锦鹏. 基于三维模型的城市局地微气候模拟[J]. 地球信息科学学报, 2016, 18(9): 1199-1208.DOI:10.3724/SP.J.1047.2016.01199

ZHENG Zihao,CHEN Yingbiao,QIAN Qinglan,LI Yong,XIE Jinpeng. Urban Micro-climate Simulation Based on 3D Modeling[J]. Journal of Geo-information Science, 2016, 18(9): 1199-1208.DOI:10.3724/SP.J.1047.2016.01199

图/表 10

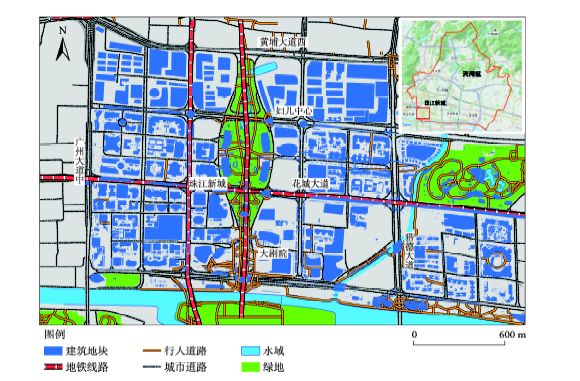

图1

表1

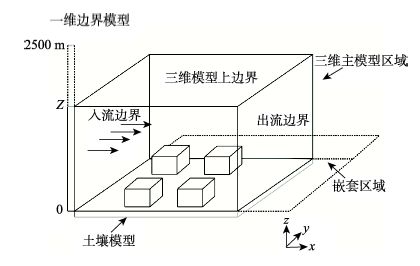

图2

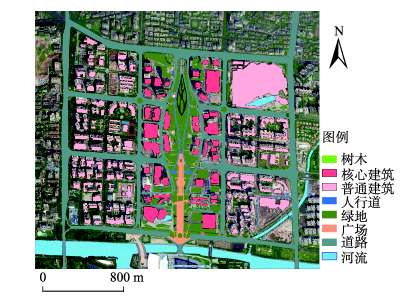

图3

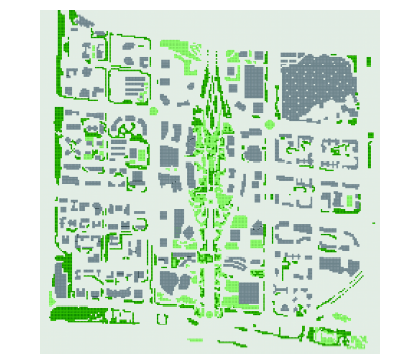

图4

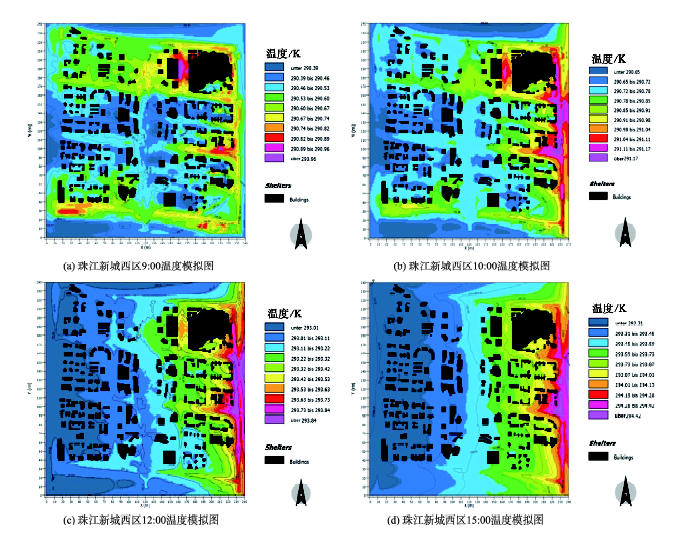

图5

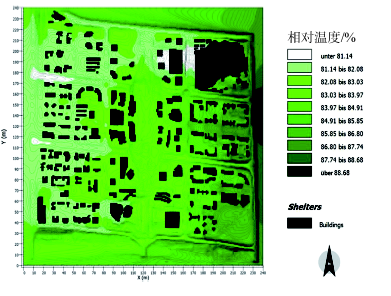

图6

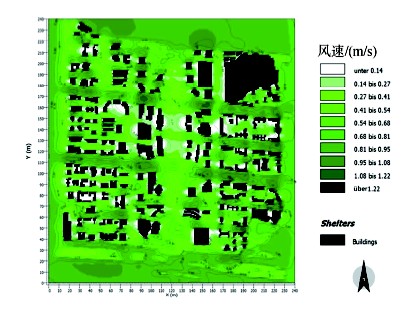

图7

图8

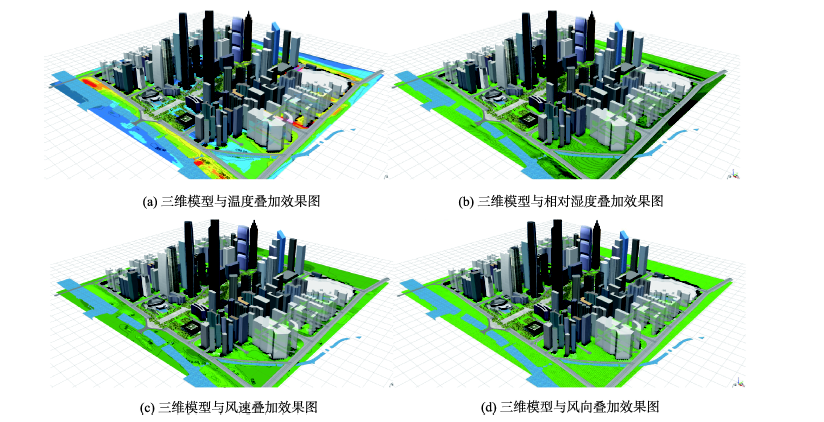

图9

参考文献 22

[1]	肖荣波,欧阳志云,李伟峰,等.城市热岛的生态环境效应[J].生态学报,2005(8):2055-2060. doi: 10.3321/j.issn:1000-0933.2005.08.032
	[ Xiao R B, Ouyang Z Y, LI W F, et al.A review of the eco-environmental consequences of urban heat islands[J]. Acta Ecologica Sinica, 2005,8:2055-2060. ] doi: 10.3321/j.issn:1000-0933.2005.08.032
[2]	白杨,王晓云,姜海梅,等.城市热岛效应研究进展[J].气象与环境学报,2013(2):101-106. doi: 10.3969/j.issn.1673-503X.2013.02.016
	[ Bai Y, Wang X Y, Jiang H M, et al.Progress of urban heat island effect[J]. Journal of Meteorology and Environment, 2013,2:101-106. ] doi: 10.3969/j.issn.1673-503X.2013.02.016
[3]	寿亦萱,张大林.城市热岛效应的研究进展与展望[J].气象学报,2012(3):338-353. doi: 10.11676/qxxb2012.031
	[ Shou Y X, Zhang D L.Recent advances in understanding urban heat island effects with some future prospects[J]. Acta Meteorologica Sinica, 2012,3:338-353. ] doi: 10.11676/qxxb2012.031
[4]	孟庆林,李琼.城市微气候国际(地区)合作研究的进展与展望[J].南方建筑,2010(1):4-7. doi: 10.3969/j.issn.1000-0232.2010.01.001
	[ Meng Q L, Li Q.The recent progress and future trend of international and regional cooperative research on urban microclimate[J]. South Architecture, 2010,1:4-7. ] doi: 10.3969/j.issn.1000-0232.2010.01.001
[5]	吕永来,李晓莉.基于CityEngine平台的高速铁路建模方法的研究与实现[J].测绘,2013(1):19-22.
	[ Lv Y L, Li X L.Exploration and realization of 3D modeling method based on CityEngine for high-speed railway[J]. Surveying and Mapping of Sichuan, 2013,1:19-22. ]
[6]	吕永来,李晓莉.基于CityEngine CGA的三维建筑建模研究[J].测绘,2013(2):91-94. [ Lv Y L, Li X L. Research on 3D architectural modeling based on CityEngine CGA[J]. Surveying and Mapping of Sichuan, 2013,2:91-94.] doi: 10.3969/j.issn.1674-5019.2013.02.012
[7]	陈卓伦. 绿化体系对湿热地区建筑组团室外热环境影响研究[D].广州:华南理工大学,2010.
	[ Chen Z L.Research of vegetation system's effects on outdoor thermal environment of residential communities in hot-humid climate[D]. Guangzhou: South China University of Technology, 2010. ]
[8]	杨小山. 室外微气候对建筑空调能耗影响的模拟方法研究[D].广州:华南理工大学,2012.
	[ Yang X S.A simulation method for the effects of urban microclimate on building cooling energy use[D]. Guangzhou: South China University of Technology, 2012. ]
[9]	陈铖. 天津大学校园夏季室外热环境研究[D].天津:天津大学,2013.
	[ Chen C.Research on the outdoor thermal environment at Tianjin University campus in the summer[D]. Tianjin: Tianjin University, 2013. ]
[10]	林满,王宝民,刘辉志.广州典型小区微气候特征观测与数值模拟研究[J].中山大学学报(自然科学版),2015(1):124-129. doi: 10.1347/j.cnki.acta.snus.2015.01.024
	[ Lin M, Wang B M, Liu Z H.Observational and numerical study on the microclimate over a typical community in Guangzhou[J]. Acta Scientiarum Naturalium Universitatis Sunyatseni, 2015,1:124-129. ] doi: 10.1347/j.cnki.acta.snus.2015.01.024
[11]	Middel A, Häb K, Brazel A J, et al.Impact of urban form and design on mid-afternoon microclimate in Phoenix local climate zones[J]. Landscape and Urban Planning, 2014,122:16-28. doi: 10.1016/j.landurbplan.2013.11.004
[12]	Wong N H, Jusuf S K.GIS-based greenery evaluation on campus master plan[J]. Landscape and Urban Planning, 2008,84(2):166-182. doi: 10.1016/j.landurbplan.2007.07.005
[13]	Taleb D, Abu-Hijleh B.Urban heat islands: potential effect of organic and structured urban configurations on temperature variations in Dubai, UAE[J]. Renewable Energy, 2013,50:747-762. doi: 10.1016/j.renene.2012.07.030
[14]	Fahmy M, Sharples S.On the development of an urban passive thermal comfort system in Cairo, Egypt[J]. Building and Environment, 2009,44(9):1907-1916. doi: 10.1016/j.buildenv.2009.01.010
[15]	Reiter S.Correspondences between the conception principles of sustainable public spaces and the criteria of outdoor comfort[C]. Proceedings of the 21th International Conference on Passive and Low Energy Architecture, 2004.
[16]	Lenzholzer S.Microclimate perception analysis through cognitive mapping[C]. Proceedings of the 25th Conference on Passive and Low Energy Architecture, 2008.
[17]	Spangenberg J O R, Shinzato P, Johansson E, Duarte D. Simulation of the influence of vegetation on microclimate and thermal comfort in the city of São Paulo[J]. Revista da Sociedade Brasileira de Arborização Urbana, 2008,3:1-19.
[18]	ESRI中国. Esri CityEngine中文教程[Z]. 2012. [ ESRI China. Esir CityEngine Chinese tutorials[Z]. 2012. ]
[19]	马舰,陈丹.城市微气候仿真软件ENVI-met的应用[J].绿色建筑,2013(5):56-58. doi: 10.3969/j.issn.1004-1672.2013.05.018
	[ Ma J, Chen D.The application of ENVI-met - a city microclimate simulation software[J]. Green Building, 2013,5:56-58. ] doi: 10.3969/j.issn.1004-1672.2013.05.018
[20]	ENVI-MET. ENVI-met online documents[EB/OL]. .
[21]	王振. 夏热冬冷地区基于城市微气候的街区层峡气候适应性设计策略研究[D].武汉:华中科技大学,2008.
	[ Wang Z.Design strategies for the climate adaptability of street canyon based on urban microclimate in hot-summer and cold-winter zone[D]. Wuhan: Huazhong University of Science, 2008. ]
[22]	眭晋华,史红梅,眭广瑞.空气湿度及其影响[J].山西科技,2011(3):143-144. doi: 10.3969/j.issn.1004-6429.2011.03.070
	[ Sui J H, Shi H M, Sui G R.Air humidity and its influence[J]. Shanxi Science and Technology, 2011,3:143-144. ] doi: 10.3969/j.issn.1004-6429.2011.03.070

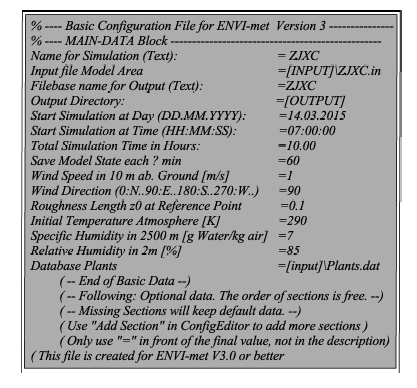

文件类型	文件列表	定义
输入文件	A1.配置文件.CF	定义一个单独模拟的设置
	A2.区域输入文件.IN	定义模拟的区域（建筑物,植物等）
	A3.序列文件.EBF	允许定义单个模拟的次序
数据库文件	B1.土壤数据库SOILS.DAT	定义不同的自然和人工土壤的性质
	B2.配置文件数据库PROFILES.DAT	从SOILS.DAT文件中以垂直的土壤三明治结构来定义不同的土壤类型
	B3.植被数据库PLANTS.DAT	定义所有的植被
	B4.源数据库SOURCES.DAT	定义颗粒或者气体源的输出和喷射高度
输出文件	C1.主数据文件.EDI/.EDT	链接到配置文件中[LOCALDB]部分的描述
	C2.接收器文件	模型区域内用户选择的点的数据
	C3.1D-Model 文件	包含1维模型的状态
	C4.BOTworld 文件	创建BOTworld模型的链接
其它文件	D1.定义别名(MYALIAS.DAT)	使用相对文件路径,便于计算机之间模拟传输
