曹妃甸近岸海域垂向悬沙含量遥感反演

doi:10.3724/SP.J.1047.2016.01428

地球信息科学学报 ›› 2016, Vol. 18 ›› Issue (10): 1428-1434.doi: 10.3724/SP.J.1047.2016.01428

• • 上一篇

曹妃甸近岸海域垂向悬沙含量遥感反演

孔金玲¹(), 杨晶¹, 蒲永峰¹, 倪梓轩², 杜东³, 柳富田³

1. 长安大学地球科学与资源学院,西安 710054
2. 长安大学地质工程与测绘学院,西安 710054
3. 天津地质矿产研究所,天津 300170

收稿日期:2015-11-24 修回日期:2016-05-03 出版日期:2016-10-25 发布日期:2016-10-25
作者简介:
作者简介：孔金玲（1964-）,女,博士,教授,主要从事定量遥感研究。E-mail: jlkong@163.com
基金资助:
国家自然科学基金项目（41272246）;中国地质调查局地质调查项目（1212010814005）;教育部科学技术研究重点项目（108183）;中央高校基本科研业务费专项资金项目（2013G3272013）

Remote Sensing Retrieval for Vertical Spatial Distribution of Suspended SedimentConcentration in the Caofeidian Coastal Waters

KONG Jinling^1,^*(), YANG Jing¹, PU Yongfeng¹, NI Zixuan², DU Dong³, LIU Futian³

1. School of Earth Science and Resources, Chang’an University, Xi’an 710054, China
2. School of Geological Engineering and Surveying & Mapping, Chang’an University, Xi’an 710054, China
3. Tianjin Institute of Geology and Mineral Resources, Tianjin 300170, China

Received:2015-11-24 Revised:2016-05-03 Online:2016-10-25 Published:2016-10-25
Contact: KONG Jinling E-mail:jlkong@163.com

摘要/Abstract

摘要：

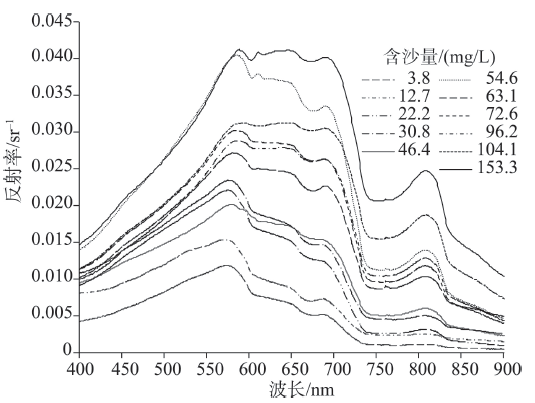

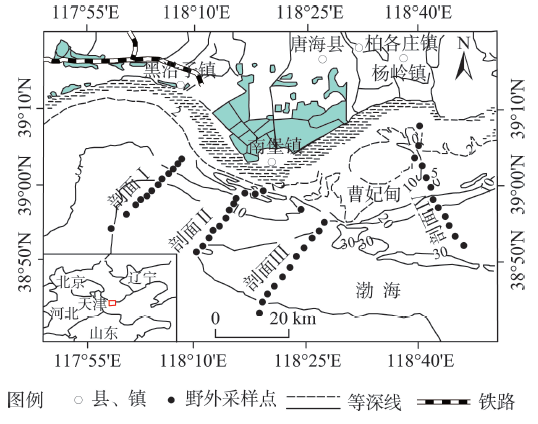

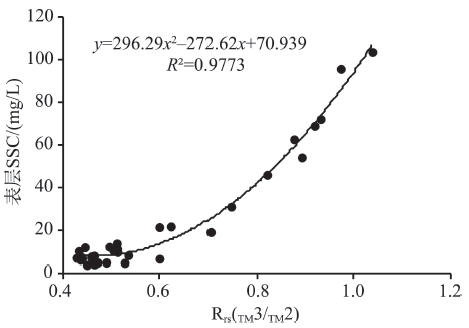

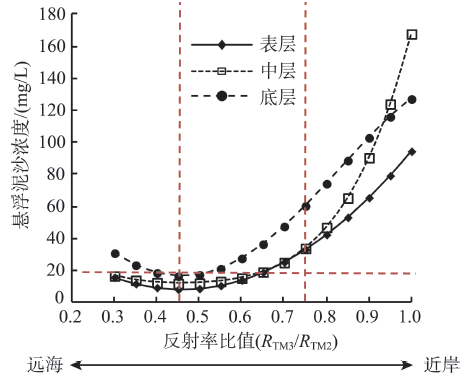

利用遥感技术监测水体悬浮泥沙含量是海洋水色遥感的一个重要研究方向。本文以曹妃甸近岸海域4个剖面35个站点开展的现场光谱测量、同步采集的不同深度悬浮泥沙含量样品数据为基础,采用Landsat-5 TM遥感数据,建立水体表、中、底层悬沙含量遥感反演模型,并研究悬沙垂向上的空间分布规律。结果表明,曹妃甸近岸海域泥沙含量在垂向上有明显的相关性,以Landsat-5 TM影像反射率比值（R_TM3/R_TM2）为因子,构建优化的悬浮泥沙含量遥感反演模型,各层模型平均相对误差都在30%以内,表层和中层的平均绝对误差在6 mg/L以下,均方根误差小于10 mg/L,底层的精度略低于表层和中层。研究结果为进一步研究海洋环境泥沙运移规律、优化水动力作用下泥沙运移模型提供支持。

关键词: 曹妃甸, 悬浮泥沙, 垂向空间分布, 遥感模型

Abstract:

The suspended solids content in ocean water is a significant water quality parameter, and the use of remote sensing technology to monitor the suspended sediment concentration (SSC) is an important research direction in ocean color remote sensing. In this paper, based on a set of in situ data sets, which include the simultaneous spectral reflectance data and the SSC data of different depths obtained from 35 field sites distributed within the four profiles of Caofeidian waters, and combined with the Landsat-5 TM remote sensing data, an empirical statistical model between the SSC levels of water surface and the remote sensing reflectance was established. So the SSC levels of water surface in the study area were estimated. Subsequently, by respectively analyzing the correlation relationships of SSC levels between the surface and the middle layers, as well as the surface and the bottom layers, we deduced the SSC inversion results of the middle and bottom layers based on the results of surface SSC levels and we also studied the vertical spatial distribution patterns of SSC. The study results indicate that there is an obvious correlation between the SSC levels in the vertical direction. Based on the reflectance ratio (R_TM3/R_TM2) of Landsat-5 TM image, an optimized quadratic polynomial model for the SSC retrieval of water surface was established. Based on this model, the relevant models for the middle and bottom layers were also established. Then, the inversion precision of each model was validated using seven check points. The model's mean relative error of each layer was controlled to be less than 30%, the mean absolute errors and root mean square errors of the surface and middle layers were below 6 mg/L and 10 mg/L respectively. The precision of the bottom layer was slightly lower than the surface and middle layers. The results provide a foundation to further study the sediment transport rule of marine environment and the optimization of sediment transport model under hydrodynamic forces.

Key words: Caofeidian, suspended sediment, vertical spatial distribution, remote sensing models

孔金玲, 杨晶, 蒲永峰, 倪梓轩, 杜东, 柳富田. 曹妃甸近岸海域垂向悬沙含量遥感反演[J]. 地球信息科学学报, 2016, 18(10): 1428-1434.DOI:10.3724/SP.J.1047.2016.01428

KONG Jinling,YANG Jing,PU Yongfeng,NI Zixuan,DU Dong,LIU Futian. Remote Sensing Retrieval for Vertical Spatial Distribution of Suspended SedimentConcentration in the Caofeidian Coastal Waters[J]. Journal of Geo-information Science, 2016, 18(10): 1428-1434.DOI:10.3724/SP.J.1047.2016.01428

图/表 8

图1

表1

图2

图3

图4

表2

图5

图6

参考文献 21

[1]	阎福礼,刘韶菲,王世新,等.太湖浮游藻类的后向散射分离及其叶绿素a浓度反演[J].地球信息科学学报,2014,16(6):989-996. doi: 10.3724/SP.J.1047.2014.00989
	[ Yan F L, Liu S F, Wang S X, et al.Phytoplankton backscattering coefficients partitioning and its applications in retrieving chlorophyll-a concentrations in Taihu lake[J]. Journal of Geo-information Science, 2014,16(6):989-996. ] doi: 10.3724/SP.J.1047.2014.00989
[2]	秦蕴珊,李凡,徐善民,等.南黄海海水中悬浮体的研究[J].海洋与湖沼,1989,20(2):101-112.
	[ Qin Y S, Li F, Xu S M, et al.Suspended matter in the south yellow sea[J]. Oceanologia et Limnologia Sinica, 1989,20(2):101-112. ]
[3]	刘志国,周云轩,蒋雪中,等.近岸Ⅱ类水体表层悬浮泥沙浓度遥感模式研究进展[J].地球物理学进展,2006,21(1):321-326.
	[ Liu Z G, Zhou Y X, Jiang X Z, et al.Progress on suspended sediment concentration remote sensing in nearshore case 2 waters[J]. Process in Geophysics, 2006,21(1):321-326. ]
[4]	Kong J L, Sun X M, Wang W K, et al.An optimal model for estimating suspended sediment concentration from Landsat TM images in the Caofeidian coastal waters[J]. International Journal of Remote Sensing, 2015,36(19-20):5257-5272. doi: 10.1080/01431161.2015.1043159
[5]	Volpe V, Silvestri S, Marani M.Remote sensing retrieval of suspended sediment concentration in shallow waters[J]. Remote Sensing of Environment, 2010,115(1):44-54.
[6]	樊辉,黄海军.南黄海辐射沙洲邻近海域表层悬浮颗粒物浓度遥感反演[J].地理科学,2011,31(2):159-165.
	[ Fan H, Huang H J.Remote sensing retrieval of suspended particulate matter concentrations of surface waters near radial sand ridges area in the south yellow sea[J]. Scientia Geographica Sinica, 2011,31(2):159-165. ]
[7]	陈燕,孔金玲,孙晓明,等.基于半分析模型的渤海湾近岸海域悬浮泥沙浓度遥感反演[J].地理与地理信息科学,2014,30(3):33-36. doi: 10.3969/j.issn.1672-0504.2014.03.008
	[ Chen Y, Kong J L, Sun X M, et al.Retrieval of sea surface suspended sediment concentration in Bohai gulf offshore area on semi-analysis model[J]. Geography and Geo-Information Science, 2014,30(3):33-36. ] doi: 10.3969/j.issn.1672-0504.2014.03.008
[8]	Wang J J, Lu X X, Liew S C, et al.Retrieval of suspended sediment concentrations in large turbid rivers using Landsat ETM+: an example from the Yangtze River, China[J]. Earth Surface Processes and Landforms, 2009,34(8):1082-1092. doi: 10.1002/esp.1795
[9]	Bayram A, Kankal M, Önsoy H.Estimation of suspended sediment concentration from turbidity measurements using artificial neural networks[J]. Environmental Monitoring and Assessment, 2012,184(7):4355-4365. doi: 10.1007/s10661-011-2269-2
[10]	Kong J L, Sun X M, Wong D, et al.A semi-analytical model for remote sensing retrieval of suspended sediment concentration in the gulf of Bohai, China[J]. Remote Sensing, 2015,7:5373-5397. doi: 10.3390/rs70505373
[11]	王旭楠. 基于辐射传输模型的水质参数定量遥感反演[D].长春:吉林大学,2007.
	[ Wang X N. Radiative Transfer Model (RTM)-based water pollution parameters retrieval from Landsat TM/ETM data[D]. Changchun: Jilin University, 2007. ]
[12]	曹妃甸工业区门户网站[DB/OL]..
	[ Caofeidian industrial zone portal website[DB/OL]. ]
[13]	杜东,刘宏伟,秦雅飞,等.河北省曹妃甸近岸海域悬浮泥沙含量分布特征研究[J].地质调查与研究,2013,35(2):189-194.
	[ Du D, Liu H W, Qin Y F, et al.Study on distribution characteristics of the suspended particulate matter (SPM) concentration in the Caofeidian coastal area[J]. Geological Survey and Research, 2013,35(2):189-194. ]
[14]	杨华,赵洪波,吴以喜.曹妃甸海域水文泥沙环境及冲淤演变分析[J].水道港口,2005,26(3):130-133. doi: 10.3969/j.issn.1005-8443.2005.03.001
	[ Yang H, Zhao H B, Wu Y X.Analysis of hydrodynamic and sediment transport of Caofeidian sea area[J]. Journal of Waterway and Harbour, 2005,26(3):130-133. ] doi: 10.3969/j.issn.1005-8443.2005.03.001
[15]	李建国,孙晓明,康慧,等.曹妃甸近海Ⅱ类水体光谱反射率与悬浮泥沙浓度相关性研究[J].国土资源遥感,2009(3):54-58.
	[ Li J G, Sun X M, Kang H, et al.The correlation between the average reflectance of case Π water in Caofeidian offing and the concentration of surface suspended particulate matter[J]. Remote Sensing for Land & Resources, 2009,3:54-58. ]
[16]	《海洋调查规范》GB17378.4-1998,海洋监测规范(第四部分:海水分析) [S].北京:中国标准出版社,1998.
	[GB17378. 4-1998. The specification for marine monitoring (part 4: seawater analysis)[S]. Beijing: Standard Press of China, 1998. ]
[17]	唐军武,田国良,汪小勇,等.水体光谱测量与分析Ⅰ:水面以上测量法[J].遥感学报,2004,8(1):37-44. doi: 10.11834/jrs.20040106
	[ Tang J W, Tian G L, Wang X Y, et al.The methods of water spectra measurement and analysisⅠ: above-water method[J]. Journal of Remote Sensing, 2004,8(1):37-44. ] doi: 10.11834/jrs.20040106
[18]	徐涵秋. 利用改进的归一化差异水体指数(MNDWI)提取水体信息的研究[J].遥感学报,2005,9(5):589-595. doi: 10.3321/j.issn:1007-4619.2005.05.012
	[ Xu H Q.A study on information extraction of water body with the modified normalized difference water index(MNDW I)[J]. Journal of Remote Sensing, 2005,9(5):589-595. ] doi: 10.3321/j.issn:1007-4619.2005.05.012
[19]	蒲永峰. 基于RS和GIS技术的曹妃甸近岸海域多层泥沙浓度空间分布特征模拟与分析[D].西安:长安大学,2012.
	[ Pu Y F.Multilayer sediment concentration spatial distribution characteristics of simulation and analysis based on RS and GIS technology in Caofeidian offshore areas[D]. Xi'an: Chang' an University, 2012. ]
[20]	钱宁,万兆惠.泥沙运动力学[M].北京:科学出版社,1983.
	[ Qian N, Wan Z H.Mechanics of sediment transport[M]. Beijing: Science Press, 1983. ]
[21]	肖艳芳,赵文吉,朱琳.近海水体悬浮物HJ-1号小卫星CCD定量反演研究[J].海洋科学, 2012,36(8):59-63. ]
	[ Xiao Y F, Zhao W J, Zhu L. Quantitative retrieval model of suspended sediment concentration in estuary based on HJ-1 CCD image[J]. Marine Sciences, 2012,36(8):59-63. ]

取样位置	悬浮泥沙含量/（mg/L）				粒径/μm
取样位置	最小		最大	平均	最小	最大	平均
表层	2.2	208.7	16.5		2.98	72.83	19.03
中层	0.7	216.3	25.4		3.02	78.76	15.92
底层	0.6	285.6	29.0		3.13	64.97	13.34

模型适用范围	平均绝对误差 /(mg/L)	平均相对误差 /(%)	均方根误差 /(mg/L)
表层	5.57	25.35	7.22
中层	5.85	27.47	8.13
底层	8.72	29.24	11.50
