基于手机定位数据的城市人口分布近实时预测

doi:10.12082/dqxxkx.2018.170536

地球信息科学学报 ›› 2018, Vol. 20 ›› Issue (4): 523-531.doi: 10.12082/dqxxkx.2018.170536

• 地球信息科学理论与方法 • 上一篇下一篇

基于手机定位数据的城市人口分布近实时预测

陈丽娜^1,²(), 吴升^1,², 陈洁^3,^*(), 李明晓^3,⁴, 陆锋³

1. 福州大学福建省空间信息工程研究中心,福州 350002
2. 海西政务大数据应用协同创新中心,福州 350002
3. 中国科学院地理科学与资源研究所资源与环境信息系统国家重点实验室,北京 100101
4. 中国科学院大学,北京 100049

收稿日期:2017-11-27 修回日期:2018-02-28 出版日期:2018-04-20 发布日期:2018-04-20
作者简介:
作者简介：陈丽娜（1993-）,女,福建泉州人,硕士生,研究方向为地理信息服务。E-mail: chenln@lreis.ac.cn
基金资助:
国家自然科学基金面上项目（41571431）;特色研究所培育建设服务项目（TSYJS03）;福建省科技创新平台建设项目（2015H2001）

The Near-real-time Prediction of Urban Population Distributions Based on Mobile Phone Location Data

CHEN Lina^1,²(), WU Sheng^1,², CHEN Jie^3,^*(), LI Mingxiao^3,⁴, LU Feng³

1. Spatial Information Research Center of Fujian Province, Fuzhou University, Fuzhou 350002, China
2. Fujian Collaborative Innovation Center for Big Data Applications in Governments, Fuzhou 350002, China
3. State Key Laboratory of Resources and Environmental Information System, Institute of Geographic Sciences and Natural Resources Research, Chinese Academy of Sciences, Beijing 100101, China
4. University of Chinese Academy of Sciences, Beijing 100049, China

Received:2017-11-27 Revised:2018-02-28 Online:2018-04-20 Published:2018-04-20
Contact: CHEN Jie
Supported by:
National Natural Science Foundation of China, No.41571431;Cultivate Project of Institute of Geographic Sciences and Natural Resources Research, Chinese Academy of Sciences ,No.TSYJS03;Fujian Provincial Science and Technology Innovation Platform Construction Project,China, No.2015H2001.

摘要/Abstract

摘要：

精细时空尺度下城市人口分布的近实时预测可为优化公共资源配置、协助城市交通诱导、制定公共安全应急预案、探索城市居民活动规律等提供重要科学依据。本文采用城市手机定位数据,基于时间序列分析方法,分别建立参数预测模型和非参数预测模型,对精细尺度下的城市人口空间分布开展近实时预测。预测结果表明,基于时间序列分析方法的预测模型可为精细尺度下的城市人口分布近实时预测提供方法支持;在本文实验条件下,从人口规模、时空分布、多时间尺度、特殊事件等多个角度评估模型精度,非参数预测模型其预测误差均小于参数预测模型,且预测结果更为稳定。

关键词: 城市人口, 精细尺度, 手机数据, 近实时预测, 时间序列分析

Abstract:

The near-real-time prediction of urban populations at the fine-grained scales can provide an important scientific basis in many fields, such as optimizing the allocation of public resources, assisting urban traffic guidance, making the early warning in urban emergencies, as well as exploring daily life patterns of urban residents. In this study, based on time series analysis method, a parameter prediction model (i.e., the Autoregressive Integrated Moving Average model) and a non-parameter prediction model (i.e., the K-Nearest Neighboring model) are constructed to predict urban populations in large spatial and temporal scales. The spatial resolution is 0.005 arc-degree and the temporal resolution is 30 minutes. When applying these two prediction models to a large mobile phone location dataset, the results demonstrate that both of them can be helpful to the near-real-time prediction of urban populations. In particular, the non-parameter prediction model produced more stable prediction results with lower error than the parameter prediction model, from the perspectives of prediction error distributions by grid population, prediction error distributions in space and time, prediction error at different temporal granularities, and prediction error distributions under a special event.

Key words: urban population, fine-grained scale, mobile phone location data, near-real-time prediction, time series analysis

陈丽娜, 吴升, 陈洁, 李明晓, 陆锋. 基于手机定位数据的城市人口分布近实时预测[J]. 地球信息科学学报, 2018, 20(4): 523-531.DOI:10.12082/dqxxkx.2018.170536

CHEN Lina,WU Sheng,CHEN Jie,LI Mingxiao,LU Feng. The Near-real-time Prediction of Urban Population Distributions Based on Mobile Phone Location Data[J]. Journal of Geo-information Science, 2018, 20(4): 523-531.DOI:10.12082/dqxxkx.2018.170536

图/表 8

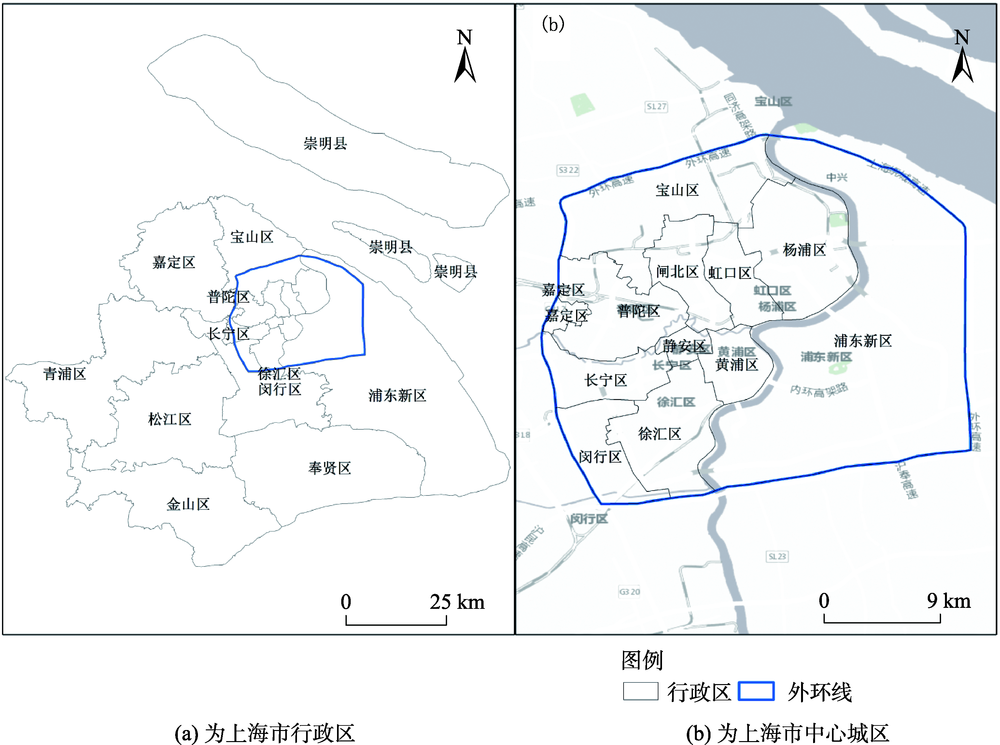

图1

表1

图2

图3

图4

图5

图6

图7

参考文献 26

[1]	曹劲舟,涂伟,李清泉,等.基于大规模手机定位数据的群体活动时空特征分析[J].地球信息科学学报,2017,19(4):467-474.
	[ Cao J Z, Tu W, Li Q Q, et al.Spatio-temporal analysis of aggregated human activities based on massive mobilep hone tracking data[J]. Journal of Geo-information Science, 2017,19(4):467-474.]
[2]	Kenneth C.Land. Methods for national population forecasts: A review[J]. Journal of the American Statistical Association, 1986,81(396):888-901. doi: 10.1080/01621459.1986.10478347
[3]	Lutz, Wolfgang.The Future population of the world[M]. Earthsan Publications, 1994.
[4]	黄荣清. 关于人口预测问题的思考[J].人口研究,2004,28(1):88-90. doi: 10.3969/j.issn.1000-6087.2004.01.019
	[ Huang R Q.The thinking of population projection[J]. Population Research, 2004,28(1):88-90. ] doi: 10.3969/j.issn.1000-6087.2004.01.019
[5]	Carmichael G A.Population pProjections[M]// Fundamentals of Demographic Analysis: Concepts, Measures and Methods. Springer International Publishing, 2016.
[6]	Yang Y, Tian L, Yeh A G O, et al. Zooming into individuals to understand the collective: A review of trajectory-based travel behaviour studies[J]. Travel Behaviour & Society, 2014,1(2):69-78. doi: 10.1016/j.tbs.2013.12.002
[7]	Zheng V W, Zheng Y, Xie X, et al. Towards mobile intelligence: Learning from GPS history data for collaborative recommendation[J]. Artificial Intelligence, 2012,184-185(2):17-37. doi: 10.1016/j.artint.2012.02.002
[8]	刘瑜,康朝贵,王法辉.大数据驱动的人类移动模式和模型研究[J].武汉大学学报·信息科学版,2014,39(6):660-666. doi: 10.13203/j.whugis20140149
	[ Liu Y, Kang C G, Wang F H.Towards big data-driven human mobility patterns and models[J]. Geomatics and Information Science of Wuhan University, 2014,39(6):660-666. ] doi: 10.13203/j.whugis20140149
[9]	李婷,裴韬,袁烨城,等.人类活动轨迹的分类、模式和应用研究综述[J].地理科学进展,2014,33(7):938-948. doi: 10.11820/dlkxjz.2014.07.009
	[ Li T, Pei T, Yuan Y C, et al.A review on the classification, patterns and applied research of human mobility trajectory[J]. Progress in Geography, 2014,33(7):938-948. ] doi: 10.11820/dlkxjz.2014.07.009
[10]	陆锋,刘康,陈洁.大数据时代的人类移动性研究[J].地球信息科学学报,2014,16(5):665-672. doi: 10.3724/SP.J.1047.2014.00665
	[ Lu F, Liu K, Chen J.Research on human mobility in big data era[J]. Journal of Geo-information Science, 2014,16(5):665-672. ] doi: 10.3724/SP.J.1047.2014.00665
[11]	龙瀛,张宇,崔承印.利用公交刷卡数据分析北京职住关系和通勤出行[J].地理学报,2012,67(10):1339-1352. doi: 10.11821/xb201210005
	[ Long Y, Zhang Y, Cui C Y.Identifying commuting pattern of Beijing using bus smart card data[J]. Acta Geographica Sinica, 2012,67(10):1339-1352. ] doi: 10.11821/xb201210005
[12]	申悦,柴彦威.基于GPS数据的北京市郊区巨型社区居民日常活动空间[J].地理学报,2013,68(4):506-516. doi: 10.3969/j.issn.0375-5444.2013.04.006
	[ Shen Y, Chai Y W.Daily activity space of suburban mega- community residents in Beijing based on GPS data[J]. Acta Geographica Sinica, 2013,68(4):506-516. ] doi: 10.3969/j.issn.0375-5444.2013.04.006
[13]	杨喜平,方志祥,赵志远,等.城市人群聚集消散时空模式探索分析——以深圳市为例[J].地球信息科学学报,2016,18(4):486-492. doi: 10.3724/SP.J.1047.2016.00486
	[ Yang X P, Fang Z X, Zhao Z Y, et al.Exploring urban human spatio-temporal convergence-dispersion patterns: A case study of Shenzhen city[J]. Journal of Geo-information Science, 2016,18(4):486-492. ] doi: 10.3724/SP.J.1047.2016.00486
[14]	Ahas R, Aasa A, Yuan Y, et al.Everyday space-time geographies: Using mobile phone-based sensor data to monitor urban activity in Harbin, Paris, and Tallinn[J]. International Journal of Geographical Information Science, 2015,29(11):2017-2039. doi: 10.1080/13658816.2015.1063151
[15]	尹凌,姜仁荣,赵志远,等.利用手机通话位置数据估计城市24h人口分布误差[J].地球信息科学学报,2017,19(6):763-771.
	[ Yin L, Jiang R R, Zhao Z Y, et al.Exploring the bias of estimating 24-hour population distributions using call detail record[J]. Journal of Geo-information Science, 2017,19(6):763-771. ]
[16]	杨喜平,方志祥,赵志远,等.顾及手机基站分布的核密度估计城市人群时空停留分布[J].武汉大学学报·信息科学版,2017,42(1):49-55. doi: 10.13203/j.whugis20150646
	[ Yang X P, Fang Z X, Zhao Z Y, et al.Analyzing space-time variation of urban human stay using kernel density estimation by considering space distribution of mobile phone towers[J]. Geomatics and Information Science of Wuhan University, 2017,42(1):49-55. ] doi: 10.13203/j.whugis20150646
[17]	Kang C G, Liu Y, Ma X J, et al.Towards estimating urban population distributions from mobile call data[J]. Journal of Urban Technology, 2012,19(4):3-21. doi: 10.1080/10630732.2012.715479
[18]	Deville P, Linard C, Martin S, et al.Dynamic population mapping using mobile phone data[J]. Proceedings of the National Academy of Sciences of the United States of America, 2014,111(45):15888. doi: 10.1073/pnas.1408439111
[19]	钟炜菁,王德,谢栋灿,等.上海市人口分布与空间活动的动态特征研究—基于手机信令数据的探索[J].地理研究,2017,36(5):972-984. doi: 10.11821/dlyj201705013
	[ Zhong W J, Wang D, Xie D C, et al.Dynamic characteristics of Shanghai's population distribution using cell phone signaling data[J]. Geographical Research, 2017,36(5):972-984. ] doi: 10.11821/dlyj201705013
[20]	李明晓,陈洁,张恒才,等.上海市精细时空尺度人口分布估计与特征分析[J].地球信息科学学报,2017,19(6):800-807.
	[ Li M X, Chen J, Zhang H C, et al.Fine-grained population estimation and distribution characteristics in Shanghai[J]. Journal of Geo-Information Science, 2017,19(6):800-807. ]
[21]	Guo Q L, Karimi H A.A novel methodology for prediction of spatial-temporal activities using latent features[J]. Computers Environment & Urban Systems, 2017,62:74-85. doi: 10.1016/j.compenvurbsys.2016.10.006
[22]	Zhang J, Zheng Y, Qi D, et al.DNN-based prediction model for spatio-temporal data[C]// ACM Sigspatial International Conference on Advances in Geographic Information Systems. ACM, 2016:92.
[23]	Gang X L, Zhao h. Prediction of urban human mobility using large-scale taxi traces and its applications[J]. Frontiers of Computer Science, 2012,6(1):111-121. doi: 10.1007/s11704-011-1192-6
[24]	Smith B L, Demetsky M J.Traffic flow forecasting: Comparison of modeling approaches[J]. Journal of Transportation Engineering, 1997,123(4):261-266. doi: 10.1061/(ASCE)0733-947X(1997)123:4(261)
[25]	Smith B L, Williams B M, Oswald R K.Comparison of parametric and nonparametric models for traffic flow forecasting[J]. Transportation Research Part C Emerging Technologies, 2002,10(4):303-321. doi: 10.1016/S0968-090X(02)00009-8
[26]	上海市统计局. 2016年上海市国民经济和社会发展统计公报[J].统计科学与实践,2017(3):12-21.
	[ Shanghai Statistics Bureau. Statistical communique of Shanghai on national economic and social development in 2016[J]. Statistical Theory and Practice, 2017(3):12-21. ]

用户ID	时间	基站经度	基站纬度
060F3*****	00:33	121.***	31.***
060F3*****	00:45	121.***	31.***
060F3*****	01:03	121.***	31.***
……	……	……	……
060F3*****	21:08	121.***	31.***
060F3*****	21:32	121.***	31.***
