尼泊尔地震的NOAA卫星数据震前异常分析

doi:10.12082/dqxxkx.2018.170567

地球信息科学学报 ›› 2018, Vol. 20 ›› Issue (8): 1169-1177.doi: 10.12082/dqxxkx.2018.170567

尼泊尔地震的NOAA卫星数据震前异常分析

林岭¹(), 孔祥增¹, 李南², 熊攀³

1. 福建师范大学数学与信息学院,福州 350000
2. 福建农林大学计算机与信息学院,福州 350000
3. 中国地震局地震预测研究所,北京 100036

收稿日期:2017-11-28 修回日期:2018-04-25 出版日期:2018-08-25 发布日期:2018-08-24
作者简介:
作者简介：林岭（1973-）,女,福建福州市,硕士,讲师,研究方向为机器学习、数据挖掘与软件工程。 E-mail: linling@fjnu.edu.cn
基金资助:
福建省引导性项目（2015Y0054）;国家自然科学基金青年项目（41601477）;国家自然科学基金项目（61361136002、61772004）

Pre-earthquake Anomaly Data Mining of Remote Sensing OLR in Nepal Earthquake

LIN Ling^1,^*(), KONG Xiangzeng¹, LI Nan², XIONG Pan³

1. College of Mathematics and Informatics, Fujian Normal University, Fuzhou 350000, China
2. College of Computer and Information Sciences, Fujian Agriculture and Forestry University,Fuzhou 350000, China
3. Institute of Earthquake Science, China Earthquake Administration, Beijing 100036, China

Received:2017-11-28 Revised:2018-04-25 Online:2018-08-25 Published:2018-08-24
Contact: LIN Ling E-mail:linling@fjnu.edu.cn
Supported by:
Leading Project of Fujian Province, No.2015Y0054;National Natural Science Foundation of China Youth Fund, No.41601477;National Natural Science Foundation of China, No.61361136002, 61772004.

摘要/Abstract

摘要：

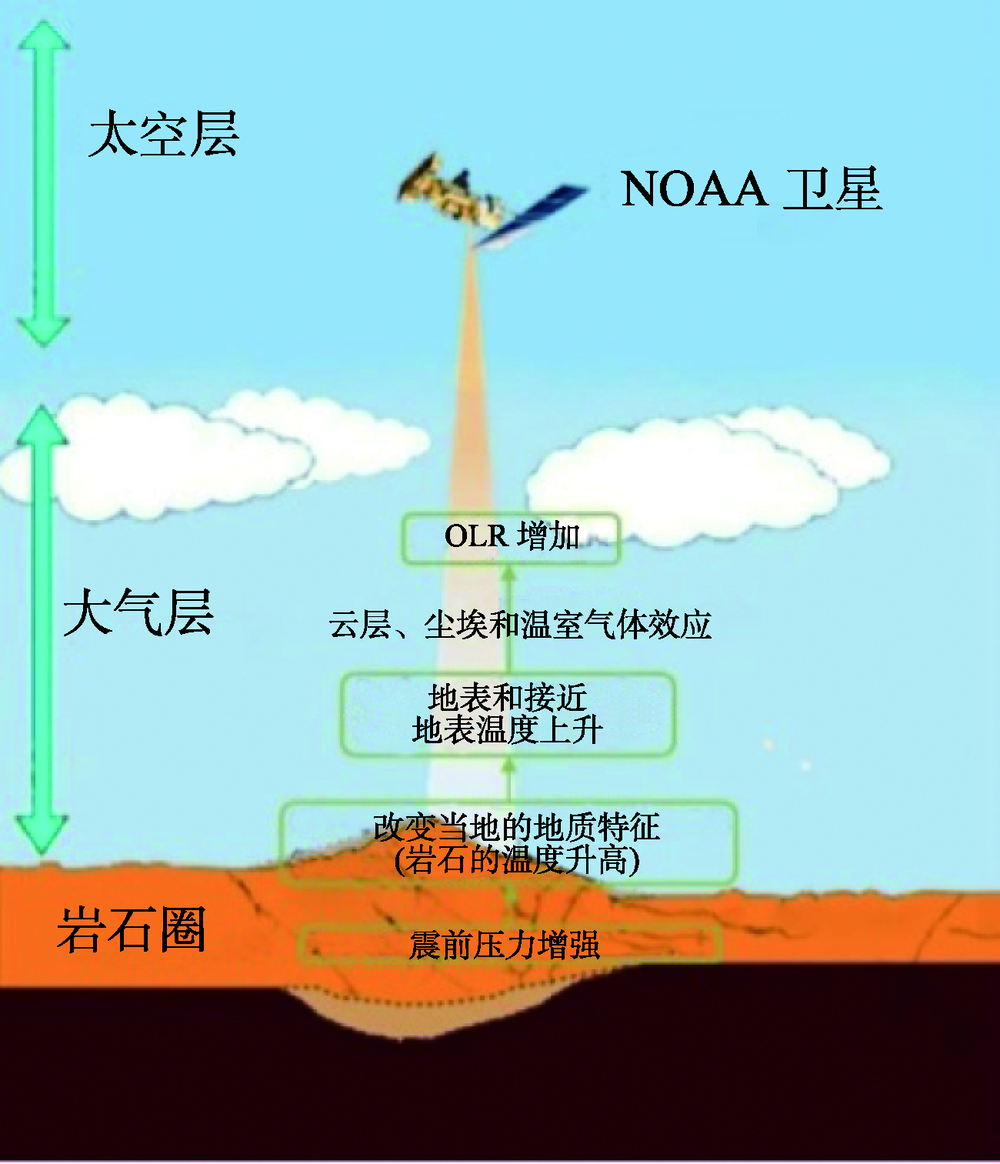

发生地震时常伴随有地热辐射增强现象,这些异常信息隐藏于遥感卫星NOAA所捕获的地球射出长波辐射（OLR）数据中,目前多数研究还停留在对源数据的解读,缺乏有效的信息处理技术,致使大部分的OLR数据没有得到充分利用。因此,本文提出一种基于鞅理论的概率统计方法来识别异常特征算法,从有噪声的非结构化的源数据中提取出震前OLR数据异常变化特征序列,从时间序列和地域范围进行震前异常分析。本算法实验是以尼泊尔的在2014年9月至2015年7月期间（包括2015年4月25日Ms7.8大地震）发生的3次地震的OLR数据为例,实验结果显示震中区域的OLR数据在震前的2~3个月开始有显著的异常数据变化,通过分析发现数据显示数据异常在震前出现的时间长短与地震的大小相关,异常的发生区域与震区周围的地貌特征相关。这说明基于鞅理论的算法所提取的OLR数据异常点序列的确与地震发生的时间地点是有关系的。

关键词: 射出长波辐射, 鞅理论, 数据挖掘, 尼泊尔地震, 异常提取

Abstract:

A number of researches have shown that the occurrence of earthquakes is often accompanied by abnormal warming of infrared radiation data, which is hidden in the Outgoing Long-Wave Radiation (OLR) data, which has been captured by the NOAA remote sensing satellite. These abnormal signals are embedded in a large amount of normal information and cannot be recognized by human eyes or some common methods. Many scholars utilized different means to analyze the anomaly of infrared remote sensing data. However, there were still lack of any effective processing techniques and algorithms, and most of the thermal infrared satellite remote sensing data weren't fully utilized. In this work, we propose a data mining algorithm, which is based on the anomaly features of the martingale theory. The algorithm first calculates the distance between a sample point and the cluster, and then determines whether the measured point is abnormal according to a comprehensive operation of the number of abnormal points nearest to each point, and calculates the whole event sequence data changing trend based on the martingale theory. The martingale value (i.e. CD value) corresponding to each original point is obtained, so that the original data is stripped out, the noise and the normal data are obtained, and the anomaly is analyzed before the earthquake. The OLR data sources used in the experiments on this algorithm were from three earthquakes happened in Nepal between September 2014 and July 2015 (including the Ms7.8 earthquake in April 25, 2015). We found that the CD value of the OLR data about the epicenter region began to have significant temporal correlation characteristics of anomalous data changes as early as 2 or 3 months before the earthquake. The results of this research were similar to the comparison of the OLR original and CD values of the Wenchuan and Lushan earthquakes. In this paper, we analyzed the anomaly of the three earthquakes one month before and some two weeks after the earthquakes. The experimental results show that when the earthquake is larger, and the anomaly CD value occurs earlier. In conclusion, the more obvious the anomaly is, the closer the region is to the epicenter or fault zone, the farther from the epicenter, the weaker and appeared later the abnormal signal.

Key words: OLR, Martingale theory, data mining, Nepal earthquake, anomaly detection

林岭, 孔祥增, 李南, 熊攀. 尼泊尔地震的NOAA卫星数据震前异常分析[J]. 地球信息科学学报, 2018, 20(8): 1169-1177.DOI:10.12082/dqxxkx.2018.170567

LIN Ling,KONG Xiangzeng,LI Nan,XIONG Pan. Pre-earthquake Anomaly Data Mining of Remote Sensing OLR in Nepal Earthquake[J]. Journal of Geo-information Science, 2018, 20(8): 1169-1177.DOI:10.12082/dqxxkx.2018.170567

图/表 7

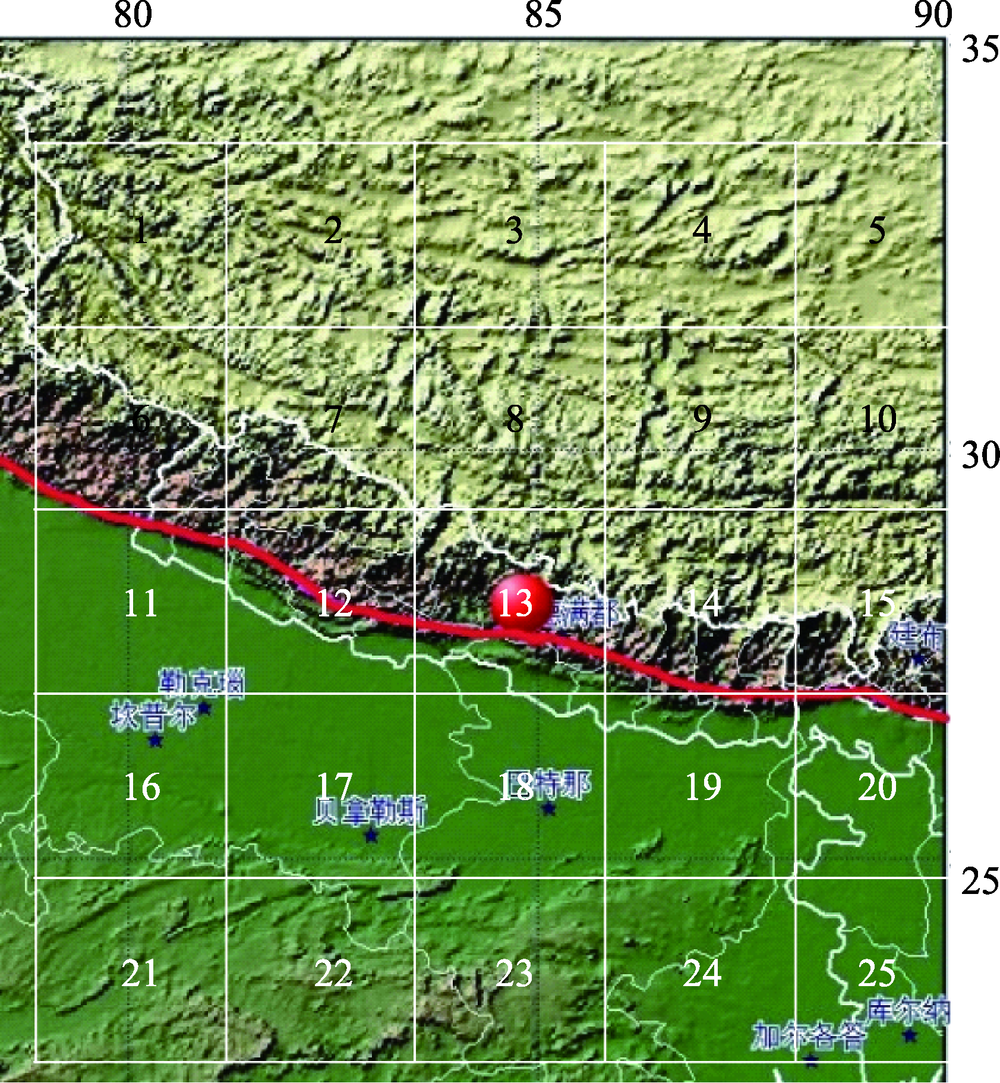

图1

表1

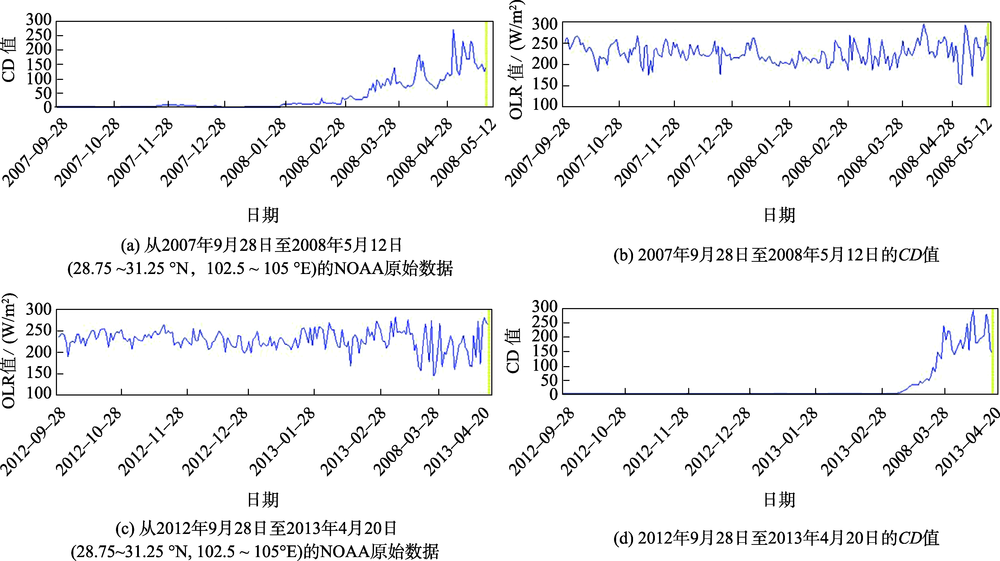

图2

图3

图4

图5

图6

参考文献 24

[1]	Bouchon M, Karabulut H, Aktar M, et al.Extended nucleation of the 1999 Mw 7.6 Izmit earthquake[J]. Science, 2011,331(6019):877-880. doi: 10.1126/science.1197341
[2]	Cervone G, Kafatos M, Napoletani D, et al.An early warning system for coastal earthquakes[J]. Advances in Space Research, 2006,37(4):636-642. doi: 10.1016/j.asr.2005.03.071
[3]	Kong X Z, Bi Y X, Glass D, Detecting seismic anomalies in outgoing Long-Wave Radiation data[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2014,8(2):649-660. doi: 10.1109/JSTARS.2014.2363473
[4]	郭晓,张元生,魏从信,等.汶川8.0级和仲巴6.8级地震中波红外热辐射异常[J].地球学报,2014,35(3):338-344. doi: 10.3975/cagsb.2014.03.09
	[ Guo X, Zhang Y S, Wei C X, et al.Medium wave infrared brightness anomalies of Wenchuan 8.0 and Zhongba 6.8 earthquakes[J]. Acta Geoscientica Sinica, 2014,35(3):338-344. ] doi: 10.3975/cagsb.2014.03.09
[5]	张元生,郭晓,钟美娇,等.汶川地震卫星热红外亮温变化[J].科学通报,2010,55(10):900-906.
	[ Zhang Y S, Guo X, Zhong M J, et al.Wenchuan earthquake: Brightness temperature changes from satellite infrared information[J]. Chinese Science Bulletin, 2010,55(10):900-906. ]
[6]	Saraf A K, Choudhury S.Cover: NOAA-AVHRR detects thermal anomaly associated with the 26 January 2001 Bhuj earthquake, Gujarat, India[J]. International Journal of Remote Sensing, 2005,26(6):1065-1074. doi: 10.1080/01431160310001642368
[7]	Ouzounov D, Bryant N, Logan T, et al.Satellite thermal IR phenomena associated with some of the major earthquakes in 1999-2003[J]. Physics and Chemistry of the Earth, 2006,31(4-9):154-163. doi: 10.1016/j.pce.2006.02.036
[8]	Tramutoli V, Cuomo V, Filizzola C, et al.Assessing the potential of thermal infrared satellite surveys for monitoring seismically active areas: The case of Kocaeli (İzmit) earthquake, August 17, 1999[J]. Remote Sensing of Environment, 2005,96(3-4):409-426. doi: 10.1016/j.rse.2005.04.006
[9]	Selva J, Marzocchi W, Papale P, et al.Operational eruption forecasting at high-risk volcanoes: the case of Campi Flegrei, Naples[J]. Journal of Applied Volcanology, 2012,1(1):1-14. doi: 10.1186/2191-5040-1-1
[10]	Xiong P, Shen X H, Bi Y X, et al.Study of outgoing longwave radiation anomalies associated with Haiti earthquake[J]. Natural Hazards and Earth System Science, 2010(10):2169-2178. doi: 10.5194/nhess-10-2169-2010
[11]	刘德富,康春丽.地球长波辐射(OLR)遥感与重大自然灾害预测[J].地学前缘,2003,10(2):427-430. doi: 10.3321/j.issn:1005-2321.2003.02.022
	[ Liu D F, Kang L C.Predicting heavy disasters by outgoing longwave radiation (OLR) of the earth[J]. Earth Science Frontiers, 2003,10(2):427-430. ] doi: 10.3321/j.issn:1005-2321.2003.02.022
[12]	张璇,张元生,郭晓,等.尼泊尔8.1级地震卫星热红外异常解析[J].地学前缘,2017,24(2):227-233.
	[ Zhang X, Zhang Y S, Guo X, et al.Analysis of thermal infrared anomaly in the Nepal MS 8.1 earthquake[J]. Earth Science Frontiers, 2017,24(2):227-233. ]
[13]	卢显,孟庆岩,顾行发,等. 2014年玉树M_S7.1地震前后长波辐射及温度参量变化特征研究[J].地震,2016,36(3):144-151.
	[ Lu X, Meng Q Y, Gu X F, et al.Variation characteristics of long wave radiation and temperature parameters before and after the Yushu earthquake[J]. Earthquake, 2016,36(3):144-151. ]
[14]	Qin K, Wu L.X, Liu S J. A Deviation-Time-Space-Thermal (DTS-T) method for global earth observation system of systems (GEOSS)-based earthquake anomaly recognition: criterions and quantify indices[J]. Remote Sensing, 2013,5(10):5143-5151. doi: 10.3390/rs5105143
[15]	Wu L X, Qin K, Liu S J.GEOSS-Based Thermal Parameters Analysis for Earthquake Anomaly Recognition[J], Proceedings of IEEE, 2012,100(10):2891-2907. doi: 10.1109/JPROC.2012.2184789
[16]	崔月菊,李静,王燕艳,等.遥感气体探测技术在地震监测中的应用[J].地球科学进展,2015,30(2):284-294. doi: 10.11867/j.issn.1001-8166.2015.02.0284
	[ Cui Y J, Li J, Wang Y Y, et al.Application of gas remote sensing technique to earthquake monitoring[J]. Advance in Earth Sciences, 2015,30(2):284-294. ] doi: 10.11867/j.issn.1001-8166.2015.02.0284
[17]	孟庆岩. 地震红外遥感[M].北京:地震出版社,2014.
	[ Meng Q Y.Seismic infrared remote sensing[M]. Beijing: Seismological Press, 2014. ]
[18]	戴勇,高立新,张延芹,等.岷县、漳县交界6.6级地震长波辐射异常分析[J].地震工程学报, 2013,35(4):794-799.
	[ Dai Y, Gao L X, Zhang Y Q, et al.Research on the anomaly of outgoing long-wave radiation prior to the Minxian-Zhangxian MS6.6 earthquake[J]. Northwestern Seismological Journal, 2013,35(4):794-799. ]
[19]	戴勇,高立新,尹战军,等.莫力达瓦、嫩江交界5.0级地震长波辐射异常研究[J].华南地震,2015,35(1):103-106. doi: 10.13512/j.hndz.2015.01.016
	[ Dai Y, Gao L X, Yin Z J, et al.Outgoing long-wave radiation anomaly before the Molidawa-Nenjiang M5.0 earthquake[J]. South China Journal of Seismology, 2015,35(1):103-106. ] doi: 10.13512/j.hndz.2015.01.016
[20]	吴立新,刘善军,吴育华,等.遥感-岩石力学(I)--非连续组合断层破裂的热红外辐射规律及其构造地震前兆意义[J].岩石力学与工程学报,2004(1):24-30. doi: 10.3321/j.issn:1000-6915.2004.01.005
	[ Wu L X, Liu S J, Wu Y H, et al.Remote sensing-rock mechanics(I)-laws of thermal infrared Rradiation from fracturing of discontinuous jointed faults and its meanings for tectonic earthquake omens[J]. Chinese Journal of Rock Mechanics and Engineering, 2004(1):24-30. ] doi: 10.3321/j.issn:1000-6915.2004.01.005
[21]	文翔,陈梅花,阎春恒,等.于田7.3级地震前MODIS卫星热红外异常分析[J].地震地质, 2015,37(3):893-905. doi: 10.3969/j.issn.0253-4967.2015.03.018
	[ Wen X. Chen M H. Yan C H, et al.Analysis on thermal infrared anomalous temperature increase of MODIS satellite before Yutian Ms7. 3 earthquake[J]. Seismology and Geology, 2015,37(3):893-905. ] doi: 10.3969/j.issn.0253-4967.2015.03.018
[22]	Kong X Z, Bi Y, Glass D H.Detecting seismic anomalies in outgoing long-wave radiation data[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2015,8(2):649-660. doi: 10.1109/JSTARS.2014.2363473
[23]	Ho S, Wechsler H.A Martingale framework for detecting changes in data streams by testing exchangeability[J]. IEEE Transactions on Software Engineering, 2010,32(12):2113-2127. doi: 10.1109/TPAMI.2010.48 pmid: 20975112
[24]	Vork V, Nouretdinov I, Gammerman A.Testing exchangeability on-line[C]. Proc of the 12th international conference on machine learning, San Francisco: Morgan Kaufmann, 2003:768-775.

序号	日期	时间(UTC)	震中	经纬度	震级	深度/km
1	2014-12-18	15:32:12	29 km SSE of Zuobude,中国	27.74 °N, 86.37° E	5.0	33.6
2	2015-04-25	06:11:25	36 km E of Khudi,尼泊尔	28.23 °N, 84.73 °E	7.8	8.2
3	2015-05-12	07:05:19	19 km SE of Kodari,尼泊尔	27.81 °N, 86.07 °E	7.3	15
