倾斜摄影三维模型数字水印算法

doi:10.12082/dqxxkx.2018.180011

地球信息科学学报 ›› 2018, Vol. 20 ›› Issue (6): 738-743.doi: 10.12082/dqxxkx.2018.180011

• 2017年中国地理信息科学理论与方法学术年会优秀论文专辑 • 上一篇下一篇

倾斜摄影三维模型数字水印算法

王刚(), 任娜^*(), 朱长青, 景旻

1. 南京师范大学虚拟地理环境教育部重点实验室,南京 210023
2. 江苏省地理信息资源开发与利用协同创新中心,南京 210023

收稿日期:2018-01-02 修回日期:2018-03-24 出版日期:2018-06-20 发布日期:2018-06-20
通讯作者: 任娜 E-mail:wgnjnu@163.com;renna1026@163.com
作者简介:
作者简介：王刚(1993-),男,河北张家口人,硕士生,研究方向为地理数据安全。E-mail: wgnjnu@163.com
基金资助:
江苏省“六大人才高峰”创新人才团队项目(XYDXXJS-CXTD-004)

The Digital Watermarking Algorithm for 3D Models of Oblique Photography

WANG Gang(), REN Na^*(), ZHU Changqing, JING Min

1. Key Laboratory of Virtual Geographic Environment of Ministry of Education, Nanjing Normal University, Jiangsu Province, Nanjing 210023, China
2. Jiangsu Center for Collaborative Innovation in Geographical Information Resource Development and Application, Jiangsu Province, Nanjing 210023, China

Received:2018-01-02 Revised:2018-03-24 Online:2018-06-20 Published:2018-06-20
Contact: REN Na E-mail:wgnjnu@163.com;renna1026@163.com
Supported by:
Jiangsu Province “Six Personnel Peaks” Innovative Talent Team Project, No.XYDXXJS-CXTD-004

摘要/Abstract

摘要：

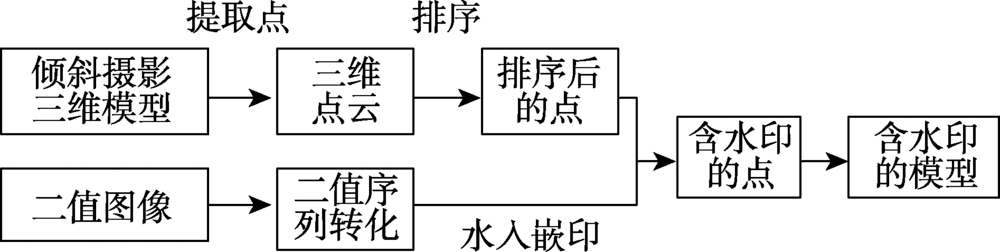

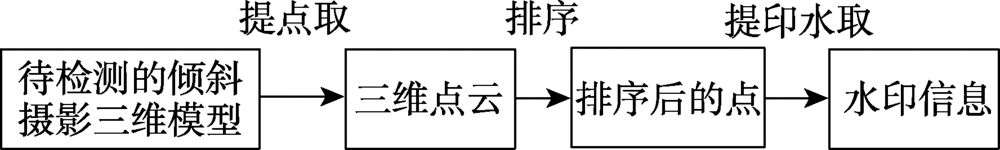

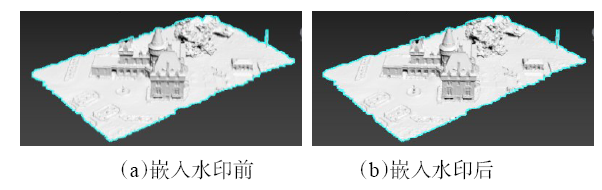

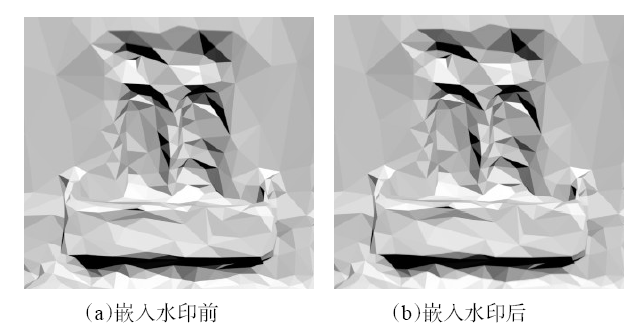

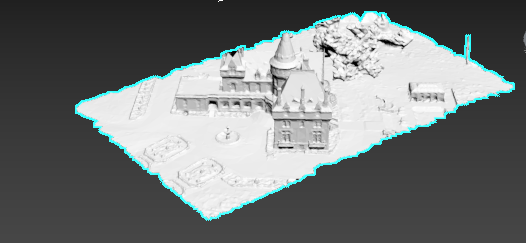

倾斜摄影三维模型作为一种地理数据,其数据安全问题不容忽视,数字水印技术可以为其版权保护提供有效的解决方案。本文基于倾斜摄影三维模型数据特征,根据其垂直方向上的稳定性,提出了一种基于距离映射机制的三维点云数据盲水印算法。首先,提取倾斜摄影三维模型中的点云并对其按照高度值排序;其次,将点云间相邻点的高度差作为信息载体,利用映射思想建立水印信息与水印嵌入位置的对应;最后,通过修改坐标值的奇偶性完成水印信息的嵌入。检测水印时通过顶点提取、排序、水平距离与水印位的映射和统计相邻点水印嵌入位置的奇偶性实现水印信息的提取。实验表明,该算法具有良好的不可感知性,并对平移、裁剪和旋转等常见攻击具有较强的鲁棒性。

关键词: 数字水印, 倾斜摄影, 三维模型, 鲁棒性, 盲水印

Abstract:

The importance of data security cannot be ignored in 3D model data of oblique photography, which is an important kind of geographic data. Digital watermarking technique can provide powerful protection for oblique photography 3D models. In the past, among studies of 3D model watermarking algorithms, oblique photography 3D models were mentioned rarely and those algorithms cannot meet the demand for the data security of oblique photography 3D models. If a watermarking algorithm is designed in combination with the characteristics of oblique photography 3D model data, obviously, it will be applicable for corresponding 3D models. In this paper, a blind watermarking algorithm is designed based on the characteristic and vertical stability of oblique photography 3D model data. Before embedding watermark in data, some preprocessing steps must be completed. The 3D points will be extracted from oblique photography 3D model data, and sorted by z-coordinate from smallest to largest. Then, using height difference between neighboring points as the watermark information carrier, watermark information is embedded by modifying the parity of the height difference. In order to build a correspondence between embedding location and watermark information, the horizontal distance of neighboring points is used to complete mapping. In the process of watermark testing, points extracting and sorting should be finished firstly as in the process of embedding. Then information can be extracted by distinguishing the parity of the height difference. In this process, mapping is also used. In order to analyze the robustness of this algorithm quantitatively, some experiments were completed. The results show that the algorithm is robust against some usual attacks such as data cutting, translation and rotation.

Key words: digital watermarking, oblique photography, 3D model, robustness, blind watermarking

王刚, 任娜, 朱长青, 景旻. 倾斜摄影三维模型数字水印算法[J]. 地球信息科学学报, 2018, 20(6): 738-743.DOI:10.12082/dqxxkx.2018.180011

WANG Gang,REN Na,ZHU Changqing,JING Min. The Digital Watermarking Algorithm for 3D Models of Oblique Photography[J]. Journal of Geo-information Science, 2018, 20(6): 738-743.DOI:10.12082/dqxxkx.2018.180011

图/表 11

图1

图2

图3

图4

图5

图6

表1

图7

表2

表3

表4

参考文献 20

[1]	王琳,吴正鹏,姜兴钰,等.无人机倾斜摄影技术在三维城市建模中的应用[J].测绘与空间地理信息,2015,38(12):30-32. doi: 10.3969/j.issn.1672-5867.2015.12.009
	[Wang L, Wu Z P, Jiang X Y, et al.Application of the UAV oblique photography technique in 3D city modeling[J]. Geomatics & Spatial Information Technology, 2015,38(12):30-32. ] doi: 10.3969/j.issn.1672-5867.2015.12.009
[2]	孙宏伟. 基于倾斜摄影测量技术的三维数字城市建模[J].现代测绘,2014,37(1):18-21.
	[Sun W H.3D City modeling based on Tilt photographic measuration technique[J]. Modern Surveying and Mapping, 2014,37(1):18-21. ]
[3]	朱长青. 地理空间数据数字水印理论与方法[M].北京:科学出版社,2014:3-14.
	[Zhu C Q.The theory and method of digital watermarking for geospatial data[M]. Beijing: Beijing: Science Press, 2014:3-14. ]
[4]	任娜,朱长青,任树敬.瓦片数据版权保护方法及应用研究[J].地球信息科学学报,2012,14(6):693-697. doi: 10.3724/SP.J.1047.2012.00693
	[Ren N, Zhu C Q, Ren S J.Research on the method and application of the copyright protection of tile data[J]. Journal of Geo-information Science, 2012,14(6):693-697. ] doi: 10.3724/SP.J.1047.2012.00693
[5]	杨成松,朱长青,陶大欣.基于坐标映射的矢量地理数据全盲水印算法[J].中国图象图形学报,2010,15(4):684-688. doi: 10.11834/jig.20100421
	[Yang C S, Zhu C Q, Tao D X.A blind watermarking algorithm for vector geo-spatial data based on coordinate mapping[J]. Journal of Image and Graphics, 2010,15(4):684-688. ] doi: 10.11834/jig.20100421
[6]	孙圣和,陆哲明,牛夏牧,等.数字水印技术及应用[M].北京:科学出版社,2004:10-14.
	[Sun S H, Lu Z M, Niu X M, et al.Digital watermarking technique and application[M]. Beijing: Science Press, 2004:10-14. ]
[7]	钟桦,张小华,焦李成.数字水印与图像认证——算法及应用[M].西安:西安电子科技大学出版社,2006:1-2.
	[Zhong H, Zhang X H, Jiao L C.Digital watermarking and image authentication- algorithm and application[M]. Xi′an: Xidian University Press, 2006:1-2. ]
[8]	Mun S M, Jang H U, Kim D G, et al.A robust 3D mesh watermarking scheme against cropping[C]. International Conference on 3d Imaging, 2016
[9]	Soliman M M, Hassanien A E, Onsi H M.A robust 3D mesh watermarking approach using genetic algorithms[J]. Advances in Intelligent Systems and Computing, 2015,323:731-741. doi: 10.1007/978-3-319-11310-4
[10]	周昕,俞晓明,朱涛,等.一种基于小波变换的三维网格模型水印算法[J].计算机应用,2007,27(5):1156-1159.
	[ Zhou X, Yu X M, Zhu T, et al. 3D mesh model watermarking algorithm based on wavelet transform[J]. Computer Application, 2007,27(5):1156-1159. ]
[11]	邢娟娟,刘泉.一种基于DWT和SVD的三维数字水印算法[J].武汉理工大学学报,2009(14):107-109.
	[Xing J J, Liu Q.Into digitization: Some concepts and methods of Chinese historical geographic information system[J]. Historical Geography, 2002(14):107-109. ]
[12]	Zhan Y Z, Li Y T, Wang X Y, et al.A blind watermarking algorithm for 3D mesh models based on vertex curvature[J]. Journal of Zhejiang Universityence C, 2014,15(5):351-362. doi: 10.1631/jzus.C1300306
[13]	朱利利,张建勋,汪波.基于粗糙度的三维网格模型数字水印[J].重庆理工大学学报(自然科学),2014,28(2):87-91. doi: 10.3969/j.issn.1674-8425(z).2014.02.019
	[Zhu L L, Zhang J X, Wang B.Digital watermarking for 3Dmesh model based on roughness[J]. Journal of Chongqing University of Technology (Natural Science), 2014,28(2):87-91. ] doi: 10.3969/j.issn.1674-8425(z).2014.02.019
[14]	张建海,温显斌,雷鸣,等.基于小波变换的三维网格数字水印技术研究[J].计算机工程与应用,2014,50(4):98-102. doi: 10.3778/j.issn.1002-8331.1204-0169
	[Zhang J H, Wen X B, Lei M, et al.Robust approach of 3D mesh watermarking in wavelet domain[J]. Computer Engineering and Applications, 2014,50(4):98-102. ] doi: 10.3778/j.issn.1002-8331.1204-0169
[15]	Feng X.A new watermarking algorithm for point model using angle quantization index modulation[C]. National Conference on Electrical, Electronics and Computer Engineering, 2016.
[16]	商静静,孙刘杰,王文举,等.基于离散余弦变换的三维点云模型全息盲水印[J].包装工程,2015(13):111-114.
	[Shang J J, Sun L J, Wang W J, et al.Into digitization: Some concepts and methods of Chinese historical geographic information system[J]. Historical Geography, 2002(13):111-114. ]
[17]	Wang Y P, Hu S M.A new watermarking method for 3D models based on integral invariants[J]. IEEE Transactions on Visualization & Computer Graphics, 2009,15(2):285. doi: 10.1109/TVCG.2008.101 pmid: 19241642
[18]	吴颖斌,耿国华,贺毅岳.基于DWT的3D点云模型数字水印算法[J].计算机工程,2012,38(6):151-152. doi: 10.3969/j.issn.1000-3428.2012.06.049
	[Wu Y B, Geng G H, He Y.Digital watermark algorithm based on DWT for 3D point cloud model[J]. Computer Engineering, 2012,38(6):151-152. ] doi: 10.3969/j.issn.1000-3428.2012.06.049
[19]	Cignoni P, Rocchini C, Scopigno R.Metro: Measuring error on simplified surfaces[J]. Computer Graphics Forum, 1998,17(2):167-174. doi: 10.1111/1467-8659.00236
[20]	王新宇. 面向版权保护的三维网格模型数字水印算法研究[D].镇江:江苏大学,2017.
	[Wang X Y.Research on digital watermarking techniques for copyright protection of three-dimensional mesh models[D]. Zhenjiang: Jiangsu University, 2017. ]

评价指标	参数x的值	结果
Hausdorff	4	1.0×10^-8
SNR	4	127.7
PSNR	4	106.3

平移方向	平移距离/m	水印信息相关值
X轴	100	1
Y轴	100	1
Z轴	100	1

裁剪强度	水印信息相关值	水印图片
20%	0.98
40%	0.94
60%	0.82

沿Z轴旋转方向	旋转角度/°	水印信息相关值
顺时针	30	1
顺时针	60	1
逆时针	60	1
