南海区域商船典型空间分布及贸易流向研究

doi:10.12082/dqxxkx.2018.180017

地球信息科学学报 ›› 2018, Vol. 20 ›› Issue (5): 632-639.doi: 10.12082/dqxxkx.2018.180017

• “海上丝绸之路空间数据分析”专辑 • 上一篇下一篇

南海区域商船典型空间分布及贸易流向研究

梅强^1,²(), 吴琳³, 彭澎⁴, 周鹏¹, 陈金海^1,^2,^*()

1. 集美大学航海学院,厦门 361021
2. 船舶辅助导航技术国家地方联合工程研究中心, 厦门 361021
3. 中国科学院计算技术研究所,北京 100190
4. 中国科学院地理科学与资源研究所资源与环境信息系统国家重点实验室,北京100101

收稿日期:2017-12-28 修回日期:2018-03-22 出版日期:2018-05-29 发布日期:2018-05-20
作者简介:
作者简介：梅强（1987-）,男,安徽宿州人,助教,主要从事船舶数据处理研究。E-mail： meiqiang@jmu.edu.cn
基金资助:
国家自然科学基金项目（41501490）;中国科学院重点部署项目（ZDRW-ZS-2016-6-3）;福建省教育厅基金（JAT160257）;福建省教育厅教改项目（JZ160302）;集美大学李尚大基金（ZC2016005）

Typical Spatial Distribution of Merchant Vessels and Trade Flow in South China Sea

MEI Qiang^1,²(), WU Lin³, PENG Peng⁴, ZHOU Peng¹, CHEN Jinhai^1,^2,^*()

1. Navigation college, Jimei University, Xiamen 361021, China
2. National-local Joint Engineering Research Center for Marine Navigation Aids Services, Xiamen 36102, China
3. Institute of computing technology, Chinese Academy of Sciences, Beijing 100190, China
4. State Key Laboratory of Resources and Environmental Information System, Institute of Geographic Sciences and Natural Resources Research, Beijing 100101, China

Received:2017-12-28 Revised:2018-03-22 Online:2018-05-29 Published:2018-05-20
Contact: CHEN Jinhai
Supported by:
National Natural Science Foundation of China, No.41501490;Key Project of the Chinese Academy of Sciences, No.ZDRW-ZS-2016-6-3;Fujian Provincial Educational Department Fundation, No.JAT160257;Fujian Provincial Teaching Reform Fundation, No.JZ160302;Li Shangda College Fundation, No.ZC2016005.

摘要/Abstract

摘要：

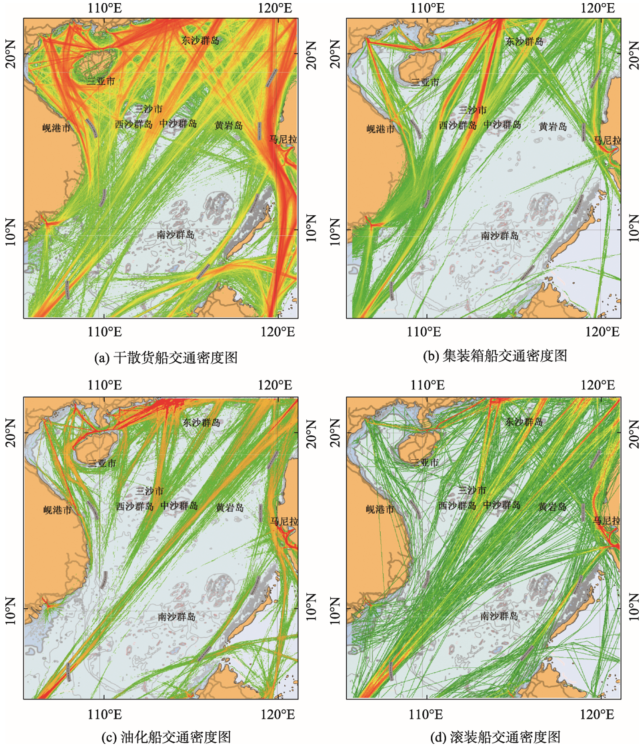

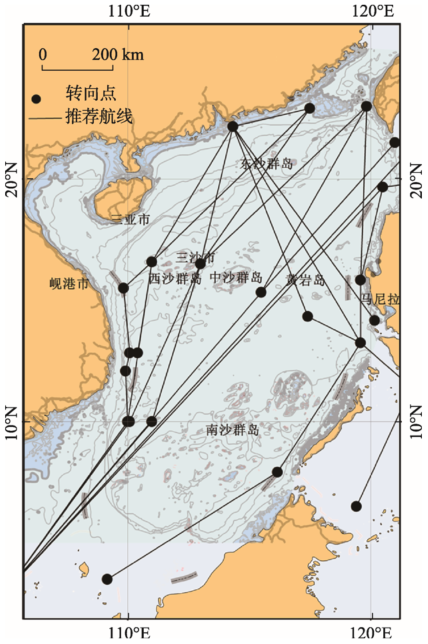

随着中国对外开放的深入以及“一带一路”倡议的推进,南海战略地位更加显著。如何科学监管南海船舶,维护国家权益,促进地区之间贸易也成为摆在政府部门面前的难题。在本文中利用南海区域2015年的卫星AIS数据与船舶数据档案资料,通过计算南海水域船舶交通密度分析主要航路,与关键门线船舶流量计算相结合,明确船舶典型空间分布;同时基于4种类型船舶的主要航路的选择,明确南海货物贸易主要流向。研究成果表明：① 船舶空间分布在《世界大洋航路》的推荐航线上,南海的建设开发并未影响船舶的贸易运输;② 贸易运输以跨越南海的长距离运输为主,珠三角作为主要航路的重要端点表明中国在南海贸易的优势地位。

关键词: AIS, 南海, 交通密度分析, 门线计算, 贸易流向, 一带一路

Abstract:

With the deepening of China's opening to the outside world and the advancement of the Belt and Road Initiative, South China Sea, as an important gateway to China's opening-up and a vital joint for important sea-routes gathering in the world, is embodying prominently strategic position. How to ensure the safety of routes and regulate the vessels sailing in the open water of the south China Sea, safeguard national rights and enhance regional trade is a difficult problem for governmental administrators. In this paper, we excavated the typical spatial distribution of vessels by calculating and visualizing the traffic density of navigation in the South China Sea to analyze the main routes selected by full use of the satellite AIS data of South China sea in 2015 and vessel information database, so the habitual routes could be detected in this region. On the other hand, the statistics on the number of vessels in South China Sea were computed by the statistic line set to find the peak points of the vessel crossing data on the main routes being selected by the most of vessels. Via the above steps, the typical spatial distribution of vessels was defined clearly. Meanwhile, the main flow of trades in South China Sea was determined based on 4 dominant sorts (Bulk, Container, Oil&Chemical and Ro-Ro) of vessels' main routes selected. Research indicated that: (1) The main routes followed the authoritative sailing book《Admiralty Ocean Passage for the World》, which provides sailors with the routes consisting of the waypoints recommended. As a result, the construction and development have little influence on the navigation in this region. Maritime safety administrator can set traffic separation scheme efficiently based on this research; (2) Long-distance shipping is the major mode of transportation. Pearl River Delta being one of the main ends of trade flow indicates the China's dominant position in the South China Sea Trade. This research also attracts more attention to the Beibu Gulf and Hainan Island’s trade potentiality.

Key words: Automatic Identification System, South China Sea, traffic density analysis, statistics lines calculation, trade flow, the Belt and Road Initiatives

梅强, 吴琳, 彭澎, 周鹏, 陈金海. 南海区域商船典型空间分布及贸易流向研究[J]. 地球信息科学学报, 2018, 20(5): 632-639.DOI:10.12082/dqxxkx.2018.180017

MEI Qiang,WU Lin,PENG Peng,ZHOU Peng,CHEN Jinhai. Typical Spatial Distribution of Merchant Vessels and Trade Flow in South China Sea[J]. Journal of Geo-information Science, 2018, 20(5): 632-639.DOI:10.12082/dqxxkx.2018.180017

图/表 6

图1

图2

图3

图4

图5

图6

参考文献 22

[1]	Zhong H, White M.South China Sea: Its importance for shipping, trade, energy and fisheries[J]. Asia-Pacific Journal of Ocean Law and Policy, 2017,2(1):9-24. doi: 10.1163/24519391-00201003
[2]	石伟,苏奋振,周成虎,等.南沙岛礁及周边港口可达性评价模型研究[J].地理学报,2014,69(10):1510-1520.
	[Shi W, Su Z F, Zhou C H, et al.Research on accessibility model of Nansha Islands and surrounding seaports[J]. Acta Geographica Sinica, 2014,69(10):1510-1520. ]
[3]	张君珏,苏奋振,周成虎,等.不同海岸地貌背景下的南海周边岸带35年建设用地扩张分析[J].地理学报,2016,71(1):104-117. doi: 10.11821/dlxb201601008
	[ Zhang J J,Su Z F,Zhou C H, et al.Construction land expansion in coastal zone around the South China Sea based on different geomorphologic backgrounds in the past 35 years[J]. Acta Geographica Sinica,2016,71(1):104-117. ] doi: 10.11821/dlxb201601008
[4]	郑彤,唐议.中国南海区海洋捕捞渔船现状分析[J].上海海洋大学学报,2016,25(4):620-627. doi: 10.12024/jsou.20160201650
	[ Zheng T, Tang Y.Analysis of current status of Chinese marine fishing fleet of South China Sea area[J]. Journal of Shanghai Ocean University, 2016,25(4):620-627. ] doi: 10.12024/jsou.20160201650
[5]	何学贤,彭子成,王兆荣,等.利用珊瑚的影像密度恢复南海海表温度[J].地理学报,2000,55(2):183-190. doi: 10.3321/j.issn:0375-5444.2000.05.006
	[ He X X,Peng Z C,Wang Z R,et al.Reconstructing of sea surface temperature in South China Sea by using image density of coral X-ray photograph[J]. Acta Geographica Sinica,2000,55(2):183-190. ] doi: 10.3321/j.issn:0375-5444.2000.05.006
[6]	Ouyang C F, Yen M C, Lin T H, et al.Impact of equatorial and continental airflow on primary greenhouse gases in the northern South China Sea[J]. Environmental Research Letters, 2015,10(6):065005. doi: 10.1088/1748-9326/10/6/065005
[7]	Sibuet J C, Yeh Y C, Lee C S.Geodynamics of the South China Sea[J]. Tectonophysics, 2016,692:98-11. doi: 10.1016/j.tecto.2016.02.022
[8]	轩少永,黎法明,胡甚平,等.广州港水域船舶航行风险评估[J].中国航海,2013,36(4):96-99. doi: 10.3969/j.issn.1000-4653.2013.04.022
	[ Xuan S Y, Li F M,Hu S P, et al.Risk assessment of ship navigation in Guangzhou Harbor[J]. Navigation of China, 2013,36(4):96-99. ] doi: 10.3969/j.issn.1000-4653.2013.04.022
[9]	杜磊,文元桥,李正强,等.水上交通宏观态势评估模型[J].大连海事大学学报,2016,42(1):27-33. doi: 10.16411/j.cnki.issn1006-7736.2016.01.006
	[ Du L, Wen Y Q, Li Z Q, et al.Marine traffic macroscopic situation assessment model[J]. Journal of Dalian Maritime University,2016,42(1):27-33. ] doi: 10.16411/j.cnki.issn1006-7736.2016.01.006
[10]	Qu X, Meng Q, Suyi L.Ship collision risk assessment for the Singapore Strait[J]. Accident, analysis and prevention, 2011,43(6):2030-2036. doi: 10.1016/j.aap.2011.05.022 pmid: 21819832
[11]	Weng J, Meng Q, Qu X.Vessel collision frequency estimation in the Singapore Strait[J]. Journal of Navigation, 2012,65(2):207-221. doi: 10.1017/S0373463311000683
[12]	汤敏惠.南海定线制规划[J].珠江水运,2014(21):76-78. [ Tang H M. TSS scheduled in South China Sea[J]. Pearl River Shipping, 2014(21):76-78. ]
[13]	Admiralty. Ocean passages for the World (NP136)[M]. London: United Kingdom Hydrographic Office. 2014:169-210.
[14]	中国航海学会,上海海事大学.南海航行研究报告. [ EB/OL]. .
	China Institute of Navigation, Shanghai Maritime University. Research Report on Navigation status in the South China Sea[EB/OL]. .
[15]	Harm G, Marlene A, Torkild E, et al.Completeness and accuracy of a wide-area maritime situational picture based on automatic ship reporting systems[J]. Journal of Navigation, 2016,69(1):156-168. doi: 10.1017/S0373463315000582
[16]	Vespe M, Greidanus H, Alvarez M A.The declining impact of piracy on maritime transport in the Indian Ocean: Statistical analysis of 5-year vessel tracking data[J]. Marine Policy, 2015,59: 9-15. doi: 10.1016/j.marpol.2015.04.018
[17]	Chen J, Lu F, Peng G.A quantitative approach for delineating principal fairways of ship passages through a strait[J]. Ocean Engineering, 2015,103(103):188-197. doi: 10.1016/j.oceaneng.2015.04.077
[18]	中华人民共和国海事局.南中国海至马六甲海峡航行指南[M].北京:人民交通出版社,2017:1-5.
	[ China Maritime Safety Administration.Sailing direction from South China Sea to Malacca Strait[M]. Beijing:China Communication Press, 2017:1-5. ]
[19]	李丽娜. 航海自动化[M].北京:人民交通出版社,2012:198-214.
	[ Li L N.Navigaion Automation[M]. Beijing: China Communication Press, 2012:198-214. ]
[20]	Lin W, Xu Y, Qi W, et al.Mapping global shipping density from AIS Data[J]. Journal of Navigation, 2016,70(1):67-81. doi: 10.1017/S0373463316000345
[21]	宁建强,黄涛,刁博宇,等.一种基于海量船舶轨迹数据的细粒度网格海上交通密度计算方法[J].计算机工程与科学,2015,37(12):2242-2249.
	[ Ning J Q, Huang T, Diao B Y, et al.A fine grained grid-based maritime traffic density algorithm for mass ship trajectory data[J]. Computer Engineering and Science, 2015,37(12):2242-2249. ]
[22]	李红祥,方逊.基于AIS的船舶交通流量统计方法研究[J].武汉理工大学学报(交通科学与工程版),2011,35(4):853-857.
	Li H X,Fang X.Statistical method research of vessel traffic flow based on AIS[J]. Journal of Wuhan University of Technology (Transportation Science & Engineering), 2011,35(4):853-857.
