基于自组织网络的黄河口浑浊模式研究

doi:10.12082/dqxxkx.2018.180046

地球信息科学学报 ›› 2018, Vol. 20 ›› Issue (8): 1190-1200.doi: 10.12082/dqxxkx.2018.180046

基于自组织网络的黄河口浑浊模式研究

申明^1,²(), 王思远^1,^*(), 马元旭¹, 苏理宏³, 游永发^1,²

1. 中国科学院遥感与数字地球研究所,中国科学院数字地球重点实验室,北京 100094
2. 中国科学院大学,北京 100049
3. Harte Research Institute, Texas A&M University-Corpus Christi, Corpus Christi, USA, TX 78412;

收稿日期:2018-01-15 修回日期:2018-03-19 出版日期:2018-08-25 发布日期:2018-08-24
通讯作者: 王思远 E-mail:shenming@radi.ac.cn;wangsy@radi.ac.cn
作者简介:
作者简介：申明（1993-）,女,硕士生,主要从事遥感与GIS应用研究。E-mail: shenming@radi.ac.cn
基金资助:
国家自然科学基金项目（91547107、41428103）

Turbidity Patterns Identification Based on Self-organizing Maps at Yellow River Estuary

SHEN Ming^1,²(), WANG Siyuan^1,^*(), MA Yuanxu¹, SU Lihong³, YOU Yongfa^1,²

1. Key Laboratory of Digital Earth Science, Institute of Remote Sensing and Digital Earth, Chinese Academy of Sciences, Beijing 100094, China
2. University of Chinese Academy of Sciences, Beijing 100049, China
3. Harte Research Institute, Texas A & M University-Corpus Christi, Corpus Christi, TX 78412, USA;

Received:2018-01-15 Revised:2018-03-19 Online:2018-08-25 Published:2018-08-24
Contact: WANG Siyuan E-mail:shenming@radi.ac.cn;wangsy@radi.ac.cn
Supported by:
National Natural Science Foundation of China, No.91547107, 41428103.

摘要/Abstract

摘要：

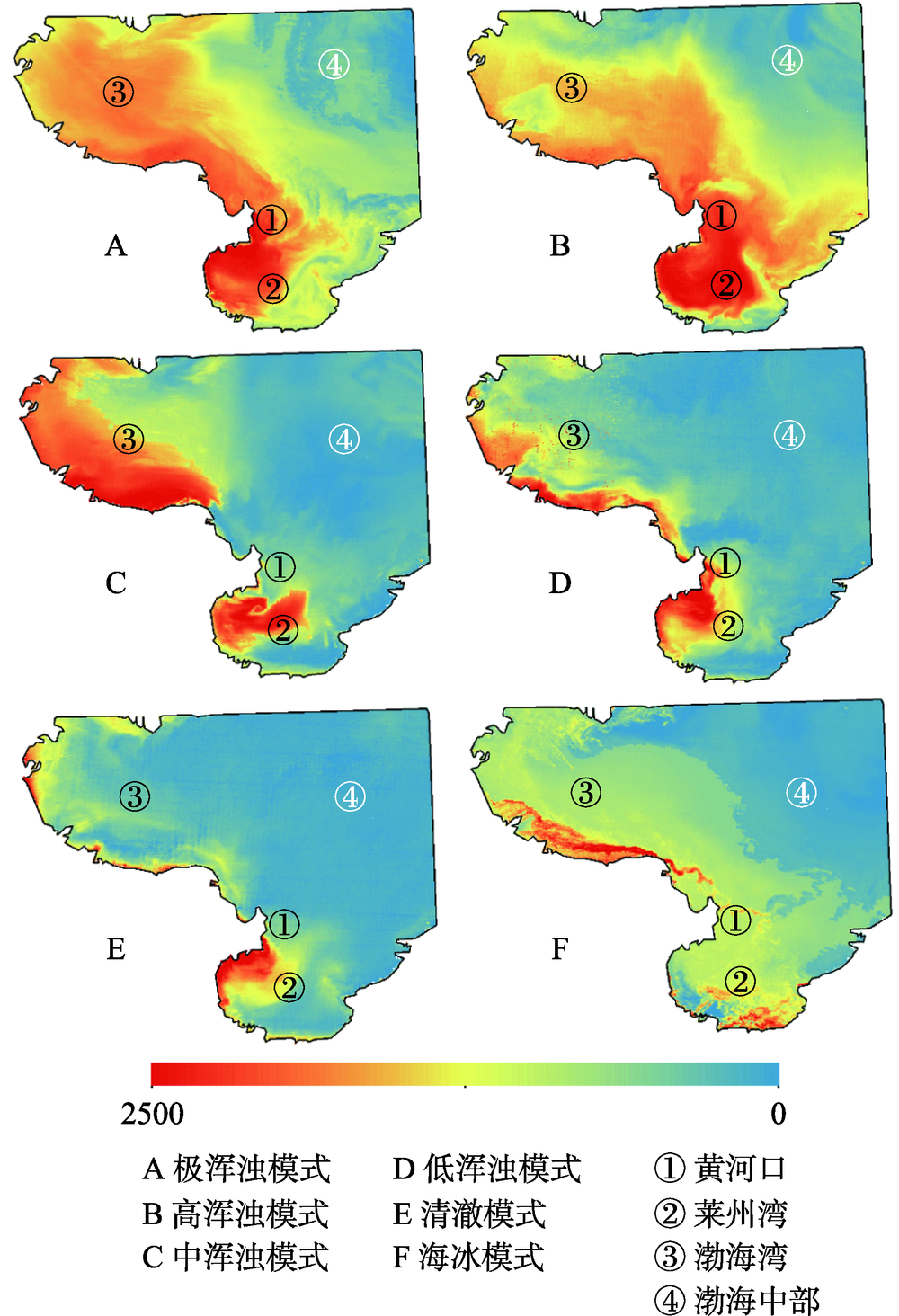

传统浑浊度时空变化模式研究依靠野外观测实验,需要投入大量人力物力,模型适用范围亦非常有限。本文利用自组织网络（SOM）,直接从长时序遥感影像中提取典型浑浊模式,分析浑浊度年内、年际变化特征。以黄河河口附近海域为研究区,提取出近15年的6类典型浑浊模式。典型特征显示,研究区内主要有2个浑浊区,位于渤海湾西部和南部,以及河口外和莱州湾西北部;6类模式中四类以年为周期过渡更替,冬春季浑浊度较高,夏秋季浑浊度较低;多年浑浊模式逐渐由中浑浊向清澈模式变化,整体浑浊度有降低趋势。浑浊水体分布主要受河口潮流、环流等海洋动力和风浪影响,结合研究区气象观测数据分析,海面风浪变化是造成浑浊模式更替的主要原因,黄河入海泥沙影响范围仅局限于河口口门周边。利用统计参数分析和2007年各月悬浮泥沙浓度反演结果比较,评价SOM分类效果,结果表明SOM提取的模式间具有显著差异,一定程度上能够代替经验模型反映区域浑浊特征。SOM神经网络能够从长时序遥感影像中直接提取浑浊水体典型分布模式,分析海岸带地区水体浑浊度变化的时空特征,对了解复杂水体泥沙输运及优化水资源利用具有重要应用价值。

关键词: 遥感, 自组织网络（SOM）, 浑浊模式, 时空变化, 黄河口

Abstract:

In the study of spatial and temporal changes of the turbidity, traditional methods largely depend on field survey, which needs considerable manpower and materials. And these models are limited in different regions and time periods. With the help of self-organizing map (SOM) clustering, typical turbidity patterns can be extracted from plenty of remote sensing imageries covering long time periods. It can also facilitate the analysis of intra-annual and inter-annual variations. Taking the Yellow River estuary as our study area, six turbidity patterns were revealed from 2000-2015 MODIS data. Two main turbid areas appeared on the turbidity feature maps, located in the western and southern Bohai Bay, and outside the estuary in north-western Laizhou Bay. Four patterns appeared annually, of which the turbid level in winter and spring is higher than that in autumn and summer. And during the last fifteen years, turbidity patterns have gradually changed from middle turbidity to Clean, showing a declining trend of the overall turbid level. The hydrological data from Yellow River, meteorological observation data of wind and wave on the sea surface and ocean dynamics in the estuary were combined to detect the contributing factors of turbidity patterns. Spatial distribution was mainly influenced by wind waves and ocean dynamics, such as tide and circulating current. And intra-annual changes of dominant turbidity pattern were mainly caused by wind and wave on the sea surface, while the influence of sediment transportation from Yellow River is only limited around the estuary. SOM clustering results were evaluated from two perspectives: calculation of statistic parameters for quantitative analysis and inversion of the concentration of total suspended matter in the study area in 2007 for comparison with empirical model. It showed that there were significant differences between SOM patterns, and this method could reveal similar turbid features as the empirical models do. Thus, SOM is an effective and indispensable method to identify turbidity patterns and can directly extract typical features from long time series remote sensing imageries. This method significantly facilitates the study on spatial and temporal variation of water turbidity in coastal areas, which is of great practical value for research on sediment transport and water utilization in complex water bodies.

Key words: remote sensing, self-organizing maps, turbidity pattern, spatial-temporal change, Yellow River estuary

申明, 王思远, 马元旭, 苏理宏, 游永发. 基于自组织网络的黄河口浑浊模式研究[J]. 地球信息科学学报, 2018, 20(8): 1190-1200.DOI:10.12082/dqxxkx.2018.180046

SHEN Ming,WANG Siyuan,MA Yuanxu,SU Lihong,YOU Yongfa. Turbidity Patterns Identification Based on Self-organizing Maps at Yellow River Estuary[J]. Journal of Geo-information Science, 2018, 20(8): 1190-1200.DOI:10.12082/dqxxkx.2018.180046

图/表 12

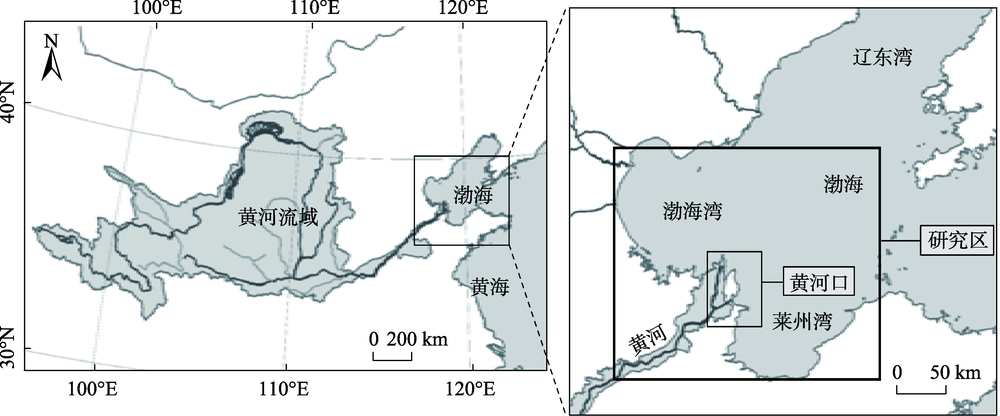

图1

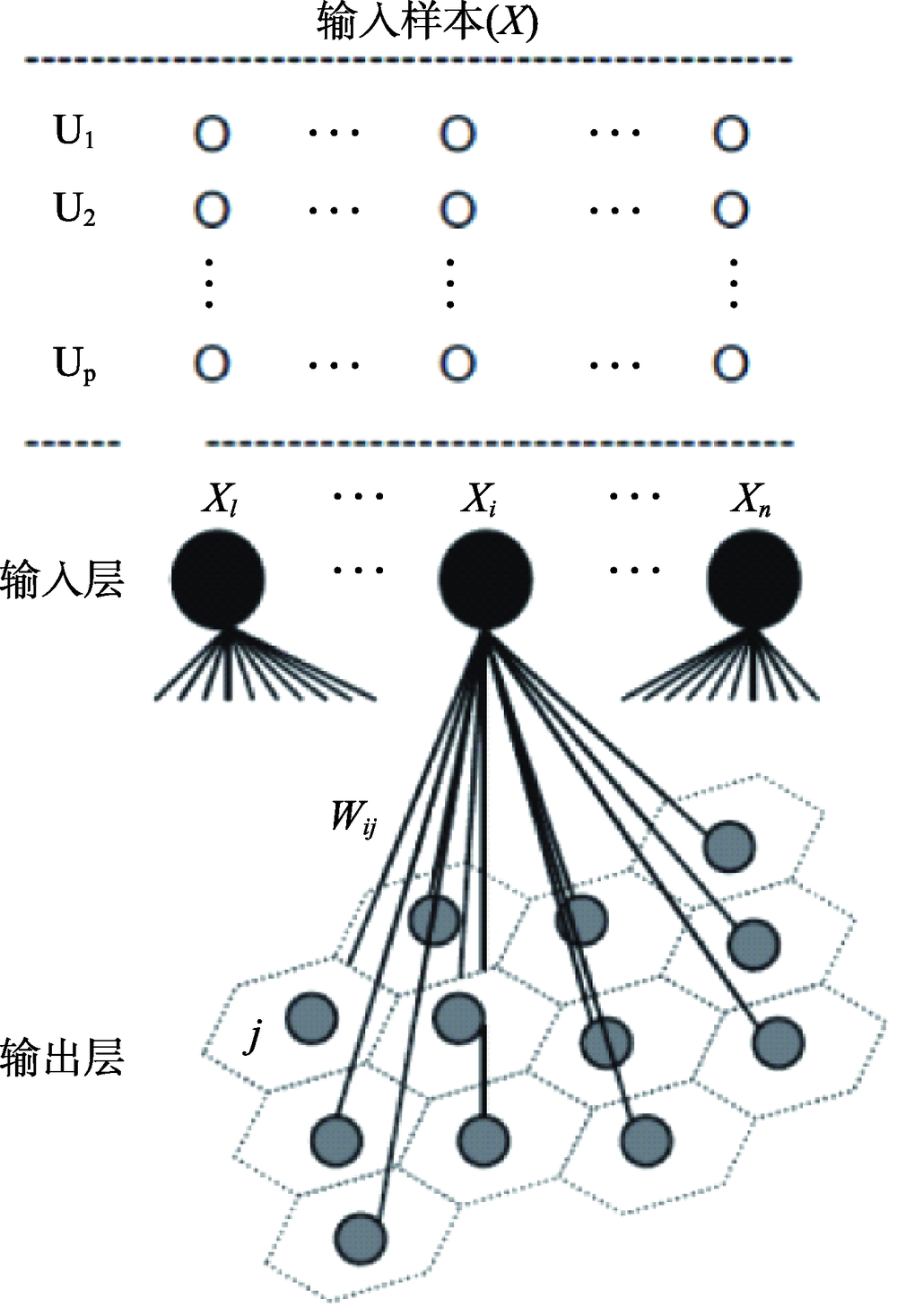

图2

图3

图4

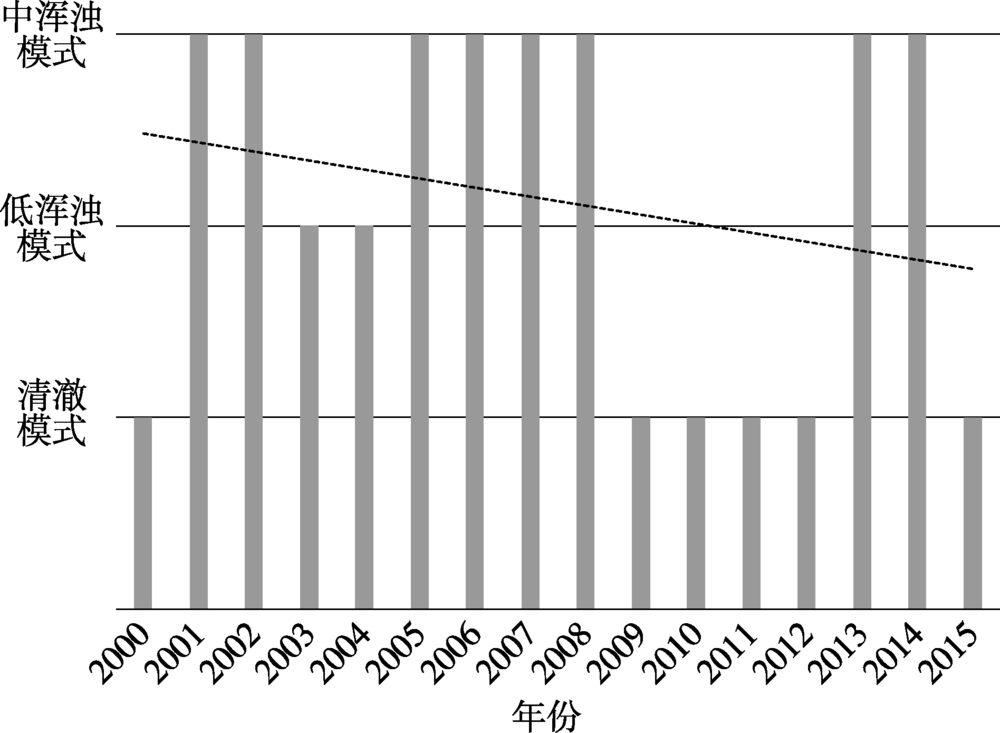

图5

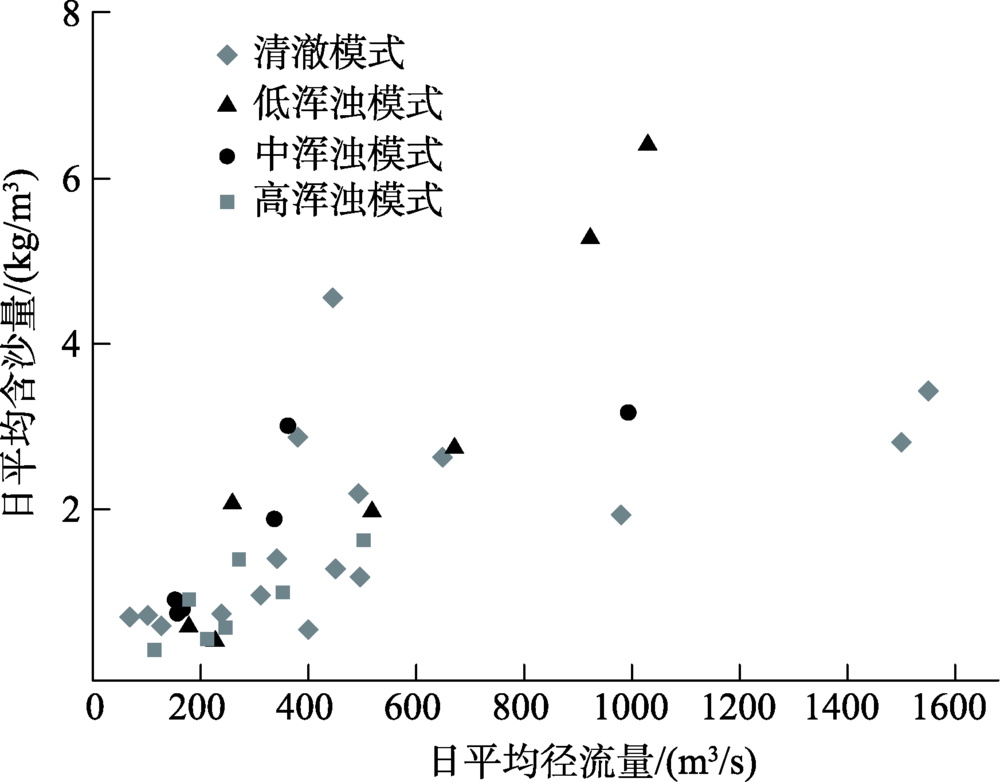

图6

表1

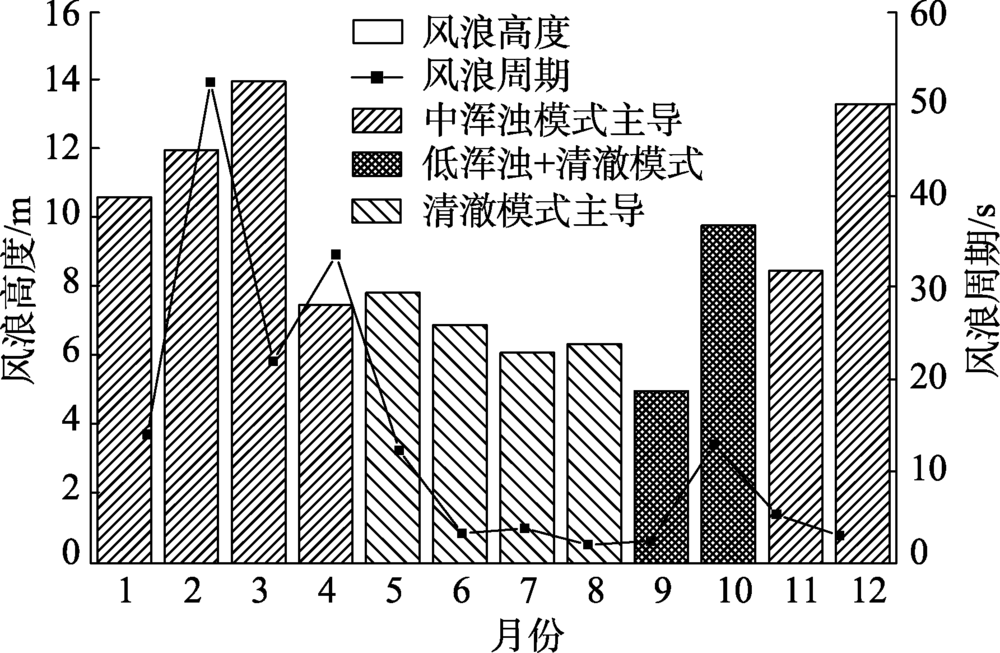

图7

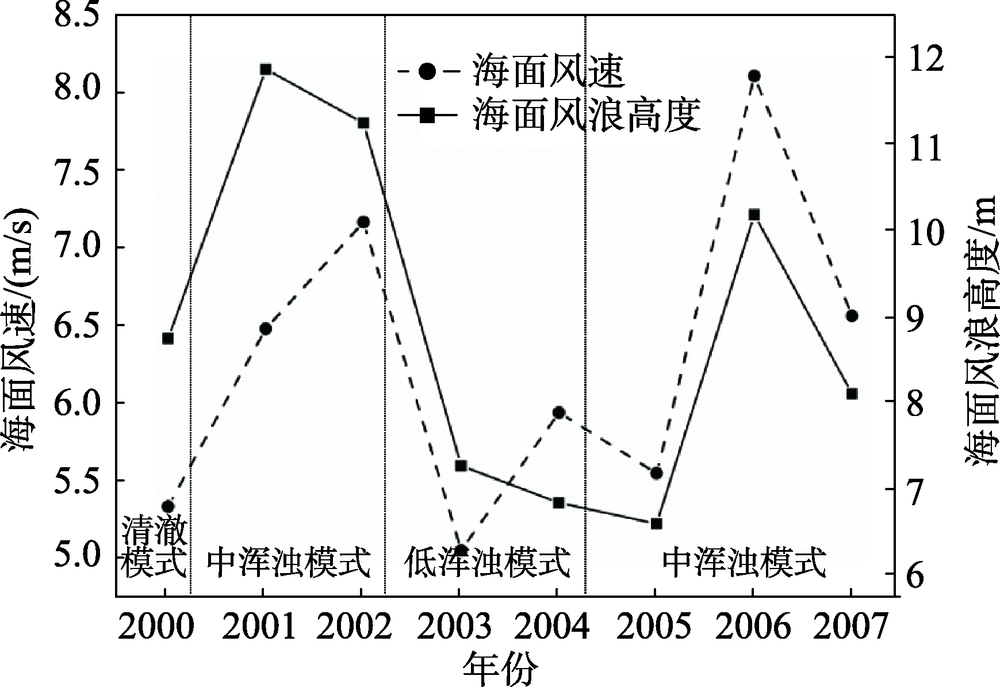

图8

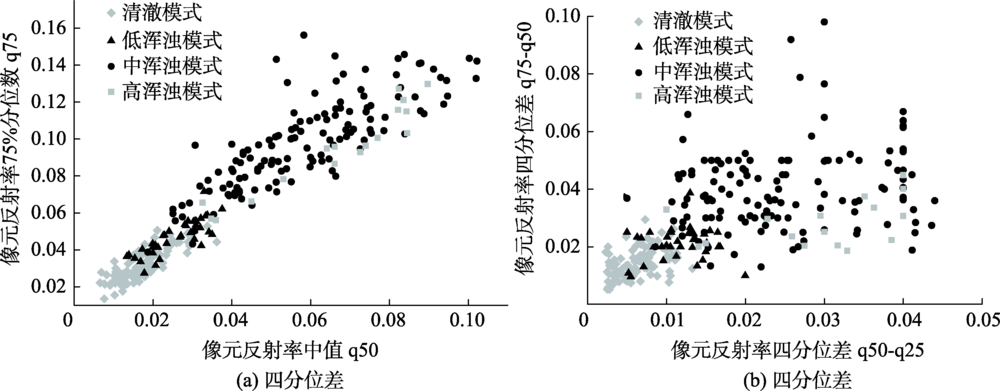

图9

图10

表2

参考文献 36

[1]	Güttler F N, Niculescu S, Gohin F.Turbidity retrieval and monitoring of Danube Delta waters using multi-sensor optical remote sensing data: An integrated view from the delta plain lakes to the western-northwestern Black Sea coastal zone[J]. Remote Sensing of Environment, 2013,132(6):86-101. doi: 10.1016/j.rse.2013.01.009
[2]	Loisel H, Mangin A, Vantrepotte V, et al.Variability of suspended particulate matter concentration in coastal waters under the Mekong's influence from ocean color (MERIS) remote sensing over the last decade[J]. Remote Sensing of Environment, 2014,150(2):218-230.
[3]	Miller R L, Liu C C, Buonassissi C J, et al.A Multi-Sensor Approach to Examining the Distribution of Total Suspended Matter (TSM) in the Albemarle-Pamlico Estuarine System, NC, USA[J]. Remote Sensing, 2011,3(5):962-974. doi: 10.3390/rs3050962
[4]	Rodríguez-Guzmán V, Gilbes-Santaella F.Using MODIS 250 m imagery to estimate Total Suspended Sediment in a tropical open bay[J]. International Journal of System Applications, Engineering & Development, 2009,1(3):36-44.
[5]	Hu C, Chen Z, Clayton T D, et al.Assessment of estuarine water-quality indicators using MODIS medium-resolution bands: Initial results from Tampa Bay, FL[J]. Remote Sensing of Environment, 2004,93(3):423-441. doi: 10.1016/j.rse.2004.08.007
[6]	黄海军,李成治,郭建军.黄河口海域悬沙光谱特征的研究[J].海洋科学,1994,18(5):40-44.
	[ Huang H J, Li C Z, Guo J J.A study on the spectral feature of suspended matter in the Huanghe River delta area[J]. Ocean Sciences, 1994,18(5):40-44. ]
[7]	周良明,刘玉光,郭佩芳.渤海和北黄海水色光谱的特征分析[J].海洋通报,2005,24(2):13-19.
	[ Zhou L M, Liu Y G, Guo P F.Characteristics of ocean color spectrum in Bohai Sea and Northern Yellow Sea[J]. Marine Science Bulletin, 2005,24(2):13-19.]
[8]	温令平,张健.遥感技术在黄河口泥沙运动及渤海湾悬沙分布研究中的应用[J].水道港口,1989(3):33-37.
	[ Wen L P, Zhang J.Analysis of the sediment transport of Huanghe River estuary and the distribution of suspended sediment in Bohai Bay by using remote sensing technology[J]. Journal of Waterway and Harbor, 1989(3):33-37. ]
[9]	樊彦国,孟志河,张磊,等.基于遥感光谱反射率反演黄河口海域Ⅱ类水体悬浮泥沙浓度模型[J].海洋科学,2010,34(9):60-63.
	[ Fan Y G, Meng Z H, Zhang L, et al.Based on remote sensing spectral reflectance inversion of suspended sediment concentration model of surface water at the Yellow River Estuary[J]. Marine Sciences, 2010,34(9):60-63. ]
[10]	Wang L, Zhao D, Yang J, et al.Retrieval of total suspended matter from MODIS 250 m imagery in the Bohai Sea of China[J]. Journal of Oceanography, 2012,68(5):719-725. doi: 10.1007/s10872-012-0129-5
[11]	Lu J, Chen X, Tian L, et al.Numerical simulation-aided MODIS capture of sediment transport for the Bohai Sea in China[J]. International Journal of Remote Sensing, 2014,35(11-12):4225-4238. doi: 10.1080/01431161.2014.916045
[12]	Richardson A J, Risien C, Shillington F A.Using self-organizing maps to identify patterns in satellite imagery[J]. Progress in Oceanography, 2003,59(2-3):223-239. doi: 10.1016/j.pocean.2003.07.006
[13]	Kalteh A M, Hjorth P, Berndtsson R.Review of the self-organizing map (SOM) approach in water resources: Analysis, modelling and application[J]. Environmental Modelling & Software, 2008,23(7):835-845.
[14]	Kohonen T.Self-Organizing Maps 3rd Edition[M]. Berlin Heidelberg: Springer, 2001.
[15]	张涛. 一种利用K均值和SOM进行遥感图像分类的方法[J].地理空间信息,2011,9(1):109-111. doi: 10.3969/j.issn.1672-4623.2011.01.037
	[ Zhang T.Remote sensing image classification utilizing K-means and SOM[J]. Geospatial Information, 2011,9(1):109-111. ] doi: 10.3969/j.issn.1672-4623.2011.01.037
[16]	任军号,吉沛琦,耿跃. SOM神经网络改进及在遥感图像分类中的应用[J].计算机应用研究,2011,28(3):1170-1172. doi: 10.3969/j.issn.1001-3695.2011.03.107
	[ Ren J H, Ji P Q, Geng Y.Application and improvement of SOM network in remote sensing image classification[J]. Application Research of Computer, 2011,28(3):1170-1172. ] doi: 10.3969/j.issn.1001-3695.2011.03.107
[17]	黄亚捷,叶回春,张世文,等.基于自组织特征映射神经网络的中国耕地生产力分区[J].中国农业科学,2015,48(6):1136-1150. doi: 10.3864/j.issn.0578-1752.2015.06.10
	[ Huang Y J, Ye H C, Zhang S W, et al.Zoning of arable land productivity based on self-organizing map in China[J]. Scientia Agricultura Sinica, 2015,48(6):1136-1150. ] doi: 10.3864/j.issn.0578-1752.2015.06.10
[18]	Céréghino R, Park Y S, Compin A, et al.Predicting the species richness of aquatic insects in streams using a limited number of environmental variables[J]. Journal of the North American Benthological Society, 2003,22(3):442-456. doi: 10.2307/1468273
[19]	Jeong K S, Hong D G, Byeon M S, et al.Stream modification patterns in a river basin: Field survey and self-organizing map (SOM) application[J]. Ecological Informatics, 2010,5(4):293-303. doi: 10.1016/j.ecoinf.2010.04.005
[20]	Lin G, Chen L.Identification of homogeneous regions for regional frequency analysis using the self-organizing map[J]. Journal of Hydrology, 2006,324(1-4):1-9. doi: 10.1016/j.jhydrol.2005.09.009
[21]	陈先德. 黄河水文[M].郑州:黄河水利出版社,1996.
	[ Chen X D.Huanghe Hydrology[M]. Zhengzhou: The Yellow River Water Conservancy Press, 1996. ]
[22]	周良勇,龚淑云,刘勇,等.黄河口附近海域表层悬浮体分布及粒度特征[J].海洋地质与第四纪地质,2007,27(5):33-38.
	[ Zhou L Y, Gong S Y, Liu Y, et al.Spatial distribution and grain-size characteristics of suspended matters in surface water of Yellow River mouth[J]. Marine Geology & Quaternary geology, 2007,27(5):33-38. ]
[23]	臧启运. 黄河三角洲近岸泥沙[M].北京:海洋出版社, 1996.
	[ Zang Q Y.Offshore sediment in Yellow River Delta[M]. Beijing: China Ocean Press, 1996.
[24]	吴赛,张秋文.基于MODIS遥感数据的水体提取方法及模型研究[J].计算机与数字工程,2005,33(7):1-4.
	[ Wu S, Zhang Q W.Method and model of water body extraction based On remote sensing data of MODIS[J]. Computer & Digital Engineering, 2005. ]
[25]	Kohonen T.Analysis of a simple self-organizing process[J]. Biological Cybernetics, 1982,44(2):135-140. doi: 10.1007/BF00317973
[26]	Aguado D, Montoya T, Borras L, et al.Using SOM and PCA for analysing and interpreting data from a P-removal SBR[J]. Engineering Applications of Artificial Intelligence, 2008,21(6):919-930. doi: 10.1016/j.engappai.2007.08.001
[27]	Chon T S.Self-Organizing Maps applied to ecological sciences[J]. Ecological Informatics, 2011,6(1):50-61. doi: 10.1016/j.ecoinf.2010.11.002
[28]	Reusch D, Alley R, Hewitson B.Relative performance of self-organizing maps and principal component analysis in pattern extraction from synthetic climatological data[J]. Polar Geography, 2005,29(3):188-212. doi: 10.1080/789610199
[29]	Bi N, Yang Z, Wang H, et al.Seasonal variation of suspended-sediment transport through the southern Bohai Strait[J]. Estuarine Coastal & Shelf Science, 2011,93(3):239-247. doi: 10.1016/j.ecss.2011.03.007
[30]	郭军,曹经福,杨艳娟. 1971-2012年环渤海沿海地区风速变化及其影响因素分析[J].气象与环境学报,2015(4):82-88.
	[ Guo J, Cao J F, Yang Y J.Variation of wind speed and its influencing factors around the Bohai coastal areas from 1971 to 2012[J]. Journal of Meteorology and Environment, 2015,31(4):82-88.]
[31]	毕乃双. 黄河三角洲毗邻海域悬浮泥沙扩散和季节性变化及冲淤效应[D].青岛:中国海洋大学,2009.
	[ Bi N S, Suspended sediment dispersal off the Huanghe (Yellow River) delta and in its adjacent Bohai Sea, its seasonal variation and effect on the delta erosion-accumulation[D]. Qingdao: Ocean University of China, 2009. ]
[32]	任惠茹,李国胜,郭腾蛟,等.1950-2011年渤海地区海表风场的季节特征与多尺度变化分析[J].地理科学,2017,37(9):1430-1438.
	[ Ren H R, Li G S, Guo T J, et al.Multi-scale variability of surface wind direction and speed on the Bohai Sea in 1950-2011[J]. Scientia Geographica Sinica, 2017,37(9):1430-1438. ]
[33]	傅命佐,徐孝诗,程振波,等.黄渤海海岸季节性风沙气候环境[J].中国沙漠,1994,14(1):31-40.
	[ Fu M Z, Xu X S, Cheng Z B, et al.The seasonal desertification-climate environment in the coastal areas of the Yellow Sea and Bohai Sea[J]. Journal of Desert Research, 1994,14(1):31-40. ]
[34]	温国义. 利用NOAA-AVHRR探讨中国北部海域的环流和悬浮泥沙沉积作用[D].青岛:中国海洋大学,2004.
	[ Wen G Y.Analysis of circulation and sedimentation of suspended sediment in northern China Sea from NOAA-AVHRR[D]. Qingdao: Ocean University of China, 2004. ]
[35]	曹永旺,延军平. 1971-2013年环渤海地区风速的时空特征[J].中国沙漠,2015,35(5):1320-1329. doi: 10.7522/j.issn.1000-694X.2015.00140
	[ Cao Y W, Yan J P.Spatial-temporal analysis of wind speed in the Bohai rim region during 1971-2013[J]. Journal of Desert Research, 2015,35(5):1320-1329. ] doi: 10.7522/j.issn.1000-694X.2015.00140
[36]	崔娟. 曹妃甸近岸海域悬浮泥沙浓度遥感动态监测与分析[D].西安:长安大学,2011.
	[ Cui J.Dynamical monitor and analysis of suspended sediment concentration by remote sensing in Caofeidian offshore areas[D]. Xi'an: Chang'an University, 2011. ]

	高浑浊模式	中浑浊模式	低浑浊模式	清澈模式
最大风速/(m/s)	0.345	0.598*	-0.400	-0.402
平均风速/(m/s)	0.401	0.628*	-0.488	-0.429
极大风速/(m/s)	0.046	0.335	-0.460	-0.034
海面风速/(m/s)	-0.002	0.416	-0.083	-0.440
海面风浪高度/m	0.526	0.687*	-0.218	-0.771**
海面风浪周期/s	0.633*	0.543	-0.132	-0.549

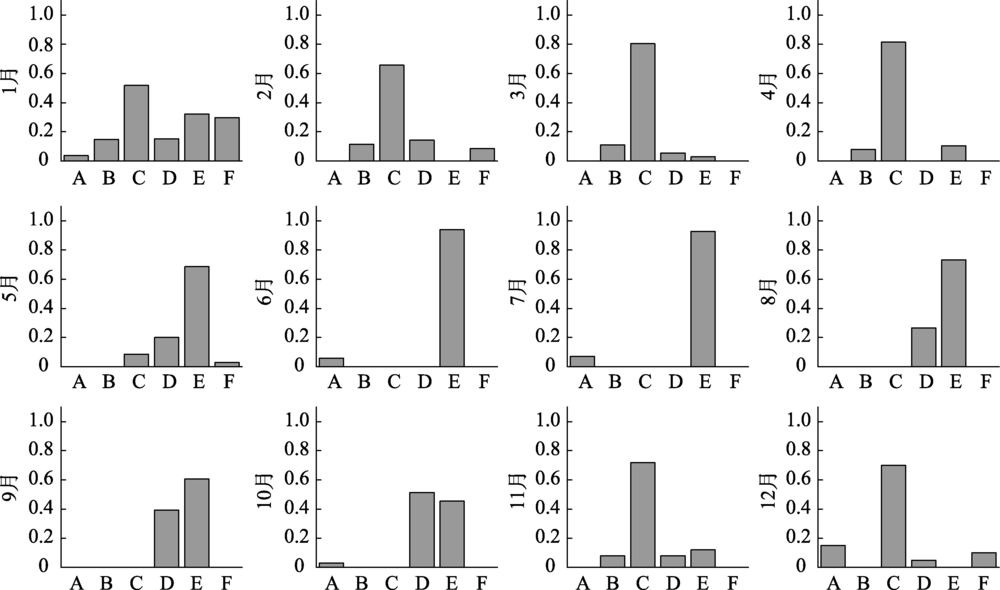

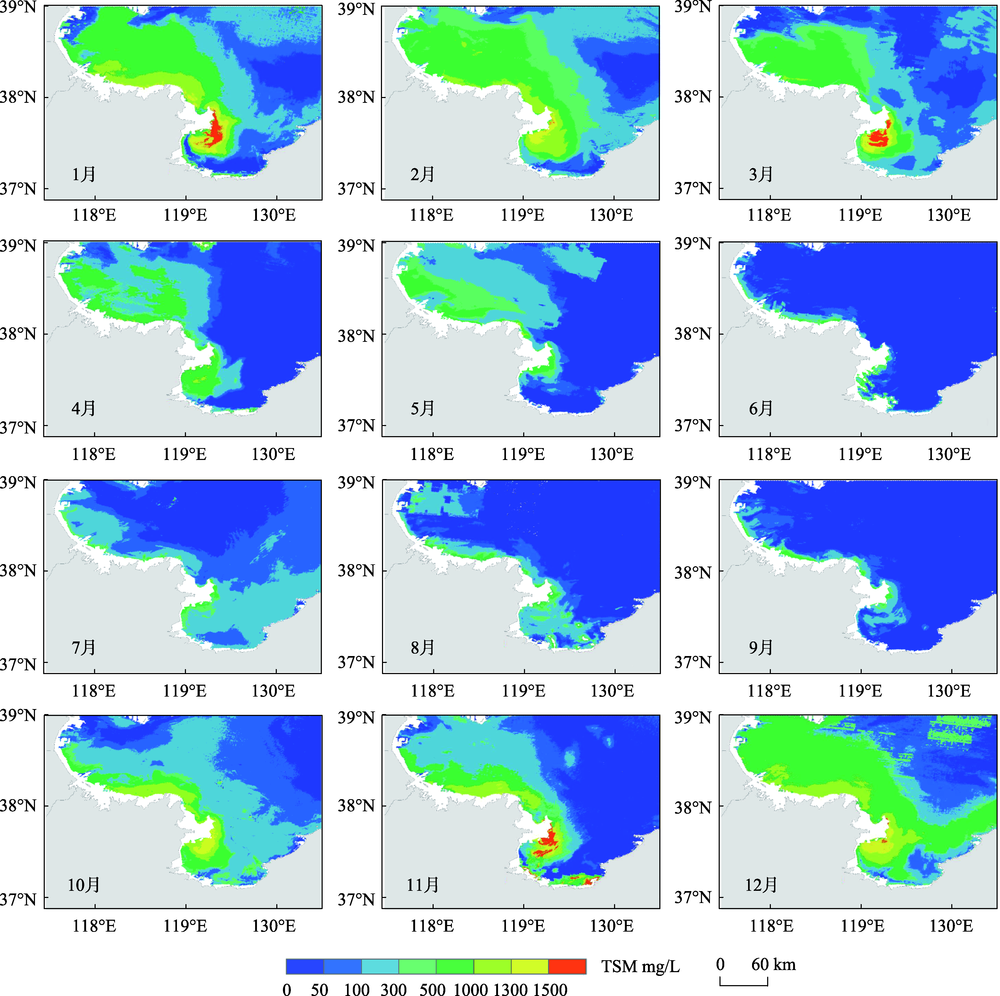

模式类别	月份
中浑浊模式	1、2、3、11、12
低浑浊模式	10
清澈模式	4、5、6、7、8、9
