徐州市水土流失时空变化研究

doi:10.12082/dqxxkx.2018.180091

地球信息科学学报 ›› 2018, Vol. 20 ›› Issue (11): 1622-1630.doi: 10.12082/dqxxkx.2018.180091

• 地理空间分析综合应用 • 上一篇下一篇

徐州市水土流失时空变化研究

陈报章^1,²(), 渠俊峰^1,^*(), 葛梦玉¹, 沈艳文¹, 王安妮¹, 王国斌¹

1. 中国矿业大学环境与测绘学院,徐州 221116
2. 中国科学院地理科学与资源研究所资源与环境信息系统国家重点实验室,北京 100101

收稿日期:2018-02-02 修回日期:2018-08-08 出版日期:2018-11-20 发布日期:2018-11-20
通讯作者: 渠俊峰 E-mail:baozhang.chen@igsnrr.ac.cn;qjf4209779@163.com
作者简介:
作者简介：陈报章（1963-）,男,江苏邳州人,博士,研究方向为基于定量遥感和空间分析技术的陆面过程和陆地生态系统过程模型模拟研究。E-mail: baozhang.chen@igsnrr.ac.cn
基金资助:
江苏省水利科技项目(2016067)

Spatio-temporal Analysis on Soil Erosion over Xuzhou City

CHEN Baozhang^1,^2,^*(), QU Junfeng^1,^*(), GE Mengyu¹, SHEN Yanwen¹, WANG Anni¹, WANG Guobin¹

1. School of Environment Science and Spatial Informatics, China University of Mining and Technology, Xuzhou 221116, China
2. State Key Laboratory of Resources and Environmental Information System, Institute of Geographic Sciences and Natural Resources Research, Chinese Academy of Sciences, Beijing 100101, China

Received:2018-02-02 Revised:2018-08-08 Online:2018-11-20 Published:2018-11-20
Contact: CHEN Baozhang,QU Junfeng E-mail:baozhang.chen@igsnrr.ac.cn;qjf4209779@163.com
Supported by:
Jiangsu Water Conservancy Science and Technology Project, No.2016067.

摘要/Abstract

摘要：

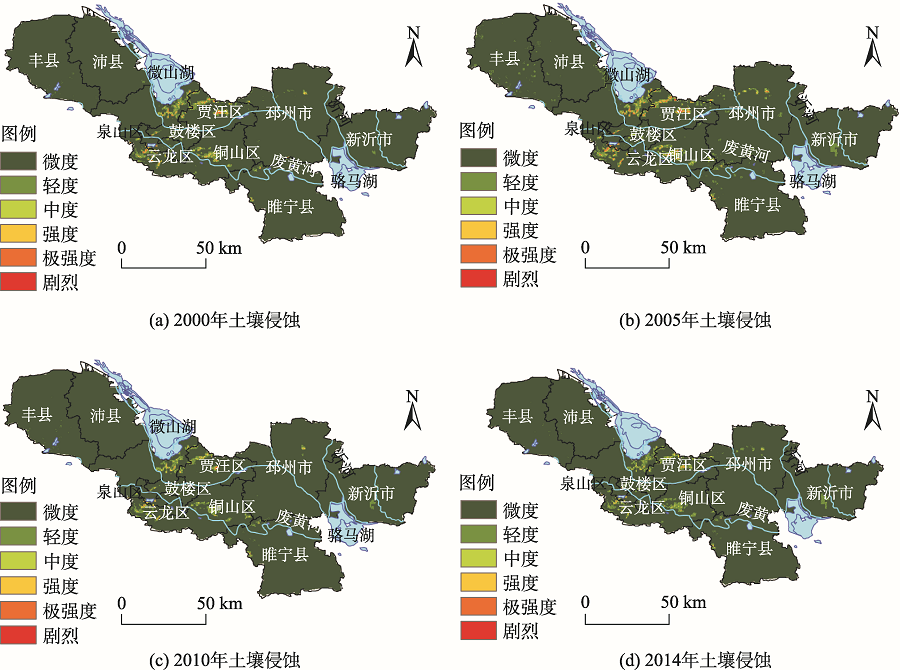

本文以3S技术为支撑,在修正水土流失方程（RUSLE）的基础上,针对徐州黄泛平原-丘陵地带的特殊地形地貌、对2000年以来徐州市水土流失时空变化特征进行了分析。结果表明：2000-2014年徐州市土壤侵蚀等级以微度为主,微度侵蚀面积占总侵蚀面积多年平均达到76.34%;中度侵蚀次之,所占比例在10%~17%间;剧烈侵蚀所占比例最少。轻度及以上土壤侵蚀等级主要发生在中部微山湖下游、京杭大运河一带的丘陵岗地地区、主城区与故黄河北岸的黄泛平原地区,以及丰县、新沂、邳州的局部区域;土壤侵蚀存在一定程度年际变化特征,睢宁、丰县、邳州的部分地区侵蚀面积年际变化较为明显,土壤侵蚀总面积整体上呈现下降趋势。

关键词: 土壤侵蚀, 时空变化, 土壤侵蚀方程, 3S技术, 徐州市

Abstract:

Based on the 3S techniques and the Revised Universal Soil Loss Equation (RUSLE), we analyzed the spatial and temporal variation in water loss and soil erosion since 2000 for the special topography of the Huangfan Plain-Hilly area in Xuzhou. The results show that between 2000 and 2014 over Xuzhou area, the area for the micro degree of soil erosion grade took account for 76.34%, the moderate degree took account for 10%~17% and the strong degree took account for the least proportion. The micro degree area happened usually in the neighborhood of the downstream of the surrounding area of the Weishan Lake, hilly down land of the Grand Canal, main urban area, the Yellow River flood plain of abandoned yellow river’s left bank and the local area of Fengxian, Xinyi and Pizhou every year. The annual changes in erosion area around Suining, Fengxian and Pizhou were more obvious than the other areas and the total area of soil erosion was declining in general.

Key words: soil erosion, time and space changes, soil erosion equation, 3S techniques, Xuzhou

陈报章, 渠俊峰, 葛梦玉, 沈艳文, 王安妮, 王国斌. 徐州市水土流失时空变化研究[J]. 地球信息科学学报, 2018, 20(11): 1622-1630.DOI:10.12082/dqxxkx.2018.180091

CHEN Baozhang,QU Junfeng,GE Mengyu,SHEN Yanwen,WANG Anni,WANG Guobin. Spatio-temporal Analysis on Soil Erosion over Xuzhou City[J]. Journal of Geo-information Science, 2018, 20(11): 1622-1630.DOI:10.12082/dqxxkx.2018.180091

图/表 9

图1

图2

图3

图4

图5

表1

图6

图7

表2

参考文献 28

[1]	张瑞斌,何君,王艳艳,等.江苏省水土流失综合治理研究及效益分析[J]. 江苏农业科学, 2009(3):421-423. doi: 10.3969/j.issn.1002-1302.2009.03.179
	[ Zhang R B, He J, Wang Y Y, et al.Study on comprehensive control of soil and water loss and its benefit analysis in Jiangsu Province[J]. Jiangsu Agricultural Sciences, 2009(3):421-423. ] doi: 10.3969/j.issn.1002-1302.2009.03.179
[2]	朱友银,丛小祥,周岩,等.江苏省平原河网地区水土流失及防治措施体系构建[J]. 中国水土保持, 2012(10):45-47. doi: 10.3969/j.issn.1000-0941.2012.10.018
	[ Zhu Y Y, Cong X X, Zhou Y, et al.Soil and water loss and construction of prevention measures system in plain river network area of Jiangsu province[J]. Soil and Water Conservation in China, 2012(10):45-47 ] doi: 10.3969/j.issn.1000-0941.2012.10.018
[3]	全国水土保持规划(2015-2030年)[R].水利部,2015.
	[ National Soil and Water Conservation Plan(2015-2030 )[R].Ministry of Water Resources, 2015. ]
[4]	Renard K G, Foster G R, Weesies G A, et al.Predicting soil erosion by water: A guide to conservation planning with the Revised Universal Soil Loss equation (RUSLE)[J]. Agriculture Handbook,1997.
[5]	Laflen J M, Lane L J, Foster G R.A new generation of erosion prediction technology[J]. Journal of Soil & Water Conservation, 1991,46(1):34-38.
[6]	卜兆宏,刘绍清.土壤流失量及其参数实测的新方法[J].土壤学报,1995,32(2):210-220.
	[ Pu Z H, Liu S Q.A new method for measuring soil and its parameters[J]. Acta Pedologica Sinica, 1995,32(2):210-220 ]
[7]	卜兆宏,孙金庄.水土流失定量遥感方法及其应用的研究[J]. 土壤学报, 1997(3):235-245. doi: 10.11766/trxb199502280302
	[ Pu Z H, Sun J Z.Study on quantitative remote sensing method of soil and water loss and its application[J]. Acta Pedologica Sinica, 1997(3):235-245 ] doi: 10.11766/trxb199502280302
[8]	王鸿斌,翟然,刘晓静,等.皇甫川流域水土流失动态监测研究[J]. 人民黄河, 2014(9):92-94. doi: 10.3969/j.issn.1000-1379.2014.09.030
	[ Wang H B, Zai R, Liu X J, et al.Cause analysis of recent sediment reduction in telagou small watershed of Huangfuchuan basin[J]. YELLOW RIVER, 2014(9):92-94] doi: 10.3969/j.issn.1000-1379.2014.09.030
[9]	赵业婷,常庆瑞,李志鹏,等.黄土高原沟壑区耕地土壤速效养分空间特征及丰缺状况研究-以陕西省富县为例[J]. 土壤通报, 2012(6):1438-1443.
	[ Zhao Y T, Chang Q R, Li Z P, et al.Spatial characteristics and abundance of available nutrients in cultivated soils in the gully region of the Loess Plateau: A case study of Fuxian Countru,Shaanxi Province[J]. Chinese Journal of Soil Science, 2012(6):1438-1443. ]
[10]	徐钊,孙晓楠,刘晓,等.遥感影像在罗玉沟流域下垫面调查中的应用[J]. 中国水土保持, 2015(12):79-81.
	[ Xu Z, Sun X N, Liu X, et al.Application of remote sensing image in the investigation of underlying surface in Luoyugou Watershed[J]. Soil and Water Conservation in China, 2015(12):79-81. ]
[11]	Terranova O, Antronico L, Coscarelli R, et al.Soil erosion risk scenarios in the Mediterranean environment using RUSLE and GIS: An application model for Calabria (southern Italy)[J]. Geomorphology, 2009,112(3-4):228-245. doi: 10.1016/j.geomorph.2009.06.009
[12]	Park S, Oh C, Jeon S, et al.Soil erosion risk in Korean watersheds,assessed using the revised universal soil loss equation[J]. Journal of Hydrology, 2011,399(3):263-273. doi: 10.1016/j.jhydrol.2011.01.004
[13]	蔡崇法,丁树文,史志华,等.应用USLE模型与地理信息系统IDRISI预测小流域土壤侵蚀量的研究[J].水土保持学报,2000,14(2):19-24. doi: 10.3321/j.issn:1009-2242.2000.02.005
	[ Cai C F, Ding S W, Shi Z H, et al.Study of applying USLE and geographical information system IDRISI to predict soil erosion in small watershed[J]. Journal of Soil and Water Conservation, 2000,14(2):19-24. ] doi: 10.3321/j.issn:1009-2242.2000.02.005
[14]	张磊,孟亚利.基于GIS的江苏省太湖流域水土流失评价[J].江西农业学报,2009,21(6):129-132.
	[ Zhang L, Meng Y L.Evaluation of water and soil loss in Taihu Basin of Jiangsu Province based on GIS[J]. Acta Agriculturae Jiangxi, 2009,21(6):129-132 ]
[15]	江苏省水土保持规划(2015-2030年)[R].江苏省水利厅,2015.
	[ Jiangsu Province Soil and Water Conservation Plan(2015-2030)[R]. Jiangsu Provincial Water Resources Department, 2015. ]
[16]	金兆森,陶涛.江苏省平原沙土地区水土保持措施及其作用[J].水土保持研究,2005,12(5):119-121. doi: 10.3969/j.issn.1005-3409.2005.05.027
	[ Jin Z S, Tao T.Measures and effects to soil and water conservation on Plain-sand areas in Jiangsu Province[J]. Research of Soil and Water Conservation, 2005,12(5):119-121. ] doi: 10.3969/j.issn.1005-3409.2005.05.027
[17]	钱学智. 徐州地区开发建设项目水土流失监测探讨[J]. 治淮, 2008(8):44-45. doi: 10.3969/j.issn.1001-9243.2008.08.027
	[ Qian X Z.Discussion on soil and water loss monitoring of Xuzhou area development and construction Project[J]. Journal of Huaihe River, 2008(8):44-45] doi: 10.3969/j.issn.1001-9243.2008.08.027
[18]	邹碧莹,丁美,籍春蕾,等.江苏省丘陵山区及平原沙土区水土流失综合治理及效益评估研究[J].水土保持通报,2012,32(1):156-160.
	[ Zou B Y, Ding M, Ji C L, et al.Assessment of comprehensive soil and water loss control and its benefits in Hilly area and sandy plain area of Jiangsu Province[J]. Bulletin of Soil and Water Conservation, 2012,32(1):156-160. ]
[19]	史学正,于东升,高鹏,等.中国土壤信息系统(SISChina)及其应用基础研究[J].土壤,2007,39(3):329-333. doi: 10.3321/j.issn:0253-9829.2007.03.001
	[ Shi X Z, Yu D S, Gao P, et al.Soil information system of china(SISChina) and its application[J].Soil, 2007,39(3):329-333. doi: 10.3321/j.issn:0253-9829.2007.03.001
[20]	Resource and Environment Data Cloud Platform.Land use and land cover 1km Grid based on Landsat-8 visual interpretation[EB/OL].[2017-1-1]. .
[21]	刘纪远,张增祥,庄大方,等.20世纪90年代中国土地利用变化的遥感时空信息研究[M].北京:科学出版社,2005:15-18.
	[ Liu J Y, Zhang Z X, Zhuang D F, et al.Remote sensing spatio-temporal information of land use change in China in the 1990s[M]. Beijing: Science Press, 2005:15-18. ]
[22]	The data set is provided by cold and arid regions sciences data center at Lanzhou. SPOT_Vegetation Indices 16-Day Global 1km SIN Grid[EB/OL]. [2017-5-4]. .
[23]	The Land Processes Distributed Active Archive Center. MODIS/Terra Vegetation Indices 16-Day L3 Global 250 m SIN Grid[EB/OL].[2017-6-8]. .
[24]	卜兆宏,唐万龙,杨林章,等.水土流失定量遥感方法新进展及其在太湖流域的应用[J].土壤学报,2003,40(1):1-9.
	[ Pu Z H, Tang W L, Yang L Z, et al.New Progress in Quantitative Remote Sensing Methods for Soil Erosion and Its Application in the Taihu Basin[J]. Acta Pedologica Sinica, 2003,40(1):1-9. ]
[25]	Wischmeier W H.Use and misuse of the universal soil loss equation[J]. Journal of Soil & Water Conservation,1976,31(5-6):554-559.
[26]	章文波,谢云,刘宝元.利用日雨量计算降雨侵蚀力的方法研究[J].地理科学,2002,22(6):705-711. doi: 10.3969/j.issn.1000-0690.2002.06.012
	[ Zhang W B, Xie Y, Liu Y B.Study on the method of calculating rainfall erosivity using daily rainfall[J]. Scientia Geographica Sinica, 2002,22(6):705-711. ] doi: 10.3969/j.issn.1000-0690.2002.06.012
[27]	Sharpley A N,Williams J R.EPIC-erosion/productivity impact calculator:1 model documentation.[J]. Technical Bulletin - United States Department of Agriculture,1990,4(4):206-207.
[28]	陈学兄. 基于遥感与GIS的中国水土流失定量评价[D].西安:西北农林科技大学,2013.
	[ Chen X X.Quantitative Evaluation of Soil and Water Loss in China Based on Remote Sensing and GIS[D]. Xi'an:Northwest A&F University,2013 ]

土地利用类型	P值	土地利用类型	P值
水田	0.01	裸岩	0
旱地	p	覆盖度>50草地	1
林地	1	其他草地	0.7
疏林地	1	水域	0
其他林地	0.7	居民点	0
滩地	0	建设用地	0

年份	轻度		中度		强度		极强度		剧烈
年份	面积/km²	比例/%	面积/km²	比例/%	面积/km²	比例/%	面积/km²	比例/%	面积/km²	比例/%
2000	251.685	71.72	51.007	14.54	22.447	6.40	22.897	6.52	2.878	0.82
2001	278.526	80.22	40.052	11.53	20.671	5.95	7.453	2.15	0.522	0.15
2002	267.817	81.59	36.709	11.18	18.561	5.65	5.068	1.54	0.080	0.02
2003	306.114	72.25	58.555	13.82	24.594	5.80	29.016	6.85	5.423	1.28
2004	83.902	66.11	20.497	16.15	12.696	10.00	9.447	7.44	0.377	0.30
2005	379.213	74.02	63.761	12.45	28.335	5.53	31.191	6.09	9.788	1.91
2006	108.866	73.85	19.127	12.97	12.906	8.75	6.264	4.25	0.261	0.18
2007	168.254	68.77	37.514	15.33	19.475	7.96	17.292	7.07	2.117	0.87
2008	342.229	75.84	57.097	12.65	23.085	5.12	25.413	5.63	3.415	0.76
2009	163.831	77.94	24.229	11.53	15.135	7.20	6.773	3.22	0.232	0.11
2010	221.519	78.59	33.222	11.79	19.446	6.90	7.490	2.66	0.203	0.07
2011	278.889	81.55	36.882	10.78	20.899	6.11	5.272	1.54	0.058	0.02
2012	281.206	82.86	36.226	10.67	17.852	5.26	4.068	1.20	0.022	0.01
2013	153.229	77.31	24.791	12.51	15.546	7.84	4.597	2.32	0.051	0.03
2014	284.657	82.48	37.204	10.78	18.714	5.42	4.532	1.31	0.029	0.01
平均	237.996	76.34	38.458	12.58	19.357	6.66	12.451	3.99	1.697	0.45
标准差	85.408	5.14	13.829	1.71%	4.287	1.43%	9.842	2.37	2.765	0.57
变率/%	35.89	6.73	35.96	13.59	22.15	21.47	79.05	59.40	162.93	126.67
