地理国情监测水面数据时空一致性优化方法

doi:10.12082/dqxxkx.2018.180156

地球信息科学学报 ›› 2018, Vol. 20 ›› Issue (9): 1216-1224.doi: 10.12082/dqxxkx.2018.180156

• 地球信息科学理论与方法 • 上一篇下一篇

地理国情监测水面数据时空一致性优化方法

程滔¹(), 周旭¹, 郑新燕¹, 郭建坤¹, 袁如金²

1. 国家基础地理信息中心,北京 100830
2. 黑龙江地理信息工程院,哈尔滨 150086

收稿日期:2018-03-28 修回日期:2018-06-22 出版日期:2018-09-25 发布日期:2018-09-25
作者简介:
作者简介：程滔（1981-）,男,硕士,高级工程师,主要从事摄影测量与遥感影像数据处理与应用开发、地理国情监测技术研究等。E-mail: chengtao@nsdi.gov.cn
基金资助:
国家重点研发计划项目（2016YFF0202700）;国家地理国情监测专项项目（2016-GQ-03-8）;国家基础地理信息中心科技创新发展基金项目（2018-KJ-G01）

Spatial and Temporal Consistency Optimization Method of Surface Water Data for the National Geographic Conditions Monitoring Project of China

CHENG Tao^1,^*(), ZHOU Xu¹, ZHENG Xinyan¹, GUO Jiankun¹, YUAN Rujin²

1. National Geomatics Center of China, Beijing 100830 China
2. Heilongjiang Institute of Geomatics Engineering, Harbin 150086, China

Received:2018-03-28 Revised:2018-06-22 Online:2018-09-25 Published:2018-09-25
Contact: CHENG Tao E-mail:chengtao@nsdi.gov.cn
Supported by:
National Key Research and Development Program of China, No.2016YFF0202700;National Engineering Project of Geographic National Conditions Monitoring, No.2016-GQ-03-8;Science and Technology Innovation Development Foundation of National Geomatics Center of China, No.2018-KJ-G01.

摘要/Abstract

摘要：

地理国情监测利用遥感、地理信息等技术,动态获取地表覆盖等多样化的地理要素,经统计、分析、评价和应用,服务于政治、经济、文化、资源、环境等多个领域,为政府提供全面、准确、基础的地理信息情报。针对地理国情监测在全国范围基于多时相遥感影像采集水面信息存在时空不一致性的现状,提出一种基于精细DEM的水面数据时空一致性优化方法。利用栅格图形区域生长算法,采用8邻域算子,对水面种子点进行迭代生长计算,得出基于精细DEM的区域生长结果;通过与地理国情监测水面数据对比分析,实现空间化结果的修正,从而达到时空一致性优化的目的。分析了典型研究区水面数据特征,利用该方法进行了优化处理,结果显示：研究区水面数据空间范围相对于时点监测修正了7.99%,满足了地理国情监测时点一致性需求。研究表明：该方法的应用,能够使得在全国尺度上统计的水面数据反映同一季节或可接受时段内的状况,避免或缩小了由于影像数据源的差异造成的时间和空间上的不一致性带来的误差,满足了地理国情监测时点一致性需求,能够在地理国情监测等地表覆盖水面信息提取、优化中推广应用,为政府有效决策提供客观、准确和基础的水面信息。

关键词: 地理国情监测, 地表覆盖, 水, DEM, 区域生长算法, 种子蔓延

Abstract:

The National Geographic Conditions Monitoring Project of China, based on the high technology of remote sensing and geospatial information, has dynamically acquired various kinds of geographic features. The goal of this project is to assist the government's decision making in multiple domains such as politics, economics, culture, resources and environments by statistical calculation, analyses, evaluation and application of the accurate and basic geospatial information. However, as China is such a huge country, it's particularly difficult to acquire all of the images with the resolution better than 1 meter around the time of 30^th June with high quality. Temporal and spatial inconsistency in the image acquisition is quite normal which has resulted in the temporal and spatial inconsistency of water data. In this study, a method of spatial and temporal consistency optimization of surface water cover data based on detailed DEM is proposed. Region growing algorithm of raster graphics and 8 neighborhood arithmetic operators were used. By iterative calculations started from the water seeds the graphics results could obtained based on detailed DEM. Through the comparison of the region growing results with water data source of the National Geographic Conditions Monitoring, the spatial correction results could be realized, so as to achieve the purpose of spatial and temporal consistency optimization. Typical study region's water data characteristics were analyzed, and optimization processing was carried out by using this method. The results show that the spatial areas relative to the fixed monitoring time point was revised 7.99%, which meets the consistency requirement of National Geographic Conditions Monitoring’s time point. The research shows that this method can make the water statistics at the national scale reflecting the same season or the acceptable time, to avoid or reduce the errors due to the spatial and temporal inconsistency in image data sources. The method could be popularized and applied for water data's optimization, and provides objective, accurate and basic water information for the government to make the decisions.

Key words: National Geographic Conditions Monitoring, land cover, water, DEM, region growing algorithm, seed spreading

程滔, 周旭, 郑新燕, 郭建坤, 袁如金. 地理国情监测水面数据时空一致性优化方法[J]. 地球信息科学学报, 2018, 20(9): 1216-1224.DOI:10.12082/dqxxkx.2018.180156

CHENG Tao,ZHOU Xu,ZHENG Xinyan,GUO Jiankun,YUAN Rujin. Spatial and Temporal Consistency Optimization Method of Surface Water Data for the National Geographic Conditions Monitoring Project of China[J]. Journal of Geo-information Science, 2018, 20(9): 1216-1224.DOI:10.12082/dqxxkx.2018.180156

图/表 8

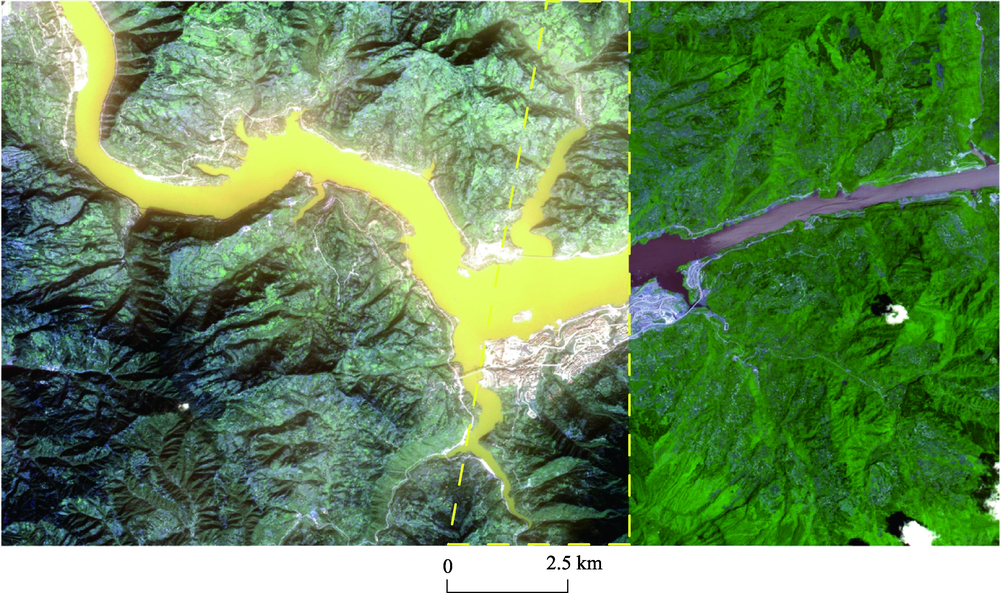

图1

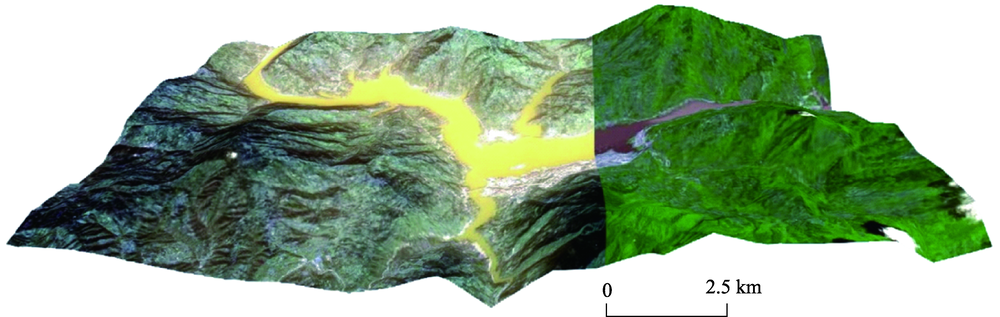

图2

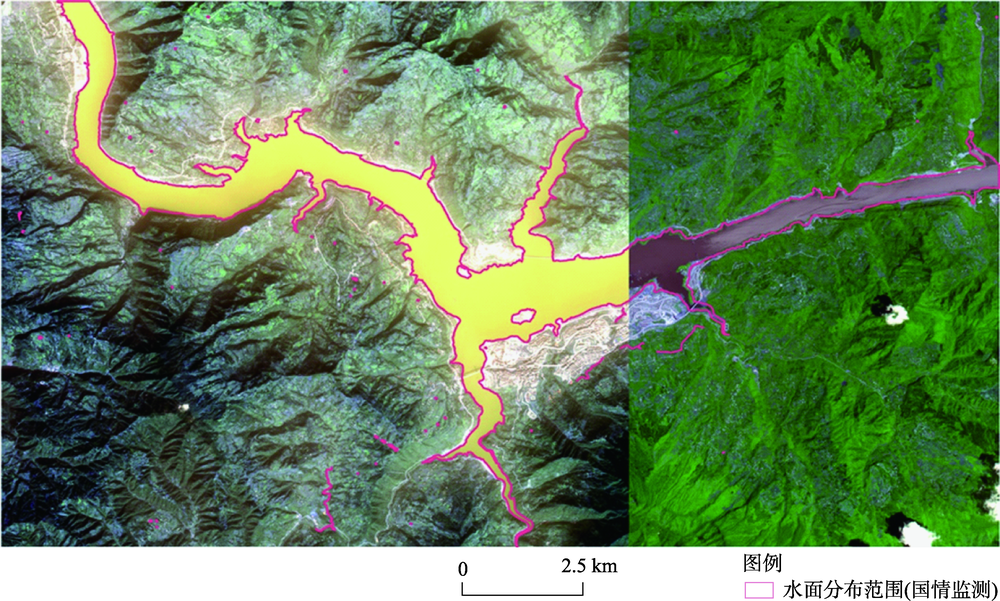

图3

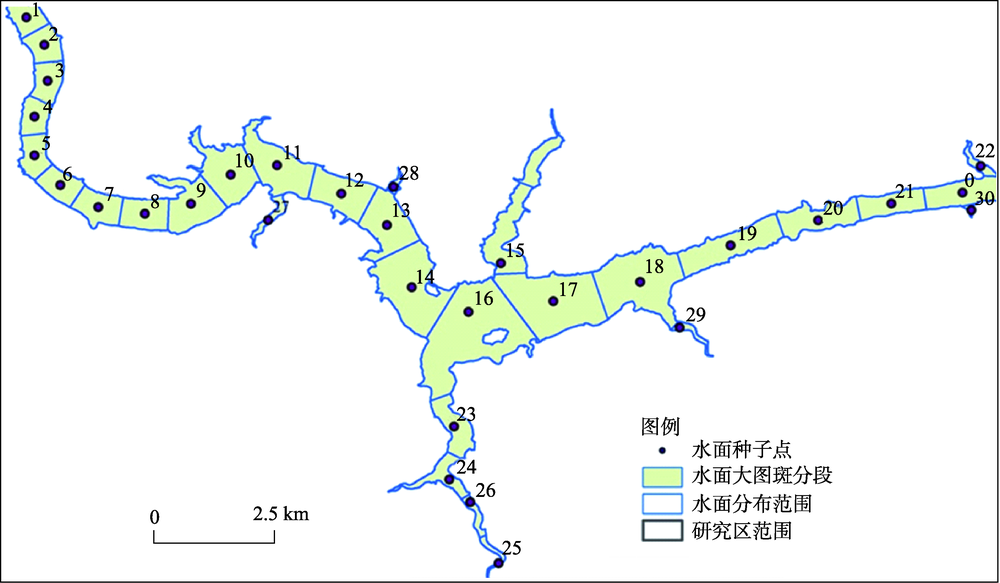

图4

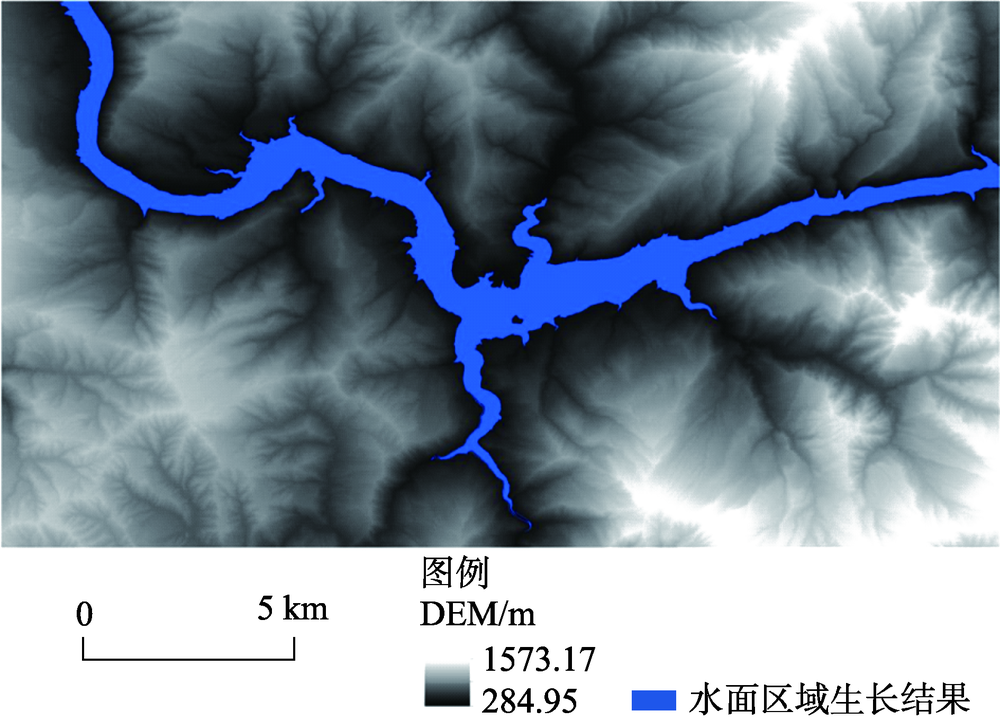

图5

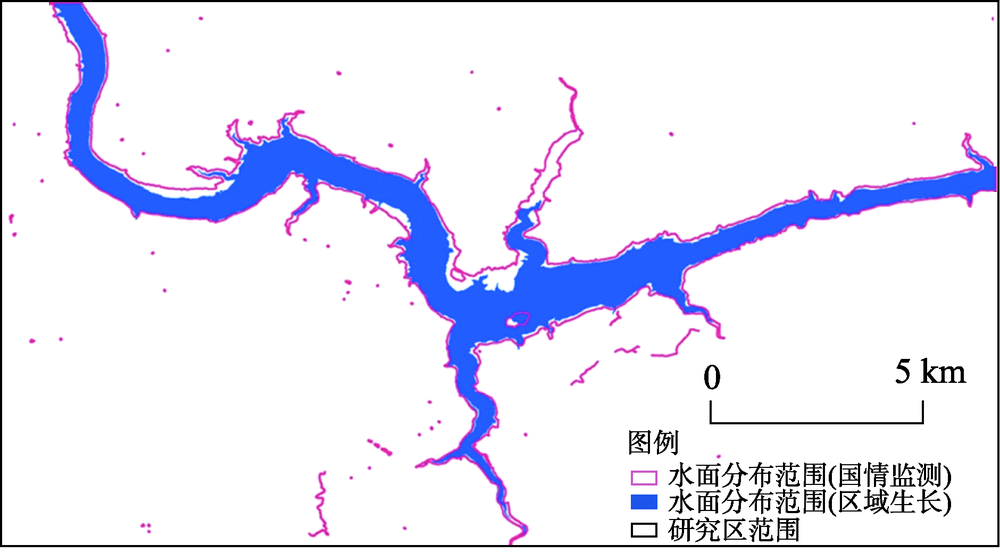

图6

图7

表1

参考文献 23

[1]	胡晓寒,秦大庸,纪昌明,等.水资源使用权初始分配年限探讨[J].水利经济,2009,27(2):28-31. doi: 10.3969/j.issn.1003-9511.2009.02.008
	[ Hu X H, Qin D Y, Ji C M, et al.Initial allocation years of water resources use right[J]. Journal of Economics of Water Resources, 2009,27(2):28-31. ] doi: 10.3969/j.issn.1003-9511.2009.02.008
[2]	国务院第一次全国地理国情普查领导小组办公室.地理国情普查内容与指标[M].北京:测绘出版社,2013.
	[ Leading group office of China's first national geographic conditions census of the state council. Contents and indexes of national geographic conditions census[M]. Beijing: Surveying and Mapping Press, 2013. ]
[3]	金海. 联合国2030年可持续发展议程“水领域目标”解读[J].中国水利,2015(20):4-6. doi: 10.3969/j.issn.1000-1123.2015.20.003
	[ Jin H. Interpretation of UN's 2030 sustainable development agenda “water area goals”[J]. China Water Resources, 2015(20):4-6. ] doi: 10.3969/j.issn.1000-1123.2015.20.003
[4]	程滔,刘若梅,周旭.基于高分辨率遥感影像的地理国情普查水体信息提取方法[J].测绘通报,2014(4):86-89.
	[ Cheng T, Liu R M, Zhou X.Water information extraction method in geographic national conditions investigation based on high resolution remote sensing images[J]. Bulletin of Surveying and Mapping, 2014(4):86-89. ]
[5]	国务院第一次全国地理国情普查领导小组办公室.GDPJ 05-2013数字正射影像生产技术规定[EB/OL].. html, 2013.
	[ Leading group office of China's first national geographic conditions census of the state council. GDPJ 05-2013 Production’s technology regulations of digital orthophoto map[EB/OL]. .html, 2013. ]
[6]	国务院第一次全国地理国情普查领导小组办公室.GDPJ 08-2013多尺度数字高程模型生产技术规定[EB/OL]., 2013.
	[ Leading group office of China's first national geographic conditions census of the state council. GDPJ 08-2013 Production's technology regulations of multiscale digital elevation model[EB/OL]. , 2013. ]
[7]	李发源,汤国安,晏实江,等.数字高程模型实验教程[M].北京:科学出版社,2013.
	[ Li F Y, Tang G A, Yan S J, et al.Experimental tutorials of DEM[M]. Beijing: Science Press, 2013. ]
[8]	周启鸣,刘学军.数字地形分析[M].北京:科学出版社,2013.
	[ Zhou Q M, Liu X J.Digital terrain analysis[M]. Beijing: Science Press, 2013. ]
[9]	王峥,孙永华,李小娟.顾及地表汇水分析的城市DEM构建[J].地球信息科学学报,2016,18(12):1608-1614.
	[ Wang Z, Sun Y H, Li X J.Urban DEM construction for analysis of surface water catchment[J]. Journal of Geo-information Science, 2016,18(12):1608-1614. ]
[10]	朱庆,赵杰,钟正,等.基于规则格网DEM 的地形特征提取算法[J].测绘学报,2004,33(1):77-82.
	[ Zhu Q, Zhao J, Zhong Z, et al.The extraction of topographic patterns based on regular grid DEMs[J]. Acta Geodaetica et Cartographica Sinica, 2004,33(1):77-82. ]
[11]	游松财,孙朝阳.中国流域的SRTM30数据提取与计算[J].地球信息科学学报,2009,11(2):189-195.
	[ You S C, Sun C Y.Extraction and area calculation of digital waersheds in China based on SRTM30[J]. Journal of Geo-information Science, 2009,11(2):189-195. ]
[12]	宋晓猛,张建云,占车生,等.基于DEM的数字流域特征提取研究进展[J].地理科学进展,2013,32(1):31-40. doi: 10.11820/dlkxjz.2013.01.003
	[ Song X M, Zhang J Y, Zhan C S, et al.Advances in digital watershed features extracting based on DEM[J]. Progress in Geography, 2013,32(1):31-40. ] doi: 10.11820/dlkxjz.2013.01.003
[13]	宋向阳,吴发启,赵龙山,等.基于DEM的延河流域水文特征提取与分析[J].干旱地区农业研究,2012,30(4):200-206. doi: 10.3969/j.issn.1000-7601.2012.04.036
	[ Song X Y, Wu F Q, Zhao L S, et al.Extraction and analysis of hydrological characteristics of Yanhe watershed based on DEM[J]. Agricultural Research in the Arid Areas, 2012,30(4):200-206. ] doi: 10.3969/j.issn.1000-7601.2012.04.036
[14]	张维,杨昕,汤国安,等.基于DEM 的平缓地区水系提取和流域分割的流向算法分析[J].测绘科学,2012,37(2):94-96.
	[ Zhang W, Yang X, Tang G A, et al.DEM-based flow direction algorithms study of stream extraction and watershed delineation in the low relief areas[J]. Science of Surveying and Mapping, 2012,37(2):94-96. ]
[15]	关颖慧,郑粉莉,王彬,等.基于DEM的黑龙江宾州河流域水系提取试验研究[J].水土保持通报,2012,32(1):127-131.
	[ Guan Y H, Zheng F L, Wang B, et al.DEM based extraction of river networks in Binzhou river basin of Heilongjiang province[J]. Bulletin of Soil and Water Conservation, 2012,32(1):127-131. ]
[16]	薛丰昌,盛洁如,钱洪亮.面向城市平原地区暴雨积涝汇水区分级划分的方法研究[J].地球信息科学学报,2015,17(4):462-468. doi: 10.3724/SP.J.1047.2015.00462
	[ Xue F C, Sheng J R, Qian H L.Research on classification of rainstorm watershed delineation approach for plain urban regions[J]. Journal of Geo-information Science, 2015,17(4):462-468. ] doi: 10.3724/SP.J.1047.2015.00462
[17]	黄微,张良培,李平湘.基于地形区域分割的复杂地区遥感影像分类[J].武汉大学学报·信息科学版,2007,32(9):791-795.
	[ Huang W, Zhang L P, Li P X.Classification of imagery in rugged terrain based on topographical area segmentation[J]. Geomatics and Information Science of Wuhan University, 2007,32(9):791-795. ]
[18]	郑利娟,李小娟,胡德勇,等.基于对象和DEM 的湿地信息提取——以洪河沼泽湿地为例[J].遥感技术与应用,2009,24(3):346-351.
	[ Zheng L J, Li X J, Hu D Y, et al.Wetland information extraction based on DEM and the object: A case study in Honghe wetland[J]. Remote Sensing Technology and Application, 2009,24(3):346-351. ]
[19]	王羲程,曹广超,张富玲,等.结合TM影像和DEM两种数据源的青藏高原湿地提取方法[J].测绘科学,2013,38(4):40-42.
	[ Wang X C, Cao G C, Zhang F L, et al.One extracting method of Tibetan Plateau wetland based on TM image and DEM data sources[J]. Science of Surveying and Mapping, 2013,38(4):40-42. ]
[20]	闫东阳,明冬萍.基于自动多种子区域生长的遥感影像面向对象分割方法[J].工程科学学报,2017,39(11):1735-1742. doi: 10.13374/j.issn2095--9389.2017.11.017
	[ Yan D Y, Ming D P.Object-oriented remote sensing image segmentation based on automatic multiseed region growing algorithm[J]. Chinese Journal of Engineering, 2017,39(11):1735-1742. ] doi: 10.13374/j.issn2095--9389.2017.11.017
[21]	李修霞,荆林海,李慧,等.参考1维光谱差异的区域生长种子点选取方法[J].中国图象图形学报,2016,21(9):1256-1264.
	[ Li X X, Jing L H, Li H, et al.Seed extraction method for seeded region growing based on one-dimensional spectral differences[J]. Journal of Image and Graphics, 2016,21(9):1256-1264. ]
[22]	宋坤,刘锐宁,李伟明.Visual C++开发技术大全[M].北京:人民邮电出版社,2007.
	[ Song K, Liu R N, Li W M.Visual C++ developing technology[M]. Beijing: Posts & Telecom Press, 2007. ]
[23]	李民录. GDAL源码剖析与开发指南[M].北京:人民邮电出版社,2014.
	[ Li M L.GDAL source codes analysis and development guide[M]. Beijing: Posts & Telecom Press, 2014. ]
