贵州高原1960-2016年降水变化特征及重心转移分析

doi:10.12082/dqxxkx.2018.180215

地球信息科学学报 ›› 2018, Vol. 20 ›› Issue (10): 1432-1442.doi: 10.12082/dqxxkx.2018.180215

• 地理空间分析综合应用 • 上一篇下一篇

贵州高原1960-2016年降水变化特征及重心转移分析

赵志龙(), 罗娅^*(), 余军林, 罗旭琴, 杨月燕

贵州师范大学地理与环境科学学院,贵阳 550001

收稿日期:2018-04-28 修回日期:2018-07-23 出版日期:2018-10-25 发布日期:2018-10-17
通讯作者: 罗娅 E-mail:zhaozhidragon@163.com;luoya2002@163.com
作者简介:
作者简介：赵志龙（1993-）,男,硕士生,研究方向为生态水文遥感与水土资源保护。E-mail: zhaozhidragon@163.com
基金资助:
国家十三五重点研发计划课题(2016YFC0502607);国家自然科学基金项目(41761003);贵州省社会发展科技攻关计划项目(黔科合SY字[2013]3172号);贵州师范大学2015年博士科研启动项目(0514177)

Analysis of Precipitation Variation Characteristics and Barycenter Shift in Guizhou Plateau during 1960-2016

ZHAO Zhilong(), LUO Ya^*(), YU Junlin, LUO Xuqin, YANG Yueyan

School of Geography and Environmental Science,Guizhou Normal University,Guiyang 550001,China

Received:2018-04-28 Revised:2018-07-23 Online:2018-10-25 Published:2018-10-17
Contact: LUO Ya E-mail:zhaozhidragon@163.com;luoya2002@163.com
Supported by:
Project of National Key Research and Development Program of China in the 13^th Five-year Plan, No.2016YFC0502607;National Natural Science Foundation, No.41761003;Project of Social Development of Guizhou Province, No.[2013]3127;Doctoral Foundation of Guizhou Normal University in 2015, No.0514177.

摘要/Abstract

摘要：

利用贵州高原34个气象站1960-2016年共57 a的降水资料,基于协同克里金法、Mann-Kendall趋势检验法、气候倾向率、重心模型等方法分析了贵州高原降水在不同时间尺度下的时空分布规律以及降水重心的转移趋势。结果表明：① 贵州高原多年平均降水量呈现南多北少特征。在南部与东部存在3个多雨中心,分别位于西南暖湿气流的北上通道（兴义-安顺一带）、苗岭山脉的迎风坡（都匀-独山一带）以及武陵山脉的迎风坡（铜仁–松桃一带）;少雨区位于乌蒙山脉背风坡的威宁–毕节一带。② 1960-2016年降水量年代变化呈现出波动性,2010s的降水变异性最大,1990s的降水变异性最小;年际变化较为剧烈,呈不显著减少的趋势,在空间上呈现中部西部减少、东部增加的趋势;降水季节差异显著,春季、秋季降水显著减少,夏季、冬季的降水不明显增加;各月降水变化情况不同,1、3月降水增加最明显,4月降水下降最明显。③ 降水重心呈西南-东北向分布,有明显的东移趋势。贵州高原降水量的减少可能与西南季风的减弱有关。研究结果对贵州地区水资源配置及洪涝灾害预防具有重要意义。

关键词: 贵州高原, 降水量, 协同克里金法, Mann-Kendall法, 降水重心

Abstract:

Based on the precipitation data of 34 meteorological stations in Guizhou Plateau from 1960 to 2016, the study analyzed the spatial-temporal distribution of precipitation and its barycenter shift in Guizhou Plateau at different time scales using the Co-Kriging method, Mann-Kendall trend test method, the climate tendency rate and barycenter model. The results indicate that: (1) The average annual precipitation over the Guizhou Plateau was characterized by decreasing from the south and the east to the northwest.There were three rainy centers in the south and east of Guizhou Plateau, respectively located in the northward transport path of the southwest warm and humid airflow (Xingyi-Anshun area), the windward slope of the Miaoling Mountains (Duyun-Dushan area) and the windward slope of the Wuling Mountains (Tongren- Songtao area); And the less rainy area was located in Weining and Bijie, where is the leeward slope of the Wumeng Mountains. (2) The chronological changes of precipitation from 1960 to 2016 presented volatility, the precipitation variability of 2010s was the largest, and the precipitation variability of 1990s was the smallest; the interannual variation was more dramatic, showing a not-significant decrease trend, which presented a spatial reduction in the central and western regions and increase in eastern regions. The differences in seasonal precipitation was obviously, precipitation decreased significantly in spring and autumn, and did not increase significantly in summer and winter.The change of precipitation in each month was different. The increase in precipitation was most significant in January and March, and the decline in precipitation in April was the most significant. (3) The precipitation barycenter was distributed in the southwest-northeast direction, and there had been a clear eastward shift in the past 57 years. The decrease of precipitation in Guizhou Plateau had the possibility of being associated with the weakening of the Southwest Monsoon. The above results are of great significance to the allocation of water resources and the prevention of flood disasters in Guizhou.

Key words: Guizhou Plateau, precipitation, Co-Kriging, Mann-Kendall method, the precitipation barycenters

赵志龙, 罗娅, 余军林, 罗旭琴, 杨月燕. 贵州高原1960-2016年降水变化特征及重心转移分析[J]. 地球信息科学学报, 2018, 20(10): 1432-1442.DOI:10.12082/dqxxkx.2018.180215

ZHAO Zhilong,LUO Ya,YU Junlin,LUO Xuqin,YANG Yueyan. Analysis of Precipitation Variation Characteristics and Barycenter Shift in Guizhou Plateau during 1960-2016[J]. Journal of Geo-information Science, 2018, 20(10): 1432-1442.DOI:10.12082/dqxxkx.2018.180215

图/表 11

图1

图2

表1

图3

图4

图5

图6

图7

表2

图8

图9

参考文献 35

[1]	任国玉,柳艳菊,孙秀宝,等.中国大陆降水时空变异规律—Ⅲ.趋势变化原因[J].水科学进展,2016,27(3):327-348. doi: 10.14042/j.cnki.32.1309.2016.03.001
	[ Ren G Y, Liu Y J, Sun X B, et al.Spatial and temporal patterns of precipitation variability over mainland China(Ⅲ): Causes for recent trends[J]. Advances in Water Science, 2016,27(3):327-348. ] doi: 10.14042/j.cnki.32.1309.2016.03.001
[2]	吴凯,王晓琳,许怡,等.中国大陆降水时空格局演变新事实[J].南水北调与水利科技,2017,15(3):30-36.
	[ Wu K, Wang X L, Xu Y, et al.New facts about evolution of spatial and temporal pattern of precipitation over Chinese mainland[J]. South-to-North Water Transfers and Water Science & Technology, 2017,15(3):30-36. ]
[3]	丁文荣. 西南地区极端降水的时空变化特征[J].长江流域资源与环境,2014,23(7):1029-1037. doi: 10.11870/cjlyzyyhj201407019
	[ Ding W R.Spatial and temporal variability of the extreme daily precipitation in Southwest China[J]. Resources and Environment in the Yangtze Basin, 2014,23(7):1071-1079. ] doi: 10.11870/cjlyzyyhj201407019
[4]	袁喆,杨志勇,郑晓东,等.近50年来淮河流域降水时空变化特征分析[J].南水北调与水利科技,2012,10(2):98-103.
	[ Yuan Z, Yang Z Y, Zheng X D, et al.Spatial and temporal variations of precipitation in Huaihe River Basin in recent 50 years[J]. South-to-North Water Transfers and Water Science & Technology, 2012,10(2):98-103. ]
[5]	贺晋云,张明军,王鹏,等.近50年西南地区极端干旱气候变化特征[J].地理学报,2011,66(9):1179-1190. doi: 10.11821/xb201109003
	[ He J Y, Zhang M J, Wang P, et al.Climate characteristics of the extreme drought events in southwest China during recent 50 Years[J]. Acta Geographica Sinica, 2011,66(9):1179-1190. ] doi: 10.11821/xb201109003
[6]	赵恕. 季风与贵州的雨季[J].气象学报,1965(1):96-106.
	[ Zhao S.Monsoons and rainy season in Kweichow[J]. Acta Meteorologica Sinica, 1965,35(1):96-106. ]
[7]	吴端耀,罗娅,王青,等. 2001-2014年贵州省林草植被覆盖度时空变化及其与气温降水变化的关系[J].贵州师范大学学报(自然科学版),2017,35(1):1-7. doi: 10.3969/j.issn.1004-5570.2017.01.001
	[ Wu D Y, Luo Y, Wang Q, et al.Spatio-temporal variation of vegetation coverage in forest and grassland and its relationship with temperature and precipitation changes in Guizhou Province during 2001-2014[J]. Journal of Guizhou Normal University (Natural Sciences), 2017,35(1):1-7. ] doi: 10.3969/j.issn.1004-5570.2017.01.001
[8]	秦剑,据建华,解明恩,等.低纬高原天气气候[M].北京:气象出版社,1997:38-50.
	[ Qin J. Ju J H.Xie M E. et.al.Weather&climate over low latitude plateau[M]. Beijing: China Meteorological Press, 1997:38-50. ]
[9]	伍红雨,王谦谦.近49年贵州降水异常的气候特征分析[J].高原气象,2003,22(1):65-70. doi: 10.3321/j.issn:1000-0534.2003.01.008
	[ Wu H Y, Wang Q Q.Climate characteristics analysis of Guizhou precipitation anomaly in recent 49 years[J]. Plateau Meteorology, 2003,22(1):65-70. ] doi: 10.3321/j.issn:1000-0534.2003.01.008
[10]	严小冬,金建德,雷云.近50年贵州降水时空分布分析[J].贵州气象,2004,28(s1):3-7. doi: 10.3969/j.issn.1003-6598.2004.z1.001
	[ Yan X D, Jin J D, Lei Y.Spatial and temporal distribution of precipitation in Guizhou in recent50years[J]. Journal of Guizhou Meteorology, 2004,28(s1):3-7 ] doi: 10.3969/j.issn.1003-6598.2004.z1.001
[11]	白淑英,莫婷,史建桥,等.近50年贵州不同强度降水日数时空变化分析[J].南水北调与水利科技,2015,13(2):220-224. doi: 10.13476/j.cnki.nsbdqk.2015.02.007
	[ Bai S Y, Mo T, Shi J Q, et al.Spatial and temporal variations of rainfall days with different intensities in Guizhou in recent 50 years[J]. South-to-North Water Transfers and Water Science & Technology, 2015,13(2):220-224. ] doi: 10.13476/j.cnki.nsbdqk.2015.02.007
[12]	张勇荣,马士彬,闫利会.贵州省近55年降水事件变化特征[J].长江科学院院报,2017,34(1):40-44. doi: 10.11988/ckyyb.20150903
	[ Zhang Y R, Ma S B, Yan L H, et al.Variation characteristics of precipitation events in Guizhou Province in recent 55 years[J]. Journal of Yangtze River Scientific Research Institute, 2017,34(1):40-44. ] doi: 10.11988/ckyyb.20150903
[13]	高志强,刘纪远. 1980-2000年中国LUCC对气候变化的响应[J].地理学报,2006,61(8):865-872. doi: 10.3321/j.issn:0375-5444.2006.08.009
	[ Gao Z Q, Liu J Y.The LUCC responses to climatic changes in China from 1980 to 2000[J], Acta Geographica Sinica, 2006,61(8):865-872. ] doi: 10.3321/j.issn:0375-5444.2006.08.009
[14]	徐建华,岳文泽.近20年来中国人口重心与经济重心的演变及其对比分析[J].地理科学,2001,21(5):385-389. doi: 10.3969/j.issn.1000-0690.2001.05.001
	[ Xu J H, Yue W Y.Evolvement and comparative analysis of the population center gravity and the economy gravity center in recent twenty years in China[J]. Scientia Geographica Sinica, 2001,21(5):385-389. ] doi: 10.3969/j.issn.1000-0690.2001.05.001
[15]	刘斌涛,陶和平,宋春风,等.基于重心模型的西南山区降水侵蚀力年内变化分析[J].农业工程学报,2012,28(21):113-120. doi: 10.3969/j.issn.1002-6819.2012.21.016
	[ Liu B T, Tao H P, Song C F, et al.Study on annual variation of rainfall erosivity in southwest China using gravity center model[J]. Transactions of the Chinese Society of Agricultural Engineering (Transactions of the CSAE), 2012,28(21):113-120. ] doi: 10.3969/j.issn.1002-6819.2012.21.016
[16]	陈素景,李丽娟,李九一,等.近55年来澜沧江流域降水时空变化特征分析[J].地球信息科学学报,2017,19(3):365-373. doi: 10.3724/SP.J.1047.2017.00365
	[ Chen S J, Li L J, Li J Y, et al.Analysis of the temporal and spatial variation characteristics of precipitation in the Lancang River Basin over thepast 55 years[J]. Journal of Geo-information Science, 2017,19(3):365-373. ] doi: 10.3724/SP.J.1047.2017.00365
[17]	国家气象信息中心.中国地面气候资料日值数据集(V3.0) [DB/OL]..
	[ National Meteorological Information Center. Dataset of Daily Climate Data from Chinese Surface Stations (V3.0)[DB/OL]. ]
[18]	黄蓉,胡泽勇,关婷,等.藏北高原气温资料插补及其变化的初步分析[J].高原气象,2014,33(3):637-646. doi: 10.7522/j.issn.1000-0534.2014.00027
	[ Huang R, Hu Z Y, Guan T, et al.Interpolation of temperature data in Northern Qinghai-Xizang Plateau and preliminary analysis on its recent variation[J]. Plateau Meteorology, 2014,33(3):637-646. ] doi: 10.7522/j.issn.1000-0534.2014.00027
[19]	Jarvis A, Reuter H I, Nelson A, et al. Hole-filled seamless SRTM data V4, International Centre for Tropical Agriculture(CIAT)[EB/OL]. .
[20]	汤国安,杨昕. ArcGIS地理信息系统空间分析实验教程[M].北京:科学出版社,2012:448-469.
	[ Tang G A, Yang X.ArcGIS: Spatical analysis experiment course of geographical information system[M]. Beijing: Science Press, 2012:448-469. ]
[21]	Goovaerts P.Geostatistical approaches for incorporating elevation into the spatial interpolation of rainfall[J]. Journal of Hydrology, 2000,228(1-2):113-129. doi: 10.1016/S0022-1694(00)00144-X
[22]	孙然好,刘清丽,陈利顶.基于地统计学方法的降水空间插值研究[J].水文,2010,30(1):14-17. doi: 10.3969/j.issn.1000-0852.2010.01.003
	[ Sun R H, Liu Q L, Chen L D.Study on precipitation interpolation based on the geostatistical analyst method[J]. Journal of China Hydrology, 2010,30(1):14-17. ] doi: 10.3969/j.issn.1000-0852.2010.01.003
[23]	刘爱利,王培法,丁园圆.地统计学概论[M].北京:科学出版社,2012.
	[ Liu A L, Wang P F, Ding Y Y.Introduction to Geost atistics[M]. Beijing: Science Press, 2012. ]
[24]	施能,陈家其.中国近100年来4个年代际的气候变化特征[J].气象学报,1995(4):431-439. doi: 10.1088/0256-307X/12/7/010
	[ Shi N, Chen J Q.4-Phase climate change features in the last 100 years over China[J].Acta Meteorologica Sinica, 1995(4):431-439. ] doi: 10.1088/0256-307X/12/7/010
[25]	孙鹏,张强,陈晓宏,等.鄱阳湖流域水沙时空演变特征及其机理[J].地理学报,2010,65(7):828-840.
	[ Sun P, Zhang Q, Chen X H, et al.Spatio-temporal patterns of sediment and runoff changes in the Poyang Lake Basin and underlying causes[J]. Acta Geographica Sinica, 2010,65(7):828-840. ]
[26]	贾蕾,曾彪,杨太保,等.近半个世纪以来中国季风区气温与降水变化及其时空差异[J].兰州大学学报(自然科学版),2015,51(2):186-192. doi: 10.13885/j.issn.0455-2059.2015.02.007
	[ Jia L, Zeng B, Yang T B, et al.Temperature and precipitation changes in the Chinese monsoon region during the recent half century and the spatio-temporal differences thereof[J]. Journal of Lanzhou University (Natural Sciences), 2015,51(2):186-192. ] doi: 10.13885/j.issn.0455-2059.2015.02.007
[27]	郭慧,李栋梁,林纾,等.近50多年来我国西部地区降水的时空变化特征[J].冰川冻土,2013,35(5):1165-1175. doi: 10.7522/j.issn.1000-0240.2013.0131
	[ Guo H, Li D L, Lin S, et al.Temporal and spatial variation of precipitation over western China during 1954-2006[J]. Journal of Glaciology and Geocryology, 2013,35(5):1165-1175. ] doi: 10.7522/j.issn.1000-0240.2013.0131
[28]	王艳姣,闫峰.1960-2010年中国降水区域分异及年代际变化特征[J].地理科学进展,2014,33(10):1354-1363. doi: 10.11820/dlkxjz.2014.10.007
	[ Wang Y J, Yan F.Regional differentiation and decadal change of precipitation in China in 1960-2010[J]. Progress in Geography, 2014,33(10):1354-1363. ] doi: 10.11820/dlkxjz.2014.10.007
[29]	唐晶晶. 1952-2007年间长江流域降水时空分布变化—全球变暖下降水重新分配实例分析[D].上海:华东师范大学,2010.
	[ Tang J J.The temporal and spatial distribution of precipitation over Yangtze River Catchment from 1952 to 2007: Case study of precipitation redistribution under global warming[D]. Shanghai: East China Normal University, 2010. ]
[30]	李聪,肖子牛,张晓玲.近60年中国不同区域降水的气候变化特征[J].气象,2012,38(4):419-424.
	[ Li C, Xiao Z N, Zhang X L.Climatic characteristics of precipitation in various regions of China for the past 60 years[J]. Meteorological Monthly, 2012,38(4):419-424. ]
[31]	Cai Y J, Zhang M L, Peng Z C, et al.The δ18O variation of a stalagmite from Qixing Cave, Guizhou Province and indicated climate change during the Holocene[J]. Science Bulletin, 2001,46(22):1904-1908. doi: 10.1007/BF02901169
[32]	Wang B, Ding Q.Changes in global monsoon precipitation over the past 56 years[J]. Geophysical Research Letters, 2006,33(6):272-288. doi: 10.1029/2005GL025347
[33]	Wang H.The Weakening of the Asian monsoon circulation after the end of 1970's[J]. Advances in Atmospheric Sciences, 2001,18(3):376-386. doi: 10.1007/BF02919316
[34]	Yang X L, Zhang P Z, Chen F H, et al.Modern stalagmite oxygen isotopic composition and its implications of climatic change from a high-elevation cave in the eastern Qinghai-Tibet Plateau over the past 50 years[J]. Science Bulletin, 2007,52(9):1238-1247. doi: 10.1007/s11434-007-0166-4
[35]	宗保云,李向磊,KATHAYAT Gayatri,等.亚洲季风的多尺度变化规律及其与全球气候变化的关系[J].地球环境学报,2017,8(3):185-193. doi: 10.7515/JEE201703001
	[ Zong B Y, Li X L, KATHAYAT G et al. Asian monsoon variability on multiple timescales in the context of global climate changes[J]. Journal of Earth Environment, 2017,8(3):185-193. ] doi: 10.7515/JEE201703001

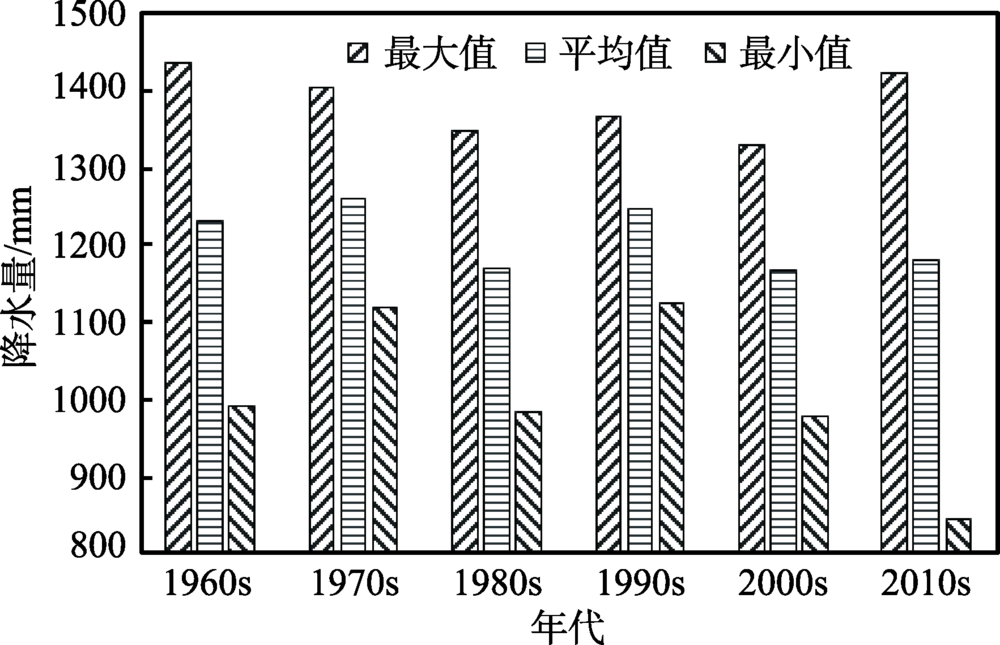

	1960s	1970s	1980s	1990s	2000s	2010s
平均值/mm	1210.84	1237.30	1152.62	1224.51	1148.54	1160.93
最大值/mm	1406.01	1376.85	1321.70	1341.28	1304.57	1394.44
最小值/mm	980.56	1104.37	973.90	1108.13	968.35	841.19
标准差/mm	145.59	82.31	123.78	75.73	116.19	197.01
变异系数	0.12	0.07	0.11	0.06	0.10	0.17

	1月	2月	3月	4月	5月	6月	7月	8月	9月	10月	11月	12月
平均值/mm	25.0	26.8	43.9	93.8	171.0	219.3	190.7	152.2	102.9	93.0	48.1	23.8
占全年百分比/%	2.1	2.3	3.7	7.9	14.4	18.4	16.0	12.8	8.6	7.8	4.0	2.0
降水倾向率/(mm/10a)	1.19*	-0.22	2.78*	-5.01*	-3.23	3.91	1.43	-3.35	-3.41	-3.15	-2.67	-0.09
