新疆冰雪旅游资源适宜性评价研究

doi:10.12082/dqxxkx.2018.180258

摘要/Abstract

摘要：

冰雪旅游正在成为冬季旅游出行的新选择。新疆冰雪旅游资源丰富,如何合理开发利用资源成为当地旅游开发亟待解决的问题,因此本文从旅游资源适宜性角度出发,选取自然条件、旅游资源、社会经济和交通可达性等方面的18个影响因子,采用层次分析法（AHP）和熵值法（EWM）确定组合权重,运用GIS空间分析技术和多因子加权评价模型（MCE）对研究区冰雪旅游资源适宜性进行评价。研究结果显示：① 就自然条件来看,伊犁东部、阿勒泰北部沿山脉边缘的丘陵和平原等地区较适宜发展冰雪旅游;② 阿勒泰地区和乌鲁木齐市的旅游资源相关基础设施完备,昌吉和伊犁在旅游资源方面也有较强竞争力;③ 社会经济来看,伊犁、乌鲁木齐市和阿勒泰地区为代表的北疆城市较南疆有更强的游客接待能力;④ 伊犁、乌昌经济带沿线地区交通可达性明显优于南疆各地州市。新疆冰雪旅游综合适宜性指数为1.8622-7.5724之间,其中天山北坡、阿勒泰北部、伊犁、塔城北部、哈密中部等地区为高度适宜;南疆大部分区域处于中低度适宜。建议通过加强新型旅游资源开发和整合,积极承办大型冰雪运动相关赛事,借助丝绸之路经济带发展交通道路建设,以加速推进新疆冰雪旅游发展。本研究可为冰雪旅游区开发和选址提供空间导向和科学依据。

关键词: 新疆, GIS, 冰雪旅游, 适宜性, 评价

Abstract:

The ice-snow tourism is becoming a new option for People who want to travel in the winter. Xinjiang is rich in ice and snow tourism resources. Therefore, it will be a problem of local tourism exploitation to be tackled immediately how to tap and utilize resources. From the light of tourism resources suitability, the thesis evaluates on the tourism resources suitability of researching zone, selecting 18 elements including natural conditions, tourism resources, social economy and transportation connectivity, taking Analytic Hierarchy Process (AHP) and Entropy Weight Method (EWM) to identify the group weight and using GIS spatial analysis and Multi-criteria Evaluation (MCE) model. The results show: (1)As natural condition goes, the eastern part of Yili District and the plain and the hills in the rim of Mountains in northern part of Altay District are suitable for ice-snow tourism; (2) The relevant infrastructure of the tourism resources are nearly self-contained in Altay and Urumqi. Changji District and Yili District are also competitive in tourism resources. (3)As for social economy, the cites in northern Xinjiang like Yili, Urumqi and Altay District are stronger in acceptance ability of visitors than that in Southern Xinjiang. (4) The traffic accessibility of the areas along the U-Chang economic belt and Yili District is clearly better than that in the cities in southern part of Xinjiang. The comprehensive suitability index of ice-snow tourism in Xinjiang is between 1.8622 and 7.5724, of which the north slopes of the Tianshan Mountains, north Altay District, Yili District, north Tacheng District, and central Hami District are in high suitability; Most part of southern Xinjiang are moderately suitable regions. For better development, we need to reinforce exploitation and coordination new tourism resources and actively undertake large snow sports competitions as well. We should take advantages of the Silk Road to develop cities' transportation, to accelerate the development of ice and snow tourism in Xinjiang. This study can provide spatial guidance and scientific evidence for ice-snow tourism development and site selection.

Key words: Xinjiang, GIS, ice and snow tourism, suitability, evaluate

张雪莹, 张正勇, 刘琳. 新疆冰雪旅游资源适宜性评价研究[J]. 地球信息科学学报, 2018, 20(11): 1604-1612.DOI:10.12082/dqxxkx.2018.180258

ZHANG Xueying,ZHANG Zhengyong,LIU Lin. Suitability Evaluation of Ice and Snow Tourism Resources in Xinjiang[J]. Journal of Geo-information Science, 2018, 20(11): 1604-1612.DOI:10.12082/dqxxkx.2018.180258

图/表 8

表1

表2

新疆冰雪旅游资源适宜性评价指标权重及等级划分

准则层	指标层	要素层	因子重要性等级
准则层	指标层	要素层	不适宜（分值=1）	临界适宜（分值=3）	低度适宜（分值=5）	中度适宜（分值=7）	高度适宜（分值=9）
自然环境指标（0.4434）	气候适宜度（0.3122）	平均温度/℃（0.0986）	-2.3~-5	-5~-10	-10~-15	-15~-20	-20~-24.2
		日照时数/h（0.0545）	233.2~300	300~400	400~500	500~600	600~690.8
		积雪深度/cm（0.1024）	0~1.5	1.5~3.4	3.4~6.6	6.6~12	12~21
		空气质量指数（0.0557）	>200	150~200	100~150	50~100	<50
	地形适宜度（0.1323）	高程/m（0.0620）	>5000 或<500	500~1000 4000~5000	1000~1500 3500~4000	1500~2000 3000~3500	2000~3000
	地形适宜度（0.1323）	坡度/°（0.0703）	>30	25~30	16~25	8~16	0~8
旅游资源指标（0.2641）	资源质量条件（0.0689）	星级农家乐数目/个（0.0334）	0-3	3-6	6-8	8-13	13-35
	资源质量条件（0.0689）	星级酒店数目/个（0.0335）	0	0~2	2~5	5~9	9~19
	资源开发条件（0.1598）	5A和4A级旅游景区/km（0.0517）	5A:>80 4A:>40	5A:60~80 4A:30~40	5A:40~60 4A:20~30	5A:20-40 4A:10-20	5A:0~20 4A:0~10
		冰雪节/次（0.0552）	1	2	3	4	5
		滑雪场/km （0.0529）	5s4s: >80 3s2s: >40 S:>20	5s4s: 60~80 3s2s: 30~40 S:15~20	5s4s: :40~60 3s2s: 20~30 S:10~15	5s4s: 20~40 3s2s: 10~20 S:5~10	5s4s: 0~20 3s2s: 0~10 S:0~5
	资源特色条件（0.0354）	少数民族聚集/万人（0.0354）	0.3~7.3	7.3~10.1	10.1~16.5	16.5~34.1	34.1~70.9
社会经济指标（0.1343）	旅游市场规模（0.0589）	全年入境旅游人数/万人（0.0288）	0.01~0.7	0.7~2.3	2.3~5	5~26.1	26.1~98.9
	旅游市场规模（0.0589）	全年旅游收入/千万（0.0300）	18.7~93.2	93.2~172.3	172.3~243.1	243.1~563	563.5~2583.4
	市场开发潜力（0.0755）	人均GDP/千万（0.0372）	5.5~13.5	13.5~26.8	26.8~44.2	44.2~75.8	75.8~188.2
	市场开发潜力（0.0755）	人口密度（0.0383）	0.2-3.6	3.6-14.1	14.1-51.7	51.7-226.4	226.4-2996
交通可达性指标（0.1581）	交通条件（0.0760）	道路密度（0.0760）	0-2	2-5.2	5.2-9.5	9.5-15.4	15.4-30.1
交通可达性指标（0.1581）	交通成本（0.0821）	可达范围（0.0821）	5 h外	5 h内	3 h内	2 h内	1 h内

表2

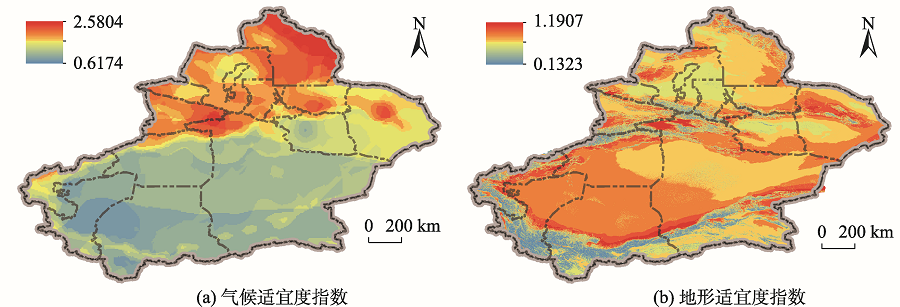

图1

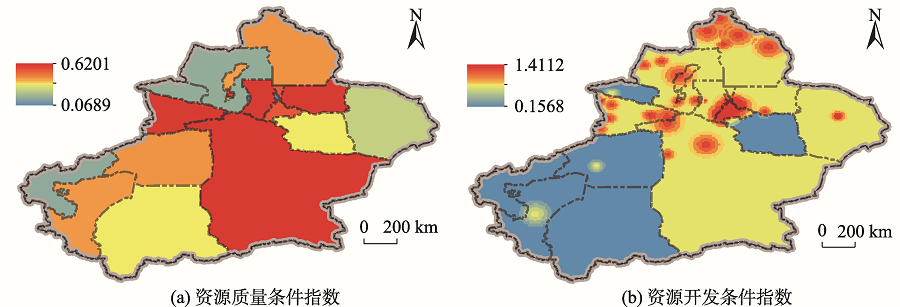

图2

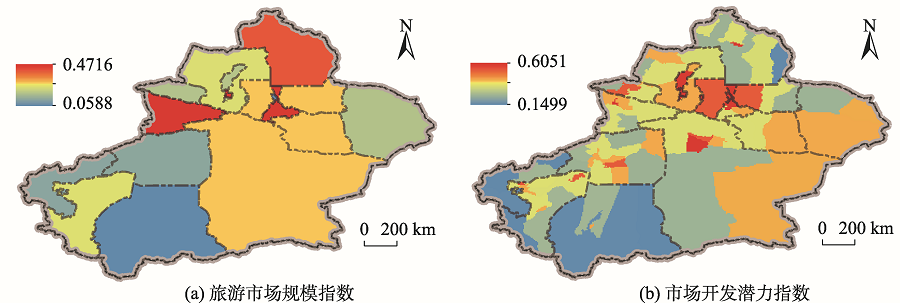

图3

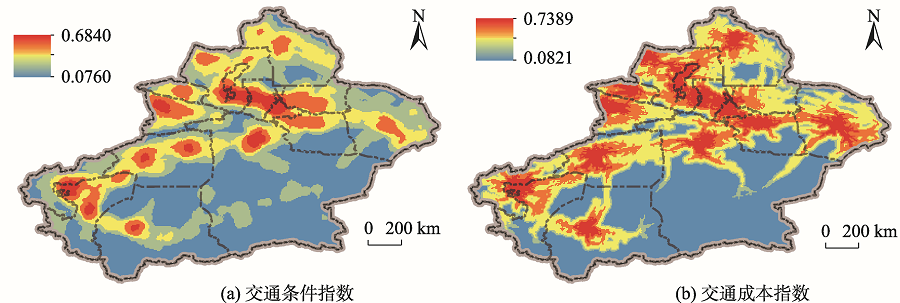

图4

表3

新疆冰雪旅游资源适宜性综合评分分级标准

适宜性分区	阈值划分	面积/万km²
高度适宜地区	$≥$ 5.5668	18.9543
中度适宜地区	4.7836~5.5668	31.5129
低度适宜地区	4.1034~4.7836	39.0269
临界适宜地区	3. 3210~4.1034	54.3230
不适宜地区	1.8622~3.3210	28.3415

表3

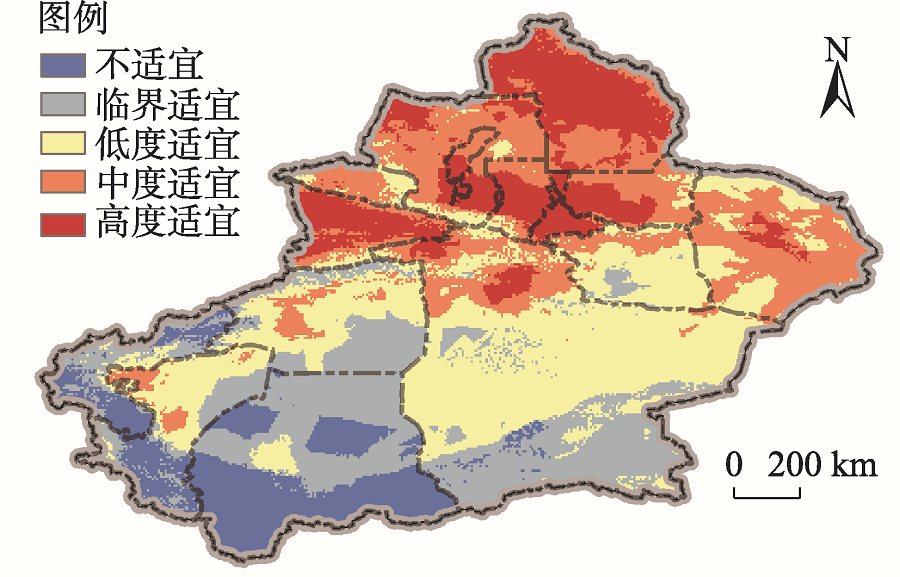

图5

参考文献 27

[1]	王玲. 国内外冰雪旅游开发与研究述评[J]. 生态经济, 2010(3):66-69,127.
	[ Wang L.A summary on the ice-snow tourism development and research at home and abroad[J]. Ecological Economy, 2010(3):66-69,127. ]
[2]	中国旅游研究院.中国冰雪旅游发展报告[ED/OL]., 2017-12-18.
	[China Tourism Research Institute. China snow and ice tourism development report. , 2017-12-18. ]
[3]	冷显鹏. 基于空间视角的哈尔滨冰雪旅游资源开发研究[D].沈阳:辽宁师范大学,2010.
	[ Leng X P.The development study of the Harbin ice-snow tourism resources with space-based perspective[D]. Shenyang: Liaoning Normal University, 2010. ]
[4]	Koenig U, Abegg B.Impacts of climate change on winter tourism in the Swiss Alps[J]. Journal of Sustainable Tourism, 1997,5(1):46-58. doi: 10.1080/09669589708667275
[5]	Rutty M, Scott D, Johnson P, et al.Using ski industry response to climatic variability to assess climate change risk: An analogue study in Eastern Canada[J]. Tourism Management, 2017,58:196-204. doi: 10.1016/j.tourman.2016.10.020
[6]	Zhang C Y, Yun-Quan H U. Research on the development evaluation of snow-ice tourism resources[C]. Harbin:2007 International Conference on Management Science and Engineering, 2007.
[7]	杨春梅,赵宝福.基于数据包络分析的中国冰雪旅游产业效率分析[J].干旱区资源与环境, 2014,28(1):169-174. doi: 10.3969/j.issn.1003-7578.2014.01.030
	[Yang C M, Zhao B F. An efficiency evaluation on Chinese ice-snow tourism industry based on data envelopment analysis[J]. Journal of Arid Land Resources and Environment, 2014,28(1):169-174. ] doi: 10.3969/j.issn.1003-7578.2014.01.030
[8]	Wu W, Zhu Y, Zhang C.The Assessment of ice-snow tourism resources value and its realization degree[J]. Ibusiness, 2013,5(3):30-35. doi: 10.4236/ib.2013.53B007
[9]	Yang J, Yang R, Sun J, et al.The spatial differentiation of the suitability of ice-snow tourist destinations based on a comprehensive evaluation model in China[J]. Sustainability, 2017,9(5):774. doi: 10.3390/su9050774
[10]	郭妍菲,李晓东.新疆冰雪旅游发展的SWOT分析及开发策略研究[J].干旱区资源与环境,2009,23(6):187-191.
	[ Guo Y F, Li X D.The SWOT analysis and proposal of winter tourism in Xinjiang[J]. Journal of Arid Land Resources and Environment, 2009,23(6):187-191. ]
[11]	苟俊豪,刘兵,张靖.新疆冰雪旅游开发的区域博弈分析[J].科技促进发展,2016,12(3):339-344. doi: 10.11842/chips.2016.03.010
	[ Gou J H, Liu B, Zhang J.Regional game-theoretic analysis for ice-snow tourism exploitation in Xinjiang[J]. Management Innovation, 2016,12(3):339-344.] doi: 10.11842/chips.2016.03.010
[12]	薄彩香. 新疆冰雪旅游发展战略研究[D].石河子:石河子大学,2011.
	[ Bo C X.Festival tourism marketing strategy research in Xinjiang: With winter exposition in Xinjiang as an example[D]. Xinjiang: Xinjiang University, 2011. ]
[13]	白淑英,史建桥,高吉喜,等.1979-2010年青藏高原积雪深度时空变化遥感分析[J].地球信息科学学报,2014,16(4):628-637. doi: 10.3724/SP.J.1047.2014.00628
	[ Bai S Y, Shi J Q, Gao J X, et al.Analysis of spatial-temporal variations of snow depth over the Qinghai-Tibetan plateau during 1979-2010[J]. Journal of Geo-information Science, 2014,16(4):628-637. ] doi: 10.3724/SP.J.1047.2014.00628
[14]	Che T, Li X, Jin R, et al.Snow depth derived from passive microwave remote-sensing data in China. Annals of Glaciology, 2008,49:145-154. doi: 10.3189/172756408787814690
[15]	中华人民共和国国家统计局.新疆统计年鉴2012-2016[M].北京:中国统计出版社, 2012-2016.
	[ National bureau of statistics of the People's Republic of China. Statistical yearbook of China(2012-2016)[M]. Beijing: China Statistical Publishing House, 2012-2016. ]
[16]	Bunruamkaew K, Murayam Y.Site suitability evaluation for ecotourism using GIS & AHP: A case study of Surat Thani province[J]. Thailand Procedia-Social and Behavioral Sciences, 2011,21:269-278. doi: 10.1016/j.sbspro.2011.07.024
[17]	程志会,刘锴,孙静,等.中国冰雪旅游基地适宜性综合评价研究[J].资源科学,2016,38(12):2233-2243. doi: 10.18402/resci.2016.12.04
	[ Cheng Z H, Liu K, Sun J, et al.The comprehensive evaluation of suitability of ice-snow tourism base in China[J]. Resources Science, 2016,38(12):2233-2243. ] doi: 10.18402/resci.2016.12.04
[18]	Yilmaz B.Application of GIS-based fuzzy logic and analytical hierarchy process (AHP) to snow avalanche susceptibility mapping[D]. North San Juan Colorado: University of Colorado Boulder, 2016.
[19]	苗红,张敏.基于GIS缓冲区分析的西北民族地区"非遗"旅游资源空间结构研究[J].干旱区资源与环境,2014,28(4):179-186.
	[ Miao H, Zhang M.Spatial structure of intangible heritage in Northwest China based on GIS analysis[J]. Journal of Arid Land Resources and Environment, 2014,28(4):179-186. ]
[20]	胡浩. 中国优秀旅游城市空间分布及其交通可达的地区差异分析[J].地理科学,2013,33(6):703-709.
	[ Hu H.Regional difference of spatial distribution and its transport accessibility of Chinese excellent tourism cities[J]. Scientia Geographic Sinica, 2013,33(6):703-709. ]
[21]	齐增湘,廖建军,徐卫华,等.基于GIS的秦岭山区聚落用地适宜性评价[J].生态学报,2015,35(4):1274-1283. doi: 10.5846/stxb201305020899
	[ Qi Z X, Liao J J, Xu W H, et al.Suitability analysis of mountain settlements in Qinling using a GIS system[J]. Acta Ecologica Sinica, 2015,35(4):1274-1283. ] doi: 10.5846/stxb201305020899
[22]	Li Y P, Zhang X.Research on comprehensive decision model based on analytic hierarchy process and entropy method[C]. The 3rd Annual International Conference on Modern Education and Social Science, China, 2017.
[23]	杨振,雷军,段祖亮,等.新疆人口的空间分布特征[J].地理研究,2016,35(12):2333-2346.
	[ Yang Z, Lei J, Duan Z L, et al.Spatial distribution of population in Xinjiang[J]. Geographical Research, 2016,35(12):2333-2346. ]
[24]	钟林生,肖笃宁.生态旅游及其规划与管理研究综述[J].生态学报,2000,20(5):841-848. doi: 10.3321/j.issn:1000-0933.2000.05.021
	[ Zhong L S, Xiao D N.Ecotourism and its planning and management a review[J]. Acta Ecologica Sinica, 2000,20(5):841-848. ] doi: 10.3321/j.issn:1000-0933.2000.05.021
[25]	王涛. 大城市客运交通出行时间成本研究[D].北京:北京工业大学,2006.
	[ Wang T.The research of travel time cost for passenger transportation in the big city[J]. Beijing: Beijing Polytechnic University, 2006. ]
[26]	徐淑梅,吕建华,沈和江.黑龙江省冰雪旅游开发战略AHP决策分析[J].人文地理,2008,23(1):107-110.
	[ Xu S M, Lv J H, Sheng H J.Analytic Hierarchy Process on the development strategy of time ice and snow tourism of HeiLongJiang province[J]. Human Geography, 2017,39(3):89-91. ]
[27]	郝晶晶,齐晓明,张素丽,等.内蒙古冰雪旅游资源及其利用研究[J].干旱区资源与环境,2017,31(9):201-207. doi: 10.13448/j.cnki.jalre.2017.304
	[ Hao J J, Qi X M, Zhang S L, et al.Ice-snow tourism resources and utilization in Inner Mongolia[J]. Journal of Arid Land Resources and Environment, 2017,31(9):201-207. ] doi: 10.13448/j.cnki.jalre.2017.304

数据来源	数据信息
国家气象信息中心 (http://www.nmic.cn/)	气温、日照（2011-2016年）
寒区旱区科学数据中心^[14]	积雪深度
全国城市空气质量实时发布平台 (http://106.37.208.233:20035/)	空气质量指数（AQI）（2015-2016年）
中国科学院计算机网络信息中心国际科学数据镜像网站 (http://www.gscloud.cn/)	数字高程模型DEM（90 m分辨率）
全国地理信息资源目录服务系统 (http://www.webmap.cn)	新疆行政区划图、道路矢量数据
《新疆统计年鉴》(2012-2016)^[15]	人口、旅游人数、旅游收入及地县人均生产总值
新疆旅游官方网 (http://www.xinjiangtour.gov.cn/)	星级农家乐酒店、冰雪节、滑雪场及景区分布等信息
