基于DEM修正的MODIS地表温度产品空间插值

doi:10.12082/dqxxkx.2018.180340

摘要/Abstract

摘要：

地表温度是资源环境、气候变化、陆地生态系统等科学研究的重要参数之一。MODIS LST（Land Surface Temperature, LST）产品是地表温度相关研究的重要数据源。而现有MODIS LST产品均存在云覆盖区域,因此云覆盖区域地表温度估计已成为热红外遥感的前沿性研究难题。为解决MODIS LST产品云遮挡区域地表温度信息缺失,以秦岭地区为研究区,选用2001-2017年的MOD11A2数据,在传统的反距离权重（IDW）、规则样条函数（SPLINE）、普通克里金（OK）、趋势面（TREND）空间插值方法中引入高程因子,通过反复试验形成基于DEM修正的MODIS LST空间插值方法。分析空间插值结果表明： ① 空间插值精度由高到低为：OK>SPLINE>IDW>TREND,基于DEM修正后精度分别提高了约0.38、0.31、0.32和0.78℃; ② 空间插值结果的精度呈现季节差异,夏季6、7、8月的精度较高,1月的精度最低;③ 插值精度与云区的范围存在一定的关系,当云覆盖区域<1.1 km²时,DEM+OK方法的插值误差<0.55 ℃,当云覆盖区域<3.1 km²,插值误差<1 ℃;DEM+SPLINE方法在云覆盖区域<2.7 km²时,插值误差<0.55 ℃,云覆盖区域<10.4 km²,插值误差<1℃;当云覆盖为1.1~2.7 km²时,DEM+SPLINE方法的插值精度高于DEM+OK方法。

关键词: MODIS LST, 空间插值, 地表温度, DEM, 秦岭地区

Abstract:

Land surface temperature is one of the important parameters of scientific research such as resource environment, climate change and terrestrial ecosystem. MODIS LST (Land Surface Temperature, LST) products are important data sources for land surface temperature related research. The land surface temperature information of MODIS LST products is lost in the cloud coverage area. Therefore, the land surface temperature estimation of cloud coverage areas has become a frontier research problem of thermal infrared remote sensing. In order to solve the problem of missing land surface temperature information in the cloud occlusion area of MODIS LST products. In this paper, the Qinling area is used as the research area and the experimental data of MOD11A2 from 2001 to 2017 is selected. In the traditional Inverse Distance Weighting (IDW), Regular Spline (SPLINE), Ordinary Kriging (OK) and Trend Surface (TREND) spatial interpolation method, the important influence factor of elevation is introduced. Through a large number of spatial interpolation experiments, the traditional spatial interpolation method is improved, and a MODIS LST spatial interpolation method based on DEM correction is formed. Analysis of spatial interpolation results indicates: （1） The spatial interpolation accuracy is from high to low: OK> SPLINE > IDW>TREND, and the accuracy of the OK, SPLINE, IDW, and TREND methods based on DEM correction is increased by about 0.38°C, 0.31°C, 0.32°C, and 0.78°C, respectively; (2) The accuracy of spatial interpolation results shows seasonal differences. The interpolation accuracy is higher in summer, July, and August, and the interpolation accuracy is the lowest in January. （3）The interpolation accuracy has a certain relationship with the cloud area. When the cloud coverage area is less than 1.1km², the interpolation error of the DEM+OK interpolation method is less than 0.55°C, and when the cloud coverage area is less than 3.1km², the spatial interpolation error is less than 1°C. When the cloud coverage area is less than 2.7 km², the interpolation error of the DEM+SPLINE method is less than 0.55°C, and the interpolation error of the DEM+SPLINE method is less than 1°C when the cloud coverage area is less than 10.4 km². When the cloud coverage is 1.1~2.7 km², the interpolation accuracy of DEM+SPLINE interpolation method is higher than of the DEM+OK interpolation method.

Key words: MODIS LST, spatial interpolation, land surface temperature, DEM, Qinling region

崔晓临, 程贇, 张露, 卫晓庆. 基于DEM修正的MODIS地表温度产品空间插值[J]. 地球信息科学学报, 2018, 20(12): 1768-1776.DOI:10.12082/dqxxkx.2018.180340

CUI Xiaolin,CHENG Yun,ZHANG Lu,WEI Xiaoqing. Spatial Interpolation of MODIS Land Surface Temperature Products Based on DEM Correction[J]. Journal of Geo-information Science, 2018, 20(12): 1768-1776.DOI:10.12082/dqxxkx.2018.180340

图/表 7

图1

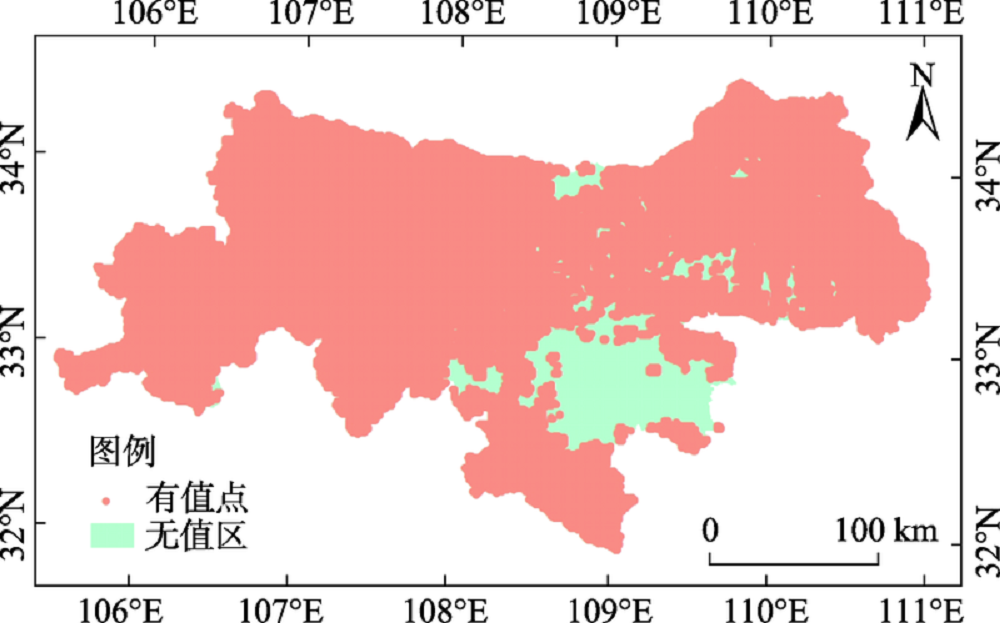

图2

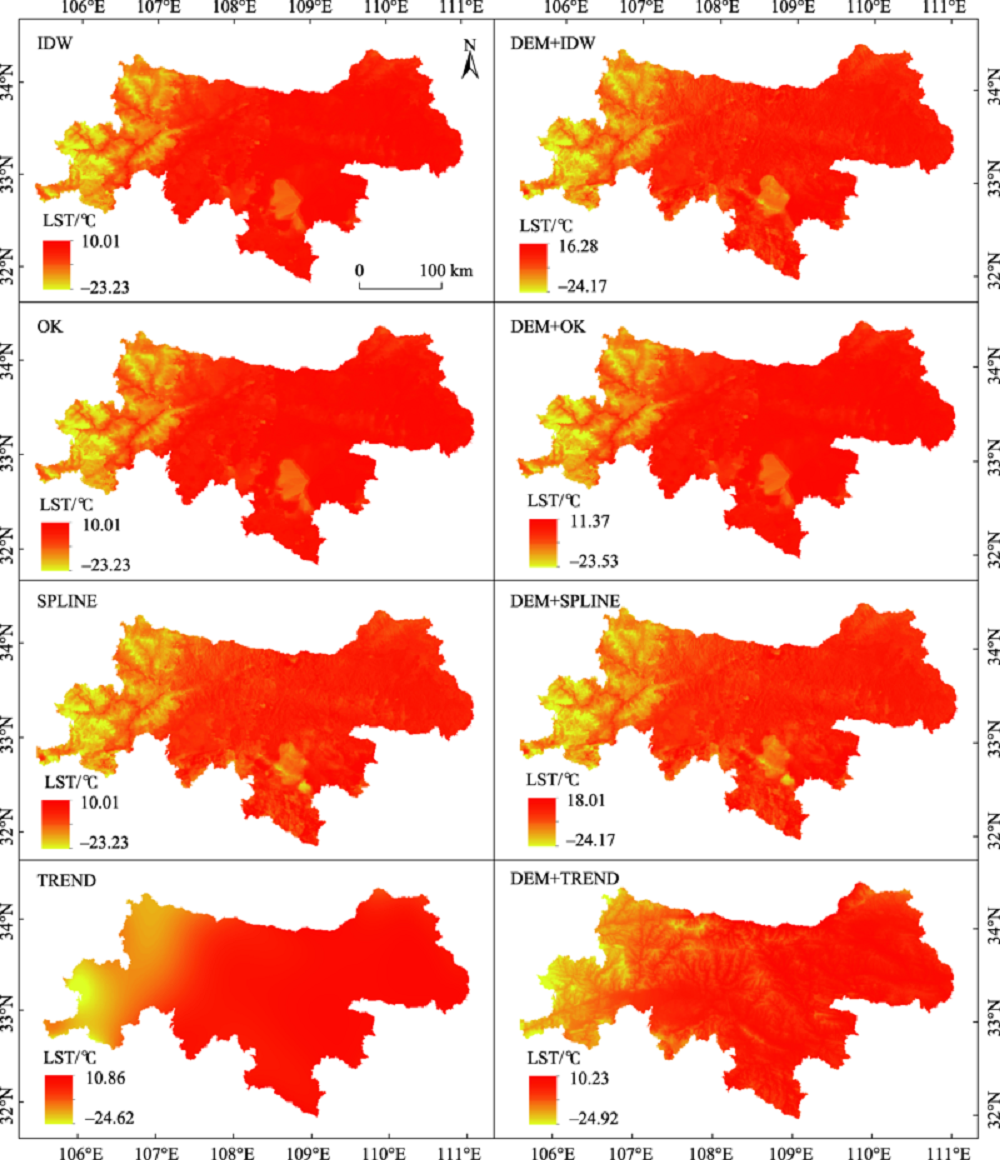

图3

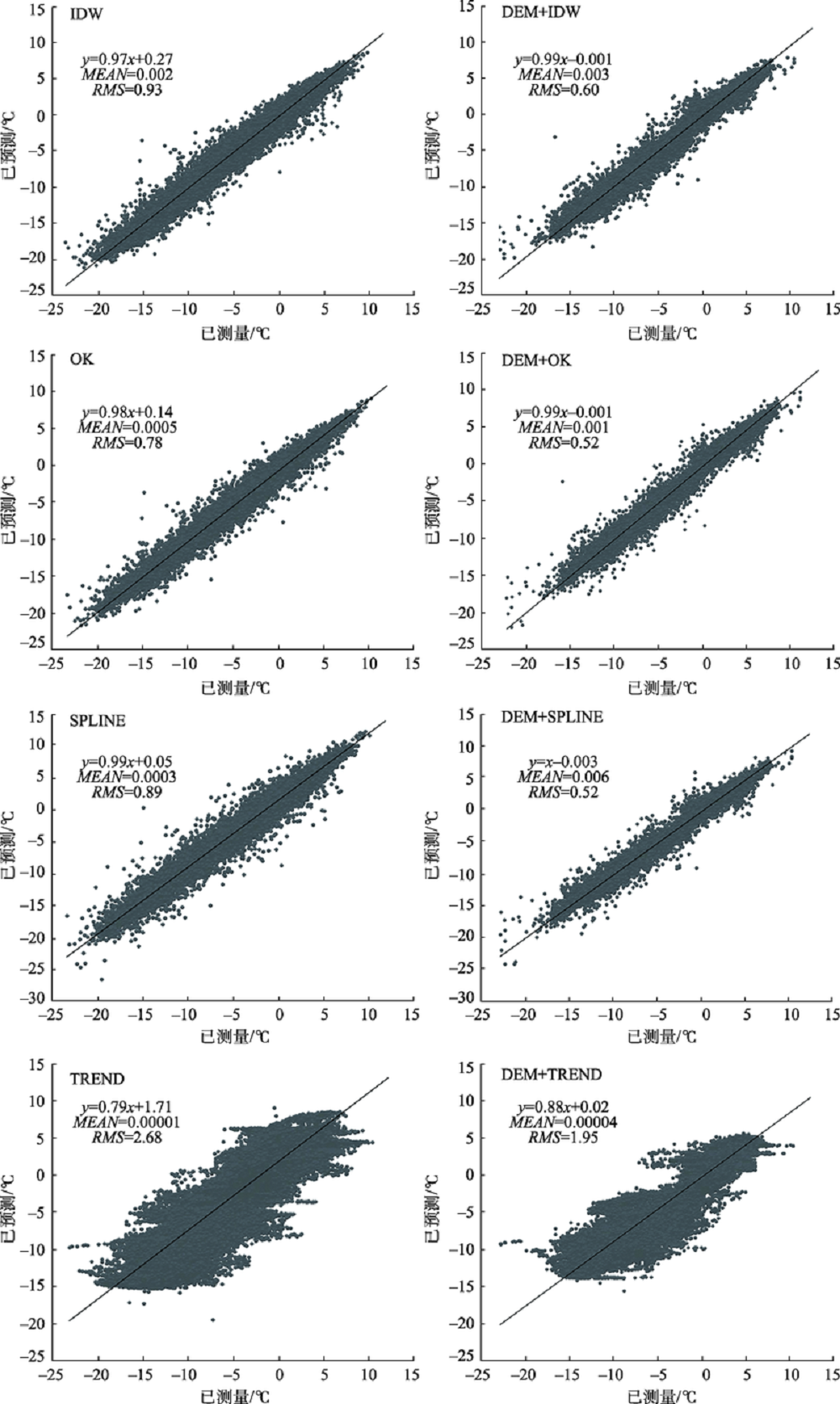

图4

表1

表2

表3

参考文献 30

[1]	石玉,肖继东,张旭.基于MODIS数据的乌昌地区地表温度反演[J].沙漠与绿洲气象,2010,4(4):48-50. doi: 10.3969/j.issn.1002-0799.2010.04.011
	[ Shi Y, Xiao J D, Zhang X.Surface temperature inversion in Wuchang area based on MODIS data[J]. Journal of Desert and Oasis Meteorology, 2010,4(4):48-50. ] doi: 10.3969/j.issn.1002-0799.2010.04.011
[2]	陈姚,王金亮,李石华.遥感图像中云层遮挡影响消除方法研究述评[J].国土资源遥感,2006,18(1):64-68. doi: 10.3969/j.issn.1001-070X.2006.01.014
	[ Chen Y, Wang J L, Li S H.A review of research on elimination of cloud occlusion influence in remote sensing images[J]. Remote Sensing for Land and Resources, 2006,18(1):64-68. ] doi: 10.3969/j.issn.1001-070X.2006.01.014
[3]	Lu L, Venus V, Skidmore A, et al.Estimating land-surface temperature under clouds using MSG/SEVIRI observations[J]. International Journal of Applied Earth Observation & Geoinformation, 2011,13(2):265-276. doi: 10.1016/j.jag.2010.12.007
[4]	刘梅,覃志豪,涂丽丽,等.利用NDVI估算云覆盖地区的植被表面温度研究[J].遥感技术与应用,2011,26(5):689-697.
	[ Liu M, Qin Z H, Tu L L, et al.Study on estimation of vegetation surface temperature in cloud covered region by NDVI[J]. Remote Sensing Technology and Application, 2011,26(5):689-697. ]
[5]	涂丽丽,覃志豪,张军,等.基于空间内插的云下地表温度估计及精度分析[J].遥感信息,2011(4):59-63. doi: 10.3969/j.issn.1000-3177.2011.04.012
	[ Tu L L, Qin Z H, Zhang J, et al.Surface temperature estimation and accuracy analysis of clouds based on spatial interpolation[J]. Remote Sensing Information, 2011(4):59-63. ] doi: 10.3969/j.issn.1000-3177.2011.04.012
[6]	张军,覃志豪,刘梅,等.利用空间插值法估算云覆盖像元地表温度的可行性研究[J].地理与地理信息科学,2011,27(6):45-49.
	[ Zhang J, Qin Z H, Liu M, et al.Feasibility study on estimating land surface temperature of cloud covered images using spatial interpolation method[J]. Journal of Geography and Geo-information Science, 2011,27(6):45-49. ]
[7]	Tu L L, Qin Z H, Zhang J, et al.Estimation and error analysis of land surface temperature under the cloud based on spatial interpolation[J]. Remote Sensing Information, 2011,31(4):59-58. doi: 10.1155/2011/531540
[8]	Yu W P, Ma M M, Wang X F, et al.Estimating the land-surface temperature of pixels covered by clouds in MODIS products[J]. Journal of Applied Remote Sensing, 2014,8(14):083525. doi: 10.1117/1.JRS.8.083525
[9]	Hengl T, Tadić M P, Pebesma E J.Spatio temporal prediction of daily temperatures using time-series of MODIS LST images[J]. Theoretical & Applied Climatology, 2012,107(1-2):265-277. doi: 10.1007/s00704-011-0464-2
[10]	Nguyen O V, Kawamura K, Trong D P, et al.Temporal change and its spatial variety on land surface temperature and land use changes in the Red River Delta, Vietnam, using MODIS time-series imagery[J]. Environmental Monitoring & Assessment, 2015,187(7):1-11. doi: 10.1007/s10661-015-4691-3 pmid: 26113204
[11]	Hassan Q K, Bourque C P A, Meng F R, et al. A wetness index using terrain-corrected surface temperature and normalized difference vegetation index derived from standard MODIS products: An evaluation of its use in a humid forest-dominated region of eastern Canada[J]. Sensors, 2007,7(10):2028-2048. doi: 10.3390/s7102028 pmid: 3888297
[12]	Rahaman K R, Hassan Q K.Quantification of local warming trend: A remote sensing-based approach[J]. Plos One, 2017,12(1):e0169423. doi: 10.1371/journal.pone.0169423 pmid: 28072857
[13]	Xu Y, & Shen Y. Reconstruction of the land surface temperature time series using harmonic analysis[J]. Computers & Geosciences, 2013,61(4):126-132.
[14]	Weiss D J, Atkinson P M, Bhatt S, et al.An effective approach for gap-filling continental scale remotely sensed time-series[J]. ISPRS Journal of Photogrammetry and Remote Sensing, 2014,98(98):106-118. doi: 10.1016/j.isprsjprs.2014.10.001 pmid: 25642100
[15]	Zhang G, Xiao X, Dong J, et al.Mapping paddy rice planting areas through time series analysis of MODIS land surface temperature and vegetation index data[J]. Isprs J Photogramm Remote Sens, 2015,106:157-171. doi: 10.1016/j.isprsjprs.2015.05.011 pmid: 27667901
[16]	https://ladsweb.modaps.eosdis.nasa.gov/data/search.html.
[17]	http://datamirror.csdb.cn.
[18]	杜文涛,秦翔,孙维君,等.山地冰川区气温重建比较研究——以祁连山老虎沟冰川区为例[J].干旱区资源与环境,2011,25(10):149-154.
	[ Du W T, Qin X, Sun W J, et al.Comparative study on temperature reconstruction in mountain glacier Area-a case study of the Tiger valley glacier area in Qilian Mountains[J]. Journal of Arid Land Resources and Environment, 2011,25(10):149-154. ]
[19]	乔治,田光进.基于MODIS的2001-2012年北京热岛足迹及容量动态监测[J].遥感学报,2015,19(3):476-484.
	[ Qiao Z, Tian G J.Dynamic monitoring of the footprint and capacity for urban beat island in Beijing between 2001 and 2012 based on MODIS[J]. Journal of Remote Sensing, 2015,19(3):476-484. ]
[20]	段长春,孙绩华.太阳活动异常与降水和地面气温的关系[J].气象科技,2006,34(4):381-386.
	[ Duan C C, Sun J H.Relationship between solar activity abnormality and precipitation and surface air temperature[J]. Meteorological Science and Technology, 2006,34(4):381-386. ]
[21]	张景雄. 地理信息系统与科学[M].武汉:武汉大学出版社,2010.
	[ Zhang J X.Geographic information system and science[M]. Wuhan: Wuhan University Press, 2010. ]
[22]	Goovaerts P.Geostatistical approaches for incurporating elevation into the spatial interpolation of rainfall[J]. Journal of Hydrology, 2000,228(1):113-129. doi: 10.1016/S0022-1694(00)00144-X
[23]	高霞,尤凤春,许耀辉.河北省水资源状况的降水条件分析[J].干旱气象,2008,26(1):47-51. doi: 10.3969/j.issn.1006-7639.2008.01.009
	[ Gao X, You F C, Xu Y H.Analysis of precipitation conditions of water resources in Hebei province[J]. Journal of Arid Meteorology, 2008,26(1):47-51. ] doi: 10.3969/j.issn.1006-7639.2008.01.009
[24]	刘艳,阮惠华,张璞,等.利用MODIS数据研究天山北麓Kriging雪深插值[J].武汉大学学报·信息科学版,2012,37(4):403-405.
	[ Liu Y, Ruan H H, Zhang P, et al.Kriging interpolation of snow depth at the north of Tianshan mountains assisted by MODIS data[J]. Geomatics and Information Science of Wuhan University, 2012,37(4):403-405. ]
[25]	蔡迪花,郭铌,李崇伟.基于DEM的气温插值方法研究[J].干旱气象,2009,27(1):10-17,28. doi: 10.3969/j.issn.1006-7639.2009.01.002
	[ Cai D H, Guo N, Li C W.Research on temperature interpolation method based on DEM[J]. Journal of Arid Meteorology, 2009,27(1):10-17,28. ] doi: 10.3969/j.issn.1006-7639.2009.01.002
[26]	李萌,王秀丽,丁媛媛.几种逐日气温插值方法的比较[J].安徽农业科学,2014,42(25):8670-8674,8684. doi: 10.3969/j.issn.0517-6611.2014.25.073
	[ Li M, Wang X L, Ding Y Y.Comparison of several Daily temperature interpolation methods[J]. Anhui Agricultural Sciences, 2014,42(25):8670-8674,8684. ] doi: 10.3969/j.issn.0517-6611.2014.25.073
[27]	杨青,史玉光,袁玉江,等.基于DEM的天山山区气温和降水序列推算方法研究[J].冰川冻土,2006,28(3):337-342. doi: 10.3969/j.issn.1000-0240.2006.03.006
	[ Yang Q, Shi Y G, Yuan Y J, et al.Research on derivation method of temperature and precipitation sequence in Tianshan mountain area based on DEM[J]. Journal of Glaciology and Geocryology, 2006,28(3):337-342. ] doi: 10.3969/j.issn.1000-0240.2006.03.006
[28]	游松财,李军.海拔误差影响气温空间插值误差的研究[J].自然资源学报,2005,20(1):140-144,157. doi: 10.3321/j.issn:1000-3037.2005.01.020
	[ You S C, Li J.Research on the influence of altitude error on temperature space interpolation error[J]. Journal of Natural Resources, 2005,20(1):140-144,157. ] doi: 10.3321/j.issn:1000-3037.2005.01.020
[29]	崔晓临,白红英,王涛.秦岭地区植被NDVI海拔梯度差异及其气温响应[J].资源科学,2013,35(3):618-626.
	[ Cui X L, Bai H Y, Wang T.Difference NDVI with altitudinal gradient and temperature in Qinling area[J]. Resources Science, 2013,35(3):618-626. ]
[30]	Colombi A, Michele C D, PEPE M, et al.Estimation of daily mean air temperature from MODIS LST in alpine areas[J]. Earsel Eproceedings, 2007,6(1):38-46.

方法	MEAN/℃	RMS/℃
IDW	0.0064	1.29
DEM+IDW	0.0182	0.91
SPLINE	0.0021	1.11
DEM+ SPLINE	0.0015	0.80
OK	0.0006	1.10
DEM+OK	0.0004	0.79
TREND	0.0007	3.22
DEM+TREND	0.0001	2.39

月份	DEM+IDW	DEM+SPLINE	DEM+OK	DEM+TREND
1	1.23	1.07	1.06	2.65
2	0.90	0.75	0.75	2.24
3	1.15	1.04	1.02	2.76
4	0.85	0.77	0.74	2.48
5	0.94	0.86	0.83	2.61
6	0.73	0.62	0.62	2.03
7	0.70	0.61	0.60	1.99
8	0.77	0.67	0.66	2.26
9	1.01	0.93	0.90	2.70
10	0.87	0.75	0.75	2.35
11	0.91	0.80	0.78	2.38
12	0.83	0.72	0.73	2.23

云覆盖像元（pixels）	DEM+OK	DEM+SPLINE
100	0.49	0.50
300	0.59	0.44
500	0.50	0.41
700	0.49	0.42
900	0.49	0.41
1100	0.54	0.40
1300	0.72	0.51
1900	0.72	0.47
2300	0.75	0.51
2700	0.82	0.55
3100	1.02	0.66
3900	1.02	0.73
4500	1.07	0.74
5700	1.19	0.92
6900	1.09	0.96
10 400	1.23	1.03
