长江三角洲滩涂信息的遥感提取及时空变化

doi:10.12082/dqxxkx.2019.180344

摘要/Abstract

摘要：

海岸带滩涂是重要的生态资源,对于环境保护和区域可持续发展具有重要意义,是学术界研究的热点区域。但由于滩涂周期性地被潮水淹没,通达性较差,传统的测量方式难以满足这一高度动态环境的变化监测需求,因此遥感观测方式成为一个潜在的选择。但遥感观测受成像方式、大气条件和潮情的影响,其应用仍面临很大的挑战。本文以苏北至上海南汇边滩沿岸作为研究区域,首先选择了1975年以来每年潮位最低的Landsat影像数据作为数据源,利用水边线作为滩涂的外边界,植被线或围垦大堤作为内边界提取滩涂面积;然后利用ArcGIS软件对获取的滩涂数据进行分析,以此来研究长江口滩涂的时空变化特征。结果表明：① 1975年以来研究区域滩涂面积整体上呈降低趋势;1990s之前滩涂面积基本保持稳定,1990s之后降低趋势较为明显;1995年前后研究区圆陀角以北的江苏海岸和以南的长江河口区域滩涂面积达到最大值,分别为1101.2 km²、1495.5 km²,至2017年,二者面积分别降为649.5 km²、1043.4 km²,1990年至今总体降低速率为21.7 km²/a;② 流域来沙减少和围垦、深水航道等河口工程是长江口滩涂面积减少的主要控制因素。

关键词: 长江三角洲, 滩涂, 遥感, 动态监测, 围垦, 控制因素

Abstract:

As an important ecological resource in coastal zones, tidal flats are of great significance for environmental protection and regional sustainable development. Additionally, tidal flats are sentinels of regional and global changes and thus have recently become a focus of academic research. However, the accessibility of tidal flats is poor because tidal waters periodically inundate them. This makes it difficult to employ traditional measurements to monitor such highly dynamic environments. Accordingly, remote sensing observation has become a potential choice. Yet, remote sensing observations also face great challenges because of influences from imaging modes, atmospheric conditions, and tide conditions. For this research, we selected the Yangtze River Delta, which is covered by a single full scene of Landsat image, as the study region, specifically including parts of the Jiangsu coast and the Yangtze River estuary zone. A collection of the Landsat images with the lowest tidal level in each year from 1975 to 2017 was selected as the main data sources. Meanwhile, to extract tidal flat data, we choose the waterline as the outer boundary and the vegetation line or reclamation dyke as the inner boundary. Then, ArcGIS software was used to acquire and analyze the temporal and spatial variability of the tidal flat data. The results show the following: (1) The tidal flat area in the study region has generally decreased since 1975. The area remained generally stable before 1990s, but after 1990s, the decline was evident. The tidal flat areas along the north of the Yuantuojiao Point and the Yangtze River estuary zone reached their maximums around 1995, at 1101.2 km² and 1495.5 km², respectively, but were 649.5 km² and 1043.4 km² by 2017. This indicates an overall decreasing rate of 21.7 km²/a. (2) Reduced riverine sediment, reclamation, and estuarine engineering projects, such as the Deep-water Navigation Channel project, are the main controlling factors in tidal flat shrinkage in the study region. The results provide a holistic perspective on the evolution of the tidal flats in the Yangtze River Delta, which may be helpful for coastal zone management and planning.

Key words: The Yangtze River Delta, tidal flat, remote sensing, dynamics monitoring, reclamation, controlling factor

仇传银, 李行, 刘淑安, 陈丹. 长江三角洲滩涂信息的遥感提取及时空变化[J]. 地球信息科学学报, 2019, 21(2): 269-278.DOI:10.12082/dqxxkx.2019.180344

Chuanyin QIU, Xing LI, Shu'an LIU, Dan CHEN. Monitoring Tidal Flats in the Yangtze River Delta Using Landsat Images[J]. Journal of Geo-information Science, 2019, 21(2): 269-278.DOI:10.12082/dqxxkx.2019.180344

图/表 9

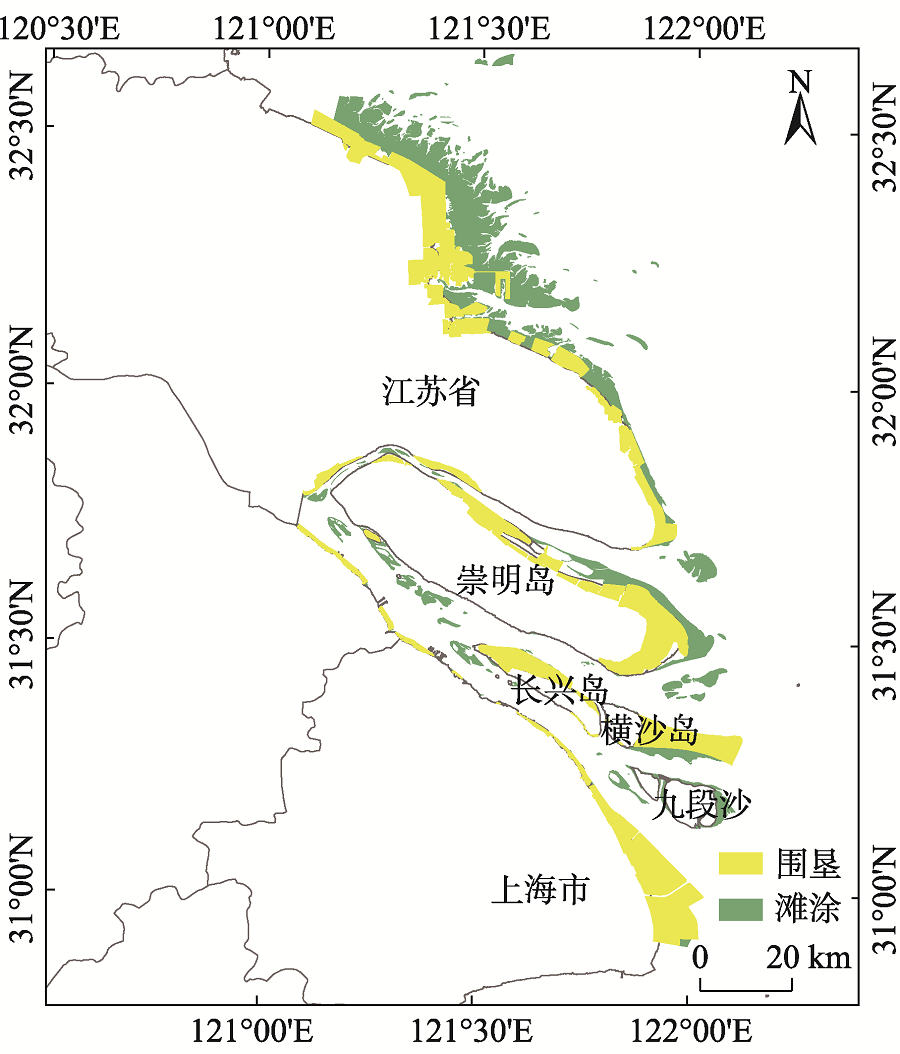

图1

表1

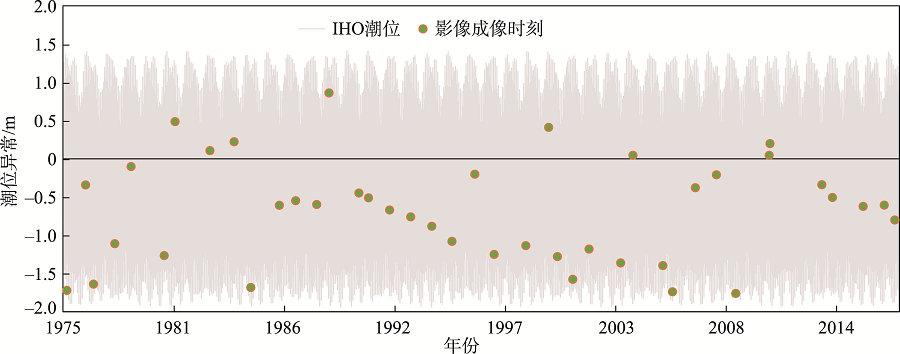

图2

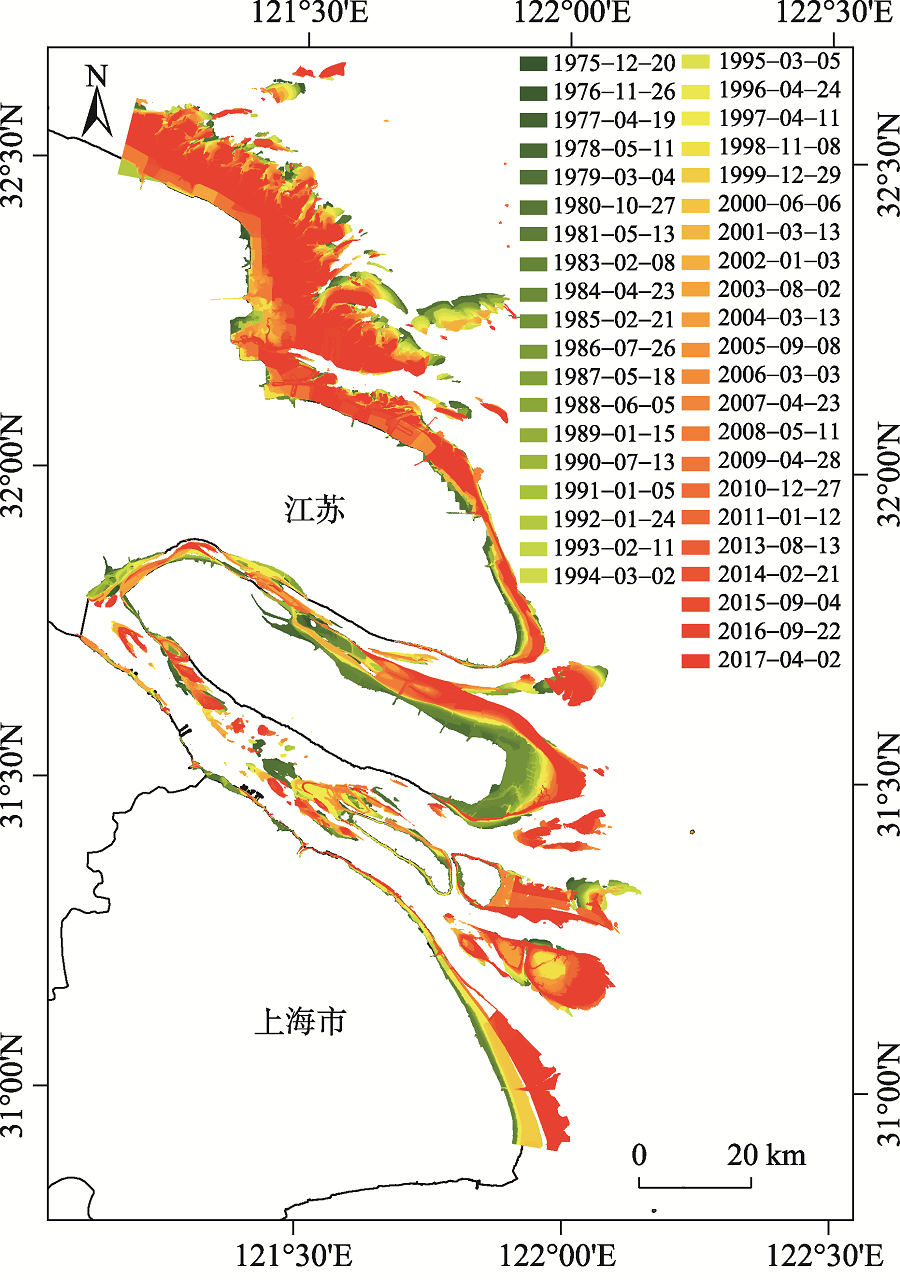

图3

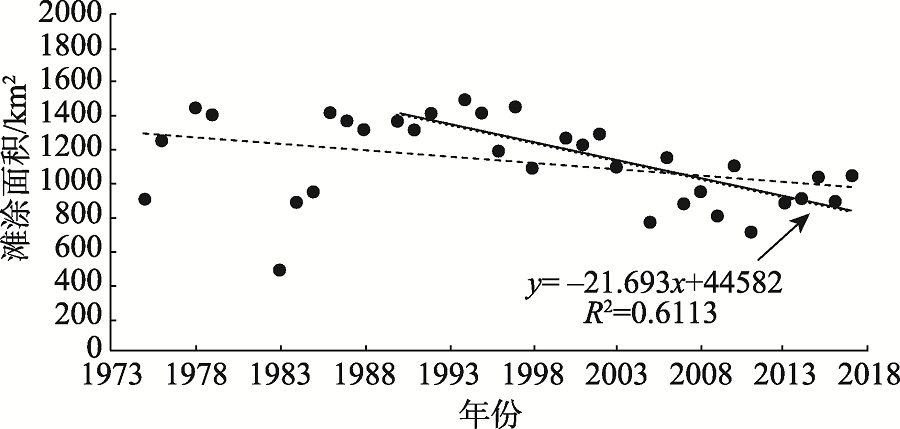

图4

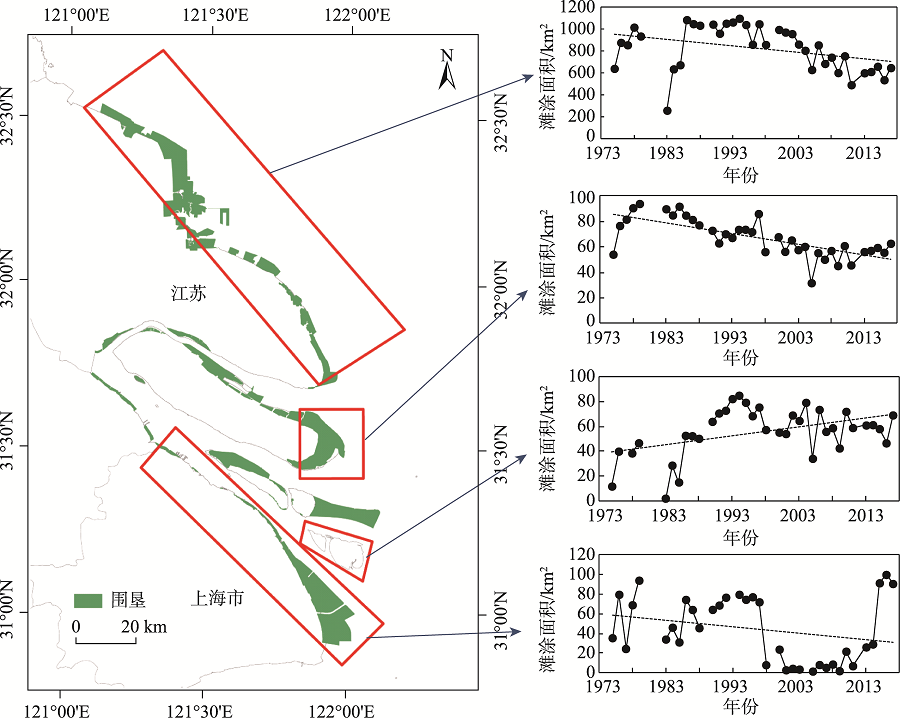

图5

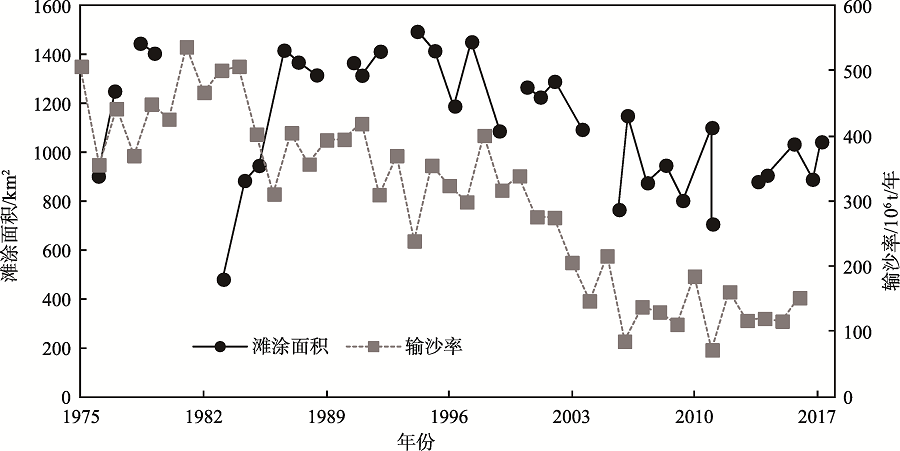

图6

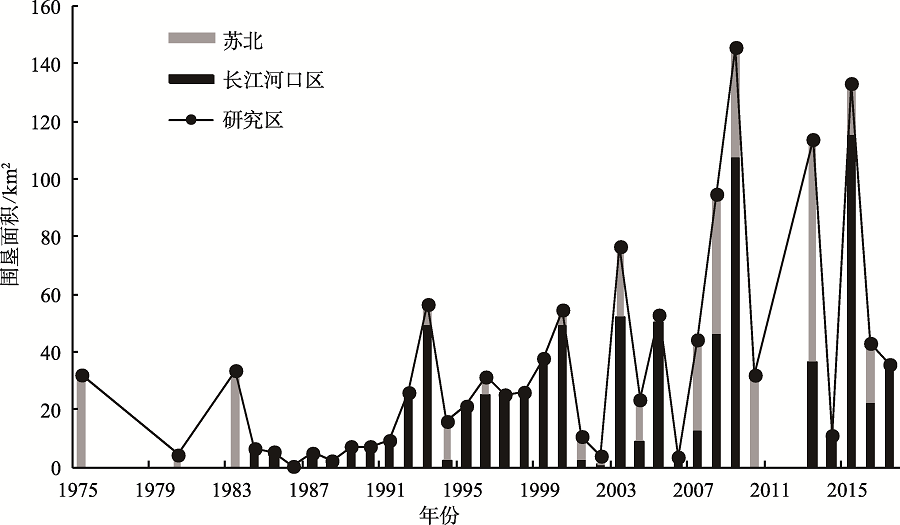

图7

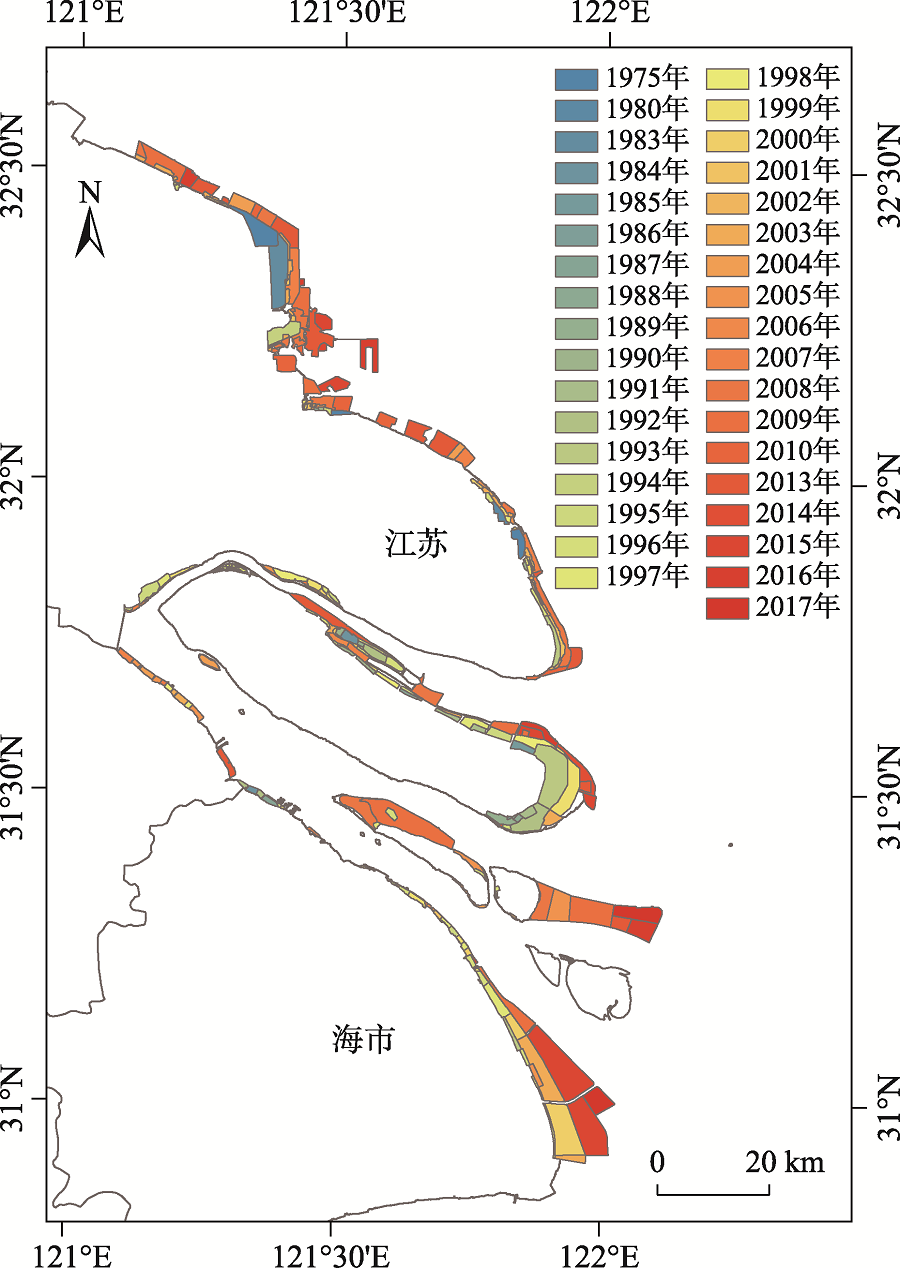

图8

参考文献 36

[1]	杨世伦,朱骏,李鹏.长江口前沿潮滩对来沙锐减和海面上升的响应[J].海洋科学进展,2005,23(2):152-158. doi: 10.3969/j.issn.1671-6647.2005.02.005
	[ Yang S L, Zhu J, Li P.Response of tidal bank on the changjiang river mouth foreland to drastic decline in riverine sediment supply and sea level rise[J]. Advances In Marine Science, 2005,23(2):152-8. ] doi: 10.3969/j.issn.1671-6647.2005.02.005
[2]	Sagar S, Roberts D, Bala B, et al. Extracting the intertidal extent and topography of the Australian coastline from a 28 year time series of Landsat observations[J]. Remote Sensing of Environment, 2017,195(15)153-169. doi: 10.1016/j.rse.2017.04.009
[3]	陈勇. 海岸带滩涂资源遥感应用研究进展[J].遥感技术与应用,2012,27(2):296-304.
	[ Chen Y.Advance of remote sensing application to tidal flat resource monitoring in coastal zone[J]. Remote Sensing Technology and Application, 2012,27(2):296-304. ]
[4]	韩震,恽才兴.伶仃洋大铲湾潮滩冲淤遥感反演研究[J].海洋学报,2003,25(5):58-64. doi: 10.3321/j.issn:0253-4193.2003.05.007
	[ Han Z, Yun C X.Deposition and erosion remote-sensing reverse of Dachan Bay beach in Lingdingyang estuary[J]. Acta Oceanologica Sinica, 2003,25(5):58-64. ] doi: 10.3321/j.issn:0253-4193.2003.05.007
[5]	赵亮,王淑香,李润生.一种联合光谱和纹理特征的滩涂提取技术[J].海洋测绘,2015,35(5):60-62. doi: 10.3969/j.issn.1671-3044.2015.05.015
	[ Zhao L, Wang S X, Li R S.A joint spectral and texture features supported tidal flat extraction method[J]. Hydrographic Surveying and Charting, 2015,35(5):60-62. ] doi: 10.3969/j.issn.1671-3044.2015.05.015
[6]	付军,谷东起.基于光谱与纹理特征融合的滩涂信息提取方法[J].海洋环境科学,2008,27(5):405-408. doi: 10.3969/j.issn.1007-6336.2008.05.002
	[ Fu J, Gu D Q.Extracting method in tidal flat based on decision fusion of spectrum and texture[J]. Marine Environmental Science, 2008,27(5):405-408. ] doi: 10.3969/j.issn.1007-6336.2008.05.002
[7]	陈亨霖,汪小钦.基于"资源二号"卫星和TM影像融合的滩涂信息提取[J].海洋科学进展,2004,22(b10):23-27. doi: 10.3969/j.issn.1671-6647.2004.z1.004
	[ Chen H L, Wang X Q.Tidal flat information extraction based on fusion of resource-2 satellite image and TM image[J]. Advances In Marine Science, 2004,22(b10):23-27. ] doi: 10.3969/j.issn.1671-6647.2004.z1.004
[8]	唐伯惠,姜小光,唐伶俐,等.星载高光谱Hyperion数据在海滩涂调查应用中的分析[J].地球信息科学学报,2004,6(2):81-87. doi: 10.3969/j.issn.1560-8999.2004.02.019
	[ Tang B H, Jiang X G, Tang L L, et al.The analysis of the spectrum-reflecting characteristics of the typical objects along the beach in subei using Hyperion data[J]. Journal of Geo-Information Science, 2004,6(2):81-87. ] doi: 10.3969/j.issn.1560-8999.2004.02.019
[9]	徐双全. 地理信息系统和数字高程模型在河口滩涂地形冲淤分析中的应用[J].泥沙研究,2006(6):6-10.
	[ Xu S Q.Application of GIS and DEM to the analysis of deposition and erosion of foreshore in the Yangtze River estuary[J]. Journal of Sediment Research,2006(6):6-10. ]
[10]	Zhao B, Guo H, Yan Y, et al.A simple waterline approach for tidelands using multi-temporal satellite images: A case study in the Yangtze Delta[J]. Estuarine, Coastal and Shelf Science, 2008,77(1):134-42. doi: 10.1016/j.ecss.2007.09.022
[11]	沈芳,郜昂,吴建平,等.淤泥质潮滩水边线提取的遥感研究及DEM构建——以长江口九段沙为例[J].测绘学报,2008,37(1):102-107. doi: 10.3321/j.issn:1001-1595.2008.01.018
	[ Shen F, Gao A, Wu J P, et al.A remotely sensed approach on waterline extraction of silty tidal flat for dem construction: A case study in Jiuduansha shoal of Yangtze river[J]. Acta Geodaetica Et Cartographica Sinica, 2008,37(1):102-107. ] doi: 10.3321/j.issn:1001-1595.2008.01.018
[12]	Kang Y, Ding X, Xu F, et al.Topographic mapping on large-scale tidal flats with an iterative approach on the waterline method[J]. Estuarine, Coastal and Shelf Science, 2017,190:11-22. doi: 10.1016/j.ecss.2017.03.024
[13]	Murray N, Phinn S, Clemens R, et al.Continental scale mapping of Tidal Flats across east Asia using the Landsat archive[J]. Remote Sensing, 2012,4(12):3417-3426. doi: 10.3390/rs4113417
[14]	王靖雯,牛振国.基于潮位校正的盐城滨海潮间带遥感监测及变化分析[J].海洋学报,2017,39(5):149-160. doi: 10.3969/j.issn.0253-4193.2017.05.014
	[ Wang J W, Niu Z G.Remote-sensing analysis of Yancheng intertidal zones based on tidal correction[J]. Acta Oceanologica Sinica, 2017,39(5):149-160. ] doi: 10.3969/j.issn.0253-4193.2017.05.014
[15]	Chen Y, Dong J, Xiao X, et al.Land claim and loss of tidal flats in the Yangtze Estuary[J]. Scientific reports, 2016,6:24018. doi: 10.1038/srep24018 pmid: 27035525
[16]	赵常青,茅志昌,虞志英,等.长江口崇明东滩冲淤演变分析[J].海洋湖沼通报,2008(3):27-34. doi: 10.3969/j.issn.1003-6482.2008.03.004
	[ Zhao C Q, Mao Z C, Yu Z Y, et al.The analysis of the eastern chongming tidal flat's evolution in the Yangtze river estuary[J]. Transactions of Oceanology and Limnology,2008(3):27-34. ] doi: 10.3969/j.issn.1003-6482.2008.03.004
[17]	杨世伦,JUNZ,李明.长江入海泥沙的变化趋势与上海滩涂资源的可持续利用[J].海洋学研究,2009,27(2):7-15.
	[ Yang S L, ZHU Z, Li M.Evolutional trend of the coastal wetland in Shanghai in response to decrease of sediment supply from the Changjiang River[J]. Journal of Marine Sciences, 2009,27(2):7-15. ]
[18]	郑宗生,周云轩,田波,等.基于数字海图及遥感的近60年崇明东滩湿地演变分析[J].国土资源遥感,2013,25(1):130-136. doi: 10.6046/gtzyyg.2013.01.23
	[ Zheng Z S, Zhou Y X, Tian B, et al.Evolution analysis of Chongming Dongtan wetland in recent 60 years based on digital nautical chart and remote sensing[J]. Remote Sensing For Land & Resources, 2013,25(1):130-136. ] doi: 10.6046/gtzyyg.2013.01.23
[19]	Wang H, Ge Z, Yuan L, et al. Evaluation of the combined threat from sea-level rise and sedimentation reduction to the coastal wetlands in the Yangtze Estuary, China[J]. Ecological Engineering, 2014,71(71)346-354. doi: 10.1016/j.ecoleng.2014.07.058
[20]	Wei W, Tang Z, Dai Z, et al.Variations in tidal flats of the Changjiang (Yangtze) estuary during 1950s-2010s: Future crisis and policy implication[J]. Ocean & Coastal Management, 2015,108:89-96. doi: 10.1016/j.ocecoaman.2014.05.018
[21]	刘雪,马妍妍,李广雪,等.基于卫星遥感的长江口岸线演化分析[J].海洋地质与第四纪地质,2013(2):17-23.
	[ Liu X, Ma Y Y, Li G X, et al.Coastline evolution of the Yangtze estuary upon satellite remote sensing analysis[J]. Marine Geology & Quaternary Geology,2013(2):17-23. ]
[22]	贾明明,刘殿伟,王宗明,等.面向对象方法和多源遥感数据的杭州湾海岸线提取分析[J].地球信息科学学报,2013,15(2):262-269. doi: 10.3724/SP.J.1047.2013.00262
	[ Jia M M, Liu D W, Wang Z M, et al.Coastline changes in Hangzhou Bay based on object-oriented method using multi-source remote sensing data[J]. Journal of Geo-information Science, 2013,15(2):262-269. ] doi: 10.3724/SP.J.1047.2013.00262
[23]	Kuenzer C, Klein I, Ullmann T, et al.Remote sensing of River Delta Inundation: Exploiting the potential of coarse spatial resolution, temporally-dense MODIS time series[J]. Remote Sensing, 2015,7:8516-8542. doi: 10.3390/rs70708516
[24]	Behling R, MILEWSKI R, CHABRILLAT S.Spatiotemporal shoreline dynamics of Namibian coastal lagoons derived by a dense remote sensing time series approach[J]. International Journal of Applied Earth Observation & Geoinformation, 2018,68:262-271. doi: 10.1016/j.jag.2018.01.009
[25]	Ryu J H, Won J S, Min K D.Waterline extraction from Landsat TM data in a tidal flat : A case study in Gomso Bay, Korea[J]. Remote Sensing of Environment, 2002,83(3):442-456. doi: 10.1016/S0034-4257(02)00059-7
[26]	陈吉余,程和琴,戴志军.河口过程中第三驱动力的作用和响应——以长江河口为例[J].自然科学进展,2008,18(9):994-1000. doi: 10.3321/j.issn:1002-008X.2008.09.005
	[ Chen J Y, Cheng H Q, Dai Z J.Effect and response of the third driving force in estuary process: An example of the Yangtze estuary[J]. Progress in Natural Science, 2008,18(9):994-1000. ] doi: 10.3321/j.issn:1002-008X.2008.09.005
[27]	Li X, Zhou Y, Zhang L, et al.Shoreline change of Chongming Dongtan and response to river sediment load: A remote sensing assessment[J]. Journal of Hydrology, 2014, 511:432-442. doi: 10.1016/j.jhydrol.2014.02.013
[28]	Yang S L, Milliman J D, Li P, et al.50 000 dams later: Erosion of the Yangtze River and its delta[J]. Global and Planetary Change, 2011,75(1-2):14-20. doi: 10.1016/j.gloplacha.2010.09.006
[29]	Yang Y P, Li Y T, Fan Y Y, et al.Impact of water and sediment discharges on subaqueous delta evolution in Yangtze Estuary from 1950 to 2010[J]. Water Science and Engineering, 2014,7(3):331-343. doi: 10.3882/j.issn.1674-2370.2014.03.008
[30]	Wang H, Wu X, Bi N, et al.Impacts of the dam-orientated water-sediment regulation scheme on the lower reaches and delta of the Yellow River (Huanghe): A review[J]. Global & Planetary Change, 2017,157:93-113. doi: 10.1016/j.gloplacha.2017.08.005
[31]	Dai S B, Lu X X, Yang S L, et al.A preliminary estimate of human and natural contributions to the decline in sediment flux from the Yangtze River to the East China Sea[J]. Quaternary International, 2008,186(1):43-54. doi: 10.1016/j.quaint.2007.11.018
[32]	Li X, Liu J P, Tian B.Evolution of the Jiuduansha wetland and the impact of navigation works in the Yangtze Estuary, China[J]. Geomorphology, 2016,253:328-339. doi: 10.1016/j.geomorph.2015.10.031
[33]	杜景龙,杨世伦,陈广平. 30多年来人类活动对长江三角洲前缘滩涂冲淤演变的影响[J].海洋通报,2013,32(3):296-302. doi: 10.11840/j.issn.1001-6392.2013.03.009
	[ Du J L, Yang S L, Chen G P.Influence of human activities on the evolution of the tidal flat of Yangtze River delta front during the last 30 years[J]. Marine Science Bulletin, 2013,32(3):296-302. ] doi: 10.11840/j.issn.1001-6392.2013.03.009
[34]	程和琴,王冬梅,陈吉余. 2030年上海地区相对海平面变化趋势的研究和预测[J].气候变化研究进展,2015,11(4):231-238. doi: 10.3969/j.issn.1673-1719.2015.04.001
	[ Cheng H Q, Wang D M, Chen J Y.Study and prediction of the relative sea level rise in 2030 in Shanghai area[J]. Progressus Inquisitiones De Mutatione Climatis, 2015,11(4):231-238. ] doi: 10.3969/j.issn.1673-1719.2015.04.001
[35]	杨桂山,施雅风,季子修.江苏淤泥质潮滩对海平面变化的形态响应[J].地理学报,2002,57(1):76-84. doi: 10.3321/j.issn:0375-5444.2002.01.009
	[ Yang G S, Shi Y F, Ji Z X.The morphological response of typical mud flat to sea level change in Jiangsu coastal plain[J]. Acta Geographica Sinica, 2002,57(1):76-84. ] doi: 10.3321/j.issn:0375-5444.2002.01.009
[36]	Tian B, Zhang L, Wang X, et al.Forecasting the effects of sea-level rise at Chongming Dongtan Nature Reserve in the Yangtze Delta, Shanghai, China[J]. Ecological Engineering, 2010,36(10):1383-1388. doi: 10.1016/j.ecoleng.2010.06.016

编号	卫星	传感器	成像日期	成像时刻
1	Landsat 2	MSS	1975-12-20	09:44:45
2	Landsat 2	MSS	1976-11-26	09:35:23
3	Landsat 2	MSS	1977-04-19	09:29:13
4	Landsat 3	MSS	1978-05-11	09:46:21
5	Landsat 2	MSS	1979-03-04	09:36:02
6	Landsat 3	MSS	1980-10-27	09:33:50
7	Landsat 3	MSS	1981-05-13	09:40:58
8	Landsat 4	MSS	1983-02-08	09:54:17
9	Landsat 5	TM	1984-04-23	09:52:10
10	Landsat 5	TM	1985-02-21	09:55:26
11	Landsat 4	MSS	1986-07-26	09:44:13
12	Landsat 5	TM	1987-05-18	09:48:53
13	Landsat 5	TM	1988-06-05	09:55:31
14	Landsat 5	TM	1989-01-15	09:55:08
15	Landsat 5	TM	1990-07-13	09:45:07
16	Landsat 5	TM	1991-01-05	09:44:57
17	Landsat 5	TM	1992-01-24	09:49:16
18	Landsat 5	TM	1993-02-11	09:46:55
19	Landsat 5	TM	1994-03-02	09:45:49
20	Landsat 5	TM	1995-03-05	09:35:39
21	Landsat 5	TM	1996-04-24	09:34:50
22	Landsat 5	TM	1997-04-11	09:52:10
23	Landsat 5	TM	1998-11-08	10:03:58
24	Landsat 5	TM	1999-12-29	10:00:06
25	Landsat 5	TM	2000-06-06	10:01:10
26	Landsat 7	ETM+	2001-03-13	10:15:18
27	Landsat 5	TM	2002-01-03	10:04:06
28	Landsat 5	TM	2003-08-02	10:01:44
29	Landsat 5	TM	2004-03-13	10:04:04
30	Landsat 5	TM	2005-09-08	10:13:07
31	Landsat 5	TM	2006-03-03	10:15:53
32	Landsat 5	TM	2007-04-23	10:19:43
33	Landsat 5	TM	2008-05-11	10:13:38
34	Landsat 5	TM	2009-04-28	10:12:26
35	Landsat 5	TM	2010-12-27	10:14:54
36	Landsat 5	TM	2011-01-12	10:14:56
37	Landsat 8	OLI	2013-08-13	10:27:00
38	Landsat 8	OLI	2014-02-21	10:25:47
39	Landsat 8	OLI	2015-09-04	10:24:49
40	Landsat 8	OLI	2016-09-22	10:25:14
41	Landsat 8	OLI	2017-04-02	10:24:34
