基于DEM的SAR影像几何定位参数校正方法

doi:10.12082/dqxxkx.2019.180386

地球信息科学学报 ›› 2019, Vol. 21 ›› Issue (4): 580-587.doi: 10.12082/dqxxkx.2019.180386

基于DEM的SAR影像几何定位参数校正方法

杨书成(), 黄国满, 程春泉

中国测绘科学研究院,北京 100830

收稿日期:2018-08-24 修回日期:2019-03-15 出版日期:2019-04-24 发布日期:2019-04-24
作者简介:
作者简介：杨书成（1986-）,男,江西万年人,博士,副研究员,研究方向为SAR遥感数据处理及应用。E-mail:yangsc@casm.ac.cn
基金资助:
国家重点研发计划项目（2017YFB0503004、2018YFF0215303）;中国测绘科学研究院基本科研业务费项目（777 1808）

Correction Method of SAR Image Geometric Positioning Parameters based on DEM

Shucheng YANG^*(), Guoman HUANG, Chunquan CHENG

Chinese Academic of Surveying and Mapping, Beijing 100830, China

Received:2018-08-24 Revised:2019-03-15 Online:2019-04-24 Published:2019-04-24
Contact: Shucheng YANG
Supported by:
The National Key Research and Development Program of China, No.2017YFB0503004, 2018YFF0215303;Chinese Academy of Surveying and Mapping Fundamental Research Project under Grant, No. 7771808

摘要/Abstract

摘要：

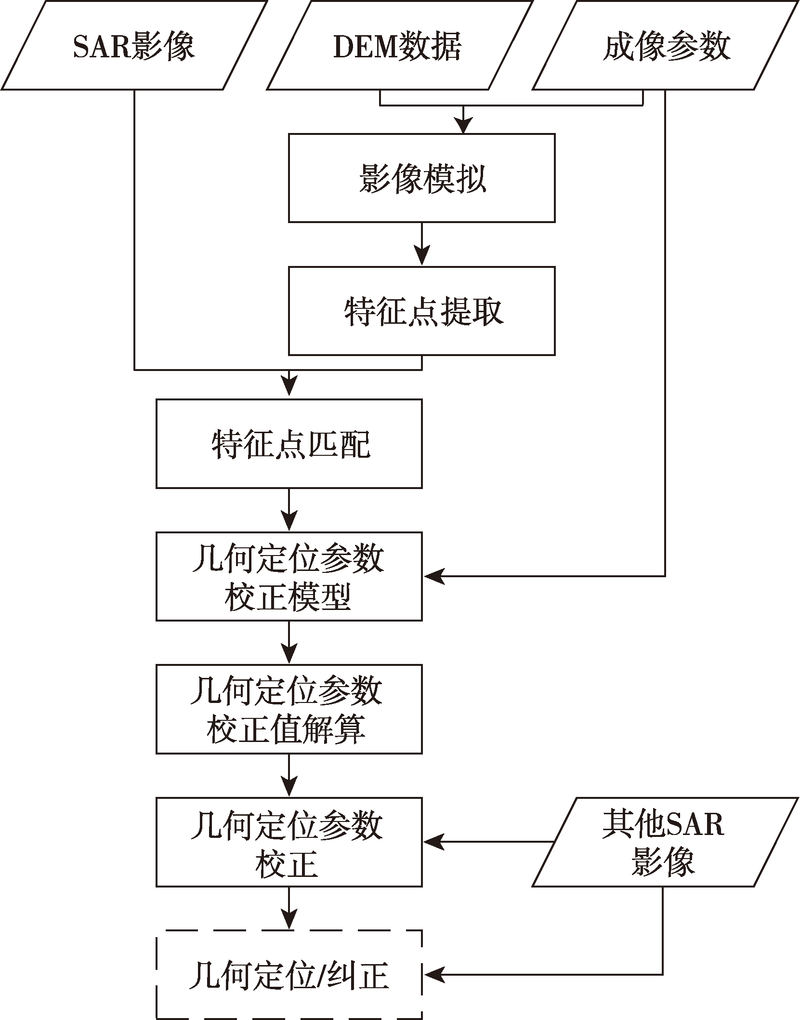

针对大范围无地面控制的SAR影像几何纠正,利用在一定时间和空间范围内SAR系统几何定位参数误差具有一定稳定性的特点,提出基于DEM的几何定位参数校正方法。该方法首先基于DEM进行影像模拟生成模拟SAR影像;然后在模拟SAR影像上提取特征点,针对特征点将模拟SAR影像和原始SAR影像进行匹配,得到特征点在原始SAR影像上的同名特征点,再结合DEM进行模拟影像间接定位获取特征点的地理坐标,以此作为几何定位参数校正的参考点;进而根据严密SAR几何构像模型构建几何定位参数校正模型,解算几何定位参数校正值;最后,利用几何参数校正值改正区域内其他SAR影像几何定位参数,提高区域内SAR影像几何定位精度。以高分三号影像进行试验,使用本文方法获取一景影像的几何定位参数校正值,对同一轨道内的和不同轨道的其他SAR影像进行参数校正,并对参数校正前后的几何定位精度进行评价。结果显示,同一轨道内的影像定位精度由66.0 m提高到9.7 m,不同轨道的影像定位精度由65.0 m提高到13.5 m,表明本文方法能够显著提高SAR影像几何定位精度。

关键词: SAR影像, 几何定位, 影像模拟, 校正参考点, 参数校正

Abstract:

For geometric correction of SAR image without ground control point in large area, method of geometric positioning parameters correction based on DEM is proposed in this paper. The basis of this method is that the static error of geometric positioning parameters is stable in short time and certain area. Firstly, simulation SAR Image is generated based on DEM. Then, feature points are extracted on the Simulation SAR Image. Corresponding image point of these feature points on original SAR image are extracted by image matching between simulation Image and original SAR image. And the geographic coordinates of these feature points are got by indirect geolocation with DEM. The image points on original SAR image with geographic coordinates are used for reference points of geometric positioning parameters correction. And then, the correction model is established according to rigorous geometric imaging model of SAR image and correction values of geometric positioning parameters are solved with the reference points. Finally, geometric positioning parameters of other SAR images in certain area are corrected with the values, and geometric correction accuracy of SAR images in this area is improved. GF-3 SAR images were used in experiments. The correction values of geometric positioning parameters were obtained from one image. Geometric positioning parameters of other images in the same orbit and in different orbits were corrected. The geometric positioning accuracy before and after parameters correction was evaluated. Geometric positioning accuracy of the image in the same orbit improved from 66.0 m before parameters correction to 9.7 m after parameters correction, and that of the image in different orbit improved from 65.0m to 13.5 m. The results showed that geometric positioning accuracy can improved significantly by parameters correction using the method of this paper.

Key words: SAR image, geometric positioning, simulation, reference points of correction, parameters correction

杨书成, 黄国满, 程春泉. 基于DEM的SAR影像几何定位参数校正方法[J]. 地球信息科学学报, 2019, 21(4): 580-587.DOI:10.12082/dqxxkx.2019.180386

Shucheng YANG, Guoman HUANG, Chunquan CHENG. Correction Method of SAR Image Geometric Positioning Parameters based on DEM[J]. Journal of Geo-information Science, 2019, 21(4): 580-587.DOI:10.12082/dqxxkx.2019.180386

图/表 7

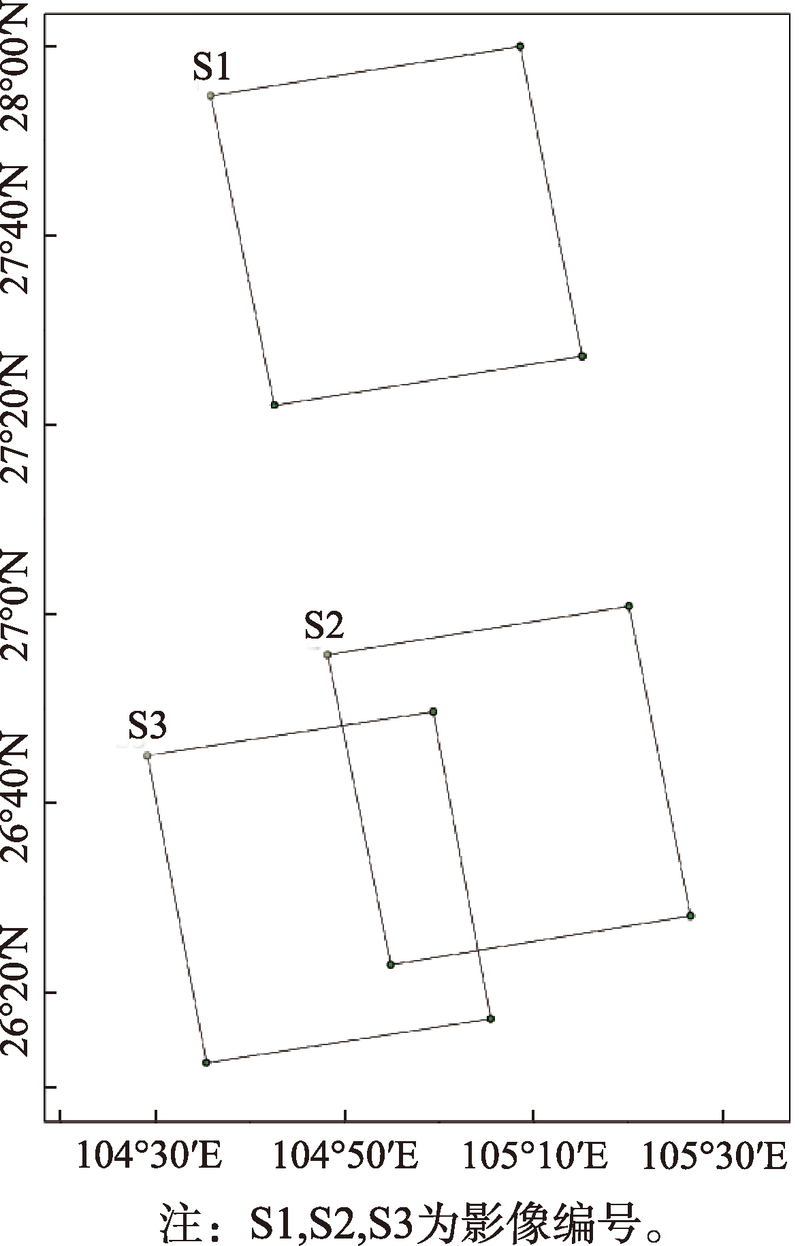

图1

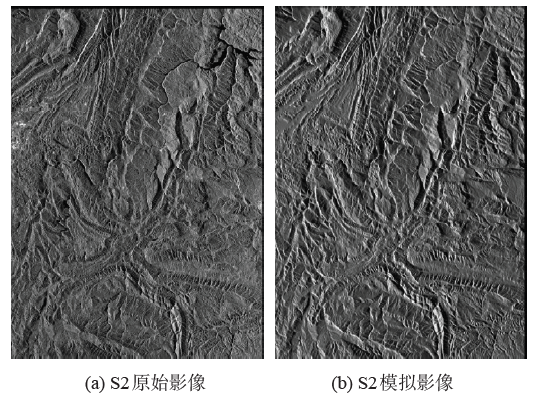

图2

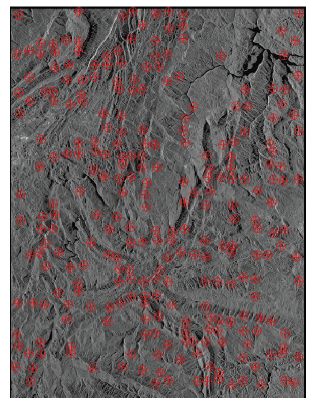

图3

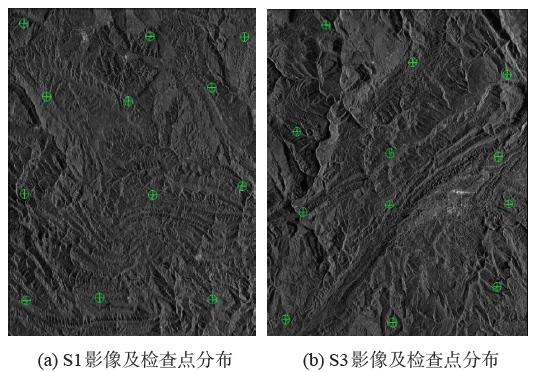

图4

图5

表1

表2

参考文献 21

[1]	黄国满,张继贤,赵争,等.机载干涉SAR测绘制图应用系统研究[J].测绘学报,2008,37(3):277-279.
	[Huang G M, Zhang J X, Zhao Z, et al.Research on airborne SARinterferometry mapping system[J]. Acta Geodaetica et Cartographica Sinica, 2008,37(3):277-279. ]
[2]	Zhang J, Yang S, Zhao Z, et al.SAR mapping technology and its application in difficulty terrain area[C]// Geoscience and Remote Sensing Symposium, IEEE, 2010:3608-3611.
[3]	黄国满. 机载多波段多极化干涉SAR测图系统-CASMS AR[J].测绘科学,2014,39(8):111-115.
	[Huang G M.An airborne interferometric SAR mapping system with multi-band and multi-polarization-CASMSAR[J]. Science of Surveying and Mapping, 2014,39(8):111-115. ]
[4]	廖小罕,周成虎,苏奋振,等.无人机遥感众创时代[J].地球信息科学学报,2016,18(11):1439-1447.
	[Laio X H, Zhou C H, Su F Z, et al.The mass innovation era of UAV remote sensing[J]. Journal of Geo-information Science, 2016,18(11):1439-1447. ]
[5]	陈尔学. 星载合成孔径雷达影像正射校正方法研究[D].北京:中国林业科学研究院,2004.
	[Chen E X.Study on Ortho-rectification methodology of space-borne synthetic aperture radar imagery[D]. Bei[J].ng: Chinese Academy of Forestry, 2004. ]
[6]	陆静,郭克成,陆洪涛.星载SAR图像距离-多普勒定位精度分析[J].雷达科学与技术,2009,7(2):102-106.
	[Lu J, Guo K, Lu H.Analysis of R-D location precision in spaceborne SAR image[J]. Radar Science and Technology, 2009,7(2):102-106. ]
[7]	岳昔娟.稀少(无)控制条件下机载SAR 高精度定位技术研究[D].武汉:武汉大学,2009.
	[Yue X J.High-precision geolocation of airborne SAR data with few(none)ground control points[D]. Wuhan: Wuhan University, 2009. ]
[8]	程春泉,黄国满,杨杰. POS与DEM辅助机载SAR多普勒参数估计[J].测绘学报,2015,44(5):510-517. doi: 10.11947/j.AGCS.2015.20140135
	[Cheng C Q, Huang G M, Yang J.Doppler centroid estimation for airborne SAR supported by POS and DEM[J]. Acta Geodaetica et Cartographica Sinica, 2015,44(5):510-517. ] doi: 10.11947/j.AGCS.2015.20140135
[9]	袁修孝,吴颖丹.缺少控制点的星载SAR遥感影像对地目标定位[J].武汉大学学报·信息科学版,2010,35(1):88-91.
	[Yuang X X, Wu Y D.Object location of space-borne SAR imagery under lacking ground control points[J]. Geomatics and Information Science of Wuhan University, 2010,35(1):88-91. ]
[10]	宋占军,张继贤,黄国满,等.基于斜距测量误差改正的机载SAR间接定位方法研究[J].遥感信息,2011(4):23-27.
	[Song Z J, Zhang J X, Huang G M, et al.Research on airborne SAR indirect geocoding method based on correction of slant range measurement error[J]. Remote Sensing Information, 2011(4):23-27. ]
[11]	魏钜杰,张继贤,赵争,等.稀少控制下TerraSAR-X影像高精度直接定位方法[J].测绘科学,2011,36(1):58-60.
	[Wei J J, Zhang J X, Zhao Z, et al.High-precisely direct geo-location method for TerraSAR-X image with sparse GCPs[J]. Science of Surveying and Mapping, 2011,36(1):58-60. ]
[12]	尤红建,丁赤飚,吴一戎.基于DEM的星载SAR图像模拟以及用于图像精校正[J].中国空间科学技术,2006,26(1):65-71.
	[You H J, Ding C B, Wu Y R.Space-borne SAR image simulation and its application in geo-rectification[J]. Chinese Space Science and Technology, 2006,26(1):65-71. ]
[13]	张红敏,靳国旺,徐青,等.机载SAR图像与仿真SAR图像的匹配策略[J].测绘科学技术学报,2013,30(2):144-148. doi: 10.3969/j.issn.1673-6338.2013.02.009
	[Zhang H M, Jin G W, Xu Q, et al.Matching strategy of airborne SAR image and simulated SAR image[J]. Journal of Geomatics Science and Technology, 2013,30(2):144-148. ] doi: 10.3969/j.issn.1673-6338.2013.02.009
[14]	张红敏,靳国旺,徐青,等.基于DEM和图像仿真的单幅SAR图像无控制定位[J].测绘科学技术学报,2013,30(3):274-278.
	[Zhang H, Jin G, Xu Q, et al.Positioning with single SAR image based on DEM without ground control point[J]. Journal of Geomatics Science and Technology, 2013,30(3):274-278. ]
[15]	Curlander J C.Location of spaceborne SAR imagery[J]. IEEE Transactions on Geoscience and Remote Sensing, 1982,20(3):359-364. doi: 10.1109/TGRS.1982.350455
[16]	Curlander J C,Kwo k R, Pang S S. A post-processing system for automated rectification and registration of spaceborne SAR imagery[J]. International [J].urnal of Remote Sensing, 1987,8(4):621-638.
[17]	杨杰,潘斌,李德仁,等.无地面控制点的星载SAR影像直接对地定位研究[J].武汉大学学报·信息科学版,2006,31(2):144-147. doi: 10.3321/j.issn:1671-8860.2006.02.013
	[Yang J, Pan B, Li D R, et al.Location of spaceborne SAR imagery without reference points[J]. Geomatics and Information Science of Wuhan University, 2006,31(2):144-147. ] doi: 10.3321/j.issn:1671-8860.2006.02.013
[18]	王亚超,杨书成,赵争,等.自适应窗口的SAR立体影像匹配方法[J].测绘科学,2017,42(2):135-139. doi: 10.16251/j.cnki.1009-2307.2017.02.026
	[Wang Y C, Yang S C, Zhao Z, et al.A stereo SAR matching algorithm with adaptive window[J]. Science of Surveying and Mapping, 2017,42(2):135-139. ] doi: 10.16251/j.cnki.1009-2307.2017.02.026
[19]	李文涛,黄国满,杨书成,等.一种模拟纠正影像的SAR立体影像匹配方法[J].测绘科学,2017,42(10):19-25.
	[Li W, Huang G, Yang S, et al.SAR stereo image matching method based on simulation correction image[J]. Science of Surveying and Mapping, 2017,42(10):19-25. ]
[20]	刘佳音,尤红建,洪文.用于星载SAR图像几何校正的稀疏控制点修轨方法[J].武汉大学学报·信息科学版,2013,38(3):262-265.
	[Liu J Y, You H J, Hong W.Modified orbit algorithm with sparse ground control points for georectification of space-borne SAR image[J]. Geomatics and Information Science of Wuhan University, 2013,38(3):262-265. ]
[21]	周晓,曾琪明,焦健,等.星载SAR传感器外场定标实验研究——以TerraSAR-X卫星为例[J].遥感技术与应用,2014,29(5):711-718. doi: 10.11873/j.issn.1004-0323.2014.5.0711
	[Zhou X, Zeng Q M, Jiao J, et al.Research on space-borne SAR field calibration Experiment: A case study of TerraSAR-X field calibration[J]. Remote Sensing Technology and Application, 2014,29(5):711-718. ] doi: 10.11873/j.issn.1004-0323.2014.5.0711

点号	参数校正前		参数校正后
点号	东方向误差/m	北方向误差/m	东方向误差/m	北方向误差/m
1	59.8	-26.6	-3.3	-3.0
2	72.6	-13.9	11.1	9.9
3	67.0	-7.9	6.4	16.1
4	57.2	-24.5	-3.6	-0.5
5	60.5	-32.0	-2.3	-8.3
6	60.0	-16.5	-1.7	7.3
7	56.3	-21.4	-4.2	2.6
8	57.5	-32.9	-5.6	-9.2
9	70.4	-20.1	8.8	3.7
10	67.4	-31.1	4.2	-7.4
11	53.9	-18.1	-8.2	5.7
12	53.5	-22.4	-7.3	1.67
中误差	61.7	23.5	6.2	7.5

点号	参数校正前		参数校正后
点号	东方向误差/m	北方向误差/m	东方向误差/m	北方向误差/m
1	70.6	-3.7	15.3	14.9
2	61.5	-8.3	6.8	10.4
3	69.0	-3.7	14.8	15.1
4	62.4	-8.3	6.9	10.3
5	55.5	-25.2	0.6	-6.4
6	55.6	-12.3	1.4	6.4
7	55.5	-25.2	0.6	-6.4
8	61.3	-11.3	7.2	7.4
9	65.5	-26.8	10.1	-8.1
10	61.6	-30.3	7.4	-11.5
11	66.6	-33.0	11.1	-14.3
12	52.5	-25.7	-2.2	-6.9
中误差	61.7	20.6	8.6	10.4
