村镇应急公共设施选址布局优化研究

doi:10.12082/dqxxkx.2019.180487

摘要/Abstract

摘要：

应急公共设施对防灾减灾具有重要作用,但相关研究和实践通常围绕城市展开,中国村镇地域广阔、环境复杂,传统方法规划的应急公共设施布局无法满足村镇的需求。因此,针对村镇进行更加精细化的应急公共设施布局优化十分必要。本文主要研究内容包括：① 建立包括地理因素、交通条件、人口分布情况和危险源分布情况在内的应急设施适宜性用地指标体系,并避免在地质灾害、洪水等灾害高发区域建设;② 对仅需要承担应急服务的设施,建立集合覆盖模型和最大化覆盖模型两级选址模型进行分析,对需要承担公共服务和应急服务双重任务的设施,建立集合覆盖模型和p-中值模型进行分析;③ 以响应覆盖率、交叉响应率作为效率性评价指标,最大响应时间、平均响应时间作为公平性评价指标,综合评价设施选址方案。本文以神农架林区松柏镇为研究区域,以消防设施和应急医疗救助中心分别作为两类典型应急公共设施进行布局,得到以下结论：① 应急设施适宜性用地评价指标体系能够综合评价应急设施选址时需要考虑的各种因素,具有较强的实用性;② 对多选址方案进行对比,模型计算结果在效率性和公平性指标方面优于原选址方案,同时结合人口分布、实际用地情况和成本因素能够确定更为优化的布局方案,验证了方法的可行性和科学性。

关键词: 村镇, 应急公共设施, 选址, 合理性评价, 神农架松柏镇

Abstract:

Emergency facilities play an important role in disaster prevention and mitigation. However, most of the relevant studies and practices usually focus on urban areas. Villages and towns in China are vast in territory and complex in environment. Because of the low level of economic development in the past and out-dated emergency facilities developed by traditional layout methods in China, these places become vulnerable to disaster . In this case, quantitative study on the layout evaluation and optimization of emergency facilities in villages is necessary. With the view of “the demand points distribution - identifying facilities alternative sites based on the suitability evaluation for emergency facilities - model construction and application-rationality evaluation of site selection schemes and planning proposals”, this paper concentrates on the construction of emergency facilities and attempts to establish a relatively reasonable method for emergency facilities layout in villages. The main contents of the article are as follows: (1) establishing suitability evaluation index system for emergency facilities from geographical conditions, traffic conditions, population distribution, and hazard sources distribution. In particular, safety issues are considered to avoid the constructions in areas with high incidence of geological disasters, floods, and other disasters; (2) building location model which consists of set cover model and maximum coverage model to analyze emergency facilities that only need to undertake emergency service and building location model which consists of set cover model and P-median model to analyze emergency facilities that need to undertake both emergency service and public service; and (3) taking response coverage and cross-response rate as the efficiency evaluation indicators, while the maximum response time and average response time from demand point to their nearest facilities are used as the fairness evaluation indicators. Both indicators are used to evaluate multi-schemes generated by the location models. In this paper, Songbai Town of Shennongjia in Hubei province is taken as the research area, fire stations and emergency medical centers are used as two typical types of emergency facilities for this research. The results show that: (1) the suitability evaluation index system can comprehensively reflect various factors synthetically; and (2) the model calculation results are superior to the original schemes in terms of efficiency and fairness indicator. However, the more optimized layout schemes need to be determined together with population distribution, local situation, and cost factors. Thus, the proposed method has good feasibility and reliability.

Key words: villages and towns, emergency facilities, location selection, rationality evaluation, Songbai Town of Shennongjia

詹庆明, 杨爽. 村镇应急公共设施选址布局优化研究[J]. 地球信息科学学报, 2019, 21(5): 641-653.DOI:10.12082/dqxxkx.2019.180487

Qingming ZHAN, Shuang YANG. Optimization of Emergency Facilities Layout in Villages[J]. Journal of Geo-information Science, 2019, 21(5): 641-653.DOI:10.12082/dqxxkx.2019.180487

图/表 10

表1

表2

图1

表3

图2

图3

表4

表5

图4

图5

参考文献 37

[1]	葛学礼,朱立新,于文,等.山区村镇抗震、防洪建设与减灾对策[C].山地城镇可持续发展专家论坛,重庆,2012:213-219.
	[ Ge X L, Zhu L X, Yu W, et al.Earthquake resistance, flood control construction and disaster reduction countermeasures for villages in Mountainous area[C]. Proceedings of the expert forum on sustainable development in mountainous cities and towns, Chongqing: 2012:213-219. ]
[2]	初建宇,苏幼坡.村镇应急避难场所规划技术指标的探讨[J].自然灾害学报,2012,21(5):23-27.
	[ Chu J Y, Su Y P.Exploration of technical indexes for the planning of the emergency shelters in villages and small towns[J]. Journal of Natural Disasters, 2012,21(5):23-27. ]
[3]	葛学礼,李玉萍.村镇建设规划中综合防灾的宏观控制[J].中国减灾,1996(4):42-44.
	[ Ge X L, Li Y P.Macro control of comprehensive disaster prevention in village and town construction planning[J]. Disaster Reduction in China, 1996(4):42-44. ]
[4]	张翰卿,戴慎志.美国的城市综合防灾规划及其启示[J].国际城市规划,2007,22(4):58-64.
	[ Zhang H Q, Dai S Z.Urban comprehensive disaster prevention plan in America and its enlightenment[J]. Urban Planning International, 2007(4):58-64. ]
[5]	王江波,戴慎志,苟爱萍.试论城市综合防灾规划的困境与出路[J].城市规划,2012,36(11):39-44.
	[ Wang J B, Dai S Z, Gou A P.Exploration on the problems and solutions of urban comprehensive disaster prevention planning[J].Urban Planning, 2012,36(11):39-44. ]
[6]	Hakimi S L.Optimum distribution of switching centers in a communication network and some related graph theoretic problems[J]. Operations Research, 1965,13(3):462-475.
[7]	Revelle C S, Swain R W.Central facilities location[J]. Geographical Analysis, 2010,2(1):30-42.
[8]	Toregas C, Swain R, ReVelle C, et al. The location of emergency service facilities[J]. Operations Research, 1971,19(6):1363-1373.
[9]	L. Church R, R. VELLE C.The planar maximal covering location problem[J]. Papers in Regional Science, 2005,32(1):101-118.
[10]	Badri M A, Mortagy A K, Alsayed C A.A multi-objective model for locating fire stations[J]. European Journal of Operational Research, 1998,110(2):243-260.
[11]	徐志胜,龚啸.基于多目标模糊优选理论的城市消防站选址研究[J].中国公共安全(学术版),200,37(1):59-61.
	[ Xu Z S, Gong X.Study on location selection of urban fire station based on multi-objective fuzzy optimization theory[J]. China Public Security (Academic Edition), 2007,3(1):59-61. ]
[12]	Araz C, Selim H, Ozkarahan I.A fuzzy multi-objective covering-based vehicle location model for emergency services[J]. Computers & Operations Research, 2007,34(3):705-726.
[13]	王铮,廖悲雨,隋文娟.层次型应急设施布局模型及其应用[J].中国管理科学,2011,19(6):88-91.
	[ Wang Z, Liao B Y, Sui W J.Hierarchical emergency facility location model and its application[J]. Chinese Journal of Management Science, 2011,19(6):88-91. ]
[14]	陈志宗,尤建新.城市防灾减灾设施的层级选址问题建模[J].自然灾害学报,2005,14(2):131-135.
	[ Chen Z Z, You J X.A modeling approach to hierarchical location problem of urban disaster prevention and mitigation facilities[J]. Journal of Natural Disasters, 2005,14(2):131-135. ]
[15]	Rawls C G, Turnquist M A.Pre-positioning of emergency supplies for disaster response[J]. Transportation Research Part B: Methodological, 2010,44(4):521-534.
[16]	徐志胜,冯凯,徐亮,等.基于GIS的城市公共安全应急决策支持系统的研究[J].安全与环境学报,2004,4(6):82-85.
	[ Xu Z S, Feng K, Xu L, et al.A study on emergency decision support system of urban community safety based on GIS[J]. Journal of Safety and Environment, 2004,4(6):82-85. ]
[17]	吴美文,吴军,胡传平.城市消防站布局评估指标量化分析[J].自然灾害学报,2006,15(5):162-167. doi: 10.3969/j.issn.1004-4574.2006.05.026
	[ Wu M W, Wu J, Hu C P.Quantitative analysis of evaluation indexes about layout of fire station in a city[J]. Journal of Natural Disasters, 2006,15(5):162-167. ] doi: 10.3969/j.issn.1004-4574.2006.05.026
[18]	刘少丽,陆玉麒,顾小平,等.城市应急避难场所空间布局合理性研究[J].城市发展研究,2012,19(3):113-117.
	[ Liu S L, Lu Y Q, Gu X P, et al.Reasonability of Spatial Distribution for Urban Emergency Shelter[J]. Urban Studies, 2012,19(3):113-117. ]
[19]	Chanta S, Mayorga M E, McLay L A. Improving emergency service in rural areas: A bi-objective covering location model for EMS systems[J]. Annals of Operations Research, 2014,221(1):133-159.
[20]	陈昭,陶满德,李志.基于GIS的消防站点规划方案综合性研究-以杭州市主城区为例[J].城乡规划:城市地理学术版,2016(3):39-44.
	[ Chen Z, Tao M D, Li Z.Comprehensive research on fire station planning scheme based on GIS-a case study of Hangzhou downtown[J]. Urban and Rural Planning: Academic edition of Urban geography, 2016(3):39-44. ]
[21]	钮英建,杨玲.北京地区村镇建筑防火现状调查与分析[J].中国安全生产科学技术,2011,7(10):138-142.
	[ Niu Y J, Yang L.Investigation and analysis on current situation of fire protection in rural areas of Beijing[J]. Journal of Safety Science and Technology, 2011,7(10):138-142. ]
[22]	周国强. 农村减灾综合对策初探[J].中国减灾,2006(12):36-37.
	[ Zhou G Q.Preliminary study on comprehensive strategies of rural disaster reduction[J]. Disaster Reduction In China, 2006(12):36-37. ]
[23]	任航,李宏男.我国村镇建筑防灾减灾问题与对策研究[J].工程管理学报,2010,24(5):508-512.
	[ Ren H, Li H N.Research on problems and strategies of disaster prevention and mitigation for rural buildings in China[J]. Journal of Engineering Management, 2010,24(5):508-512. ]
[24]	冯凯,黄豪,徐志胜.农村消防安全规划的关键问题及对策研究[C].第十届中国科协年会,中国河南郑州,2008:298-301.
	[ Feng K, Huang H, Xu Z S.Study on the key problems and strategies of rural Fire safety planning[C]. The Tenth Annual China Science and Science Association Conference, Zhengzhou, Henan, 2008:298-301. ]
[25]	楚志勇,侯遵泽.基于Dijkstra算法的乡镇消防站选址问题[J].中国安全生产科学技术,2011,7(2):115-118.
	[ Chu Z Y, Hou Z Z.Site choice of township fire station based on Dijkstra algorithm[J]. Journal of Safety Science and Technology, 2011,7(2):115-118. ]
[26]	崔刚. 农村消防站配置与布局分析[C]. 2014中国消防协会科学技术年会,中国北京,2014:117-121.
	[ Cui G.Analysis on configuration and layout of rural fire station[C]. 2014 China Fire Association Science and Technology Annual conference, Beijing, 2014:117-121. ]
[27]	王飞飞,侯云先.复杂地形乡镇地区应急设施选址研究[J].中国安全科学学报,2016,26(2):164-167.
	[ Wang F F, Hou Y X.Research on sitting of emergency facilities for rural area with complex topography[J]. China Safety Science Journal, 2016,26(2):164-167. ]
[28]	Goldberg J B.Operations research models for the deployment of emergency services vehicles[J]. Ems Management Journal, 2004,1(1):20-39.
[29]	Church R, Revelle C.The maximal covering location problem[J]. Papers of the Regional Science Association, 1974,32(1):101-118.
[30]	Roth R.Computer Solutions to Minimum-Cover Problems[J]. Operations Research, 1969,17(3):455-465. doi: 10.1287/opre.17.3.455
[31]	Toregas C, Swain R, Revelle C, et al.The location of emergency service facilities[J]. Operations Research, 1971,19(6):1363-1373.
[32]	Church R L, Revelle C S.Theoretical and computational links between the p-median, location set-covering, and the maximal covering location problem[J]. Geographical Analysis, 1976,8(4):406-415.
[33]	Owen S H, Daskin M S.Strategic facility location: A review[J]. European Journal of Operational Research, 1998,111(3):423-447. doi: 10.1016/S0377-2217(98)00186-6
[34]	住房城乡建设部,国家发展改革委.建标152-2017城市消防站建设标准[S].2017-3-17.
[35]	国家质量监督检验检疫总局,国家标准化管理委员会.GB/T 35547-2017 乡镇消防队[S].2017-12-29.
[36]	Hogg J M.The siting of fire stations[J]. Journal of the Operational Research Society, 1968,19(3):275-287. doi: 10.2307/3008620
[37]	Kolli S S, Damodaran P S, Evans G W.Geographic information system based decision support systems for facility location, routing, and scheduling[J]. Computers & Industrial Engineering, 1993,25(1):369-372.

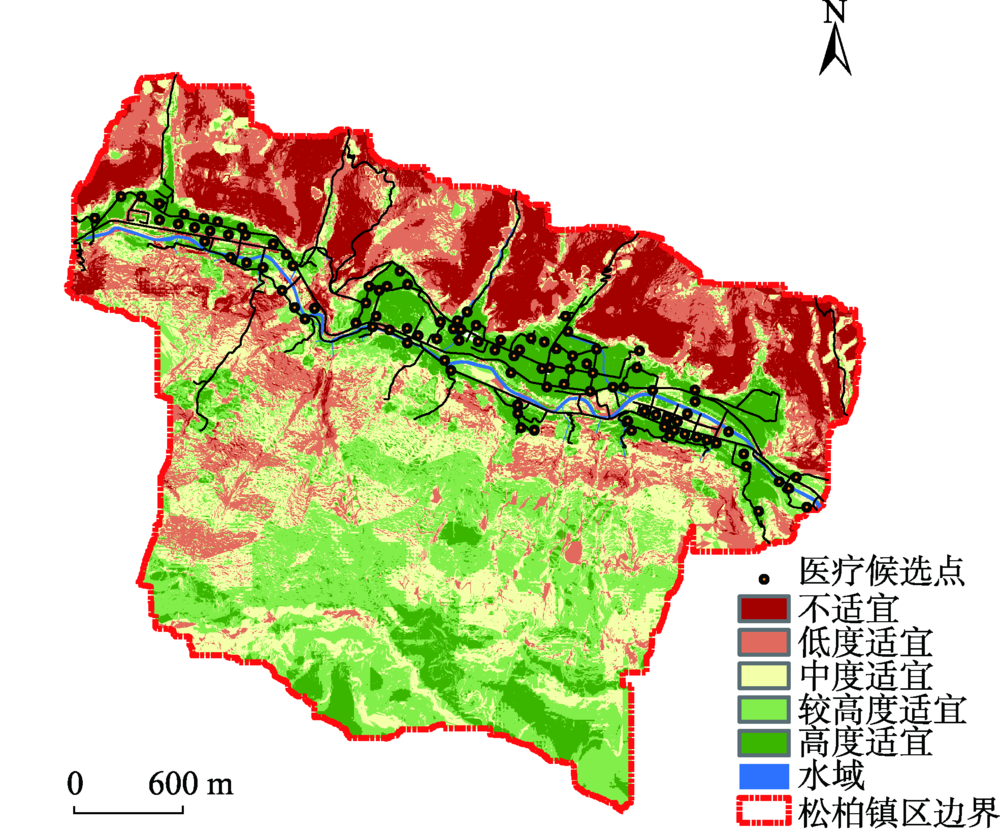

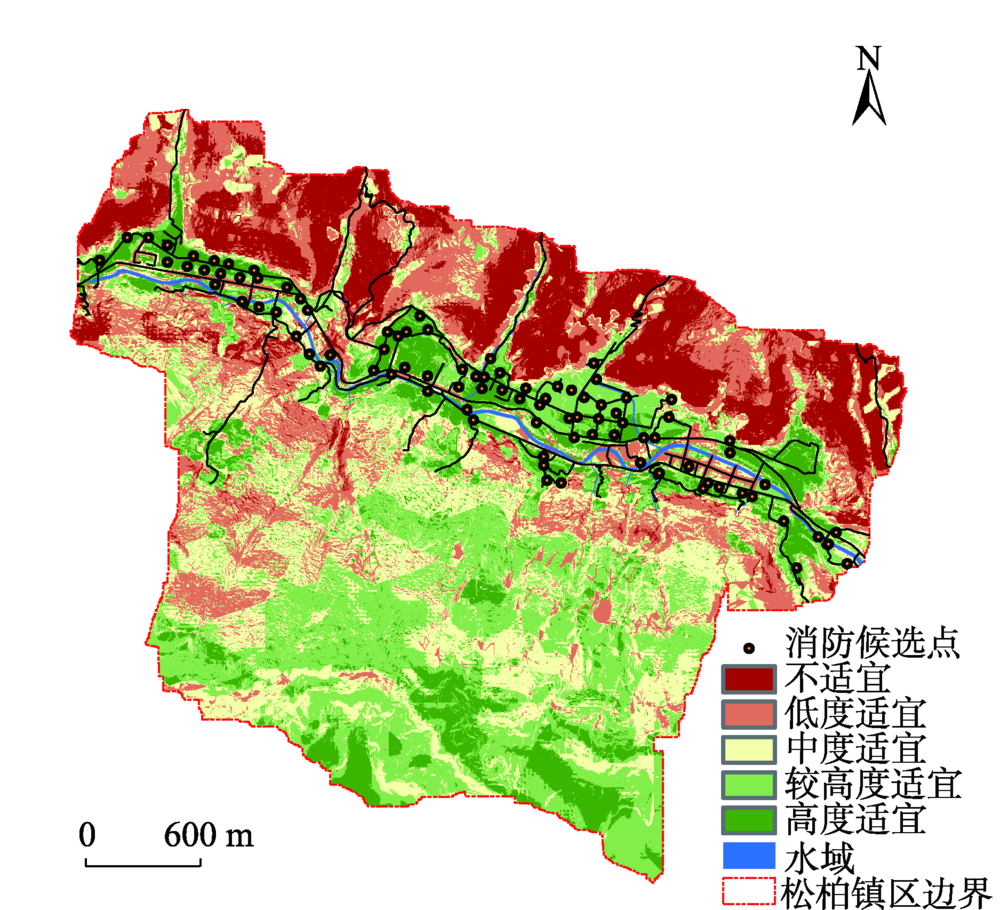

准则层	权重	因子层	权重（消防/医疗）	描述
地理条件	0.674	坡度	0.073/0.079	坡度小于8°较适宜作为应急设施用地,便于展开救援、训练等活动
		地质灾害危险性	0.253/0.264	考虑山地村镇易发崩塌、滑坡等地质灾害,应考虑高危险区不能应急设施建设
		洪水灾害危险性	0.317/0.331	洪水高发区不能作为应急设施用地
		距水源距离	0.034/0.000	距水源越近的区域越适宜消防设施建设
交通条件	0.086	距主干道距离	0.024/0.027	应急公共设施应建设在交通便捷的区域,距主干道越近,道路密度越高越适宜建设
交通条件	0.086	道路密度	0.062/0.062	应急公共设施应建设在交通便捷的区域,距主干道越近,道路密度越高越适宜建设
人口分布情况	0.061	人口密度	0.061/0.061	消防设施为便于消防车快速出动,其选址需要避开人口密集场所,应急医疗救助中心为了减少损失,应尽量布局在人口相对集中的区域
危险源分布情况	0.176	与危险源距离	0.176/0.176	生产和储存易燃易爆等危险品影响范围内不宜建设应急公共设施

道路等级		通行速度/（km/h）
省道		50
县道		40
村道		30
城镇道路	主干道	50
	次干道	40
	支路	30

类别	数据名称	数据类型
基础分析数据	建筑分布图	矢量数据
	土地利用分布图	矢量数据
	重大危险源分布图	矢量数据
	地质灾害风险分区图	栅格数据1 m×1 m
	洪水灾害风险分区图	栅格数据1 m×1 m
	坡度图	栅格数据1 m×1 m
道路网络数据	道路图	矢量数据
人口分布数据	人口分布图	矢量数据
应急公共设施数据	现状消防站点	矢量数据
应急公共设施数据	现状医疗站点	矢量数据

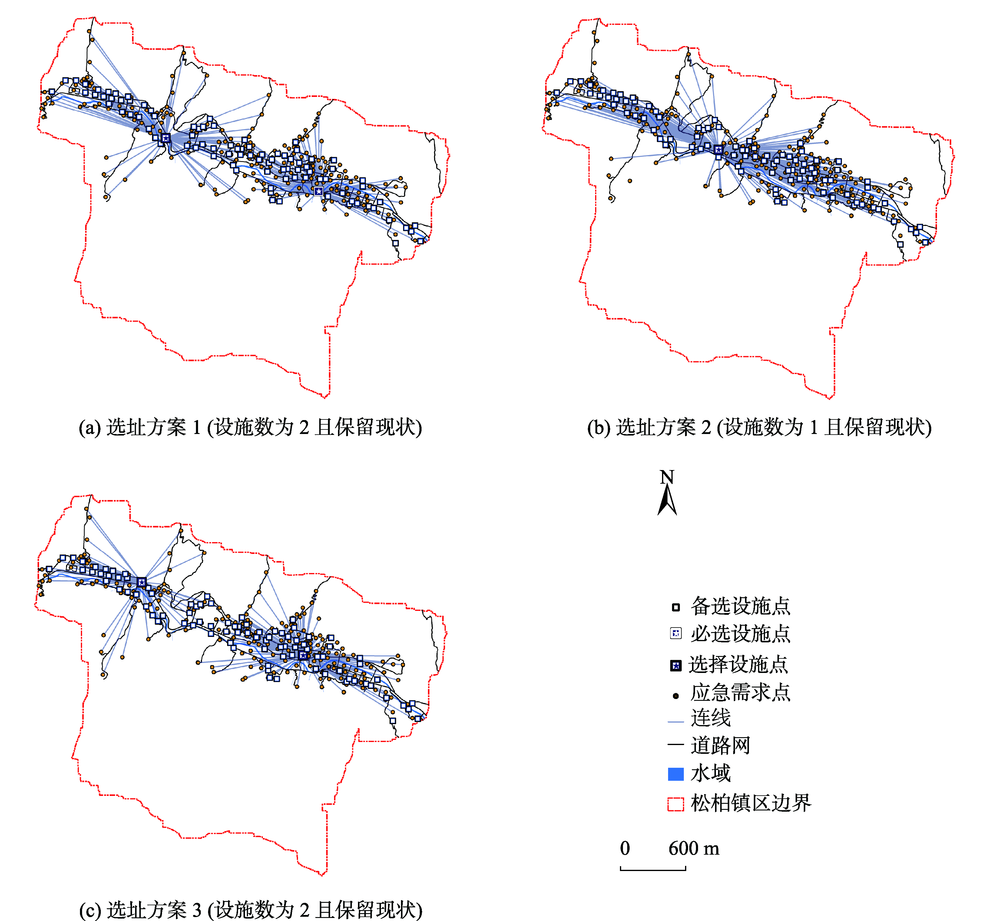

选址方案	设施数量	覆盖需求数	交叉覆盖率/%	最大时间/min	平均时间/min	覆盖人口占总人口比例/%	覆盖路径长度占总长度比例/%	覆盖建筑面积占总面积比例/%
选址方案1 （保留现状设施点）	2	210/215	70.6	4.3	1.6	97.1	95.4	96.9
选址方案2 （不保留现状设施点）	1	190/215	0	5.1	2.6	90.9	84.4	90.0
选址方案3 （不保留现状设施点）	2	215/215	74.3	4.9	1.5	96.9	95.4	96.7
现状	1	162/215	0	7.5	2.8	75.44	61.37	82.26

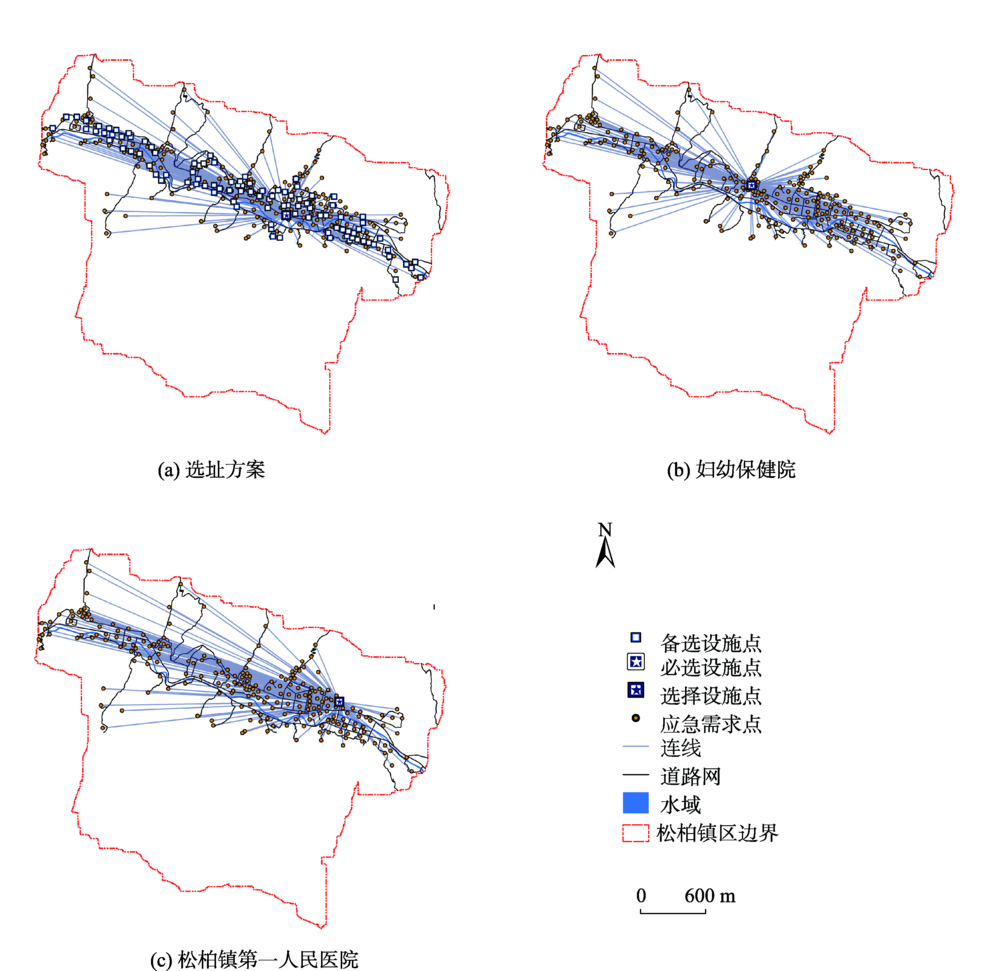

选址方案	设施数量/个	覆盖需求数/个	交叉覆盖率/%	最大时间/min	平均时间/min	覆盖人口占总人口比例/%	覆盖道路长度占总长度比例/%	覆盖建筑面积占总面积比例/%
选址方案（不保留现状设施点）	1	215/215	0	7.1	2.5	97.0	95.4	96.7
现状	2	215/215	97.2	6.6	2.3	97.0	96.2	96.9
妇幼保健院	1	215/215	0	6.6	2.5	96.9	96.0	95.7
第一人民医院	1	189/215	0	8.2	3.0	94.7	95.2	93.6
