喀斯特地区植被覆盖度变化及地形与人口效应研究

doi:10.12082/dqxxkx.2019.180548

摘要/Abstract

摘要：

喀斯特山地流域植被变化具有独特性,探究其植被变化特征有利于石漠化治理和退耕还林工程科学实施。本文选取1990-2016年贵州石阡河流域Landsat系列遥感影像,采用像元二分模型和相关分析等方法研究流域植被覆盖度时空变化特征,并探究其变化的地形效应和人口效应。研究表明：① 1990-2016年贵州石阡河流域植被覆盖度总体处于上升趋势,植被恢复取得较好效果;② 1990-2016年贵州石阡河流域植被覆盖度变化的地形效应中,随海拔和坡度上升,植被覆盖度总体处于稳定上升趋势。随坡向变化中,无坡向地区植被覆盖度最低,其他坡向差异不明显;③ 1990-2016年贵州石阡河流域植被覆盖度变化的人口效应中,随人口密度上升,植被覆盖度总体处于下降趋势。研究结果可以为喀斯特地区退耕还林还草和石漠化治理提供科学依据。

关键词: 植被, 植被覆盖度, 地形与人口效应, 贵州石阡河流域, 喀斯特流域

Abstract:

With increasing ecological protection awareness, vegetation restoration has received growing attention. Southwest China is one of the most concentrated areas of the world's karst. In the recent years, rock desertification control and vegetation protection has made good progress. In karst areas,exploring the characteristics of vegetation change is beneficial to the scientific implementation of rocky desertification control and recoverting farmland to forest. The article selected Landsat imagery, digital elevation model data, and population raster data of the Shiqian River Watershed in Guizhou Province, spanning from 1990 to 2016. The spatiotemporal variation characteristics of the watershed vegetation coverage were calculated by the remote sensing imagery; and we expored the topographic gradient characteristics and population impact characteristics of vegetation coverage change. We found that: (1) From 1990 to 2016, the vegetation coverage of the Shiqian River Watershed increased from 62.67% to 75.21%, and increased rapidly, especially after 2002. (2) With increases in the elevation and slope, the vegetation coverage generally rised steadily. With the change of slope direction, the coverage of flat vegetation became the lowest, while the difference of other slopes was not obvious. In 1990, the vegetation coverage in the flat area was 48.48%; while in 2016, the vegetation coverage in the flat area was 53.88%, but the vegetation coverage of other slopes was significantly higher than the flat land. (3) With the increase of population density, the vegetation coverage generally declinined. yet, when the population density was less than 50 people/km ² in 1990-2016, the vegetation coverage rised by less than 10%. When the population density reached 400 people/km ² in 1990-2016, the vegetation coverage increased by 20%. But overall, the higher the population density, the faster the vegetation will recover in the study area. The population density is currently greater than 450 people/km ², and the vegetation coverage is in a downward trend mainly due to urban construction. Our findings can provide guidance for the vegetation protection and reconverting farmland to forest projects in karst areas, and it is hoped that this study can provide reference for related research.

Key words: vegetation, vegetation coverage, terrain and population effects, Shiqian River Watershed in Guizhou Province, Karst Watershed

程东亚,李旭东. 喀斯特地区植被覆盖度变化及地形与人口效应研究[J]. 地球信息科学学报, 2019, 21(8): 1227-1239.DOI:10.12082/dqxxkx.2019.180548

CHENG Dongya,LI Xudong. Vegetation Coverage Change in a Karst Area and Effects of Terrain and Population[J]. Journal of Geo-information Science, 2019, 21(8): 1227-1239.DOI:10.12082/dqxxkx.2019.180548

图/表 13

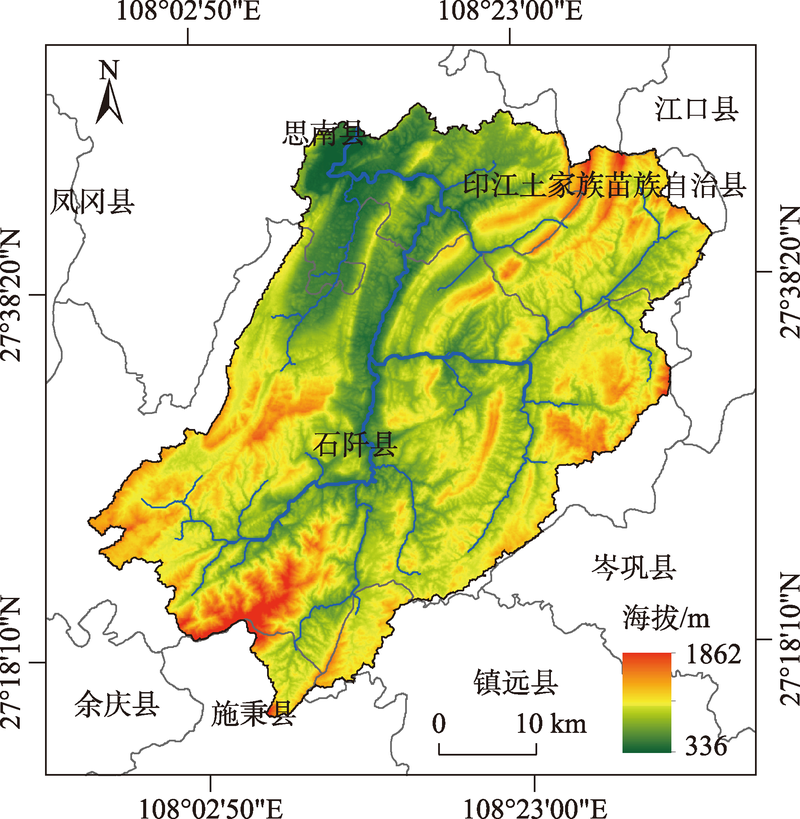

图1

表1

表2

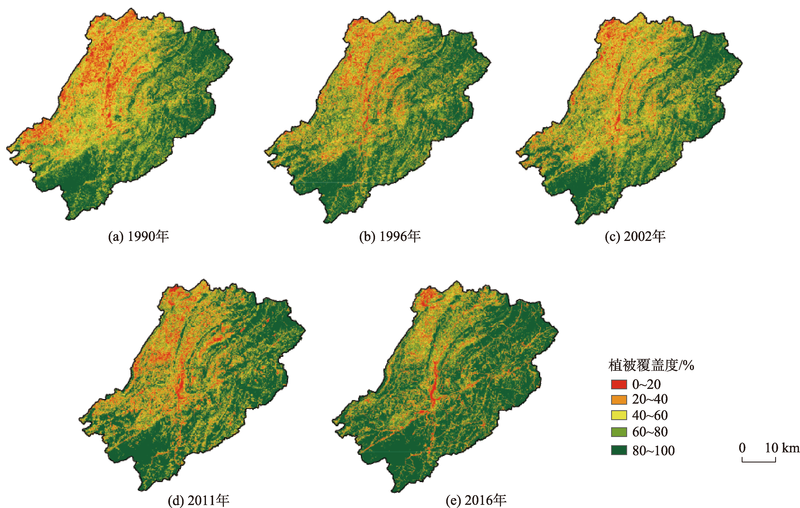

图2

图3

表3

图4

图5

图6

图7

表4

图8

表5

参考文献 40

[1]	肖时珍 . 中国南方喀斯特发育特征与世界自然遗产价值研究[D]. 贵阳:贵州师范大学, 2007.
	[ Xiao S Z . Researches a features of South China karst and its world natural heritage values[D]. Guiyang: Guizhou Normal University, 2007. ]
[2]	陈品冬 . 世界自然遗产地荔波锥状喀斯特全球对比分析[D]. 贵阳:贵州师范大学, 2008.
	[ Chen P D . A comparative analysis on cone karst Libo world natural heritage site with global similar sites[D]. Guiyang: Guizhou Normal University, 2008. ]
[3]	王世杰, 张信宝, 白晓永 . 中国南方喀斯特地貌分区纲要[J]. 山地学报, 2015,33(6):641-648.
	[ Wang S J, Zhang X B, Bai X Y . An outline of karst geomorphology zoning in the karst areas of Southern China[J]. Mountain Research, 2015,33(6):641-648. ]
[4]	靳振江, 程亚平, 李强 , 等. 会仙喀斯特溶洞湿地、稻田和旱田土壤有机碳含量及其与养分的关系[J]. 湿地科学, 2014,12(4):485-490.
	[ Jin Z J, Cheng Y P, Li Q , et al. Content of soil organic carbon and its relationship with nutrients in karst cave wetlands, paddy fields and dry farmlands in Huixian[J]. Wetland Science, 2014,12(4):485-490. ]
[5]	Xu W B, Pan B, Liu Y , et al. Two new species, primulina multifida and pseudomollifolia (Gesneriaceae), from karst caves in Guangxi, China[J]. Botanical Studies, 2012,53(1):11.
[6]	田鹏举, 吴仕军, 徐丹丹 , 等. 贵州喀斯特石漠化植被时空变化特征研究[J]. 贵州气象, 2017,41(5):20-24.
	[ Tian P J, Wu S J, Xu D D , et al. Analysis of spatial-temporal variation characteristic of vegetation in karst rocky desertification area in Guizhou[J]. Journal of Guizhou Meteorology, 2017,41(5):20-24. ]
[7]	张俞, 熊康宁, 喻阳华 , 等. 喀斯特石漠化环境植被修复与林产业发展关键技术探析[J]. 中国农业科技导报, 2018,20(7):19-25.
	[ Zhang Y, Xiong K N, Yu Y H , et al. Research on key technology of vegetation restoration and forest industry development in karst rocky desertification environment[J]. Journal of Agricultural Science and Technology, 2018,20(7):19-25. ]
[8]	付帮奎 . 喀斯特石漠化区植被建植与退化植被恢复技术推广示范研究[J]. 农业与技术, 2016,36(2):183-184.
	[ Fu B K . Demonstration research on vegetation construction and degraded vegetation restoration technology in karst rocky desertification area[J]. Agriculture and Technology, 2016,36(2):183-184. ]
[9]	符静, 秦建新, 张猛 , 等. 2001-2013年洞庭湖流域植被覆盖度时空变化特征[J]. 地球信息科学学报, 2016,18(9):1209-1216.
	[ Fu J, Qin J X, Zhang M , et al. Spatial-temporal variations of vegetation coverage in the lake Dongting Basin from 2001 to 2013[J]. Journal of Geo-information Science, 2016,18(9):1209-1216. ]
[10]	Fensham R J, Fairfax R J, Archer S R . Rainfall, land use and woody vegetation cover change in semi-arid Australian savanna[J]. Journal of Ecology, 2010,93(3):596-606.
[11]	刘宪锋, 朱秀芳, 潘耀忠 , 等. 1982-2012年中国植被覆盖时空变化特征[J]. 生态学报, 2015,35(16):5331-5342.
	[ Liu X F, Zhu X F, Pan Y Z , et al. Spatiotemporal changes in vegetation coverage in China during 1982-2012[J]. Acta Ecologica Sinica, 2015,35(16):5331-5342. ]
[12]	赫英明, 刘向培, 王汉杰 . 基于EVI的中国最近10a植被覆盖变化特征分析[J]. 气象科学, 2017,37(1):51-59.
	[ He Y M, Liu X P, Wang H J . Variation characteristics of vegetation cover in the latest 10 years over China based on EVI[J]. Journal of the Meteorological Sciences, 2017,37(1):51-59. ]
[13]	白建军, 白江涛, 王磊 . 2000-2010年陕北地区植被NDVI时空变化及其与区域气候的关系[J]. 地理科学, 2014,34(7):882-888.
	[ Bai J J, Bai J T, Wang L . Spatio-temporal change of vegetation NDVI and its relations with regional climate in Northern Shaanxi Province in 2000-2010[J]. Scientia Geographica Sinica, 2014,34(7):882-888. ]
[14]	郭伟伟 . 张家口地区植被覆盖度动态分析研究[D]. 北京:北京林业大学, 2012.
	[ Guo W W . Vegetation coverage dynamic research and analysis in Zhangjiakou[D]. Beijing: Beijing Forestry University, 2012. ]
[15]	翟雅倩, 张翀, 周旗 , 等. 秦巴山区植被覆盖与土壤湿度时空变化特征及其相互关系[J]. 地球信息科学学报, 2018,20(7):967-977.
	[ Zhai Y Q, Zhang C, Zhou Q , et al. Spatio-temporal variation and interrelationship of vegetation cover and soil moisture in Qinling-Daba mountains[J]. Journal of Geo-information Science, 2018,20(7):967-977. ]
[16]	Stow, Douglas A ,Allen , et al.Remote sensing of vegetation and land-cover change in Arctic Tundra ecosystems[J]. Remote Sensing of Environment, 2008,89(3):281-308.
[17]	黎良财, 陆灯盛, 张晓丽 , 等. 基于时序遥感的喀斯特山区植被覆盖研究[J]. 中南林业科技大学学报, 2017,37(7):11-17.
	[ Li L C, Lu D S, Zhang X L , et al. Study on the dynamics of vegetation coverage in the karst mountainous area based on multi-temporal remote sensing images[J]. Journal of Central South University of Forestry & Technology, 2017,37(7):11-17. ]
[18]	李昊, 蔡运龙, 陈睿山 , 等. 基于植被遥感的西南喀斯特退耕还林工程效果评价——以贵州省毕节地区为例[J]. 生态学报, 2011,31(12):3255-3264.
	[ Li H, Cai Y L, Chen R S , et al. Effect assessment of the project of grain for green in the karst region in Southwestern China: a case study of Bijie Prefecture[J]. Acta Ecologica Sinica, 2011,31(12):3255-3264.]
[19]	丁文荣 .滇东南喀斯特地区植被覆盖变化及其影响因素[J].水土保持研究, 2016, 23(6):227-231,237 ,381. 237, 381.
	[ Ding W R .Temporal and spatial evolution characteristics of vegetation NDVI and its driving factors in karst area of Southeast Yunnan,China[J]. Research of Soil and Water Conservation 2016, 23(6):227-231,237 ,381. ]
[20]	吕妍, 张黎, 闫慧敏 , 等. 中国西南喀斯特地区植被变化时空特征及其成因[J]. 生态学报, 2018,38(24):8774-8786.
	[ Lv Y, Zhang L, Yan H M , et al. Spatial and temporal patterns of changing vegetation and the influence of environmental factors in the karst region of Southwest China[J]. Acta Ecologica Sinica, 2018,38(24):8774-8786. ]
[21]	刘梁美子, 占车生, 胡实 , 等. 黔桂喀斯特山区植被变化及其地形效应[J]. 地理研究, 2018,37(12):2433-2446.
	[ Liu L M Z, Zhan C S, Hu S , et al. Vegetation change and its topographic effects in the karst mountainous areas of Guizhou and Guangxi[J]. Geographical Research, 2018,37(12):2433-2446. ]
[22]	朱殊慧, 梅再美, 张琦 . 喀斯特山地植被变化的地形分异特征——以贵州安龙县为例[J]. 黔南民族师范学院学报, 2018,38(4):70-74.
	[ Zhu S H, Mei Z M, Zhang Q . The topography differentiation characteristics of vegetation change in karst mountainous area:A case study in Anlong County of Guizhou Province[J]. Journal of Qiannan Normal University for Nationalities, 2018,38(4):70-74. ]
[23]	李阳兵, 罗光杰, 黄娟 . 茂兰喀斯特自然保护区撂荒地时空演变、机制及其植被恢复[J]. 中国岩溶, 2017,36(4):447-453.
	[ Li Y B, Luo G J, Huang J . Spatial-temporal evolution, mechanism and vegetation restoration of abandoned farmland in the Maolan national nature reserve[J]. Carsologica Sinica, 2017,36(4):447-453. ]
[24]	王膑, 钱晓刚, 彭熙 . 花江峡谷不同植被类型下土壤水分时空分布特征[J].水土保持学报, 2006(5):139-141,157.
	[ Wang B, Qian X G, Peng X . Characters of spatial and temporal distribution of soil moisture under different vegetation in Huajiang valley[J].Journal of Soil and Water Conservation, 2006(5):139-141,157. ]
[25]	王家嘉, 林昌虎, 何腾兵 . 人类活动对贵州喀斯特石漠化地区的影响[J].水土保持研究, 2006(5):276-279.
	[ Wang J J, Lin C H, He T B . Recognition of human activity in the prevention and control of rocky desertification phenomena in Guizhou karst mountain area[J].Research of Soil and Water Conservation, 2006(5):276-279. ]
[26]	赵东, 林昌虎, 何腾兵 . 人类活动对贵州喀斯特山区石漠化的影响以及对策[J].贵州科学, 2006(4):49-53,88.
	[ Zhao D, Lin C H, He T B . The influence of human activities to the rocky desertification in Guizhou karst mountainous district and the countermeasure[J].Guizhou Science, 2006(4):49-53,88. ]
[27]	苗建青, 谢世友, 袁道先 , 等. 基于农户—生态经济模型的耕地石漠化人文成因研究——以重庆市南川区为例[J]. 地理研究, 2012,31(6):967-979.
	[ Miao J Q, Xie S Y, Yuan D X , et al. An application of bio-economic household model to analysis of the cause for karst rock desertification in Southwest China[J]. Geographical Research, 2012,31(6):967-979. ]
[28]	代应贵, 李敏, 王晓辉 . 石阡河鱼类物种多样性研究[J].贵州农业科学, 2005(2):57-59.
	[ Dai Y G, Li M, Wang X H . Study on the species diversity of fish in the Shiqian river[J].Guizhou Agricultural Sciences, 2005(2):57-59. ]
[29]	佚名.铜仁石阡河流域气候温和[EB/OL]. .
	[ Yi M.The climate of the Tongren Shiqian River Basin[EB/OL]. , 2013-04-26/2018-10-12.]
[30]	汤国安, 杨昕 , 等. ArcGIS地理信息系统空间分析实验教程[M]. 北京: 科学出版社, 2012.
	[ Tang G A, Yang X , et al. ArcGIS geographic information system spatial analysis experiment course[M]. Beijing: Science Press, 2012. ]
[31]	孙传亮, 兰安军, 向刚 . 基于RS与GIS的麻阳河黑叶猴自然保护区植被覆盖动态变化监测研究[J]. 贵州师范大学学报(自然科学版), 2013,31(1):17-21.
	[ Sun C L, Lan A J, Xiang G . Dynamic change of the vegetation coverage in the Mayang river francoisi basin and GIS technology[J]. Journal of Guizhou Normal University(Natural Sciences), 2013,31(1):17-21. ]
[32]	芦颖, 李旭东, 杨正业 . 1990-2015年贵州省乌江流域生态环境质量变化评价[J]. 水土保持通报, 2018,38(2):140-147.
	[ Lu Y, Li X D, Yang Z Y . Evaluation of eco-environment quality change in Wujiang River Basin in Guizhou Province from 1990 to 2015[J]. Bulletin of Soil and Water Conservation, 2018,38(2):140-147. ]
[33]	慈晖, 张强 . 新疆NDVI时空特征及气候变化影响研究[J]. 地球信息科学学报, 2017,19(5):662-671.
	[ Ci H, Zhang Q . Spatio-temporal patterns of NDVI variations and possible relations with climate changes in Xinjiang Province[J]. Journal of Geo-Information Science, 2017,19(5):662-671. ]
[34]	吴端耀, 罗娅, 王青 , 等. 2001-2014年贵州省林草植被覆盖度时空变化及其与气温降水变化的关系[J]. 贵州师范大学学报(自然科学版), 2017,35(1):1-7,29.
	[ Wu D Y, Luo Y, Wang Q , et al. Spatio-temporal variation of vegetation coverage in forest and grassland and its relationship with temperature and precipitation changes in Guizhou province during 2001-2014[J]. Journal of Guizhou Normal University(Natural Sciences), 2017,35(1):1-7,29. ]
[35]	许幼霞, 周旭, 赵翠薇 , 等. 1990-2015年间贵州省植被生态环境质量变化特征[J]. 地球与环境, 2017,45(4):434-440.
	[ Xu Y X, Zhou X, Zhao C W , et al. Analysis of vegetation eco-environment quality change features in Guizhou Province from 1990 to 2015[J]. Earth and Environment, 2017,45(4):434-440. ]
[36]	田海静, 曹春香, 戴晟懋 , 等. 准格尔旗植被覆盖度变化的时间序列遥感监测[J]. 地球信息科学学报, 2014,16(1):126-133.
	[ Tian H J, Cao C X, Dai S M , et al. Analysis of vegetation fractional cover in Jungar Banner based on time-series remote a sensing data[J]. Journal of Geo-Information Science, 2014,16(1):126-133. ]
[37]	龙成昌, 陈训 . 花江峡谷地区顶坛花椒生长状况与土壤条件相关分析[J].贵州师范大学学报(自然科学版), 2003(3):102-104.
	[ Long C C, Chen X . Interrelated analysis between the growing state of Zanthoxylum planispinum var. dintanensis and the soil situations in the area of Huajiang vallley[J].Journal of Guizhou Normal University(Natural Sciences), 2003(3):102-104. ]
[38]	薛薇 . SPSS统计分析及应用(第3版)[M]. 北京: 电子工业出版社, 2013.
	[ Xue W. SPSS statistical analysis and application (3rd Edition). Beijing: Publishing House of Electronics Industry, 2013. ]
[39]	孟晗, 黄远程, 史晓亮 . 黄土高原地区2001-2015年植被覆盖变化及气候影响因子[J]. 西北林学院学报, 2019,34(1):211-217.
	[ Meng H, Huang Y C, Shi X L . Vegetation coverage change and climate impact factors in the Loess Plateau from 2001 to 2015[J]. Journal of Northwest Forestry University, 2019,34(1):211-217. ]
[40]	张翀, 王静, 雷田旺 , 等. 退耕还林工程以来黄土高原植被覆盖与地表湿润状况时空演变[J]. 干旱区研究, 2018,35(6):1468-1476.
	[ Zhang C, Wang J, Lei T W , et al. Spatiotemporal evolution of vegetation cover and surface humidity since implementing the grain for green project in the Loess Plateau[J]. Arid Zone Research, 2018,35(6):1468-1476. ]

NDVI	1990年		1996年		2002年		2011年		2016年
NDVI	占比	累计	占比	累计	占比	累计	占比	累计	占比	累计
<0	0.01	0.01	0.10	0.10	0.04	0.04	0.03	0.03	0.12	0.12
0~0.2	0.12	0.13	0.21	0.31	0.22	0.27	0.42	0.44	0.51	0.64
0.2~0.4	1.22	1.35	0.39	0.69	0.46	0.73	2.48	2.93	1.48	2.12
0.4~0.6	17.03	18.38	3.69	4.39	5.51	6.24	16.99	19.91	4.39	6.51
0.6~0.8	58.53	76.91	54.53	58.92	60.72	66.95	47.14	67.05	31.71	38.22
>0.8	23.09	100.00	41.08	100.00	33.05	100.00	32.95	100.00	61.78	100.00
	100.00	200.00	100.00	200.00	100.00	200.00	100.00	200.00	100.00	200.00
植被覆盖度/%	1990年		1996年		2002年		2011年		2016年
植被覆盖度/%	占比	累计	占比	累计	占比	累计	占比	累计	占比	累计
<20	9.09	9.09	8.35	8.35	8.32	8.32	9.62	9.62	7.15	7.15
20~40	12.38	21.47	8.05	16.40	9.76	18.08	9.76	19.38	4.47	11.61
40~60	19.57	41.04	15.93	32.33	18.60	36.68	14.03	33.41	9.28	20.89
60~80	26.24	67.28	27.11	59.45	26.65	63.32	20.38	53.79	20.40	41.29
>80	32.72	100.00	40.55	100.00	36.68	100.00	46.21	100.00	58.71	100.00
	100.00	200.00	100.00	200.00	100.00	200.00	100.00	200.00	100.00	200.00

年份	NDVI	植被覆盖度/%	时段	NDVI变化	植被覆盖度变化/%
1990	0.70	62.67	1990-1996	0.06	4.85
1996	0.77	67.52	1996-2002	-0.02	-2.00
2002	0.75	65.53	2002-2011	-0.04	2.46
2011	0.71	67.98	2011-2016	0.07	7.23
2016	0.78	75.21	1990-2016	0.08	12.54

	1990-1996年	1996-2002年	2002-2011年	2011-2016年	1990-2016年
显著减少区占比	13.88	24.77	20.03	10.00	17.43
轻微减少区占比	25.17	33.57	22.98	29.08	7.34
轻微增加区占比	27.97	24.57	24.22	27.29	16.83
显著增加区占比	32.98	17.10	32.77	33.63	58.40
减少区占比合计	39.05	58.33	43.01	39.09	24.77
增加区占比合计	60.95	41.67	56.99	60.91	75.23

人口密度 /（人/km²）	平均人口密度 /（人/km²）	国土面积 /km²	国土面积占比 /%	国土面积累计占比 /%	人口数量 /万人	人口数量占比 /%	人口数量累计占比 /%
<50	11.54	678.03	32.11	32.11	0.79	2.54	2.54
50~100	76.24	336.53	15.94	48.05	2.58	8.32	10.86
100~150	125.79	303.77	14.39	62.44	3.85	12.39	23.24
150~200	174.85	217.41	10.30	72.73	3.83	12.32	35.57
200~250	224.35	208.47	9.87	82.60	4.71	15.16	50.73
250~300	277.24	145.93	6.91	89.52	4.08	13.12	63.85
300~350	322.55	120.12	5.69	95.20	3.90	12.56	76.41
350~400	373.43	45.67	2.16	97.37	1.72	5.53	81.94
400~450	421.74	22.83	1.08	98.45	0.97	3.12	85.06
>450	1406.61	32.76	1.55	100.00	4.64	14.94	100.00
		2111.51	100.00	200.00	31.07	100.00	200.00

		人口密度	1990年植被覆盖度	2016年植被覆盖度	1990-2016年植被覆盖度变化
人口密度	Pearson 相关性	1.000	-0.969**	-0.950**	-0.034
人口密度	显著性（双尾）	-	0.000	0.000	0.925
1990年植被覆盖度	Pearson 相关性	-0.969**	1.000	0.873**	-0.182
1990年植被覆盖度	显著性（双尾）	0.000	-	0.001	0.615
2016年植被覆盖度	Pearson 相关性	-0.950**	0.873**	1.000	0.321
2016年植被覆盖度	显著性（双尾）	0.000	0.001	-	0.366
1990-2016年植被覆盖度变化	Pearson 相关性	-0.034	-0.182	0.321	1.000
1990-2016年植被覆盖度变化	显著性（双尾）	0.925	0.615	0.366	-
