基于DMSP/OLS夜间灯光影像的中国东部沿海地区城市扩展动态监测

doi:10.12082/dqxxkx.2019.180600

地球信息科学学报 ›› 2019, Vol. 21 ›› Issue (7): 1074-1085.doi: 10.12082/dqxxkx.2019.180600

基于DMSP/OLS夜间灯光影像的中国东部沿海地区城市扩展动态监测

林中立^1,²(), 徐涵秋^2,^3,^*(), 黄绍霖⁴

1. 福建工程学院建筑与城乡规划学院,福州 350118
2. 福州大学环境与资源学院,福州大学遥感信息工程研究所,福州 350116
3. 福建省水土流失遥感监测评估与灾害防治重点实验室,福州 350116
4. 深圳市铁汉生态环境股份有限公司,深圳 518040

收稿日期:2018-11-23 修回日期:2019-03-05 出版日期:2019-07-25 发布日期:2019-07-25
作者简介:
作者简介：林中立（1989-）,男,福建福州人,博士,讲师,主要从事环境与生态遥感研究。E-mail: linzl@fjut.edu.cn
基金资助:
国家重点研发计划专项课题(2016YFA0600302);国家自然科学基金项目(41501469);福建工程学院科研启动基金(GY-Z18164)

Monitoring of the Urban Expansion Dynamics in China's East Coast Using DMSP/OLS Nighttime Light Imagery

Zhongli LIN^1,²(), Hanqiu XU^2,^3,^*(), Shaolin HUANG⁴

1. College of Architecture and Urban Planning, Fujian University of Technology, Fuzhou 350118, China
2. College of Environment and Resources, Institute of Remote Sensing Information Engineering, Fuzhou University, Fuzhou 350116, China
3. Fujian Provincial Key Laboratory of Remote Sensing Soil Erosion and Disaster Protection, Fuzhou University, Fuzhou 350116, China
4. Shenzhen Techand Ecology & Environment Company Limited, Shenzhen 518040, China

Received:2018-11-23 Revised:2019-03-05 Online:2019-07-25 Published:2019-07-25
Contact: Hanqiu XU
Supported by:
National Key Research and Development Project of China, No.2016YFA0600302;National Natural Science Foundation of China, No.41501469;Scientific Research Foundation of Fujian University of Technology, No.GY-Z18164

摘要/Abstract

摘要：

美国国防气象卫星搭载的业务性线性传感器（DMSP/OLS）所获取的夜间灯光影像数据,能够客观地反映人类对城市建成区的开发建设范围与强度,已广泛地应用于城市扩展的动态监测。本文利用不变目标区域法对长时间序列DMSP/OLS夜间灯光影像进行辐射校正,基于校正后的影像对2001-2013年中国东部沿海地区的城市建成区范围进行提取,结果表明：① 建成区面积从2001年的7550 km²,增加到2013年的21 650 km²,共扩展了14 100 km²,虽然建成区面积呈逐年增加的趋势,但其扩展速率则在逐步减缓,城市重心逐渐向南转移;② 在空间上形成了京津唐、长江三角洲和珠江三角洲3城市群,研究发现京津唐的中小城市面临难以获得发展资源的问题,导致了该地区发展的不平衡;③ 综合分析建成区扩展和经济统计数据,结果表明人口和经济是建成区扩展的主要驱动因子,但同时城市快速扩展也给东部沿海地区带来了一定程度的用地浪费问题;④ 由于DMSP/OLS夜间灯光影像受到自身空间分辨率的限制和灯光过饱和的影响,易造成城市建成区边缘细节部分的错提。新一代Suomi NPP/VIIRS夜间灯光影像在空间和光谱分辨率上均有较大提高,在后续的研究中应充分挖掘其数据优势,以期提供更加精准的城市扩展动态监测。

关键词: 中国东部沿海, DMSP/OLS, 夜间灯光影像, 城市扩展, 遥感

Abstract:

The Defense Meteorological Satellite Program Operational Linescan System (DMSP/OLS) nighttime light (NTL) imagery can objectively reflect the impacts of human activities on the scope and intensity of urban built-up areas. Therefore, the DMSP/OLS imagery have been widely used in monitoring urban expansion dynamics. In this paper, the invariant region method was used to calibrate the DMSP/OLS time series NTL imagery. Then, we used the calibrated DMSP/OLS imagery to extract the urban built-up areas in China's east coast from 2001 to 2013. The result shows that the built-up areas in China's east coast increased from 7550 km² in 2001 to 21 650 km² in 2013, with a net increase of 14 100 km². Although the built-up areas have increased year by year, the increase rate has slowed down. The gravity center of the built-up areas has gradually moved south. The Beijing-Tianjin-Tangshan area, the Yangtze River Delta, and the Pearl River Delta are the three major urban agglomerations in the east coast. The Beijing-Tianjin-Tangshan area was unbalanced in regional development, where the small and medium sized cities faced shortage of development resources. The relationship between urban expansion and economic growth was explored. We conclude that population and economy are the two main driving factors for the expansion of urban built-up areas in China's east coast. The rapid urban growth in China's east coast has caused land resource waste to a certain extent. Moreover, we also found that the edges of urban built-up areas were easily mis-extracted, due to the coarse spatial resolution and saturation problem in DMSP/OLS NTL imagery. The new generation of Suomi NPP/VIIRS NTL imagery has greatly improved in spatial and spectral resolutions. In future studies, the advantages of Suomi NPP/VIIRS should be fully explored to provide more accurate monitoring of urban expansion dynamics.

Key words: China's east coast, DMSP/OLS, nighttime light imagery, urban expansion, remote sensing

林中立, 徐涵秋, 黄绍霖. 基于DMSP/OLS夜间灯光影像的中国东部沿海地区城市扩展动态监测[J]. 地球信息科学学报, 2019, 21(7): 1074-1085.DOI:10.12082/dqxxkx.2019.180600

Zhongli LIN, Hanqiu XU, Shaolin HUANG. Monitoring of the Urban Expansion Dynamics in China's East Coast Using DMSP/OLS Nighttime Light Imagery[J]. Journal of Geo-information Science, 2019, 21(7): 1074-1085.DOI:10.12082/dqxxkx.2019.180600

图/表 12

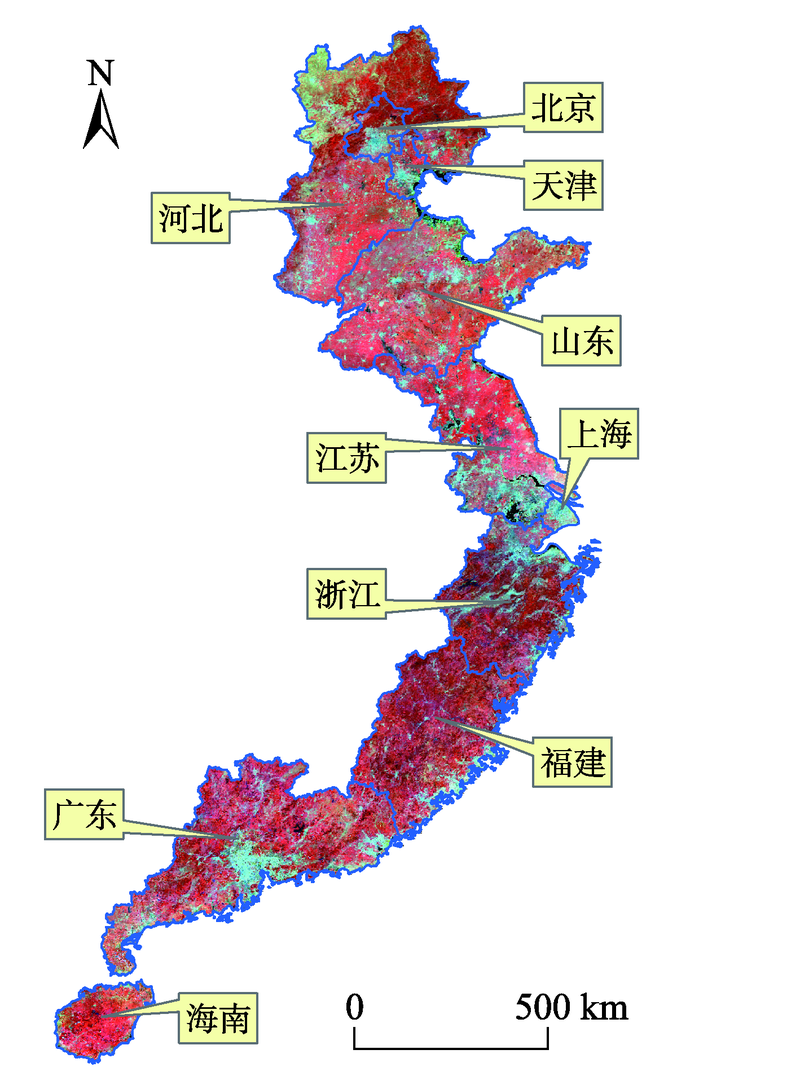

图1

表1

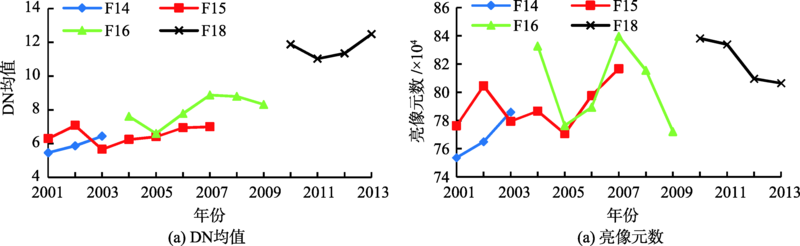

图2

表2

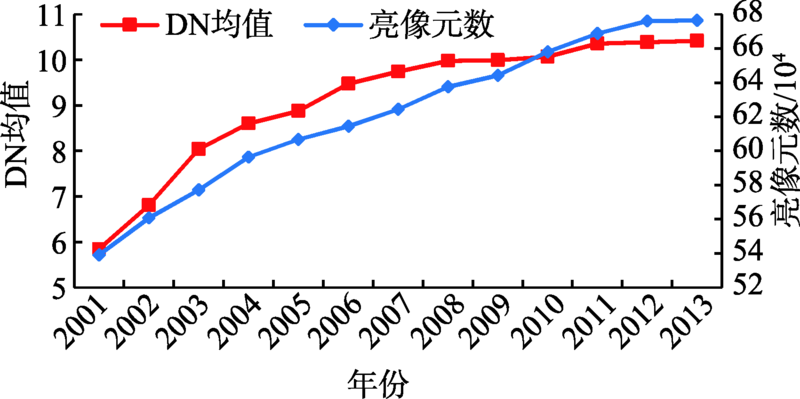

图3

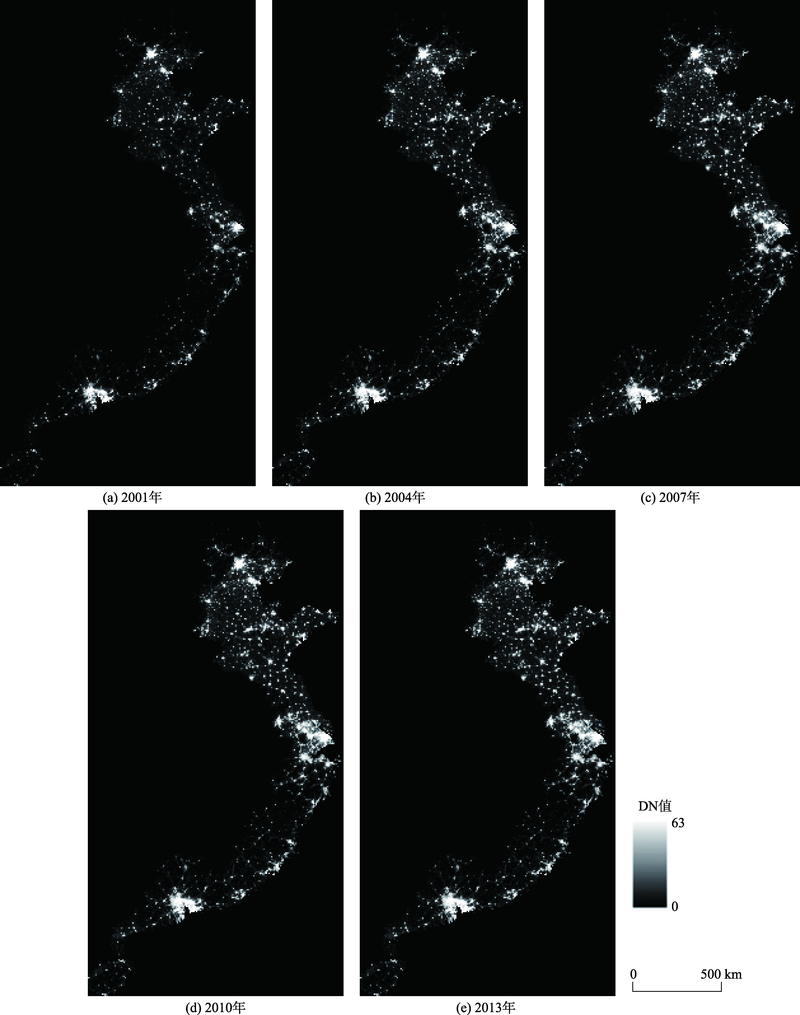

图4

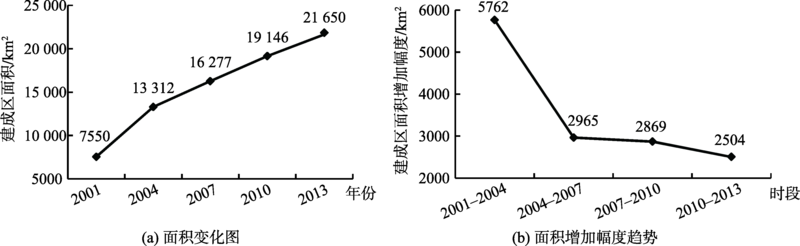

图5

表3

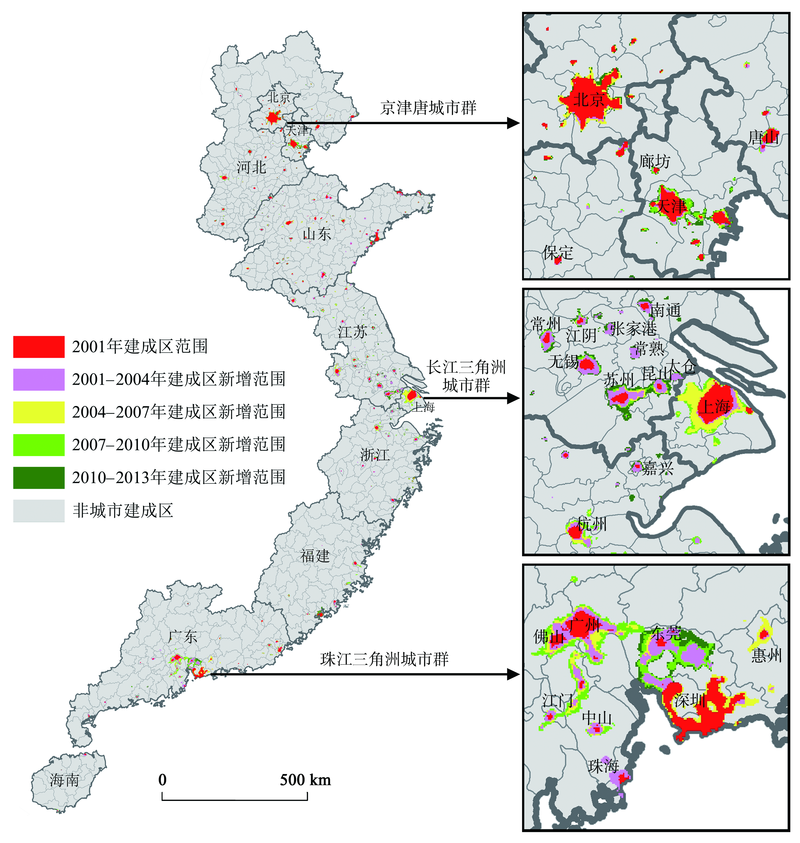

图6

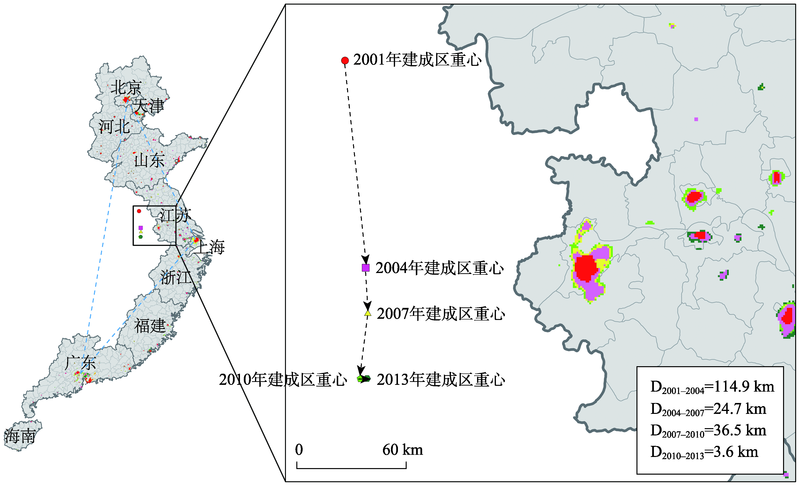

图7

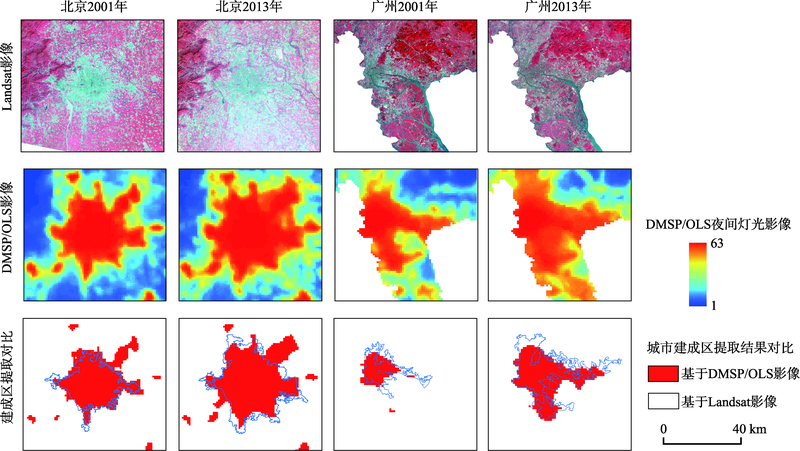

图8

表4

参考文献 33

[1]	许学强,周一星,宁越敏.城市地理学(第二版)[M].北京:高等教育出版社,2009.
	[ Xu X Q, Zhou Y X, Ning Y M.Urban geography (2nd Edition)[M]. Beijing: Higher Education Press, 2009. ]
[2]	Schneider A, Friedl M A, Potere D.A new map of global urban extent from MODIS satellite data[J]. Environmental Research Letters, 2009,4(4):044003. doi: 10.1088/1748-9326/4/4/044003
[3]	施利锋,张增祥,刘芳,等. 1973年-2013年经济特区城市空间扩展遥感监测[J].遥感学报,2015,19(6):1030-1039.
	[ Shi L F, Zhang Z X, Liu F, et al.Spatial expansion remote sensing monitoring of special economic zones from 1973 to 2013[J]. Journal of Remote Sensing, 2015,19(6):1030-1039. ]
[4]	Kuang W, Liu J, Dong J, et al.The rapid and massive urban and industrial land expansions in China between 1990 and 2010: A CLUD-based analysis of their trajectories, patterns, and drivers[J]. Landscape and Urban Planning, 2016,145:21-33. doi: 10.1016/j.landurbplan.2015.10.001
[5]	Wen Q, Zhang Z, Shi L, et al.Extraction of basic trends of urban expansion in China over past 40 years from satellite images[J]. Chinese Geographical Science, 2016,26(2):129-142. doi: 10.1007/s11769-016-0796-z
[6]	Elvidge C D.Mapping city lights with nighttime data from the DMSP Operational Linescan System[J]. Photogrammetric Engineering and Remote Sensing, 1997,63(6):727-734.
[7]	Croft T A.Nighttime images of the Earth from space[J]. Scientific American, 1978,239(1):86-98. doi: 10.1038/scientificamerican0778-86
[8]	刘沁萍,杨永春,付冬暇,等.基于DMSP_OLS灯光数据的1992-2010年中国城市空间扩张研究[J].地理科学,2014,34(2):129-136.
	[ Liu Q P, Yang Y C, Fu D X, et al.Urban spatial expansion based on DMSP_OLS nighttime light data in China in 1992-2010[J]. Scientia Geographica Sinica, 2014,34(2):129-136. ]
[9]	Wu J, Ma L, Li W, et al.Dynamics of urban density in China: Estimations based on DMSP/OLS nighttime light data[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2014,7(10):4266-4275. doi: 10.1109/JSTARS.2014.2367131
[10]	Zhou Y, Smith S J, Zhao K, et al.A global map of urban extent from nightlights[J]. Environmental Research Letters, 2015,10(5):054011. doi: 10.1088/1748-9326/10/5/054011
[11]	Gao B, Huang Q, He C, et al.How does sprawl differ across cities in China? A multi-scale investigation using nighttime light and census data[J]. Landscape and Urban Planning, 2016,148(41):89-98. doi: 10.1016/j.landurbplan.2015.12.006
[12]	陈昕,彭建,刘焱序,等.基于DMSP/OLS夜间灯光数据的京津冀地区城市空间扩展与空间关联测度[J].地理研究,2018,37(5):898-909.
	[ Chen X, Peng J, Liu Y X, et al.Measuring spatial expansion and correlations of cities in Beijing-Tianjin-Hebei Urban Agglomeration using DMSP/OLS nighttime light data[J]. Geographicla Research, 2018,37(5):898-909. ]
[13]	Elvidge C D, Safran J, Tuttle B, et al.Potential for global mapping of development via a nightsat mission[J]. Geojournal, 2007,69(1-2):45-53. doi: 10.1007/s10708-007-9104-x
[14]	Elvidge C D, Ziskin D, Baugh K E, et al.A fifteen year record of global natural gas flaring derived from satellite data[J]. Energies, 2009,2(3):595-622. doi: 10.3390/en20300595
[15]	曹子阳,吴志峰,匡耀求,等. DMSP/OLS夜间灯光影像中国区域的校正及应用[J].地球信息科学学报,2015,17(9):1092-1102. doi: 10.3724/SP.J.1047.2015.01092
	[ Cao Z Y, Wu Z F, Kuang Y Q, et al.Correction of DMSP/OLS night-time light images and its application in China[J]. Journal of Geo-information Science, 2015,17(9):1092-1102. ] doi: 10.3724/SP.J.1047.2015.01092
[16]	Letu H, Hara M, Yagi H, et al. Estimating the energy consumption with nighttime city light from the DMSP/OLS imagery[J]. Urban Remote Sensing Event, 2009,1-3:1364-1370.
[17]	Raupach M R, Rayner P J, Paget M.Regional variations in spatial structure of nightlights, population density and fossil-fuel CO emissions[J]. Energy Policy, 2010,38(9):4756-4764. doi: 10.1016/j.enpol.2009.08.021
[18]	Wu J, He S, Peng J, et al.Intercalibration of DMSP-OLS night-time light data by the invariant region method[J]. International Journal of Remote Sensing, 2013,34(20):7356-7368. doi: 10.1080/01431161.2013.820365
[19]	Liu Z, He C, Zhang Q, et al.Extracting the dynamics of urban expansion in China using DMSP-OLS nighttime light data from 1992 to 2008[J]. Landscape and Urban Planning, 2012,106(1):62-72. doi: 10.1016/j.landurbplan.2012.02.013
[20]	中国人民共和国国家统计局.中国统计年鉴2017[M].北京:中国统计出版社,2018.
	[ National Bureau of Statistics. China Statistical Yearbook[M]. Beijing: China Statistics Press, 2018.]
[21]	何春阳,史培军,李景刚,等.基于DMSP/OLS夜间灯光数据和统计数据的中国大陆20世纪90年代城市化空间过程重建研究[J].科学通报,2006,51(7):856-861. doi: 10.3321/j.issn:0023-074X.2006.07.017
[22]	Zhang Q, Seto K C.Mapping urbanization dynamics at regional and global scales using multi-temporal DMSP/OLS nighttime light data[J]. Remote Sensing of Environment, 2011,115(9):2320-2329. doi: 10.1016/j.rse.2011.04.032
[23]	赵敏,程维明.基于DMSP/OLS夜间灯光数据的城市空间扩展研究综述[J].测绘与空间地理信息,2015(3):64-68.
	[ Zhao M, Cheng W M.Overview of researches based on urban expansion via DMSP/OLS night-time light data[J]. Geomatics and Spatial Information Technology, 2015(3):64-68.]
[24]	Imhoff M L, Lawrence W T, Stutzer D C, et al.A technique for using composite DMSP/OLS “City Lights” satellite data to map urban area[J]. Remote Sensing of Environment, 1997,61(3):361-370. doi: 10.1016/S0034-4257(97)00046-1
[25]	Milesi C, Elvidge C D, Nemani R R, et al.Assessing the impact of urban land development on net primary productivity in the Southeastern United States[J]. Remote Sensing of Environment, 2003,86(3):401-410. doi: 10.1016/S0034-4257(03)00081-6
[26]	Henderson M, Yeh E T, Gong P, et al.Validation of urban boundaries derived from global night-time satellite imagery[J]. International Journal of Remote Sensing, 2003,24(3):595-609. doi: 10.1080/01431160304982
[27]	Small C, Pozzi F, Elvidge C D.Spatial analysis of global urban extent from DMSP-OLS night lights[J]. Remote Sensing of Environment, 2005,96(3-4):277-291. doi: 10.1016/j.rse.2005.02.002
[28]	Cao X, Chen J, Imura H, et al.A SVM-based method to extract urban areas from DMSP-OLS and SPOT VGT data[J]. Remote Sensing of Environment, 2009,113(10):2205-2209. doi: 10.1016/j.rse.2009.06.001
[29]	中华人民共和国国家统计局.分省年度数据[OL].,2015.
	[ National Bureau of Statistics. Annual by Province[OL]. , 2015. ]
[30]	林中立,徐涵秋,陈弘.我国东部沿海三大城市群热岛变化及其与城市群发展的关系[J].环境科学研究,2018,31(10):1695-1704.
	[ Lin Z L, Xu H Q, Chen H.Urban heat island change and its relationship to the urbanization of three major urban agglomerations in China's eastern coastal region[J]. Research of Environmental Sciences, 2018,31(10):1695-1704.]
[31]	Hu Y, Peng J, Liu Y, et al.Mapping development pattern in Beijing-Tianjin-Hebei Urban Agglomeration using DMSP/OLS nighttime light data[J]. Remote Sensing, 2017,9(7):760. doi: 10.3390/rs9070760
[32]	中华人民共和国国家统计局.中国统计年鉴[EB/OL].,2019.
	[ National Bureau of Statistics. China Statistical Yearbook[EB/OL]. , 2019. ]
[33]	徐涵秋. 近30a来福州盆地中心的城市扩展进程[J].地理科学,2011(3):351-357.
	[ Xu H Q. Urban expansion process in the center of the Fuzhou basin southeast China in 1976-2006[J]. Scientia Geographica Sinica, 2011(3):351-357. ]

卫星年份	DN均值				亮像元数/个
卫星年份	F14	F15	F16	F18	F14	F15	F16	F18
2001	5.46	6.29			753 582	776 366
2002	5.86	7.07			765 030	804 603
2003	6.44	5.66			786 083	779 417
2004		6.24	7.61			786 713	832 816
2005		6.41	6.60			770 686	776 422
2006		6.94	7.77			797 631	789 506
2007		6.99	8.87			816 749	839 736
2008			8.79				815 598
2009			8.31				772 276
2010				11.87				838 236
2011				11.02				834 022
2012				11.35				809 645
2013				12.48				806 462

卫星序号	年份	a	b	c	R²	卫星序号	年份	a	b	c	R²
F14	2001	0.0003	1.0469	-0.35	0.9522	F16	2004	-0.0008	1.0931	0.1262	0.9216
	2002	-0.0035	1.1955	0.2315	0.8886		2005	-0.0043	1.3585	-1.0748	0.9628
	2003	-0.0087	1.5316	-0.8524	0.9599		2006	-0.0052	1.3294	-0.2097	0.9732
F15	2001	0.0009	1.0538	-1.1412	0.9051		2007	0	1	0	1
	2002	0.0004	0.998	-0.9992	0.9574	2008		0.0014	0.9222	0.6711	0.9863
	2003	-0.0124	1.7711	-0.9027	0.9103	2009		0.0086	0.3038	4.0476	0.8186
	2004	-0.0084	1.5439	-0.2136	0.9619	F18	2010	0.0094	0.1892	4.0566	0.7867
	2005	-0.0043	1.3309	0.1826	0.9121		2011	0.005	0.4653	3.4964	0.7503
	2006	-0.0052	1.3445	0.6212	0.9647		2012	0.0101	0.1203	5.2292	0.9246
	2007	-0.0047	1.3118	0.2067	0.9773		2013	0.0111	0.0152	5.8689	0.9129

	2001年	2004年	2007年	2010年	2013年
DMSP/OLS影像/km²	7550	13 312	16 277	19 146	21 650
统计数据/km²	-	13 967	16 975	19 461	22 117
误差值/km²	-	-655	-698	-315	-467
误差率/%	-	-4.69	-4.11	-1.62	-2.11

	变量名	2001年	2004年	2007年	2010年	2013年
人口/万人	x₁	43 728.00	45 034.00	47 476.00	50 665.00	51 818.00
地区生产总值/亿元	x₂	56 360.09	88 433.10	152 346.38	232 030.67	322 258.89
第一产业占比/%	x₃	10.94	8.92	6.88	6.30	6.17
第二产业占比/%	x₄	48.68	53.26	51.47	49.37	46.86
第三产业占比/%	x₅	40.38	37.82	41.65	44.33	46.97
财政收入/亿元	x₆	4635.36	6928.52	14 052.85	23 005.40	36 752.57
财政支出/亿元	x₇	5870.27	9502.56	16 949.93	30 182.23	47 369.77
