通勤距离对职住分离的统计验证

doi:10.12082/dqxxkx.2019.180606

摘要/Abstract

摘要：

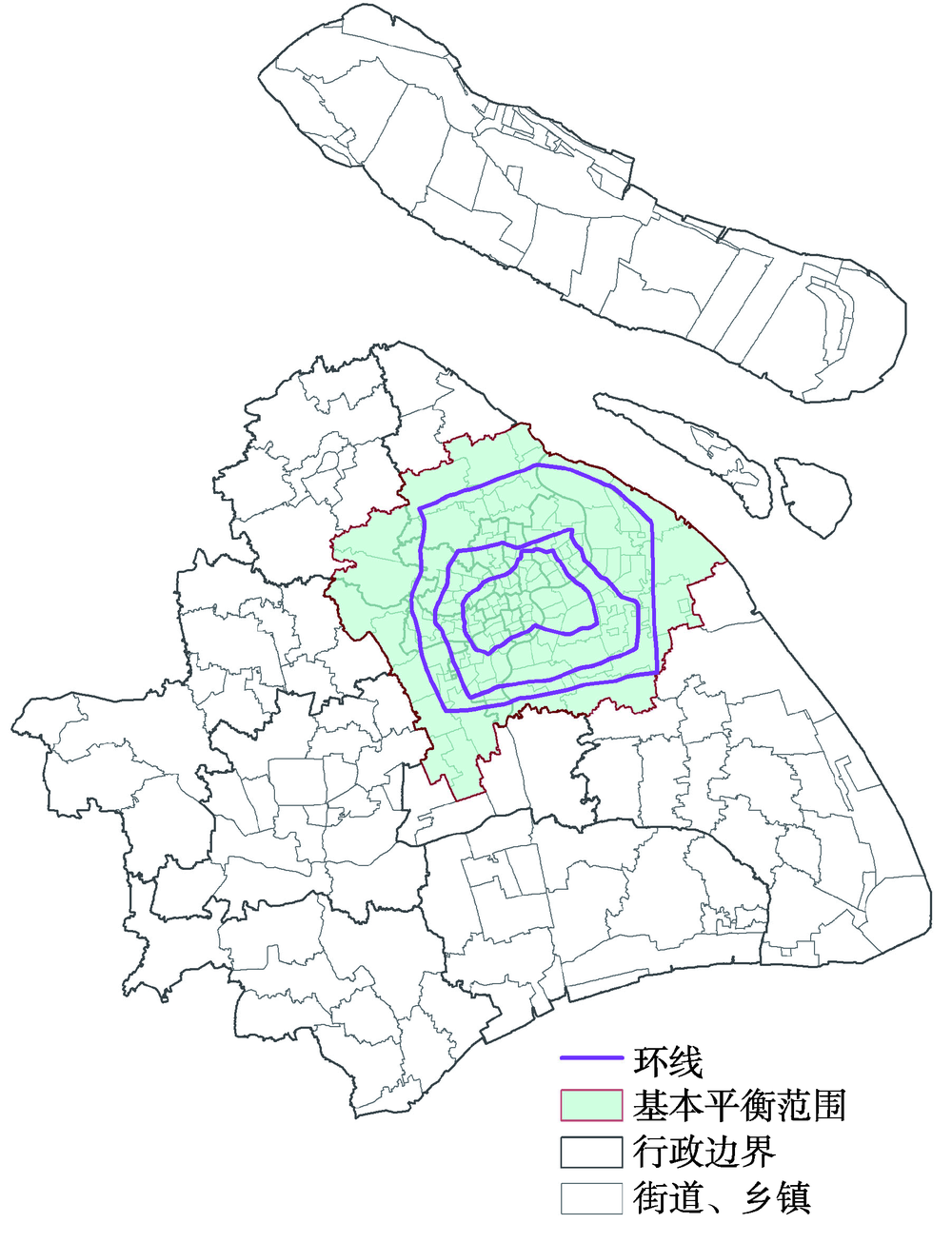

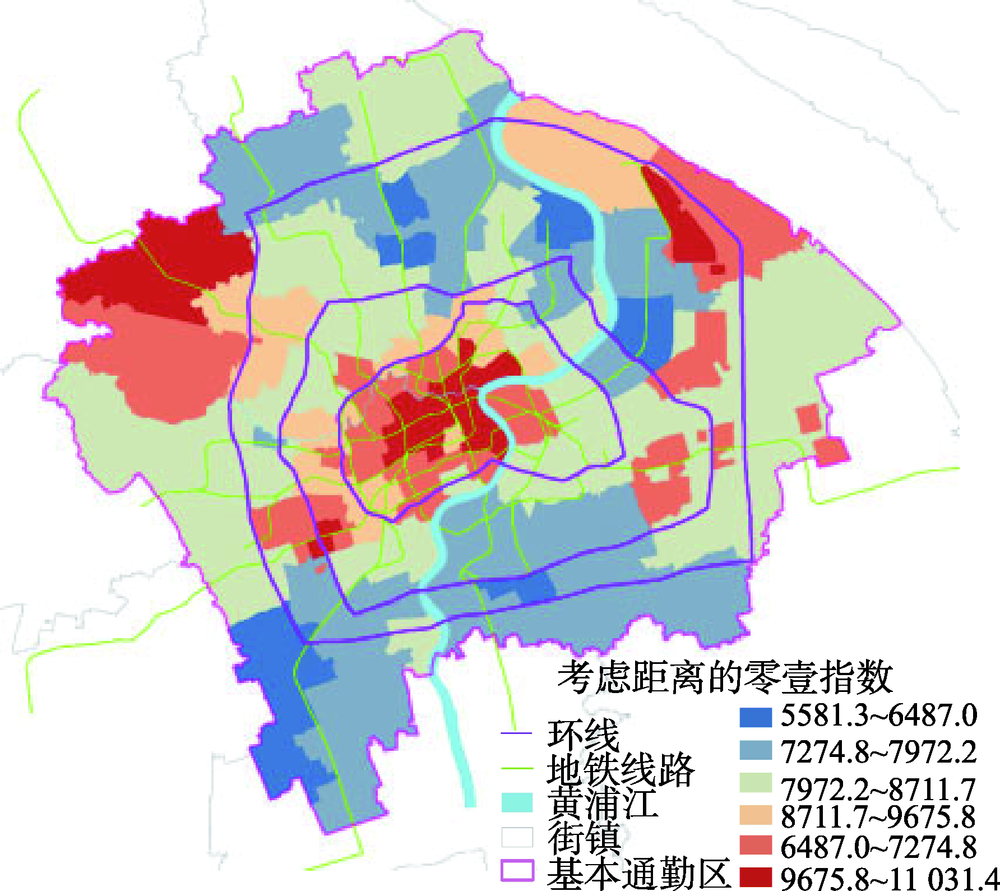

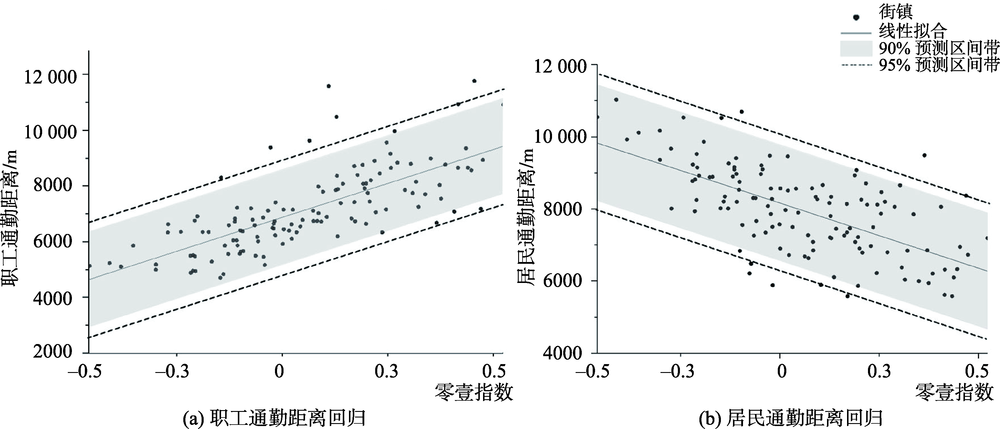

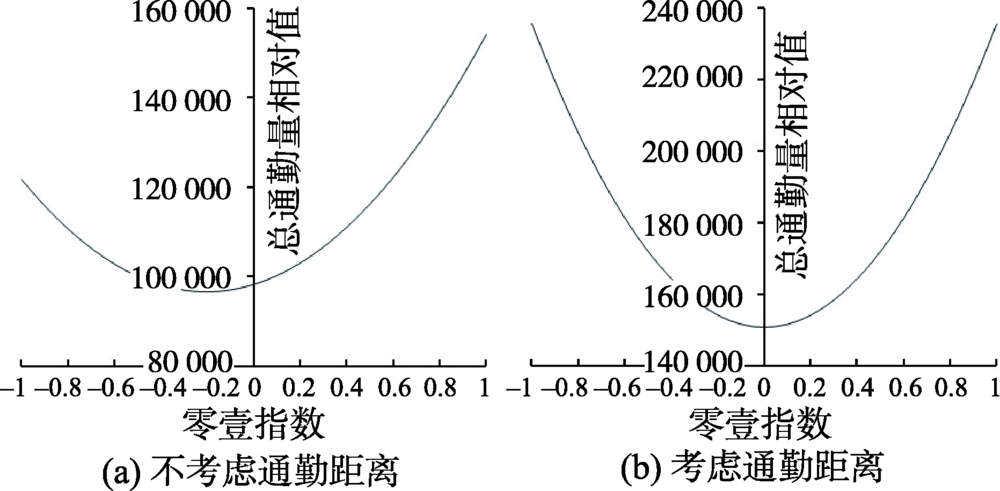

职住分离和通勤距离关系的定量测度,对公共政策、城市规划的制定具有指导作用。长期以来,该领域的计算方法及验证的可靠性、精确性存在多方面的制约,用得最普及的单元平衡法存在单元尺度多大合适、单元边界隔离2个局限性。本研究以上海市为例,以人口普查、经济普查、手机信令数据为基础,多角度开展方法探索。先对中心城区划定职住基本平衡范围,用考虑通勤距离的密度估计函数,按工作地估计职工的居住密度,和从业居民的实际密度相比较,使职住分离和通勤距离对应起来,同时缓解单元尺度问题、消解边界隔离问题。继而使用职住分离零壹指数代替传统职住比,用平均通勤距离验证职住分离,获得了很强的线性相关。尽管统计结果有效,依然会有样本偏离线性回归方程,利用置信区间,筛选出异常点,凭经验解释原因,可从定性角度进一步提高分析结果的可信,还可以探测职住失配的原因。基于上述分析方法,验证了：职大于住的地区,职工通勤距离偏长,居民通勤距离偏短;住大于职的地区,居民通勤距离偏长,职工通勤距离偏短,职住关系越平衡,通勤交通总量越小,越分离,交通总量越大。上述方法以上海为例得到验证,也能适用于其他大城市的中心城区。

关键词: 职住分离, 职住平衡, 通勤距离, 零壹指数, 测度方法, 上海

Abstract:

Measurement of the relationship between home-work separation and commuting distance is a guide to public policy and urban planning. However, the reliability and accuracy of calculation and validation have various limitations in this filed. The widely used home-work ratio based on space units has the scaling and boundary limitations. This study reexamined the relationship using accurate population and economic census data and mobile phone signaling data of Shanghai. A home-work balance region was defined firstly in the central city. The expected housing density of workers was estimated from working locations by using density estimation function and then compared with the actual data. The relationship was established from home-work separation to commuting distance. The scaling and boundary limitations can be reduced by this method. Using the home-work separation zero-one index to verify the separation degree based on average commuting distance which presents a strong linear correlation. Although the result is significant, there are still outliers to the regression equation. The reason of the home-work mismatch of the outliers was explained based on experience, which improved criterion dependability qualitatively. Using the above-mentioned methods, we conclude that workers commute longer and residents commute shorter in job-rich areas, contrasting to the opposite results in housing-rich areas. The areas have less total commuting distance with more balanced home-work index, while have more total commuting distance with more separate index. The methods were proved effective in the case of Shanghai and can be applied to the central regions of other metropolises.

Key words: home-work separation, home-work balance, commuting distance, zero-one index, measuring method, Shanghai

宋小冬, 王园园, 杨钰颖, 张开翼, 钮心毅. 通勤距离对职住分离的统计验证[J]. 地球信息科学学报, 2019, 21(11): 1699-1709.DOI:10.12082/dqxxkx.2019.180606

SONG Xiaodong, WANG Yuanyuan, YANG Yuying, ZHANG Kaiyi, NIU Xinyi. Statistical Verification of Home-Work Separation based on Commuting Distance[J]. Journal of Geo-information Science, 2019, 21(11): 1699-1709.DOI:10.12082/dqxxkx.2019.180606

图/表 14

图1

图2

图3

图4

图5

图6

图7

图8

图9

表1

表2

图10

图11

图12

参考文献 29

[1]	Cervero R . Jobs-housing balance and regional mobility[J]. Journal of the American Planning Association, 1989,55(2):136-150. doi: 10.1080/01944368908976014
[2]	Cervero R . Jobs-housing balance revisited: Trends and impacts in the San Francisco Bay area[J]. Journal of the American Planning Association, 1996,62(4):492-511. doi: 10.1080/01944369608975714
[3]	Giuliano G . Is jobs housing balance a transportation issue?[J]. Transportation Research Record, 1991,1305:305-312.
[4]	Gordon P, Richardson H W, Jun M J . The commuting paradox: evidence from the top twenty[J]. Journal of the American Planning Association, 1991,57(4):416-420. doi: 10.1080/01944369108975516
[5]	Giuliano G, Small K A . Is the journey to work explained by urban spatial structure?[J]. Urban Studies, 1993,30(9):1485-1500. doi: 10.1080/00420989320081461
[6]	孟晓晨, 吴静, 沈凡卜 . 职住平衡的研究回顾及观点综述[J]. 城市发展研究, 2009(6):23-28.
	[ Meng X C, WU J, Shen F P . The study review of urban jobs-housing balance[J]. Urban Development Studies, 2009,16(6):23-28. ]
[7]	周素红, 闫小培 . 广州城市居住—就业空间及对居民出行的影响[J]. 城市规划, 2006,30(5):13-18.
	[ Zhou S H, Yan X P . Relationship between urban residential space and employment space and impact on resident trip in Guangzhou[J]. City Planning Review, 2006,30(5):13-18. ]
[8]	李强, 李晓林 . 北京市近郊大型居住区居民上班出行特征分析[J]. 城市问题, 2007(7):55-59.
	[ Li Q, Li X L . Analysis on residents' working-trip of large residential areas in the Beijing inner-suburb[J]. Urban Problems, 2007(7):55-59. ]
[9]	孙斌栋, 潘鑫, 宁越敏 . 上海市就业与居住空间均衡对交通出行的影响分析[J], 城市规划学刊, 2008(1):77-82.
	[ Sun B D, Pan X, Ning Y M , Analysis on influence of jobs-housing balance on commute travel in Shanghai[J]. Urban Planning Forum, 2008(1):77-82. ]
[10]	周江评, 陈晓键, 黄伟 , 等. 中国中西部大城市的职住平衡与通勤效率——以西安为例[J], 地理学报, 2013,68(10):1316-1330. doi: 10.11821/dlxb201310002
	[ Zhou J P, Chen X J, Huang W , et al. Jobs-housing balance and commute efficiency in cities of central and western China: A case study of Xi'an[J]. Acta Geograhica Sinica, 2013,68(10):1316-1330. ] doi: 10.11821/dlxb201310002
[11]	姜军, 段进, 陈沧杰 , 等. 通勤距离、通勤时间及其与职住平衡的关系研究[J].现代城市研究, 2015(7):119-123.
	[ Jing J, Duan J, Chen C J , et al. Study of relations between commuting distance, commuting time and the jobs-housing balance[J]. Modern Urban Research, 2015(7):119-123. ]
[12]	孙斌栋, 何舟, 李南菲 , 等. 职住均衡能够缓解交通拥堵吗?基于GIS缓冲区方法的上海实证研究[J].城市规划学刊, 2017(5):98-104.
	[ Sun B D, He Z, Li N F , et al. Could jobs-housing balance relieve traffic congestion? A case study of Shanghai based on GIS buffer[J]. Urban Planning Forum, 2017(5):98-104. ]
[13]	刘志林, 张艳, 柴彦威 . 中国大城市职住分离现象及其特征——以北京市为例[J]. 城市发展研究, 2009,16(9):110-117.
	[ Liu Z L, Zhang Y, Chai Y W . Home-work separation in the context of institutional and spatial transformation in urban China: Evidence from Beijing household survey data[J]. Urban Development Studies, 2009,16(6):23-28. ]
[14]	孟斌 . 北京城市居民职住分离的空间组织特征[J]. 地理学报, 2009,64(12):1457-1466. doi: 10.11821/xb200912006
	[ Meng B . The spatial organization of the separation between jobs and residential locations in Beijing[J]. Acta Geograhica Sinica, 2009,64(12):1457-1466. ] doi: 10.11821/xb200912006
[15]	柴彦威, 张艳, 刘志林 . 职住分离的空间差异性及其影响因素研究[J]. 地理学报, 2011,66(2):157-166. doi: 10.11821/xb201102002
	[ Chai Y W, Zhang Y, Liu Z L . Spatial differences of home-work separation and the Impacts of housing policy and urban sprawl: Evidence from household survey data in Beijing[J]. Acta Geograhica Sinica, 2011,66(2):157-166. ] doi: 10.11821/xb201102002
[16]	刘志林, 王茂军 . 北京市职住空间错位对居民通勤行为的影响分析—基于就业可达性与通勤时间的讨论[J]. 地理学报, 2011,66(4):457-467. doi: 10.11821/xb201104003
	[ Liu Z L, Wang M J . Job accessibility and its impacts on commuting time of urban residents in Beijing: From a spatial mismatch perspective[J]. Acta Geograhica Sinica, 2011,66(4):457-467. ] doi: 10.11821/xb201104003
[17]	郑思齐, 徐杨菲, 谷一桢 . 如何应对“职住分离”:“疏”还是“堵”?[J]. 学术月刊, 2014,46(5):29-39.
	[ Zheng S Q, Xu Y F, Gu Y Z . Rethinking “jobs-housing balance”: Providing more choices rather than imposing constraints[J]. Academic Monthly, 2014,46(5):29-39. ]
[18]	刘望保, 侯长营 . 转型期广州市城市居民职住空间与通勤行为研究[J]. 地理科学, 2014,34(3):272-278.
	[ Liu W B,H C Y . Urban residents' jobs-housing space and commuting behavior in Guangzhou[J]. Scientia Geographica Sinica, 2014,34(3):272-278. ]
[19]	魏海涛, 赵晖, 肖天聪 . 北京市职住分离及其影响因素分析[J], 城市发展研究, 2017,24(4):43-51.
	[ Wei H T, Zhao H, Xiao T C . A study on the characteristics and influencing factors of spatial mismatch between housing and employment in Beijing[J]. Urban Development Studies, 2017,24(4):43-51. ]
[20]	孙斌栋, 李南菲, 宋杰洁 , 等. 职住平衡对通勤交通的影响分析, 对一个传统城市规划理念的实证检验[J].城市规划学刊, 2010(6):55-60.
	[ Sun B D, Li N F, Song J J , et al. A study on the impact of job-housing balance on commuting travels: an empirical test of a traditional idea in the field of urban planning[J]. Urban Planning Forum, 2010(6):55-60. ]
[21]	Peng Z R . The jobs-housing balance and urban commuting[J]. Urban Studies, 1997,34(8):1215-1235. doi: 10.1080/0042098975600
[22]	赵鹏军, 曹毓书 . 基于多源LBS数据的职住平衡对比研究——以北京城区为例[J]. 北京大学学报(自然科学版), 2018(11):1290-1302.
	[ Zhao P J, Cao Y S . Jobs-Housing Balance Comparative Analyses with the LBS Data: A Case Study of Beijing[J]. Acta Scientiarum Naturalium Universitatis Pekinensis, 2018(11):1290-1302. ]
[23]	Cervero R . Jobs-housing balance as public Policy[J]. Urban Land, 1991,50(10):4-10.
[24]	全国第六次人口普查(2010).
	6^th population census of China (2010).
[25]	全国第三次经济普查(2013).
	3^rd economic census of China (2013).
[26]	骆悰, 申立, 苏红娟 , 等. 经济普查数据在城市总体规划中应用的探索与思考[J]. 上海城市规划, 2015(6):23-28.
	[ Luo C, Shen l, Su H J . et al. The application and exploration of economic census data in master planning[J]. Shanghai Urban Planning, 2015(6):23-28. ]
[27]	朱春节, 苏红娟, 王亮 . 经济普查数据吸附问题研究及其应对思考——以上海市第三次经济普查数据为例[J].上海城市规划, 2017(z1):55-59.
	[ Zhu C J, Su H J, Wang L . Research on the problem of economic census data adsorption: a case study of the third Shanghai economic census[J]. Shanghai Urban Planning, 2017(z1):55-59. ]
[28]	丁亮, 钮心毅, 宋小冬 . 利用手机数据识别上海中心城的通勤区[J]. 城市规划, 2015,39(9):100-106.
	[ Ding L, Niu X Y, Song X D , Identifying the commuting area of Shanghai central city using mobile phone data[J]. City Planning Review, 2015,39(9):100-106. ]
[29]	宋小冬, 王园园, 张开翼 , 等. 考虑通勤距离的职住分离测度方法[J]. 城市规划学刊, 2017(6):25-32.
	[ Song X D, Wang Y Y, Zhang K Y , et al. Measurement of jobs-housing separation based on commuting distance[J]. Urban Planning Forum, 2017(6):25-32. ]

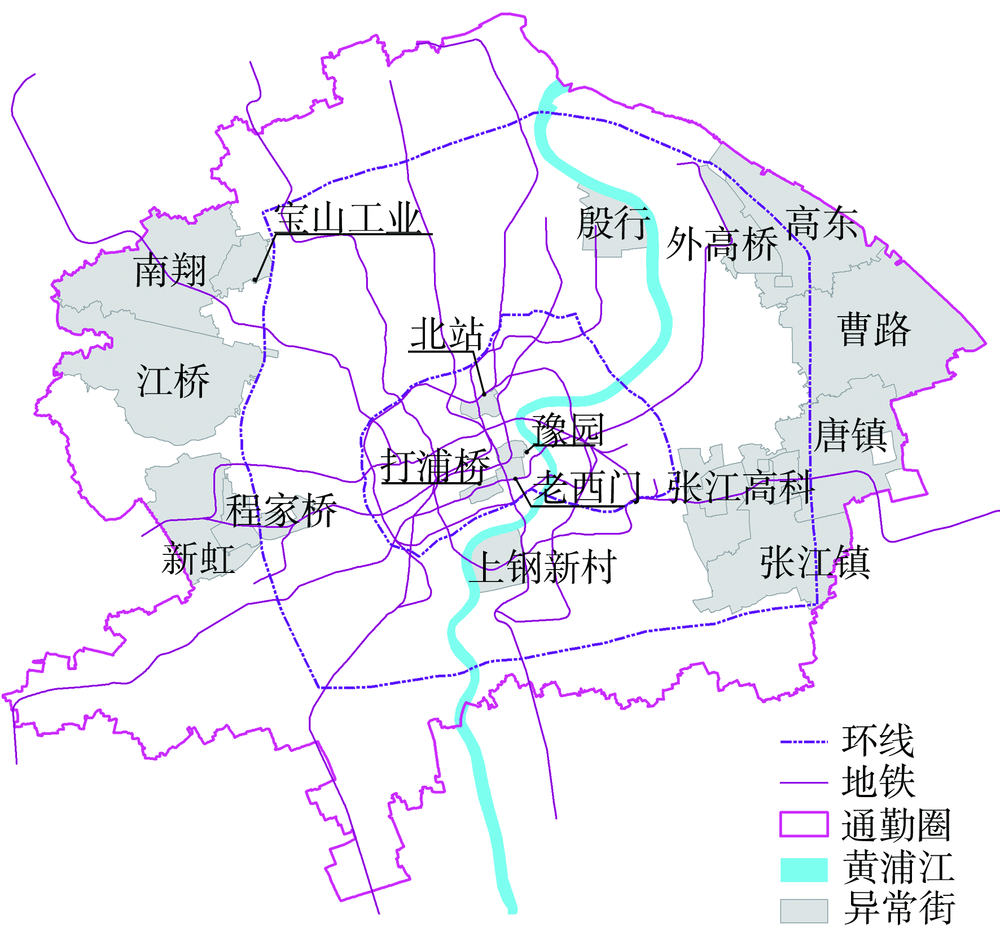

	职工通勤距离偏长		职工通勤距离偏短
	明显异常	一般异常	明显异常	一般异常
职大于住	唐镇街道（7.4, 11.6）高东镇（7.5, 10.5）打浦桥（7.2, 9.6）张江高科（9.1, 11.7）	外高桥保税区张江镇	-	上钢新村程家桥新虹街道
住大于职	曹路镇（6.7, 9.4）	-	-	-

	居民通勤距离偏长		居民通勤距离偏短
	明显异常	一般异常	明显异常	一般异常
职大于住	上钢新村（6.8, 9.4）	新虹街道	北站街道（7.5, 5.5）	豫园街道
住大于职	殷行街道（8.5, 10.6）	-	宝山工业园（8.2, 5.8）	老西门南翔镇江桥镇
