高精度室内地图辅助VLC与PDR融合定位

doi:10.12082/dqxxkx.2019.190061

摘要/Abstract

摘要：

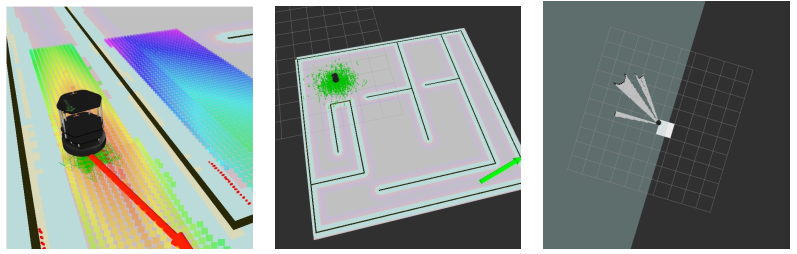

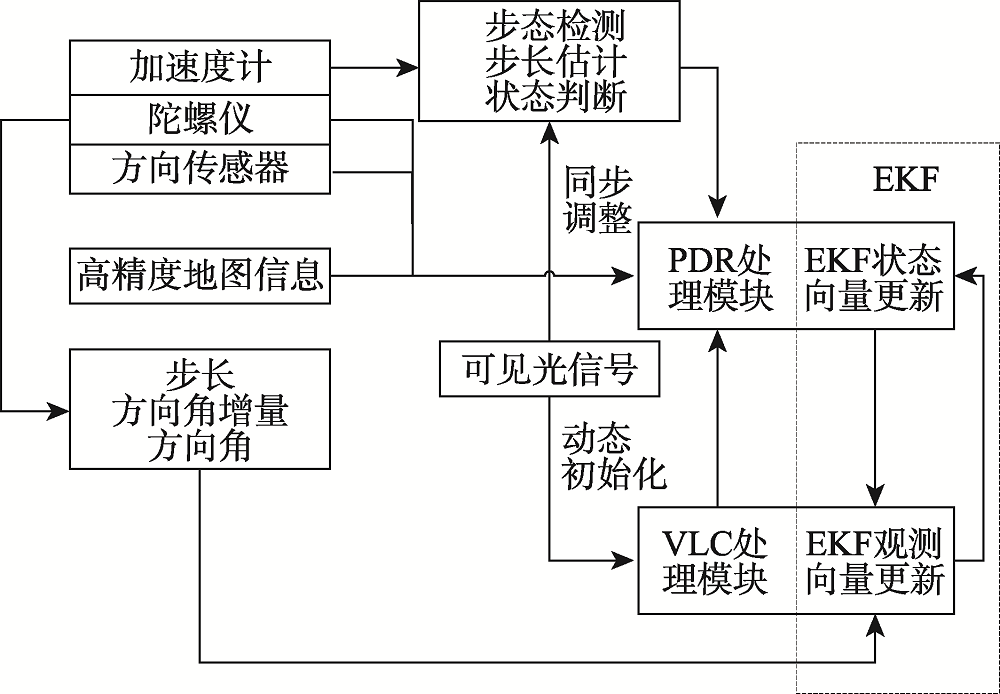

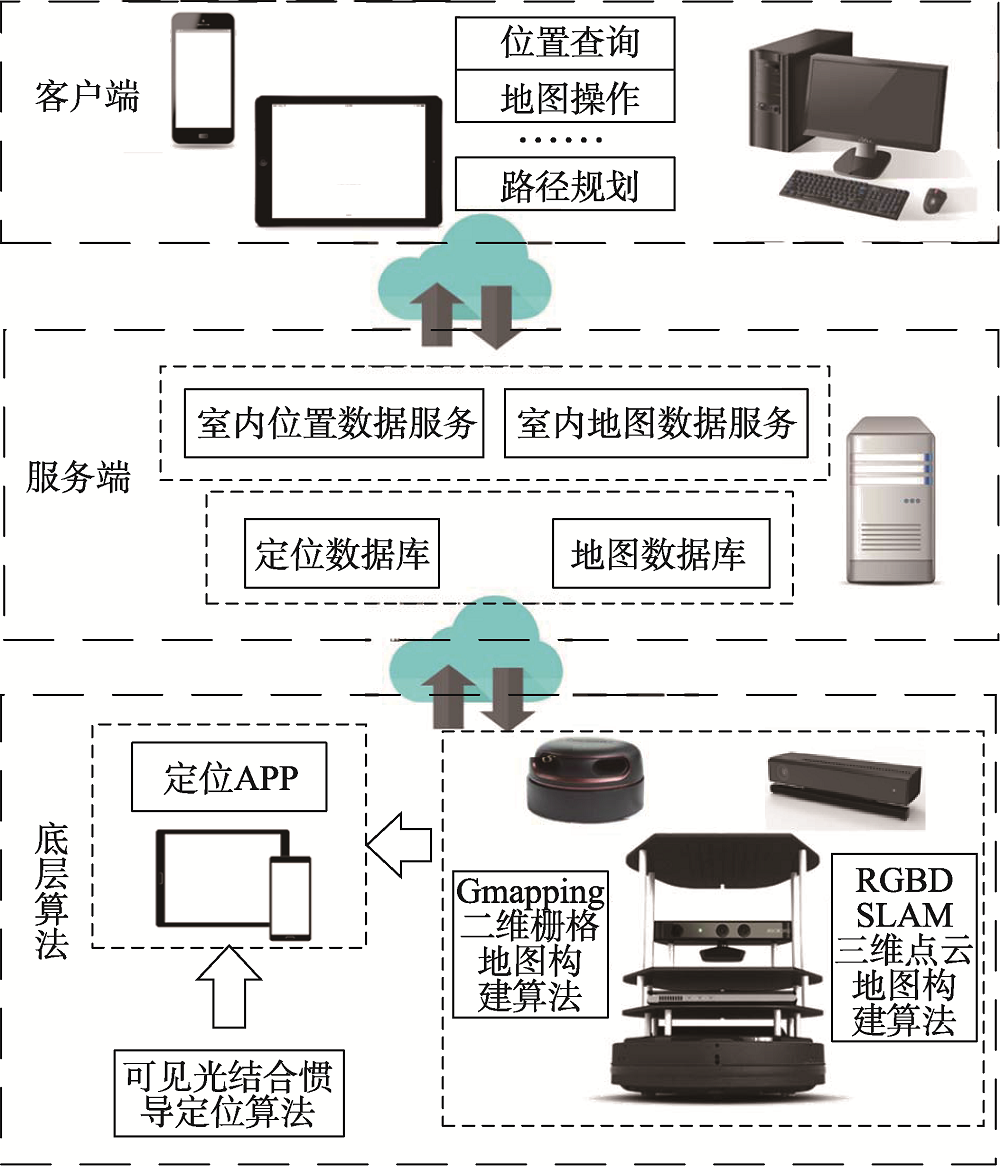

针对传统室内定位方式存在的忽略地图精度对于整体定位精度的支撑性作用、需要额外的辅助设施和附加模块以协助定位系统实现目标点定位、定位信标的保密性差、定位信号源与辅助基站等具有较强的信号辐射等问题,本研究引入高精度室内地图辅助,提出了一种VLC与PDR融合的室内定位算法。首先,本研究摒弃了传统人工勾绘方式,在室内扫描机器人turtlrbot平台上（装载有二维激光扫描雷达）,利用Gmapping二维栅格地图构建算法,生成高精度室内地图。在此基础上,采用扩展卡尔曼滤波算法结合高精度地图信息实现VLC与PDR融合定位。该融合定位算法较好地结合了VLC定位与PDR定位各自的技术优势,实现了VLC定位结合高精度地图信息对PDR定位自适应动态纠偏,对于进一步实现新型低成本、无信号辐射、保密性强、附加模块少的高精度室内定位提供了较好的理论与技术支撑。实验结果表明：在高精度室内扫描地图构建过程中,其测距分辨率<0.5 mm,VLC与PDR融合定位算法的整体定位精度为1.33 m,平均定位响应时间为0.58 s。

关键词: 高精度室内地图, VLC定位, PDR定位, EKF算法, 融合定位

Abstract:

In traditional indoor positioning field, there are many technical difficulties need to be solved. For instance, it is true that most researchers in their studies have neglected the accuracy of base map which is an indispensable factor and essential foundation of the overall accuracy of indoor positioning. On top of that, current indoor positioning system needs auxiliary facilities and multiple additional modules to assist the whole system to achieve positioning. Furthermore, beacons which are used to locate where the user is have the disadvantages of poor confidentiality while radiating strong signals at the same time. Aiming at those problems, this article proposed a fusion indoor positioning algorithm which was based on Visual Light Communication technology and Pedestrian Dead Reckoning algorithm. Particularly, we combined the information of high-precision indoor map and designed a high-precision indoor map-assisted positioning system to improve the accuracy of the positioning results. To be specific, abandoning the traditional mapping method which was generated by manual drawing, we used the Turtlrbot platform (an indoor drawing robot equipped with two-dimensional laser scanning radar) to construct the high-precision indoor map while it was moving in the interior space. In the process of indoor map construction, the Gmapping algorithm in the platform was run to build a two-dimensional grid map in a quite fast speed. Based on this, we used the Extended Kalman Filter algorithm to combine the Visual Light Communication technology with Pedestrian Dead Reckoning algorithm to achieve fusion positioning which was assisted with the high-precision map information. As shown in the experiments, the fusion positioning algorithm actually managed to combine the technical advantages of both Visual Light Communication and Pedestrian Dead Reckoning algorithm. Besides, the fusion algorithm realized a fairly ideal state where VLC positioning was able to combine with the information of high-precision map to provide adaptive and dynamic correction to the positioning results of Pedestrian Dead Reckoning algorithm, thus further providing better theoretical support and technical reference for the new kind of high-precision indoor positioning which had the characteristics of low-cost, no signal radiation, strong confidentiality with a small number of auxiliary facilities and additional modules. The experimental results showed as follows: Firstly, the ranging resolution during map construction was less than 0.5 mm; Secondly, the overall accuracy of fusion positioning was 1.33 m; Lastly, the average positioning response time was 0.58 s.

Key words: high precision indoor map, VLC positioning, PDR positioning, EKF algorithm, fusion positioning

尤承增,彭玲,王建辉,文聪聪,陈若男. 高精度室内地图辅助VLC与PDR融合定位[J]. 地球信息科学学报, 2019, 21(9): 1402-1410.DOI:10.12082/dqxxkx.2019.190061

YOU Chengzeng,PENG Ling,WANG Jianhui,WEN Congcong,CHEN Ruonan. VLC and PDR Fusion Positioning by Incorporating High-Precision Indoor Map[J]. Journal of Geo-information Science, 2019, 21(9): 1402-1410.DOI:10.12082/dqxxkx.2019.190061

图/表 11

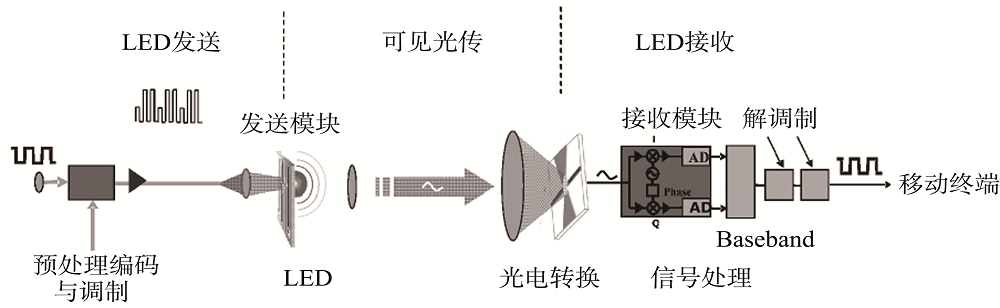

图1

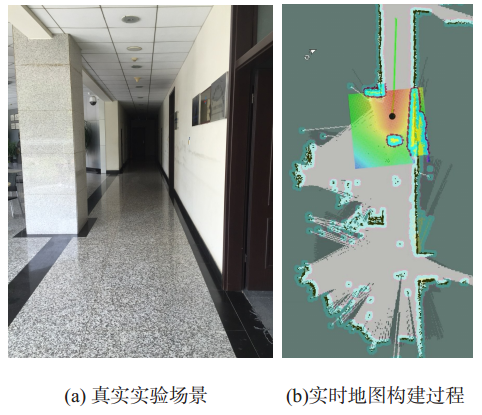

图2

图3

图4

图5

表1

图6

图7

图8

表2

表3

参考文献 41

[1]	Chen X, Pang J . Protecting query privacy in location-based services[M]. Kluwer: Academic Publishers, 2014.
[2]	承达瑜, 秦坤, 裴韬 , 等. 基于室内定位数据的群体时空行为可视化分析[J]. 地球信息科学学报, 2019,21(1):36-45.
	[ Cheng D Y, Qin K, Pei T , et al. Visual analysis design and implementation for group spatiotemporal behavior based on indoor position data[J]. Journal of Geo-information Science, 2019,21(1):36-45. ]
[3]	黄华晋, 秦建息 . 基于三角定位算法的WiFi室内定位系统设计[J]. 广西科学院学报, 2016,32(1):59-61.
	[ Huang H J, Qin J X . WiFi indoor positioning system design based on the triangle positioning algorithm[J]. Journal of Guangxi Academy of Sciences, 2016,32(1):59-61. ]
[4]	张梦丹, 光跃, 王宏刚 , 等. 基于指纹算法的无线室内定位技术[J]. 电信科学, 2016,32(10):77-86.
	[ Zhang M D, Lu G Y, Wang H G , et al. Wireless indoor localization technology based on fingerprint algorithm[J]. Telecommunications Science, 2016,32(10):77-86. ]
[5]	阮陵, 张翎, 许越 , 等. 室内定位:分类、方法与应用综述[J]. 地理信息世界, 2015(2):8-14.
	[ Ruan L, Zhang L, Xu Y , et al. Indoor positioning: Classification, methods and applications[J]. Geomatics World, 2015(2):8-14. ]
[6]	王琦 . 基于RSSI测距的室内定位技术[J]. 电子科技, 2012,25(6):64.
	[ Wang Q . Research on an indoor positioning technology based on rssi ranging[J]. Electronic Science and Technology, 2012,25(6):64. ]
[7]	汪苑, 林锦国 . 几种常用室内定位技术的探讨[J]. 中国仪器仪表, 2011(2):54-57.
	[ Wang Y, Lin J G . Indoor location technique based on RFID[J]. China Instrumentation, 2011(2):54-57. ]
[8]	孙大洋, 钱志鸿, 韩梦飞 , 等. 无线传感器网络中多边定位的聚类分析改进算法[J]. 电子学报, 2014,42(8):1601-1607.
	[ Sun D Y, Qian Z H, Han Meng F , et al. Improving multilateration algorithm by cluster analysis in WSN[J]. Acta Electronica Sinica, 2014,42(8):1601-1607. ]
[9]	胡斌斌, 倪晓军 . 基于RSSI测距室内定位改进质心算法[J]. 计算机技术与发展, 2017,27(9):133-136.
	[ Hu B B, Ni X J . An improved indoor localization algorithm of centriod with RSSI[J]. Computer Technology and Development, 2017,27(9):133-136. ]
[10]	周晓军 . 基于室外辅助和惯性导航的室内定位方法的研究与实现[D]. 杭州:杭州电子科技大学, 2014.
	[ Zhou X J . Indoor localization research and implementation based on outdoor assist and inertial sensor[D]. Hangzou: Hangzhou Dianzi University, 2014. ]
[11]	Pivato P, Palopoli L, Petri D . Accuracy of RSS-Based centroid localization algorithms in an indoor environment[J]. IEEE Transactions on Instrumentation & Measurement, 2011,60(10):3451-3460.
[12]	Chen H, Huang P, Liang J , et al. Mobility-assisted node localization based on toa measurements without time synchronization in wireless sensor networks[J]. Mobile Networks & Applications, 2012,17(1):90-99.
[13]	Ho K C . Bias reduction for an explicit solution of source localization using TDOA[J]. IEEE Transactions on Signal Processing, 2012,60(5):2101-2114. doi: 10.1109/TSP.2012.2187283
[14]	Yang S L, Park J W, Barolli L . A localization algorithm based on AOA for Ad-Hoc sensor networks[J]. Mobile Information Systems, 2014,8(1):61-72.
[15]	Scherhaufl M, Pichler M, Muller D , et al. Phase-of-arrival-based localization of passive UHF RFID tags: Microwave Symposium Digest, 2013[C].
[16]	刘云, 房飞翔 . 多输入融合卡尔曼滤波算法在矿井定位中的优化研究[J]. 传感器与微系统, 2018,37(1):83-86.
	[ Liu Y, Fang F X . Study on optimization of MIFKF algorithm for personnel positioning in mine[J]. Transducer and Microsystem Technologies, 2018,37(1):83-86. ]
[17]	Lim J S, Jang W H, Yoon G W , et al. Radio map update automation for wifi positioning systems[J]. IEEE Communications Letters, 2013,17(4):693-696. doi: 10.1109/LCOMM.2013.022213.122885
[18]	曾显彬 . 基于超声波与红外线的室内实时定位系统的研究与实现[D]. 泉州:华侨大学, 2017.
	[ Zeng X B . Research and implementation of ultrasonic and infrared based real-time indoor positioning system[D]. Quanzhou: Huaqiao University, 2017. ]
[19]	周群, 沈重, 张鲲 , 等. 基于融合算法的GPS/UWB/MARG协同定位系统研究[J]. 现代电子技术, 2018(6):82-86.
	[ Zhou Q, Shen Z, Zhang K , et al. Research on GPS/UWB/MARG cooperative positioning system based on fusion algorithm[J]. Modern Electronics Technique, 2018(6):82-86. ]
[20]	赵晶亮, 姚金杰, 苏新彦 , 等. 基于射频识别的室内定位系统设计[J]. 计算机测量与控制, 2011,19(11):2848-2850.
	[ Zhao J L, Yao J J, Su X Y , et al. Indoor positioning hardware system design based on RFID[J]. Computer Measurement & Control, 2011,19(11):2848-2850. ]
[21]	赵延鹏, 时伟, 艾明曦 . 室内行人航迹推算/超声波组合定位融合算法[J]. 中南大学学报(自然科学版), 2016,47(5):1588-1598.
	[ Zhao Y P, Shi W, Ai M X . Fusion algorithm in indoor integrated position system for pedestrian dead reckoning/ultrasonic[J]. Journal of Central South University(Science and Technology), 2016,47(5):1588-1598. ]
[22]	Liu F, Zhang Y, Dong Q , et al. Full tensor geomagnetic gradient reference map building and its integrated navigation algorithm[J]. Acta Geodaetica Et Cartographica Sinica, 2014.
[23]	Kuo W H, Chen Y S, Jen G T, et al. An intelligent positioning approach: RSSI-based indoor and outdoor localization scheme in Zigbee networks[C]. International Conference on Machine Learning and Cybernetics, 2010.
[24]	华海亮 . 基于WiFi和蓝牙的室内定位技术研究[D]. 吉林:辽宁工业大学, 2016.
	[ Hua H L . Study on indoor localization technology based on wifi and bluetooth[D]. Jilin: Liaoning University of Technology, 2016. ]
[25]	Zampella F, Angelis A D, Skog I , et al. A constraint approach for UWB and PDR fusion: International Conference on Indoor Positioning and Indoor Navigation, 2013[C].
[26]	Jiménez A R, Seco F, Zampella F , et al. PDR with a foot-mounted IMU and ramp detection[J]. Sensors, 2011,11(10):9393-9410. doi: 10.3390/s111009393
[27]	宋宇, 喻文举, 程超 , 等. 基于WiFi、PDR、地磁相融合的室内定位研究[J]. 微电子学与计算机, 2018,35(6):66-70.
	[ Song Y, Yu W J, Cheng C , et al. Research on indoor positioning based on fusion of WiFi, PDR and geomagnetism[J]. Microelectronics & Computer, 2018,35(6):66-70. ]
[28]	Sanchez-Cervantes J L, Alor-Hernandez G, Juarez-Martinez U. ITOHealth: A multimodal location-based system for discovering medical entities[C]. Electronics, robotics and automotive mechanics conference, IEEE, 2010.
[29]	刘涛, 张星, 李清泉 , 等. 一种运动恢复结构和航位推算结合的室内行人视觉定位方法[J]. 地球信息科学学报, 2017,19(6):744-753.
	[ Liu T, Zhang X, Li Q Q , et al. An indoor pedestrian positioning approach based on the integration of SFM and PDR[J]. Journal of Geo-information Science, 2017,19(6):744-753. ]
[30]	赵鹏 . 手术导航系统中光学和惯性组合定位方法的研究[D]. 北京:清华大学, 2015.
	[ Zhao P . Research on integration of optical and inertial positioning for surgical navigation system[D]. Beijing: Tsinghua University, 2015. ]
[31]	刘明伟, 刘太君, 叶焱 , 等. 基于低功耗蓝牙技术的室内定位应用研究[J]. 无线通信技术, 2015,24(3):19-23.
	[ Liu M W, Liu T J, Ye Yan , et al. The application research of indoor positioning based on low-power bluetooth technology[J]. Wireless Communication Technology, 2015,24(3):19-23. ]
[32]	Do T H, Hwang J, Yoo M . Analysis of the effects of LED direction on the performance of visible light communication system[J]. Photonic Network Communications, 2013,25(1):60-72. doi: 10.1007/s11107-012-0390-y
[33]	邹倩, 夏玮玮, 张静 , 等. 基于VLC与IMU融合的移动物体跟踪室内定位系统[J]. 东南大学学报(英文版), 2018(4):451-458.
	[ Zou Q, Xia W W, Zhang J , et al. An indoor positioning system for mobile target tracking based on VLC and IMU fusion[J]. Journal of Southeast University(English Edition), 2018(4):451-458. ]
[34]	高文研, 平雪良, 贝旭颖 , 等. 两种基于激光雷达的SLAM算法最优参数分析[J]. 传感器与微系统, 2018,37(4):28-30.
	[ Gao W Y, Ping X L, Bei X Y , et al. Optimal parameter analysis of two SLAM algorithms based on laser radar[J]. Transducer and Microsystem Technologies, 2018,37(4):28-30. ]
[35]	宫婉婷, 孙作雷, 潘盼 . 基于二维激光的机器人室内构图[J]. 微型机与应用, 2017,36(18):55-58.
	[ Gong W T, Sun Z L, Pan P . Indoor mapping of robot based on 2D laser[J]. Microcomputer & its Applications, 2017,36(18):55-58. ]
[36]	Wen Congcong, You C, Peng L . Research on indoor visible light positioning system based on SLAM maps: Video Processing and Artificial Intelligence, 2018[C].
[37]	赵嘉琦, 迟楠 . 室内LED可见光定位若干关键技术的比较研究[J]. 灯与照明, 2015(1):34-41.
	[ Zhao J Q, Chi N . Comparative research on several key indoor positioning technologies based on LED visible light communication[J]. Light & Lighting, 2015(1):34-41. ]
[38]	吴楠, 杨爱英, 冯立辉 , 等. 可见光定位关键技术的研究与展望[J]. 南京信息工程大学学报(自然科学版), 2017,9(2):159-167.
	[ Wu N, Yang A Y, Feng L H , et al. Review on indoor positioning technology based on visible light communications[J]. Journal of Nanjing University of Information Science & Technology, 2017,9(2):159-167. ]
[39]	宋敏, 申闫春 . 室内定位航位推测算法的研究与实现[J]. 计算机工程, 2013,39(7):293-297.
	[ Song M, Shen Y C . Research and realization of dead reckoning algorithm for indoor localization[J]. Computer Engineering, 2013,39(7):293-297. ]
[40]	陈国良, 张言哲, 汪云甲 , 等. WiFi-PDR室内组合定位的无迹卡尔曼滤波算法[J]. 测绘学报, 2015,44(12):1314-1321.
	[ Chen G L, Zhang Y Z, Wang Y J , et al. Unscented Kalman filter algorithm for WiFi-PDR integrated indoor positioning[J]. Acta Geodaetica et Cartographica Sinica, 2015,44(12):1314-1321. ]
[41]	Shi Y, Sun K, Huang L , et al. Online identification of permanent magnet flux based on extended Kalman Filter for IPMSM drive with position sensorless control[J]. IEEE Transactions on Industrial Electronics, 2012,59(11):4169-4178. doi: 10.1109/TIE.2011.2168792

项目	测量值
测距范围/m	0.15~18
扫描角度/°	0~360
角度分辨率/°	0.9
单次测距时间/ms	0.25
测量频率/hz	2000~8000
扫描频率/hz	5~15
测距分辨率/ms	<实际距离的1%

项目	测量值
整体定位精度/m	2.64
定位点误差范围/m	0.8
响应时间/s	平均时间0.32
定位稳定性	定位点零漂移,体验感强
布设设备成本	嵌入式调制模块成本1元以内

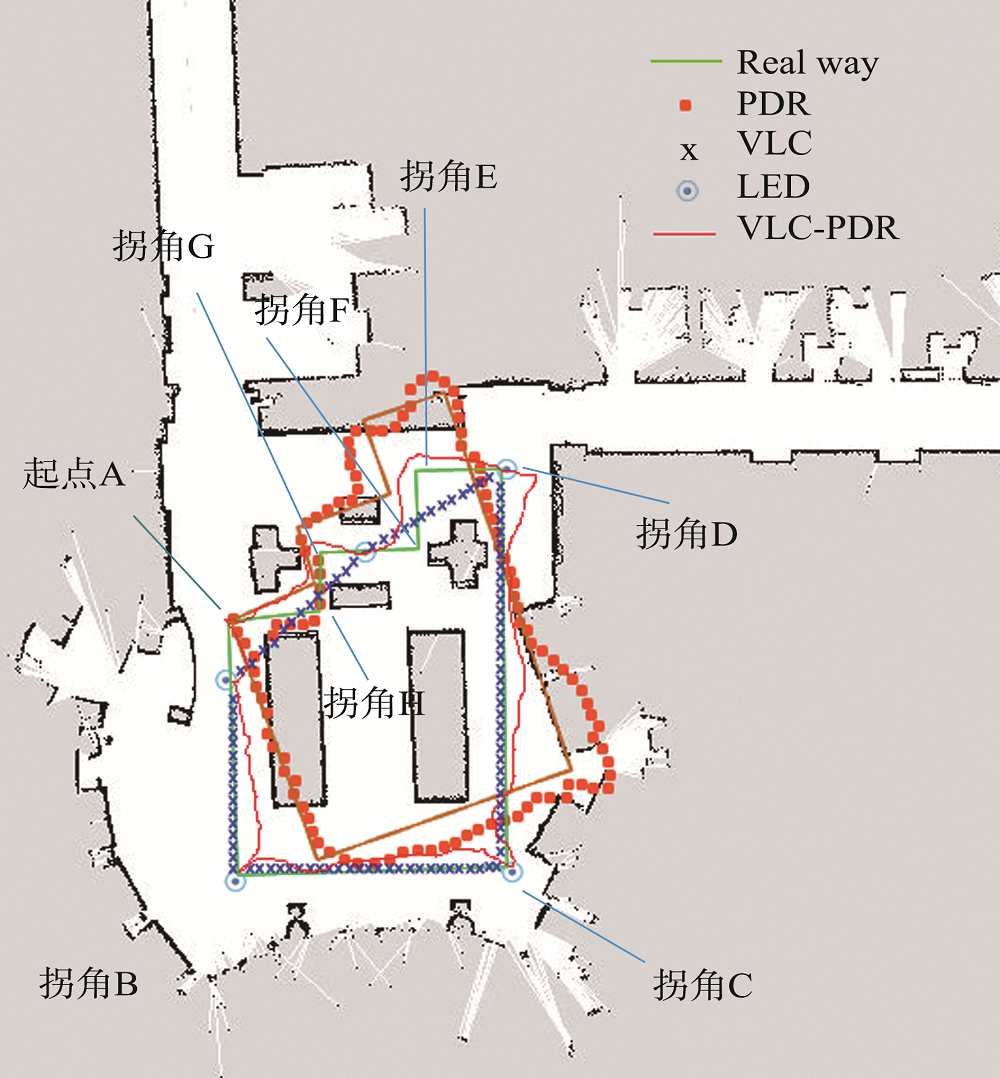

目标位置		VLC定位			PDR定位			VLC-PDR定位
x	y	x	y	误差	x	y	误差	x	y	误差
3.30	5.97	2.80	5.60	0.62	2.67	5.46	0.81	2.27	6.85	1.36
4.84	3.12	2.80	2.80	2.06	8.83	6.38	5.15	4.32	2.68	0.68
7.88	6.78	7.00	2.80	4.08	11.82	10.00	5.09	8.46	7.28	0.77
9.90	8.54	7.00	8.40	2.90	6.41	11.39	4.50	9.03	7.80	1.14
6.24	7.40	4.90	7.40	1.34	9.91	4.40	4.74	6.80	7.88	0.74
