基于Google Earth Engine平台的三江源地区生态 环境质量动态监测与分析

doi:10.12082/dqxxkx.2019.190095

地球信息科学学报 ›› 2019, Vol. 21 ›› Issue (9): 1382-1391.doi: 10.12082/dqxxkx.2019.190095

• 专栏：青藏高原城镇化的生态环境影响数据挖掘 • 上一篇下一篇

基于Google Earth Engine平台的三江源地区生态环境质量动态监测与分析

陈炜^1,²,黄慧萍^1,^2,^*(),田亦陈¹,杜云艳^3,²

^1. 中国科学院遥感与数字地球研究所,北京 100101
^2. 中国科学院大学,北京 100049
^3. 中国科学院地理科学与资源研究所资源与环境信息系统国家重点实验室,北京100101

收稿日期:2019-03-04 修回日期:2019-06-20 出版日期:2019-09-25 发布日期:2019-09-24
通讯作者: 黄慧萍 E-mail:hphuang@radi.ac.cn
作者简介:陈炜（1994-）,女,山东济宁人,硕士,主要从事城市多源数据融合和城市生态研究。E-mail: chenwei2016@radi.ac.cn
基金资助:
中国科学院战略性先导科技专项课题(XDA20040401)

Monitoring and Assessment of the Eco-Environment Quality in the Sanjiangyuan Region based on Google Earth Engine

CHEN Wei^1,²,HUANG Huiping^1,^2,^*(),TIAN Yichen¹,DU Yunyan^3,²

^1. Institute of Remote Sensing and Digital Earth, Chinese Academy of Science, Beijing 100101, China
^2. University of Chinese Academy of Sciences, Beijing 100049, China
^3. State Key Laboratory of Resources and Environmental Information System, Institute of Geographic Sciences and Natural Resources Research, Chinese Academy of Sciences, Beijing 100101, China

Received:2019-03-04 Revised:2019-06-20 Online:2019-09-25 Published:2019-09-24
Contact: HUANG Huiping E-mail:hphuang@radi.ac.cn
Supported by:
The Strategic Priority Research Program of the Chinese Academy of Sciences(XDA20040401)

摘要/Abstract

摘要：

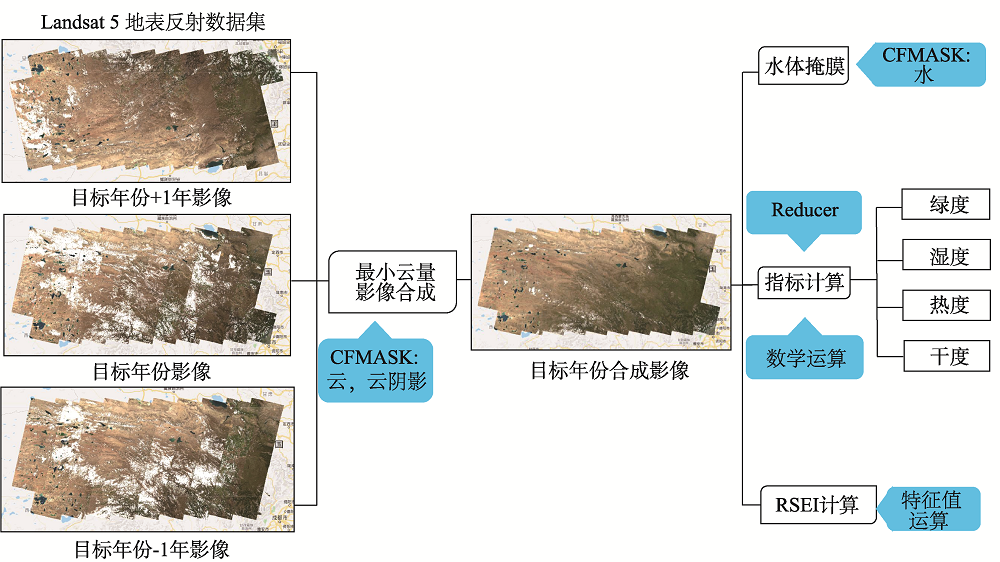

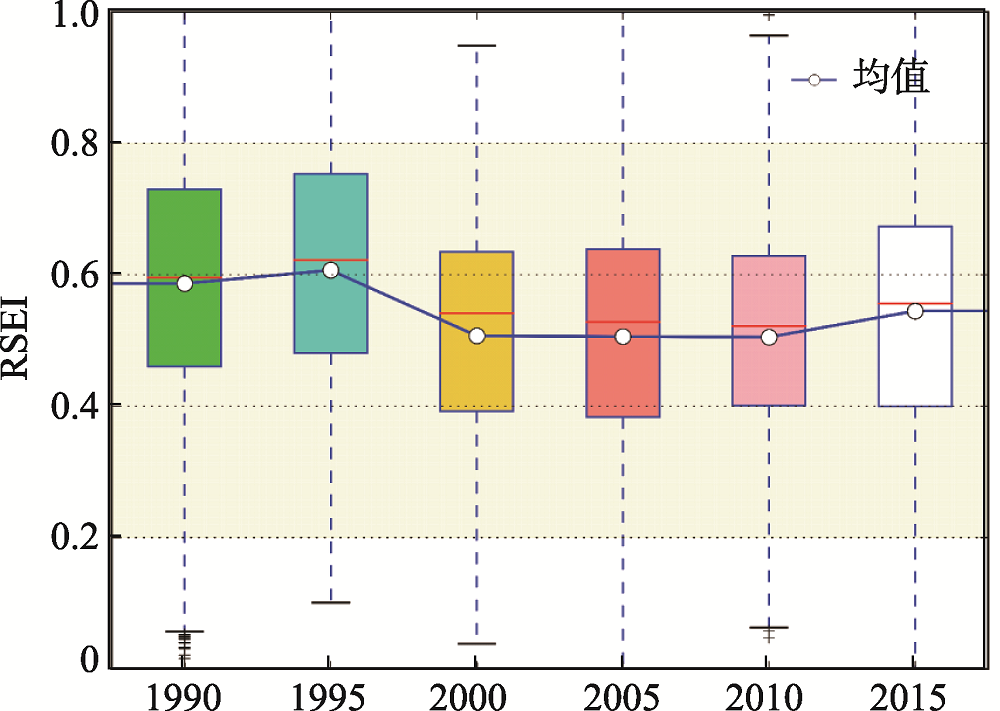

三江源是中国陆地生态系统最脆弱和敏感的区域之一,一旦遭到破坏则不可逆转。受三江源地区多云等不利气象条件的影响,很难获取大范围尺度上季相一致的、无云的Landsat遥感影像。本文利用Google Earth Engine平台,对1990-2015年的相同季节的3766景Landsat影像进行像元级融合并重构最小云量影像集,借助GEE的并行云端计算,快速得到了能够反映生态环境质量的遥感生态指数（RSEI）,对三江源地区的生态环境质量进行了评价与监测。三江源时空变化与差异分析表明：1990-2000年生态环境质量呈快速下降状态,RSEI平均值从0.588下降到了0.505,生态环境质量变化以轻度恶化为主;2000-2015年生态环境质量下降速度变缓,并于2015年呈现变好态势,生态环境质量变化以不变为主,且轻度恶化面积大幅减少;该地区的生态环境状况呈现出空间分异,自西向东,生态状况变差。基于GEE平台在三江源地区的实验结果表明,GEE可以作为大区域范围的生态环境质量评价与监测的计算平台。

关键词: 三江源地区, 生态环境质量, Google Earth Engine, 主成分分析, 遥感生态指数

Abstract:

The Sanjiangyuanregion is known in China forits fragile and sensitive terrestrial ecosystem. Degradation of its ecosystem is often irreversible, to which remote sensing based monitoring has much to offer. However, due to the cloudy and other adverse meteorological conditions there, obtaining cloudless Landsat imagery of the same season in the large region remains a big challenge. In this study, based on the Google Earth Engine platform (GEE), an image composite method was applied and 3766 tiles of Landsat TM historical images were employed to generate the same seasonal clear imagery with the lowest cloud possible composited at the pixel level. With the help of parallel cloud computing ability in GEE, a remote sensing ecological index (RSEI) was calculated directly and efficiently in GEE to reflect regional eco-environment quality. Specifically, we monitored and assessed the eco-environment quality of the Sanjiangyuan region in Qinghai Province during 1990-2015. Results show that: (1) During 1990-2000, the eco-environment quality dropped quickly (RSEI average value dropped quickly from 0.588 to 0.505), and his region suffered from mainly mild degradation; (2) During 2000-2015, degradation of the eco-environment quality slowed down toward stabilization and the eco-environment quality showed upgrade tide from 2015, and the areas of mild degradation significantly decreased. Moreover, the eco-environment quality in this region showed a spatial gradient of west-to-east degradation. Our findings provide comprehensive information for improving the eco-environment of the Sanjiangyuan region, and demonstrate the potential of using GEE for monitoring and assessing eco-environment quality at large scales.

Key words: Sanjiangyuan region, ecological environment quality, Google Earth Engine, Principal Component Analysis, remote sensing ecological index

陈炜, 黄慧萍, 田亦陈, 杜云艳. 基于Google Earth Engine平台的三江源地区生态环境质量动态监测与分析[J]. 地球信息科学学报, 2019, 21(9): 1382-1391.DOI:10.12082/dqxxkx.2019.190095

CHEN Wei, HUANG Huiping, TIAN Yichen, DU Yunyan. Monitoring and Assessment of the Eco-Environment Quality in the Sanjiangyuan Region based on Google Earth Engine[J]. Journal of Geo-information Science, 2019, 21(9): 1382-1391.DOI:10.12082/dqxxkx.2019.190095

图/表 11

图1

图2

图3

表1

图4

图5

图6

表2

表3

图7

图8

参考文献 23

[1]	樊江文, 邵全琴, 刘纪远 , 等. 1988-2005年三江源草地产草量变化动态分析[J]. 草地学报, 2010,18(1):5-10.
	[ Fan J W, Shao Q Q, Liu J Y , et al. Dynamic changes of grassland yield in three river headwater region from 1988 to 2005[J]. Acta Ecologica Sinica, 2010,18(1):5-10. ]
[2]	张永勇, 张士锋, 翟晓燕 , 等. 三江源区径流演变及其对气候变化的响应[J]. 地理学报, 2012,67(1):71-82.
	[ Zhang Y Y, Zhang S F, Zhai X Y , et al. Runoff variation in the three rivers source region and its response to climate change[J]. Acta Geographica Sinica, 2012,67(1):71-82. ]
[3]	唐红玉, 肖风劲, 张强 , 等. 三江源区植被变化及其对气候变化的响应[J]. 气候变化研究进展, 2006,2(4):177-180. doi: 10.3969/j.issn.1673-1719.2006.04.006
	[ Tang H Y, Shao F J, Zhang Q , et al. Vegetation change and its response to climate change in three-river source region. Advances in climate change research[J]. Advances in Climate Change Research, 2006,2(4):177-180. ] doi: 10.3969/j.issn.1673-1719.2006.04.006
[4]	李林, 朱西德, 周陆生 , 等. 三江源地区气候变化及其对生态环境的影响[J]. 气象, 2004,30(8):18-22.
	[ Li L, Zhu X D, Zhou L S , et al. Climatic changes over headwater of the three-river-area and its effect on ecological environment[J]. Meteor Mon, 2004,30(8):18-22. ]
[5]	朱霞, 钞振华, 杨永顺 , 等. 三江源区“黑土滩”型退化草地时空变化[J]. 草业科学, 2014,31(9):1628-1636.
	[ Zhu X, Chao Z H, Yang Y S , et al. Spaial and temperal variations of black soil type degraded grassland in the three river source region[J]. Prataculturl Science, 2014,31(9):1628-1636. ]
[6]	任继周, 林慧龙 . 江河源区草地生态建设构想[J]. 草业学报, 2005,14(2):1-8.
	[ Ren J J, Lin H L . Assumed plan on grassland ecological reconstruction in the source region of yangtse river, yellow river and lantsang river[J]. Prataculturae Sinica, 2005,14(2):1-8. ]
[7]	Liu J, Xu X, Shao Q . Grassland degradation in the "Three-River Headwaters" region, Qinghai Province[J]. Journal of Geographical Sciences, 2008,18(3):259-273. doi: 10.1007/s11442-008-0259-2
[8]	孙庆龄, 李宝林, 许丽丽 , 等. 2000-2013年三江源植被NDVI变化趋势及影响因素分析[J]. 地球信息科学学报, 2016,18(12):1707-1716.
	[ Sun Q L, Li B L, Xu L L , et al. Analysis of NDVI change trend and its impact factors in the three-river headwater region from 2000 to 2013[J]. Journal of Geo-information Science, 2016,18(12):1707-1716. ]
[9]	曹西凤, 孙林, 赵子飞 , 等. MODIS遥感产品在三江源地区草产量估测中的应用[J]. 国土资源遥感, 2018,30(4):115-124.
	[ Cao X F, Sun L, Zhao Z F , et al. Application of MODIS remote sensing products in the estimation of grass yield in Sanjiang Source Area[J]. Remote Sensing for Land & Resources, 2018,30(4):115-124. ]
[10]	宋瑞玲, 王昊, 张迪 , 等. 基于MODIS-EVI评估三江源高寒草地的保护成效[J]. 生物多样性, 2018,26(2):149-157.
	[ Song R L, Wang H, Zhang D , et al. Conservation outcomes assessment of Sanjiangyuan alpine grassland with MODIS-EVI approach[J]. Biodiv Science, 2018,26(2):149-157. ]
[11]	徐新良, 王靓, 李静 , 等. 三江源生态工程实施以来草地恢复态势及现状分析[J]. 地球信息科学学报, 2017,19(1):50-58.
	[ Xu X L, Wang L, Li J , et al. Analysis of the grassland restoration trend and degradation situation in the "Three-River Headwaters" region since the implementation of the ecological project[J]. Journal of Geo-information Science, 2017,19(1):50-58. ]
[12]	邵全琴, 樊江文, 刘纪远 , 等. 基于目标的三江源生态保护和建设一期工程生态成效评估及政策建议[J]. 中国科学院院刊, 2017,32(1):35-44.
	[ Shao Q Q, Fan J J, Liu J Y , et al. Target-based assessment on effects of first-stage Ecological Conservation and Restoration Project in Three-river Source Region, china and policy recommendations[J]. Bulletin of Chinese Academy of Sciences, 2017,32(1):35-44. ]
[13]	徐燕, 周华荣 . 初论我国生态环境质量评价研究进展[J]. 干旱区地理(汉文版), 2003,26(2):166-172.
	[ Xu Y, Zhou H R . A preliminary study on advances in assessment of eco-environmental quality in China[J]. Arid Land Geography, 2003,26(2):166-172. ]
[14]	王士远, 张学霞, 朱彤 , 等. 长白山自然保护区生态环境质量的遥感评价[J]. 地理科学进展, 2016,35(10):1269-1278.
	[ Wang S Y, Zhang X X, Zhu T , et al. Assessment of ecological environment quality in the Changbai Mountain Nature Reserve based on remote sensing technology[J]. Rorgress in Geography, 2016,35(10):1269-1278. ]
[15]	徐涵秋 . 区域生态环境变化的遥感评价指数[J]. 中国环境科学, 2013,33(5):889-897.
	[ Xu H Q . A remote sensing index for assessment of regional ecological changes[J]. China Environmental Science, 2013,33(5):889-897. ]
[16]	张滔, 唐宏 . 基于Google Earth Engine的京津冀2001-2015年植被覆盖变化与城镇扩张研究[J]. 遥感技术与应用, 2018,33(4):593-599.
	[ Zhang T, Tang H . Vegetation Cover Change and Urban Expansion in Beijing-Tianjin-Hebei during 2001-2015 based on Google Earth Engine[J]. Remote Sensing Technology and Application, 2018,33(4):593-599. ]
[17]	Mateo-García G, Gómez-Chova L, Amorós-López J , et al. Multitemporal cloud masking in the Google Earth Engine[J]. Remote Sensing, 2018,10(7):1079.
[18]	Tsai Y, Stow D, Chen H , et al. Mapping vegetation and land use types in fanjingshan national nature reserve using google earth engine[J]. Remote Sensing, 2018,10(6):927.
[19]	Zurqani H A, Post C J, Mikhailova E A , et al. Geospatial analysis of land use change in the Savannah River Basin using Google Earth Engine[J]. International Journal of Applied Earth Observation and Geoinformation, 2018,69:175-185.
[20]	Liu X, Hu G, Chen Y , et al. High-resolution multi-temporal mapping of global urban land using Landsat images based on the Google Earth Engine Platform[J]. Remote sensing of environment, 2018, 209(227-239.
[21]	徐晗泽宇, 刘冲, 王军邦 , 等. Google Earth Engine平台支持下的赣南柑橘果园遥感提取研究[J]. 地球信息科学学报, 2018,20(3):396-404.
	[ Xu H Z Y, Liu C, Wang B J , et al. Study on extraction of citrus orchard in Gannan region based on Google Earth Engine Platform[J]. Journal of Geo-information Science, 2018,20(3):396-404. ]
[22]	王丽春, 焦黎, 来风兵 , 等. 基于遥感生态指数的新疆玛纳斯湖湿地生态变化评价[J]. 生态学报, 2019,39(8):2963-2972.
	[ Wang L C, Jiao L, Lai F B , et al. Evaluation of ecological changes based on a remote sensing ecological index in a Manas Lake wetland, Xinjiang[J]. Acta Ecoloica Sinica, 2019,39(8):2963-2972. ]
[23]	强安丰, 魏加华, 解宏伟 . 青海三江源地区气温与降水变化趋势分析[J]. 水电能源科学, 2018,36(2):10-14.
	[ Qiang A F, Wei J H, Xie H W , et al. Trend analysis of temperature and precipitation in Sanjiangyuan region of Qinghai Province[J]. Water Resources and Power, 2018,36(2):10-14. ]

		主成分
		1	2	3	4
1990年	NDVI	0.9685	-0.0443	-0.2177	0.1128
	Wet	0.0725	-0.2924	0.2178	0.9283
	NDBSI	-0.1897	0.6481	0.7361	0.0462
	LST	-0.1443	0.7018	-0.6027	0.3512
	特征值	0.0158	0.0100	0.0024	0.0003
	贡献率/%	55.2853	35.0531	8.4948	1.1667
2010年	NDVI	0.7608	0.3958	-0.4586	0.2329
	Wet	0.1241	-0.3349	0.3555	0.8637
	NDBSI	-0.0681	0.7910	0.6042	0.0679
	LST	-0.6333	0.3248	0.5462	0.4417
	特征值	0.0122	0.0063	0.0017	0.0002
	贡献率/%	59.8441	30.9822	8.1068	1.0688

生态等级	差	较差	中等	良	优
差	10 125	3382	1376	1220	43
较差	24 405	30 231	8588	2750	142
中等	12 212	37 899	39 759	10 038	159
良	2772	7401	43 252	49 578	595
优	264	186	4291	110 360	17 184

生态等级	差	较差	中等	良	优
差	29 210	15 843	4302	407	16
较差	15 124	39 797	22 531	1639	8
中等	1407	22 493	58 045	15 067	254
良	113	3571	32 395	120 795	17 072
优	3	57	191	5354	12 518
