一种基于FY3D/MERSI2的AOD遥感反演方法

doi:10.12082/dqxxkx.2020.190206

摘要/Abstract

摘要：

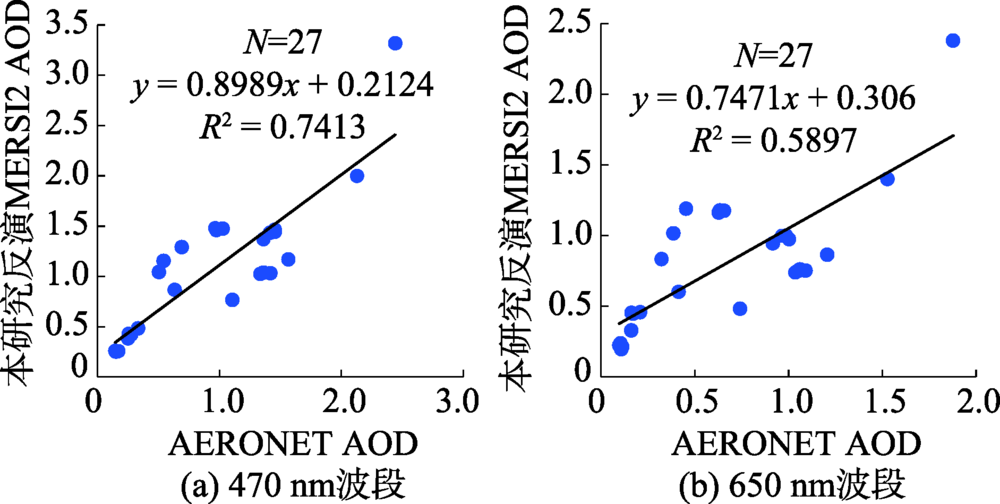

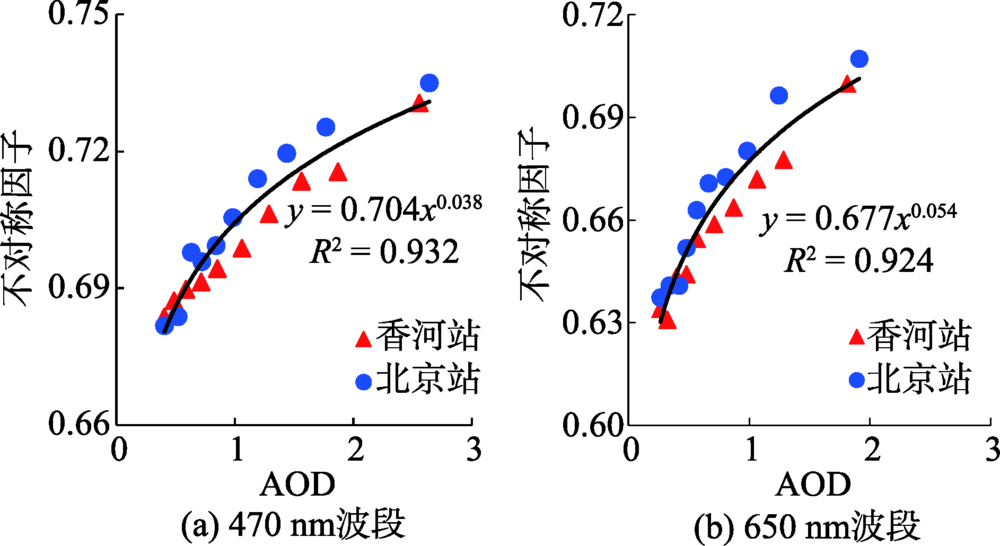

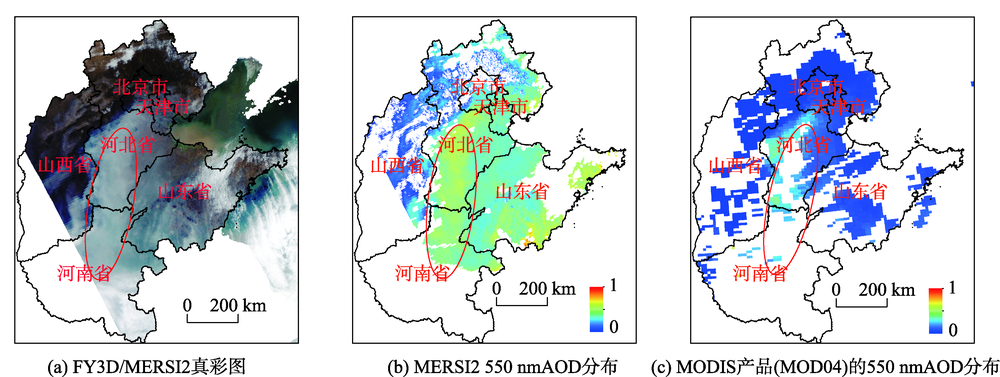

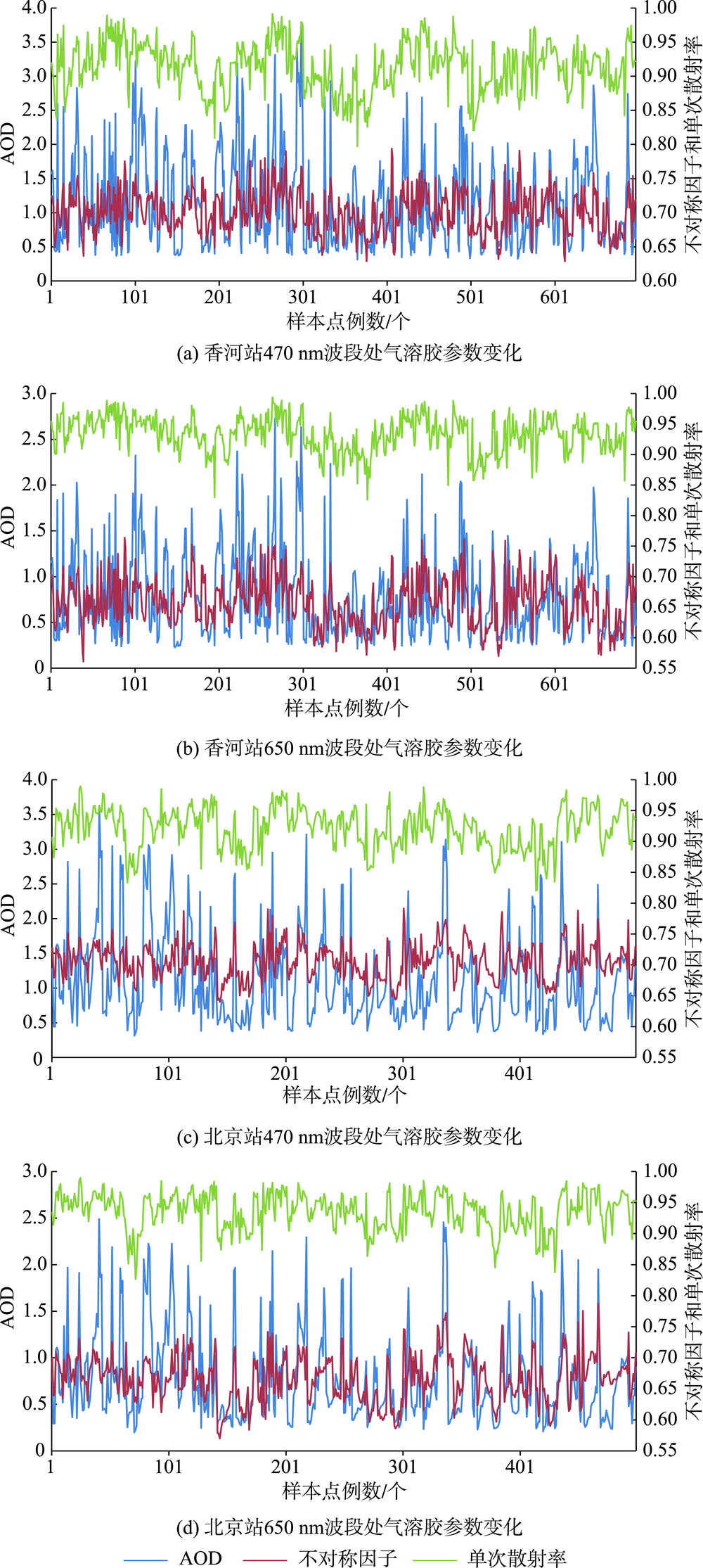

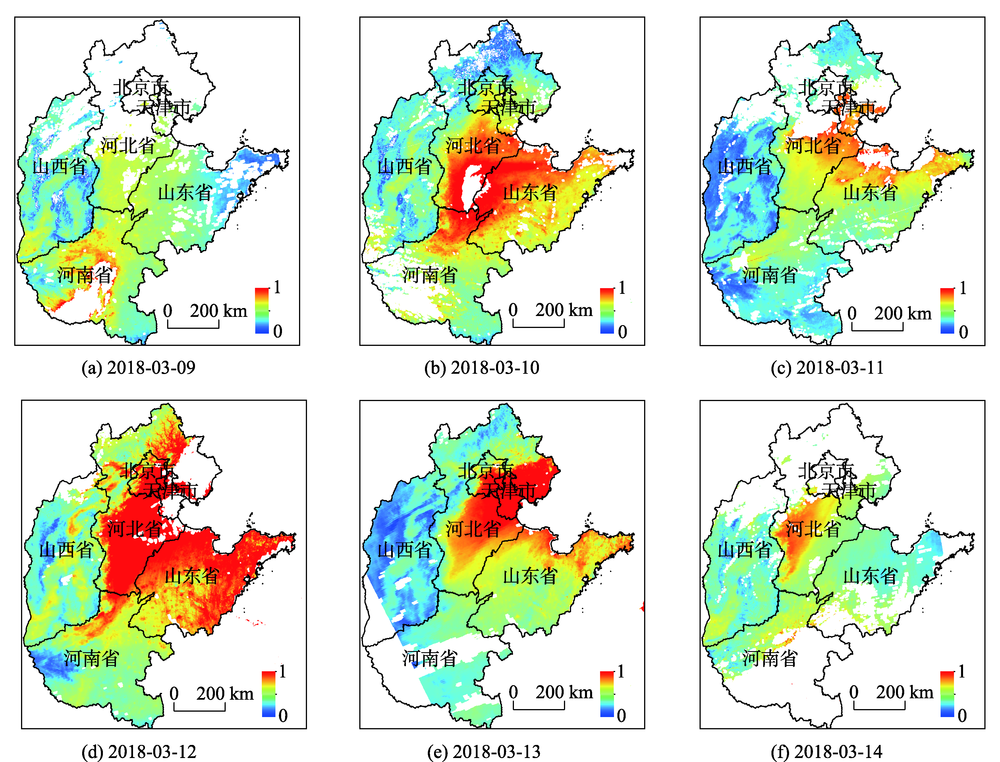

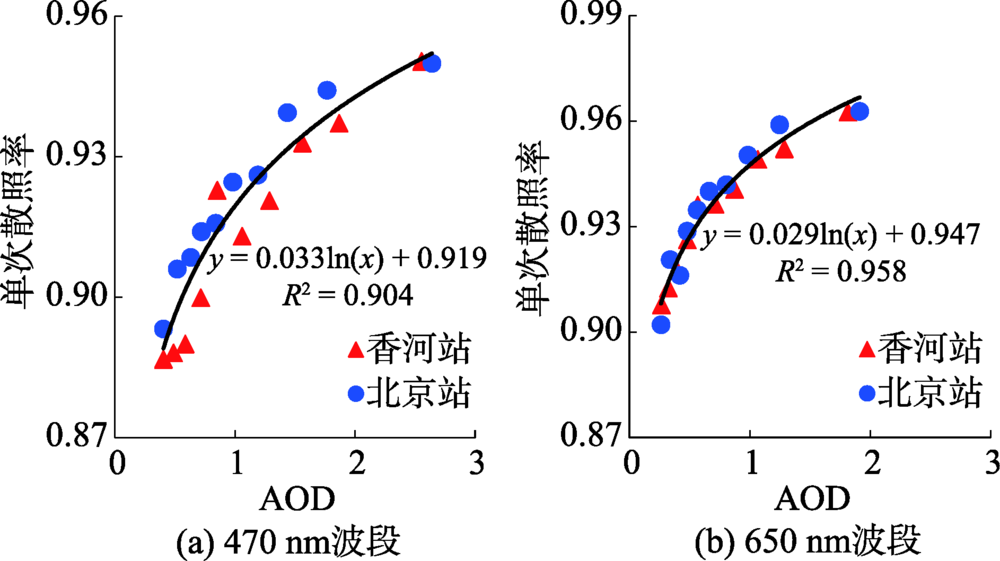

针对目前国产卫星对气溶胶遥感监测应用较少的情况,本研究综合暗象元和SARA算法优势,基于FY-3D MERSI2数据构建了一套气溶胶光学厚度(Aerial Optical Depth, AOD)快速遥感反演方法。首先,引入了传统暗象元算法中的地表反射率经验关系,然后利用AERONET长时间序列的地基观测数据,构建了红波段和蓝波段气溶胶光学厚度、不对称因子和单次散射率之间的关系,最后利用MOD04和AERONET的AOD产品对研究反演结果进行了验证和评估分析。结果发现：① 本研究反演的AOD不仅保持了与MODIS的气溶胶产品空间分布的一致性,而且合理地呈现了AOD的高值分布,改进了MOD04气溶胶产品在云和亮目标方面反演缺失问题;② 利用AERONET地基观测结果对本研究获取的MERSI2的AOD反演结果进行了对比分析,发现二者具有较高的线性相关性,蓝波段AOD线性相关系数超过0.85;③ 利用MERSI2数据完整地捕捉到了2018年3月9—14日京津冀及周边区域的一次重污染过程中气溶胶时空分布变化情况,这也说明了FY3D卫星具备良好的气溶胶遥感监测能力,为我国灰霾监测和预警提供参考依据。本研究对大力发展国产卫星在大气环境遥感的应用有重要参考意义。

关键词: 高分辨率遥感FY3D/MERSI, 气溶胶光学厚度, 简化的气溶胶遥感反演算法, 暗象元, 遥感反演, AERONET, 地表反射率, 对比验证

Abstract:

Until now, relatively few researches of aerosols retrieval have been conducted using domestic satellite remote sensing. To promote domestic satellite remote sensing applications, a set of rapid inversion technology of Aerosol Optical Depth (AOD) using remote sensing was developed in this study based on FY-3D/MERSI2 data, which combined the advantages of Dark Target (DT) and SARA algorithm. Firstly, the empirical relationship of surface reflectance in traditional Dark Target algorithm was introduced to get the red and blue band surface reflectance. Then, the relationships between aerosol optical thickness, asymmetry factor, and single scattering albedo in red and blue bands were established using long time-series ground observation data from AERONET. Finally, MOD04 and AERONET AOD products were used to validate and evaluate the inversion results. Results show that the AOD retrieved from MERSI2 in this study not only kept the spatial consistency with the MODIS aerosol product, but also presented a reasonable distribution of high AOD values, which improved the AOD inversion in cloud and bright target areas where values were missing in MOD04 aerosol product. Meanwhile, compared with ground-based observations, the proposed algorithm also demonstrated a higher accuracy with an average correlation coefficient greater than 0.85 at the 470nm band. These two methods showed a strong linear correlation at blue band. Finally, the spatial and temporal distribution of aerosols during a heavy pollution in Beijing, Tianjin, Hebei, and surrounding areas from March 9 to March 14 in 2018 was completely captured using MERSI2, which indicated that FY3D satellite was able to monitor aerosols and could provide a reference for haze monitoring and early warning in China. This study provides important reference significance for the development and application of domestic satellites in atmospheric remote sensing business.

Key words: high-resolution remote sensing FY3D/MERSI, aerosol optical depth, Simplified Aerosol Retrieval Algorithm, Dark Target (DT), remote sensing inversion, AERONET, surface reflectance, comparison validation

陈辉, 厉青, 王中挺, 马鹏飞, 李营, 赵爱梅. 一种基于FY3D/MERSI2的AOD遥感反演方法[J]. 地球信息科学学报, 2020, 22(9): 1887-1896.DOI:10.12082/dqxxkx.2020.190206

CHEN Hui, LI Qing, WANG Zhongting, MA Pengfei, LI Ying, ZHAO Aimei. Retrieval of Aerosol Optical Depth Using FY3D MERSI2 Data[J]. Journal of Geo-information Science, 2020, 22(9): 1887-1896.DOI:10.12082/dqxxkx.2020.190206

图/表 8

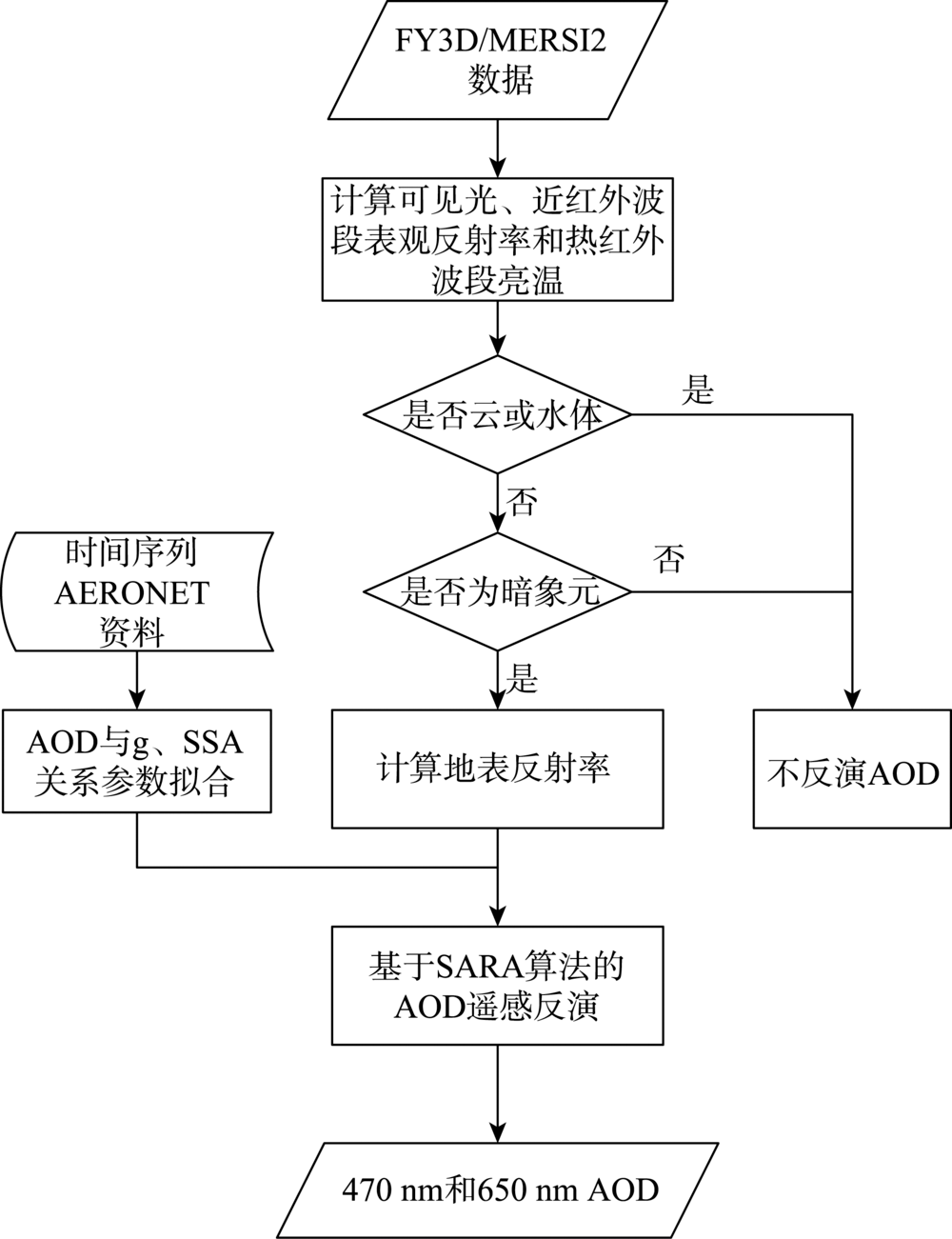

图1

表1

图2

图3

图4

图5

图6

图7

参考文献 18

[1]	苏城林, 苏林, 陈良富, 等. NPP VIIRS数据反演气溶胶光学厚度[J]. 遥感学报, 2015,19(6):977-989.
	[ Su C L, Su L, Chen L F, et al. Retrieval of aerosol optical depth using NPP VIIRS data[J]. Journal of Remote Sensing, 2015,19(6):977-989. ]
[2]	田信鹏, 孙林, 刘强, 等. 北京地区Landsat 8 OLI高空间分辨率气溶胶光学厚度反演[J]. 遥感学报, 2018,22(1):51-63.
	[ Tian X P, Sun L, Liu Q, et al. Retrieval of high-resolution aerosol optical depth using Landsat 8 OLI data over Beijing[J]. Journal of Remote Sensing, 2018,22(1):51-63. ]
[3]	Muhammad B, Janet E N, Max P B, et al. A Simplified high-resolution MODIS Aerosol Retrieval Algorithm (SARA) for use over mixed surfaces[J]. Remote Sensing of Environment, 2013,136:135-145.
[4]	Kaufman Y J, Tanré D, Gordon H R, et al. Passive remote sensing of tropospheric aerosol and atmospheric correction for the aerosol effect[J]. Journal of Geophysical Research, 1997,102:16815-16830.
[5]	Hsu C N, Tsay S C, King M D, et al. Aerosol properties over Bright-Reflecting source regions[J]. IEEE Transactions on Geoscience and Remote Sensing, 2004,42(3):557-569.
[6]	Diner D J, Martonchika J V, Kahna R A, et al. Using angular and spectral shape similarity constraints to improve MISR aerosol and surface retrievals over land[J]. Remote Sensing of Environment, 2005,94:155-171.
[7]	陈辉, 厉青, 王中挺, 等. MERSI和MODIS卫星监测京津冀及周边地区PM_2.5浓度[J]. 遥感学报, 2018,22(5):822-832.
	[ Chen H, L Q, Wang Z T, et al. Utilization of MERSI and MODIS data to monitor PM2.5 concentration in Beijing-Tianjin-Hebei and its surrounding areas[J]. Journal of Remote Sensing, 2018,22(5):822-832. ]
[8]	张婕. 卫星气溶胶产品评估与融合改进及其在区域PM_2.5浓度估算中的应用[D]. 兰州:兰州大学, 2016.
	[ Zhang J. Assessment, mergence of satellite aerosol products, and their applications in estimating regional PM_2.5 concentrations[D]. Lanzhou: Lanzhou University, 2016. ]
[9]	唐维尧, 鲍艳松, 张兴赢, 等. FY-3A/MERSI、MODIS C5.1和C6气溶胶光学厚度产品在中国区域与地面观测站点的对比分析[J]. 气象学报, 2018,76(3):449-460.
	[ Tang W Y, Bao Y S, Zhang X Y, et al. Comparison of FY-3A/MERSI,MODIS C5.1, C6 and AERONET aerosol optical depth in China[J]. Acta Meteorologica Sinica, 2018,76(3):449-460. ]
[10]	杨何群, 尹球, 周红妹, 等. 利用MATLAB实现FY-3/MERSI地表温度反演及专题制图[J]. 国土资源遥感, 2012,24(4):62-70.
	[ Yang H Q, Yin Q, Zhou H M, et al. Utilization of MATLAB to realize LST retrieval and thematic mapping from FY-3/MERSI Data[J]. Remote Sensing for Land＆Resources, 2012,24(4):62-70. ]
[11]	Muhammad B, Janet E N, Pak W C. Validation and accuracy assessment of a Simplified Aerosol Retrieval Algorithm (SARA) over Beijing under low and high aerosol loadings and dust storms[J]. Remote Sensing of Environment, 2014,153:50-60.
[12]	Levy R, Remer L, Tanré D, Kaufman Y J. Algorithm for remote sensing of tropospheric aerosol over dark targets from MODIS: Collections 005 and 051: Revision 2, February 2009, MODIS Algorithm Theoretical Basis Document[J]. 2009. DOI: http://dx.doi.org/10.1175/1520-0477(1999)080<2229:RSOTAF>2.0.CO.
[13]	朱爱军, 胡秀清, 林曼筠, 等. 风云三号D气象卫星全球数据获取方法及数据分发[J]. 海洋气象学报, 2018,38(3):1-10.
	[ Zhu A J, Hu X Q, Lin M J, et al. Global data acquisition methods and data distribution for FY-3D meteorological satellite[J]. Journal of Marine Meteorology, 2018,38(3):1-10. ]
[14]	金诚. FY-3D卫星光谱成像仪陆上云检测算法研究[D]. 南京:南京信息工程大学, 2018.
	[ Jin C. A Study on cloud detection algorithm of FY-3D spectral imager over land[D]. Nanjing: Nanjing University of Information Science and Technology, 2018. ]
[15]	张帅, 师春香, 梁晓, 等. 风云三号积雪覆盖产品评估[J]. 遥感技术与应用, 2018,33(1):35-46.
	[ Zhang S, Shi C X, Liang X, et al. Assessment of FY-3 snow cover product[J]. Remote Sensing Technology and Application, 2018,33(1):35-46. ]
[16]	汪洋, 陈良富, 李莘莘, 等. 基于VIIRS数据的中国东部气溶胶光学厚度反演算法改进[J]. 地球物理学报, 2019,62(1):49-62.
	[ Wang Y, Chen L F, Li S S, et al. VIIRS aerosol optical depth (AOD) retrieval algorithm improvement in eastern China[J]. Chinese Journal of Geophysics, 2019,62(1):49-62. ]
[17]	刘方伟, 苏庆华, 孙林, 等. 基于Himwari-8卫星的沙尘监测[J]. 山东科技大学学报(自然科学版), 2018,37(3):11-19.
	[ Liu F W, Su Q H, Sun L, et al. Dust monitoring with the himawari-8 satellite[J]. Journal of Shandong University of Science and Technology (Natural Science), 2018,37(3):11-19. ]
[18]	高大伟, 马浩, 郁珍艳, 等. 基于连续MODIS真彩图的霾监测预警新方法——以浙江省一次严重霾污染过程为例[J]. 中国环境科学, 2015,35(10):2939-2949.
	[ Gao D W, Ma H, Yu Z Y, et al. Monitoring haze events from the MODIS True-Color composite image series: A case study of severe haze pollution event in Zhejiang Province[J]. China Environmental Science, 2015,35(10):2939-2949. ]

波段序号	中心波长/nm	光谱带宽/nm	空间分辨率/m	主要用途
1	470	50	250	获取蓝波段大气辐射传输方程,云像元识别
3	650	50	250	获取红波段大气辐射传输方程
7	2130	50	1000	根据经验公式计算红、蓝波段地表反射率,水体和暗像元识别
25	12 000	1000	250	云像元识别
