多因素约束的城市空间扩张元胞自动机构建及其应用研究

doi:10.12082/dqxxkx.2020.190240

摘要/Abstract

摘要：

城市空间扩张是复杂的社会经济进程,伴随着人口、政策和城市要素向外推进等现象,是评判城市化水平的重要指标。元胞自动机（Cellular Automata, CA）是可以模拟事物发展演化过程的系统动力学模型,可以有效揭示城市空间扩张过程的特征和机制,具有广阔的应用前景。根据Geo-CA的内涵与特征,以湖南省衡阳市为例,考虑城市空间扩张的主要影响因素,本文提出了多因素制约的城市空间扩张过程元胞自动机模拟模型（Multi-factors Constrained Expanding Simulation CA, MCES-CA）。结合多期LANDSET影像、DEM和规划数据等数据源,论文构建并实现了MCES-CA模型,取得了较好的模拟结果。经检验,MCES-CA的模拟精度总体达89.24%。模拟结果显示衡阳主城区的空间扩张具有多方向、多阶段的特征,受到城市的自然环境和发展规划等因素的制约。本文研究表明,MCES-CA是一种简洁、易实现且高效的城市空间扩张模拟工具,今后应该结合人工智能方法提高模拟结果的精度。

关键词: 城市空间扩张, 城市化, 约束因素, 元胞自动机, 模拟, 特征, 精度, 衡阳主城区

Abstract:

Urban Expansion (UE) is a critical parameter to examine urbanization level. In fact, UE is often accompanied with people, strategies, and urban elements extending over the old edge of city. Hence, UE is a highly complex socioeconomic phenomenon. Dynamic models are very effective to reveal the features and mechanisms of UE. In particular, Cellular Automata (CA) is one of the kinetic models to simulate the natural evolution process and famous for its broad range of applications. A large amount of research findings argue that CA is one of the most potential tools to understand UE. In this study, a multi-factor restricted expansion simulation model of CA (MCES-CA) was proposed according to CA's main features and the main influencing elements of UE. This paper took a middle-zone city named Hengyang City as the case study area. Hengyang City is located in southern Hunan Province of China, and has been positioning to develop into the regional central city of southern Hunan. Hence, it is high significant to reveal the main features and mechanisms of Hengyang City's expansion based on MCES-CA. Firstly, we downloaded LANDSAT images and ASTER DEMs through the internet, and collected Hengyang City's Planning datasets from the Planning Burau of Hengyang Government. Next, we developed the MCES-CA model by the Model Builder Tools of ArcGIS. Then, we ran it to observe the entire expansion process of Hengyang City from 2001 to 2017. We employed the Expanding Intensity Index (EII) and Expanding Velocity Index (EVI) to assess the MCES-CA model. Results show: (1) Hengyang City presented different expansion directions in different ages. (2) The spatial expansion process of Hengyang City was composed of two main stages. (3) The main factors of shaping the expansion process of Hengyang City were geo-environments and development planning. (4) The simulation results were in accordance with the real states of Hengyang's UE. Our findings suggest that MCES-CA is a potentially popular tool to capture the EU processes of cities because it is easy to build and complete. For future research, we can improve the simulation accuracy of MCES-CA by refining transformation rules.

Key words: Urban Expansion, urbanization, influencing factors, Cellular Automata, simulation, features, precisions, Hengyang City

胡最, 王慧. 多因素约束的城市空间扩张元胞自动机构建及其应用研究[J]. 地球信息科学学报, 2020, 22(3): 616-627.DOI:10.12082/dqxxkx.2020.190240

HU Zui, WANG Hui. MCES-CA based Urban Expansion Simulation of Hengyang City[J]. Journal of Geo-information Science, 2020, 22(3): 616-627.DOI:10.12082/dqxxkx.2020.190240

图/表 14

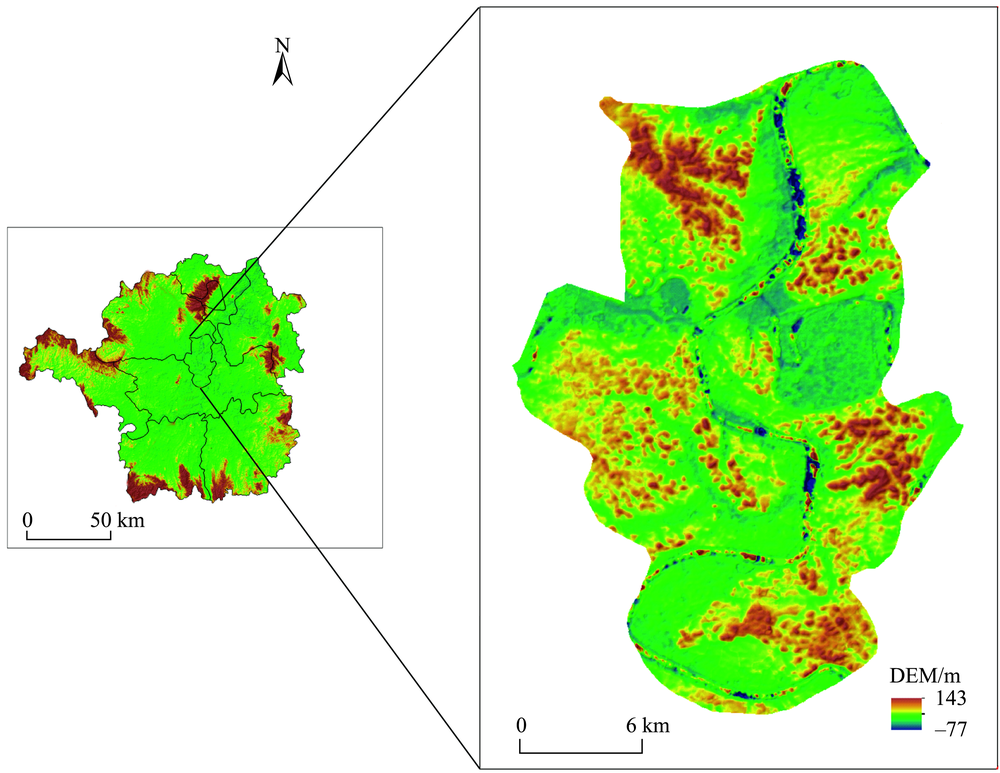

图1

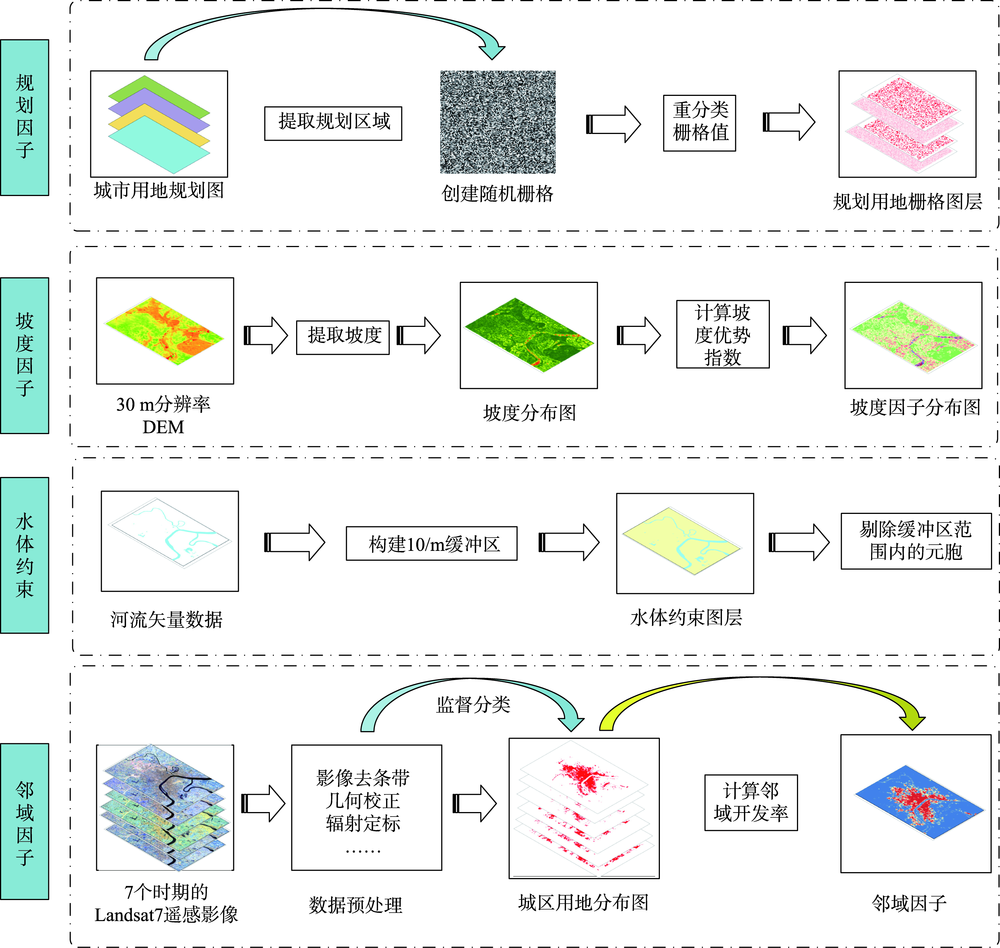

图2

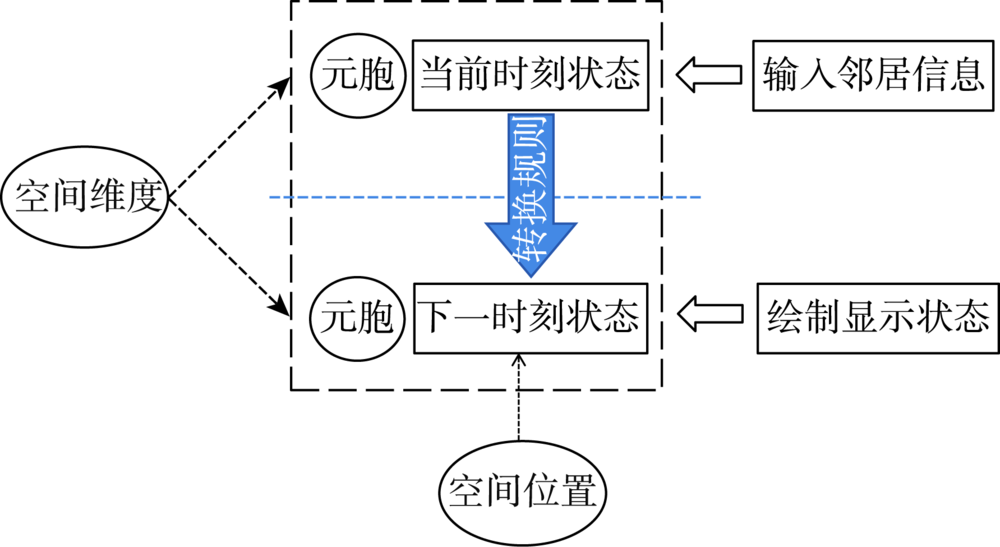

图3

图4

表1

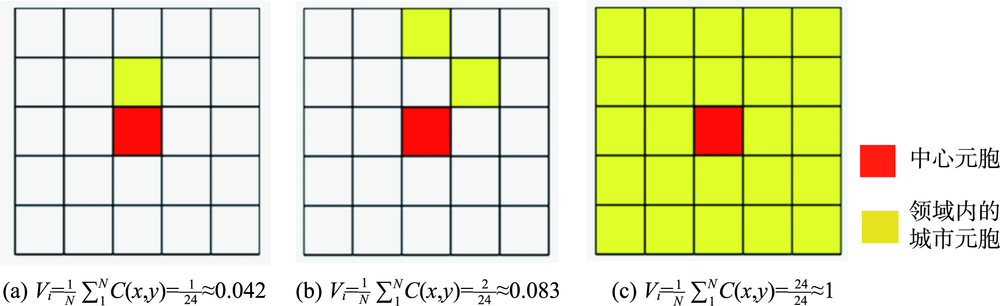

图5

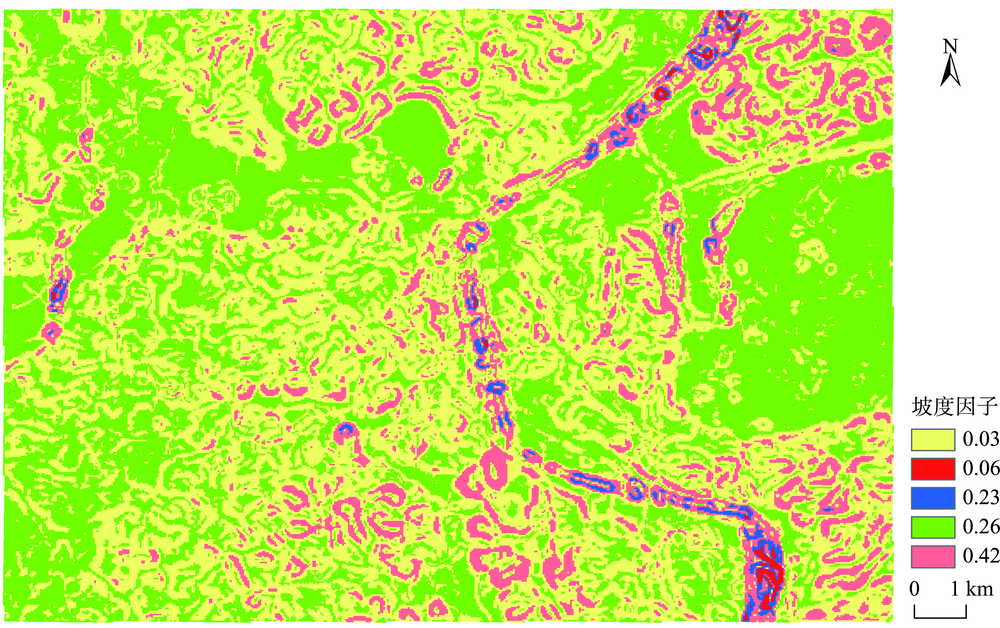

图6

表2

表3

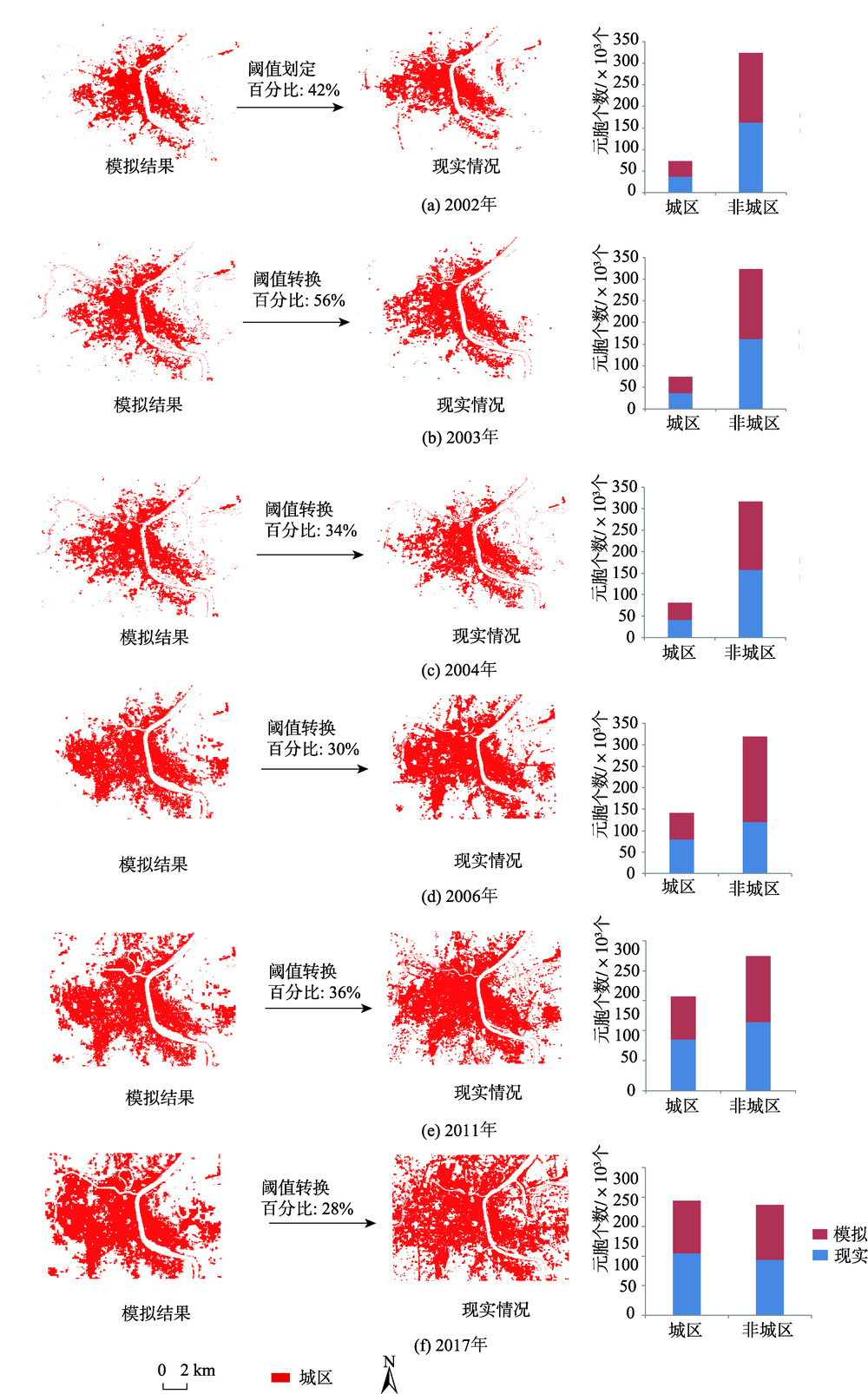

图7

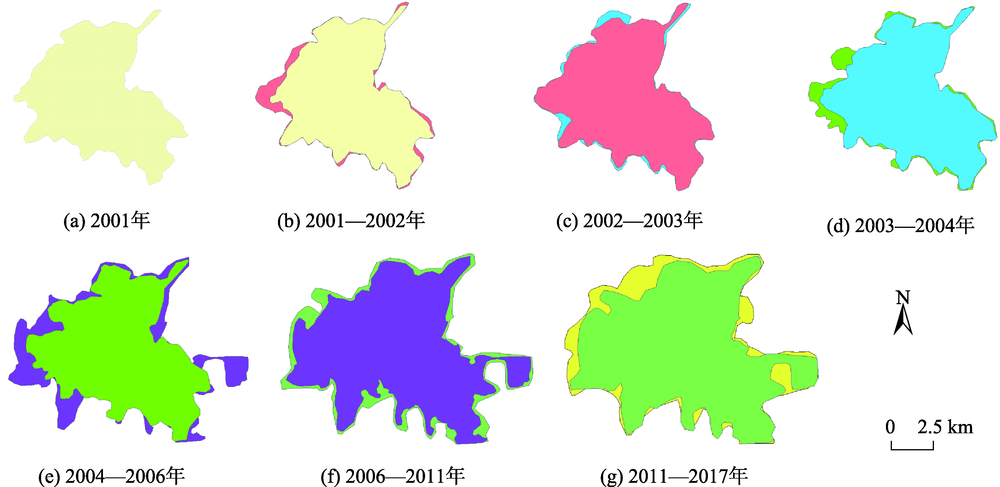

图8

图9

图10

表4

参考文献 29

[1]	方创琳, 王振波, 马海涛 . 中国城市群形成发育规律的理论认知与地理学贡献[J]. 地理学报, 2018,73(4):651-665.
	[ Fang C L, Wang Z B, Ma H T . The theoretical cognition of the development law of China's urban agglomeration and academic contribution[J]. Acta Geographic Sinica, 2018,73(4):651-665. ]
[2]	任宇飞, 方创琳, 蔺雪芹 . 中国东部沿海地区四大城市群生态效率评价[J]. 地理学报, 2017,72(11):2047-2063.
	[ Ren Y F, Fang C L, Lin X Q . Evaluation of eco-efficiency of four major urban agglomerations in eastern coastal area of China[J]. Acta Geographic Sinica, 2017,72(11):2047-2063. ]
[3]	张引, 杨庆媛, 闵婕 . 重庆市新型城镇化质量与生态环境承载力耦合分析[J]. 地理学报, 2016,71(5):817-828.
	[ Zhang Y, Yang Q Y, Min J . An analysis of coupling between the bearing capacity of the ecological environment and the quality of new urbanization in Chongqing[J]. Acta Geographic Sinica, 2016,71(5):817-828. ]
[4]	鲍超 . 中国城镇化与经济增长及用水变化的时空耦合关系[J]. 地理学报, 2014,69(12):1799-1809.
	[ Bao C . Spatio-temporal coupling relationships among urbanization, economic growth and water use change in China[J]. Acta Geographic Sinica, 2014,69(12):1799-1809. ]
[5]	刘涛, 齐元静, 曹广忠 . 中国流动人口空间格局演变机制及城镇化效应—基于2000和2010年人口普查分县数据的分析[J]. 地理学报, 2015,70(4):567-581.
	[ Liu T, Qi Y J, Cao G Z . China's floating population in the 21 ^st century: uneven landscape, influencing factors, and effects on urbanization [J]. Acta Geographic Sinica, 2015,70(4):567-581. ]
[6]	高金龙, 包菁薇, 刘彦随 , 等. 中国县域土地城镇化的区域差异及其影响因素[J]. 地理学报, 2018,73(12):2329-2344.
	[ Gao J L, Bao J W, Liu Y S , et al. Regional disparity and the influencing factors of land urbanization in China at the county level, 2000-2015[J]. Acta Geographic Sinica, 2018,73(12):2329-2344. ]
[7]	陈妤凡, 王开泳 .撤县 (市)设区对城市空间扩展的影响机理-以杭州市为例[J]. 地理研究, 2019,38(2):221-234.
	[ Chen Y F, Wang K Y . Influence and mechanism of “Turning Counties (Cities) into Districts” on urban space expansion: Taking Hangzhou as a case study[J]. Geographical Research, 2019,38(2):221-234. ]
[8]	崔学刚, 方创琳, 李君 , 等. 城镇化与生态环境耦合动态模拟模型研究进展[J]. 地理科学进展, 2019,38(1):111-125.
	[ Cui X G, Fang C L, Li J , et al. Progress in dynamic simulation modeling of urbanization and ecological environment coupling[J]. Progress in Geography, 2019,38(1):111-125. ]
[9]	Ning Wu, Elisabaete A . Silva. Artificial intelligence solutions for urban land dynamics: A review[J]. Journal of Planning Literature, 2010,24(3):246-265.
[10]	Gale S, Olsson G . Philosophy in Geography. Theory and decision library[M], Springer, Dordrecht 1979, 20:379-386.
[11]	Paul M. Torrens, Itzhak Benenson . Geographic automata systems[J]. International Journal of Geographical Information Science, 2005,19(4):385-412.
[12]	A. M. Garcia, I. Sante, M. Boullon , et al. Calibration of an urban cellular automaton model by using statistical techniques and a genetic algorithm. application to a small urban settlement of NW Spain[J]. International Journal of Geographical Information Science, 2013,27(8):1593-1611.
[13]	刘沛林 . 诗意栖居: 中国传统人居思想及其现代启示[J]. 社会科学战线, 2016(10):25-33.
	[ Liu P L . Romantic settling-a modern perspective of the thinking of China's traditional settlements[J]. Fronts of Social Sciences, 2016(10):25-33. ]
[14]	赵莉, 杨俊, 李闯 , 等. 地理元胞自动机模型研究进展[J]. 地理科学, 2016,36(8):1190-1196.
	[ Zhao L, Yang J, Li C , et al. Geographic cellular automata model research progress[J]. Scientia Geographica Sinica, 2016,36(8):1190-1196. ]
[15]	http://tjj.hengyang.gov.cn/sjfb/sjkx/201801/t20180131_19 52078.html [EB/OL].
[16]	http://tjj.hunan.gov.cn/tjfx/tjgb/szgb/hys/201803/t20180313_4971055.html [EB/OL]
[17]	唐璎, 刘正军, 杨树文 . 基于三指数合成影像的西北地区城市建筑用地遥感信息提取研究[J]. 地球信息科学学报, 2019,21(9):1455-1466.
	[ Tang Y, Liu Z J, Yang S W . Mapping urban built-up land in northwest China based on Three-index Synthetic remote sensing imagery[J]. Journal of Geo-information Science, 2019,21(9):1455-1466. ]
[18]	周成虎 . 地理元胞自动机研究[M]. 北京: 科学出版社, 1999.
	[ Zhou C H. Geographical cellular automata research[M]. Beijing: Science Press, 1999. ]
[19]	韩效, 刘民岷 . 基于改进元胞自动机的成都城市扩展仿真模拟[J]. 四川师范大学学报(自然科学版), 2014,37(6):923-928.
	[ Han X, Liu M Q . Simulation of Chengdu City expansion based on improved cellular automata[J]. Journal of Sichuan Normal University (Natural Science), 2014,37(6):923-928. ]
[20]	沈体雁 . 基于MODIS遥感影像及元胞自动机的京津冀地区城市模拟研究[J]// Intelligent information technology application association. Proceedings of 2011 International Conference on Ecological Protection of Lakes‐Wetlands‐Watershed and Application of 3S Technology(EPLWW3S 2011 V2)[C]. Intelligent Information Technology Application Association: 智能信息技术应用学会, 2011: 4.
	[ Shen T Y . Research on the urban expansion of Jing-Jin Area based on the MODIS and cellular automata[J] //Intelligent Information Technology Application Association. Proceedings of 2011 International Conference on Ecological Protection of Lakes‐Wetlands‐Watershed and Application of 3S Technology(EPLWW3S 2011 V2)[C]. Intelligent Information Technology Application Association: 2011: 4. ]
[21]	甘喜庆 . 基于约束logistic-CA模型的城市扩展空间形态研究[D]. 长沙:中南大学, 2008.
	[ Gan X Q . Research on urban extended spatial morphology based on constrained logistic-CA model[D]. Changsha: Central South University, 2008. ]
[22]	桂预风, 杨慧, 张永红 . 扩展邻域元胞自动机模型城市扩展研究[J]. 测绘科学, 2014,39(12):61-64.
	[ Gui Y F, Yang H, Zhang Y H . Study on urban expansion of extended neighborhood cellular automata model[J]. Science and Mapping Science, 2014,39(12):61-64. ]
[23]	王树良, 丁刚毅, 钟鸣 . 大数据下的空间数据挖掘思考[J]. 中国电子科学研究院学报, 2013,8(1):8-17.
	[ Wang S L, Ding G Y, Zhong M . Thoughts on spatial data mining under Big Data[J]. Journal of China Academy of Electronics and Information Technology, 2013,8(1):8-17. ]
[24]	刘鹏华, 刘小平, 姚尧 , 等. 耦合约束动态地块分裂和矢量元胞自动机的城市扩张模拟[J]. 地理与地理信息科学, 2018,34(4):74-82.
	[ Liu P H, Liu X P, Yao Y , et al. Urban expansion simulation by integrating constrained dynamic land parcel subdivision and vector-based Cellular Automata[J]. Geography and Geo-Information Science, 2018,34(4):74-82. ]
[25]	柳颖 . 区位商视角下粤港澳大湾区制造业与服务业集聚分析[J]. 市场周刊, 2019(2):67-68.
	[ Liu Y . Analysis of the concentration of manufacturing and service industry in Guangdong, Hong Kong and Macao Dawan District from the perspective of location businessmen[J]. Marketing Monthly, 2019(2):67-68. ]
[26]	王海军, 夏畅, 张安琪 , 等. 基于空间句法的扩张强度指数及其在城镇扩展分析中的应用[J]. 地理学报, 2016,71(8):1302-1314.
	[ Wang H J, Xia C, Zhang A Q , et al. The expansion strength index based on space syntax and its application in urban expansion analysis[J]. Acta Geographica Sinica, 2016,71(8):1302-1314. ]
[27]	刘盛和 . 城市土地利用扩展的空间模式与动力机制[J]. 地理科学进展, 2000,21(1):43-50.
	[ Liu S H . The Spatial Model and Dynamic Mechanism of Urban Land Use Expansion[J]. Progress in Geography, 2000,21(1):43-50. ]
[28]	汤玲英, 徐阳亮, 王聪 , 等. 基于多时相Landsat的衡阳市城区扩张模式研究[J]. 测绘与空间地理信息, 2018,41(2):116-118,123.
	[ Tang L Y, Xu Y L, Wang C , et al. Study on the urban expansion model of Hengyang City based on multi-temporal Landsat[J]. Surveying and Spatial Geography Information, 2018,41(2):116-118,123. ]
[29]	梅珍珍, 李刚, 赵志忠 , 等. 海口市城市空间扩张机理研究[J]. 海南师范大学学报(自然科学版), 2009,22(2):219-223.
	[ Mei Z Z, Li G, Zhao Z Z , et al. The study of urban spatial expansion mechanism in Haikou[J]. Journal of Hainan Normal University (Natural Science), 2009,22(22):219-223. ]

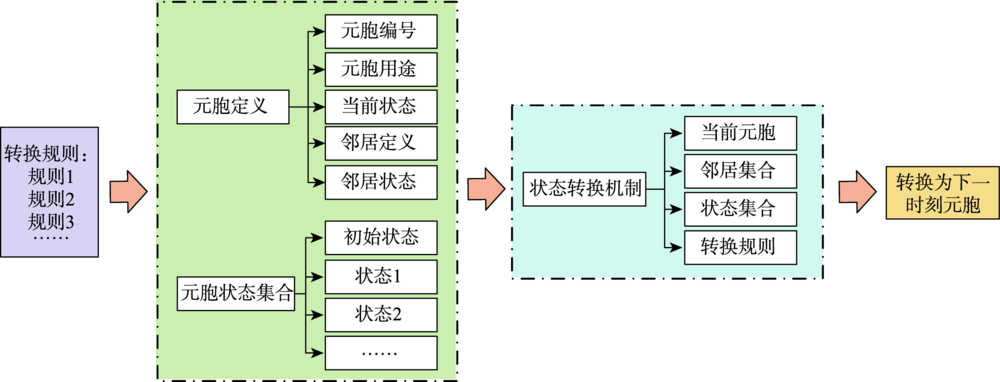

类名	元胞	邻居	状态	转换规则
数据成员	空间坐标	空间坐标	工业	周围有铁路、港口、仓储等用地时转换成工业用地
	ID标识号	ID标识号	仓储	周围有铁路、港口、工业等用地时转换成仓储用地
	当前状态值	当前状态值	铁路	通过规划设定
	邻居集合	当前用地类型	道路	通过规划设定
	当前用地类型		港口	通过规划设定
	是否转换		居住	周围有工业、道路等用地时转换成居住用地
			设施	通过规划设定

用地名称	最小坡度/%	最大坡度/%
工业用地	0.2	10
仓储用地	0.2	10
铁路用地	0	2
城市道路用地	0.2	8
港口用地	0.2	5
居住用地	0.2	25
公共设施用地	0.2	20
其他	-	-

用地类型	0~2°	2~5°	5~15°	15~25°	25~64°
城区	1.56	0.18	2.49	1.36	0.33
非城区	0.6	1.53	0.04	0.81	1.99

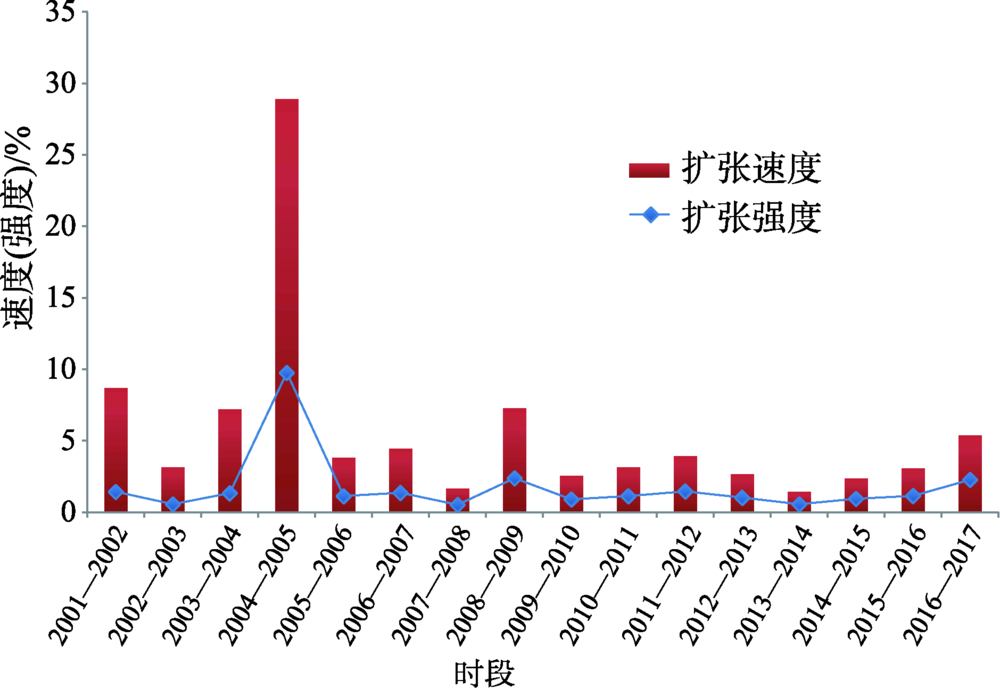

年份	面积/km²	年份	面积/km²
2001	29.85	2010	64.76
2002	32.44	2011	66.80
2003	33.46	2012	69.42
2004	35.87	2013	71.27
2005	53.41	2014	72.28
2006	55.45	2015	73.98
2007	57.91	2016	76.05
2008	58.86	2017	80.13
2009	63.15
