基于BEMD分解的地貌分类研究

doi:10.12082/dqxxkx.2020.190262

摘要/Abstract

摘要：

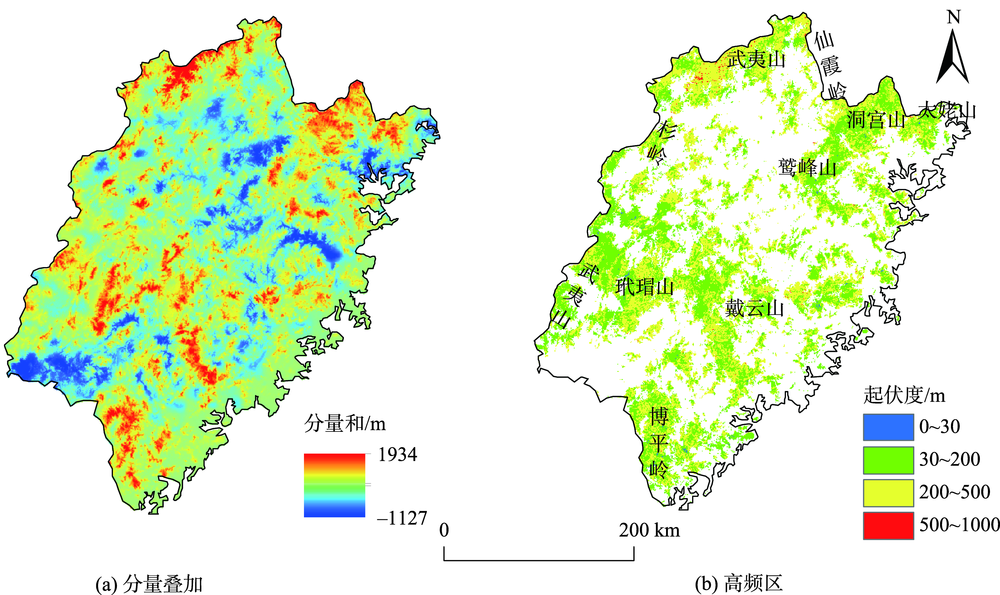

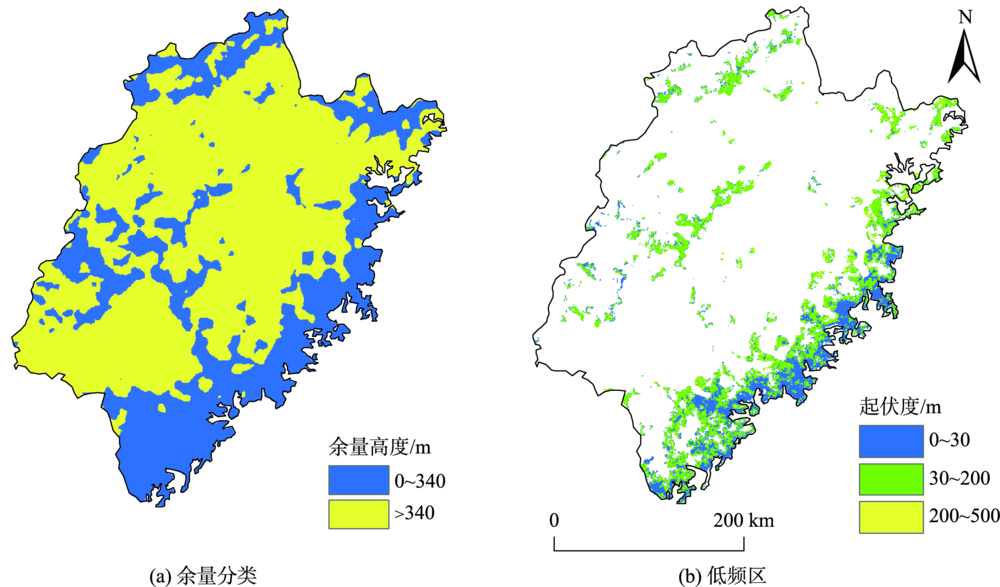

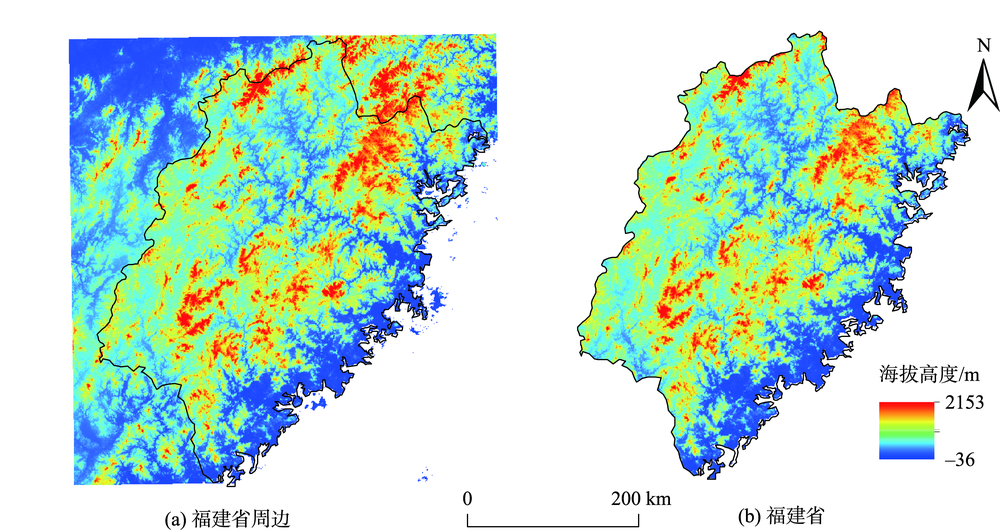

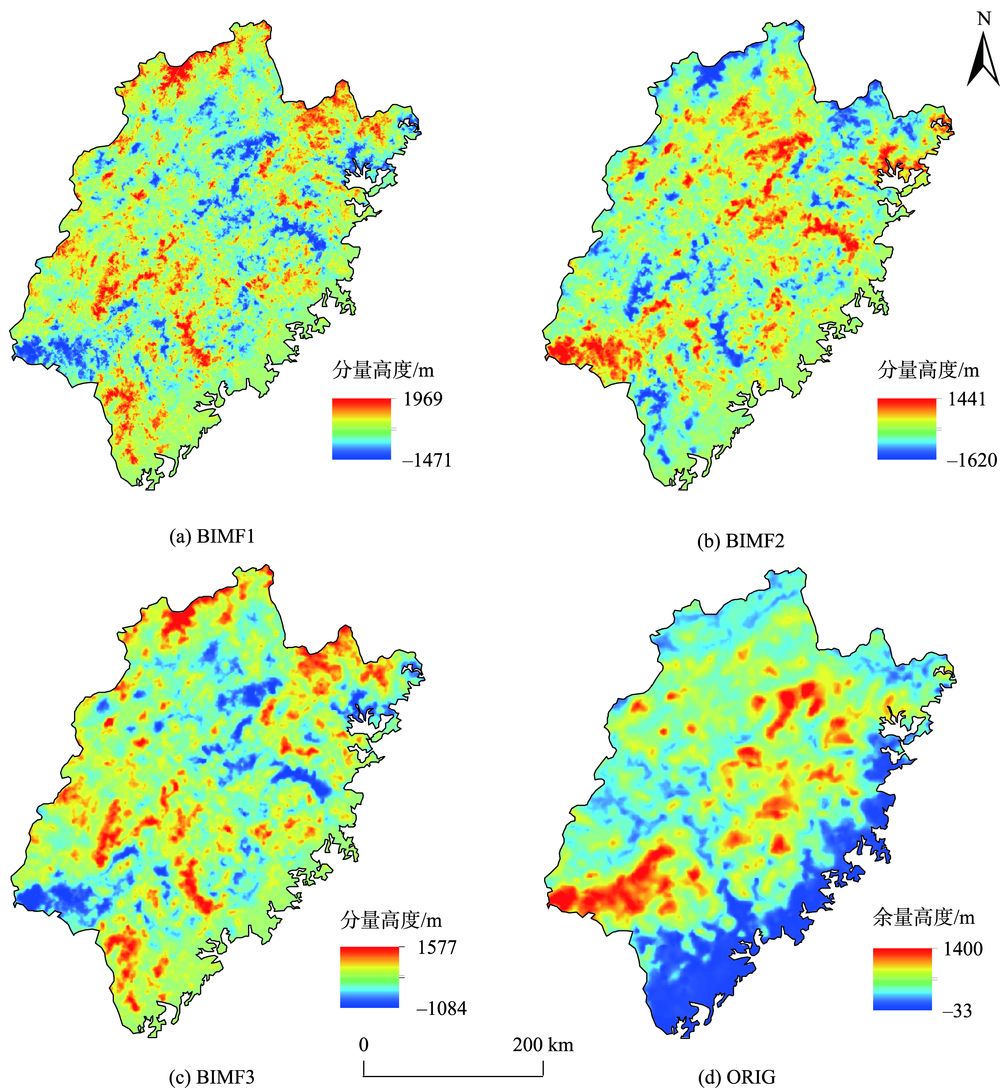

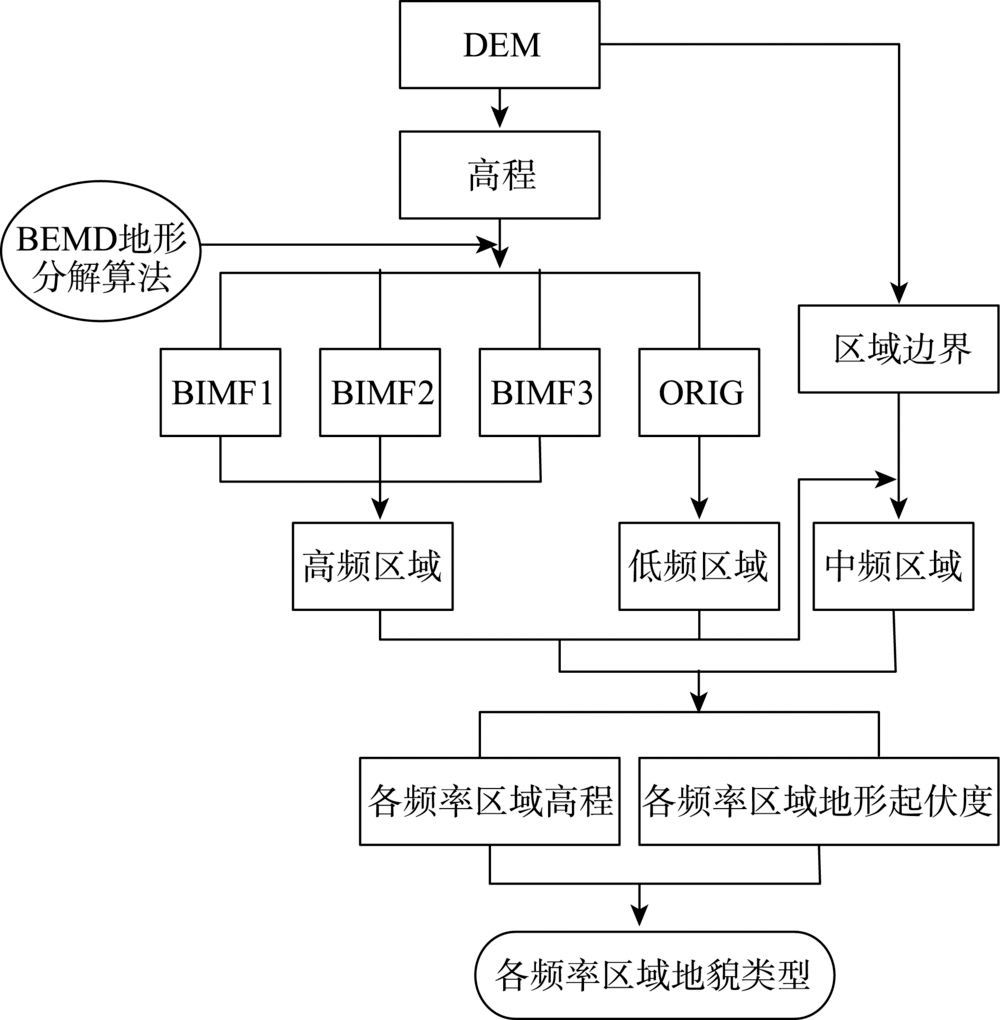

地貌是指地势高低起伏的变化,即地表的形态。地貌划分对气温、降水、太阳辐照等诸多应用领域都有着重要作用。本文选择空间分辨率为90 m的福建省的数字高程模型（DEM）数据作为地理信号,运用二维经验模态分解（BEMD）进行分解处理,得到多个具有不同尺度、不同物理意义的本征模函数（BIMF1—BIMF3）以及对应余量ORIG。这些BIMF分量对应不同尺度的微观地形,ORIG余量表现为该研究区的地貌分布趋势,体现了平原、丘陵与山地的大致分布区域。运用变点分析法确定最佳计算单元,利用地形起伏度对各个信号区域进行一级分类,依据绝对高度进行二级分类,最后将一级分类与二级分类相结合,实现对地形的分类,这一分类过程体现了研究地区地貌组合复杂的特征。结果表明：① 叠加BIMF分量,提取出分量和大于74 m的区域为高频信号区域。该区域以小起伏度的低山为主,并伴随有丘陵和小起伏度中山。② ORIG余量中余量高度小于等于340 m的区域,去除其中包含的高频信号区域后为低频信号区域,该区域以平原、丘陵为主。③ 剩余区域定义为中频信号区域,该区域的地貌以平丘陵和小起伏的山地为主。研究成果表明福建地貌可分为7种主要类型：低频平原,低频丘陵,中频丘陵,高频丘陵,中频小起伏低山,高频小起伏低山,高频小起伏中山。

关键词: 地形分解, 数字高程模型（DEM）, 二维经验模式分解（BEMD）, 本征模函数（BIMF）, 余量函数（ORIG）, 地形起伏度, 高频, 低频

Abstract:

Geomorphology refers to the ups and downs of the terrain, that is, the shape of the surface. Geomorph-ological classification plays an important role in many application fields such as temperature, precipitation and solar irradiation. In this paper, the Digital Elevation Model(DEM) data of Fujian province with a spatial resolution of 90 m is selected as the geographic signal. The two-dimensional empirical mode decomposition(BEMD) is applied for decomposition processing to obtain several two-dimensional intrinsic mode functions(BIMF1~ BIMF3) with different scales and different physical meanings as well as the corresponding residual ORIG. These BIMF components correspond to the microtopography of different scales, and ORIG shows the geomorphic distribution trend of the study area, reflecting the general distribution area of plains, hills and mountains. The optimal calculation unit is determined by the method of variable point analysis, and the first order classification of each signal area is carried out by using the degree of relief, and the second level classification is carried out according to the absolute height. Finally, the first class classification and the second order classification are combined to realize the classification of terrain. This classification process reflects the complex characteristics of geomorphological assemblage in the study area. The results show that: (1) Superimpose BIMF components and extract the components and regions larger than 74m as high-frequency signal regions. The region is dominated by the low mountains with small relief amplitude, and is accompanied by middle mountain with small relief amplitude and hills. (2) The region with residual height less than or equal to 340m in ORIG was extracted, and the region containing high frequency signal was removed as the low-frequency signal region, which was mainly plain and hills. (3) The remaining area is defined as the intermediate frequency signal area, and the geomorphology of the area is dominated by flat hills and small mountains with small relief amplitude. The results show that the geomorphology of Fujian can be divided into seven main types: low frequency plain, low frequency hill, intermediate frequency hill, high frequency hill, low mountain with small degree of relief in middle frequency, low mountain with small degree of relief in high frequency, middle mountain with small degree of relief in high frequency.

Key words: topographic decomposition, DEM, BEMD, BIMF, ORIG, degree of relief, high-frequency, low-frequency

顾文亚, 孟祥瑞, 朱晓晨, 邱新法. 基于BEMD分解的地貌分类研究[J]. 地球信息科学学报, 2020, 22(3): 464-473.DOI:10.12082/dqxxkx.2020.190262

GU Wenya, MENG Xiangrui, ZHU Xiaochen, QIU Xinfa. Geomorphological Classification Research based on BEMD Decomposition[J]. Journal of Geo-information Science, 2020, 22(3): 464-473.DOI:10.12082/dqxxkx.2020.190262

图/表 10

图1

图2

表1

表2

图3

图4

图5

图6

图7

表3

参考文献 32

[1]	许丽, 李江海, 刘持恒 , 等. 基于数字高程模型(DEM)的可可西里地貌及区划研究[J]. 北京大学学报(自然科学版), 2017,53(5):833-842.
	[ Xu L, Li J H, Liu C H , et al. Research on geomorphological morphology and regionalization of Hoh Xil based on digital elevation model(DEM)[J]. Acta Scientiarum Naturalium Universitatis Pekinensis, 2017,53(5):833-842. ]
[2]	廖要明, 陈德亮, 高歌 , 等. 中国天气发生器降水模拟参数的气候变化特征[J]. 地理学报, 2009,64(7):871-878.
	[ Liao Y M, Chen D L, Gao G , et al. Impacts of climate changes on parameters of a weather generator for daily precipitation in China[J]. Acta Geographica Sinica, 2009,64(7):871-878. ]
[3]	王凌梓, 苗俊峰, 韩芙蓉 . 近10年中国地区地形对降水影响研究进展[J]. 气象科技, 2018,46(1):64-75.
	[ Wang L Z, Miao J F, Han F R . Overview of impact of topography on precipitation in China over last 10 years[J]. Meteorological Science and Technology, 2018,46(1):64-75. ]
[4]	苏时雨, 李钜章 . 地貌制图[M] . 北京: 测绘出版社, 1999.
	[ Su S Y, Li J Z. Geomorphic mapping[M]. Beijing: Surveying and Mapping Press, 1999. ]
[5]	Walther Penck. Analysis of geological morphology[M]. Moscow: National Geological Bibliography Press, 1961.
[6]	斯皮里顿诺夫(苏). 地貌制图学[M]. 北京: 地质出版社, 1956.
	[ Слиридонов А И . Geomorphic cartography[M]. Beijing: Geological Publishing, 1956. ]
[7]	波多别多夫 . 自然地理第二篇地貌学[M]. 北京: 地质出版社, 1958.
	[ Подобедов Н С . Physical Geography Part Ⅱ Geomorphology [M]. Beijing: Geological Publishing House, 1958. ]
[8]	柴宗新 . 按相对高度划分地貌基本形态的建议[M]. 北京: 测绘出版社, 1986.
	[ Chai Z X. The suggestion of basic geomorphological types according to relative height[M]. Beijing: Surveying and Mapping Press, 1986. ]
[9]	中国科学院自然区划工作委员会. 中国地貌区划(初稿)[M]. 北京: 科学出版社, 1959.
	[ Working committee of natural zoning, Chinese academy of sciences. Geomorphologic division of China(draft)[M]. Beijing: Science Press, 1959. ]
[10]	高玄彧 . 地貌基本形态的主客分类法[J]. 山地学报, 2004,22(3):261-266.
	[ Gao X Y . The subjective and objective classification of geomorphologic forms[J]. Journal of Mountain Science, 2004,22(3):261-266. ]
[11]	李炳元, 潘保田, 程维明 , 等. 中国地貌区划新论[J]. 地理学报, 2013,68(3):291-306.
	[ Li B Y, Pan B T, Cheng W M , et al. Research on geomorphological regionalization of China[J]. Acta Geographica Sinica, 2013,68(3):261-266. ]
[12]	Drăgut L, Blaschke T . Automated classification of landform elements using object-based image analysis[J]. Geomorphology, 2006,81(3):330-344. doi: 10.1002/(sici)1097-0215(19990505)81:3&lt;330::aid-ijc3&gt;3.0.co;2-2 pmid: 10209944
[13]	Drăgut L, Eisank C . Automated object-based classification of topography from SRTM data[J]. Geomorphology, 2012,141:21-33. doi: 10.1016/j.geomorph.2011.12.001 pmid: 22485060
[14]	田丹, 刘爱利, 丁浒 , 等. 地貌形态类型面向对象分类法的改进[J]. 地理与地理信息科学, 2016,32(2):46-51.
	[ Tian D, Liu A L, Ding H , et al. Improvement of object-oriented classification method for landforrm types[J]. Geography and Geo-information Science, 2016,32(2):46-51. ]
[15]	李婧晗, 江岭, 左颖 , 等. 面向对象的安徽省基本地貌类型划分方法. 地理与地理信息科学, 2018,34(5):80-86.
	[ Li J H, Jiang L, Zuo Y , et al. Landform classification based on object-oriented method in anhui provience. Geography and Geo-information Science, 2018,34(5):80-86. ]
[16]	汪禹芹, 李艳, 刘爱利 . 基于面向对象思想的中国地貌形态类型划分. 遥感信息, 2012,1:13-18.
	[ Wang Y Q, Li Y, Liu A L . Object-oriented Method Based Research on Classification of Relief Form in China. Remote Sensing Information, 2012,1:13-18. ]
[17]	仲伟敬, 邢立新, 潘军 , 等. 基于DEM数据的地貌类型快速划分系统研究[J]. 吉林大学学报(信息科学版), 2018,36(5):388-396.
	[ Zhong W J, Xing L X, Pan J , et al. Study on fast partitioning system of geomorphic types based on DEM data[J]. Journal of Jilin University(Information Science Edition), 2018,36(5):388-396. ]
[18]	汤国安 . 我国数字高程模型与数字地形分析研究进展[J]. 地理学报, 2014,69(9):1305-1325.
	[ Tang G A . Progress of DEM and digital terrain analysis in China[J]. Acta Geographica Sinica, 2014,69(9):1305-1325. ]
[19]	孟伟, 李润奎, 段峥 , 等. 基于地貌特征的数字高程模型融合方法[J]. 地球信息科学学报, 2018,20(7):895-905.
	[ Meng W, Li R K, Duan Z , et al. Digital elevation model fusion by landform characterstics[J]. Journal of Geo-information Science, 2018,20(7):895-905. ]
[20]	Huang N E, Shen Z, Long S R , et al. The empirical mode decomposition and the hilbert spectrum for nonlinear and non-stationary time series analysis[J]. Proceedings of the Royal Society of London A, 1998,454(1971):903-995.
[21]	Bai X R, Xing M D . Imaging of micromotion targets with rotating parts based on empirical mode decomposition[J]. IEEE Transactions on Geoscience and Remote Sensing, 2008,46(11):3514-3523.
[22]	沈路, 杨富春, 周晓军 , 等. 基于改进EMD与形态滤波的齿轮故障特征提取[J]. 振动与冲击, 2010,29(3):154-157.
	[ Shen L, Yang F C, Zhou X J , et al. Gear fault feature extraction based on improved EMD and morphological filter[J]. Journal of Vibration and Shock, 2010,29(3):154-157. ]
[23]	Nunes J C, Guyot S, Deléchelle E . Texture analysis based on local analysis of the bidimensional empirical mode decomposition[J]. Machine Vision and Applications, 2005,16(3):177-188.
[24]	宋立新, 高凤娇, 郗朝晖 . 二维EMD分解方法的比较与改进[J]. 电子与信息学报, 2008,30(12):2890-2893.
	[ Song L X, Gao F J, Xi Z H . Compared and improved research of bidimensional empirical mode decomposition method. Journal of Electronics & Information Techonlogy, 2008,30(12):2890-2893. ]
[25]	宋平舰 . 二维EMD方法及其在图象处理中的应用[D]. 青岛:国家海洋局第一海洋研究所, 2001.
	[ Song P J . Bidimensional empirical mode decomposition method and its application in image processing[D]. Qingdao: The First Institute of Oceanography, 2001. ]
[26]	高凤娇 . 二维EMD方法及其在图像处理中的应用研究[D]. 哈尔滨:哈尔滨理工大学, 2008.
	[ Gao F J . Bidimensional empirical mode decomposition method and its application research in image processing[D]. Harbin: Harbin University of Science and Technology, 2008. ]
[27]	任德智, 肖前刚, 王勇军 , 等. 基于DEM的成都市基本地貌形态研究[J]. 四川林业科技, 2018,39(2):79-84.
	[ Ren D Z, Xiao Q G, Wang Y J , et al. Research on the basic geomorphology form of Chengdu based on DEM[J]. Journal of Sichuan Forestry Science and Technology, 2018,39(2):79-84. ]
[28]	周廷儒, 施雅风, 陈述彭 . 中国地形区划草案[M]. 北京: 科学出版社, 1956: 21-56.
	[ Zhou T R, Shi Y F, Cheng S P. Geomorphologic regionalization in China(Draft)[M]. Beijing: Science Press, 1956: 21-56.]
[29]	Shen Y C, Su S Y, Yin Z S . Retrospect and prospect of the research work on the classification, regionalization and mapping of the geomorphology of China. Scientia Geographica Sinica, 1982,2(2):97-104.
[30]	乔淼 . 地形分解与气象要素局地分布规律分析[D]. 南京:南京信息工程大学, 2017.
	[ Qiao M . Analysis on terrain decomposition and distribution rule of meteorological elements[D]. Nanjing: Nanjing University of Information Science and Technology, 2017. ]
[31]	周成虎, 程维明, 钱金凯 , 等. 中国陆地1∶100万数字地貌分类体系研究[J]. 地球信息科学学报, 2009,11(6):707-724.
	[ Zhou C H, Cheng W M, Qian J K , et al. Research on the classification system of digital land geomorphology of 1:1 000 000 in China[J]. Journal of Geo-Information Science, 2009,11(6):707-724. ]
[32]	程维明, 周成虎, 柴慧霞 , 等. 中国陆地地貌基本形态类型定量提取与分析[J]. 地球信息科学学报, 2009,11(6):725-736.
	[ Cheng W M, Zhou C H, Chai H X , et al. Quantitative Extraction and Analysis of Basic Morphological Type of Land Geomorphology in China[J]. Journal of Geo-information Science, 2009,11(6):725-736.]

地貌类型	海拔高度/m
平原	≤ 200
丘陵	≤ 500
低山	500~1000
中山	1000~3000
高山	3000~5000
极高山	>5000

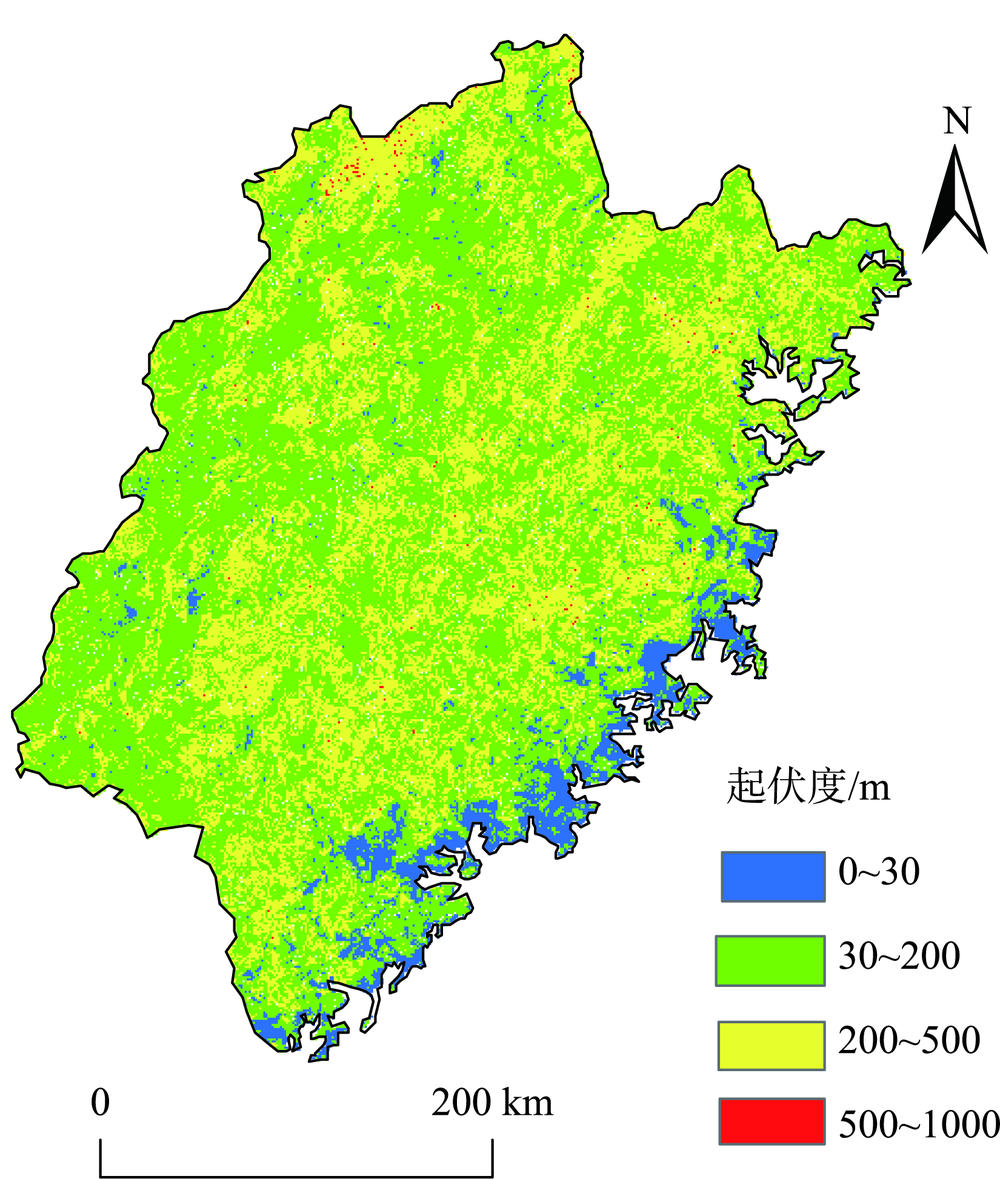

地貌类型	地形起伏度/m
平原	≤ 30
丘陵	30~200
小起伏山地	200~500
中起伏山地	500~1000
大起伏山地	1000~2500
极大起伏山地	>2500

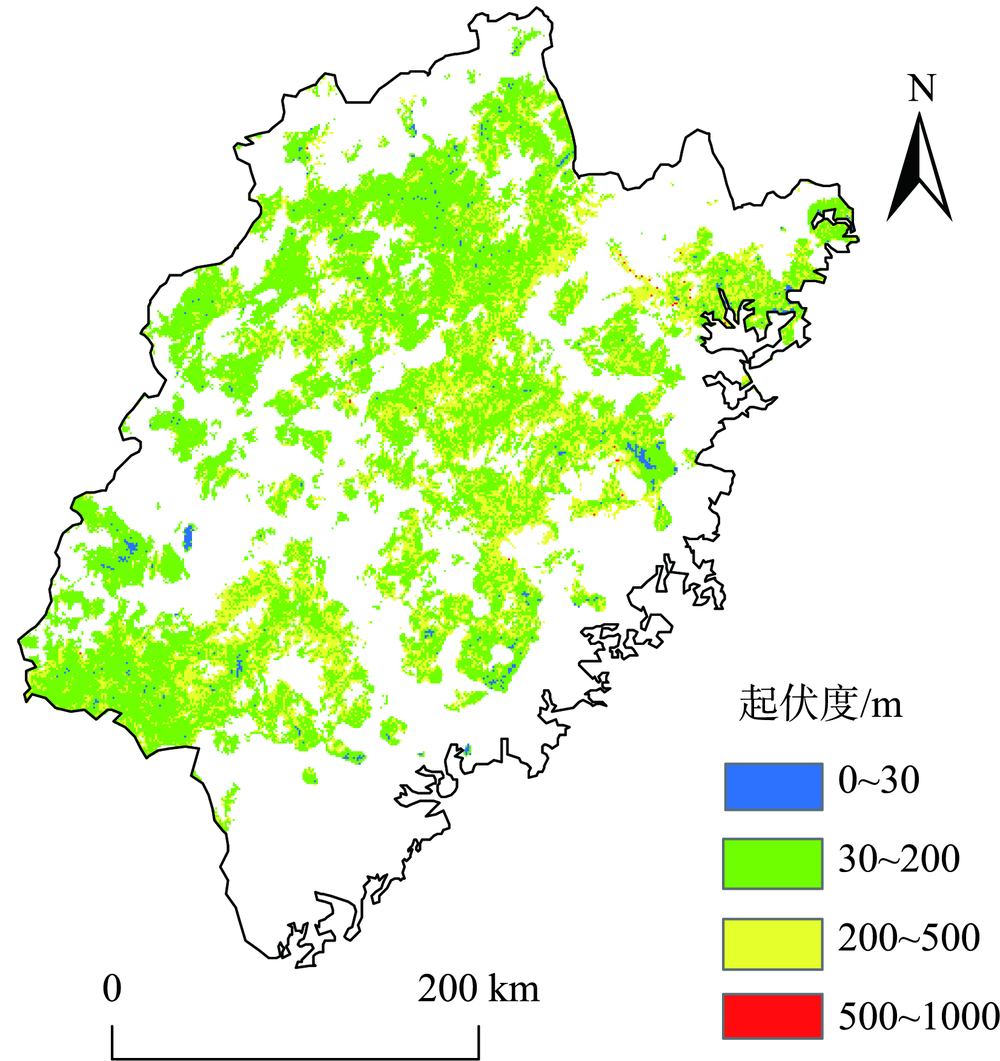

频率	起伏度/m	高程/m	地貌类型
低频	≤ 30	≤ 200	低频平原
低频	≤ 200	≤ 500	低频丘陵
中频	≤ 200	≤ 500	中频丘陵
中频	≤ 500	≤ 1000	中频小起伏低山
高频	≤ 200	≤ 500	高频丘陵
	≤ 500	≤ 1000	高频小起伏低山
	≤ 500	≤ 2500	高频小起伏中山
