基于DEM的黄土地貌逼近度因子构建及特征分析

doi:10.12082/dqxxkx.2020.190495

摘要/Abstract

摘要：

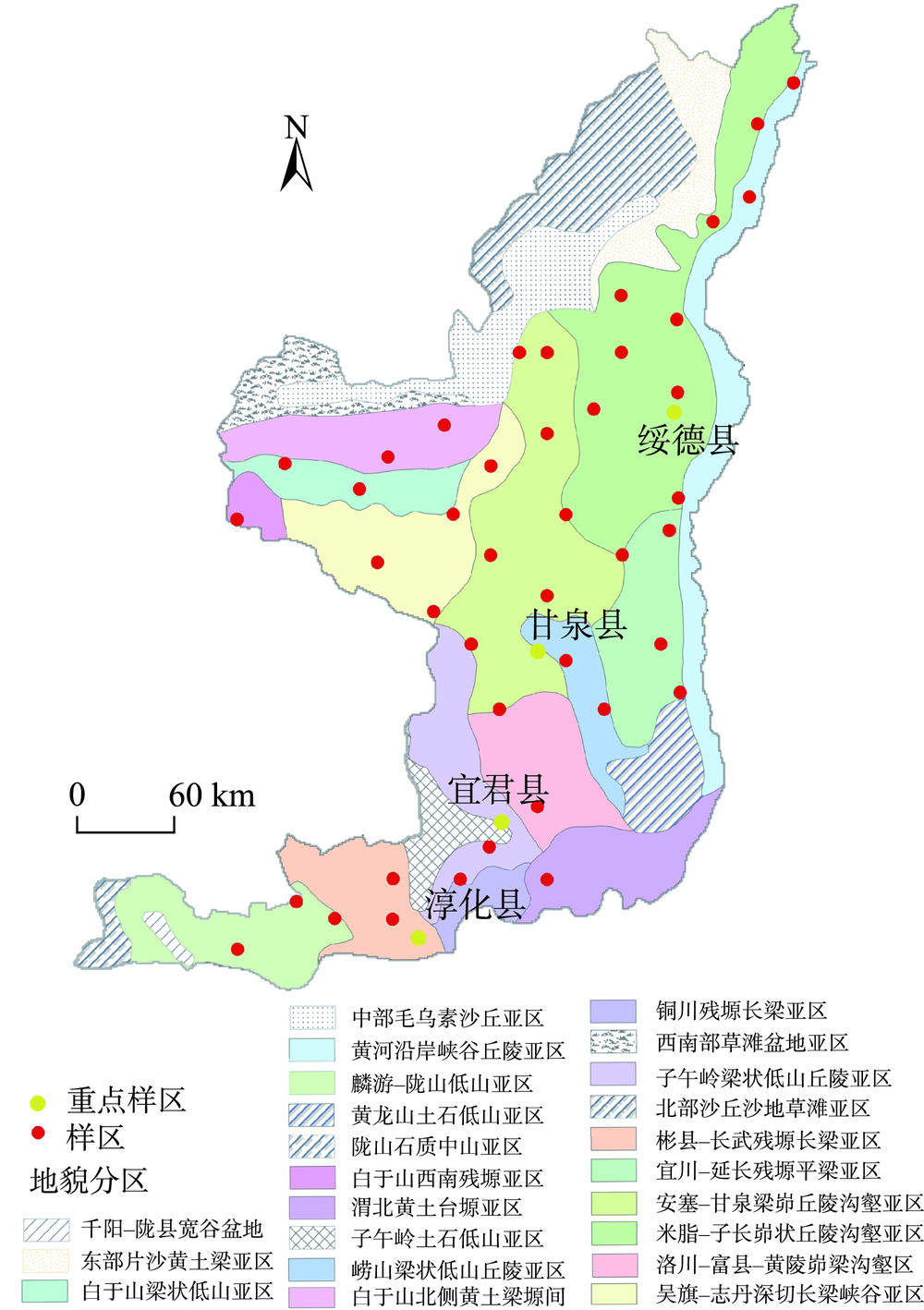

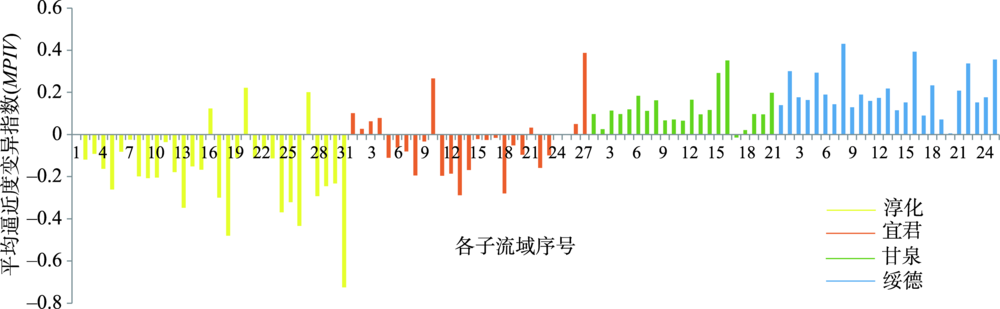

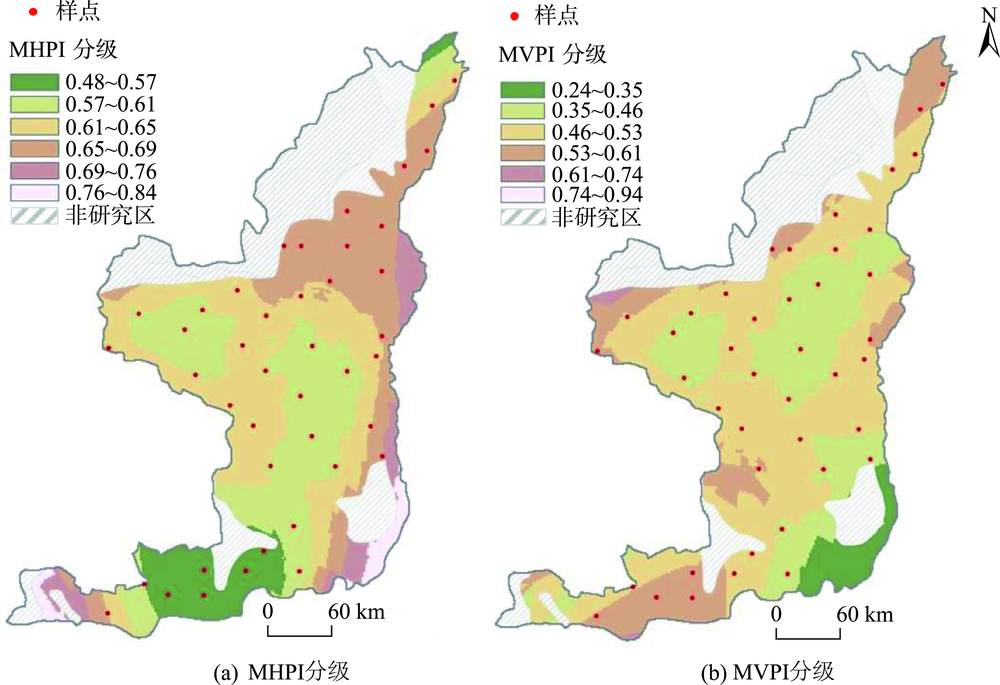

沟谷源点作为沟沿线上最为活跃的部位,其分别到上游分水线、下游沟谷线的流线空间比对关系,是表征三线空间结构的重要突破口。它在空间上向流域分水线逼近的程度,是量化黄土流域地貌系统发育程度的重要切入点。为探究黄土地貌区流域沟谷源点向流域分水线逼近的程度,揭示黄土流域地貌发育进程及该进程所表现的主要侵蚀方式,本文从水平和垂直2个维度,构建量化三线空间结构关系的核心因子——逼近度（PI）,其中包括水平逼近度（HPI）和垂直逼近度（VPI）,基于5 m分辨率数字高程模型,在陕北黄土高原遴选了包含16种地貌类型的42个样区,利用数字地形分析方法,探讨其平均值（MHPI, MVPI）的空间分异规律。另外,选择其中南北序列分别代表黄土塬、残塬、梁状丘陵沟壑和峁状丘陵沟壑区的淳化、宜君、甘泉和绥德4个地区,完备包含一至五级别沟谷的典型流域为重点实验样区,探讨陕北黄土高原流域尺度平均逼近度变异指数（MPIV）序列性特征。实验结果表明：① 陕北黄土高原平均逼近度（MPI）存在强烈的空间自相关,MHPI在南北序列上先增大后减小,东西方向上逐渐减小,在黄河沿岸峡谷丘陵区MHPI达到最大;MVPI由西南—东北先减小后增加,由西北—东南逐渐减小,在渭北黄土台塬区达到最小;② 在流域尺度上,MPIV值的正负与黄土塬区、丘陵沟壑区敏感相关;③ 4个重点样区MHPI、MVPI与其它地形因子存在南北序列上的一致性。104个外部汇流区平均水平逼近度与平均坡度相关性较好（P=0.43, a<0.001）,平均垂直逼近度与面积高程积分强烈相关（P=0.75, a<0.001）。平均逼近度指标综合考量了黄土高原地区最典型的三条具有结构控制意义特征线的空间关系,对黄土地貌的发育程度有明显的指示性意义。

关键词: DEM, 陕北黄土高原, 沟谷源点, 流域分水线, 逼近度, 数字地形分析, 地形因子, 空间分异

Abstract:

The gully source point is the most active part on the shoulder line. The spatial length of streamlines from the gully source point to the upstream watershed boundary line and the downstream gully line is an important identifications for spatial structure of the loess shoulder line, watershed boundary line and gully line. Proximity degree of gully source point to watershed boundary line spatially is a key point for quantifying the geomorphological development process in loess basin. To explore the loess landform areas watershed gully source point to approach watershed boundary line, reveal the loess watershed landscape development process and the method of main erosion processes. In this paper, A core factor of quantifying the three line spatial structural: Proximity Index (PI) was established from horizontal and vertical dimensions, including Horizontal Proximity Index (HPI) and Vertical Proximity Index(VPI). 42 study sites of 16 geomorphic types in the Loess Plateau of northern Shaanxi based on the digital elevation model data with 5 m resolution were selected and the spatial differentiation of their mean values (MHPI, MVPI) in the Loess Plateau of northern Shaanxi was discussed by using of the digital terrain analysis method. Besides, 4 typical watersheds including 5 whole gully levels were selected from 42 sites as the key study areas in Chunhua, Yijun, Ganquan, and Suide which located in loess tableland, loess residual tableland, loess ridge, and loess hill respectively in the north-south sequence. The Mean Proximity Index Variability (MPIV) of key study sites was calculated in the watershed scale. Results show that: ① There is a strong spatial autocorrelation of the Mean Proximity Index(MPI) in the Loess Plateau of northern Shaanxi. MHPI presents a trend of increasing firstly and then decreasing in the north-south sequence, and gradually decreasing in the east-west direction. MHPI reaches the maximum in the valley hilly area along the Yellow River. MHPI decreases firstly and then increases from southwest to northeast, and gradually decreases from northwest to southeast, and reaches the minimum in the Loess tableland area of Weibei region; ② The positive and negative MHPI values in watershed scale are sensitively related to loess tableland and hilly gully regions; ③ MHPI and MVPI of the 4 key sample areas are consistent with other terrain indexes in the north-south sequence. The MHPI of 104 external confluence region has a good correlation with the average slope (P=0.43, a<0.001),while the MVPI has a strong correlation with the hypsometric integral (P=0.75, a<0.001).The Mean Proximity Indexes (MPI) comprehensively take into consideration the spatial relationship of the three typical structural control lines in the Loess Plateau and have obvious indication significance for the development degree of the loess landform.

Key words: DEM, Loess Plateau of northern Shaanxi, gully source point, watershed boundary line, proximity index, digital terrain analysis, terrain factor, spatial differentiation

雷雪, 周毅, 李阳, 王泽涛. 基于DEM的黄土地貌逼近度因子构建及特征分析[J]. 地球信息科学学报, 2020, 22(3): 431-441.DOI:10.12082/dqxxkx.2020.190495

LEI Xue, ZHOU Yi, LI Yang, WANG Zetao. Establishment and Feature Analysis of Loess Geomorphology Proximity Indexes based on DEM[J]. Journal of Geo-information Science, 2020, 22(3): 431-441.DOI:10.12082/dqxxkx.2020.190495

图/表 13

图1

表1

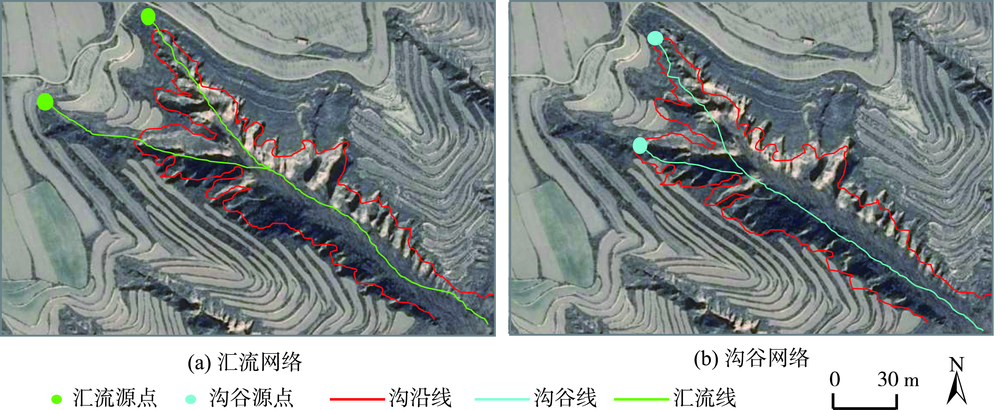

图2

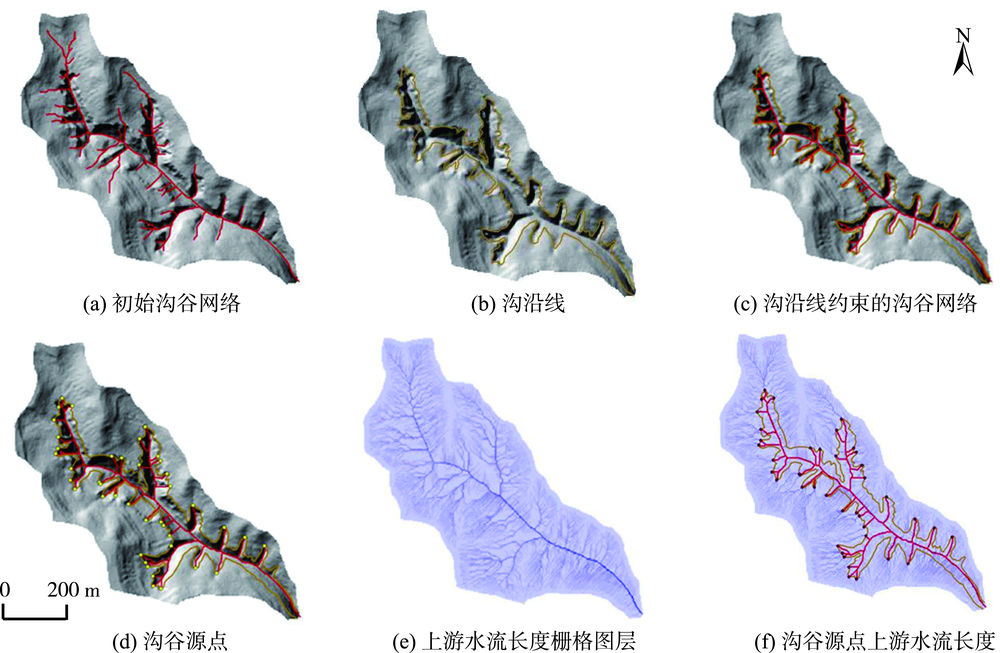

图3

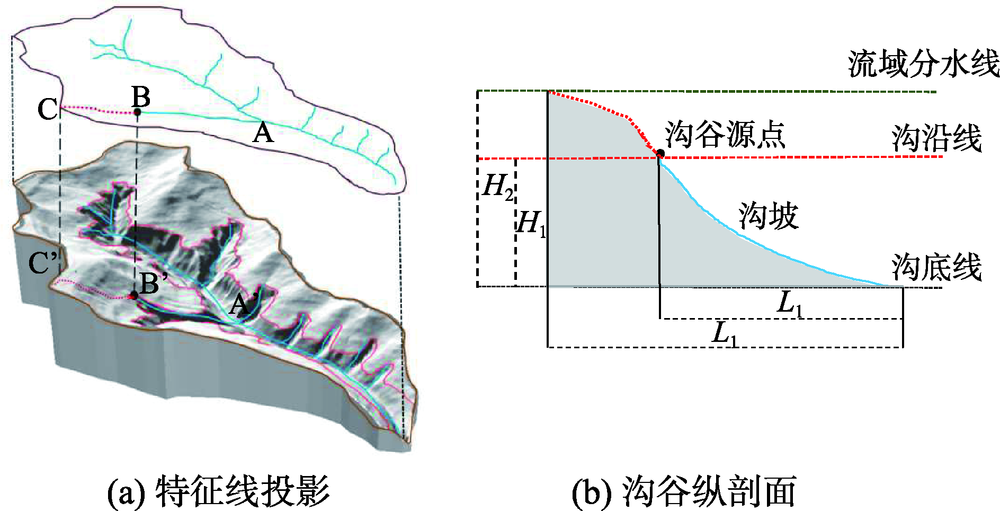

图4

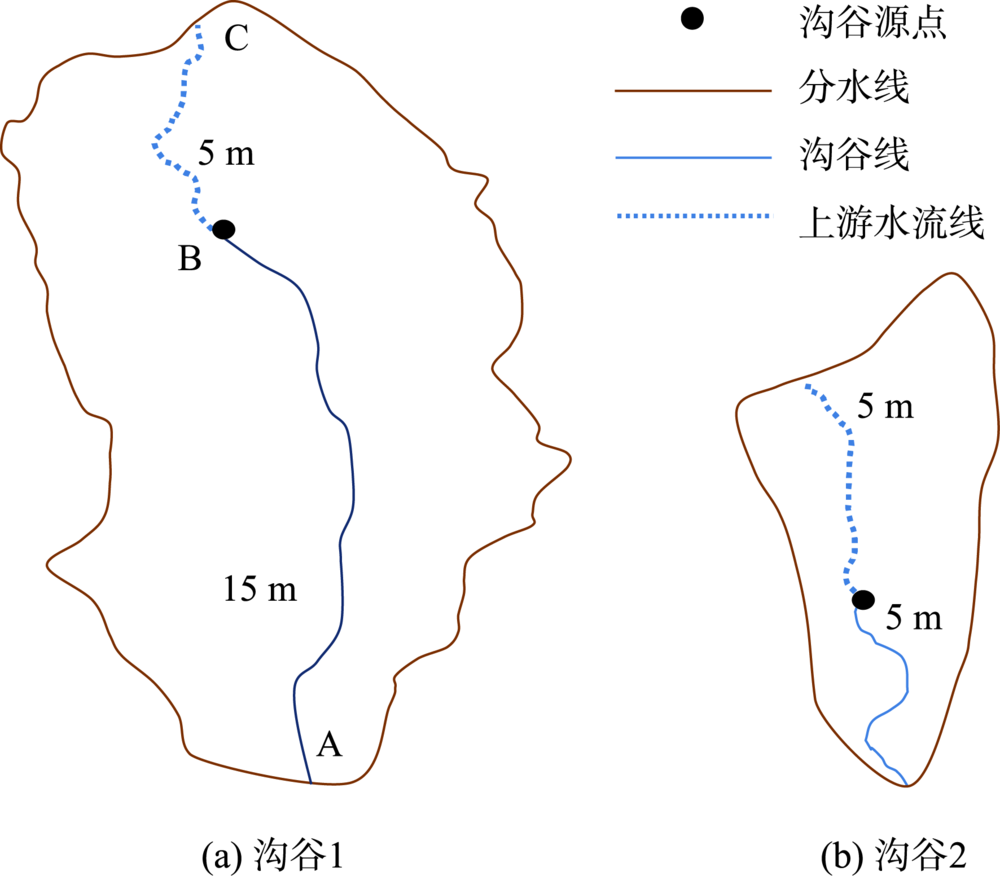

图5

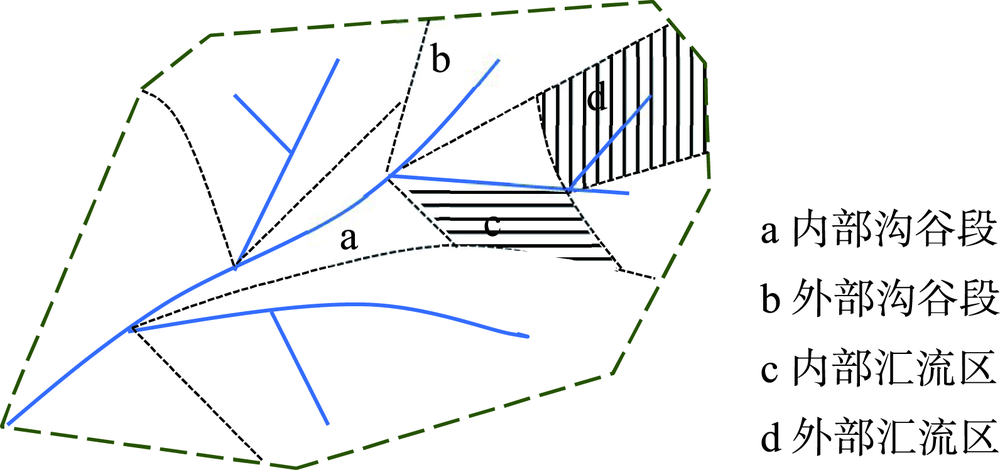

图6

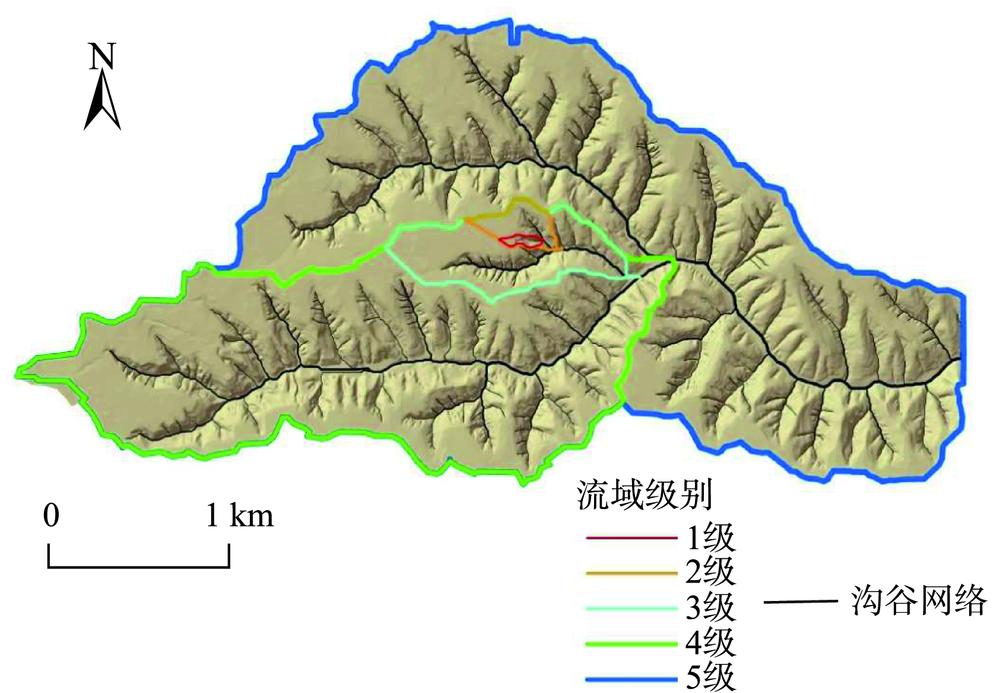

图7

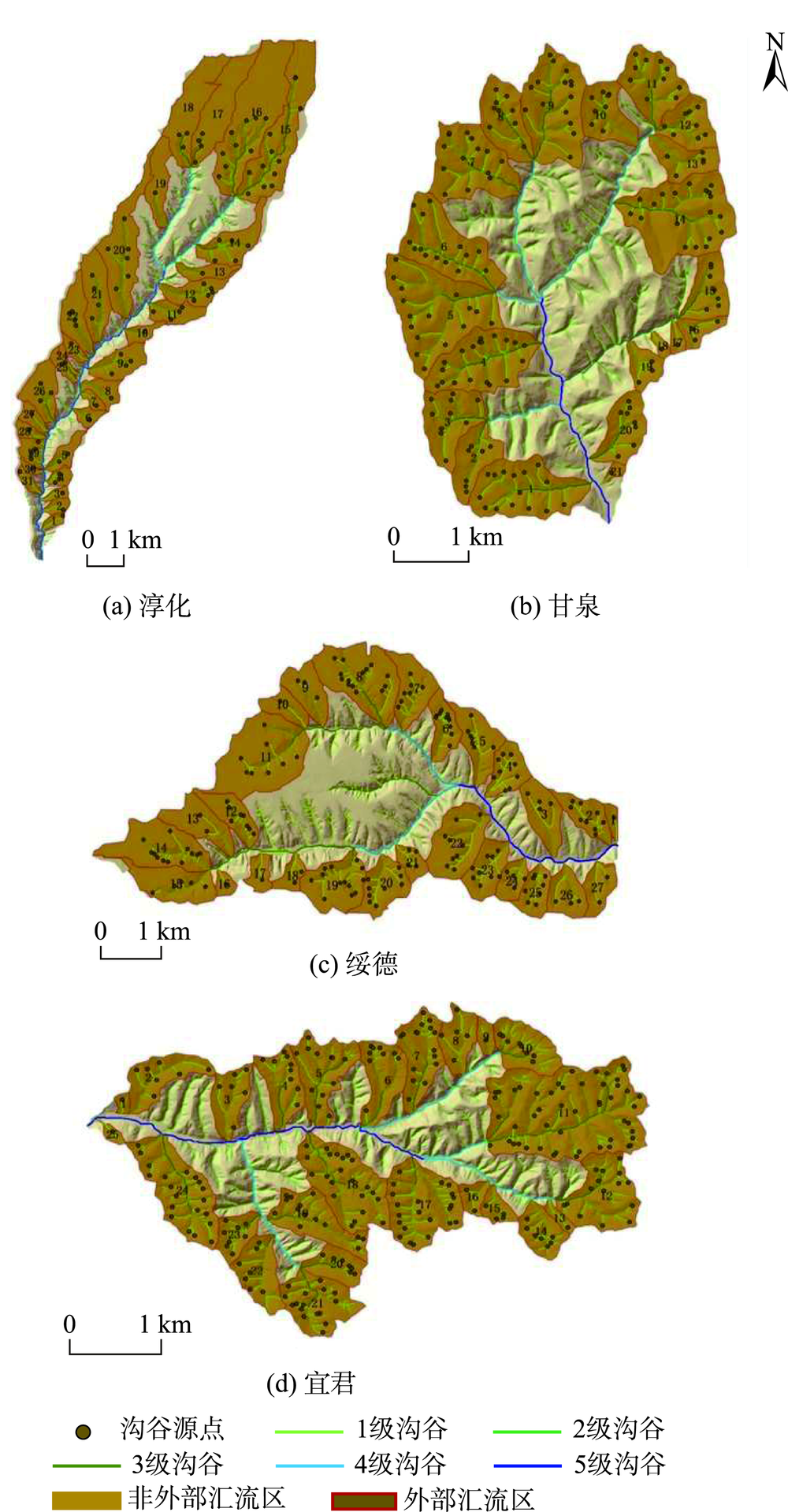

图8

图9

图10

图11

表2

参考文献 35

[1]	Davis W M. The geographical cycle[J]. The Geographical Journal, 1899,14(5):481-501.
[2]	汤国安, 那嘉明, 程维明 . 我国区域地貌数字地形分析研究进展[J]. 测绘学报, 2017,46(10):1570-1591.
	[ Tang G A, Na J M, Cheng W M . Progress of digital terrain analysis on regional geomorphology in China[J]. Acta Geodaetica et Cartographica Sinica, 2017,46(10):1570-1591. ]
[3]	马永明, 张利华, 张康 , 等. 基于SWAT模型和多源DEM数据的流域水系提取精度分析[J]. 地球信息科学学报, 2019,21(10):1527-1537.
	[ Ma Y M, Zhang L H, Zhang K , et al. Accuracy analysis of watershed system extraction based on the SWAT model and multi-source DEM data[J]. Journal of Geo-information Science, 2019,21(10):1527-1537. ]
[4]	承继成, 江美球 . 流域地貌数学模型[M]. 北京: 科学出版社, 1986.
	[ Cheng J C, Jiang M Q. Mathematical model of watershed geomorphology[M]. Beijing: Science Press, 1986. ]
[5]	Zhu H C, Tang G A, Qian K J , et al. Extraction and analysis of gully head of loess plateau in China based on digital elevation model[J]. Chinese Geographical Science, 2014,24(3):328-338. doi: 10.1007/s11769-014-0663-8
[6]	江岭, 汤国安, 赵明伟 , 等. 顾及地貌结构特征的黄土沟头提取分析[J]. 地理研究, 2013,32(11):2153-2162. doi: 10.11821/dlyj201311016
	[ Jiang L, Tang G A, Zhao M W , et al. Extraction and analysis of loess gully heads considering geomorphological structures[J]. Geographical Research, 2013,32(11):2153-2162. ] doi: 10.11821/dlyj201311016
[7]	David R, William E . Source areas, drainage, and channel initiation[J]. Water Resources Research, 1989,25(8):1907-1918.
[8]	James P, Alan D, Spencer H. Channel head location with respect to geomorphologic thresholds derived from a digital elevation model: A case study in northern Thailand[J]. Forest Ecology and Management, 2006,224:147-156.
[9]	Vanmaercke M, Poesen J, Mele BV , et al. How fast do gully headcuts retreat?[J]. Earth-Science Reviews, 2016,154:336-355.
[10]	李敏, 杨昕, 陈盼盼 , 等. 面向点云数据的黄土丘陵沟壑区沟沿线自动提取方法[J]. 地球信息科学学报, 2016,18(7):869-876.
	[ Li M, Yang X, Chen P P, et al. Method of automatic shoulder line extraction in the Loess hilly area based on point cloud data[J]. Journal of Geo-information Science, 2016,18(7):869-876. ]
[11]	Song X D, Tang G A, Li F Y , et al. Extraction of loess shoulder-line based on the parallel GVF snake model in the loess hilly area of China[J]. Computers &Geosiciences, 2013,52:11-20. doi: 10.1088/0031-9155/52/11/019 pmid: 17505099
[12]	肖晨超, 汤国安 . 黄土地貌沟沿线类型划分[J]. 干旱区地理, 2007,30(5):646-653.
	[ Xiao C C, Tang G A . Classification of valley shoulder line in Loess relief[J]. Arid Land Geography, 2007,30(5):646-653. ]
[13]	朱红春, 李永胜, 汤国安 . 面向沟谷特征点簇的空间结构模型与应用[J]. 地球信息科学学报, 2014,16(5):707-711.
	[ Zhu H C, Li Y S, Tang G A . The spatial structural model established for gully feature points cluster and its application[J]. Journal of Geo-information Science, 2014,16(5):707-711. ]
[14]	朱红春, 汤国安, 李永胜 . 黄土沟谷特征点簇及其空间结构模型研究[J]. 地理科学, 2015,35(9):1170-1175.
	[ Zhu H C, Tang G A, Li Y S . The loess gully feature points clustr and its spatial structure model[J]. Scientia Geographica Sinica, 2015,35(9):1170-1175. ]
[15]	周毅 . 基于DEM的黄土高原正负地形及空间分异研究[D]. 南京:南京师范大学, 2011.
	[ Zhou Y . DEM based research on positive-negetive terrains and their spatial variation on Loess Plateau[D]. Nanjing: Nanjing Normal University, 2011. ]
[16]	周毅 . 基于DEM的黄土正负地形研究[D]. 南京:南京师范大学, 2008.
	[ Zhou Y . Investigation of loess positive and negative terrain based on DEMs[D]. Nanjing: Nanjing Normal University, 2008. ]
[17]	Zhu T X . Gully and tunnel erosion in the hilly Loess Plateau region, China[J]. Geomorphology, 2012,153:144-155.
[18]	Zhou Y, Lei X, Yang F , et al. Characteristics and influencing factors of proximity distance index on the northern Shaanxi Loess Plateau in China[J]. Journal of Mountain Science, 2019,16(12):2844-2855.
[19]	严宝文, 李靖, 包忠谟 . 黄土沟谷下蚀趋势评价的指标体系研究[J]. 水土保持学报, 2011,15(1):122-125.
	[ Yan B W, Li J, Bao Z M . Index System for Evaluating Gully's Down-erosion Trendency in Loess Area[J]. Journal of Soil and Water Conservation, 2001,15(1):122-125. ]
[20]	Hessel R, Asch T A . Modelling gully ersion for a small catchment on the Chinese Loess Plateau[J]. Catena, 2003,54:131-146.
[21]	Kirkby M J, Bracken L J . Gully processes and gully dynamics[J]. Earth Surface Processes and Landforms, 2009,34:1841-1851.
[22]	闾国年, 钱亚东, 陈钟明 . 黄土丘陵沟壑区沟谷网络自动制图技术研究[J]. 测绘学报, 1998,27(2):131-137.
	[ Lv G N, Qian Y D, Chen Z M . Study of automated mapping of channel network in hilly loess region[J]. Acta geodaetica et cartographicasinica, 1998,27(2):131-137. ]
[23]	李照会, 郭良, 刘荣华 , 等. 基于DEM数字河网提取时集水面积阈值与河源密度关系的研究[J]. 地球信息科学学报, 2018,20(9):1244-1251.
	[ Li Z H, Guo L, Liu R H, et al. The relationship between the threshold of catchment area for extraction of digital river netsork from DEM and the river source density[J]. Journal of Geo-information Science, 2018,20(9):1244-1251. ]
[24]	雷雪, 罗明良, 周毅 , 等. 基于DEM的典型地貌区河流形态特征分析[J]. 水文, 2018,38(4):48-54.
	[ Lei X, Luo M L, Zhou Y , et al. Research on river morphology characteristics in typical geomorphologic areas based on DEM[J]. Journal of China Hydrology, 2018,38(4):48-54. ]
[25]	周毅, 汤国安, 王春 , 等. 基于高分辨率DEM的黄土地貌正负地形自动分割技术研究[J]. 地理科学, 2010,30(2):261-266.
	[ Zhou Y, Tang G A, Wang C , et al. Automatic segmentation of loess positive and negative terrains based on high resolution grid DEMs[J]. Scientia Geographica Sinica, 2010,30(2):261-266. ]
[26]	Xiong L Y, Tang G A, Li F Y , et al. Modeling the evolution of loess-covered landforms in the Loess Plateau of China using a DEM of underground bedrock surface[J]. Geomorphology, 2014,209:18-26. doi: 10.1016/j.geomorph.2013.12.009
[27]	熊礼阳, 汤国安, 袁宝印 , 等. 基于DEM的黄土高原(重点流失区)地貌演化的继承性研究[J]. 中国科学:地球科学, 2014,44(2):313-321.
	[ Xiong L Y, Tang G A, Yuan B Y , et al. Geomorphological inheritance for loess landform evolution in a severe soil erosion region of Loess Plateau of China based on digital elevation models[J]. Science China: Earth Science, 2014,44(2):313-321. ]
[28]	杨锋, 周毅, 陈旻 . 沟沿线约束的黄土水蚀性沟谷提取[J]. 山地学报, 2016,34(4):504-510.
	[ Yang F, Zhou Y, Chen M . Loess shoulder-line constrained method for waterworn gullies extraction on Loess Plateau[J]. Mountain Research, 2016,34(4):504-510. ]
[29]	秦承志, 呼雪梅 . 栅格数字地形分析中的尺度问题研究方法[J]. 地理研究, 2014,33(2):270-283. doi: 10.11821/dlyj201402007
	[ Qin C Z, Hu X M . Review on scale-related researches in grid-based digital terrain analysis[J]. Geographical Research, 2014,33(2):270-283. ] doi: 10.11821/dlyj201402007
[30]	Shreve R L . Infinite topologically random channel networks[J]. The Journal of Geology, 1967,75(2):178-186. doi: 10.1086/627245
[31]	周启鸣, 刘学军 . 数字地形分析[M]. 北京: 科学出版社, 2006.
	[ Zhou Q M, Liu X J. Digital terrain analysis[M]. Science Press: Beijing, 2006. ]
[32]	Horton R . Erosional development of streams and their drainage basin; Hydrophysical Approach to Quantitative Morfology[J]. Geological Society of America Bulletin, 1945,56:275-370. doi: 10.1130/0016-7606(1945)56[275:EDOSAT]2.0.CO;2
[33]	景可 . 黄土高原沟谷侵蚀研究[J]. 地理科学, 1986,6(4):340-347.
	[ Jing K . A Study on gully reosion on the loess plateau[J]. Scientia Geographica Sinica, 1986,6(4):340-347. ]
[34]	祝士杰, 汤国安, 李发源 , 等. 基于DEM的黄土高原面积高程积分研究[J]. 地理学报, 2013,68(7):921-932.
	[ Zhu S J, Tang G A, Li F Y , et al. Spatial variation of hypsometric integral in the Loess Plateau based on DEM[J]. Acta Geographica Sinica, 2013,68(7):921-932. ]
[35]	李宗盟, 高红山, 潘保田 , 等. 贺兰山水系流域数值地貌特征及其构造指示意义[J]. 干旱区地理, 2012,35(3):422-429.
	[ Li Z M, Gao H S, Pan B T , et al. Geomorphic indices of the river and drainage in Helan Mountain and its indication to tectonics[J]. Arid Land Geography, 2012,35(3):422-429. ]

县城	地貌类型	纬度/ °	面积/km²	平均坡度/ °	相对高差/m
淳化	黄土塬	34.88	37.90	14.33	545
宜君	黄土残塬	35.13	19.37	19.49	335
甘泉	黄土梁状丘陵沟壑区	36.21	19.34	26.15	282
绥德	黄土峁状丘陵沟壑区	37.58	12.35	29.27	320

县城	平均水平逼近度	平均垂直逼近度	沟谷密度/（km/km²）	蚕食度	面积高程积分	平均坡度/^o	面积/km²
淳化	0.55	0.60	2.76	0.21	0.65	14.33	37.90
宜君	0.57	0.54	4.64	0.43	0.59	19.49	19.37
甘泉	0.63	0.52	7.26	0.73	0.50	26.15	19.34
绥德	0.65	0.46	10.46	0.80	0.45	29.27	12.35
