基于DMSP-OLS与NPP-VIIRS整合数据的中国三大城市群城市空间扩展时空格局

doi:10.12082/dqxxkx.2020.190711

地球信息科学学报 ›› 2020, Vol. 22 ›› Issue (5): 1161-1174.doi: 10.12082/dqxxkx.2020.190711

• “空间综合人文学与社会科学”专辑 • 上一篇下一篇

基于DMSP-OLS与NPP-VIIRS整合数据的中国三大城市群城市空间扩展时空格局

董鹤松¹, 李仁杰^1,^2,^3,^*(), 李建明¹, 李帅¹

1.河北师范大学资源与环境科学学院,石家庄 050024
2.河北省环境演变与生态建设实验室,石家庄 050024
3.河北省环境变化遥感识别技术创新中心,石家庄 050024

收稿日期:2019-11-23 修回日期:2019-12-06 出版日期:2020-05-25 发布日期:2020-07-25
作者简介:董鹤松（1995— ）,男,河北承德人,硕士生,主要从事地理时空数据挖掘与分析研究。E-mail:dhs_gis@163.com
基金资助:
国家自然科学基金项目(41471127);河北师范大学在读研究生创新能力培养资助项目(CXZZSS2019074)

Study on Urban Spatiotemporal Expansion Pattern of Three First-class Urban Agglomerations in China Derived from Integrated DMSP-OLS and NPP-VIIRS Nighttime Light Data

DONG Hesong¹, LI Renjie^1,^2,^3,^*(), LI Jianming¹, LI Shuai¹

1. School of Resources and Environment Science, Hebei Normal University, Shijiazhuang 050024, China
2. Hebei Key Laboratory of Environmental Change and Ecological Construction, Shijiazhuang 050024, China
3. Hebei Innovation Center of Remote Sensing Technology for Environmental Change, Shijiazhuang 050024, China

Received:2019-11-23 Revised:2019-12-06 Online:2020-05-25 Published:2020-07-25
Contact: LI Renjie
Supported by:
National Natural Science Foundation of China(41471127);Graduate Student Innovation Ability Cultivation Support Project of Hebei Normal University(CXZZSS2019074)

摘要/Abstract

摘要：

通过拟合最优幂函数模型,将NPP-VIIRS影像模拟为DMSP-OLS影像,构建了京津冀、长江三角洲（简称长三角）和珠江三角洲（简称珠三角）三大城市群1992—2017年长时间序列夜间灯光影像集。参考城市建成区统计数据确定夜间灯光最佳阈值提取城市范围,有效剥离统计数据中包含的经济活力不足的城市空间,识别出不属于统计范围的低等级、高活力城镇区,创新了数据应用视角。研究表明：① 县级城镇和市级以上城市对三大城市群城市范围的贡献度不同。京津冀腹地广阔,县级城镇是区域经济活力的重要组成部分,整体上贡献度最大;1990s初期长三角部分县级城镇经济活力较强,大量撤县设市后县级城镇数量减少,逐渐在2005年后低于京津冀;珠三角受到社会经济发展条件和行政单元划分的影响,县级城镇对城市范围的贡献在3个城市群中始终最小。② 三大城市群城市扩展非均衡性特征存在差异。京津冀城市扩展为京、津主导下的“双核”模式,非均衡性显著,尚未形成完善的城市规模体系;长三角和珠三角城市集聚特征明显,均衡性更强。重心迁移的路径、方向和距离反映各城市群不同的扩展强度和作用模式。③ 城市空间扩展格局整体均呈现热点区不断扩大、冷点区不断缩小的特征。其中京津冀热点和冷点区相对稳定,热点区向心集聚作用较强;长三角和珠三角空间格局变化较大,区域核心城市带动作用较强。

关键词: 夜间灯光数据, 数据整合, 三大城市群, 建成区, 时空格局, 扩展强度, 重心指数, 热点分析

Abstract:

This study took Beijing-Tianjin-Hebei, the Yangtze River Delta, and the Pearl River Delta as study areas. Based on correlation analysis of overlapping years in 2012 and 2013, a power function model was used to transform NPP-VIIRS NTL data(2012—2017) to simulate DMSP-OLS NTL data. We generated a temporally consistent NTL dataset of study areas from 1992 to 2017 (consisting of 1992—2013 DMSP-OLS NTL data and 2014—2017 NPP-VIIRS NTL data). By referring to the statistical data of urban built-up area, the optimal threshold of nighttime light was determined to extract urban scope. Based on this method, urban scope with insufficient economic vitality contained in the statistical data was effectively stripped off, while those low-grade,high-vitality urban areas that did not belong to the statistical scope were identified, which innovated the perspective of data application. Results show that: ① The contribution of county-level towns and cities of the municipal level to the economic vitality in three first-class urban agglomerations was different. The Beijing-Tianjin-Hebei had a vast hinterland, and county-level towns were an important part of the regional economic vitality. As a whole, they had the largest contribution in three first-class urban agglomerations. In the early 1990s, some county-level towns in the Yangtze River Delta had strong economic vitality. After 2005, it was lower than the Beijing-Tianjin-Hebei with the process of transforming county into urban district. Affected by the socioeconomic development and the division of administrative units, the contribution of county-level towns to the urban scope in the Pearl River Delta was always the smallest in three urban agglomerations. ② There were differences in the imbalanced characteristics of urban spatial expansion in three first-class urban agglomerations. The urban spatial expansion of the Beijing-Tianjin-Hebei was led by Beijing and Tianjin, which has formed a "dual-core" model. It has not yet formed a sophisticated urban system. The Yangtze River Delta and the Pearl River Delta had obvious urban agglomeration characteristics and stronger equilibrium. The path, direction, and distance of center of gravity migration reflected the different expansion intensity and behavioral model in three first-class urban agglomerations; ③ On the whole, urban spatial expansion pattern presented the characteristics of continuously expanding hot-spot regions and shrinking cold-spot regions. Specifically, hot-spot regions and cold-spot regions were relatively stable in the Beijing-Tianjin-Hebei, and the hot-spot regions had a strong centripetal agglomeration effect. The spatial patterns of the Yangtze River Delta and the Pearl River Delta has changed greatly and the regional core cities had a stronger driving role.

Key words: Nighttime light data, data integration, three first-class urban agglomerations, built-up area, spatiotemporal pattern, intensity of spatial expansion, center of gravity index, hotspot analysis

董鹤松, 李仁杰, 李建明, 李帅. 基于DMSP-OLS与NPP-VIIRS整合数据的中国三大城市群城市空间扩展时空格局[J]. 地球信息科学学报, 2020, 22(5): 1161-1174.DOI:10.12082/dqxxkx.2020.190711

DONG Hesong, LI Renjie, LI Jianming, LI Shuai. Study on Urban Spatiotemporal Expansion Pattern of Three First-class Urban Agglomerations in China Derived from Integrated DMSP-OLS and NPP-VIIRS Nighttime Light Data[J]. Journal of Geo-information Science, 2020, 22(5): 1161-1174.DOI:10.12082/dqxxkx.2020.190711

图/表 11

表1

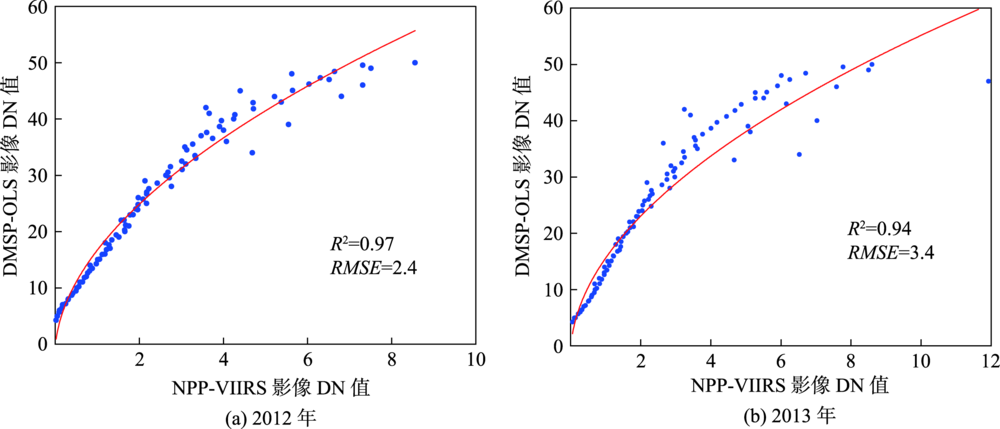

图1

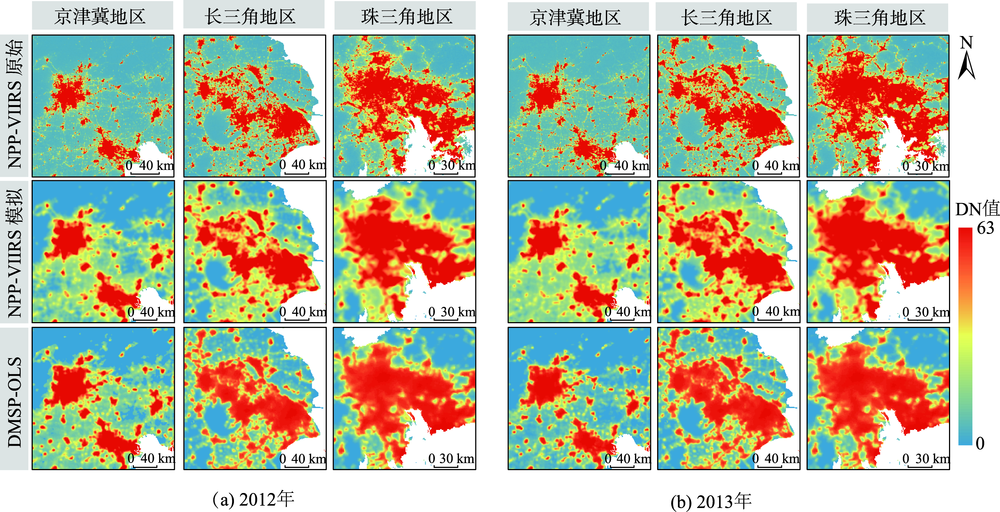

图2

表2

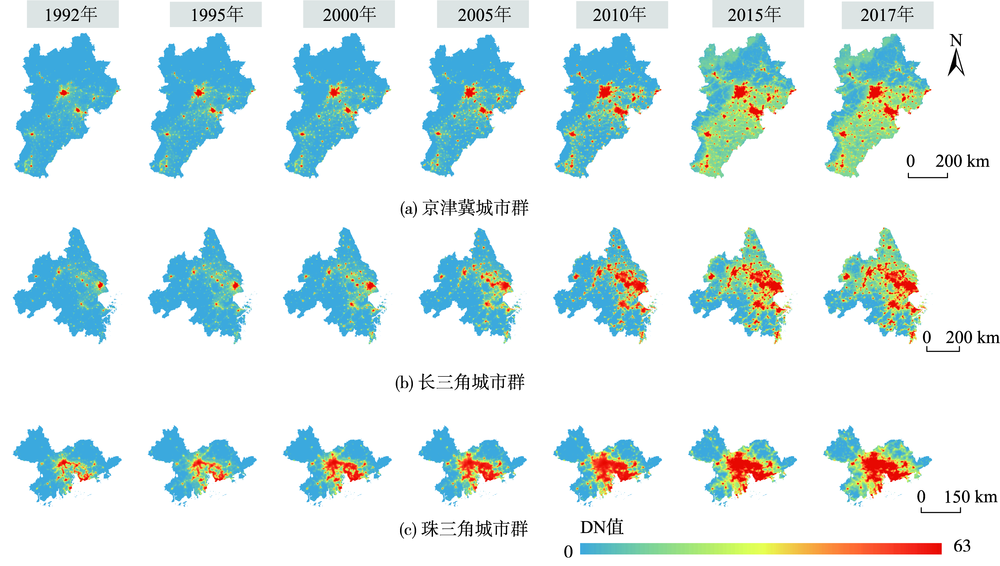

图3

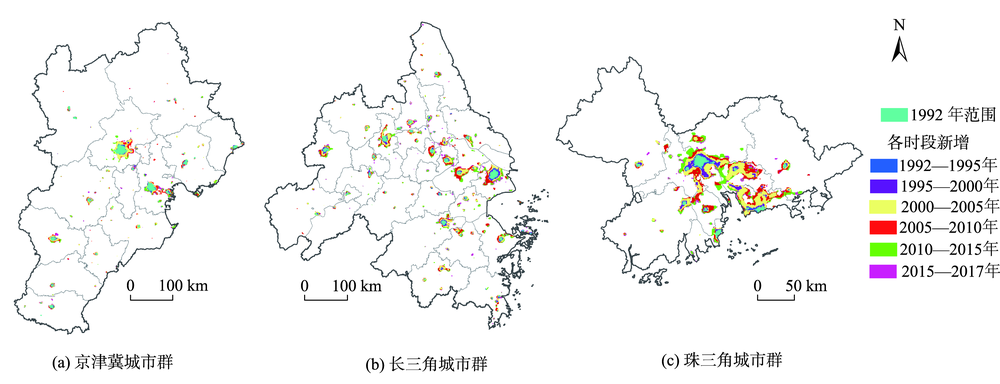

图4

表3

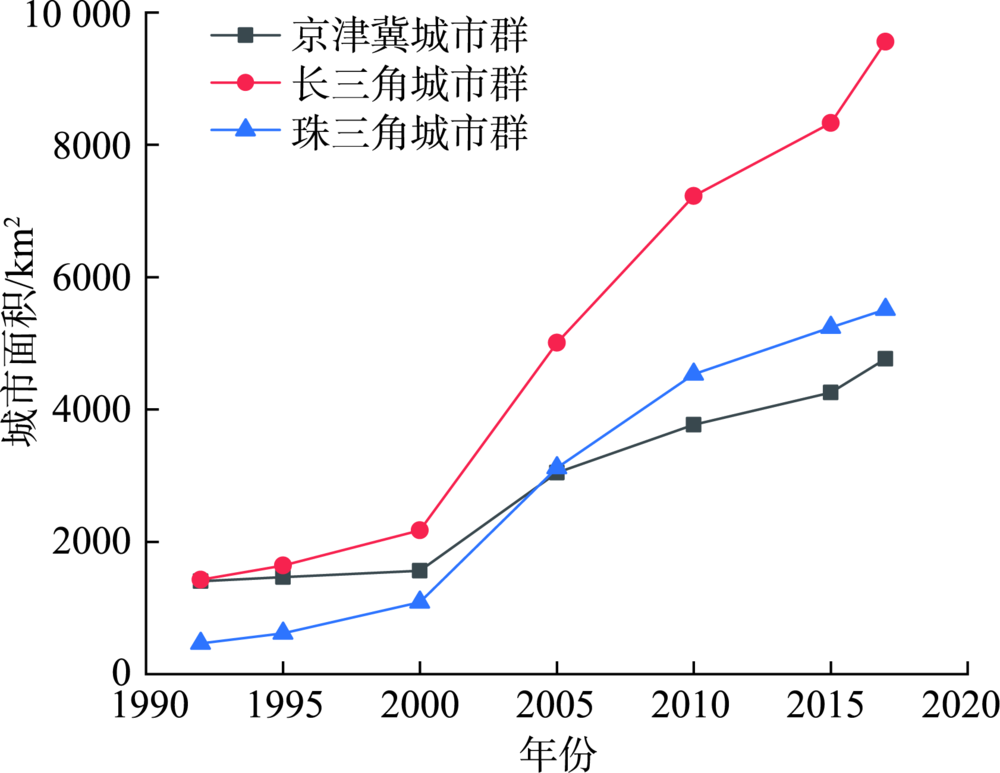

图5

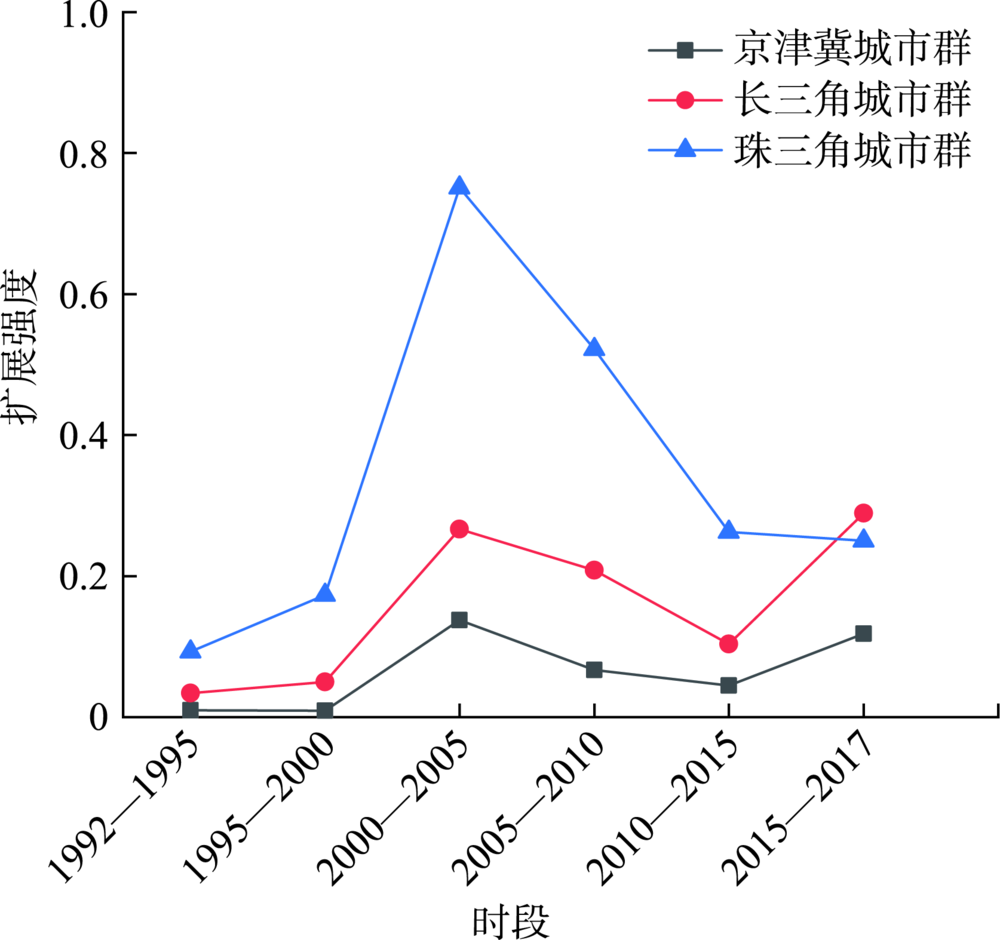

图6

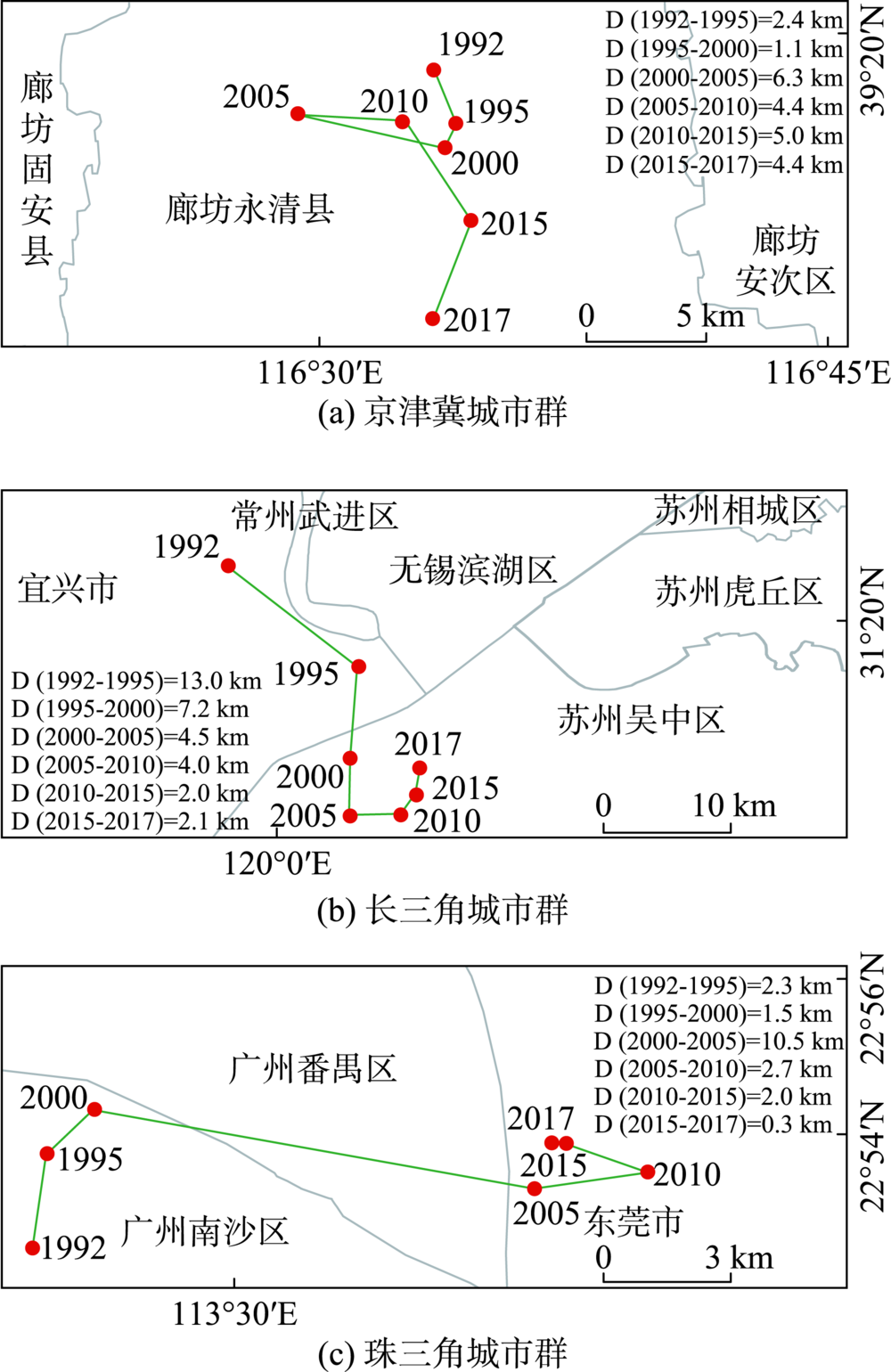

图7

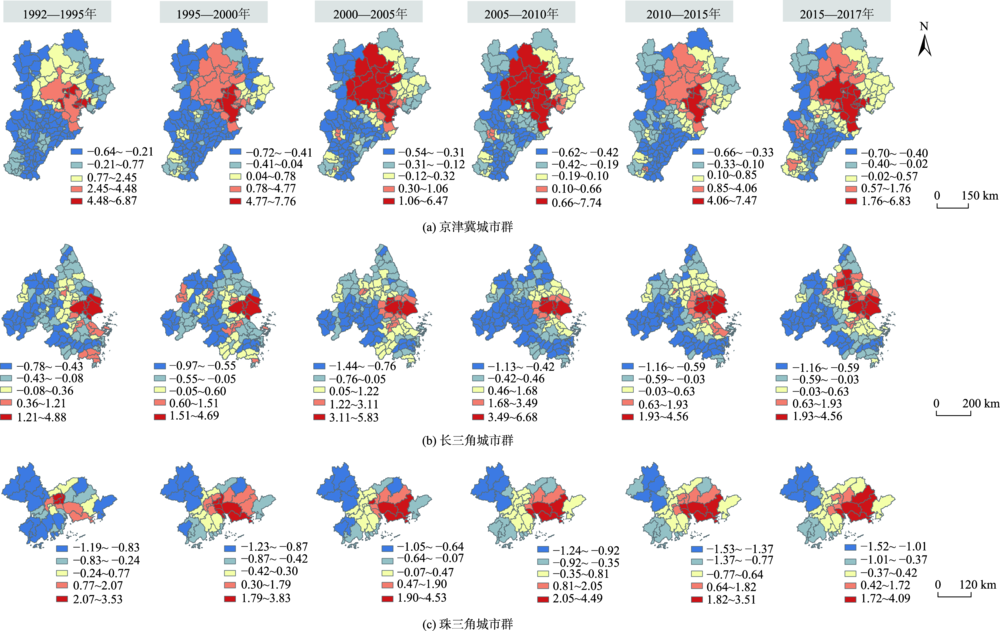

图8

参考文献 37

[1]	方创琳, 王振波, 马海涛. 中国城市群形成发育规律的理论认知与地理学贡献[J]. 地理学报, 2018,73(4):651-665.
	[ Fang C L, Wang Z B, Ma H T. The theoretical cognition of the development law of China's urban agglomeration and academic contribution[J]. Acta GeographicaSinica, 2018,73(4):651-665. ]
[2]	马双, 曾刚. 网络视角下中国十大城市群区域创新模式研究[J]. 地理科学, 2019,39(6):905-911.
	[ Ma S, Zeng G. Regional Innovation Models of China's Ten Major Urban Agglomerations from the Perspective of Network[J]. Scientia GeographicaSinica, 2019,39(6):905-911. ]
[3]	曹诗颂, 胡德勇, 赵文吉, 等. 不透水地表盖度视角下中美城市群空间结构对比——以“京津冀”与“波士华”为例[J]. 地理学报, 2017,72(6):1017-1031.
	[ Cao S S, Hu D Y, Zhao W J, et al. Spatial structure comparison of urban agglomerations between China and USA in a perspective of impervious surface coverage: A case study of Beijing-Tianjin-Hebei and Boswash[J]. Acta GeographicaSinica, 2017,72(6):1017-1031. ]
[4]	刘飞, 郑新奇, 黄晴. 基于空间分形特征的城市群实体空间识别方法[J]. 地理科学进展, 2017,36(6):677-684.
	[ Liu F, Zheng X Q, Huang Q. Identification of the physical space of urban systems based on fractal analysis[J]. Progress in Geography, 2017,36(6):677-684. ]
[5]	Liu Y, Liu X, Gao S, et al. Social Sensing: A new approach to understanding our socioeconomic environments[J]. Annals of the Association of American Geographers, 2015,105(3):512-530.
[6]	Zhang X, Li W, Zhang F, et al. Identifying urban functional zones using public bicycle rental records and point-of-interest data[J]. Isprs International Journal of Geo Information, 2018,7(12):459.
[7]	Middel A, Lukasczyk J, Zakrzewski S, et al. Urban form and composition of street canyons: A human-centric big data and deep learning approach[J]. Landscape and Urban Planning, 2019,183:122-132.
[8]	Yao Y, Zhao T L, Yuan Z H, et al. A human-machine adversarial scoring framework for urban perception assessment using street-view images[J]. International Journal of Geographical Information Science, 2019,33(12):2363-2384.
[9]	毛炜圣, 钟业喜. 长江中游城市群城市活力水平空间格局及影响因素[J]. 世界地理研究, 2020,29(1):86-95.
	[ Mao W S, Zhong Y X. Spatial pattern and influencing factors of urban vitality in the middle reaches of the Yangtze River. World Regional Studies[J]. World Regional StudieS, 2020,29(1):86-95. ]
[10]	Long Y, Zhai W, Shen Y, et al. Understanding uneven urban expansion with natural cities using open data[J]. Landscape and Urban Planning, 2017,177:281-293.
[11]	梁泽, 黄姣, 韦飞黎, 等. 基于夜光遥感影像与百度POI数据的中国城市群空间范围识别方法[J]. 地理研究, 2020,39(1):92-102.
	[ Liang Z, Huang J, Wei F L, et al. Identifying the spatial range of urban agglomerations in Chinabased on night light remote sensing and POI data[J]. Geographical Research, 2020,39(1):92-102. ]
[12]	周亮, 赵琪, 杨帆. 基于POI与NPP/VIIRS灯光数据的城市群边界定量识别[J]. 地理科学进展, 2019,38(6):840-850.
	[ Zhou L, Zhao Q, Yang F. Identification of urban agglomeration boundary based onPOI and NPP/VIIRS night light data[J]. Progress in Geography, 2019,38(6):840-850. ]
[13]	刘浩, 马琳, 李国平. 1990s以来京津冀地区经济发展失衡格局的时空演化[J]. 地理研究, 2016,35(3):471-481.
	[ Liu H, Ma L, Li G P. Spatial-temporal evolution pattern of unbalanced economic development in Beijing-Tianjin-Hebei region since the 1990s[J]. Geographical Research, 2016,35(3):471-481. ]
[14]	Croft T A. Nighttime images of the Earth from space[J]. Scientific American, 1978,239(1):86-98.
[15]	Croft T A. Burning Waste Gas in Oil Fields[J]. Nature, 1973,245(5425):375-376.
[16]	Henderson M, Yeh E T, Gong P, et al. Validation of urban boundaries derived from global night-time satellite imagery[J]. International Journal of Remote Sensing, 2003,24(3):595-609.
[17]	Small C, Pozzi F, Elvidge C D. Spatial analysis of global urban extent from DMSP-OLS night lights[J]. Remote Sensing of Environment, 2005,96(3-4):277-291.
[18]	Small C, Elvidge C D, Balk D, et al. Spatial scaling of stable night lights[J]. Remote Sensing of Environment, 2011,115(2):269-280.
[19]	陈晋, 卓莉, 史培军, 等. 基于DMSP/OLS数据的中国城市化过程研究——反映区域城市化水平的灯光指数的构建[J]. 遥感学报, 2003(3):168-175,241.
	[ Chen J, Zhuo L, Shi P J, et al. The study on urbanization process in China Based on DMSP/OLS Data: Development of a Light Index for Urbanization Level Estimation[J]. Journal of Remote Sensing, 2003(3):168-175,241. ]
[20]	何春阳, 史培军, 李景刚, 等. 基于DMSP/OLS夜间灯光数据和统计数据的中国大陆20世纪90年代城市化空间过程重建研究[J]. 科学通报, 2006,51(7):856-861.
	[ He C Y, Shi P J, Li J G, et al. Study on urbanization space process reconstruction in mainland China in the 1990s based on DMSP/OLS nighttime light and statistical data[J]. Chinese Science Bulletin, 2006,51(7):856-861. ]
[21]	Levin N, Kyba C C M, et al. Remote sensing of night lights: A review and an outlook for the future[J]. Remote Sensing of Environment, 2020,237:111443.
[22]	陈昕, 彭建, 刘焱序, 等. 基于DMSP/OLS夜间灯光数据的京津冀地区城市空间扩展与空间关联测度[J]. 地理研究, 2018,37(5):898-909.
	[ Chen X, Peng J, Liu Y X, et al. Measuring spatial expansion and correlations of cities in Beijing-Tianjin-Hebei Urban Agglomeration using DMSP/OLS nighttime light data[J]. Geographical Research, 2018,37(5):898-909. ]
[23]	许礼华. 基于NPP-VIIRS数据长三角城市群城市扩张时空演变研究[D]. 上海:上海师范大学, 2019.
	[ Xu L H. Spatial-temporal evolution of urban expansion in the Yangtze River Delta urbanagglomeration based on NPP-VIIRS data[D]. Shanghai: Shanghai Normal University, 2019. ]
[24]	马瑞峰. 珠三角城市群空间扩展格局及其驱动力因子分析——基于DMSP/OLS和NPP/VIIRS影像[J]. 宝鸡文理学院学报(自然科学版), 2018,38(3):68-75.
	[ Ma R F. Analysis of the spatial expansion pattern and its driving factors of Pearl River Delta urban-metropolitan region on the basis of DMSP/OLS and NPP/VIIRS image[J]. Journal of Baoji University of Arts and Sciences(Natrual Science), 2018,38(3):68-75. ]
[25]	Li X, Li D, Xu H, et al. Intercalibration between DMSP/OLS and VIIRS night-time light images to evaluate city light dynamics of Syria's major human settlement during Syrian Civil War[J]. International Journal of Remote Sensing, 2017,38(21):5934-5951.
[26]	Zheng Q, Weng Q, Wang K, et al. Developing a new cross-sensor calibration model for DMSP-OLS and Suomi-NPP VIIRS night-light imageries[J]. ISPRS Journal of Photogrammetry and Remote Sensing, 2019,153(7):36-47.
[27]	Zhao M, Zhou Y, Li X, et al. Building a Series of Consistent Night-Time Light Data (1992-2018) in Southeast Asia by Integrating DMSP-OLS and NPP-VIIRS[J]. IEEE Transactions on Geoscience and Remote Sensing, 2020,58(3):1843-1856.
[28]	曹子阳, 吴志峰, 匡耀求, 等. DMSP/OLS夜间灯光影像中国区域的校正及应用[J]. 地球信息科学学报, 2015,17(9):1092-1102.
	[ Cao Z Y, Wu Z F, Kuang Y Q, et al. Correction of DMSP/OLS Night-time Light Images and Its Application in China[J]. Journal of Geo-information Science, 2015,17(9):1092-1102. ]
[29]	国家统计局城市社会经济调查司. 中国城市统计年鉴[M]. 北京: 中国统计出版社,1993- 2018.
	[ Cities Socioeconomic survey office National bureau of statistics. China city statistics yearbook[M]. Beijing: China Statistics Press, 1993- 2018. ]
[30]	张梦琪, 何宗宜, 樊勇. DMSP/OLS稳定夜间灯光影像的校正方法[J]. 测绘通报, 2017(12):58-62,76.
	[ Zhang M Q, He Z Y, Fan Y. Calibration for DMSP /OLS Stable Nighttime Light Images[J]. Bulletin of Surveying and Mapping, 2017(12):58-62,76. ]
[31]	Kaifang S, Bailang Y, Yixiu H, et al. Evaluating the ability of NPP-VIIRS nighttime light data to estimate the gross domestic product and the electric power consumption of China at multiple scales: A comparison with DMSP-OLS data[J]. Remote Sensing, 2014,6(2):1705-1724.
[32]	胡忆东, 吴志华, 熊伟, 等. 城市建成区界定方法研究——以武汉市为例[J]. 城市规划, 2008(4):88-91,96.
	[ Hu Y D, Wu Z H, Xiong W, et al. Study on the method of defining urban built-up areas: the case of Wuhan[J]. Urban Planning, 2008(4):88-91,96. ]
[33]	舒松, 余柏蒗, 吴健平, 等. 基于夜间灯光数据的城市建成区提取方法评价与应用[J]. 遥感技术与应用, 2011,26(2):169-176.
	[ Shu S, Yu B L, Wu J P, et al. Methods for deriving urban built-up area using night-light data: Assessment and application[J]. Remote Sensing Technology and Application, 2011,26(2):169-176. ]
[34]	王利伟, 冯长春. 转型期京津冀城市群空间扩展格局及其动力机制——基于夜间灯光数据方法[J]. 地理学报, 2016,71(12):2155-2169.
	[ Wang L W, Feng C C. Spatial expansion pattern and its driving dynamics of Beijing-Tianjin-Hebei metropolitan region: Based on nighttime light data[J]. Acta GeographicaSinica, 2016,71(12):2155-2169.]
[35]	杨任飞. 基于DMSP/OLS与NPP/VIIRS整合数据的城市群发育过程研究[D]. 重庆:西南大学, 2018.
	[ Yang R F. Integrating DMSP/OLS & NPP/VIIRS nighttime light data to the application research of urban agglomeration Growth Process: A case study of the main urban agglomerations of Yangtze river economic zone[D]. Chongqing: Southwest University, 2018. ]
[36]	刘纪远, 张增祥, 庄大方, 等. 20世纪90年代中国土地利用变化时空特征及其成因分析[J]. 地理研究, 2003,22(1):1-12.
	[ Liu J Y, Zhang Z X, Zhuang D F, et al. A study on the spatial-temporal dynamic changes of landuse and driving forces analyses of China in the 1990s[J]. Geographical Research, 2003,22(1):1-12. ]
[37]	刘纪远, 张增祥, 徐新良, 等. 21世纪初中国土地利用变化的空间格局与驱动力分析[J]. 地理学报, 2009,64(12):1411-1420.
	[ Liu J Y, Zhang Z X, Xu X L, et al. Spatial patterns and driving forces of land use change in China in the early 21 ^st Century [J]. Acta GeographicaSinica, 2009,64(12):1411-1420. ]

数据集	a	b	c	R
F16→F15	-0.001 447	1.091	0.913	0.9309
F15→F14	-0.003 202	1.093	1.766	0.8646
F14→F12	0.003 413	0.628	2.717	0.9564
F12→F10	0.001 906	0.832	0.886	0.9171
F16→F18	0.004 262	0.673	0.766	0.8955

年份	校正前		校正后
年份	r	RMSE	r	RMSE
2012	0.66	18.8	0.88	5.3
2013	0.67	18.1	0.85	6.1

年份	京津冀城市群					长三角城市群					珠三角城市群
年份	统计	全部	差值	仅市	差值	统计	全部	差值	仅市	差值	统计	全部	差值	仅市	差值
1992	1389	1402	0.94	1390	-0.86	1398	1427	2.07	1405	-1.54	464	466	0.43	466	0.00
1995	1452	1464	0.83	1452	-0.82	1576	1643	4.25	1613	-1.83	543	617	13.63	617	0.00
2000	1582	1560	-1.39	1537	-1.47	2166	2174	0.37	2147	-1.24	1073	1086	1.21	1085	-0.09
2005	3032	3046	0.46	2956	-2.95	4959	5008	0.99	4859	-2.98	3111	3119	0.26	3118	-0.03
2010	3564	3770	5.78	3624	-3.87	6897	7225	4.76	6957	-3.71	4236	4532	6.99	4502	-0.66
2015	4231	4254	0.54	4039	-5.05	8096	8329	2.88	8006	-3.88	4809	5243	9.02	5238	-0.10
2017	4653	4765	2.41	4438	-6.86	8777	9560	8.92	9167	-4.11	5068	5514	8.80	5488	-0.47
合计	19 903	20 261	1.80	19 436	-4.07	33 869	35 366	4.42	34154	-3.43	19304	20 577	6.59	20 514	-0.31
