基于2种夜间灯光影像亮度修正指数的城市建成区提取研究

doi:10.12082/dqxxkx.2020.200128

地球信息科学学报 ›› 2020, Vol. 22 ›› Issue (8): 1714-1724.doi: 10.12082/dqxxkx.2020.200128

基于2种夜间灯光影像亮度修正指数的城市建成区提取研究

闫庆武¹^,^*(), 厉飞¹, 李玲²

1.中国矿业大学环境与测绘学院,徐州 221116
2.徐州市规划设计院,徐州 221000

收稿日期:2020-03-20 修回日期:2020-05-12 出版日期:2020-08-25 发布日期:2020-10-25
通讯作者: 闫庆武 E-mail:yanqingwu@cumt.edu.cn
作者简介:闫庆武（1975— ）,男,山东邹城人,副教授,主要从事GIS应用、人口地理学、人口数据空间化研究。E-mail:yanqingwu@cumt.edu.cn
基金资助:
武汉大学测绘遥感信息工程国家重点实验室开放基金(18T03);内蒙古自治区科技计划项目(2060399-273)

Research on Built-up Area Extraction via Brightness Correction Indexes based on Two Kinds of Nighttime Light Images

YAN Qingwu¹^,^*(), LI Fei¹, LI Ling²

1. School of Environment Science and Spatial Informatics, China University of Mining and Technology, Xuzhou 221116, China
2. Urban Planning and Design Institute of Xuzhou, Xuzhou 221000, China

Received:2020-03-20 Revised:2020-05-12 Online:2020-08-25 Published:2020-10-25
Contact: YAN Qingwu E-mail:yanqingwu@cumt.edu.cn
Supported by:
Open Fund of State Laboratory of Information Engineering in Surveying, Mapping and Remote Sensing, Wuhan University(18T03);Science and technology project of Inner Mongolia Autonomous Region(2060399-273)

摘要/Abstract

摘要：

夜间灯光影像容易受到道路灯光、水面散射等影响而产生背景噪声,这一定程度上影响了利用夜间灯光数据提取建成区的精度。本文基于夜间灯光影像的DN（Digital Number）值与路网密度正相关、与EVI指数（Enhanced Vegetation Index,增强型植被指数）呈负相关的规律,提出了2种可用于建成区提取的夜间灯光亮度修正指数：EVI夜间灯光亮度修正指数EANI (EVI Adjusted Nighttime Light(NTL) Index)和基于道路网密度与EVI指数的夜间灯光亮度修正指数REANI (Road Density & EVI Adjusted NTL Index),并利用珞珈1号卫星（LJ1-01,分辨率约130 m）影像和NPP-VIIRS影像（分辨率约 500 m） 2种不同空间分辨率夜间灯光遥感影像进行验证。以2018年徐州市建成区为研究对象,分区域（主城区、外围区）利用阈值法对2种原始夜间灯光影像、经EANI指数和REANI指数处理后的影像进行建成区提取,得到6种建成区提取的结果。研究表明： ① EANI指数和REANI指数能够有效抑制夜间灯光影像的背景噪声,建成区提取的结果均优于直接利用原始影像的结果,特别是对于城市化水平较低地区的建成区提取效果更佳;② 相较于NPP-VIIRS影像,利用LJ1-01影像提取建成区的效果提高6%左右,说明我国的LJ1-01夜间灯光影像在建成区提取方面有广阔的应用前景。EANI和REANI为建成区提取提供了有效工具,并可应用于城市规划和城市扩张等研究领域。

关键词: 夜间灯光影像, 珞珈01星影像, NPP-VIIRS影像, EANI, REANI, 去噪, 建成区提取, 徐州市

Abstract:

Nighttime light data are widely used to monitor human activities from space, such as urban development, population density simulation, energy gas emissions, power consumption, human activities and effects, economic development level, and ecological environment. However, due to road lights and light scattering from water surface, Nighttime Light (NTL) images always contain a lot of background noises. These background noises may greatly limit the application of nighttime light images in built-up area extraction. In our paper, based on high-resolution nighttime light images of Lujia1-01 from China and NPP-VIIRS from the United States in the second half of 2018, the Enhanced Vegetation Index (EVI) Adjusted NTL Index (EANI) and Road Density & EVI Adjusted NTL Index (REANI) were proposed to reduce background noises and applied to built-up area extraction. The EANI and REANI were developed based on the law that the Digital Number (DN) values of the nighttime light images are positively correlated with road density and negatively correlated with the EVI. In this paper, the Xuzhou city of China was selected as the research area. The threshold method was used to extract built-up areas in the main city and the peripheral area from the original LJ1-01 and NPP-VIIRS images, and the images processed by the EANI and the REANI, respectively. The results show that: (1) both EANI and REANI can effectively reduce background noises in nighttime light images. The results extracted from images processed by these two indexes were much better than that from the original NTL images, especially for the low urbanization areas; and (2) LJ1-01 performed better than NPP-VIIRS in built-up area extraction. Due to the higher spatial resolution of LJ1-01 data, the accuracy of extracted built-up areas from LJ1-01 was much higher than that from NPP-VIIRS in low-level urbanization areas, but was about the same with NPP-VIIRS in areas with high urbanization levels. Through error analysis, the relative error of extracted built-up areas from LJ1-01 decreased by about 6%, which indicates that LJ1-01 nighttime light image is promising for future built-up area extraction. Also, both EANI and REANI provide effective tools for the extraction of built-up areas and could be further applied to researches such as urban planning and urban expansion.

Key words: Nighttime Light Images, LJ1-01 Images, NPP-VIIRS Images, EANI, REANI, denoise, built-up area extraction, Xuzhou City

闫庆武, 厉飞, 李玲. 基于2种夜间灯光影像亮度修正指数的城市建成区提取研究[J]. 地球信息科学学报, 2020, 22(8): 1714-1724.DOI:10.12082/dqxxkx.2020.200128

YAN Qingwu, LI Fei, LI Ling. Research on Built-up Area Extraction via Brightness Correction Indexes based on Two Kinds of Nighttime Light Images[J]. Journal of Geo-information Science, 2020, 22(8): 1714-1724.DOI:10.12082/dqxxkx.2020.200128

图/表 8

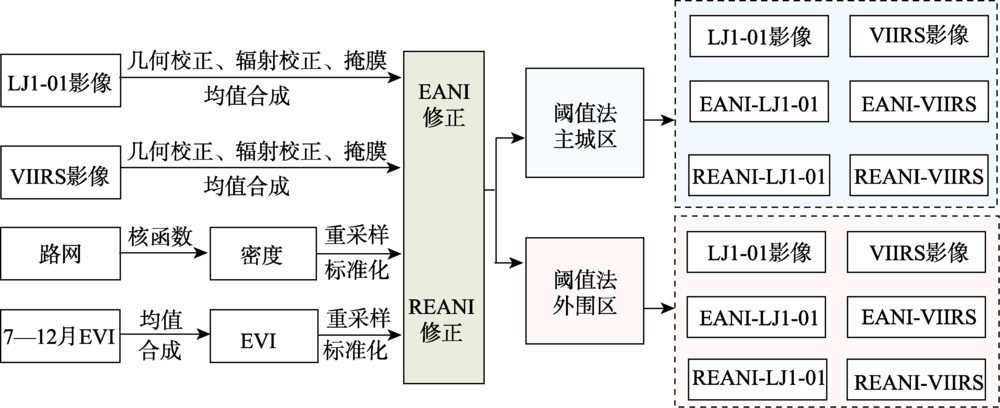

图1

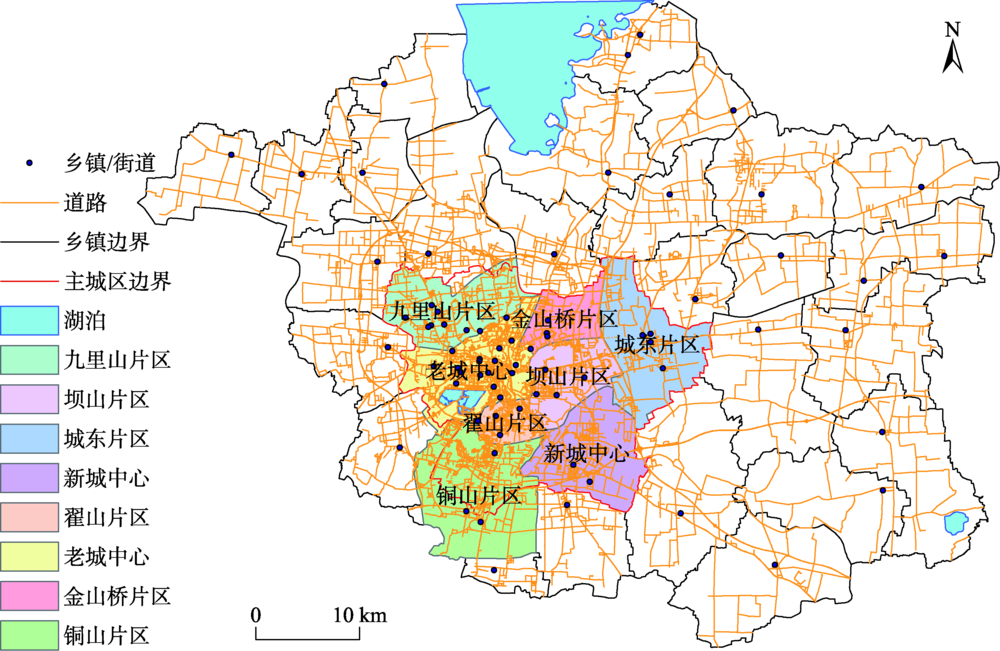

图2

图3

表1

LJ1-01和NPP-VIIRS主要参数"

参数	LJ1-01	NPP-VIIRS
空间分辨率/m	130	500
幅宽/km	250	3000
光谱范围/ $μm$	0.46~0.98	0.5~0.9
辐射分辨率/bits	14	14
可获取时间段	2018年6月至今	2012年至今

表1

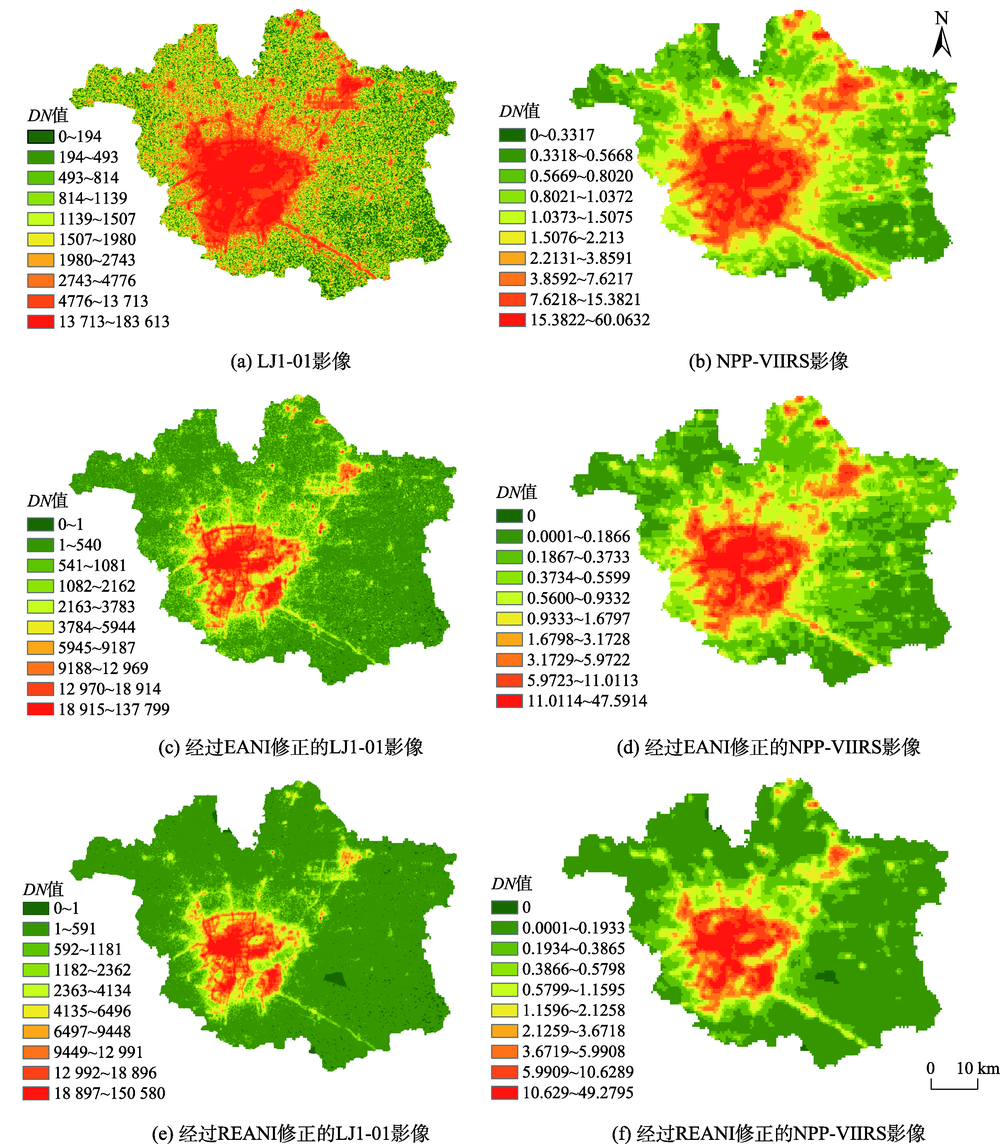

图4

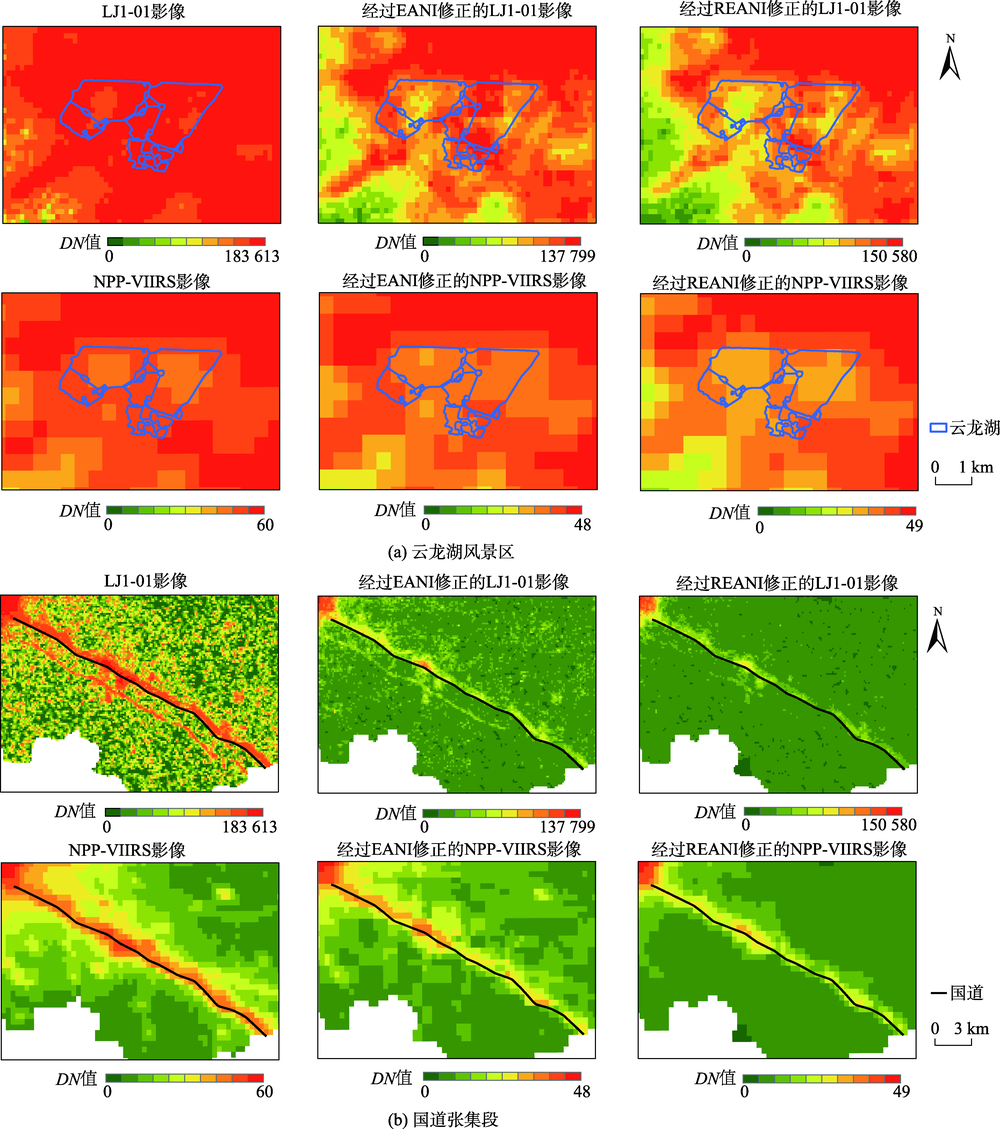

图5

表2

表3

参考文献 37

[1]	陈颖彪, 郑子豪, 吴志峰, 等. 夜间灯光遥感数据应用综述和展望[J]. 地理科学进展, 2019,38(2):205-223.
	[ Chen Y B, Zheng Z H, Wu Z F, et al. Review and prospect of application of nighttime light remote sensing data[J]. Progress in Geography, 2019,38(2):205-223. ]
[2]	高宁, 盖迎春, 宋晓谕. 基于夜间灯光数据的西安市城市扩张及驱动因素研究[J]. 遥感技术与应用, 2019,34(1):207-215.
	[ Gao N, Ge Y C, Song X Y. Study of urban expansion and driving factors in Xi'an City based on nighttime light data[J]. Remote Sensing Technology and Application, 2019,34(1):207-215. ]
[3]	Zheng Q M, Zeng Y, Deng J S, et al. "Ghost cities" identification using multi-source remote sensing datasets: A case study in Yangtze River Delta[J]. Applied Geography, 2017,80:112-121.
[4]	张志刚, 张安明, 郭欢欢. 基于DMSP/OLS夜间灯光数据的城乡结合部空间识别研究—以重庆市主城区为例[J]. 地理与地理信息科学, 2016,32(6):37-42.
	[ Zhang Z G, Zhang A M, Guo H H. Spatial recognition of the urban-rural fringe based on DMSP/OLS nighttime light data: A case study of the main urban areas of Chongqing[J]. Geography and Geo-information Science, 2016,32(6):37-42. ]
[5]	李德仁, 余涵若, 李熙. 基于夜光遥感影像的“一带一路”沿线国家城市发展时空格局分析[J]. 武汉大学学报·信息科学版, 2017,42(6):711-720.
	[ Li D R, Yu H R, Li X. The spatial-temporal pattern analysis of city development in countries along the Belt and Road Initiative based on nighttime light data[J]. Geomatics and Information Science of Wuhan University, 2017,42(6):711-720. ]
[6]	王磊, 陈锐志, 李德仁, 等. 珞珈一号低轨卫星导航增强系统信号质量评估[J]. 武汉大学学报·信息科学版, 2018,43(12):2191-2196.
	[ Wang L, Chen R Z, Li D R. et al. Quality assessment of the LEO Navigation Augmentation signals from Luojia-1A satellite[J]. Geomatics and Information Science of Wuhan University, 2018,43(12):2191-2196. ]
[7]	王若曦, 李建, 李熙, 等. DMSP夜间灯光数据与Landsat 数据结合的建成区提取研究——以江西省为例[J]. 华中师范大学学报(自然科学版), 2018,52(1):130-136,146.
	[ Wang R X, Li J, Li X, et al. Extraction of built-up areas using combination of Landsat and DMSP data: A case study of Jiangxi Province[J]. Journal of Central China Normal University, 2018,52(1):130-136,146. ]
[8]	邹进贵, 陈艳华, 丁鸽, 等. 利用DMSP/OLS灯光影像提取城镇建成区的聚类阈值法[J]. 武汉大学学报·信息科学版, 2016,41(2):196-201.
	[ Zou J G, Chen Y H, Ding G, et al. A clustered threshold method for extracting urban built-up area using the DMSP/OLS nighttime images[J]. Geomatics and Information Science of Wuhan University, 2016,41(2):196-201. ]
[9]	Wei G, Lu D S, Wu Y L, et al. Mapping impervious surface distribution with integration of SNNP VIIRS-DNB and MODIS NDVI data[J]. Remote Sensing, 2015,7(9):12459-12477.
[10]	郭忻怡, 闫庆武, 谭晓悦, 等. 基于DMSP/OLS与NDVI的江苏省碳排放空间分布模拟[J]. 世界地理研究, 2016,25(4):102-110.
	[ Guo X Y, Yan Q W, Tan X Y, et al. Spatial distribution of carbon emissions based on DMSP/OLS nighttime light data and NDVI in Jiangsu Province[J]. World Regional Studies, 2016,25(4):102-110. ]
[11]	Li, R, Liu, X, Li, X. Estimation of the PM_2.5 pollution levels in Beijing based on nighttime light data from the Defense Meteorological Satellite Program-Operational Linescan System[J]. Atmosphere, 2015,6:607-622.
[12]	赵笑然, 石汉青, 杨平吕, 等. NPP卫星VIIRS微光资料反演夜间PM_2.5质量浓度[J]. 遥感学报, 2017,21(2):291-299.
	[ Zhao X R, Shi H Q, Yang P L, et al. Inversion algorithm of PM_2.5 air quality based on nighttime light data from NPP/VIIRS[J]. Journal of Remote Sensing, 2017,21(2):291-299. ]
[13]	郭恒亮, 杨硕, 赫晓慧, 等. 基于夜间灯光数据的郑州市大气污染暴露强度研究[J]. 河南理工大学学报(自然科学版), 2019,38(3):81-88.
	[ Guo H L, Yang S, He X H, et al. Study on the exposure intensity of air pollution in Zhengzhou City based on nighttime lighting[J]. Journal of Henan Polytechnic University, 2019,38(3):81-88. ]
[14]	黄杰, 闫庆武, 刘永伟. 基于DMSP/OLS与土地利用的江苏省人口数据空间化研究[J]. 长江流域资源与环境, 2015,24(5):735-741.
	[ Huang J, Yan Q W, Liu Y W. Modeling the population density of Jiangsu Province based on DMSP/OLS satellite imagery and land use data[J]. Resources and Environment in the Yangtze Basin, 2015,24(5):735-741. ]
[15]	Zhao N Z, Hsu F, Cao G F, et al. Improving accuracy of economic estimations with VIIRS DNB image products[J]. International Journal of Remote Sensing, 2017,38(21):5899-5918.
[16]	卢秀, 李佳, 段平, 等. 基于夜间灯光和土地利用数据的云南沿边地区GDP空间差异性分析[J]. 地球信息科学学报, 2019,21(3):455-466.
	[ Lu X, Li J, Duan P, et al. Spatial difference of GDP in Yunnan border area based on nighttime light and land use data[J]. Journal of Geo-information Science, 2019,21(3):455-466. ]
[17]	顾鹏程, 王世新, 周艺, 等. 基于时间序列DMSP/OLS夜间灯光数据的GDP预测模型[J]. 中国科学院大学学报, 2019,36(2):188-195.
	[ Gu P C, Wang S X, Zhou Y. et al. Estimation of GDP based on long time series of DMSP/OLS nighttime light images[J]. Journal of University of Chinese Academy of Sciences, 2019,36(2):188-195. ]
[18]	李德仁, 李熙. 论夜光遥感数据挖掘[J]. 测绘学报, 2015,44(6):591-601.
	[ Li D R, Li X. An overview on data mining of nighttime light remote sensing[J]. Acta Geodaetica et Cartographica Sinica, 2015,44(6):591-601. ]
[19]	卓莉, 张晓帆, 郑璟, 等. 基于EVI指数的DMSP/OLS夜间灯光数据去饱和方法[J]. 地理学报, 2015,70(8):1339-1350.
	[ Zhuo L, Zhang X F, Zheng J, et al. An EVI-based method to reduce saturation of DMSP/OLS nighttime light data[J]. Acta Geographica Sinica, 2015,70(8):266-276. ]
[20]	郭晗. 珞珈一号科学试验卫星[J]. 卫星应用, 2018,79(7):70.
	[ Guo H. Luojia-1scientific experiment satellite[J]. Satellite Application, 2018,79(7):70. ]
[21]	Zhang G, Wang J, Jiang Y, et al. On-orbit geometric calibration and validation of Luojia 1-01 night-light satellite[J]. Remote Sensing, 2019,11(3), 264.
[22]	柴子为, 王帅磊, 乔纪纲. 基于夜间灯光数据的珠三角地区镇级GDP估算[J]. 热带地理, 2015,35(3):379-385.
	[ Chai Z W, Wang S L, Qiao J G. Township GDP estimation of the Pearl River Delta based on the NPP/VIIRS night-time satellite data[J]. Tropical Geography, 2015,35(3):379-385. ]
[23]	唐梁博, 崔海山. 基于NPP-VIIRS 夜间灯光数据和Landsat-8 数据的城镇建筑用地提取方法改进:以广州市为例[J]. 测绘与空间地理信息, 2017,40(9):69-73.
	[ Tang L B, Cui H S. Improvement of urban construction land extraction method based on NPP/VIIRS nighttime light data and Landsat-8 data: A case study of Guangzhou City[J]. Geomatics & Spatial Information Technology, 2017,40(9):69-73. ]
[24]	Weng Q, Lu D, Liang B. Urban surface biophysical descriptors and land Surface temperature variations[J]. Photogrammetric Engineering & Remote Sensing, 2006,72(11):1275-1286.
[25]	Jiang S, Li J, Duan P, et al. An image layer difference index method to extract light area from NPP/VIIRS nighttime light monthly data[J]. International Journal of Remote Sensing, 2019,40(11-12):4839-4855.
[26]	Pozzi F, Small C. Analysis of urban land cover and population density in the United States[J]. Photogrammetric Engineering & Remote Sensing, 2005,71(6):719-726.
[27]	郑子豪, 陈颖彪, 吴志峰, 等. 单元路网长度的DMSP/OLS夜间灯光数据去饱和方法[J]. 遥感学报, 2018,22(1):161-173.
	[ Zheng Z H, Chen Y B, Wu Z F, et al. Method to reduce saturation of DMSP/OLS nighttime light data based on UNL[J]. Journal of Remote Sensing, 2018,22(1):161-173. ]
[28]	郑洪晗, 桂志鹏, 栗法, 等. 夜间灯光数据和兴趣点数据结合的建成区提取方法[J]. 地理与地理信息科学, 2019,35(2):25-32.
	[ Zheng H H, Gui Z P, Li F, et al. Urban built-up area extraction method based on nighttime light images and point of interest data[J]. Geography and Geo-information Science, 2019,35(2):25-32. ]
[29]	Zhang Q, Schaaf C, Seto K. The vegetation adjusted NTL urban index: A new approach to reduce saturation and increase variation in nighttime luminosity[J]. Remote Sensing of Environment, 2013,129:32-41.
[30]	李文梅, 覃志豪, 李文娟, 等. MODIS NDVI与MODIS EVI的比较分析[J]. 遥感信息, 2016(6):73-78.
	[ Li W M, Qin Z H, Li W J, et al. Comparison and analysis of MODIS NDVI and MODIS EVI[J]. Remote Sensing Information, 2016(6):73-78. ]
[31]	李晓香, 张文, 孟令奎. 河南地区VIIRS NDVI与EVI特性对比与分析[J]. 地理空间信息, 2019,17(1):16-19,10.
	[ Li X X, Zhang W, Meng L K. Study on the relationship between VIIRS NDVI and VIIRS EVI in Henan[J]. Geospatial Information, 2019,17(1):16-19,10. ]
[32]	徐州市人民政府. 徐州市城市总体规划(2007-2020)(2017年修订)[EB/OL]. http://www.xz.gov.cn/zgxz/zwgk/20101117/008004005_197967e6-c1bb-461c-8ac4-a20- 6056eadf0.html, 2019-07-12.
	[ Xuzhou Municipal People's Government. Xuzhou City master plan (2007-2020) (revised in 2017)[EB/OL]. http://www.xz.gov.cn/zgxz/zwgk/20101117/008004005_197967e6-c1bb-461c-8ac4-a20- 6056eadf0.html, 2019-07-12.]
[33]	National Oceanic and Atmospheric Administration (NOAA) National Centers for Environmental Information (NCEI)Earth Observations Group (EOG). Version 1 VIIRS day/night band nighttime lights [DB/OL]. https://ngdc.noaa.gov/eog/viirs/download_dnb_composites.html, 2019-07-12.
[34]	高分辨率对地观测系统湖北数据与应用中心. 珞珈一号01星夜间灯光产品[DB/OL]. http://59.175.109.173:8888/index.html, 2019-07-12.
	[ Hubei Data and Application Center of High Resolution Earth Observation System. Luojia 1-01 nighttime light products [EB/OL]. http://59.175.109.173:8888/index.html, 2019-07-12.]
[35]	钟亮, 刘小生, 杨鹏. SNPP-VIIRS夜间灯光影像去噪方法研究[J]. 测绘通报, 2019(3):21-26.
	[ Zhong L, Liu X S, Yang P. Method for SNPP-VIIRS nighttime lights images denoising[J]. Bulletin of Surveying and Mapping, 2019(3):21-26. ]
[36]	National Aeronautics and Space Administration (NASA)Level-1 and Atmosphere Archive & Distribution System ( LAADS ) Distributed Active Archive Center ( DAAC ). MYD13A1-MODIS/Aqua vegetation indices monthly L3global 250 m SIN grid[DB/OL]. https://ladsweb.modaps.eosdis.nasa.gov/api/missions-and-measurements/product/MOD13Q1 2019-07-12.
[37]	徐州市统计局. 徐州统计年鉴2019[M]. 北京: 中国统计出版社, 2019.
	[ Xuzhou Statistics Bureau. Xuzhou statistical yearbook 2019[M]. Beijing: China Statistics Press, 2019. ]

区域	参数	LJ1-01			NPP-VIIRS
区域	参数	原始影像	EANI	REANI	原始影像	EANI	REANI
研究区	阈值	8100	3900	2200	6.5	2.85	1.56
	提取的栅格数/个	24 663	24 640	24 644	2489	2491	2488
	提取面积/hm²	44 757.20	44 715.80	44 725.19	44 089.88	47 648.23	47 618.50
主城区	阈值	11 400	5950	3950	9	4.1	2.7
	提取的栅格数/个	17 355	17 355	17 320	1775	1784	1778
	提取面积/hm²	31 503.36	31 503.13	31 439.77	31 461.57	34 154.06	34 039.53
外围区	阈值	5780	2570	1315	4.73	2.07	1.03
	提取的栅格数/个	6963	6954	6970	713	716	716
	提取面积/hm²	12 619.05	12 602.21	12 634.82	12 610.09	13 649.56	13 684.48

	区域	LJ1-01			NPP-VIIRS
	区域	原始影像	EANI	REANI	原始影像	EANI	REANI
绝对误差/hm²	主城区+外围区	16 514	16 739	15 171	19 257	19 263	17 802
	主城区	6959	7441	6911	7032	7476	6929
	外围区	9555	9298	8260	12 225	11 787	10 873
相对误差/%	主城区+外围区	37.27	37.77	34.23	43.45	43.47	40.17
	主城区	22.01	23.53	21.86	22.24	23.64	21.91
	外围区	75.26	73.24	65.06	96.29	92.84	85.64
