地球信息科学学报 ›› 2021, Vol. 23 ›› Issue (3): 443-455.doi: 10.12082/dqxxkx.2021.200195
收稿日期:
2020-04-24
修回日期:
2020-06-12
出版日期:
2021-03-25
发布日期:
2021-05-25
通讯作者:
赵耀龙
E-mail:chenmingfa@m.scnu.edu.cn;zhaoyaolong@m.scnu.edu.cn
作者简介:
陈明发(1995- ),男,福建尤溪人,硕士,助理工程师,主要从事空间分析与政策模拟研究。 E-mail: chenmingfa@m.scnu.edu.cn
基金资助:
CHEN Mingfa1,2(), LIU Fan1, ZHAO Yaolong1,*(
), YANG Guang1
Received:
2020-04-24
Revised:
2020-06-12
Online:
2021-03-25
Published:
2021-05-25
Contact:
ZHAO Yaolong
E-mail:chenmingfa@m.scnu.edu.cn;zhaoyaolong@m.scnu.edu.cn
Supported by:
摘要:

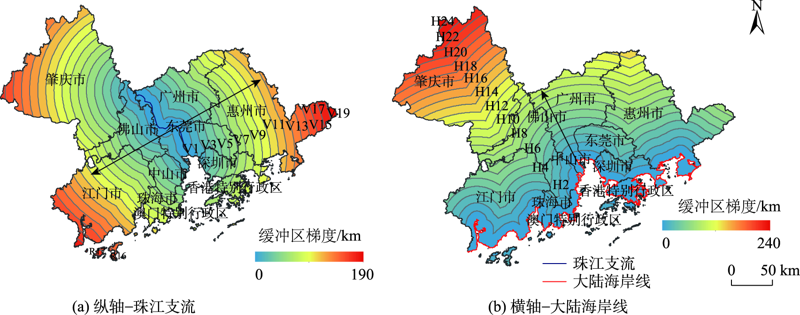

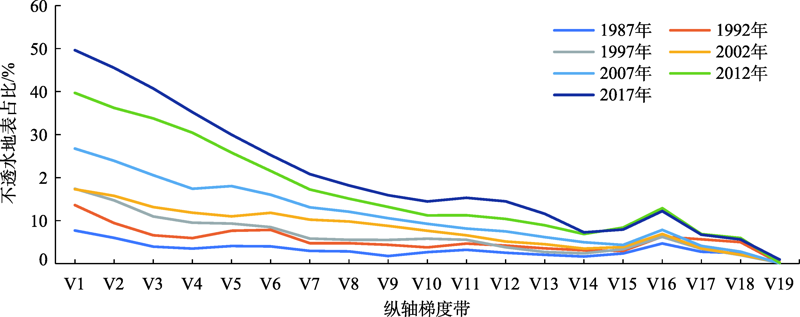

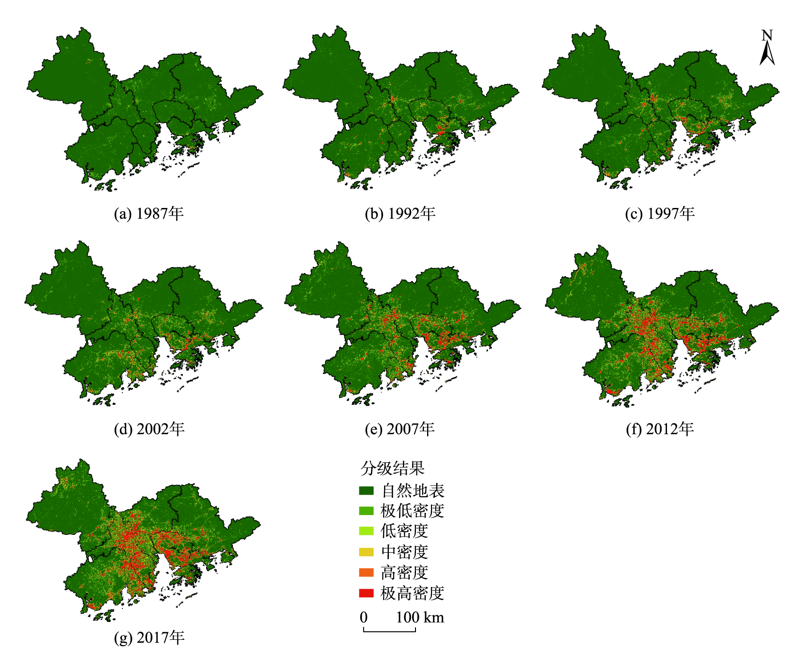

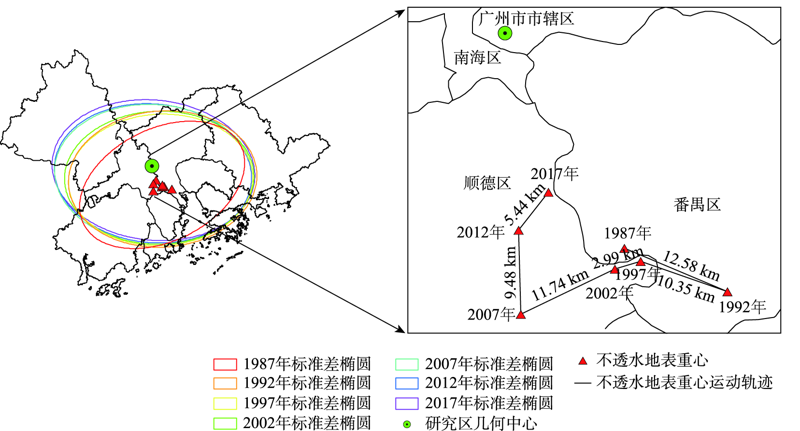

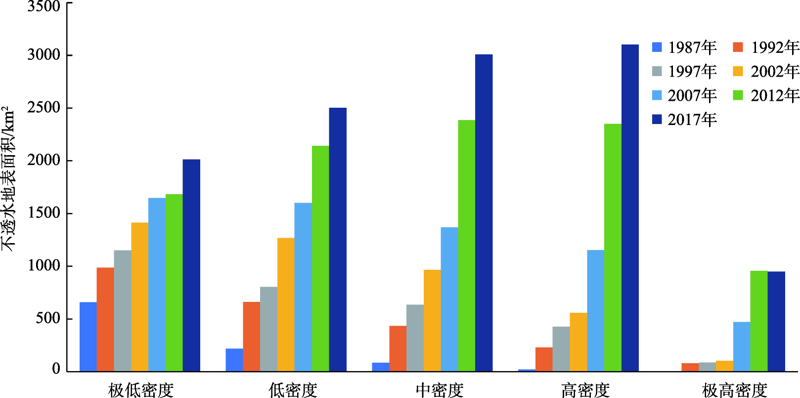

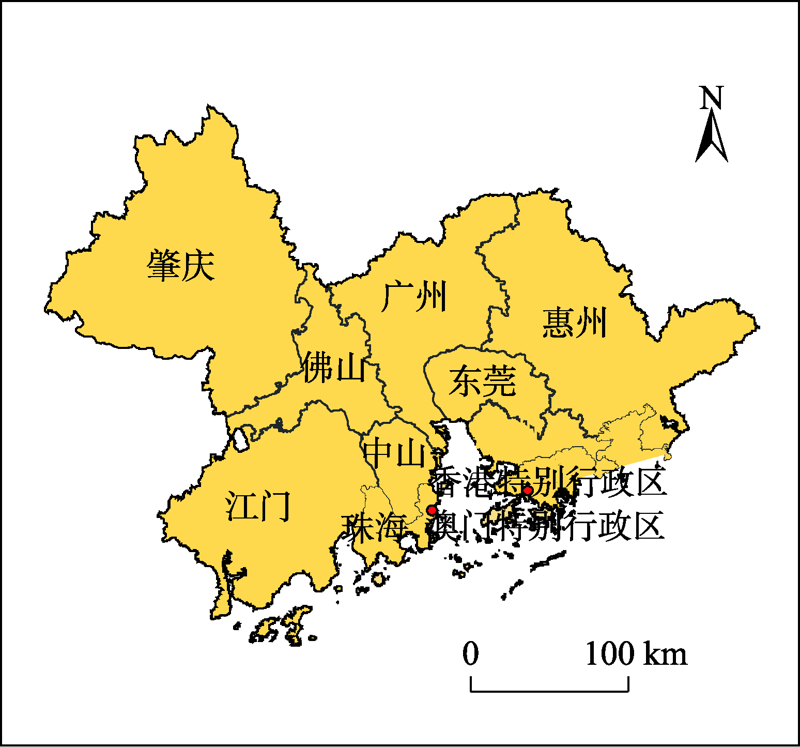

不透水地表是衡量城市化过程与空间扩张的重要特征。本文以我国最具经济活力的城市群-粤港澳大湾区城市(以下简称大湾区)为研究区,采用重心-标准差椭圆与梯度分析等方法,探讨其1987—2017年不透水地表的时空扩张分布特征与演化趋势。结果表明:① 30年来大湾区的不透水地表面积从1839.34 km2持续增长至12 385.93 km2。城市化进程进入21世纪后明显加快,整体形成了广、深、港、澳等中心城市带动,各次级城市组团,网络结构发展的空间扩张格局。② 大湾区不透水地表重心位于广州番禺与佛山顺德交界处附近,城市建设扩张靠近大陆海岸带区域,范围不断扩大。广、莞、佛等地的城市建设极大带动了不透水地表重心与方向的变化;③ 城市建设以珠江支流与大陆海岸线为轴心扩张的特征明显,各地核心城区与海湾区域的建设扩张共同构成了大湾区的发展核心,整体形成了中心城区为主、大陆海岸线为辅的协同发展趋势。粤港澳大湾区建设已上升为国家战略,未来需进一步强化内部各城市间的要素交互,在发挥核心城区辐射引领作用的同时,充分利用沿海产业优势,带动实现大湾区的城乡融合发展。
陈明发, 刘帆, 赵耀龙, 杨光. 1987—2017年粤港澳大湾区城市群的不透水地表扩张与梯度演化[J]. 地球信息科学学报, 2021, 23(3): 443-455.DOI:10.12082/dqxxkx.2021.200195
CHEN Mingfa, LIU Fan, ZHAO Yaolong, YANG Guang. The Expansion and Gradient Evolution of Impervious Surface within the Guangdong-Hong Kong-Macao Greater Bay Area from 1987 to 2017[J]. Journal of Geo-information Science, 2021, 23(3): 443-455.DOI:10.12082/dqxxkx.2021.200195
表1
Landsat系列影像成像时间"
传感器 条代号 | TM | ETM+ | ETM | OLI | ||||||
---|---|---|---|---|---|---|---|---|---|---|
1987年 | 1991-1993年 | 1997年前后 | 2002年前后 | 2007年 | 2012年前后 | 2017年 | ||||
121/44 | 1987-12-17 | 1991-10-11 | 1997-01-10 | 2001-12-31 | 2007-11-14 | 2012-10-10 | 2017-11-01 | |||
121/45 | 1987-12-17 | 1991-10-11 | 1997-01-10 | 2002-02-17 | 2007-01-30 | 2013-10-05 | 2017-12-19 | |||
122/43 | 1987-12-08 | 1993-10-05 | 1997-11-01 | 2002-11-07 | 2007-10-20 | 2012-11-02 | 2017-12-26 | |||
122/44 | 1987-12-08 | 1993-10-05 | 1997-11-01 | 2002-11-07 | 2007-09-18 | 2012-11-02 | 2017-10-23 | |||
122/45 | 1987-12-08 | 1991-09-14 | 1997-11-01 | 2002-01-07 | 2007-09-18 | 2013-10-20 | 2017-10-23 | |||
123/43 | 1987-09-10 | 1993-10-12 | 1996-12-23 | 2001-12-29 | 2007-01-28 | 2012-12-25 | 2017-10-30 | |||
123/44 | 1987-09-10 | 1991-09-21 | 1997-09-05 | 2001-12-29 | 2007-01-28 | 2012-12-25 | 2017-10-30 | |||
123/45 | 1987-09-10 | 1993-12-31 | 1997-01-08 | 2001-12-29 | 2007-01-28 | 2012-12-25 | 2017-10-30 |
表2

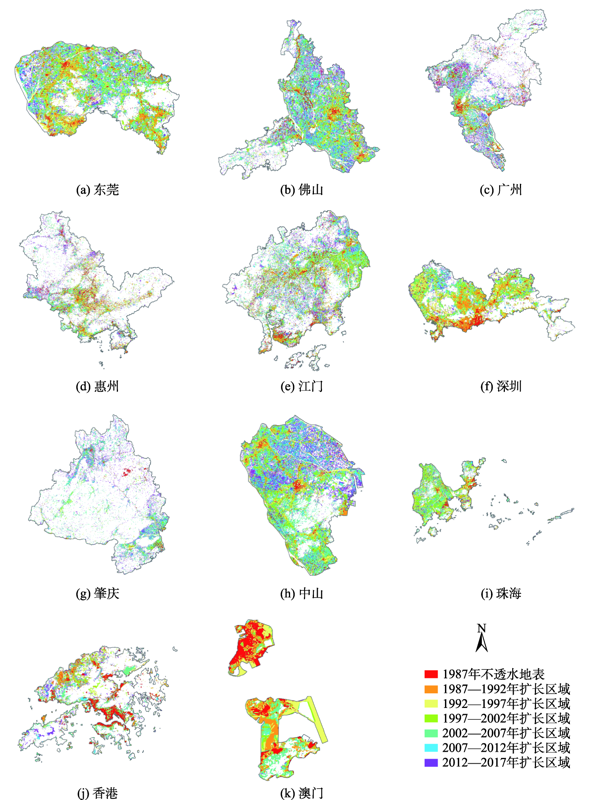

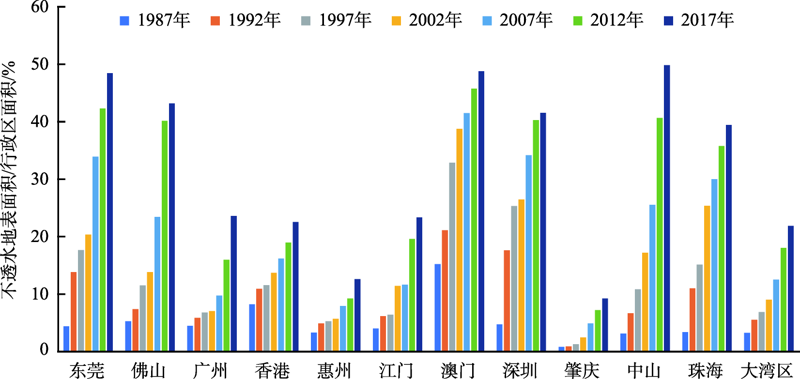

1987-2017年粤港澳大湾区内部各城市不透水地表面积"
地市名称 | 1987年 | 1992年 | 1997年 | 2002年 | 2007年 | 2012年 | 2017年 |
---|---|---|---|---|---|---|---|
东莞 | 107.87 | 341.39 | 435.47 | 501.57 | 835.28 | 1042.12 | 1193.75 |
佛山 | 209.13 | 293.89 | 458.28 | 549.55 | 931.91 | 1595.31 | 1715.62 |
广州 | 334.08 | 437.49 | 504.60 | 522.14 | 723.73 | 1188.63 | 1754.50 |
香港 | 90.92 | 120.71 | 127.87 | 151.41 | 179.21 | 209.60 | 249.27 |
惠州 | 381.83 | 568.06 | 614.07 | 662.09 | 921.33 | 1071.61 | 1464.75 |
江门 | 381.33 | 585.89 | 610.46 | 1083.48 | 1106.33 | 1863.64 | 2217.92 |
澳门 | 5.00 | 6.92 | 10.78 | 12.71 | 13.61 | 15.01 | 16.00 |
深圳 | 94.86 | 352.01 | 505.84 | 528.13 | 682.27 | 804.37 | 829.22 |
肇庆 | 120.88 | 133.33 | 188.96 | 368.89 | 734.95 | 1084.56 | 1381.67 |
中山 | 55.62 | 118.85 | 193.27 | 306.39 | 455.39 | 724.67 | 888.51 |
珠海 | 57.82 | 188.39 | 259.14 | 433.98 | 513.02 | 612.08 | 674.72 |
大湾区 | 1839.34 | 3146.93 | 3908.74 | 5120.34 | 7097.03 | 10211.60 | 12385.93 |
[1] | United Nations. World urbanization prospects: The 2018 Revision[R]. New York: Department of Economic, 2017. |
[2] | 中华人民共和国国家统计局. 中华人民共和国2019年国民经济和社会发展统计公报[M]. 北京: 中国统计出版社, 2020. |
[ Chinese National Bureau of Statistics. Statistical communiqué of the People's Republic of China on 2019 national economic and social development[M]. Beijing: China Statistics Press, 2020. ] | |
[3] | Weng Q H. Remote sensing of impervious surfaces in the urban areas: Requirements, methods, and trends[J]. Remote Sensing of Environment, 2012,117(2):34-49. |
[4] | 徐涵秋. 城市不透水面与相关城市生态要素关系的定量分析[J]. 生态学报, 2009,29(5):2456-2462. |
[ Quantitative analysis on the relationship of urban i mpervious surface with other components of the urban ecosystem[J]. Acta Ecologica Sinica, 2009,29(5):2456-2462. ] | |
[5] | 杨保军. 区域协调发展析论[J]. 城市规划, 2004,28(5):20-24. |
[ Yang B J. Analysis of regional coordinated development[J]. City Planing Review, 2004,28(5):20-24. ] | |
[6] | 顾朝林. 城市群研究进展与展望[J]. 地理研究, 2011,30(5):771-784. |
[ Gu C L. Study on urban agglomeration: Progress and prospects[J]. Geographical Research, 2011,30(5):771-784. ] | |
[7] | 焦利民, 唐欣, 刘小平. 城市群视角下空间联系与城市扩张的关联分析[J]. 地理科学进展, 2016,35(10):1177-1185. |
[ Jiao L M, Tang X, Liu X P. Spatial linkage and urban expansion: an urban agglomeration perspective[J]. Progress in Geography, 2016,35(10):1177-1185. ] | |
[8] | 欧阳晓, 朱翔. 中国城市群城市用地扩张时空动态特征[J]. 地理学报, 2020,75(3):571-588. |
[ OuYang X, Zhu X. Spatio-temporal characteristics of urban land expansion in Chinese urban agglomerations[J]. Acta Geographica Sinica, 2020,75(3):571-588. ] | |
[9] | 黎夏, 叶嘉安. 利用主成分分析改善土地利用变化的遥感监测精度——以珠江三角洲城市用地扩张为例[J]. 遥感学报, 1997,1(4):282-289. |
[ Li X, Ye J A. Accuracy improvement of land use change detection using principal components analysis: A case study in the Pearl River Delta[J]. Journal of Remote Sensing, 1997,1(4):282-289. ] | |
[10] | Yeh A. Measurement and monitoring of urban sprawl in arapidly growing region using entropy[J]. Photogrammetric Engineering &Remote Sensing, 2001,67(1):83-90. |
[11] | Weng Q H. A remote sensing GIS evaluation of urban expansion and its impact on surface temperature in the Zhujiang Delta, China[J]. International Journal of Remote Sensing, 2001,22(10):1999-2014. |
[12] | Brabec E, Schulte S, Richards P L. Impervious surfaces and water quality: A review of current literature and its implications for watershed planning[J]. Journal of Planning Literature, 2002,16(4):499-514. |
[13] | Weng Q H, Lu D S. A sub-pixel analysis of urbanization effect on land surface temperature and its interplay with impervious surface and vegetation coverage in Indianapolis, United States[J]. International Journal of Applied Earth Observation and Geoinformation, 2008,10(1):68-83. |
[14] | 匡文慧, 刘纪远, 张增祥, 等. 21世纪初中国人工建设不透水地表遥感监测与时空分析[J]. 科学通报, 2013(5):465-478. |
[ Kuang W H, Liu J Y, Zhang Z X, et al. Remote sensing monitoring and spatio-temporal analysis of artificially constructed impervious surface in China in the early 21st century[J]. Chinese Science Bulletin, 2013(5):465-478. ] | |
[15] | Fan F L, Fan W. Understanding spatial-temporal urban expansion pattern(1990-2009) using impervious surface data and landscape indexes: A case study in Guangzhou(China)[J]. Journal of Applied Remote Sensing, 2014,8(7):4480-4494. |
[16] |
Deng Y B, Fan F L, Chen R R. Extraction and analysis of impervious surfaces based on a spectral un-mixing method using Pearl River Delta of China landsat TM/ETM+ imagery from 1998 to 2008[J]. Sensors, 2012,12:1846-1862.
pmid: 22438741 |
[17] | Cao S S, Hu D Y, Hu Z W, et al. Comparison of spatial structures of urban agglomerations between the Beijing-Tianjin-Hebei and Boswash based on the subpixel-level impervious surface coverage product[J]. Journal of Geographical Sciences, 2018,28(3):306-322. |
[18] | 高邵鑫, 陈健, 郑凯端, 等. 长三角地区不透水面多时相遥感提取及变化监测[J]. 科技通报, 2018,34(10):80-92. |
[ Gao S X, Chen J, Zheng K D, et al. Extraction and change monitoring of multi-temporal impervious surface in Yangtze River Delta region based on remote sensing[J]. Bulletin of Science and Technology, 2018,34(10):80-92. ] | |
[19] | 冯珊珊, 樊风雷. 2006―2016年粤港澳大湾区城市不透水面时空变化与驱动力分析[J]. 热带地理, 2018,38(4):536-545. |
[ Feng S S, Fan F L. Spatial-temporal changes of impervious surface in the Guangdong-Hong Kong-Macao Greater Bay Area during 2006-2016[J]. Tropical Geography, 2018,38(4):536-545. ] | |
[20] | 冯珊珊, 樊风雷. 基于不透水面的粤港澳大湾区景观格局时空变化[J]. 应用生态学报, 2018,29(9):113-120. |
[ Feng S S, Fan F L. Spatiotemporal changes of landscape pattern using impervious surface in Guangdong-Hong Kong-Macao Greater Bay Area, China[J]. Chinese Journal of Applied Ecology, 2018,29(9):113-120. ] | |
[21] | Yang C, Li Q Q, Zhao T H, et al. Detecting spatiotemporal features and rationalities of urban expansions within the Guangdong-Hong Kong-Macau Greater Bay Area of China from 1987 to 2017 using time-series landsat images and socioeconomic data[J]. Remote Sensing, 2019,11(19):2215. |
[22] | Yang C, Li Q Q, Hu Z W, et al. Spatiotemporal evolution of urban agglomerations in four major bay areas of US, China and Japan from 1987 to 2017: Evidence from remote sensing images[J]. Science of the Total Environment, 2019,671:232-247. |
[23] | Li Z, Jiang W G, Wang W J, et al. Exploring spatial-temporal change and gravity center movement of construction land in the Chang-Zhu-Tan urban agglomeration[J]. Journal of Geographical Sciences, 2019,29(8):1363-1380. |
[24] | Slonecker T E, Jennings D B, Garofalo D. Remote sensing of impervious surfaces: A review[J]. Remote Sensing Reviews, 2001,20(3):227-255. |
[25] | Sexton J O, Xiao P S, Cheng Q H, et al. Urban growth of the Washington, D.C. Baltimore, MD metropolitan region from 1984 to 2010 by annual, landsat-based estimates of impervious cover[J]. Remote Sensing of Environment, 2013,129(2):42-53. |
[26] | Xu J H, Zhao Y, Zhong K W, et al. Coupling modified linear spectral mixture analysis and soil conservation service curve number (SCS-CN) models to simulate surface runoff: Application to the main urban area of Guangzhou, China[J]. Water, 2016,8(12):550. |
[27] |
Lu D S, Moran E, Hetrick S. Detection of impervious surface change with multitemporal landsat images in an urban-rural frontier[J]. ISPRS Journal of Photogrammetry & Remote Sensing, 2011,66(3):298-306.
pmid: 21552379 |
[28] | 付强, 诸云强, 孙九林, 等. 中国畜禽养殖的空间格局与重心曲线特征分析[J]. 地理学报, 2012,67(10):89-104. |
[ Fu Q, Zhu Y Q, Sun J L, et al. Spatial patterns and gravity centers curve of livestock and poultry breeding in China[J]. Acta Geographica Sinica, 2012,67(10):89-104. ] | |
[29] | Lefever W D. Measuring geographic concentration by means of the standard deviational ellipse[J]. American Journal of Sociology, 1926,32(1):88-94. |
[30] | 晁静, 赵新正, 李同昇, 等. 长江经济带三大城市群经济差异演变及影响因素——基于多源灯光数据的比较研究[J]. 经济地理, 2019,39(5):92-100. |
[ Cao J, Zhao X Z, Li T S, et al. Spatial-temporal evolution and influencing factors of economic disparities among three urban agglomerations in the Yangtze River economic belt: Acomparative study based on multisource nighttime light data[J]. Economic Geography, 2019,39(5):92-100. ] | |
[31] | 刘有明. 流域经济区产业发展模式比较研究[J]. 学术研究, 2011(3):83-88. |
[ Liu Y P. Comparative study on industry development model of basin economic zone[J]. Academic Research, 2011(3):83-88. ] | |
[32] | 魏正波. 中国特色的城市海岸带规划体系初探[C]. 北京:中国城市规划年会, 2008, 3681-3692. |
[ Wei Z B. A preliminary study on the urban coastal planning system with Chinese characteristics[C]. Beijing: China Urban Planning Annual Meeting, 2008: 3681-3692. ] | |
[33] | 高义, 苏奋振, 孙晓宇, 等. 近20a广东省海岛海岸带土地利用变化及驱动力分析[J]. 海洋学报:中文版, 2011,33(4):97-195. |
[ Gao Y, Su F Z, Sun X Y, et al. A study on driving forces of land use change of Guangdong province coastal zone and islands in recent 20a[J]. Acta Oceanologica Sinica, 2011,33(4):97-195. ] | |
[34] | Peng J, Liu Y X, Shen H, et al. Using impervious surfaces to detect urban expansion in Beijing of China in 2000s[J]. Chinese Geographical Science, 2016,26(2):103-117. |
[35] | Yang G, Zhao Y L, Xing H F, et al. Understanding the changes in spatial fairness of urban greenery using time-series remote sensing images: A case study of Guangdong-Hong Kong-Macao Greater Bay[J]. Science of the Total Environment, 2020,715(1):136763. |
