基于空间突变特征的城市边缘区提取方法

doi:10.12082/dqxxkx.2021.200502

地球信息科学学报 ›› 2021, Vol. 23 ›› Issue (8): 1401-1421.doi: 10.12082/dqxxkx.2021.200502

• 地球信息科学理论与方法 • 上一篇下一篇

基于空间突变特征的城市边缘区提取方法

戴俊杰¹(), 董婧雯²^,³^,⁴, 杨晟²^,³^,⁴, 孙毅中²^,³^,⁴^,^*()

1.江阴市城乡规划设计院,江阴 214433
2.南京师范大学虚拟地理环境教育部重点实验室,南京 210023
3.江苏省地理环境演化国家重点实验室培育建设点,南京 210023
4.江苏省地理信息资源开发与利用协同创新中心,南京 210023

收稿日期:2020-09-01 修回日期:2020-12-10 出版日期:2021-08-25 发布日期:2021-10-25
通讯作者: * 孙毅中（1957— ）,男,江苏常州人,教授,博士生导师,主要从事时空数据分析与城市规划GIS研究。 E-mail: sunyizhong_cz@163.com
作者简介:戴俊杰（1978— ）,男,江苏盐城人,硕士,高级工程师,主要从事国土空间规划及城市规划GIS研究。E-mail: 3390232@qq.com
基金资助:
国家自然科学基金项目(41671392);国家自然科学基金项目(41871297)

Identification Method of Urban Fringe Area based on Spatial Mutation Characteristics

DAI Junjie¹(), DONG Jingwen²^,³^,⁴, YANG Shen²^,³^,⁴, SUN Yizhong²^,³^,⁴^,^*()

1. Jiangyin Urban and Rural Planning and Design Institute, Jiangyin 214433, China
2. Key Laboratory of Virtual Geographic Environment, Ministry of Education, Nanjing Normal University, Nanjing 210023, China
3. State Key Laboratory Cultivation Base of Geographical Environment Evolution (Jiangsu Province), Nanjing 210023, China
4. Jiangsu Center for Collaborative Innovation in Geographical Information Resource Development and Application, Nanjing 210023, China

Received:2020-09-01 Revised:2020-12-10 Online:2021-08-25 Published:2021-10-25
Contact: SUN Yizhong
Supported by:
National Natural Science Foundation of China(41671392);National Natural Science Foundation of China(41871297)

摘要/Abstract

摘要：

城市边缘区位于城市与乡村之间的过渡交接地带,既是城市扩张的前沿,也是城乡建设和用地置换中最具活力的地区。准确识别城市边缘区的空间范围一直是城市空间结构研究的核心问题,有助于从城乡对比的角度来衡量城市化程度。本文以城市边缘区的空间突变特征为切入点,基于格网尺度评价构建基于多源数据的城市边缘区特征识别指标,然后采用小波变换检测进行特征值突变点群的识别,并利用基于Delaunay的自动边长阈值的边界提取算法识别突变点群内外边界,从而实现了一种基于空间突变特征的城市边缘区提取方法。最后,以江阴市作为研究区进行了实证分析,并将本文方法提取结果与通过信息熵模型和土地利用程度综合指数模型提取城市边缘区的经典方法提取结果进行对比,经典方法所提取的城市边缘区结果更为混乱分散,而本文结果更为完整客观。将本文方法提取结果与使用土地利用数据与行政区划统计年鉴数据构建城市边缘区识别指标进行突变检测的不同指标方法提取结果进行对比,二者重叠度达88.03%,体现了本文方法的正确性,而从局部细节分析来看,本文结果更符合实际情况。为了更好地验证本文方法的有效性,利用景观格局指数对本文方法和不同指标方法提取的城市建成区、城市边缘区和乡村腹地的范围进行检验：从斑块类型层级指数分析, 2种方法划定的区域都具有典型的空间特征;而从景观层级指数分析,本文识别出的边缘区所计算的斑块密度、最大斑块指数、景观分离度、景观破碎化指数和香农多样性指数均高于对比方法,而蔓延度和香农均匀度均低于对比方法,说明本文识别的城市边缘区范围内景观破碎化程度和异质性更高,景观分布不均匀,社会经济条件更复杂,从而证明了本方法的有效性,尤其适合于非闭合环状的城市边缘区的提取。

关键词: 城市边缘区, 空间突变特征, 多源数据, 小波变换, Delaunay三角网, 范围识别, 格网评价, 景观格局指数

Abstract:

As a transition zone between the city and the countryside, the urban fringe area is not only a geographical space affected by both of the regions, but also an area shrouded in conflicts of interest. The rapid development of urbanization witnesses tremendous changes the urban spatial structure is undergoing. Therefore, studying the spatial scope of the urban fringe area is conducive to the assessment of the current situation of urban development, and is further significant for policy formulation, population management, and resource allocation in the urban fringe area. Thanks to the development of remote sensing and geographic information technology, the types, quality, and accuracy of geospatial data that are applied to depict the characteristics of the urban fringe area have been significantly enhanced. Considering this, this paper takes the spatial mutation characteristics of the urban fringe area as a starting point, and a method for mutation point groups detection, combining multi-indices fusion and wavelet transform, is adopted to distinguish the spatial extent of urban fringe area based on the optimal results by grid-scale evaluation. And then we use the Delaunay triangulation automatic edge length threshold to extract the boundary of the mutation point groups and to obtain the spatial range of the urban fringe area. Empirical analysis is conducted taking Jiangyin City as the research area. The main experimental steps are as follow: firstly, several basic data are selected, containing land use data, road data, night light data, and service-oriented POI data according to the analysis of the characteristics of the urban fringe area. These multi-source data are then standardized based on grids and entropy weighting method for weight determination. In this way, the eigenvalues of the discriminant index of the urban fringe area are calculated. Secondly, based on the spatial mutation characteristics, the wavelet transform is employed to extract the mutation point groups on the eigenvalue sequence, which can effectively improve the discrimination accuracy of the mutation point group. It is suitable for the non-closed circular urban fringe area and for avoiding the influence of human subjective factors. Then, the algorithm based on the Delaunay triangulation automatic edge length threshold is utilized to extract the boundary of the mutation point groups and to obtain the spatial range of the urban fringe area, which can provide a reference for optimizing the urban spatial layout. Finally, the extraction results in this paper are compared with those obtained by the classical methods, like the information entropy model and the comprehensive index model of land use degree. It is apparent to see that the results from classical methods are more chaotic and scattered, while the results in this paper are more complete and objective. Comparing the extraction results of this paper with the extraction results of different index methods employing land use data and administrative division statistical yearbook data to construct urban fringe identification indicators for mutation detection, this study discovers the overlap between them is 88.03%, which testifies the factualness of this method. In terms of the analysis of local details, the results of this paper are more in line with the actual situation. To verify the effectiveness of the method proposed in this paper, the landscape pattern indices are adopted to test the range of urban built-up area, urban fringe area and rural hinterland extracted by the method of this paper and the other different index method respectively. Considering the patch class size landscape pattern indices, the areas delineated by two methods are following the spatial characteristics. Meanwhile, the value of data calculated in the urban fringe area identified in this paper is all higher than the counterpart method given the landscape size landscape pattern indices, the patch density, maximum patch index, landscape separation degree, landscape fragmentation index, and Shannon diversity index. The spread and Shannon uniformity, however, are both lower than the comparison method. It can be indicated that the fragmentation and heterogeneity of the landscape in the urban fringe area identified in this paper is higher, the landscape distribution is uneven, and the socio-economic conditions are more complex, thus proving the effectiveness of this method is especially suitable for the extraction of non-closed circular urban fringe area.

Key words: urban fringe area, spatial mutation characteristics, multi-source data, wavelet transform, Delaunay triangulation, range recognition, grid evaluation, landscape pattern index

戴俊杰, 董婧雯, 杨晟, 孙毅中. 基于空间突变特征的城市边缘区提取方法[J]. 地球信息科学学报, 2021, 23(8): 1401-1421.DOI:10.12082/dqxxkx.2021.200502

DAI Junjie, DONG Jingwen, YANG Shen, SUN Yizhong. Identification Method of Urban Fringe Area based on Spatial Mutation Characteristics[J]. Journal of Geo-information Science, 2021, 23(8): 1401-1421.DOI:10.12082/dqxxkx.2021.200502

图/表 32

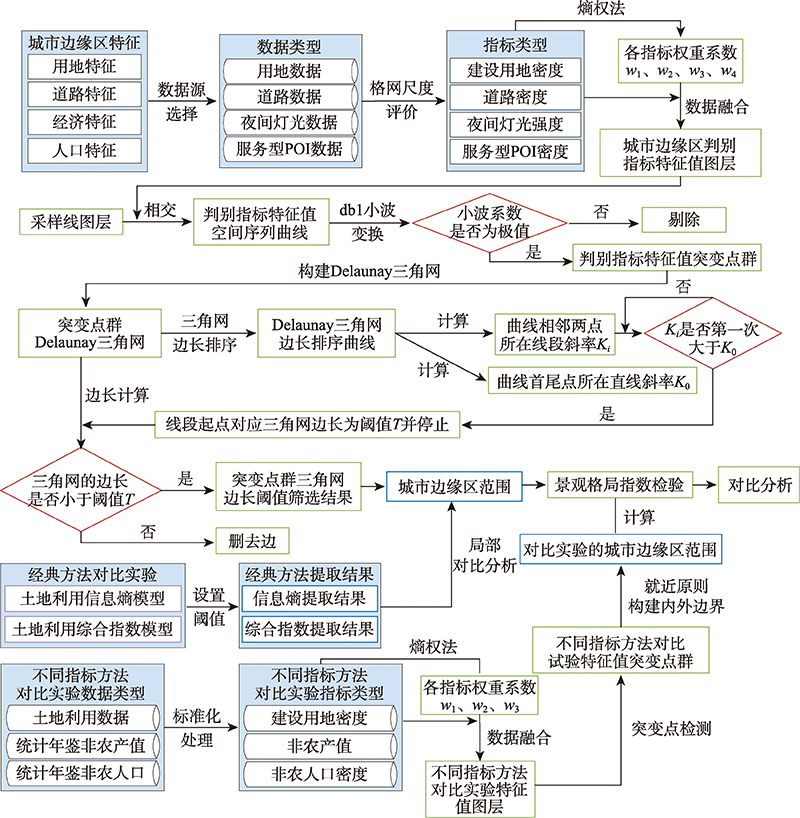

图1

表1

不同尺度下的半方差函数参数

尺度/m×m	$C 0$	$C 0 + C$	$C 0 / (C 0 + C)$	$A$	$R 2$	RSS/× $10 - 5$
200×200	0.0077	0.0626	0.1230	2910	0.5860	8.0230
400×400	0.0072	0.0520	0.1380	3270	0.6470	5.2260
600×600	0.0053	0.0423	0.1260	5310	0.6360	6.2590
800×800	0.0057	0.0400	0.1430	4680	0.6240	7.7770

表1

图2

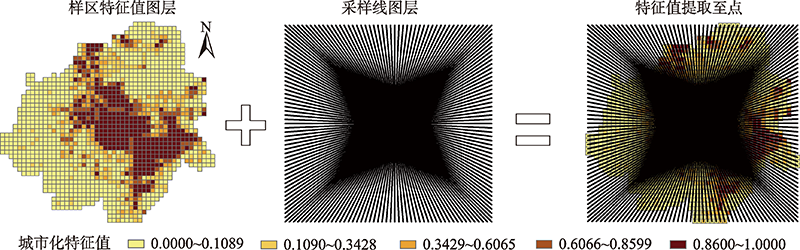

图3

图4

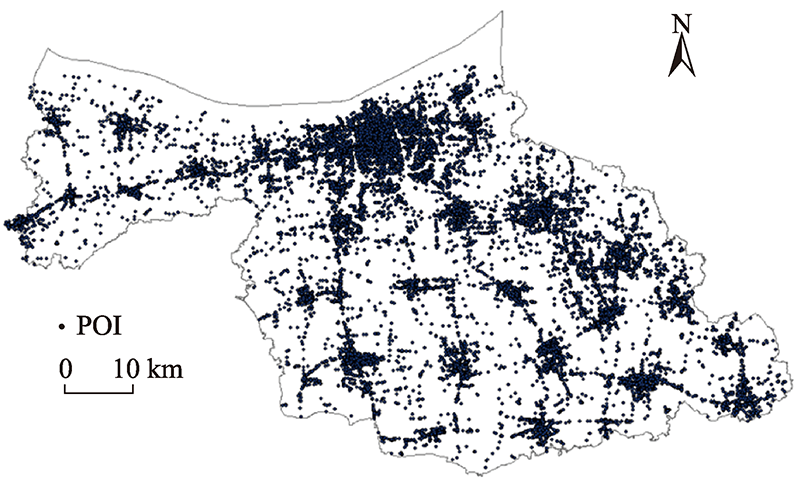

图5

图6

图7

图8

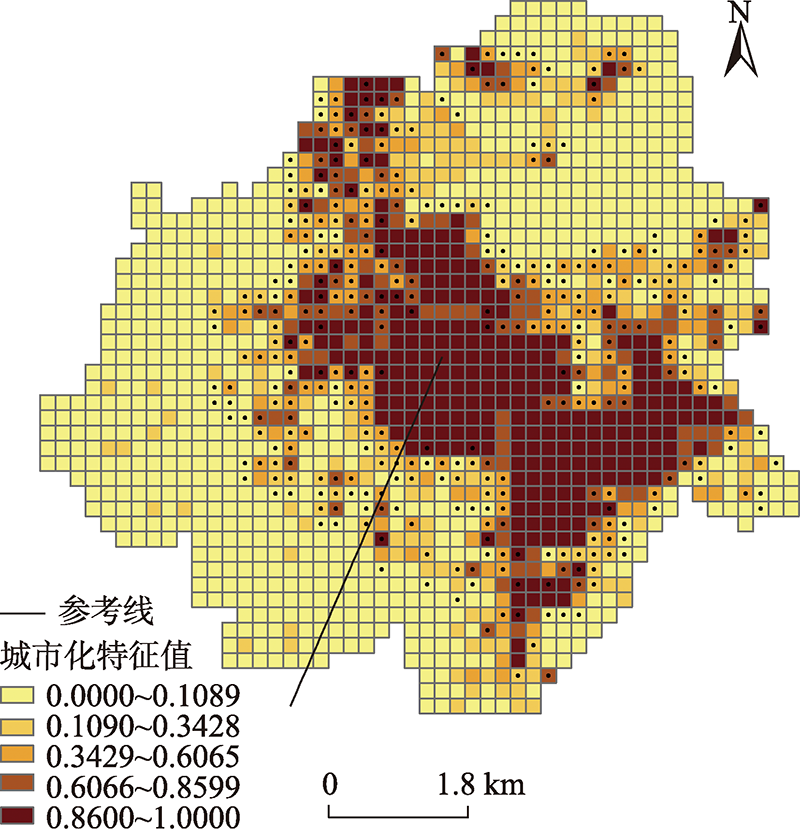

图9

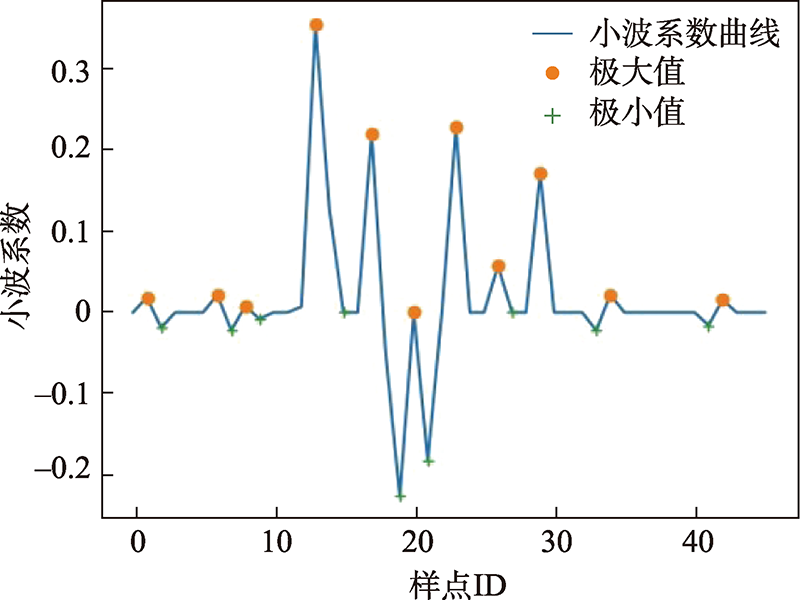

图10

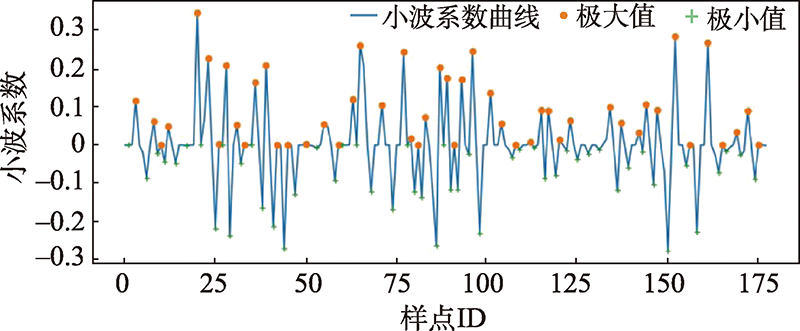

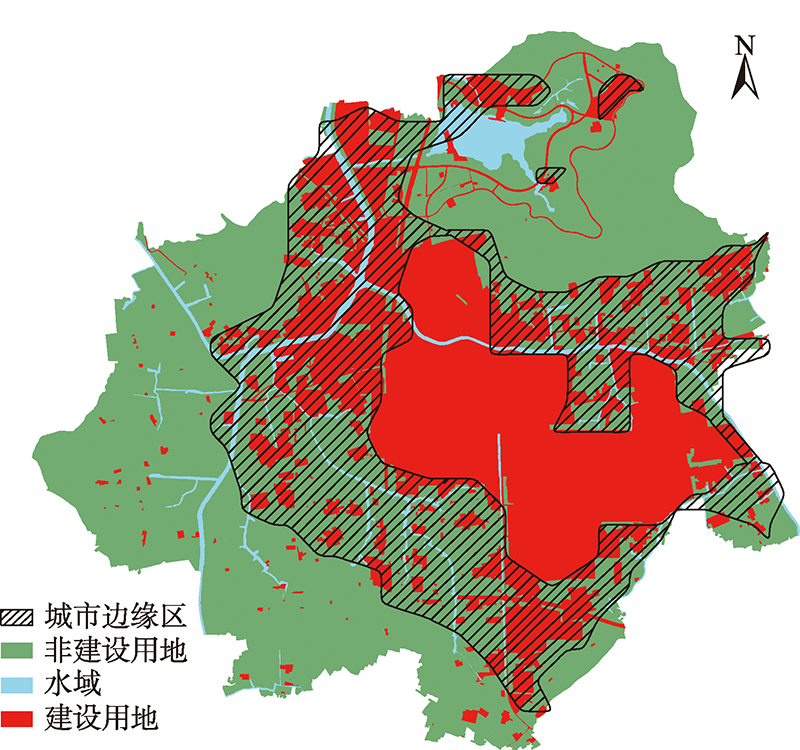

图11

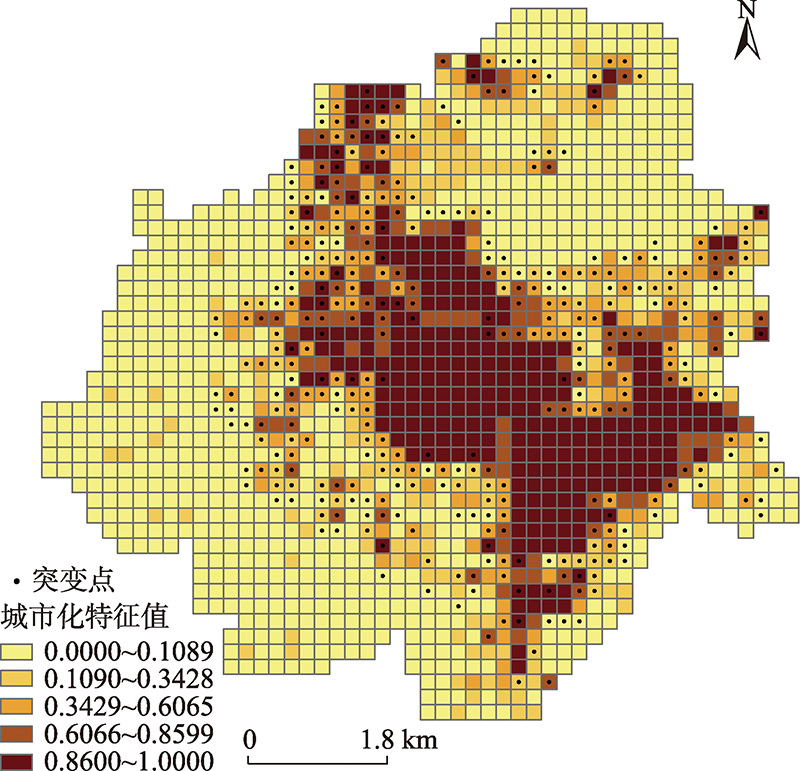

图12

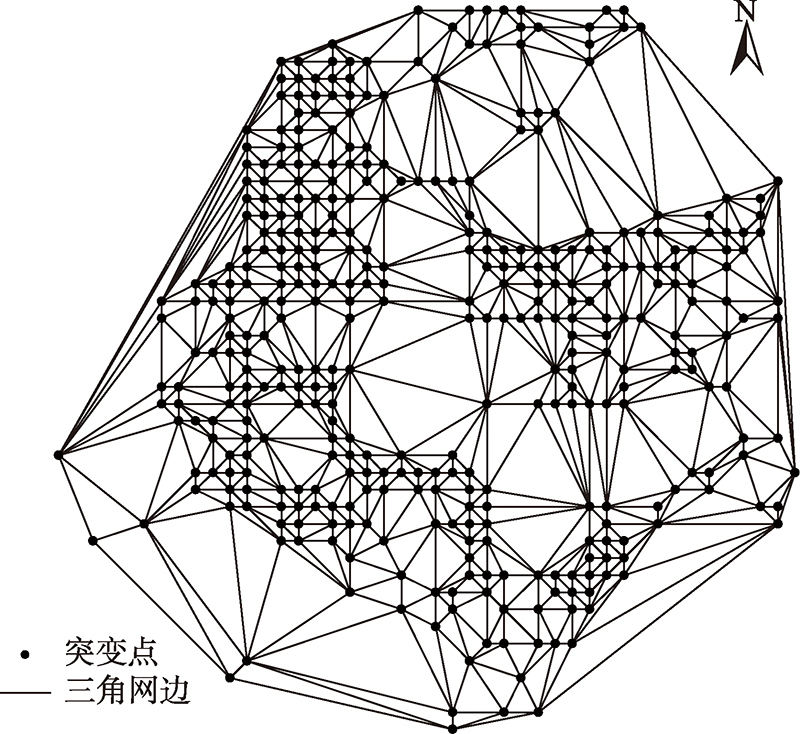

图13

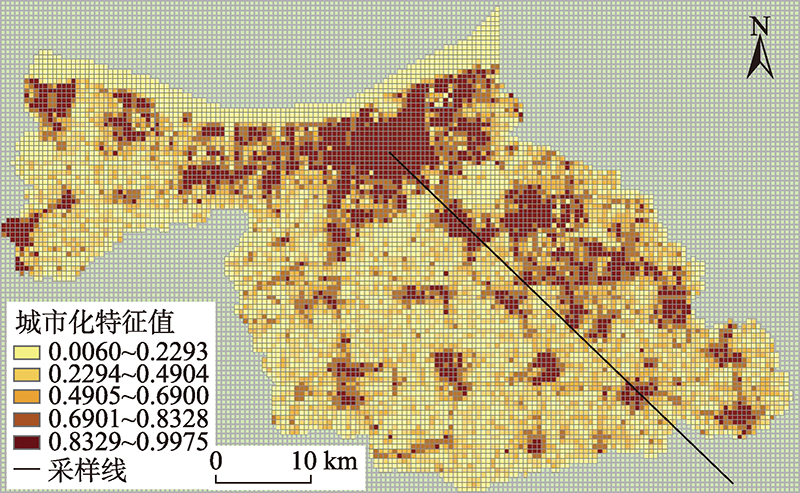

图14

图15

图16

图17

图18

图19

图20

表2

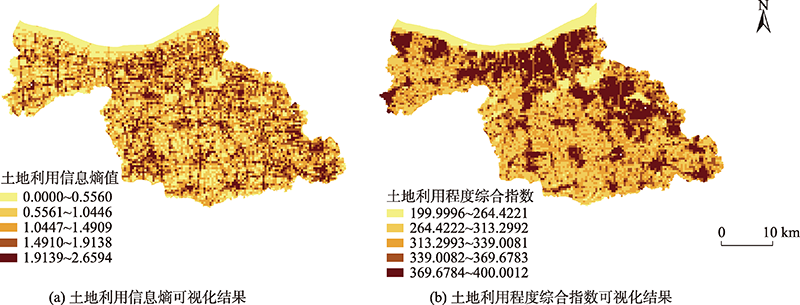

图21

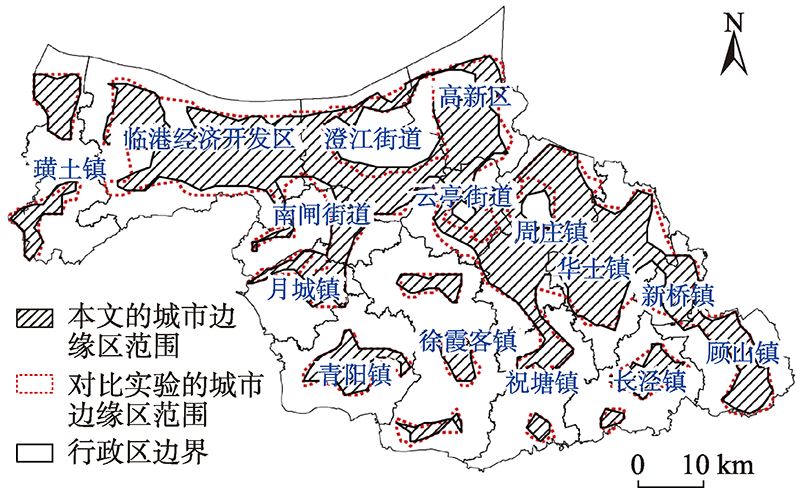

图22

表3

图23

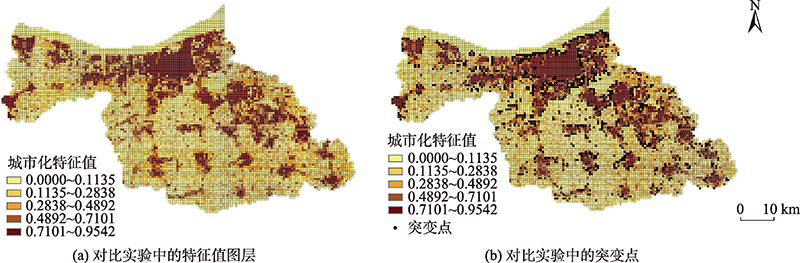

图24

图25

表4

景观格局指数

景观格局指数	缩写	生态含义
斑块密度	PD	PD通常用来反映景观总体斑块的分化程度或破碎化程度,斑块密度高表示单位面积斑块的规模小,景观异质性高
平均斑块面积	AREA_MN	AREA_MN是指某一斑块类型的总面积除以该类型的斑块数,通常用来反映某种景观破碎化的程度
最大斑块指数	LPI	LPI为斑块类型中最大面积的斑块占整体景观面积的比例。该景观格局指数直接体现了景观的优势类型,直接体现了人类活动对于土地利用和景观生态变化的干扰强度和频率的变化
景观形状指数	LSI	LSI通过计算某一斑块形状与相同面积的圆或矩形间的偏离程度来测量该形状的复杂程度,反映景观斑块的变异性。LSI值增大时,斑块不规则情况增加
平均面积权重分维数	FRAC_AM	FRAC_AM反映景观边界复杂程度
景观聚集度指数	AI	AI基于栅格数据来测量景观或某种类型的聚集程度。值小时,表示景观中不同类型的斑块离散程度大;值大时,表示景观中同类型的斑块相互聚合,结构紧凑
景观结合度指数	COHESION	COHESION表示景观区域中的景观空间链接度,景观结合度指数值高时表示景观中空间链接度高
蔓延度	CONTAG	CONTAG用来反映景观中不同斑块类型的团聚程度和蔓延趋势,高蔓延值表明景观类型中的某种斑块类型形成良好的连接性;反之则表明景观中存在许多小斑块,是具有多种要素的密集格局,景观的破碎化程度较高
景观分离度	DIVISION	DIVISION表示某一景观类型中不同景观斑块分布的分离程度;分离度越大,景观在地域分布上越分散,景观分布越复杂,破碎化程度越高
景观破碎化指数	SPLIT	SPLIT表征景观被分割的破碎程度,反映景观空间结构的复杂性,在一定程度上反映了人类对景观的干扰程度,进而反映出人类对自然生态系统的影响,一般来说,破碎度越大,人类对生态系统的影响越大
香农多样性	SHDI	SHDI用来反映景观类型的丰富和复杂程度,值越大表明景观中没有优势类型且各景观类型趋于均匀分布
香农均匀度	SHEI	SHEI反映景观中各斑块类型在面积上分布的均匀程度,其值越趋于1景观分布越均匀

表4

表5

表6

表7

参考文献 49

[1]	Feng Y B, Yang Q Y. Key research fields and basic directions of Chinese rural-land comprehensive consolidation in transitional period[J]. Transactions of the Chinese Society of Agricultural Engineering, 2014, 30(1):175-182.
[2]	Herbert L. Die geographische gliederung von Gross-Berlin[M]. Stuttgart: Engelhorn Verlag, 1936.
[3]	Wehrwein G S. The Rural-Urban Fringe[J]. Economic Geography, 1942, 18(3):217-228. doi: 10.2307/141123
[4]	Andrews R B. Elements in the Urban-Fringe Pattern[J]. Journal of Land & Public Utility Economics, 1942, 18(2):169-183.
[5]	张晓军. 国外城市边缘区研究发展的回顾及启示[J]. 国际城市规划, 2005, 20(4):72-75.
	[Zhang X J. Foreign urban-fringe studies and its revelation[J]. Urban Planning International, 2005, 20(4):72-75. ]
[6]	顾朝林, 陈田, 丁金宏. 中国大城市边缘区特性研究[J]. 地理学报, 1993, 60(4):317-328.
	[Gu C L, Chen T, Ding J H. The study of the urban fringes in Chinese megalopolises[J]. Acta Geographica Sinica, 1993, 60(4):317-328. ]
[7]	顾朝林, 甄峰, 张京祥. 集聚与扩散:城市空间结构新论[M]. 南京: 东南大学出版社, 2000.
	[Gu C L, Zhen F, Zhang J X. Agglomeration and diffusion: A new theory of urban spatial structure[M]. Nanjing: Southeast University Press, 2000. ]
[8]	赵自胜, 陈金. 城乡结合部土地利用研究──以开封市为例[J]. 河南大学学报(自然科学版), 1996(01):67-70.
	[Zhao Z S, Chen J. A study on the land utilization of transition region of city and countryside: Take Kaifeng for example[J]. Journal of Henan University (Natural Science), 1996(01):67-70. ]
[9]	王树良, 李爽, 刘建华, 等. 试论城乡结合部的土地用途管制[J]. 测绘信息与工程, 2000(4):15-19.
	[Wang S L, Li S, Liu J H, et al. On the land use control in the urban-rural fringe area[J]. Journal of Geomatics, 2000(4):15-19. ]
[10]	李世峰, 白人朴. 基于模糊综合评价的大城市边缘区地域特征属性的界定[J]. 中国农业大学学报, 2005, 10(3):99-104.
	[Li S F, Bai R P. Determination of zone feature in fringe of a big city based on fuzzy overall evaluation[J]. Journal of China Agricultural University, 2005, 10(3):99-104. ]
[11]	刘星南, 吴志峰, 骆仁波, 等. 基于多源数据和深度学习的城市边缘区判定[J]. 地理研究, 2020, 39(2):243-256. doi: 10.11821/dlyj020181085
	[Liu X N, Wu Z F, Luo R B, et al. The definition of urban fringe based on multi-source data and deep learning[J]. Geographical Research, 2020, 39(2):243-256. ]
[12]	蔡栋, 李满春, 陈振杰, 等. 基于信息熵的城市边缘区的界定方法研究——以南京市为例[J]. 测绘科学, 2010, 35(3):106-109.
	[Cai D, Li M C, Chen Z J, et al. A method of division of urban fringe based on message entropy: A case study in Nanjing city[J]. Science of Surveying and Mapping, 2010, 35(3):106-109. ]
[13]	琚青青, 尹菡怿, 李微, 等. 海口市城市边缘区空间范围的识别研究[J]. 海南大学学报:自然科学版, 2019(2):180-185.
	[Ju Q Q, Yin H Y, Li W, et al. Study on spatial scope of the urban-rural fringe in Haikou[J]. Natural Science Journal of Hainan University, 2019(2):180-185. ]
[14]	林坚, 汤晓旭, 黄斐玫, 等. 城乡结合部的地域识别与土地利用研究——以北京中心城地区为例[J]. 城市规划, 2007(8):36-44.
	[Lin J, Tang X X, Huang F M, et al. Spatial identification and land use of urban-rural linkage area: A case study on Beijing's center city[J]. City Planning Review, 2007(8):36-44. ]
[15]	王秀兰, 李雪瑞, 冯仲科. 基于TM影像的北京城市边缘带范围界定方法研究[J]. 遥感信息, 2010(4):100-104,134.
	[Wang X L, Li X R, Feng Z K. Methods of urban fringe definition in Beijing based on TM image[J]. Remote Sensing Information, 2010(4):100-104,134. ]
[16]	马晶, 李全, 应玮. 基于小波变换的武汉市城乡边缘带识别[J]. 武汉大学学报·信息科学版, 2016, 41(2):235-241.
	[Ma J, Li Q, Ying W. Identification of a rural-urban fringe based on wavelet transform: A case study of Wuhan[J]. Geomatics and Information Science of Wuhan University, 2016, 41(2):235-241. ]
[17]	熊念. 武汉市城市边缘区识别及动态分析[D]. 武汉:武汉大学, 2018.
	[Xiong N. Identification and dynamic analysis of urban fringe area in Wuhan[D]. Wuhan: Wuhan University, 2018. ]
[18]	张宁, 方琳娜, 周杰, 等. 北京城市边缘区空间扩展特征及驱动机制[J]. 地理研究, 2010(3):91-100.
	[Zhang N, Fang L N, Zhou J, et al. The study on spatial expansion and its driving forces in the urban fringe of Beijing[J]. Geographical Research, 2010(3):91-100. ]
[19]	赵华甫, 朱玉环, 吴克宁, 等. 基于动态指标的城乡交错带边界界定方法研究[J]. 中国土地科学, 2012, 26(9):60-65.
	[Zhao H F, Zhu Y H, Wu K N, et al. Study on the method for the demarcation of urban-rural fringe based on land use dynamic indicator[J]. China Land Sciences, 2012, 26(9):60-65. ]
[20]	周小驰, 刘咏梅, 杨海娟. 西安市城市边缘区空间识别与边界划分[J]. 地球信息科学学报, 2017, 19(10):1327-1335. doi: 10.3724/SP.J.1047.2017.01327
	[Zhou X C, Liu Y M, Yang H J. Spatial recognition and boundary region division of urban fringe area in Xi’an city[J]. Journal of Geo-information Science, 2017, 19(10):1327-1335. ]
[21]	刘戎. 基于土地利用的城市边缘区界定及其空间扩展分析研究[D]. 西安:西北大学, 2017.
	[Liu R. A study on the definition and spatial expansion of urban fringe basing on land use[D]. Xi'an: Northwest University, 2017. ]
[22]	曹广忠, 缪杨兵, 刘涛. 基于产业活动的城市边缘区空间划分方法——以北京主城区为例[J]. 地理研究, 2009, 28(3):771-780.
	[Cao G Z, Miao Y B, Liu T. Seeking a method for identifying the urban fringe spatially based on industrial activities: A case study of Beijing City[J]. Geographical Research, 2009, 28(3):771-780. ]
[23]	雷志成. 基于POI的城市边缘区识别与空间分析[D]. 广州:广州大学, 2019.
	[Lei Z C. Identification and spatial analysis of urban fringe area based on POI: A case study of Guangzhou-Foshan metropolitan area[D]. Guangzhou: Guangzhou University, 2019. ]
[24]	边振兴, 王晓良. 基于RS、GIS的沈阳城市边缘区界定研究[A].中国自然资源学会土地资源研究专业委员会、中国地理学会农业地理与乡村发展专业委员会、青海民族大学公共管理学院.2013全国土地资源开发利用与生态文明建设学术研讨会论文集[C]. 中国自然资源学会土地资源研究专业委员会、中国地理学会农业地理与乡村发展专业委员会、青海民族大学公共管理学院:青海民族大学公共管理学院, 2013: 7.
	[Bian Z X, Wang Xiao L. Study on the define of Shenyang urban fringes based on RS and GIS[A]. The Land Resources Research Committee of the Chinese Society of Natural Resources, the Agricultural Geography and Rural Development Committee of the Chinese Geographical Society, the School of Public Administration, Qinghai University for Nationalities. 2013 National Land Resources Development and Utilization and Ecological Civilization Construction Symposium Proceedings[C]. The Land Resources Research Professional Committee of the Chinese Society of Natural Resources, the Agricultural Geography and Rural Development Professional Committee of the Chinese Geographical Society, the School of Public Management, Qinghai University for Nationalities: Qinghai University for Nationalities, 2013: 7. ]
[25]	吴康敏, 张虹鸥, 王洋等. 广州市多类型商业中心识别与空间模式[J]. 地理科学进展, 2016, 35(8):963-974. doi: 10.18306/dlkxjz.2016.08.005
	[Wu K M, Zhang H G, Wang Y, et al. Identify of the multiple types of commercial center in Guangzhou and its spatial pattern[J]. Progress in Geography, 2016, 35(8):963-974. ]
[26]	Bordogna G, Carrara P, Criscuolo L, et al. A linguistic decision making approach to assess the quality of volunteer geographic information for citizen science[J]. Information ences, 2014, 258(3):312-327.
[27]	崔功豪, 武进. 中国城市边缘区空间结构特征及其发展——以南京等城市为例[J]. 地理学报, 1990, 45(4):399-411. doi: 10.11821/xb199004002
	[Cui G H, Wu J. The spatial structure and development of Chinese urban fringe[J]. Acta Geographica Sinica, 1990, 45(4):399-411. ]
[28]	邢厚道, 杨山. 城市边缘区演化及其特征[J]. 安徽农业科学, 2006(20):5382-5384.
	[Xing H D, Yang S. The evolution and characteristics of urban fringe area[J]. Journal of Anhui Agricultural Sciences, 2006(20):5382-5384. ]
[29]	王海鹰, 张新长, 康停军, 等. 基于多准则判断的城市边缘区界定及其特征[J]. 自然资源学报, 2011, 26(4):703-714.
	[Wang H Y, Zhang X C, Kang T J, et al. Urban fringe division and feature analysis based on the multi-criterion judgment[J]. Journal of Natural Resources, 2011, 26(4):703-714. ]
[30]	Golledge G R. Sydney's metropolitan fringe: A study in urban-rural relations[J]. Australian Geographer, 1960, 7(6):243-255. doi: 10.1080/00049186008702353
[31]	靳鑫洋, 王素元, 聂建亮, 等. 一种基于Delaunay三角网边长阈值与激光点云的建筑立面结构提取方法[J]. 地理与地理信息科学, 2019, 35(5):80-84.
	[Jin X Y, Wang S Y, Nie J L, et al. Building facade structure extraction based on the threshold of lengths of Delaunay triangulation's sides and laser point cloud[J]. Geography and Geo-Information Science, 2019, 35(5):80-84. ]
[32]	Pickett S T A, Cadenasso M L. Landscape Ecology: Spatial Heterogeneity in Ecological Systems[J]. Ence, 1995, 269(5222):331-334.
[33]	Dutilleul P, Legendre P. Spatial heterogeneity against heteroscedasticity: An ecological paradigm versus a statistical concept[J]. Oikos, 1993, 66(1):152-171. doi: 10.2307/3545210
[34]	李春光, 汪善勤, 吕叙杰等. 城市边缘区划分方法初探[J]. 华中师范大学学报(自科版), 2012, 46(2):239-244.
	[Li C G, Wang S Q, Lu X J, et al. Explore basic method to classify urban fringe[J]. Journal of Central China Normal University (Natural Sciences), 2012, 46(2):239-244. ]
[35]	孙洪泉. 地质统计学及其应用[M]. 徐州: 中国矿业大学出版社, 1990.
	[Sun H Q. Geostatistics and its application[M]. Xuzhou: China University of Mining and Technology press, 1990. ]
[36]	李灿, 张凤荣, 朱泰峰等. 大城市边缘区景观破碎化空间异质性——以北京市顺义区为例[J]. 生态学报, 2013, 33(17):5363-5374.
	[Li C, Zhang F R, Zhu T F, et al. Analysis on spatial-temporal heterogeneities of landscape fragmentation in urban fringe area: A case study in Shunyi district of Beijing[J]. Acta Ecologica Sinica, 2013, 33(17):5363-5374. ]
[37]	程欢. 西安市文化产业空间异质性多尺度研究[D]. 西安:陕西师范大学, 2016.
	[Cheng H. Multi-scale research on spatial heterogeneity of cultural industry in Xi'an[D]. Xi'an: Shaanxi Normal University, 2016. ]
[38]	李亮, 吴瑞明. 消除评价指标相关性的权值计算方法[J]. 系统管理学报, 2009, 18(2):221-225.
	[Li L, Wu R M. A Study on Eliminating Correlation of Evaluation Index and Obtaining Modified Weights[J]. Journal of Systems & Management, 2009, 18(2):221-225. ]
[39]	徐祥发, 肖人彬. 评价指标相关性的消除方法研究[J]. 系统工程理论与实践, 2002(11):1-5.
	[Xu X F, Xiao R B. An Approach of Eliminating Correlation of Assessment-index[J]. Systems Engineering-Theory & Practice, 2002(11):1-5. ]
[40]	张大陆, 杨哲, 姚进. 分布式电子商务中服务评价指标相关性消除方法[J]. 同济大学学报(自然科学版), 2006(3):401-404.
	[Zhang D L, Yang Z, Yao J. Research on elimination the correlation of service evaluating index in distribution E-commerce[J]. Journal of Tongji University(Natural Science), 2006(3):401-404. ]
[41]	Eileen M M. Karl Pearson and the Establishment of Mathematical Statistics[J]. International Statistical Review, 2009.
[42]	Slonim N, Atwal G S, Tkačik G, et al. Information-based clustering[J]. Proceedings of the National Academy of Sciences, 2005, 102(51):18297-18302. doi: 10.1073/pnas.0507432102
[43]	刘纪远. 中国资源环境遥感宏观调查与动态研究[M]. 北京: 中国科学技术出版社, 1996.
	[Liu J Y. The macro survey and dynamic research of China's resources and environment remote sensing[M]. Beijing: China Science and Technology Press, 1996. ]
[44]	刘崇刚, 孙伟, 曹玉红, 等. 大都市区城乡空间边界演化识别方法研究——以南京市为例[J]. 长江流域资源与环境, 2018, 27(10):65-72.
	[Liu C G, Sun W, Cao Y H, et al. Identification method of urban-rural space boundary evolution in the metropolitan area: A case study of Nanjing[J]. Resources and Environment in the Yangtze Basin, 2018, 27(10):65-72. ]
[45]	江阴市统计局. 江阴统计年鉴.2017[M]. 北京: 中国统计出版社, 2017.
	[Jiangyin Bureau of Statistics. Jiangyin statistical yearbook 2017[M]. Beijing: China Statistics Press, 2017. ]
[46]	李广东, 戚伟. 中国建设用地扩张对景观格局演化的影响[J]. 地理学报, 2019, 74(12):2572-2591. doi: 10.11821/dlxb201912011
	[Li G D, Qi W. Impacts of construction land expansion on landscape pattern evolution in China[J]. Acta Geographica Sinica, 2019, 74(12):2572-2591. ]
[47]	Leitão A B, Ahern J. Applying landscape ecological concepts and metrics in sustainable landscape planning[J]. Landscape and Urban Planning, 2002, 59(2):65-93. doi: 10.1016/S0169-2046(02)00005-1
[48]	Vizzari M, Sigura M. Landscape sequences along the urban-rural-natural gradient: A novel geospatial approach for identification and analysis[J]. Landscape and Urban Planning, 2015, 140:42-55 doi: 10.1016/j.landurbplan.2015.04.001
[49]	McGarigal K. Fragstats Help, Version 4.2[R]. University of Massachusetts: Amherst, MA, USA, 2014.

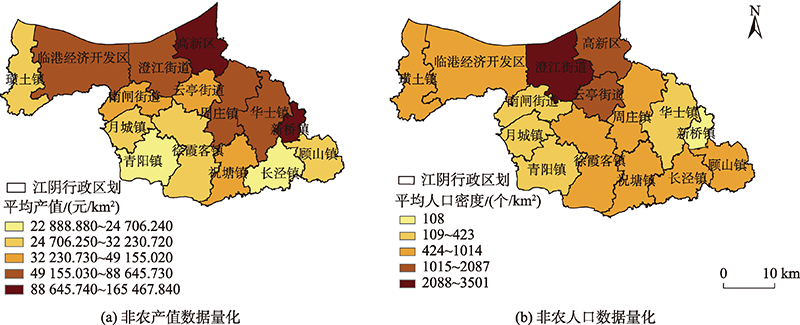

区域名称	第二产业产值/万元	第三产业产值/万元	非农人口/个
澄江街道	154.750	336.600	258 039
南闸街道	27.050	44.080	5456
高新区	378.340	199.470	72 876
临港经济开发区	417.450	295.340	81 538
月城镇	31.730	27.370	6305
青阳镇	32.760	33.420	8578
徐霞客镇	77.550	42.610	29 598
云亭街道	50.920	51.480	28193
周庄镇	240.930	100.630	46 749
祝塘镇	60.610	31.340	18 236
华士镇	206.140	107.580	22 819
长泾镇	29.720	32.250	20 778
新桥镇	102.020	83.090	1538
顾山镇	38.960	39.930	19 091

景观	区域	AREA_MN	PD	LSI	FRAC_AM	AI	COHESION	DIVISION
耕地	中心城区	23.1111	0.1362	2.7500	1.0117	22.2222	23.2475	0.9998
	边缘区	82.2472	0.3398	18.4918	1.0904	39.6834	72.6685	0.9982
	乡村腹地	1242.0000	0.0486	18.9464	1.2388	67.0384	98.2999	0.8350
林地	边缘区	57.6000	0.0382	5.0000	1.0552	46.4567	63.1566	0.9999
林地	乡村腹地	150.2222	0.0219	5.0769	1.0626	66.0256	77.3700	0.9998
草地	中心城区	20.8000	0.1513	2.8750	1.0065	16.6667	16.1449	0.9999
	边缘区	21.8537	0.0783	6.6667	1.0232	12.3711	28.5565	1.0000
	乡村腹地	24.5333	0.0364	5.6429	1.0187	16.6667	25.4607	1.0000
水域	中心城区	19.5556	0.1362	2.8571	1.0034	13.3333	11.6250	0.9999
	边缘区	25.9200	0.1909	10.4231	1.0201	17.7852	28.4724	1.0000
	乡村腹地	56.5333	0.2004	10.7755	1.0989	57.1173	84.9260	0.9946
建设用地	中心城区	2005.3333	0.0454	3.1795	1.1004	88.0785	98.3152	0.3988
	边缘区	561.0847	0.1126	16.1319	1.1734	65.9748	95.2245	0.9308
	乡村腹地	50.8235	0.4750	25.9296	1.0642	26.6473	56.5048	0.9997

景观	区域	AREA_MN	PD	LSI	FRAC_AM	AI	COHESION	DIVISION
耕地	中心城区	27.7895	0.2399	4.3333	1.0161	25.9259	31.0707	0.9996
	边缘区	105.2727	0.2983	19.1594	1.1048	44.2368	79.0000	0.9967
	乡村腹地	1391.0303	0.0444	17.8056	1.2467	67.7620	98.6820	0.7853
林地	中心城区	16.0000	0.0126	1.0000	1.0000	-	0.0000	1.0000
	边缘区	82.4000	0.0339	5.1905	1.0545	52.4324	66.2776	0.9999
	乡村腹地	141.0000	0.0215	4.6667	1.0591	65.8915	76.2608	0.9998
草地	中心城区	20.0000	0.1515	3.3750	1.0056	13.6364	14.0103	0.9999
	边缘区	21.4468	0.0797	6.9375	1.0123	13.6364	19.9432	1.0000
	乡村腹地	23.6190	0.0282	4.4167	1.0152	18.0000	24.1514	1.0000
水域	中心城区	23.1111	0.1136	2.8750	1.0201	16.6667	25.0755	0.9999
	边缘区	28.0727	0.1865	11.1786	1.0298	20.3911	37.3779	0.9999
	乡村腹地	58.7020	0.2030	10.1250	1.1001	58.6792	85.5433	0.9937
建设用地	中心城区	2309.3333	0.0379	3.3810	1.0912	87.8641	97.3064	0.6050
	边缘区	482.2222	0.1221	16.8617	1.1728	64.8846	94.7853	0.9480
	乡村腹地	45.1337	0.5027	24.6000	1.0576	24.9878	53.3212	0.9997

景观指数	本文方法			不同指标方法
景观指数	建成区	边缘区	乡村腹地	建成区	边缘区	乡村腹地
PD	0.4691	0.7598	0.7823	0.5556	0.7204	0.7997
LPI	76.7554	20.3421	39.1059	59.5960	17.7651	45.0538
LSI	3.3659	16.4304	19.6181	3.7778	16.9795	18.5328
FRAC_AM	1.0921	1.1375	1.1730	1.0816	1.1379	1.1791
AI	81.7670	54.8965	55.6802	79.4382	54.8470	56.5867
COHESION	95.1307	90.4746	95.2351	92.7071	90.1185	95.9542
CONTAG	72.2574	40.8016	40.8820	70.1049	43.3433	42.5859
DIVISION	0.3985	0.9446	0.8291	0.6044	0.9289	0.7785
SPLIT	1.6624	18.0450	5.8515	2.5279	14.0619	4.5153
SHDI	0.3180	0.8430	0.5750	0.4550	0.8360	0.5990
SHEI	0.2884	0.5894	0.6518	0.3179	0.6211	0.6383

基于空间突变特征的城市边缘区提取方法

Identification Method of Urban Fringe Area based on Spatial Mutation Characteristics

RichHTML

PDF (PC)

赞

可视化

摘要/Abstract

引用本文

使用本文

图/表 32

参考文献 49

相关文章 15

Metrics

本文评价

推荐阅读 0

[1]	杨颖频, 吴志峰, 黄启厅, 骆剑承, 吴田军, 董文, 胡晓东, 肖文菊. 协同遥感与统计数据的粤西甘蔗种植分布提取及时空分析[J]. 地球信息科学学报, 2023, 25(5): 1012-1026.
[2]	谭德明, 饶佳艺. 深圳市都市型滨水空间活力影响因素分析[J]. 地球信息科学学报, 2023, 25(4): 809-822.
[3]	徐繁树, 王保云, 韩俊. 一种沟谷型潜在泥石流危险性评价方法：基于多源数据融合的卷积神经网络[J]. 地球信息科学学报, 2023, 25(3): 588-605.
[4]	齐林君, 翟仁健, 李安平. 顾及坡度和高程的多波束测深数据抽稀算法[J]. 地球信息科学学报, 2023, 25(1): 142-152.
[5]	潘雨飘, 赵翔, 王静, 张亦清, 刘耀林. 基于SMOTE-RF算法的村庄发展类型识别方法研究[J]. 地球信息科学学报, 2023, 25(1): 163-176.
[6]	闫兆进, 杨慧. 基于多源数据和船舶停留轨迹语义建模的港口目标识别[J]. 地球信息科学学报, 2022, 24(9): 1662-1675.
[7]	邹昕宸, 牟凤云, 王俊秀, 陈建坤, 田甜. 基于多源数据的长江经济带内河港口区位优势度评估[J]. 地球信息科学学报, 2022, 24(9): 1717-1729.
[8]	高雪梅, 杨续超, 陈柏儒, 林琳. 基于随机森林模型的环渤海地区人口空间化模拟[J]. 地球信息科学学报, 2022, 24(6): 1150-1162.
[9]	邓雅文, 侯鹏, 蒋卫国, 彭凯锋, 荔琢, 邓越. 基于多特征指标和层次聚类分析的河源区范围自动划分方法研究[J]. 地球信息科学学报, 2022, 24(3): 469-482.
[10]	何山, 闫浩文, 李蓬勃. 基于离散傅里叶变换的线要素节点压缩方法[J]. 地球信息科学学报, 2022, 24(12): 2309-2321.
[11]	吴莞姝, 党煜婷, 赵凯. 基于多维感知的城市活力空间特征研究[J]. 地球信息科学学报, 2022, 24(10): 1867-1882.
[12]	郭长庆, 迟文峰, 匡文慧, 窦银银, 傅舒婧, 雷梅. 1990—2020年中国能源开采和加工场地多源数据综合制图与时空变化分析[J]. 地球信息科学学报, 2022, 24(1): 127-140.
[13]	曾磊鑫, 刘涛, 杜萍. 基于多源数据的夜间经济时空分布格局研究方法[J]. 地球信息科学学报, 2022, 24(1): 38-49.
[14]	令振飞, 刘涛, 杜萍, 张耀蓉, 杨国林, 锁旭宏. 样本数量不平衡下的建筑群模式识别方法研究[J]. 地球信息科学学报, 2022, 24(1): 63-73.
[15]	王旭东, 姚尧, 任书良, 史绪国. 耦合FLUS和Markov的快速发展城市土地利用空间格局模拟方法[J]. 地球信息科学学报, 2022, 24(1): 100-113.
