基于AIS的海上渔船捕捞活动聚集区提取方法研究

doi:10.12082/dqxxkx.2021.210106

地球信息科学学报 ›› 2021, Vol. 23 ›› Issue (12): 2163-2173.doi: 10.12082/dqxxkx.2021.210106

• 地球信息科学理论与方法 • 上一篇下一篇

基于AIS的海上渔船捕捞活动聚集区提取方法研究

陈仁丽¹^,²(), 吴晓青¹^,³^,^*(), 刘柏静¹^,², 王跃启¹^,³, 高猛¹^,³

1.中国科学院烟台海岸带研究所,烟台 264003
2.中国科学院大学,北京 100049
3.中国科学院海岸带环境过程与生态修复重点实验室,烟台 264003

收稿日期:2021-03-04 修回日期:2021-04-09 出版日期:2021-12-25 发布日期:2022-02-25
通讯作者: *吴晓青(1978— ),女,山东肥城人,博士,研究员,主要从事海岸带规划管理、GIS与遥感应用研究。 E-mail: xqwu@yic.ac.cn
作者简介:陈仁丽(1996— ),女,山东潍坊人,硕士生,主要从事GIS与遥感应用研究。E-mail: 1987887320@qq.com
基金资助:
国家重点研发计划项目(2019YFD0900705);山东省基金项目(ZR2020MD014)

Mapping Method of Fishing Grounds based on Marine AIS Data

CHEN Renli¹^,²(), WU Xiaoqing¹^,³^,^*(), LIU Baijing¹^,², WANG Yueqi¹^,³, GAO Meng¹^,³

1. Yantai Institute of Coastal Zone Research, Chinese Academy of Sciences, Yantai 264003, China
2. University of Chinese Academy of Sciences, Beijing 100049, China
3. Key Laboratory of Coastal Environmental Processes and Ecological Remediation, Chinese Academy of Sciences, Yantai 264003, China

Received:2021-03-04 Revised:2021-04-09 Online:2021-12-25 Published:2022-02-25
Supported by:
TheNational Key R&D Program of China(2019YFD0900705);Shandong Provincial Natural Science Foundation(ZR2020MD014)

摘要/Abstract

摘要：

船舶自动识别系统(Automatic Identification System, AIS)不仅是海上交通监管的有效工具,也为研究海上交通运输及其相关产业活动特征提供了一种良好的数据源。基于海上渔船AIS数据,本研究利用高斯混合模型(Gaussian Mixed Model,GMM)识别渔船捕捞活动状态,提出一种将核密度估计(Kernel Density Estimation,KDE)与热点分析(Hot Spot Analysis, HSA)相融合用于渔船捕捞活动聚集区提取的方法。结果显示：与单一KDE或HSA方法相比,二者相融合的方法将KDE的距离衰减效应与HSA统计指数相结合,在渔船捕捞活动聚集区提取中的应用效果较好、效率较高;采用该融合方法,基于2018年9—12月AIS数据,实现对渤海海峡周边海域渔船捕捞活动聚集区的提取,发现不同月份,渔船捕捞活动聚集区的分布范围和空间形态特征具有一定差异性,烟威近岸海域和渤海海峡是主要的捕捞活动聚集区,其结果可为该海域捕捞活动管理和海洋生态保护提供技术方法和决策支持。

关键词: AIS, 捕捞活动, 渔船行为, 捕捞活动聚集区, 高斯混合模型, 核密度估计, 热点分析, 渤海海峡

Abstract:

Automatic Identification System (AIS) is a ship-to-ship and ship-to-shore system used for ship monitoring. It can automatically and continuously broadcast static and dynamic information about the vessel's position and movement, as well as voyage-related information. More and more research suggests that AIS is not only an effective tool for maritime traffic supervision, but also a good data source for the study of maritime traffic and its related industrial activities. In China, the application of AIS equipment is relatively late. The research based on AIS data mainly focuses on the maritime traffic safety management, such as vessel collision avoidance and traffic flow statistics, while there are few reports in the fishery field. In order to provide technical support for the protection and recovery of inshore fishery resources in China, it is urgent to excavate the information value of AIS data and carry out the research on the spatiotemporal pattern of inshore fishing activities based on AIS data. Therefore, based on AIS data of fishing vessels at sea, this study used the Gaussian Mixed Model (GMM) to identify fishing behavior of fishing vessels and determine the speed threshold of fishing vessels in fishing activities. This study proposed a method combining Kernel Density Estimation (KDE) and Hot Spot Analysis (HSA) to map fishing grounds. The results show that, firstly, compared with single KDE or HSA method, the combination method combined the distance attenuation effect of KDE with quantitative statistical index of HSA, which can not only avoid the problem of range definition of fishing grounds in the KDE process, but also improve the efficiency of data analysis in the HSA process and the scattered distribution effect of fishing grounds in the extraction results of the HSA. The combination method had better application effects and higher efficiency in the mapping of fishing grounds. It provided a quick and simple evaluation method for the rapid acquisition of marine fishing information and the effectiveness evaluation of fishery resources protection and management measures. Secondly, based on the AIS data from September to December 2018, the combination method was used to map the spatiotemporal distribution of fishing grounds around the Bohai Strait. The study found that the fishing grounds around the Bohai Strait were mainly distributed in the inshore areas of Yanwei and the Bohai Strait. The distribution range of concentrated fishing activities in traditional fishing grounds of the Bohai Sea is relatively small, and the distribution range and spatial morphological characteristics of fishing grounds had some variabilities in different months. The results can provide technical methods and decision support for fishing management and marine ecological protection around the Bohai Strait.

Key words: Automatic Identification System (AIS), fishing activity, vessel behavior, fishing grounds, Gaussian Mixed Model (GMM), Kernel Density Estimation (KDE), Hot Spot Analysis (HSA), Bohai Strait

陈仁丽, 吴晓青, 刘柏静, 王跃启, 高猛. 基于AIS的海上渔船捕捞活动聚集区提取方法研究[J]. 地球信息科学学报, 2021, 23(12): 2163-2173.DOI:10.12082/dqxxkx.2021.210106

CHEN Renli, WU Xiaoqing, LIU Baijing, WANG Yueqi, GAO Meng. Mapping Method of Fishing Grounds based on Marine AIS Data[J]. Journal of Geo-information Science, 2021, 23(12): 2163-2173.DOI:10.12082/dqxxkx.2021.210106

图/表 9

图1

图2

图3

表1

图4

图5

图6

图7

表2

参考文献 51

[1]	Coomber F G, D’Incà M, Rosso M, et al. Description of the vessel traffic within the north Pelagos Sanctuary: Inputs for Marine Spatial Planning and management implications within an existing international Marine Protected Area[J]. Marine Policy, 2016, 69:102-113. doi: 10.1016/j.marpol.2016.04.013
[2]	鹿强, 吴琳, 陈昭, 等. 海上目标多源轨迹数据关联综述[J]. 地球信息科学学报, 2018, 20(5):571-581. doi: 10.12082/dqxxkx.2018.180024
	[ Lu Q, Wu L, Chen Z, et al. A review of multi-source trajectory data association for marine targets[J]. Journal of Geo-information Science, 2018, 20(5):571-581. ]
[3]	方志祥, 余红楚, 黄守倩. 海洋运输网络研究进展与趋势探讨[J]. 地球信息科学学报, 2018, 20(5):554-563. doi: 10.12082/dqxxkx.2018.180178
	[ Fang Z X, Yu H C, Huang S Q. Review of research works on maritime network[J]. Journal of Geo-information Science, 2018, 20(5):554-563. ]
[4]	Shepperson J L, Hintzen N T, Szostek C L, et al. A comparison of VMS and AIS data: The effect of data coverage and vessel position recording frequency on estimates of fishing footprints[J]. ICES Journal of Marine Science, 2018, 75(3):988-998. doi: 10.1093/icesjms/fsx230
[5]	Meng Q, Weng J X, Li S Y. Analysis with automatic identification system data of vessel traffic characteristics in the Singapore Strait[J]. Transportation Research Record: Journal of the Transportation Research Board, 2014, 2426(1):33-43. doi: 10.3141/2426-05
[6]	McCauley D J, Woods P, Sullivan B, et al. Ending hide and seek at sea[J]. Science, 2016, 351(6278):1148-1150. doi: 10.1126/science.aad5686 pmid: 26965610
[7]	de Souza E N, Boerder K, Matwin S, et al. Improving fishing pattern detection from satellite AIS using data mining and machine learning[J]. PLoS One, 2016, 11(7):e0158248. doi: 10.1371/journal.pone.0158248
[8]	Kroodsma D A, Mayorga J, Hochberg T, et al. Tracking the global footprint of fisheries[J]. Science, 2018, 359(6378):904-908. doi: 10.1126/science.aao5646 pmid: 29472481
[9]	Wang Y B, Wang Y. Estimating catches with Automatic Identification System (AIS) data: a case study of single otter trawl in Zhoushan fishing ground, China[J]. Iranian Journal of Fisheries Sciences, 2016, 15(1):75-90.
[10]	Le Guyader D, Ray C, Gourmelon F, et al. Defining high-resolution dredge fishing grounds with Automatic Identification System (AIS) data[J]. Aquatic Living Resources, 2017, 30:1-10. doi: 10.1051/alr/2016034
[11]	原作辉, 杨东海, 樊伟, 等. 基于卫星AIS的中西太平洋金枪鱼延绳钓渔场分布研究[J]. 海洋渔业, 2018, 40(6):649-659.
	[ Yuan Z H, Yang D H, Fan W, et al. On fishing grounds distribution of tuna longline based on satellite automatic identification system in the Western and Central Pacific[J]. Marine Fisheries, 2018, 40(6):649-659. ]
[12]	Vespe M, Gibin M, Alessandrini A, et al. Mapping EU fishing activities using ship tracking data[J]. Journal of Maps, 2016, 12(sup1):520-525. doi: 10.1080/17445647.2016.1195299
[13]	Guiet J, Galbraith E, Kroodsma D, et al. Seasonal variability in global industrial fishing effort[J]. PLoS One, 2019, 14(5):e0216819. doi: 10.1371/journal.pone.0216819
[14]	刘柏静, 贾静, 吴晓青, 等. 基于AIS和多尺度空间模型的船舶活动时空特征及潜在压力[J]. 大连海事大学学报, 2018, 44(3):115-121,128.
	[ Liu B J, Jia J, Wu X Q, et al. Spatial-temporal features and potential pressure of marine vessel activities based on AIS and multi-scales spatial model[J]. Journal of Dalian Maritime University, 2018, 44(3):115-121,128. ]
[15]	Russo T, D’Andrea L, Parisi A, et al. Assessing the fishing footprint using data integrated from different tracking devices: Issues and opportunities[J]. Ecological Indicators, 2016, 69:818-827. doi: 10.1016/j.ecolind.2016.04.043
[16]	Tassetti A N, Ferrà C, Fabi G. Rating the effectiveness of fishery-regulated areas with AIS data[J]. Ocean & Coastal Management, 2019, 175:90-97.
[17]	Le Tixerant M, Le Guyader D, Gourmelon F, et al. How can Automatic Identification System (AIS) data be used for maritime spatial planning?[J]. Ocean & Coastal Management, 2018, 166:18-30.
[18]	Natale F, Gibin M, Alessandrini A, et al. Mapping fishing effort through AIS data[J]. PLoS One, 2015, 10(6):e0130746. doi: 10.1371/journal.pone.0130746
[19]	陈仁丽, 王宜强, 刘柏静, 等. 基于GIS和AIS的渤海海上船舶活动时空特征分析[J]. 地理科学进展, 2020, 39(7):1172-1181. doi: 10.18306/dlkxjz.2020.07.010
	[ Chen R L, Wang Y Q, Liu B J, et al. Spatio-temporal characteristics of ship activities in the Bohai Sea based on GIS and AIS[J]. Progress in Geography, 2020, 39(7):1172-1181. ]
[20]	朱姣, 刘敬贤, 陈笑, 等. 基于轨迹的内河船舶行为模式挖掘[J]. 交通信息与安全, 2017, 35(3):107-116,132.
	[ Zhu J, Liu J X, Chen X, et al. Behavior pattern mining of inland vessels based on trajectories[J]. Journal of Transport Information and Safety, 2017, 35(3):107-116,132. ]
[21]	李连博, 牛佳伟, 刘军坡, 等. 基于AIS数据的海区通航危险度决策模型[J]. 中国航海, 2018, 41(3):68-75.
	[ Li L B, Niu J W, Liu J P, et al. AIS data-based navigation risk modeling[J]. Navigation of China, 2018, 41(3):68-75. ]
[22]	梅强, 吴琳, 彭澎, 等. 南海区域商船典型空间分布及贸易流向研究[J]. 地球信息科学学报, 2018, 20(5):632-639. doi: 10.12082/dqxxkx.2018.180017
	[ Mei Q, Wu L, Peng P, et al. Typical spatial distribution of merchant vessels and trade flow in South China Sea[J]. Journal of Geo-Information Science, 2018, 20(5):632-639. ]
[23]	金辉, 刘克中, 马杰, 等. 基于高斯混合模型的船舶到达规律研究[J]. 武汉理工大学学报(交通科学与工程版), 2020, 44(1):162-166.
	[ Jin H, Liu K Z, Ma J, et al. Research on vessel arrival rules based on Gaussian Mixture Model[J]. Journal of Wuhan University of Technology (Transportation Science & Engineering), 2020, 44(1):162-166. ]
[24]	禹文豪, 艾廷华. 核密度估计法支持下的网络空间POI点可视化与分析[J]. 测绘学报, 2015, 44(1):82-90.
	[ Yu W H, Ai T H. The visualization and analysis of POI features under network space supported by kernel density estimation[J]. Acta Geodaetica et Cartographica Sinica, 2015, 44(1):82-90. ]
[25]	农业农村部渔业渔政管理局. 2019年中国渔业统计年鉴[M]. 北京: 中国农业出版社, 2019.
	[ Fishery Administration Bureau of Ministry of Agriculture and Rural Affairs. China fishery statistical yearbook in 2019[M]. Beijing: China Agriculture Press, 2019. ]
[26]	Fiorini M, Capata A, Bloisi D D. AIS data visualization for Maritime Spatial Planning (MSP)[J]. International Journal of e-Navigation and Maritime Economy, 2016, 5:45-60. doi: 10.1016/j.enavi.2016.12.004
[27]	Pauly D, Christensen V. Primary production required to sustain global fisheries[J]. Nature, 1995, 374(6519):255-257. doi: 10.1038/374255a0
[28]	Pikitch E K, Santora C, Babcock E A, et al. Ecosystem-based fishery management[J]. Science, 2004, 305(5682):346-347. pmid: 15256658
[29]	柯志新, 陈丹婷, 谭烨辉, 等. 汕头南澳-东山海域初级生产力的时空特征[J]. 中国水产科学, 2019, 26(1):44-52.
	[ Ke Z X, Chen D T, Tan Y H, et al. Temporal and spatial variations in primary production in the coastal region of Dongshan-Nan'ao[J]. Journal of Fishery Sciences of China, 2019, 26(1):44-52. ]
[30]	逄志伟, 李显森, 朱建成, 等. 中东大西洋中部海域中上层鱼类中心渔场的时空变化[J]. 生态学杂志, 2016, 35(11):3072-3079.
	[ Pang Z W, Li X S, Zhu J C, et al. Spatiotemporal patterns of central fishing ground of pelagic fishes in the sea area of central Eastern Central Atlantic[J]. Chinese Journal of Ecology, 2016, 35(11):3072-3079. ]
[31]	唐峰华, 崔雪森, 樊伟, 等. 公海柔鱼类资源丰度与海洋环境关系的研究[J]. 中国农业科技导报, 2016, 18(4):153-162.
	[ Tang F H, Cui X S, Fan W, et al. Study on relationship between resources abundance of squids and marine environment in high seas fishing grounds[J]. Journal of Agricultural Science and Technology, 2016, 18(4):153-162. ]
[32]	唐峰华, 史赟荣, 朱金鑫, 等. 海洋环境因子对日本海太平洋褶柔鱼渔场时空分布的影响[J]. 中国水产科学, 2015, 22(5):1036-1043.
	[ Tang F H, Shi Y R, Zhu J X, et al. Influence of marine environment factors on temporal and spatial distribution of Japanese common squid fishing grounds in the Sea of Japan[J]. Journal of Fishery Sciences of China, 2015, 22(5):1036-1043. ]
[33]	O’Reilly J E, Maritorena S, Siegel D, et al. Ocean color chlorophyll-a algorithms for SeaWiFS, OC2, and OC4: Version 4[R]. SeaWiFS postlaunch calibration and validation analyses, Part 3. NASA Goddard Space Flight Center, 2000.
[34]	Wang Y Q, Liu D Y, Tang D L. Application of a Generalized Additive Model (GAM) for estimating chlorophyll-a concentration from MODIS data in the Bohai and Yellow Seas, China[J]. International Journal of Remote Sensing, 2017, 38(3):639-661. doi: 10.1080/01431161.2016.1268733
[35]	Alvera-Azcárate A, Barth A, Beckers J M, et al. Multivariate reconstruction of missing data in sea surface temperature, chlorophyll, and wind satellite fields[J]. Journal of Geophysical Research: Oceans, 2007, 112(C3):C03008.
[36]	Beckers J M, Barth A, Alvera-Azcárate A. DINEOF reconstruction of clouded images including error maps application to the sea-surface temperature around Corsican Island[J]. Ocean Science, 2006, 2(2):183-199. doi: 10.5194/os-2-183-2006
[37]	Wang Y Q, Liu D Y. Reconstruction of satellite chlorophyll-a data using a modified DINEOF method: A case study in the Bohai and Yellow seas, China[J]. International Journal of Remote Sensing, 2014, 35(1):204-217. doi: 10.1080/01431161.2013.866290
[38]	Lambert G I, Jennings S, Hiddink J G, et al. Implications of using alternative methods of vessel monitoring system (VMS) data analysis to describe fishing activities and impacts[J]. ICES Journal of Marine Science, 2012, 69(4):682-693. doi: 10.1093/icesjms/fss018
[39]	Powell R A. Animal home ranges and territories and home range estimators, in: Pearl MC, Boitani L, Fuller TK (Eds.), Research techniques in animal ecology[M]. Columbia University Press. Controversies and Consequences, 2nd edition, 2000.
[40]	禹文豪, 艾廷华, 杨敏, 等. 利用核密度与空间自相关进行城市设施兴趣点分布热点探测[J]. 武汉大学学报·信息科学版, 2016, 41(2):221-227.
	[ Yu W H, Ai T H, Yang M, et al. Detecting“hot spots”of facility POIs based on kernel density estimation and spatial autocorrelation technique[J]. Geomatics and Information Science of Wuhan University, 2016, 41(2):221-227. ]
[41]	Lamas L, Oliveira P B, Pinto J P, et al. Fishing areas characterisation using the SIMOcean platform[J]. Aquatic Living Resources, 2017, 30:19. doi: 10.1051/alr/2017020
[42]	Tang D L, Ni I H, Müller-Karger F E, et al. Monthly variation of pigment concentrations and seasonal winds in China's marginal seas[J]. Hydrobiologia, 2004, 511(1):1-15. doi: 10.1023/B:HYDR.0000014001.43554.6f
[43]	Nurdin S, Mustapha M A, Lihan T, et al. Applicability of remote sensing oceanographic data in the detection of potential fishing grounds of Rastrelliger kanagurta in the archipelagic waters of Spermonde, Indonesia[J]. Fisheries Research, 2017, 196:1-12. doi: 10.1016/j.fishres.2017.07.029
[44]	Cai L N, Bu J, Tang D L, et al. Geosynchronous satellite GF-4 observations of chlorophyll-a distribution details in the Bohai sea, China[J]. Sensors, 2020, 20(19):5471. doi: 10.3390/s20195471
[45]	Zhang H L, Qiu Z F, Sun D Y, et al. Seasonal and interannual variability of satellite-derived chlorophyll-a (2000-2012) in the Bohai sea, China[J]. Remote Sensing, 2017, 9(6):582. doi: 10.3390/rs9060582
[46]	唐启升. 中国区域海洋学-渔业海洋学[M]. 北京: 海洋出版社, 2012.
	[ Tang Q S. Regional oceanography of China seas-fisheries oceanography[M]. Beijing: Ocean Press, 2012. ]
[47]	农业部水产局. 黄、渤海区渔业资源调查与区划[M]. 北京: 海洋出版社, 1990.
	[ Fisheries Bureau of the Ministry of Agriculture. Investigations and divisions of fishery resources in the Yellow Sea and Bohai Sea[M]. Beijing: Ocean Press, 1990. ]
[48]	Robards M D, Silber G K, Adams J D, et al. Conservation science and policy applications of the marine vessel Automatic Identification System (AIS): A review[J]. Bulletin of Marine Science, 2016, 92(1):75-103. doi: 10.5343/bms.2015.1034
[49]	Rowlands G, Brown J, Soule B, et al. Satellite surveillance of fishing vessel activity in the Ascension Island exclusive economic zone and marine protected area[J]. Marine Policy, 2019, 101:39-50. doi: 10.1016/j.marpol.2018.11.006
[50]	James M, Mendo T, Jones E L, et al. AIS data to inform small scale fisheries management and marine spatial planning[J]. Marine Policy, 2018, 91:113-121. doi: 10.1016/j.marpol.2018.02.012
[51]	Wawruch R. Study reliability of the information about the CPA and TCPA indicated by the ship's AIS[J]. TransNav, the International Journal on Marine Navigation and Safety of Sea Transportation, 2016, 10(3):417-424. doi: 10.12716/1001

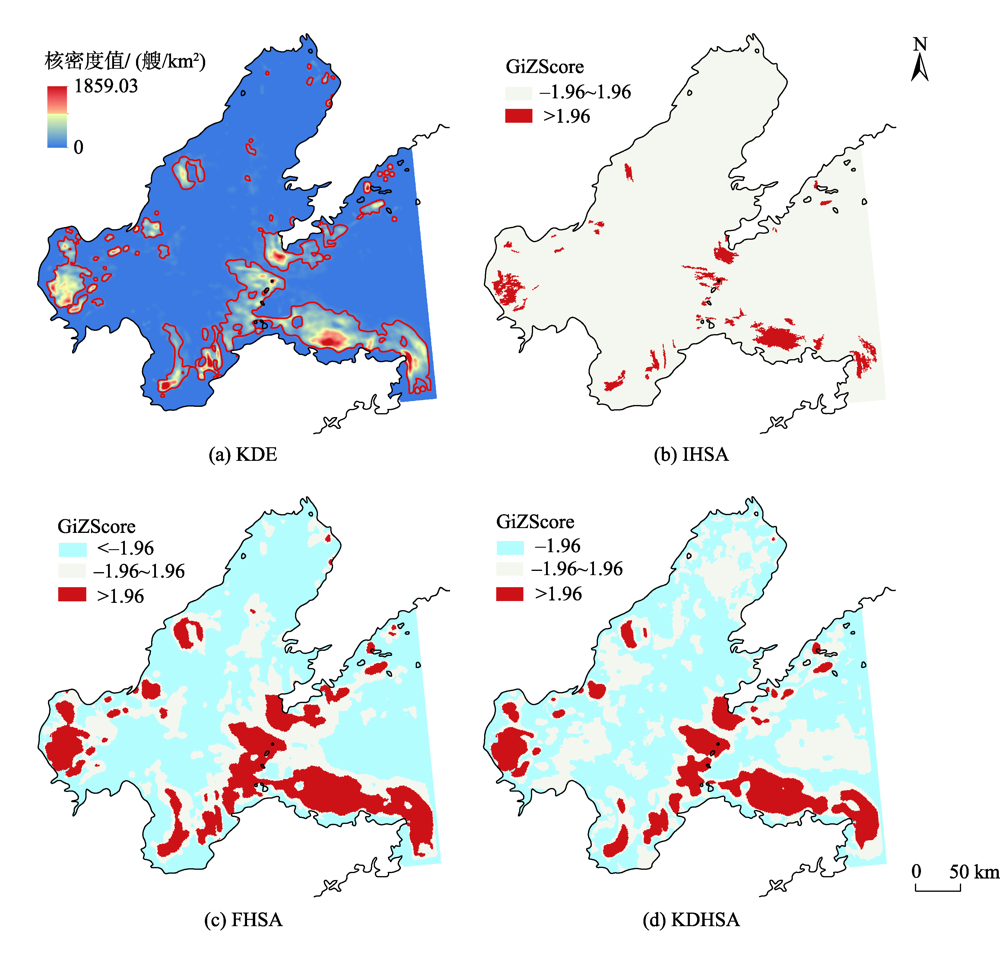

提取方法	总区块数量/个	总区块面积/km²	大于10 km²区块数量/个	大于10 km²区块面积/km²
KDE	65	22 421.95	49	22 357.82
IHSA	197	5048.25	37	4680.38
FHSA	37	20 610.85	29	20 591.98
KDHSA	33	15 771.57	27	15 749.61

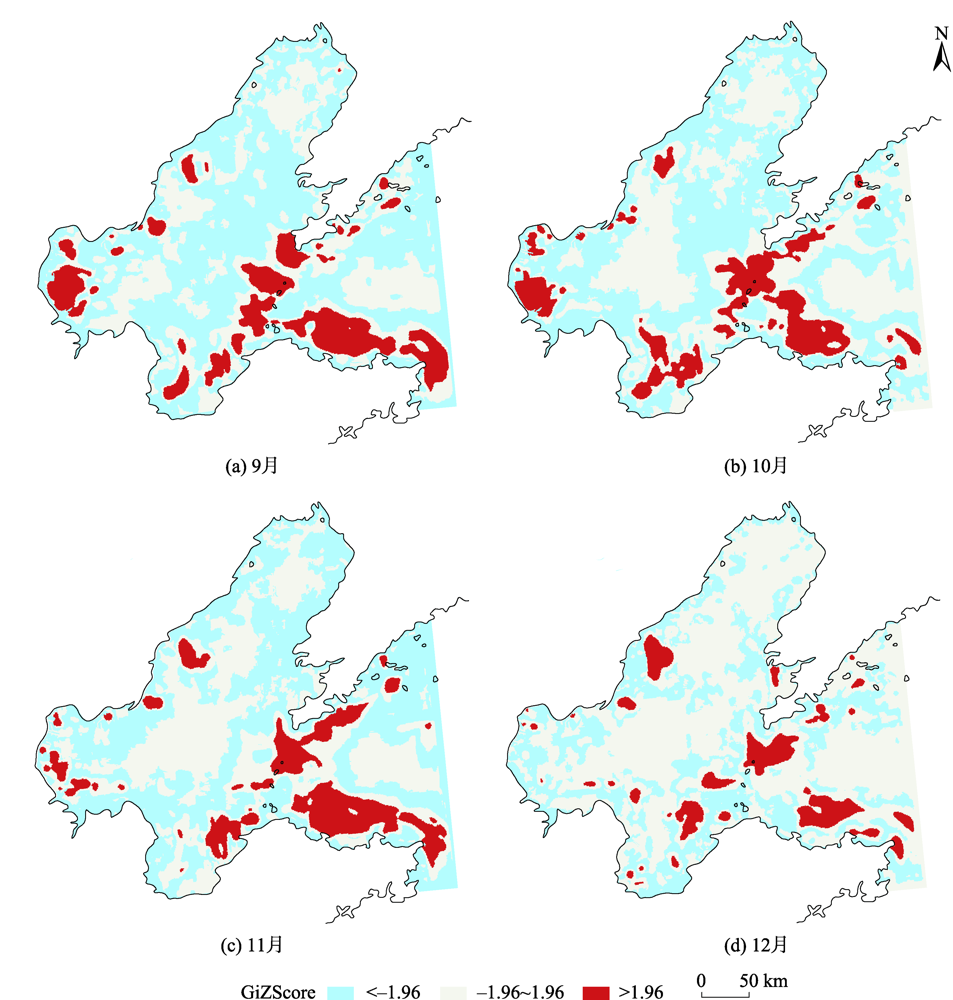

	9月	10月	11月	12月
区块面积/km²	15 749.61	13 856.57	13 610.92	8686
区块数量/个	27	26	22	29
