基于CityGML的明清古建筑三维语义模型扩展及转换研究

doi:10.12082/dqxxkx.2022.210136

地球信息科学学报 ›› 2022, Vol. 24 ›› Issue (2): 326-338.doi: 10.12082/dqxxkx.2022.210136

• 地球信息科学理论与方法 • 上一篇下一篇

基于CityGML的明清古建筑三维语义模型扩展及转换研究

张文元(), 刘润桦, 万君璧, 谈国新^*()

华中师范大学国家文化产业研究中心,武汉 430079

收稿日期:2021-03-16 修回日期:2021-04-08 出版日期:2022-02-25 发布日期:2022-04-25
通讯作者: *谈国新（1965— ）,男,江苏溧阳人,博导,教授,主要从事文化科技融合研究。E-mail: gxtan@ccnu.edu.cn
作者简介:张文元（1983— ）,男,湖北武汉人,博士,副教授,研究方向为文化遗产数字化与三维GIS。E-mail: zhangwy@ccnu.edu.cn
基金资助:
国家自然科学基金项目(41801295);国家文化和旅游科技创新工程项目(2019-008);九华山地质公园地域文化与地质地貌关系研究(20201176038)

3D Semantic Model Extension and Transformation for Ancient Architecture of Ming and Qing Dynasties based on CityGML

ZHANG Wenyuan(), LIU Runhua, WAN Junbi, TAN Guoxin^*()

National Research Center of Cultural Industries, Central China Normal University, Wuhan 430079, China

Received:2021-03-16 Revised:2021-04-08 Online:2022-02-25 Published:2022-04-25
Contact: TAN Guoxin
Supported by:
National Natural Science Foundation of China(41801295);National Culture and Tourism Science and Technology Innovation Project(2019-008);The Relationship Between Local Culture and Geology of Jiuhua Mountain Geology Park(20201176038)

摘要/Abstract

摘要：

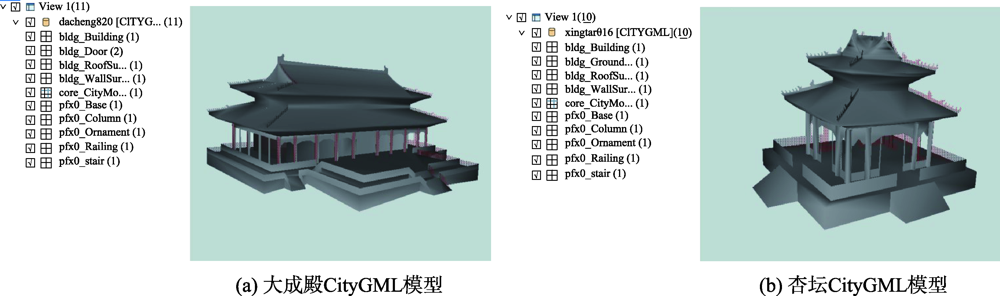

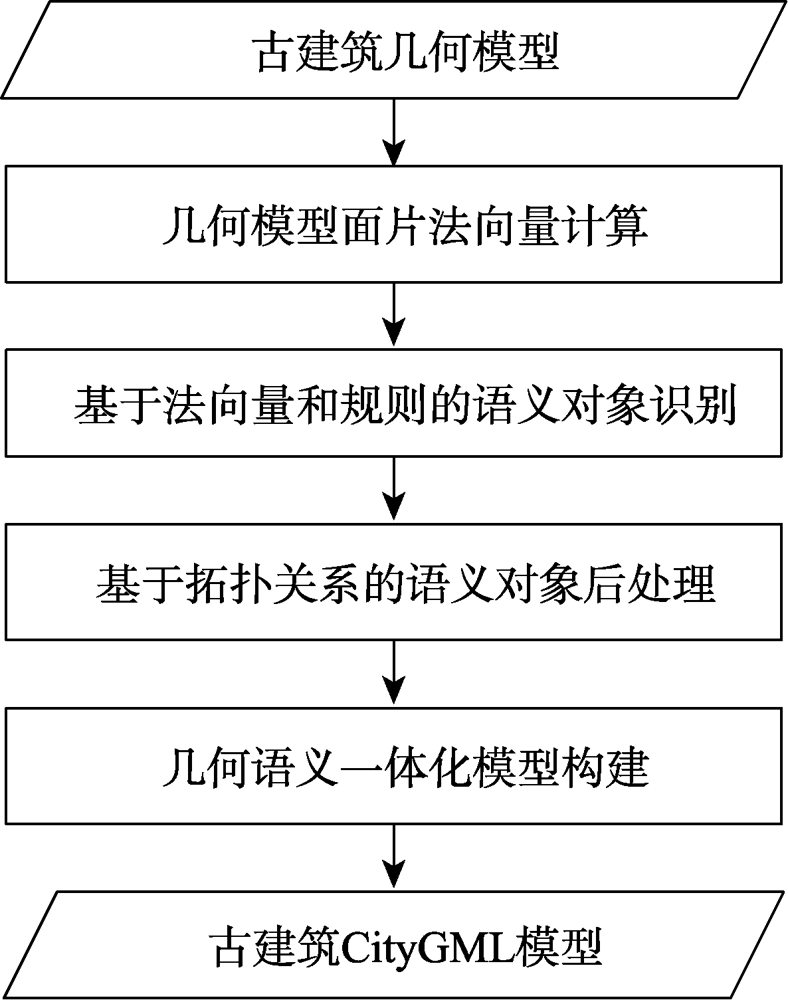

针对现有的大量古建筑三维模型缺乏语义信息,不利于精细化和智能化管理等问题,对城市地理标记语言（City Geography Markup Language, CityGML）定义的建筑物模型进行了语义扩展,提出了一种从古建筑几何模型自动识别语义对象并转化为CityGML扩展模型的方法。首先,总结我国明清古建筑构件的共有特征,并使用CityGML的应用领域扩展机制增加斗拱、梁、柱、台基等古建筑通用对象的几何和语义表达。其次,利用古建筑Mesh模型各面片的法向量、坐标范围等特征和自定义规则提出了一套古建筑屋顶、墙面、立柱、门窗等语义对象自动识别方法。最后,依据CityGML扩展模型设计规范,从识别对象自动构建出几何语义一体化表达的古建筑三维模型。采用2个不同风格的古建筑模型进行语义对象提取和CityGML模型生成实验,使用本文提出的Mesh模型到CityGML LoD3扩展语义模型转换方法能够自动提取屋顶、墙面、台基等9类语义对象,每个Mesh模型能转换并生成400多个包含语义信息的平面多边形,95%以上的面片能正确识别。结果表明本文设计的CityGML扩展模型能够有效支持古建筑模型典型构件的显式语义表达,并且识别规则和转换方法能够支持Mesh模型大多数平面对象的提取,有利于CityGML模型的自动化生成和精细化管理。

关键词: 古建筑, 三维建模, CityGML, 构件, 应用领域扩展, 格网模型, 语义模型, 模型转换

Abstract:

In recent years, a large amount of 3D building models of Chinese ancient architecture have been created to preserve and protect cultural heritages by different organizations and persons. However, most of these existing 3D models are lack of semantic information, which are predominantly used for 3D visualization, and they cannot meet the requirements of fine management and other intelligent applications. To address this problem, the standard building model defined by City Geography Markup Language (CityGML) is extended based on the features of Chinese ancient architecture. Moreover, a novel 3D semantic modeling approach is proposed to automatically identify semantic surfaces from mesh models and generate extended CityGML model in this paper. Firstly, we summarize the common features of Chinese ancient architecture components in Ming and Qing dynasties. We develop a CityGML extension to explicitly represent the geometric and semantic information of typical components of ancient architectures using CityGML Application Domain Extensions (ADE). Bracket, beam, column, base, and other new objects are added into this designed CityGML building model. Secondly, a model transformation algorithm is proposed to generate extended CityGML building models from mesh models, in which face normal and coordinate range of each triangle face from mesh model are calculated, together with other defined shape and position rules for different components. The algorithm is able to automatically recognize different semantic surfaces from roof, wall, column, and other objects of an ancient building. Thirdly, all these extracted triangular faces are further refined via topological validation and merged into polygon geometries, so as to accurately represent an ancient building according to geometric and semantic principles of CityGML. Two public mesh models of ancient buildings with different construction structures are selected to automatically extract semantic objects and generate corresponding extended CityGML models using the proposed method. Nine kinds of semantic objects such as RoofSurface, WallSurface, and Base are successfully recognized. More than 400 planar polygons with semantic information for each CityGML building model are generated. The percentage of correct face recognition is as high as 95%. Experimental results indicate that the extended CityGML model can effectively support the explicit semantic representation of typical components for ancient architecture. Most of planar faces from these mesh models can be automatically extracted and converted into extended CityGML semantic objects using the explored geometric rules and transformation approach. Therefore, the presented algorithm is beneficial for 3D semantic modeling of Chinese ancient architectures in an automated manner. It is useful for the fine management of ancient building models as well.

Key words: ancient architecture, 3D modeling, CityGML, components, application domain extensions, mesh model, semantic model, model transformation

张文元, 刘润桦, 万君璧, 谈国新. 基于CityGML的明清古建筑三维语义模型扩展及转换研究[J]. 地球信息科学学报, 2022, 24(2): 326-338.DOI:10.12082/dqxxkx.2022.210136

ZHANG Wenyuan, LIU Runhua, WAN Junbi, TAN Guoxin. 3D Semantic Model Extension and Transformation for Ancient Architecture of Ming and Qing Dynasties based on CityGML[J]. Journal of Geo-information Science, 2022, 24(2): 326-338.DOI:10.12082/dqxxkx.2022.210136

图/表 12

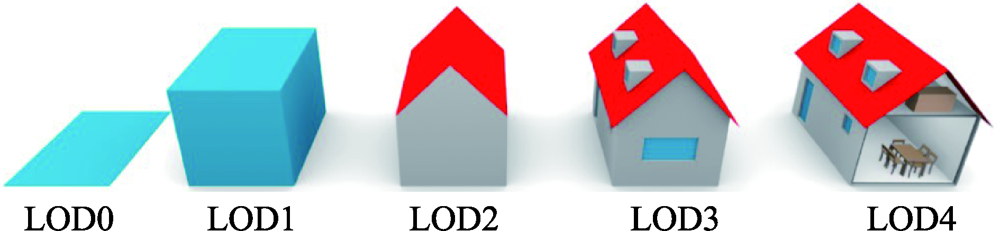

图1

表1

图2

图3

图4

表2

古建筑Mesh模型面片语义判别规则

语义对象	平面法向量与Z轴夹角θ	形状位置规则
屋顶	$θ ≤ 85 °$ 或 $θ ≥ 95 °$	$z min ≥ h min ＞ 2.0 m$
地面	$θ ＞ 175 °$ 或 $θ ＜ 5 °$	$z max - z MIN ＜ 0.2 m$
墙面	$85 ° ＜ θ ＜ 95 °$
门	$85 ° ＜ θ ＜ 95 °$	$1.6 m ≤ h ≤ 4.0 m$ $1.0 m ＜ w ＜ h$
窗	$85 ° ＜ θ ＜ 95 °$	$z min - z MIN ＞ 0.8 m$ $z MAX - z max ＞ 1.0 m$ 3 $w ＜ h ＜ 6 w$
柱	$85 ° ＜ θ ＜ 95 °$	$h ＞ 5 w$
栏杆	$85 ° ＜ θ ＜ 95 °$	$0.6 m ≤ h ≤ 1.4 m$ $z min - z MIN ＞ 0.5 m$
楼梯（倾斜面）	$θ ≤ 85 °$ 或 $θ ≥ 95 °$	$h ＜ 2.0 m$ $z min - z MIN ＞ 0.2 m$
楼梯（垂直或水平）	$85 ° ＜ θ ＜ 95 °$ 或 $θ ＞ 175 °$ 或 $θ ＜ 5 °$	$0.1 m ≤ h ≤ 0.2 m$ $0.2 m ≤ w ≤ 0.4 m$
台基	$85 ° ＜ θ ＜ 95 °$ 或 $θ ＞ 175 ° 或 θ ＜ 5 °$	$h ＜ 2.0 m$ $z min - z MIN ＞ 0.2 m$

表2

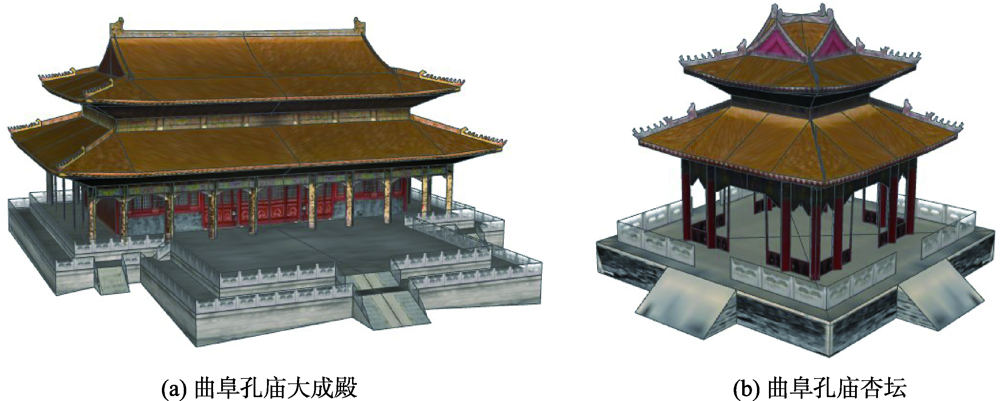

图5

图6

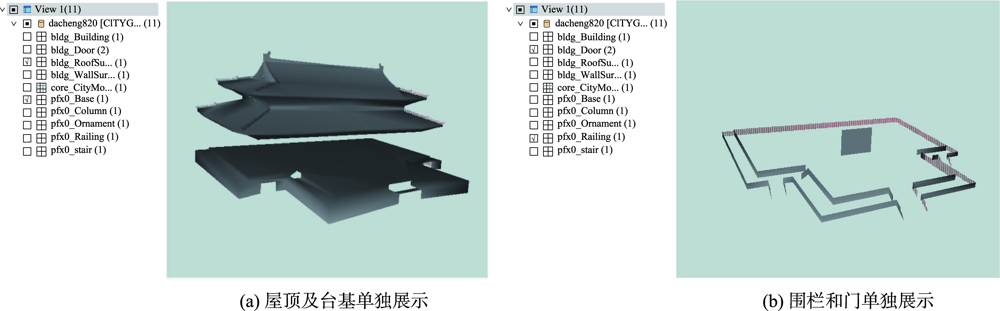

图7

图8

表3

图9

参考文献 22

[1]	龚雨, 刘媛, 王亮, 等. CGA参数化快速建模的研究与实现——以雨母山古寺庙建筑群为例[J]. 测绘通报, 2017(4):112-115.
	[ Gong Y, Liu Y, Wang L, et al. Research and implementation of CGA-based parametric fast modeling—taking ancient temples in the yu-mu mountain as an example[J]. Bulletin of Surveying and Mapping, 2017(4):112-115. ] DOI: 10.13474/j.cnki.11-2246.2017.0133 doi: 10.13474/j.cnki.11-2246.2017.0133
[2]	Gröger G, Plümer L. CityGML - Interoperable semantic 3D city models[J]. ISPRS Journal of Photogrammetry and Remote Sensing, 2012, 71:12-33. DOI: 10.1016/j.isprsjprs.2012.04.004 doi: 10.1016/j.isprsjprs.2012.04.004
[3]	索俊锋, 刘勇, 蒋志勇, 等. 基于三维激光扫描点云数据的古建筑建模[J]. 测绘科学, 2017, 42(3):179-185.
	[ Suo J F, Liu Y, Jiang Z Y, et al. Modeling of ancient building based on 3D laser scanning point cloud data[J]. Science of Surveying and Mapping, 2017, 42(3):179-185. ] DOI: 10.16251/j.cnki.1009-2307.2017.03.033 doi: 10.16251/j.cnki.1009-2307.2017.03.033
[4]	高溪溪, 周东明, 崔维久. 三维激光扫描结合BIM技术的古建筑三维建模应用[J]. 测绘通报, 2019(5):158-162.
	[ Gao X X, Zhou D M, Cui W J. Research on the application of ancient architecture based on 3D laser scanning and BIM[J]. Bulletin of Surveying and Mapping, 2019(5):158-162. ] DOI: 10.13474/j.cnki.11-2246.2019.0172 doi: 10.13474/j.cnki.11-2246.2019.0172
[5]	Gröger G, Kolbe T H, Nagel C, et al. OGC City Geography Markup Language (CityGML) encoding standard version 2.0.0[S]. Open Geospatial Consortium Inc, 2012.
[6]	单杰, 李志鑫, 张文元. 大规模三维城市建模进展[J]. 测绘学报, 2019, 48(12):1523-1541.
	[ Shan J, Li Z X, Zhang W Y. Recent progress in large-scale 3D city modeling[J]. Acta Geodaetica et Cartographica Sinica, 2019, 48(12):1523-1541. ] DOI: 10.11947/j.AGCS.2019.20190471 doi: 10.11947/j.AGCS.2019.20190471
[7]	Biljecki F, Stoter J, Ledoux H, et al. Applications of 3D city models: State of the art review[J]. ISPRS International Journal of Geo-Information, 2015, 4(4):2842-2889. DOI: 10.3390/ijgi4042842 doi: 10.3390/ijgi4042842
[8]	应申, 郭仁忠, 靳凤攒, 等. 利用CityGML模型自动构建三维封闭建筑体[J]. 武汉大学学报·信息科学版, 2018, 43(5):732-738.
	[ Ying S, Guo R Z, Jin F Z, et al. Auto-construction of 3D colsed buildings from CityGML LoD3[J]. Geomatics and Information Science of Wuhan University, 2018, 43(5):732-738. ] DOI: 10.13203/j.whugis20150556 doi: 10.13203/j.whugis20150556
[9]	de Laat R, van Berlo L. Integration of BIM and GIS: The development of the CityGML GeoBIM extension[M]// Lecture Notes in Geoinformation and Cartography. Berlin, Heidelberg: Springer Berlin Heidelberg, 2010:211-225. DOI: 10.1007/978-3-642-12670-3_13 doi: 10.1007/978-3-642-12670-3_13
[10]	Knoth L, Scholz J, Strobl J, et al. Cross-domain building models: A step towards interoperability[J]. International Journal of Geo-Information, 2018, 7(9):363. DOI: 10.3390/ijgi7090363 doi: 10.3390/ijgi7090363
[11]	Jetlund K, Onstein E, Huang L Z. IFC schemas in ISO/TC 211 compliant UML for improved interoperability between BIM and GIS[J]. ISPRS International Journal of Geo-Information, 2020, 9(4):278. DOI: 10.3390/ijgi9040278 doi: 10.3390/ijgi9040278
[12]	翟晓卉, 史健勇. BIM和GIS的空间语义数据集成方法及应用研究[J]. 图学学报, 2020, 41(1):148-157.
	[ Zhai X H, Shi J Y. Spatial and semantic data integration method and application of BIM and GIS[J]. Journal of Graphics, 2020, 41(1):148-157. ] DOI: 10.11996/JG.j.2095-302X.2020010148 doi: 10.11996/JG.j.2095-302X.2020010148
[13]	石若明, 刘昊, 王锐英, 等. 府学胡同36号院古建筑信息模型建立研究[J]. 北京建筑大学学报, 2014, 30(4):1-7.
	[ Shi R M, Liu H, Wang R Y, et al. Study on building ancient architecture information model of fuxue hutong 36# yard[J]. Journal of Beijing University of Civil Engineering and Architecture, 2014, 30(4):1-7. ]
[14]	Chiabrando F, Sammartano G, Spanò A. Historical buildings models and their handling via 3d survey: From points clouds to user-oriented hbim[J]. The International Archives of the Photogrammetry, Remote Sensing and Spatial Information Sciences, 2016, XLI-B5:633-640. DOI: 10.5194/isprs-archives-XLI-B5-633-2016 doi: 10.5194/isprs-archives-XLI-B5-633-2016
[15]	Li L, Tang L, Zhu H H, et al. Semantic 3D modeling based on CityGML for ancient Chinese-style architectural roofs of digital heritage[J]. ISPRS International Journal of Geo-information, 2017, 6(5):132. DOI: 10.3390/ijgi6050132 doi: 10.3390/ijgi6050132
[16]	万君璧. 古建筑CityGML三维语义模型拓展与存储机制研究[D]. 武汉:华中师范大学, 2019.
	[ Wan J B. Research on extension and storage of CityGML on ancient Chinese architecture 3D modeling[D]. Wuhan: Central China Normal University, 2019.
[17]	Biljecki F, Ledoux H, Stoter J. An improved LOD specification for 3D building models[J]. Computers, Environment and Urban Systems, 2016, 59:25-37. DOI: 10.1016/j.compenvurbsys.2016.04.005 doi: 10.1016/j.compenvurbsys.2016.04.005
[18]	Biljecki F, Kumar K, Nagel C. CityGML Application Domain Extension (ADE): Overview of developments[J]. Open Geospatial Data, Software and Standards, 2018, 3(1):1-17. DOI: 10.1186/s40965-018-0055-6 doi: 10.1186/s40965-018-0055-6
[19]	(元)陈澔注, 金晓东校点. 礼记[M]. 上海: 上海古籍出版社, 2016.
	[ (Yuan) Chen H, Jin X D. The book of rites. Shanghai: Shanghai Classics Publishing House, 2016. ]
[20]	(清)昆冈, (清)李鸿章, 等. 钦定大清会典事例(光绪二十五年刻本)[O]. 台湾: 新文丰出版公司印行, 1976.
	[ (Qing)Kun G, (Qing)Li H Z, et al. Examples of Qing collected statutes (Guangxu 25 edition). Taiwan: New Wenfeng Publishing Company, 1976. ]
[21]	梁思成. 清工部《工程做法则例》图解[M]. 北京: 清华大学出版社, 2006.
	[ Liang S C. Illustration of "Examples of Engineering Practices" by the ministry of industry in Qing dynasty[M]. Beijing: Tsinghua University Press, 2006. ]
[22]	刘大可. 中国古建筑瓦石营法[M]. 北京: 中国建筑工业出版社, 1993.
	[ Liu D K. Construction method of tiles and stones for Chinese ancient architecture[M]. Beijing: Chinese Architecture & Building Press, 1993. ]

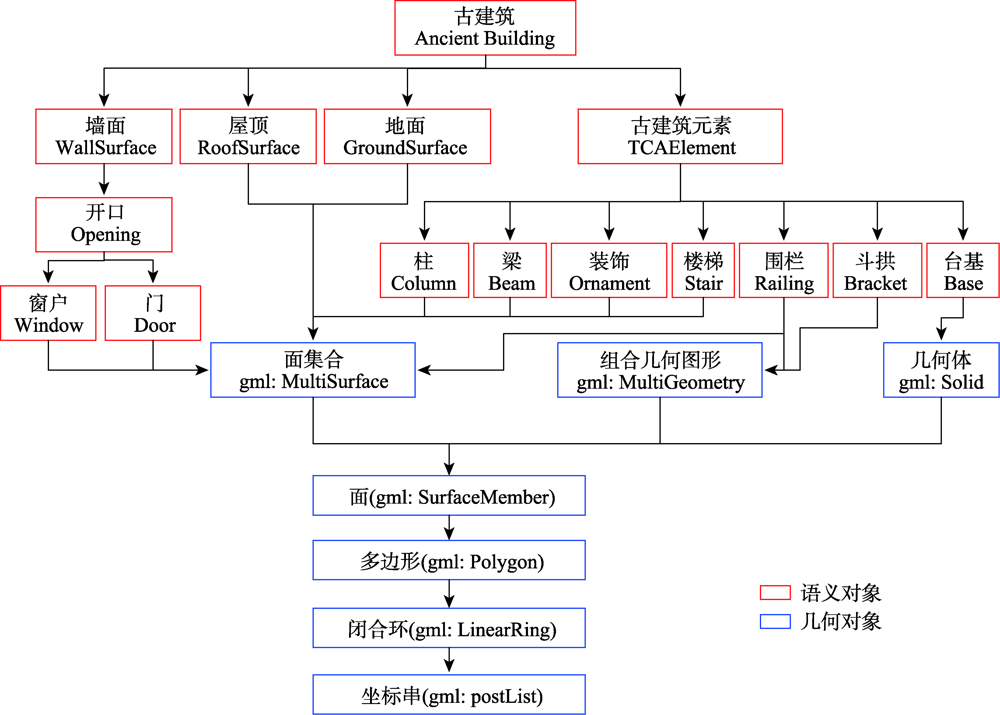

语义实体	描述	几何类型
Base （台基）	高出地面的建筑物底座,用以承托建筑物,并使其防潮、防腐	lod2Solid lod3MultiSurface
Column（柱）	垂直受力构件,包括：檐柱、金柱、中柱、山柱、童柱、角柱、雷公柱、瓜柱、廊柱	lod3MultiSurface lod4MultiSurface
Beam （梁）	建筑中的水平受力构件,常支承于二柱顶端或其他梁枋上,以形成屋脊	lod4MultiSurface
Bracket （斗拱）	中国古代建筑特有构件,方形木块叫斗,弓形短木叫拱,斜置长木叫昂,总称斗拱	lod3Geometry lod4Geometry
Railing （栏杆）	用木料、石、砖、琉璃等不同材料所制成的栏杆等,主要由望柱、寻杖和栏板组成	lod3Geometry lod3MultiSurface
Stair （楼梯）	用于楼层与楼层或不同高度空间交通连接的垂直构件,多在大门前和室内	lod3MultiSurface lod4MultiSurface
Ornament （装饰）	包括屋顶装饰、门窗装饰、台基装饰、天花板装饰和木柱装饰等几类。在手法上分为雕刻、彩画、匾牌、楹联等	lod3MultiSurface lod4MultiSurface

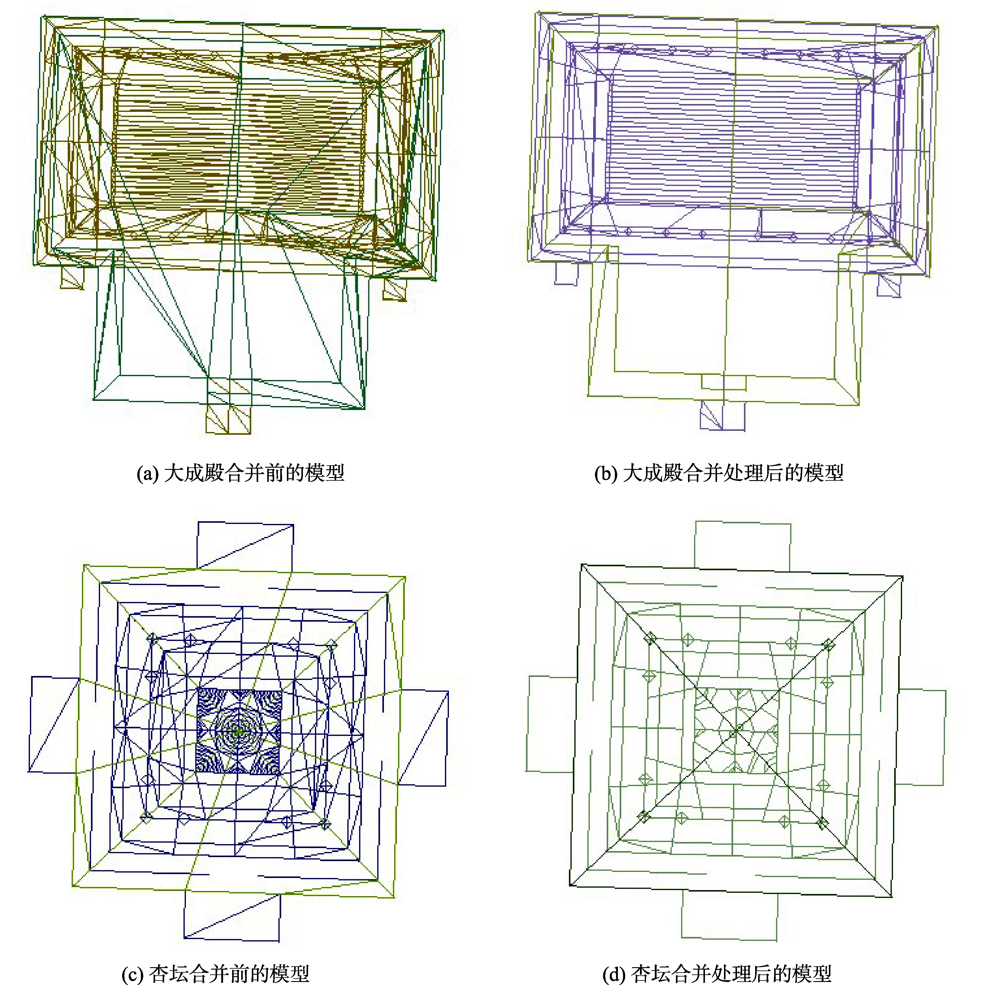

模型名称	顶点数	合并前面片数	合并后面片数	合并前语义对象（数量）	合并后语义对象（数量）
大成殿	2114	1315	491	门（2）、墙面（7）、屋顶（976）、楼梯（54）、柱（111）、装饰（51）、围栏（51）、台基（63）	门（2）、墙面（6）、屋顶（314）、楼梯（26）、柱（56）、装饰（19）、围栏（38）、台基（30）
杏坛	1876	1478	419	墙面（14）、屋顶（1256）、楼梯（20）、柱（72）、装饰（60）、围栏（8）、台基（40）、地面（8）	墙面（14）、屋顶（293）、楼梯（16）、柱（36）、装饰（20）、围栏（8）、台基（28）、地面（4）
