热带山区高时空分辨率NDVI融合精度及其影响因素分析

高书鹏1(), 刘晓龙2,*(), 宋金玲3, 史正涛1, 杨磊3, 郭利彪2

  1. 1.云南师范大学地理学部,昆明 650500
    2.内蒙古工业大学信息工程学院,呼和浩特 010051
    3.北京师范大学地理科学学部,北京 100875
  • 收稿日期:2021-05-20 修回日期:2021-06-29 出版日期:2022-02-25 发布日期:2022-04-25
  • 通讯作者: *刘晓龙(1986— ),男,内蒙古赤峰人,博士,副教授,主要从事高分植被遥感研究。E-mail: liuxl@mail.bnu.edu.cn
  • 作者简介:高书鹏(1991— ),男,云南文山人,博士生,主要从事热带山地遥感时空融合与植被分类研究。E-mail: gaoshuaa@nwafu.edu.cn
  • 基金资助:
    国家自然科学基金项目(42001277);国家重点研发计划项目(2016YFB0501502);云南省水利厅水利科技项目(2014003);云南师范大学博士研究生学术新人奖资助项目(01300205020503233)

Study on the Factors that Influencing High Spatio-temporal Resolution NDVI Fusion Accuracy in Tropical Mountainous Area

GAO Shupeng1(), LIU Xiaolong2,*(), SONG Jinling3, SHI Zhengtao1, YANG Lei3, GUO Libiao2

  1. 1. Faculty of geography, Yunnan Normal University, Kunming 650500, China
    2. School of Information Engineering, Inner Mongolia University of Technology, Hohhot 010051, China
    3. Faculty of Geographical Science, Beijing Normal University, Beijing 100875, China
  • Received:2021-05-20 Revised:2021-06-29 Online:2022-02-25 Published:2022-04-25
  • Supported by:
    National Natural Science Foundation of China(42001277);National Key Research and Development Program of China(2016YFB0501502);Water Conservancy Science and Technology Project of Yunnan Provincial Water Resources Department(2014003);PhD student academic Newcomer Award funded Projects of Yunnan Normal University(01300205020503233)

摘要:

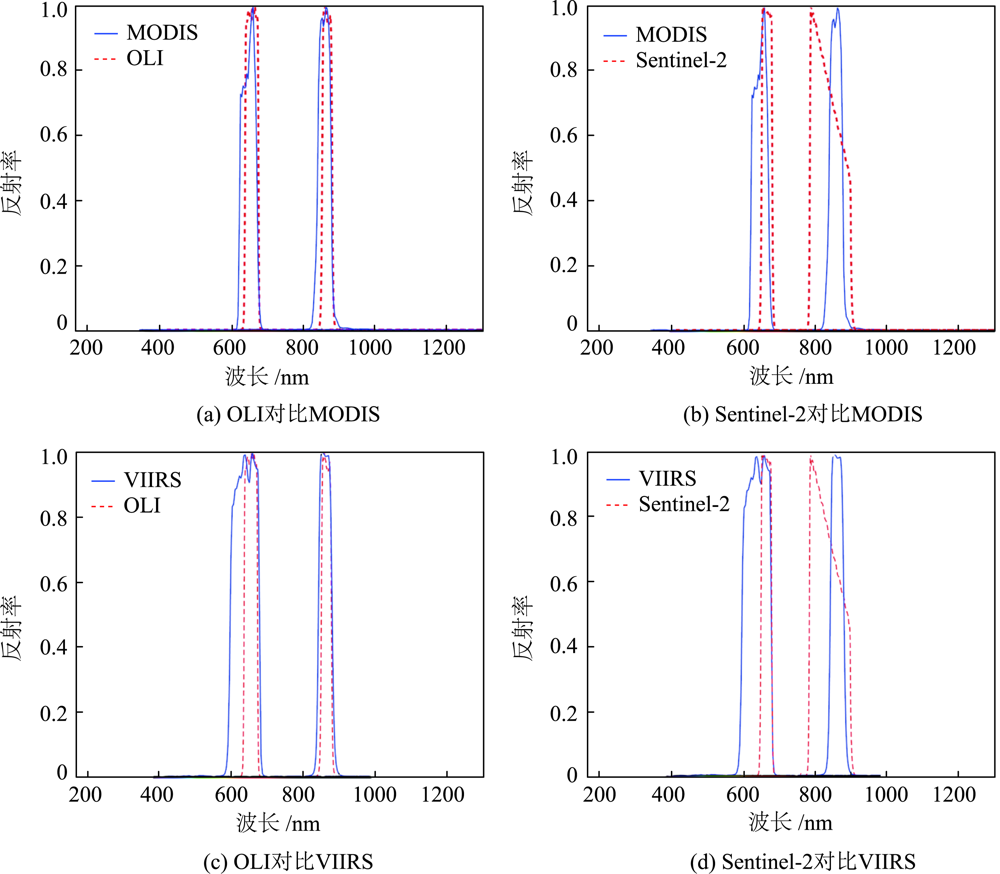

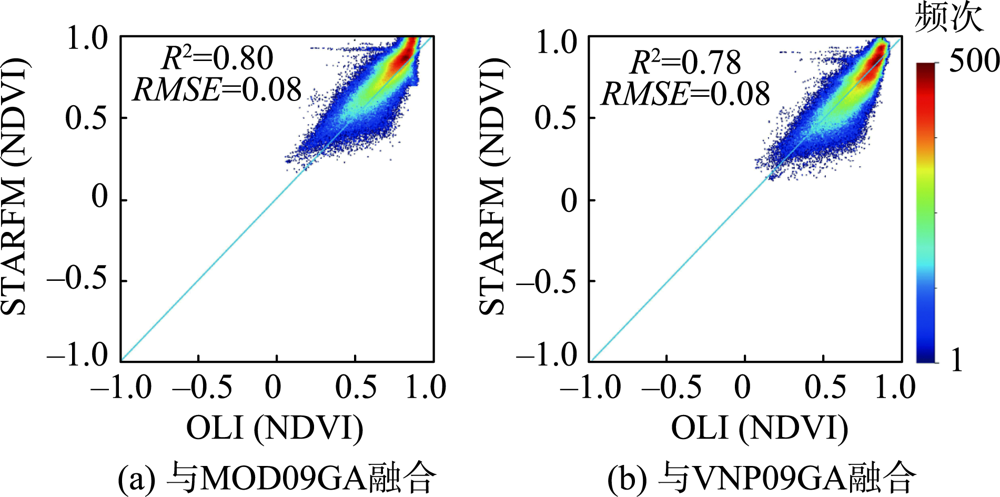

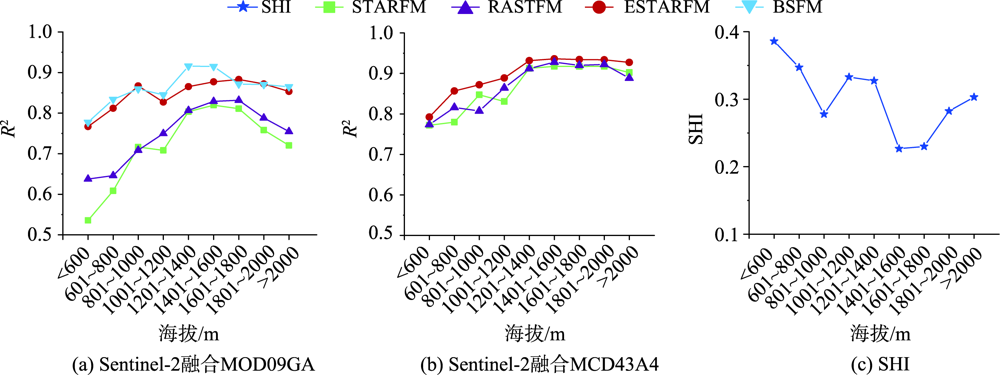

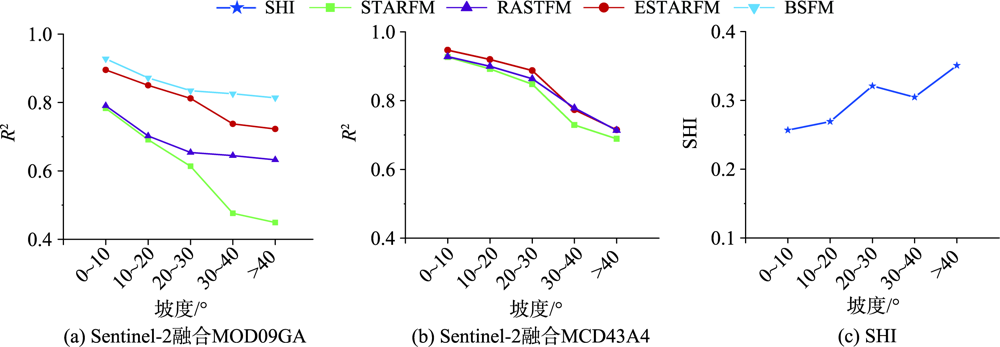

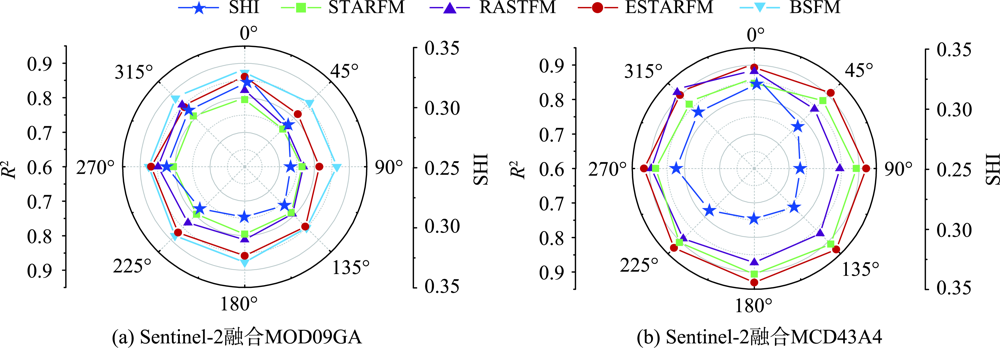

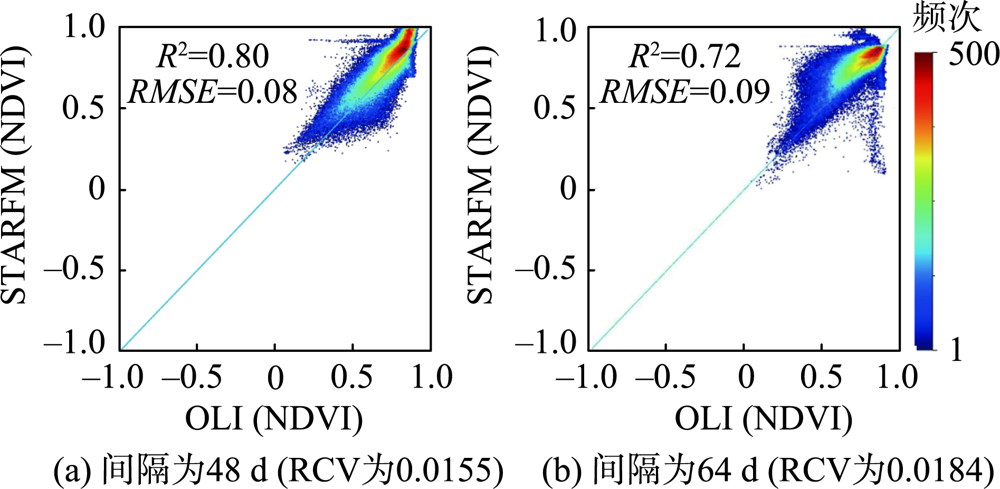

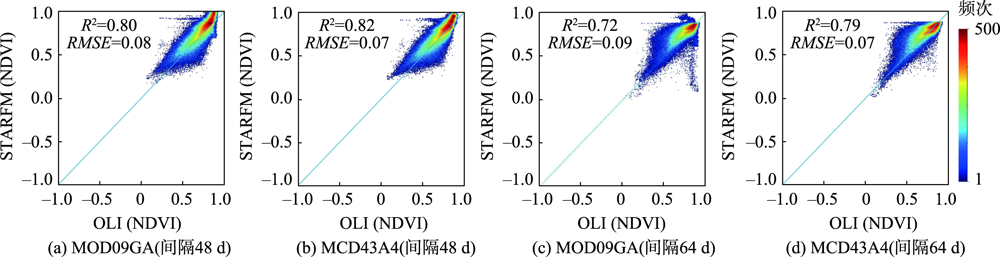

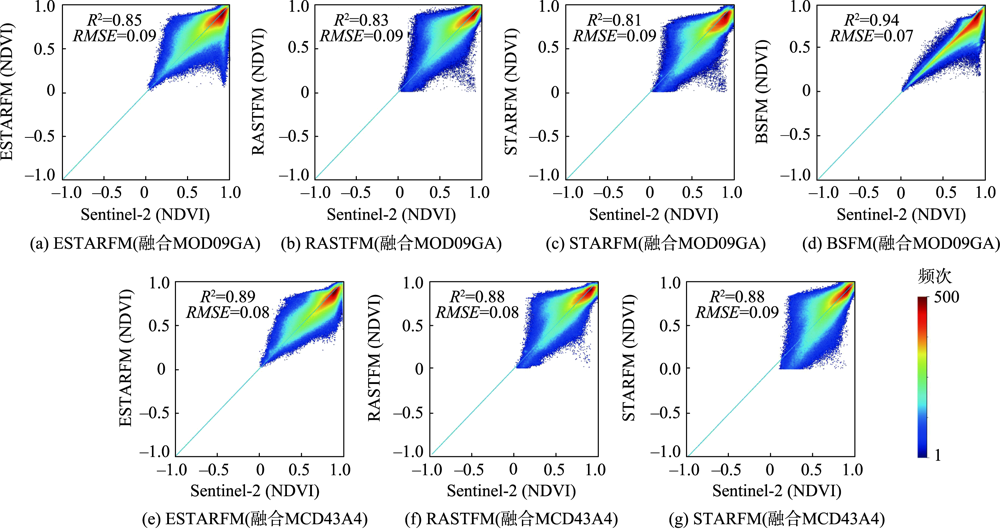

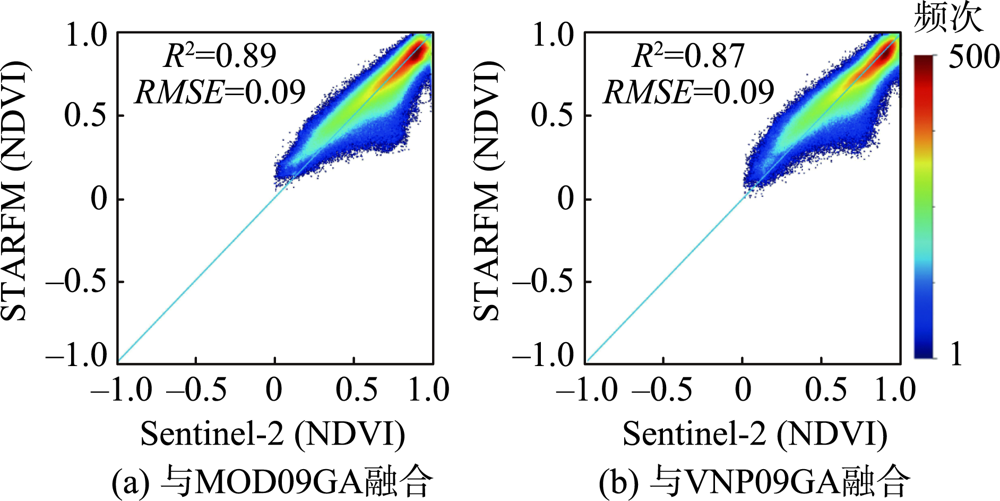

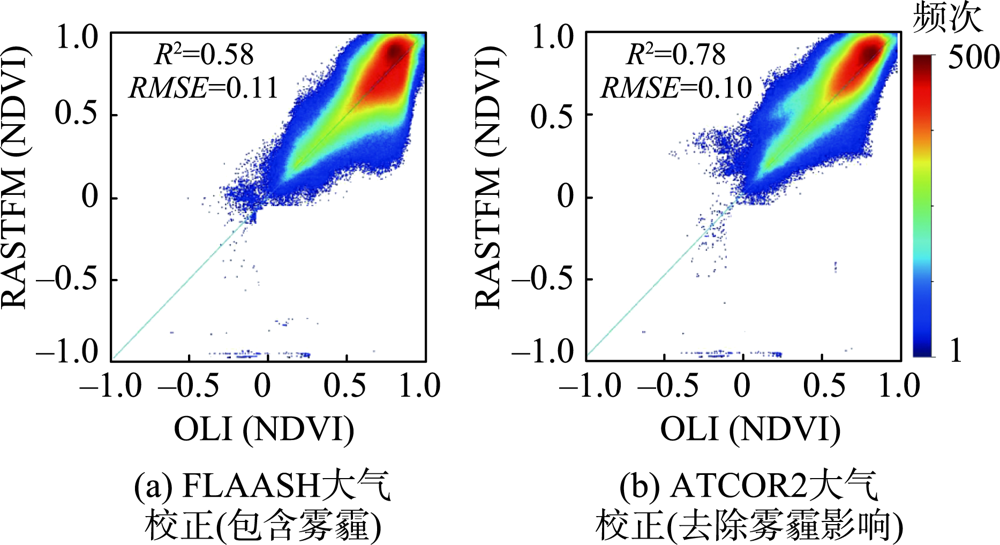

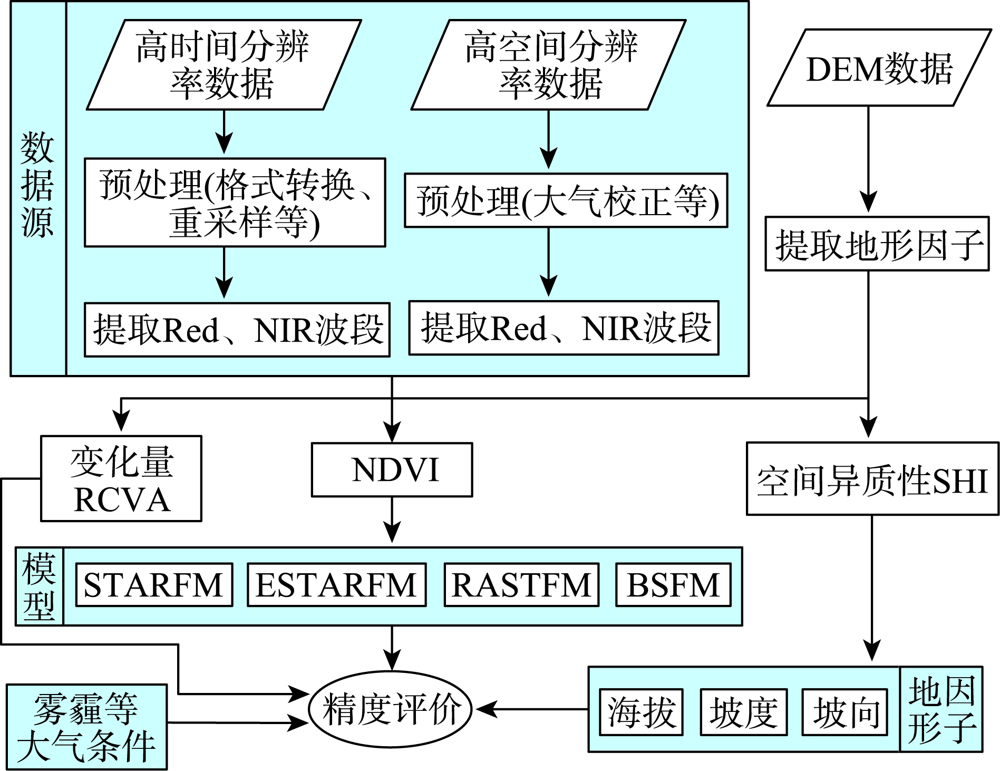

高时空分辨率NDVI时序数据作为遥感应用中的重要数据源,对土地覆被动态变化监测具有重要意义,特别是在地表高程变化显著、气候条件复杂、景观异质性强烈的热带山区。虽然当前学者们提出了诸多时空数据融合模型,但针对这些模型在热带山区的NDVI数据融合精度及其影响因素分析尚不多见。对此,本文选取3类时空数据融合方法(权重函数法、概率统计法和多种混合法)中具有代表性的4个模型:STARFM(Spatial and Temporal Adaptive Reflectance Fusion Model)、RASTFM(Spatial and Temporal Adaptive Reflectance Fusion Model)、ESTARFM(Enhanced Spatial and Temporal Adaptive Reflectance Fusion Model)、BSFM(Bayesian Spatiotemporal Fusion Model) (STARFM、ESTARFM为权重函数法;BSFM为概率统计法;RASTFM为多种混合法),选择位于我国热带山区的纳板河流域作为研究区。对融合模型的数据源选择、研究区的地形及景观空间异质性、融合模型、以及薄云和雾霾等大气条件等影响因素进行分析,研究结果表明:① 数据融合精度随输入影像之间的时间间隔及其相对变化量增加而降低;融合中输入的高、低空间分辨率数据光谱匹配度越高,融合精度越高(OLI优于Sentinel-2; MODIS优于VIIRS);经过BRDF校正的数据能够有效提高各模型的融合精度;② 地形及空间异质性对融合结果精度影响显著,融合精度与空间异质性呈负相关,本研究中融合精度随着坡度的增大而减小,但坡向对融合精度的影响较小;地形对RASTFM的影响较其他模型低;③ 融合模型中输入的高质量影像越多,模型的融合精度往往越高;④ 薄云和雾霾会对融合精度产生显著负面影响。本研究的结果对于改进热带山地地区的高时空数据融合模型,生产热带山区复杂地理环境的高精度高时空分辨率NDVI数据集具有重要的参考价值。

关键词: 数据融合, NDVI, 时空数据融合模型, 高时空分辨率, 热带山区, 空间异质性, 地形, 雾霾

Abstract:

As an important data source in remote sensing application, high spatiotemporal resolution NDVI time series data is of great significance for dynamic change monitoring of land cover, especially in tropical mountainous areas, where the surface elevation changes significantly, climate conditions are complex and spatiotemporally heterogeneous. Many multi-spatiotemporal data fusion models have been proposed by scholars. However, it is rare to analyze the fusion accuracy of these models and their influencing factors in tropical mountainous areas. This study takes the Naban River Watershed in the tropical mountainous area of Southwest China as the study area. Four representative models have been selected from three types of spatiotemporal data fusion methods, namely weight function-based method, Bayesian-based method, and Hybrid method. The four models are Spatial and Temporal Adaptive Reflectance Fusion Model (STARFM), Enhanced Spatial and Temporal Adaptive Reflectance Fusion Model (ESTARFM), Spatial and Temporal Adaptive Reflectance Fusion Model (RASTFM), and Bayesian Spatiotemporal Fusion Model (BSFM). Among them, STARFM and ESTARFM are weight function-based method, BSFM is Bayesian-based method, and RASTFM is Hybrid method. This study carries out analysis of data source selection, terrain of the study area, landscape spatial heterogeneity, pixel numerical accuracy of fusion model, and atmospheric conditions such as thin clouds and haze. The results show that, firstly, the fusion accuracy decreases with the increase of time interval and its relative variation. A better match in sensor spectrum between the two input data results in a higher fusion accuracy. OLI is better than Sentinel-2 while MODIS is better than VIIRS. Compared with unadjusted data, data adjusted by the Bidirectional Reflectance Distribution Function (BRDF) can effectively improve fusion accuracy.Secondly, fusion accuracy is negatively correlated with spatial heterogeneity. Fusion accuracy decreases when spatial heterogeneity increases. There is a strong negative correlation between fusion accuracy and spatial heterogeneity at elevations. Fusion accuracy decreases when slope increases. In comparison, slope aspect has little influence on fusion accuracy. The influence of terrain on RASTFM is smaller when compared with models. Thirdly, the more high-quality high-resolution raw data as input data for the model, the higher the fusion accuracy will be. Fourthly, thin clouds and haze have a significant negative impact on the fusion accuracy. The results have important values as references for improving the high spatial-temporal data fusion model in tropical mountainous areas and establishing high spatiotemporal resolution NDVI data sets in complex geographical environment.

Key words: data fusion, NDVI, spatio-temporal data fusion model, high spatio-temporal resolution, tropical mountainous area, spatial heterogeneity, topography, haze
