基于自然格网索引的多尺度面实体增量级联更新方法

doi:10.12082/dqxxkx.2022.210350

摘要/Abstract

摘要：

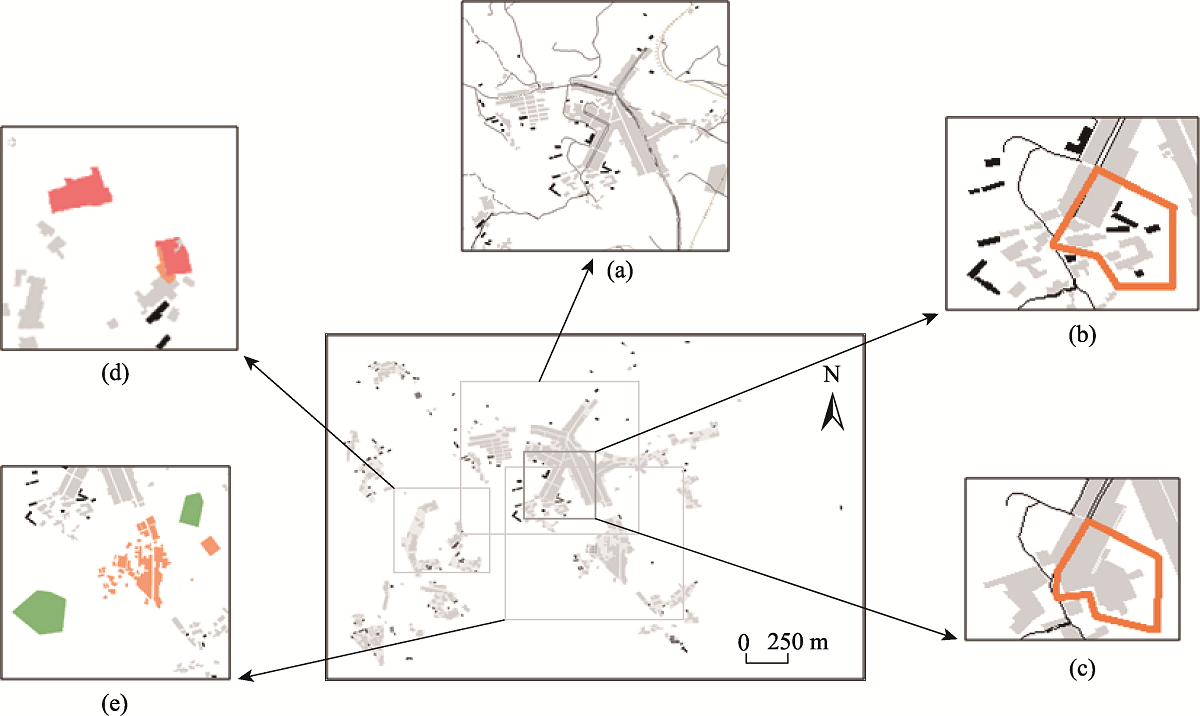

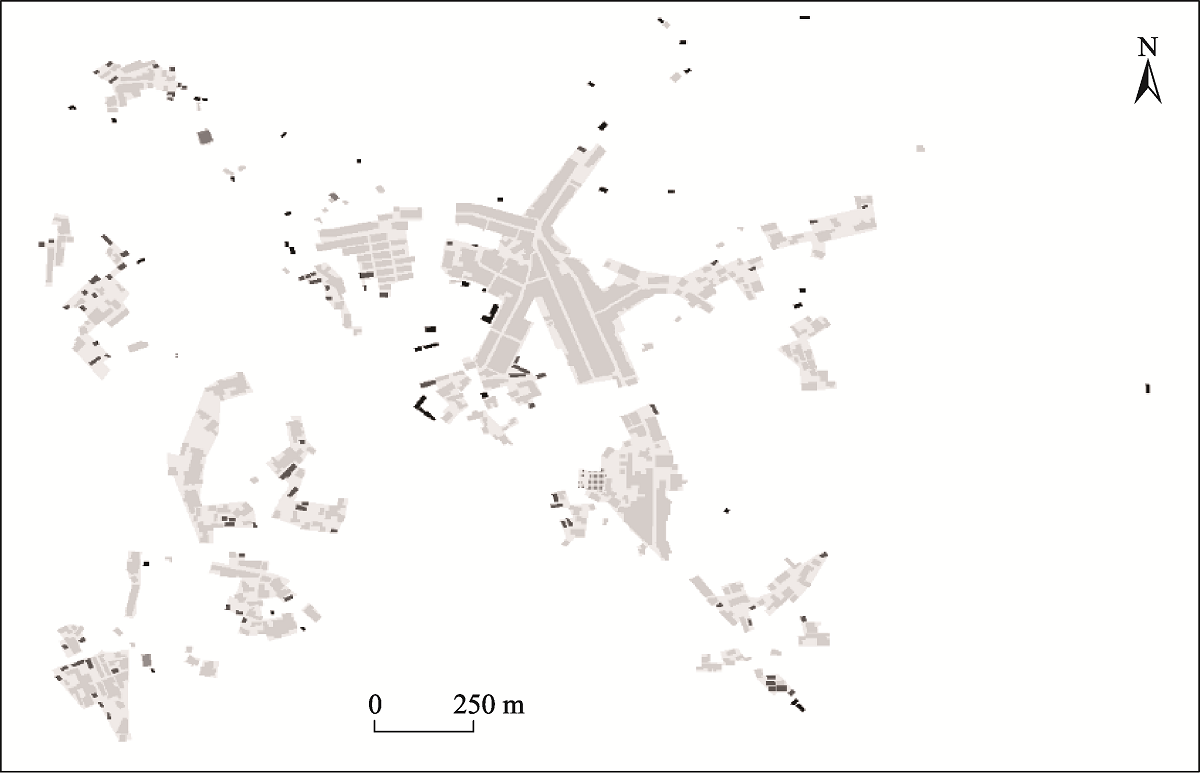

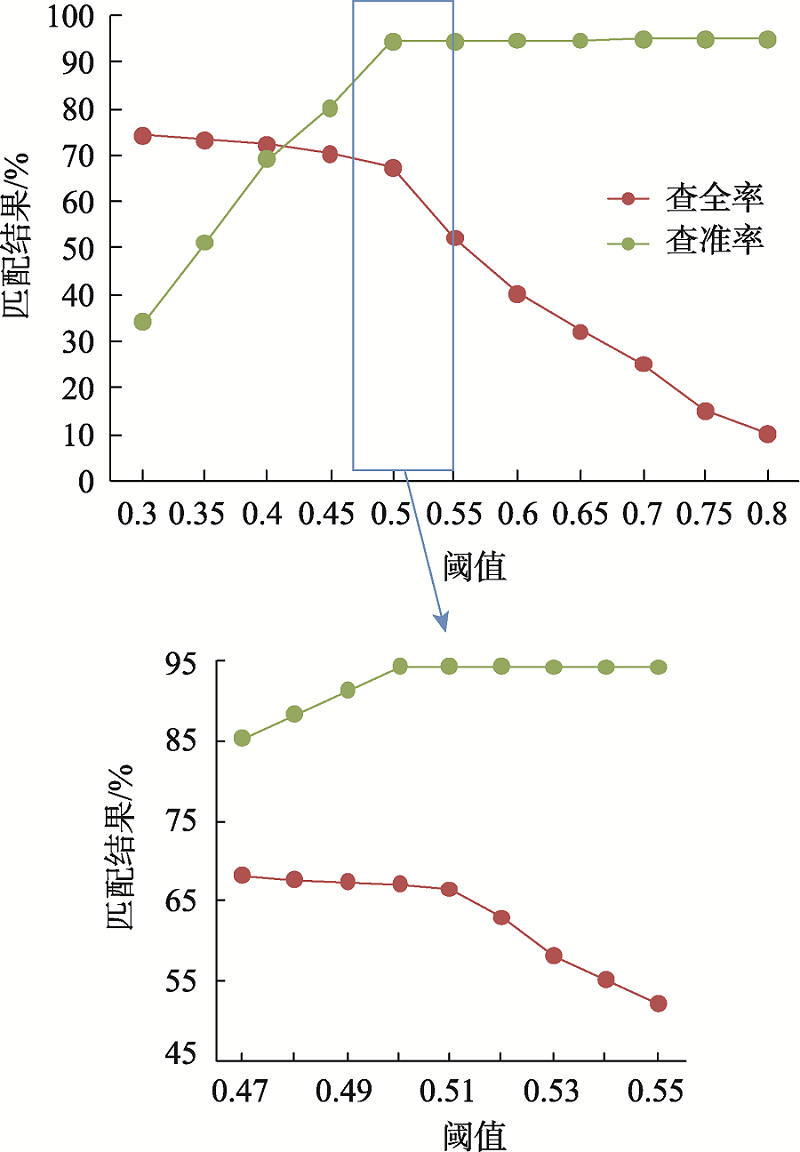

多尺度地理空间数据增量级联更新方法是增强地理空间数据的现势性的重要手段之一。级联更新包括多尺度数据匹配、关联关系建立、匹配与变化检测、增量信息制图综合、级联更新等步骤,其中,相邻比例尺数据匹配是多尺度数据关联关系建立的基本方法,也是实现级联更新的重要基础。针对现有方法中多尺度同名实体间的关联关系匹配的精度和效率问题,本文提出了基于自然格网索引的多尺度面实体增量级联更新方法。首先,检测出同源同尺度矢量空间数据发生变化的增量包;其次通过自然格网索引确定更新实体所在格网位置,并进行删除、自动或手动更新;最后实施制图综合、接边以及多尺度面实体增量级联更新信息传递操作。以赣州市虎山乡部分区域居民地要素为例,实验结果表明：① 在匹配阈值为0.51的情况下,相较于直接匹配的方法,采用本文提出的自然格网索引方法进行匹配所消耗的时间减少了88.4%,查全率和查准率分别提升了5%和4%,充分说明了自然格网索引方法在匹配相邻尺度间地理要素时的必要性; ② 相较于传统的Hausdorff距离、欧式距离和质心包含3种匹配方法,本文所提出的方法在耗时（1.34 s）、查全率（66.5%）和查准率（94.1%）方面处于领先地位,这充分说明了本文提出的级联更新方法的优越性; ③ 本文提出的方法可免除关联居民地差异的影响,从而大大减少人工编辑的作业时间,并可有效提高多尺度居民地实体增量级联更新的精度和效率。

关键词: 自然网格索引, 多尺度, 面实体, 增量级联更新, 制图综合, 接边, 匹配方法, 变化检测

Abstract:

The incremental cascade updating of multi-scale geospatial data is one of the important means to enhance the real time of geospatial data. The incremental cascade updating includes multi-scale data matching, correlation relationship establishment, matching and change detection, incremental information generalization, and incremental cascade update. The adjacent scale data matching is the basic of multi-scale data correlation establishment and an important foundation for the implementation of incremental cascade update. Aiming at the low accuracy and efficiency of association matching between multi-scale entities with the same name in existing methods, an incremental cascade updating method of multi-scale surface entities based on natural grid index is proposed. By building the natural grid and coding, building the surface entity and assigning code, adjacent scale entity matching and associated relationship, the corresponding steps of the correlation relationship are established, and the natural grid index is introduced into the incremental cascade update. The specific steps include: firstly, incremental packets of the same source and same scale vector spatial data are detected; secondly, the grid location of the updating entity is determined by the natural grid index, and then deleted and updated automatically or manually; and finally, the cartographic generalization and edge joining are implemented. Taking the residential elements in Hushan villiage of Ganzhou City as an example, the experimental results show that: 1) when the matching threshold is set to 0.51, compared to the direct matching method, the time consumed by the natural grid index method proposed in this paper is reduced by 88.4%, and the recall and precision are increased by 5% and 4%, respectively, which demonstrates the effectiveness of the natural grid index method in matching geographical elements between adjacent scales; 2) compared with the traditional Hausdorff distance, Euclidean distance, and centroid methods, the method proposed in this paper performs best with low time cost (1.34s), and high recall (66.5%) and precision rates (94.1%), which demonstrates the effectiveness and efficiency of the cascade update method proposed in this paper; 3) the proposed method can avoid the influence of the difference of associated residential areas, thus greatly reducing the operation time of manual editing, and effectively improving the accuracy and efficiency of multi-scale incremental cascade updating of residential entities.

Key words: natural grid index, multi-scale, polygon entity, incremental cascading update, cartographic generalization, edge connection, matching method, change detection

焦洋洋, 刘平芝, 熊顺, 徐道柱. 基于自然格网索引的多尺度面实体增量级联更新方法[J]. 地球信息科学学报, 2022, 24(5): 851-863.DOI:10.12082/dqxxkx.2022.210350

JIAO Yangyang, LIU Pingzhi, XIONG Shun, XU Daozhu. Multi-scale Surface Entity Cascade Update Method based on Natural Grid Network Index[J]. Journal of Geo-information Science, 2022, 24(5): 851-863.DOI:10.12082/dqxxkx.2022.210350

图/表 14

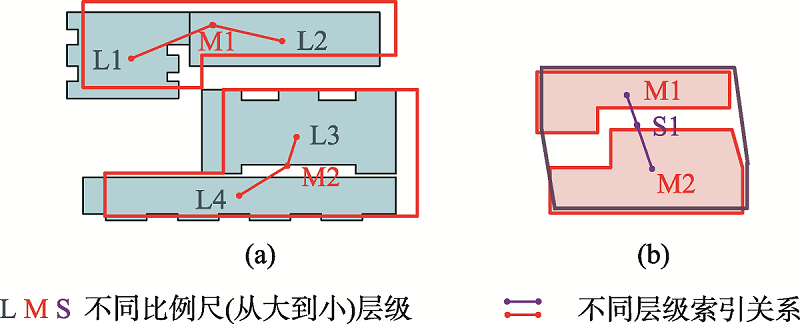

图1

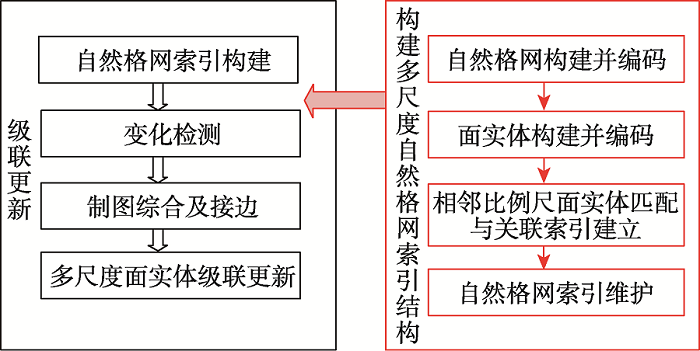

图2

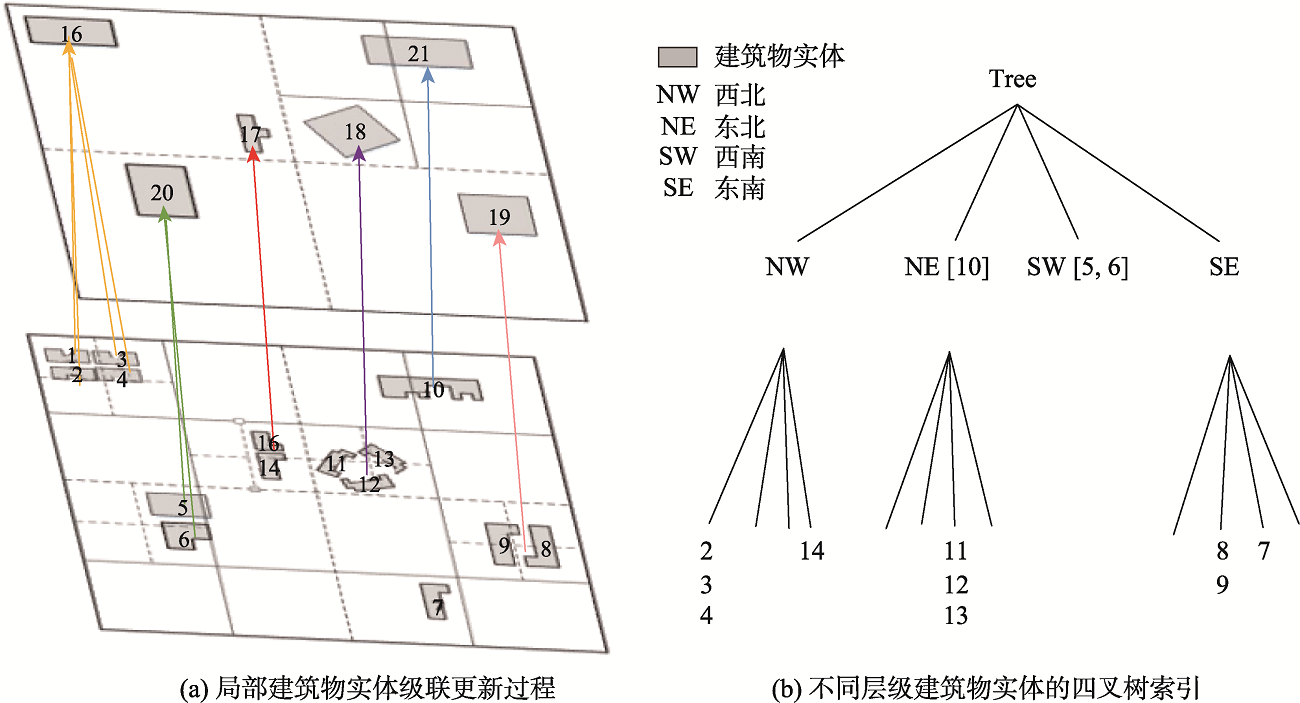

图3

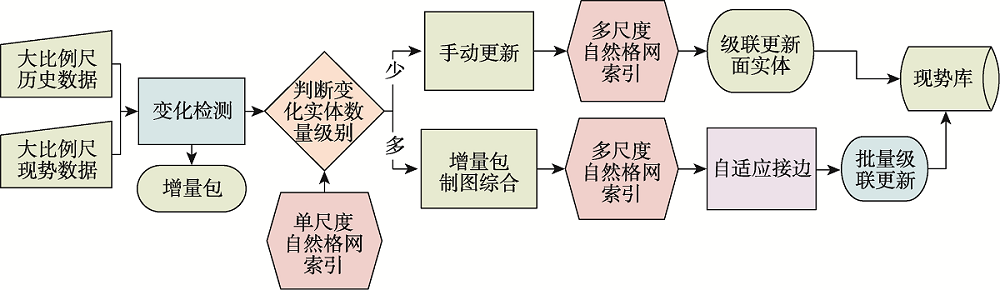

图4

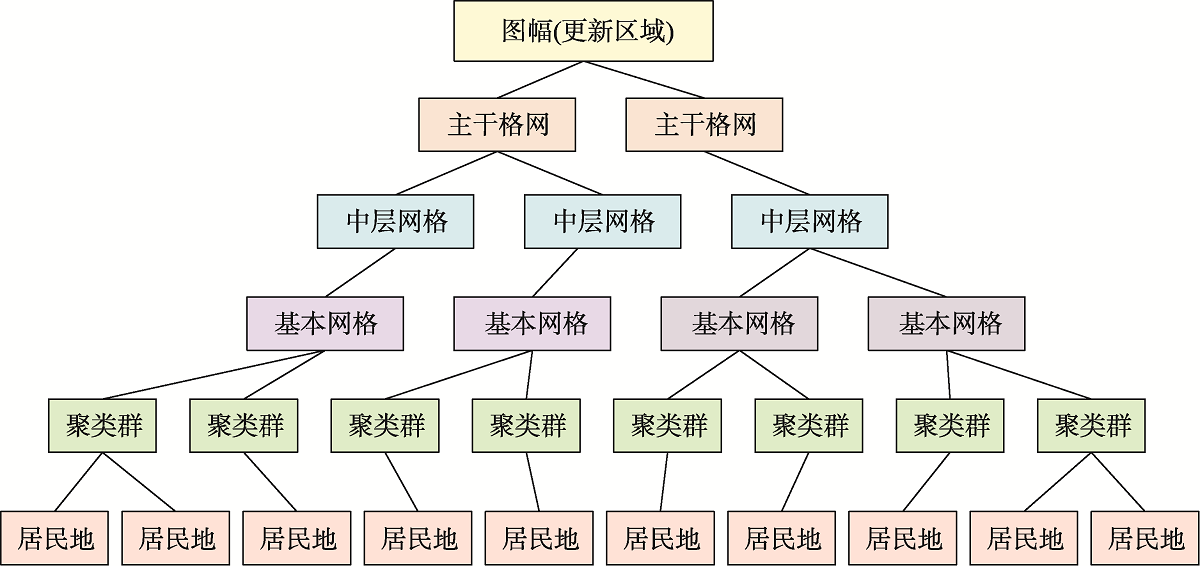

图5

图6

图7

表1

图8

图9

表2

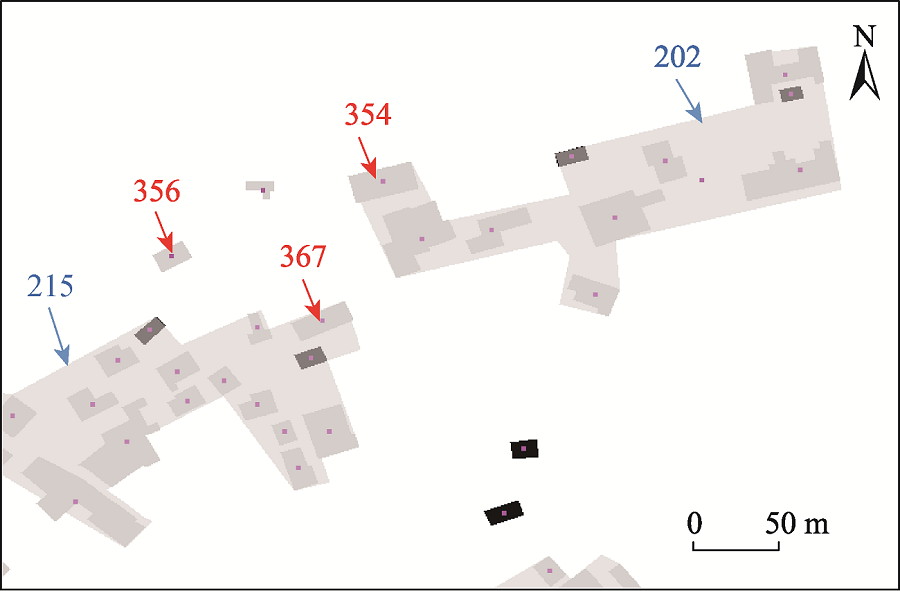

图10

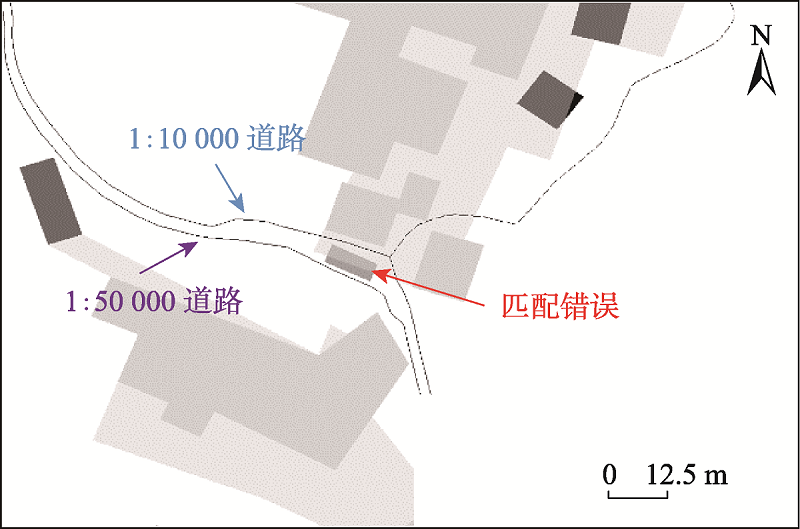

图11

表3

参考文献 28

[1]	Mader G L. GPS antenna calibration at the national geodetic survey[J]. GPS Solutions, 1999, 3(1):50-58. DOI: 10.1007/PL00012780 doi: 10.1007/PL00012780
[2]	陈军, 王东华, 商瑶玲, 等. 国家1:50 000数据库更新工程总体设计研究与技术创新[J]. 测绘学报, 2010, 39(1):7-10.
	[ Chen J, Wang D H, Shang Y L, et al. Master design and technical development for national 1:50 000 topographic database updating engineering in China[J]. Acta Geodaetica et Cartographica Sinica, 2010, 39(1):7-10. ]
[3]	蒋捷, 陈军. 基础地理信息数据库更新的若干思考[J]. 测绘通报, 2000(5):1-3.
	[ Jiang J, Chen J. Some consideration for update of fundamental geo-information database[J]. Bulletin of Surveying and Mapping, 2000(5):1-3. ] DOI: 10.3969/j.issn.0494-0911.2000.05.001 doi: 10.3969/j.issn.0494-0911.2000.05.001
[4]	许俊奎. 多尺度居民地要素增量级联更新方法研究[D]. 郑州:信息工程大学, 2013.
	[ Xu J K. Research on multi-scale settlement incremental propagating updating techniques[D]. Zhengzhou: Information Engineering University, 2013. ]
[5]	刘建军, 李雪梅, 张元杰, 等. 国家1:25万基础地理信息数据库联动更新技术设计与工程应用[J]. 测绘通报, 2016(4):1-4.
	[ Liu J J, Li X M, Zhang Y J, et al. Technical innovation and application for linkage updating of national fundamental geographic information database at 1:250 000 scale[J]. Bulletin of Surveying and Mapping, 2016(4):1-4. ] DOI: 10.13474/j.cnki.11-2246.2016.0109 doi: 10.13474/j.cnki.11-2246.2016.0109
[6]	张鹏, 韦通, 李庆永, 等. 省市级基础地理信息框架数据联动更新探究[J]. 山东国土资源, 2016, 32(11):65-69.
	[ Zhang P, Wei T, Li Q Y, et al. Research on the data linkage updating of provincial and municipal basic geographic information framework[J]. Shandong Land and Resources, 2016, 32(11):65-69. ] DOI: 10.3969/j.issn.1672-6979.2016.11.013 doi: 10.3969/j.issn.1672-6979.2016.11.013
[7]	张新长, 张志强, 孙颖, 等. 模式识别的空间数据联动更新技术研究[J]. 测绘科学, 2019, 44(1):66-72.
	[ Zhang X C, Zhang Z Q, Sun Y, et al. Research on multi-scale spatial data linkage updating technology based on pattern recognition[J]. Science of Surveying and Mapping, 2019, 44(1):66-72. ] DOI: 10.16251/j.cnki.1009-2307.2019.01.013 doi: 10.16251/j.cnki.1009-2307.2019.01.013
[8]	魏雪梅. 多级时空数据库联动增量更新方法[J]. 测绘通报, 2019(5):134-138.
	[ Wei X M. Linkage incremental update method of multilevel spatiotemporal database[J]. Bulletin of Surveying and Mapping, 2019(5):134-138. ] DOI: 10.13474/j.cnki.11-2246.2019.0166 doi: 10.13474/j.cnki.11-2246.2019.0166
[9]	Zhang et al. Data matching of building polygons at multiple map scales improved by contextual information and relaxation[J]. ISPRS Journal of Photogrammetry and Remote Sensing, 2014, 9(2):147-163. DOI: 10.1016/j.isprsjprs.2014.03.010 doi: 10.1016/j.isprsjprs.2014.03.010
[10]	罗鹏, 张俊, 王明亮, 等. 基础地理信息联动更新技术研究与应用[J]. 测绘与空间地理信息, 2017, 40(6):83-85.
	[ Luo P, Zhang J, Wang M L, et al. The research and application of basic geographic information linkage updating technology[J]. Geomatics & Spatial Information Technology, 2017, 40(6):83-85. ] DOI: 10.3969/j.issn.1672-5867.2017.06.027 doi: 10.3969/j.issn.1672-5867.2017.06.027
[11]	付荣祥, 吴彬卓, 叶哲璐. 地理空间数据库联动更新技术[J]. 测绘通报, 2017(5):136-138.
	[ Fu R X, Wu B Z, Ye Z L. Geospatial database linkage updating technique[J]. Bulletin of Surveying and Mapping, 2017(5):136-138. ] DOI: 10.13474/j.cnki.11-2246.2017.0173 doi: 10.13474/j.cnki.11-2246.2017.0173
[12]	方川, 白光平. 多尺度地图数据库更新机制研究及应用[J]. 测绘与空间地理信息, 2021, 44(2):86-89.
	[ Fang C, Bai G P. Research and application of multi-scale map database update mechanism[J]. Geomatics & Spatial Information Technology, 2021, 44(2):86-89. ]
[13]	汪艳霞, 杜清运, 任福, 等. 目标相似性的矢量数据联动更新方法[J]. 测绘科学, 2015, 40(5):106-111.
	[ Wang Y X, Du Q Y, Reng F, et al. Propagating update method of vector data based on objective similarity[J]. Science of Surveying and Mapping, 2015, 40(5):106-111. ] DOI: 10.16251/j.cnki.1009-2307.2015.05.023 doi: 10.16251/j.cnki.1009-2307.2015.05.023
[14]	王建丽. 面向电子地图服务的地理框架数据联动更新技术研究与实现[D]. 郑州:信息工程大学, 2015.
	[ Wang J L. Research and implementation of geographic frame data linkage update technology for electronic map service[D]. Zhengzhou: Information Engineering University, 2015. ]
[15]	Hacar M, Gökgöz T. A new, score-based multi-stage matching approach for road network conflation in different road patterns[J]. ISPRS International Journal of Geo-Information, 2019, 8(2):81-81. DOI: 10.3390/ijgi8020081 doi: 10.3390/ijgi8020081
[16]	赵慧慧, 赵凡, 陈仁海, 等. 基于地理空间大数据的高效索引与检索算法[J]. 计算机研究与发展, 2020, 57(2):333-345.
	[ Zhao H H, Zhao F, Chen R H, et al. Efficient index and query algorithm based on geospatial big data[J]. Journal of Computer Research and Development, 2020, 57(2):333-345. ] DOI: 10.7544/issn1000-1239.2020.20190565 doi: 10.7544/issn1000-1239.2020.20190565
[17]	秦育罗, 郭冰, 孙小荣. 改进Hausdorff距离及其在多尺度道路网匹配中的应用[J]. 测绘科学技术学报, 2020, 37(3):313-318.
	[ Qin Y L, Guo B, Sun X R. Improved Hausdorff distance and its application in multi-scale road network matching[J]. Journal of Geomatics Science and Technology, 2020, 37(3):313-318. ] DOI: 10.3969/j.issn.1673-6338.2020.03.016 doi: 10.3969/j.issn.1673-6338.2020.03.016
[18]	王峰, 安晓亚, 朱璇. 地理空间数据增量更新版本化管理方法研究[J]. 地理空间信息, 2021, 19(2):26-29.
	[ Wang F, An X Y, Zhu X. Research on versioning management method for geo-spatial data’s incremental updating[J]. Geospatial Information, 2021, 19(2):26-29. ] DOI: 10.3969/j.issn.1672-4623.2021.02.007 doi: 10.3969/j.issn.1672-4623.2021.02.007
[19]	郭沛沛, 李成名, 殷勇. 建筑物合并的Delaunay三角网分类过滤法[J]. 测绘学报, 2016, 45(8):1001-1007.
	[ Guo P P, Li C M, Yin Y. Classification and filtering of constrained delaunay triangulation for automated building aggregation[J]. Acta Geodaetica et Cartographica Sinica, 2016, 45(8):1001-1007. ] DOI: 10.11947/j.AGCS.2016.20150587 doi: 10.11947/j.AGCS.2016.20150587
[20]	张新长, 郭泰圣, 唐铁. 一种自适应的矢量数据增量更新方法研究[J]. 测绘学报, 2012, 41(4):613-619.
	[ Zhang X C, Guo T S, Tang Y. An adaptive method for incremental updating of vector data[J]. Acta Geodaetica et Cartographica Sinica, 2012, 41(4):613-619. ]
[21]	Zhang Y F, Huang J C, Deng M, et al. Automated matching of multi-scale building data based on relaxation labelling and pattern combinations[J]. ISPRS International Journal of Geo-Information, 2019, 8(1):38-38. DOI: 10.3390/ijgi8010038 doi: 10.3390/ijgi8010038
[22]	Karsznia I, Przychodzeń M, Sielicka K. Methodology of the automatic generalization of buildings, road networks, forests and surface waters: a case study based on the topographic objects database in Poland[J]. Geocarto International, 2020, 35(7):735-758. DOI: 10.1080/10106049.2018.1533591 doi: 10.1080/10106049.2018.1533591
[23]	程昌秀. 矢量数据多尺度空间索引方法的研究[J]. 武汉大学学报信息科学版, 2009, 34(5):597-601.
	[ Cheng C X. A multi-scale spatial index method[J]. Geomatics and Information Science of Wuhan University, 2009, 34(5):597-601. ]
[24]	许俊奎, 武芳, 钱海忠. 多比例尺地图中居民地要素之间的关联关系及其在空间数据更新中的应用[J]. 测绘学报, 2013, 42(6):898-905,912.
	[ Xu J K, Wu F, Qian H Z. The establishment and usage of the neighborhood scale settlement features' links in spatial data updating process[J]. Acta Geodaetica et Cartographica Sinica, 2013, 42(6):898-905,912. ]
[25]	赵彬彬, 邓敏, 李光强, 等. 基于城市形态学原理的面状地物层次索引方法[J]. 测绘学报, 2010, 39(4):435-440.
	[ Zhao B B, Deng M, Li G Q, et al. A new hierarchical spatial index for area entities based on urban morphology[J]. Acta Geodaetica et Cartographica Sinica, 2010, 39(4):435-440. ]
[26]	杨敏, 艾廷华, 周启. 顾及道路目标stroke特征保持的路网自动综合方法[J]. 测绘学报, 2013, 42(4):581-587,594.
	[ Yang M, Ai T H, Zhou Q. A method of road network generalization considering stroke properties of road object[J]. Acta Geodaetica et Cartographica Sinica, 2013, 42(4):581-587,594. ]
[27]	许俊奎, 武芳, 钱海忠, 等. 一种空间关系相似性约束的居民地匹配算法[J]. 武汉大学学报·信息科学版, 2013, 38(4):484-488.
	[ Xu J K, Wu F, Qian H Z, et al. Settlement matching algorithm using spatial similarity relations as constraints[J]. Geomatics and Information Science of Wuhan University, 2013, 38(4):484-488. ]
[28]	石善球. 矢量空间数据变化检测及其应用研究[J]. 测绘与空间地理信息, 2020, 43(9):25-29.
	[ Shi S Q. Research on change detection of vector spatial data and its applications[J]. Geomatics & Spatial Information Technology, 2020, 43(9):25-29. ]

序号	实体编码
1	G001132013000232-130204-1550
2	G001132013000232-130102-1551
3	G001132013000232-130206-1572
4	G001132013000232-130102-1598
5	G001132013000232-130204-1652
6	G001132013000232-130204-1653
7	G001132013000232-130102-1704
8	G001132013000232-130102-1705
9	G001132013000232-130102-1707
10	G001132013000232-130204-1874

匹配方法	耗时/s	匹配数/个	正确数/个	查全率/%	查准率/%
直接匹配	11.55	346	312	61.5	90.1
基于自然格网索引匹配	1.34 （构建格网索引耗时0.53）	358	337	66.5	94.1

匹配方法	耗时/s	匹配数/个	正确数/个	查全率/%	查准率/%
Hausdorff距离	7.59	305	277	52.7	87.5
欧式距离	8.18	318	242	47.7	76.1
质心包含	4.12	325	293	57.8	90.2
