基于GEE的黄河流域植被时空变化及其地形效应研究

doi:10.12082/dqxxkx.2022.210685

地球信息科学学报 ›› 2022, Vol. 24 ›› Issue (6): 1087-1098.doi: 10.12082/dqxxkx.2022.210685

• “2021中国地理信息科学理论与方法学术年会”优秀论文 • 上一篇下一篇

基于GEE的黄河流域植被时空变化及其地形效应研究

王晓蕾¹^,²^,^*(), 石守海¹

1.郑州大学地球科学与技术学院,郑州 450000
2.郑州大学中国气象科学研究院郑州大学生态气象联合实验室,郑州 450000

收稿日期:2021-10-29 修回日期:2021-12-31 出版日期:2022-06-25 发布日期:2022-08-25
作者简介:王晓蕾（1988— ）,女,河南周口人,讲师,主要从事高性能地理计算与遥感研究。E-mail: xiaolei8788@zzu.edu.cn
基金资助:
河南省自然科学基金资助项目(212300410292);河南省重点研发与推广专项（科技攻关）项目(212102210137);河南省高等学校重点科研项目(21A420006)

Spatio-temporal Changes of Vegetation in the Yellow River Basin and Related Effect of Landform based on GEE

WANG Xiaolei¹^,²^,^*(), SHI Shouhai¹

1. School of Geoscience and Technology, Zhengzhou University, Zhengzhou 450000, China
2. Joint Laboratory of Eco-Meteorology, Zhengzhou University, Chinese Academy of Meteorological Sciences, Zhengzhou University, Zhengzhou 450000, China

Received:2021-10-29 Revised:2021-12-31 Online:2022-06-25 Published:2022-08-25
Contact: WANG Xiaolei
Supported by:
The Natural Science Foundation of Henan under Grant(212300410292);the key scientific and technological project of Henan Province under Grant(212102210137);the key research project of higher Education of Henan Province, China under Grant(21A420006)

摘要/Abstract

摘要：

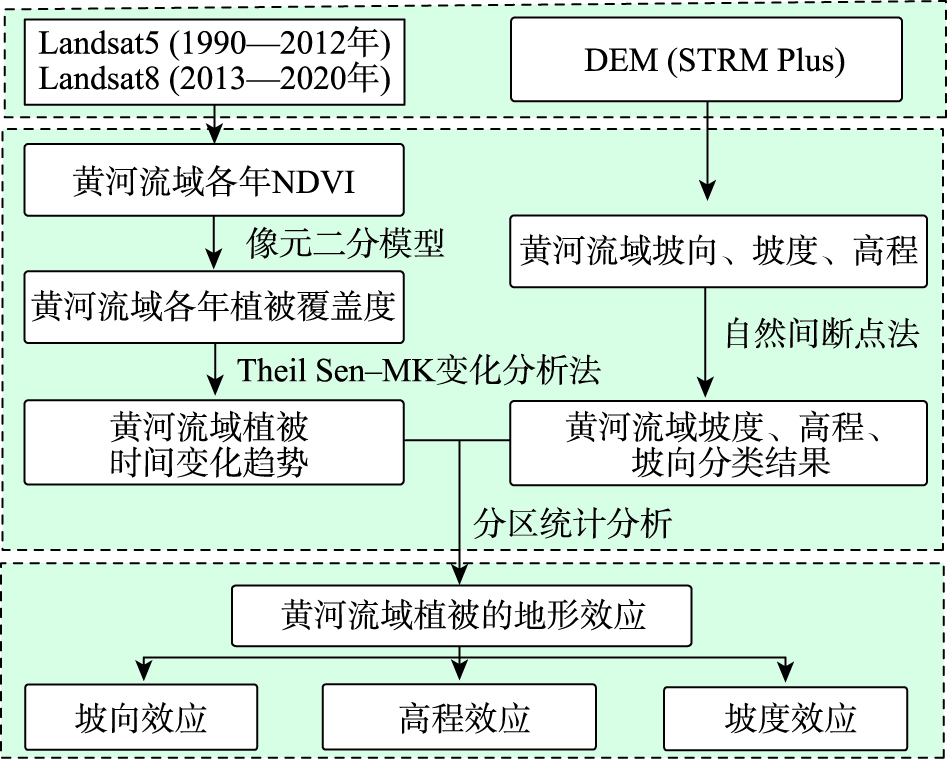

黄河流域作为中国东部平原的生态屏障,研讨其植被覆盖的时空变化有助于生态环境治理。本文利用GEE平台,基于Landsat数据通过像元二分模型反演了1990—2020年黄河流域植被覆盖度（FVC）,并通过Theil-Sen Median趋势分析和 Mann-Kendall检验方法剖析FVC的时空变化趋势,挖掘出FVC趋势变化与海拔、坡度、坡向等地形因子之间的响应关系。结果表明：① 黄河流域FVC整体呈现西北低东南高的空间分布趋势,其中低等FVC占整个流域面积的45%,主要集中于西北部干旱半干旱地区;② 流域中部植被覆盖改善明显,占整个流域的57.07%,西北部和东南部退化程度相对较高;③ 植被覆盖受地形效应影响较为显著,在坡度大于40°及高程（-31~637 m）时高等级FVC占比较高,坡度8~18°及高程1852~2414 m范围内植被改善效果相对较好。结果可以为黄河流域生态环境保护及高质量发展提供科学支撑。

关键词: 黄河流域, 植被覆盖度, 时空变化, 地形效应, Landsat数据, Google Earth Engine, 植被指数, 定量分析

Abstract:

The Yellow River Basin serves as an ecological barrier in the eastern plain of China. Analyzing the spatiotemporal change of vegetation cover in Yellow River Basin and its topographic effects is helpful for ecological environment management. In this study, we first calculated the annual Fractional Vegetation Cover (FVC) of the Yellow River Basin for 1990—2020 through the GEE cloud computing platform using pixel binary model and Landsat images. Then, the spatiotemporal trend of FVC was obtained through Theil-Sen Median trend analysis and Mann-Kendall test. Finally, the topographic effects on FVC was quantified based on Digital Elevation Model (DEM) data (i.e., SRTM Plus) through ArcGIS. The results show that: (1) the FVC in the Yellow River Basin presented a spatial distribution of low in the northwest and high in the southeast. Low-level FVC values accounted for 45% of the entire basin area, which were mainly concentrated in the arid and semi-arid areas in the northwest; (2) the vegetation coverage in the middle of the basin was improved significantly, which accounted for 57.07% of the entire region. The degradation trend of the northwest and west region was stronger than that in other regions of the Yellow River Basin; (3) the vegetation coverage was significantly affected by the topography. High-level FVC occurred in regions where the slope was greater than 40° and the elevation was between -31~637 m. The vegetation recovery was good within the range of slope of 8~18° and elevation of 1852~2414 m. The results can provide scientific support for the ecological environment protection and high-quality development of the Yellow River Basin.

Key words: Yellow River Basin, Fractional Vegetation Cover, spatio-temporal changes, topographic effects, Landsat imagery, Google Earth Engine, NDVI, quantitative analysis

王晓蕾, 石守海. 基于GEE的黄河流域植被时空变化及其地形效应研究[J]. 地球信息科学学报, 2022, 24(6): 1087-1098.DOI:10.12082/dqxxkx.2022.210685

WANG Xiaolei, SHI Shouhai. Spatio-temporal Changes of Vegetation in the Yellow River Basin and Related Effect of Landform based on GEE[J]. Journal of Geo-information Science, 2022, 24(6): 1087-1098.DOI:10.12082/dqxxkx.2022.210685

图/表 14

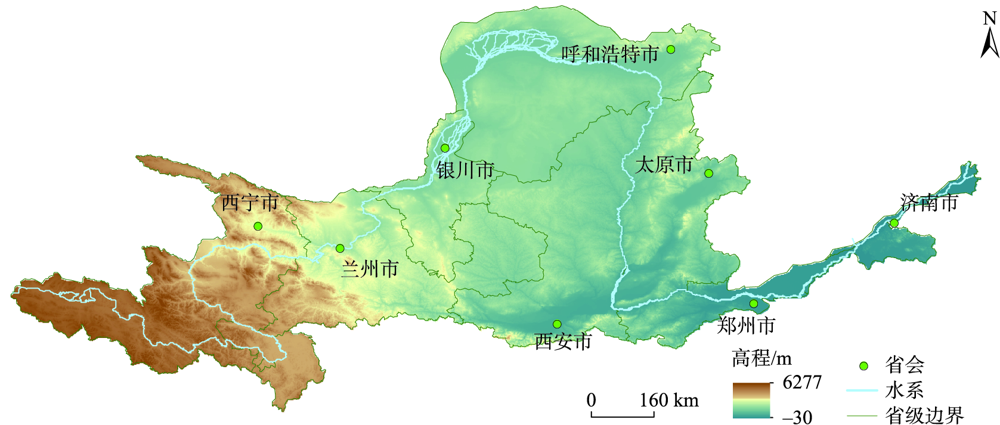

图1

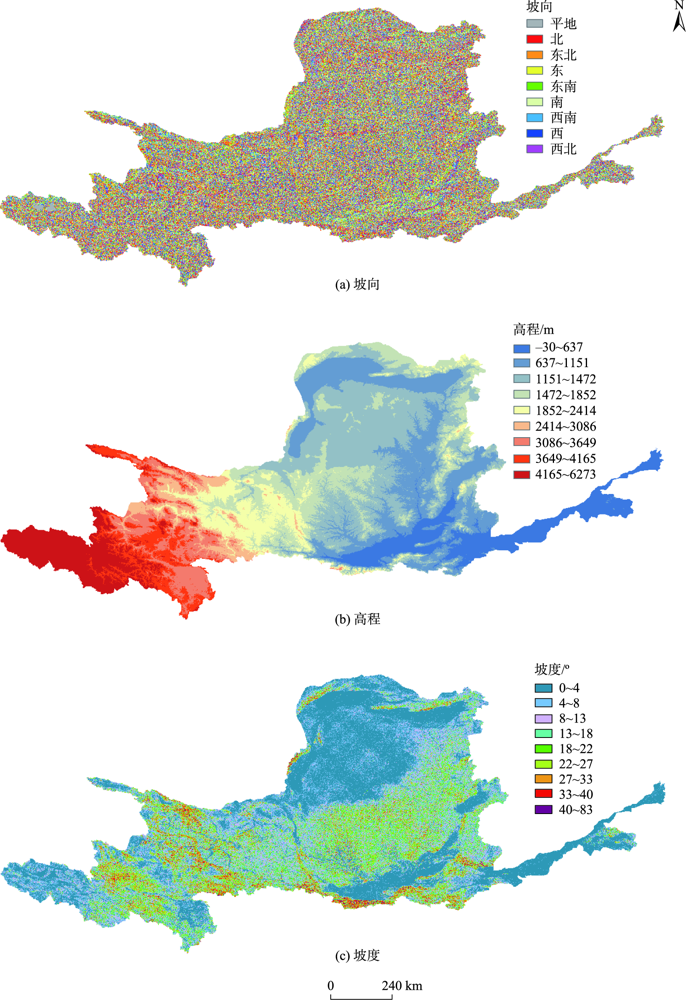

图2

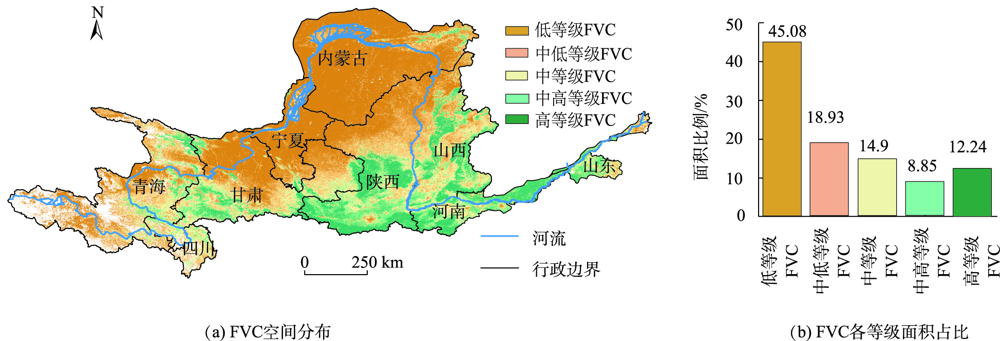

图3

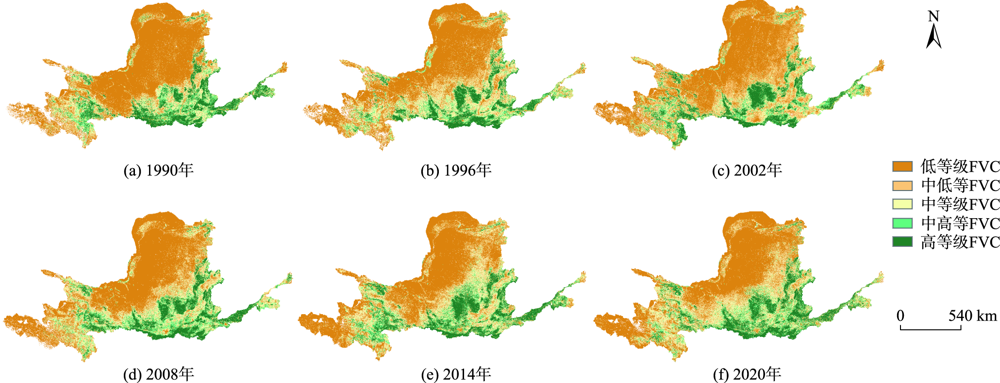

图4

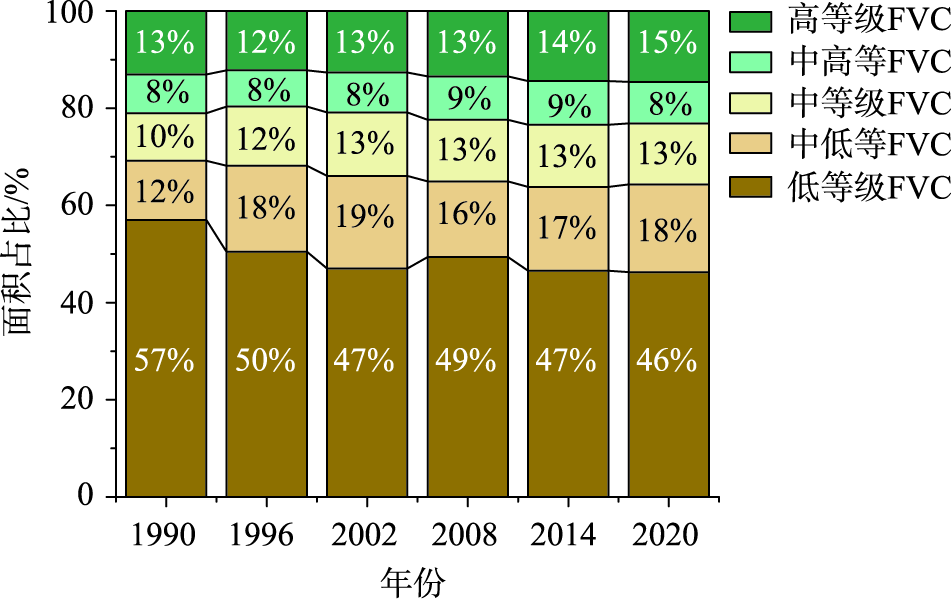

图5

图6

图7

表1

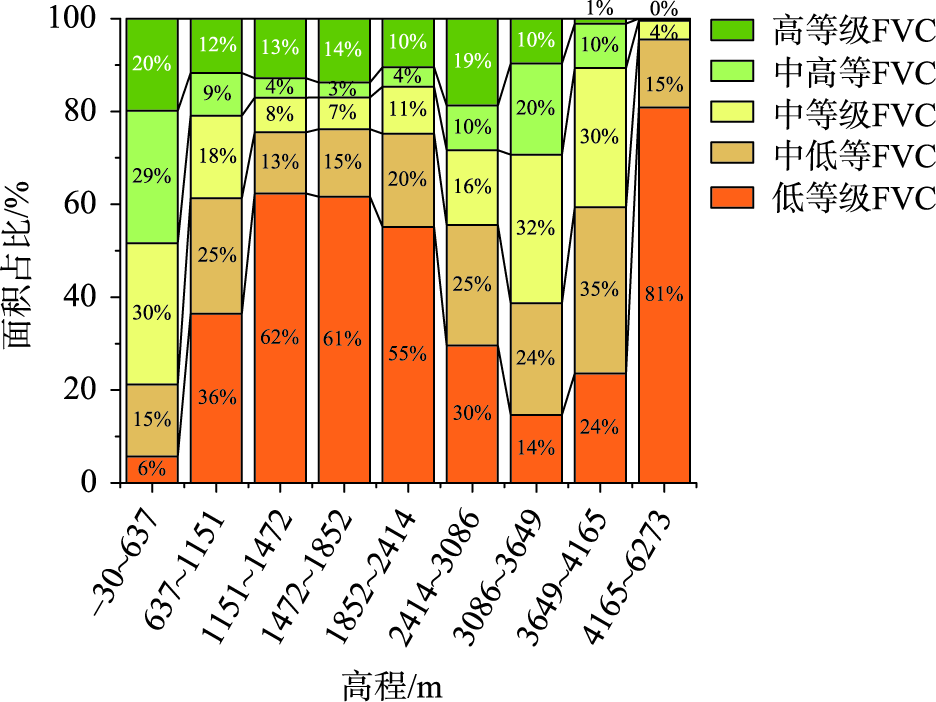

图8

图9

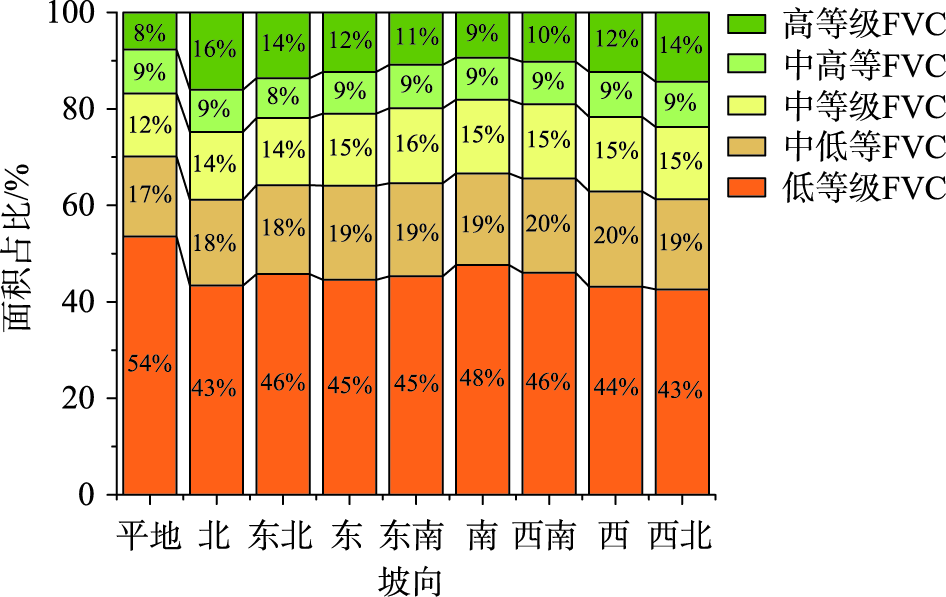

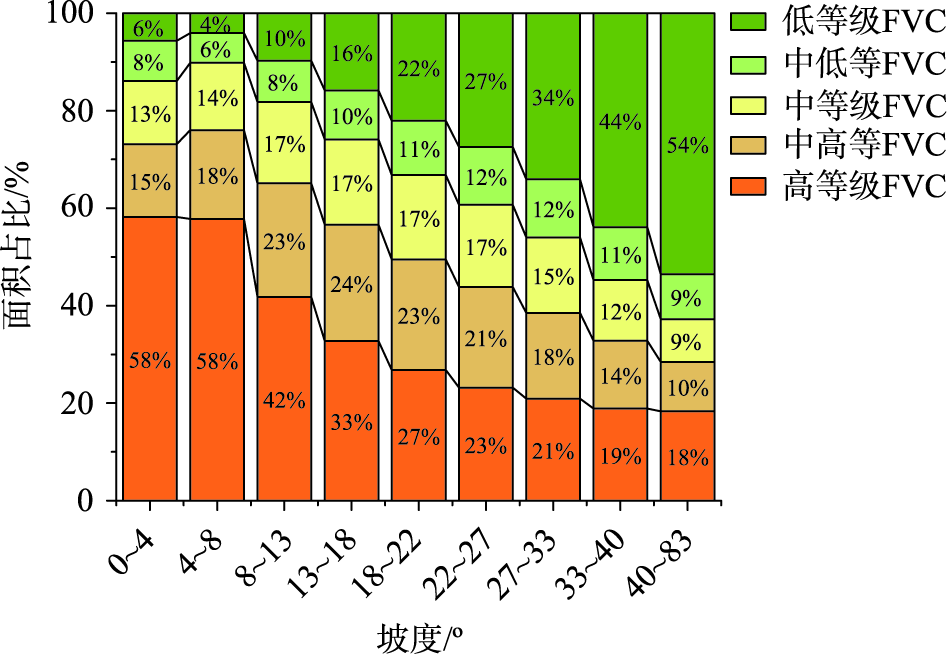

图10

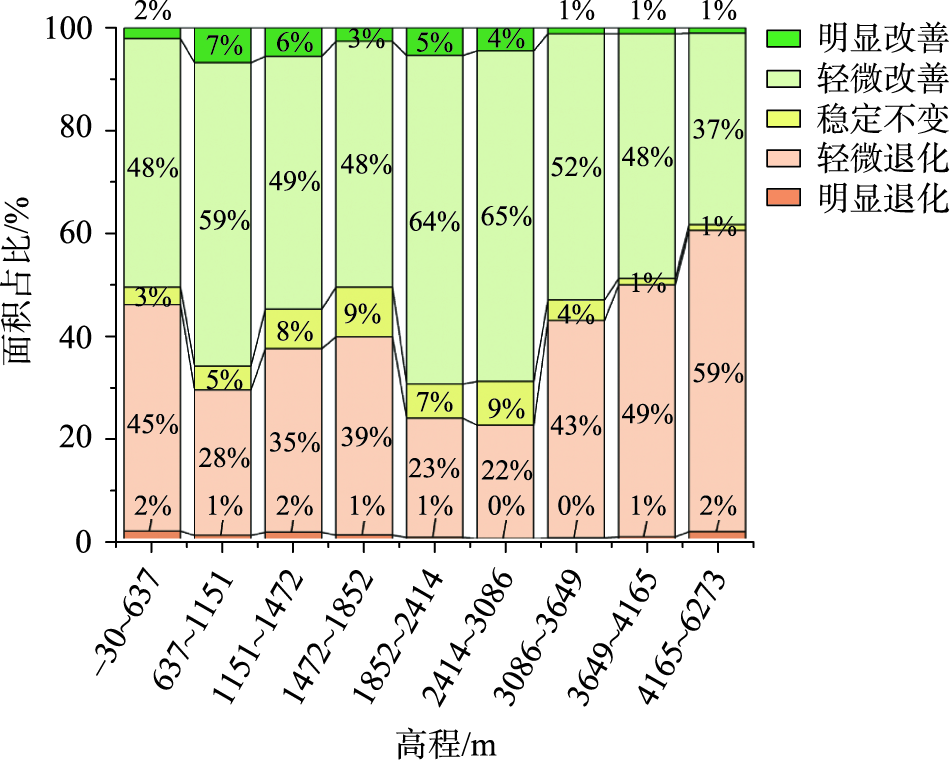

图11

图12

图13

参考文献 36

[1]	Yan K, Gao S, Chi H, et al. Evaluation of the vegetation-index-based dimidiate pixel model for fractional vegetation cover estimation[J]. IEEE Transactions on Geoscience and Remote Sensing 2022, 60:1-14. DOI: 10.1109/tgrs.2020.304849 doi: 10.1109/tgrs.2020.304849
[2]	Ding Y, Zhang H, Zhao K, et al. Investigating the accuracy of vegetation index-based models for estimating the fractional vegetation cover and the effects of varying soil backgrounds using in situ measurements and the PROSAIL model[J]. International Journal of Remote Sensing. 2017, 38(14):4206-4223. DOI: 10.1080/01431161.2017.1312617 doi: 10.1080/01431161.2017.1312617
[3]	Purevdorj T, Tateishi R, Ishiyama T, et al. Relationships between percent vegetation cover and vegetation indices[J]. International Journal of Remote Sensing. 1998, 19(18):3519-3535. DOI: org/10.1080/014311698213795 doi: org/10.1080/014311698213795
[4]	Tu Y, Jia K, Wei X, et al. A time-efficient fractional vegetation cover estimation method using the dynamic vegetation growth information from time series GLASS FVC product[J]. IEEE Geoscience and Remote Sensing Letters. 2020, 17(10):1672-1676. DOI: 10.1109/lgrs.2019.2954291 doi: 10.1109/lgrs.2019.2954291
[5]	Anatoly A G, Yoram J K, Robert S, et al. Novel algorithms for remote estimation of vegetation fraction[J]. Remote Sensing of Environment. 2002, 80(1):76-87. DOI: 10.1016/S0034-4257(01)00289-9 doi: 10.1016/S0034-4257(01)00289-9
[6]	Kun J, Shunlin L, Xingfa G, et al. Fractional vegetation cover estimation algorithm for Chinese GF-1 wide field view data[J]. Remote Sensing of Environment. 2016, 177:184-191. DOI: 10.1016/j.rse.2016.02.019 doi: 10.1016/j.rse.2016.02.019
[7]	Tian F, Liu L, Yang J, et al. Vegetation greening in more than 94% of the Yellow River Basin (YRB) region in China during the 21st century caused jointly by warming and anthropogenic activities[J]. Ecological Indicators. 2021, 125:107479. DOI: 10.1016/j.ecolind.2021.107479 doi: 10.1016/j.ecolind.2021.107479
[8]	Piao S, Wang X, Park T. Characteristics, drivers and feedbacks of global greening[J]. Nature Reviews Earth & Environment. 2020, 1(1):14-27. DOI: 10.1038/s43017-019-0001-x doi: 10.1038/s43017-019-0001-x
[9]	中共中央、国务院. 黄河流域生态保护和高质量发展规划纲要[EB/OL]. [2021-12-02]. http://www.gov.cn/zhengce/2021-10/08/content_5641438.htm
	[ The Central Committee of the Communist Party of China and the State Council. Outline of the Yellow River Basin Ecological Protection and High-quality Development Plan[EB/OL]. [2021-12-02]. http://www.gov.cn/zhengce/2021-10/08/content_5641438.htm ]
[10]	Zhang W, Wang L, Xiang F, et al. Vegetation dynamics and the relations with climate change at multiple time scales in the Yangtze River and Yellow River Basin, China[J]. Ecological Indicators, 2020, 110:105892. DOI: 10.1016/j.ecoli nd.2019.105892 doi: 10.1016/j.ecoli nd.2019.105892
[11]	张静, 杜加强, 盛芝露,等. 1982-2015年黄河流域植被NDVI时空变化及影响因素分析[J]. 生态环境学报, 2021, 30(5):929-937.
	[ Zhang J, Du J Q, Sheng Z L, et al. Spatio-temporal changes of vegetation cover and their influencing factors in the Yellow River Basin from 1982 to 2015 Ecology and Environmental Sciences, 2021, 30(5):929-937. ]DOI: 10.16258/j.cnki.1674-5906.2021.05.005 doi: 10.16258/j.cnki.1674-5906.2021.05.005
[12]	孙高鹏, 刘宪锋, 王小红,等. 2001-2020年黄河流域植被覆盖变化及其影响因素[J]. 中国沙漠, 2021, 41(4):205-212.
	[ Sun G P, Liu X F, Wang X H, et al. Changes in vegetation coverage and its influencing factors across the Yellow River Basin during 2001-2020[J]. Journal of Desert Research, 2021, 41(4):205-212. ]
[13]	张志强, 刘欢, 左其亭,等. 2000-2019年黄河流域植被覆盖度时空变化[J]. 资源科学, 2021, 43(4):849-858. doi: 10.18402/resci.2021.04.18
	[ Zhang Z Q, Liu H, Zuo Q T, et al. Spatiotemporal change of fractional vegetation cover in the Yellow River Basin during 2000-2019[J]. Resources Science, 2021, 43(4):849-858. ]DOI: 10.18402/resci.2021.04.18 doi: 10.18402/resci.2021.04.18
[14]	劳聪聪, 辛沛, 左寅,等. 1996-2020年长江口九段沙湿地植被覆盖对潮沟演变规律的影响[J]. 水科学进展. 2022, 33(1):15-26.
	[ Lao C C, Xin P Zuo Yet al. Effect of fractional vegetation cover on the evolution of tidal creeks in the Jiuduansha shoal (China) during Advances in Water Science, 2022, 33(1):15-26. ]
[15]	Lu L, Shen X, Cao R. Elevational movement of vegetation greenness on the Tibetan Plateau: Evidence from the Landsat satellite observations during the last three decades[J]. Atmosphere, 2021, 12(2):161. DOI: 10.3390/ATMOS12020161 doi: 10.3390/ATMOS12020161
[16]	纪秋磊, 梁伟, 傅伯杰,等. 基于Google Earth Engine与复杂网络的黄河流域土地利用/覆被变化分析[J]. 生态学报. 2022, 42(6):2122-2135.
	[ Ji Q L, Liang W, Fu B J, et al. Land use/cover change in the Yellow River Basin based on Google Earth Engine and complex network[J]. Acta Ecoloica Sinica, 2022, 42(6):2122-2135. ] DOI: 10.5846/stxb202011132938 doi: 10.5846/stxb202011132938
[17]	杨泽康, 田佳, 李万源,等. 黄河流域生态环境质量时空格局与演变趋势[J]. 生态学报. 2021, 41(19):7627-7636.
	[ Yang Z K, Tian J, Li W Y, et al. Spatio-temporal pattern and evolution trend of ecological environment quality in the Yellow River Basin[J]. Acta Ecoloica Sinica, 2021, 41(19):7627-7636. ] DOI: 10.5846/stxb202012083131 doi: 10.5846/stxb202012083131
[18]	覃巧婷, 陈建军, 杨艳萍,等. 黄河源植被时空变化及其对地形和气候的响应[J]. 中国环境科学, 2021, 41(8):3832-3841.
	[ Tan Q T, Chen J J, Yang Y P, et al. Spatial and temporal variations of vegetation and its response to topography and climate in the source region of the Yellow River[J]. China Environmental Science, 2021, 41(8):3832-3841. ] DOI: 10.19674/j.cnki.issn1000-6923.20210324.005 doi: 10.19674/j.cnki.issn1000-6923.20210324.005
[19]	程东亚, 李旭东. 喀斯特地区植被覆盖度变化及地形与人口效应研究[J]. 地球信息科学学报, 2019, 21(8):1227-1239. doi: 10.12082/dqxxkx.2019.180548
	[ Cheng D Y, Li X D. Vegetation coverage change in a karst area and effects of terrain and population[J]. Journal of Geo-information Science, 2019, 21(8):1227-1239. ] DOI: 10.12082/dqxxkx.2019.180548 doi: 10.12082/dqxxkx.2019.180548
[20]	Jiang W, Yuan L, Wang W, et al. Spatio-temporal analysis of vegetation variation in the Yellow River Basin[J]. Ecological Indicators, 2015, 51:117-126. DOI: 10.1016/j.ecolind.2014.07.031 doi: 10.1016/j.ecolind.2014.07.031
[21]	刘梁美子, 占车生, 胡实,等. 黔桂喀斯特山区植被变化及其地形效应[J]. 地理研究, 2018, 37(12):2433-2446. doi: 10.11821/dlyj201812006
	[ Liu L M Z, Zhan C S, Hu S, et al. Vegetation change and its topographic effects in the karst mountainous areas of Guizhou and Guangxi[J]. Geographical Research, 2018, 37(12):2433-2446. ] DOI: 10.11821/dlyj201812006 doi: 10.11821/dlyj201812006
[22]	张兴航, 张百平, 王晶,等. 神农架林区植被分布与地形的关系研究[J]. 地球信息科学学报, 2020, 22(3):482-493. doi: 10.12082/dqxxkx.2020.190553
	[ Zhang X H, Zhang B P, Wang J, et al. Study on the relationship between terrain and distribution of the vegetation in Shennongjia Forestry District[J]. Journal of Geo-information Science, 2020, 22(3):482-493. ] DOI: 10.12082/dqxxkx.2020.190553 doi: 10.12082/dqxxkx.2020.190553
[23]	王毅, 郭跃. 喀斯特地貌区植被覆盖与地形因子的空间关系分析--以贵州普定县为例[J]. 长江流域资源与环境, 2018, 27(1):157-167.
	[ Wang Y, Guo Y. Analysis of spatial correlation between vegetation coverage and terrain factors in Karst Landform: Taking Puding Area in Guizhou for example[J]. Resources and Environment in the Yangtze Basin, 2018, 27(1):157-167. ] DOI: 10.11870/cjlyzyyhj201801018 doi: 10.11870/cjlyzyyhj201801018
[24]	金凯, 王飞, 韩剑桥,等. 1982-2015年中国气候变化和人类活动对植被NDVI变化的影响[J]. 地理学报, 2020, 75(5):961-974. doi: 10.11821/dlxb202005006
	[ Jin K, Wang F, Han J Q, et al. Contribution of climatic change and human activities to vegetation NDVI change over China during 1982-2015 Acta Geographica Sinica, 2020, 75(5):961-974. ]
[25]	李苗苗, 吴炳方, 颜长珍,等. 密云水库上游植被覆盖度的遥感估算[J]. 资源科学, 2004(4):153-159.
	[ Li M M, Wu B F, Yan Z Z, et al. Estimation of vegetation fraction in the upper Basin of Miyun reservoir by remote sensing[J]. Resources Science, 2004(4):153-159. ]
[26]	何宝忠, 丁建丽, 张喆,等. 新疆植被覆盖度趋势演变实验性分析[J]. 地理学报, 2016, 71(11):1948-1966. doi: 10.11821/dlxb201611007
	[ He B Z, Ding J L, Zhang Z, et al. Experimental analysis of spatial and temporal dynamics of fractional vegetation cover in Xinjiang[J]. Acta Geographica Sinica, 2016, 71(11):1948-1966. ] DOI: 10.11821/dlxb201611007 doi: 10.11821/dlxb201611007
[27]	李晶, 闫星光, 闫萧萧,等. 基于GEE云平台的黄河流域植被覆盖度时空变化特征[J]. 煤炭学报, 2021, 46(5):1439-1450.
	[ Li J, Yan X G, Yan X X, et al. Temporal and spatial variation characteristic of vegetation coverage in the Yellow River Basin based on GEE cloud platform[J]. Journal of China Coal Society, 2021, 46(5):1439-1450. ] DOI: org/10.13225/j.cnki.jccs.ST21.0331 doi: org/10.13225/j.cnki.jccs.ST21.0331
[28]	陶帅, 邝婷婷, 彭文甫,等. 2000-2015年长江上游NDVI时空变化及驱动力--以宜宾市为例[J]. 生态学报, 2020, 40(14):5029-5043.
	[ Tao S, Kuang T T, Peng W F, et al. Analyzing the spatio-temporal variation and drivers of NDVI in upper reaches of the Yangtze River from 2000 to 2015: A case study of Yibin City[J]. Acta Ecologica Sinica, 2020, 40(14):5029-5043. ]
[29]	刘亚龙, 王庆, 毕景芝,等. 基于Mann-Kendall方法的胶东半岛海岸带归一化植被指数趋势分析[J]. 海洋学报, 2010, 32(3):79-87.
	[ Liu Y L, Wang Q, Bi J Z, et al. The analysis of NDVI trends in the coastal zone based on Mann-Kendall test: A case in the Jiaodong Peninsula[J]. Acta Oceanologica Sinica, 2010, 32(3):79-87. ]
[30]	YUE S, PILON P, CAVADIAS G. Power of the Mann-Kendall and Spearman's Rho tests for detecting monotonic trends in hydrological series[J]. Journal of Hydrology, 2002, 259:254-271. DOI: 10.1016/S0022-1694(02)00078-1 doi: 10.1016/S0022-1694(02)00078-1
[31]	符静, 秦建新, 张猛,等. 2001-2013年洞庭湖流域植被覆盖度时空变化特征[J]. 地球信息科学学报, 2016, 18(9):1209-1216. doi: 10.3724/SP.J.1047.2016.01209
	[ Fu J, Qin J X, Zhang M, et al. Spatial-temporal variations of vegetation coverage in the Lake Dongting Basin from 2001 to 2013. Journal of Geo-information Science, 2016, 18(9):1209-1216. ]
[32]	Peng W, Kuang T, Tao S. Quantifying influences of natural factors on vegetation NDVI changes based on geographical detector in Sichuan, western China[J]. Journal of Cleaner Production, 2019, 233:353-367. DOI: org/10.1016/j.jclepro.2019.05.355 doi: org/10.1016/j.jclepro.2019.05.355
[33]	李瑶, 戴文鸿, 高嵩,等. 黄河下游植被覆盖度动态变化及其与水沙过程关系[J]. 人民黄河: 2022, 44(4):31-37,52.
	Dai W H, Gao S, et al. Vegetation dynamics and its relations with water-sediment processes in Lower Yellow River[J]. Yellow River, 2022, 44(4):31-37,52. ] DOI: 10.3969/j.issn.1000-1379.2022.04.007 doi: 10.3969/j.issn.1000-1379.2022.04.007
[34]	裴志林, 杨勤科, 王春梅,等. 黄河上游植被覆盖度空间分布特征及其影响因素[J]. 干旱区研究, 2019, 36(3):546-555.
	[ Pei Z L, Yang Q K, Wang C M, et al. Spatial distribution of vegetation coverage and its affecting factors in the upper reaches of the Yellow River[J]. Arid Zone Reserch, 2019, 36(3):546-555. ] DOI: 10.13866/j.azr.2019.0 3.03 doi: 10.13866/j.azr.2019.0 3.03
[35]	Zhang D, Jia Q, Wang P, et al. Analysis of spatial variability in factors contributing to vegetation restoration in Yan'an, China[J]. Ecological Indicators, 2020, 113:106278. DOI: 10.1016/j.ecolind.2020.106278 doi: 10.1016/j.ecolind.2020.106278
[36]	赵东晓, 蔡建勤, 土小宁,等. 黄河流域水土保持植被建设对策[J]. 中国水利, 2020(6):30-33.
	[ Zhao D X, Cai J Q, Tu X N, et al. Vegetation construction measures for soil conservation in Yellow River Basin[J]. China Water Resources, 2020(6):30-33. ]

S_FVC	Z值	FVC趋势变化	面积/km²	百分比/%
<-0.0005	<-1.96	明显退化	12 280.60	1.19
<-0.0005	-1.96~1.96	轻微退化	366 767.11	35.54
-0.0005~0.0005	-1.96~1.96	稳定不变	63 983.00	6.20
≥0.0005	-1.96~1.96	轻微改善	544 474.75	52.76
≥0.0005	≥1.96	明显改善	44 478.51	4.31
