基于地表通量特征的城市不透水表面定量热红外遥感反演

doi:10.3724/SP.J.1047.2014.00609

摘要/Abstract

摘要：

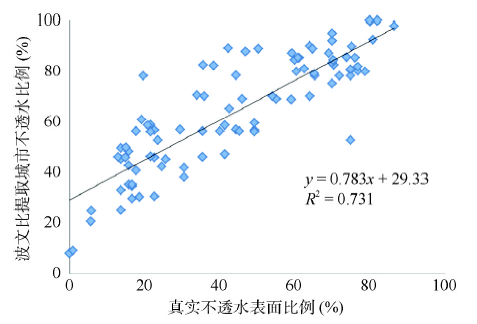

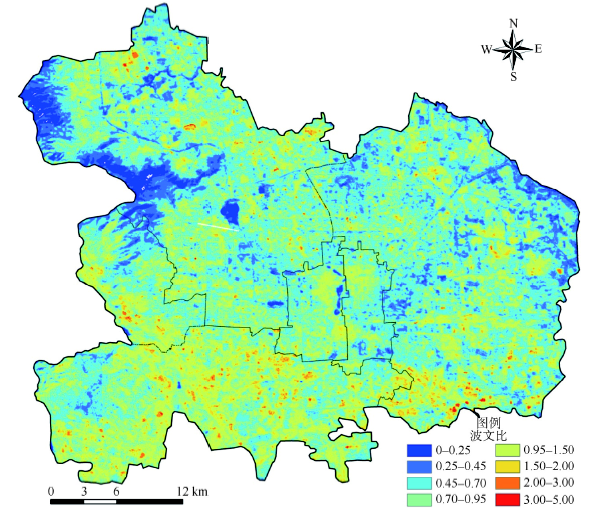

城市不透水地表格局通过改变城市下垫面结构,引起地表反照率、比辐射率、地表粗糙度的变化,从而对地表辐射和能量平衡产生直接影响。不透水地表能增强地表显热通量,导致地表波文比升高,因此地表波文比的空间差异可推算城市人工不透水表面的分布。本研究选择北京市为实验区,应用Landsat TM卫星热红外遥感数据,采用PCACA模型及理论定位算法,对城市地表波文比进行反演,进而计算遥感地表波文比空间分布数据与城市不透水表面比例数据之间的相关关系,构建回归方程,实现北京市城区与近郊区人工不透水表面百分比分布的定量估算,最后以高分辨率遥感数据获取的城市人工不透水表面比例数据进行结果验证。结果表明,采用PCACA模型定量反演城市地表波文比数据,利用地表波文比数据与不透水表面比例数据之间的相关关系可实现城市人工不透水表面百分比数据的定量估算;波文比值不仅可在遥感像元水平定性判定不透水像元,还可对混合像元中的不透水比例进行较高精度的定量反演,其相关系数R²值为0.731。此方法有效地揭示了城市不透水下垫面对地表热通量影响的机制以及空间定量关系。

关键词: 热红外遥感, 波文比, 地表温度, 通量验证, 不透水表面

Abstract:

Urban impervious surface pattern causes changes of surface albedo, emissivity and surface roughness by changing the structure of urban surface, and thereforeinfluences the balance of surface radiation and energy directly. Impervious surfaces will increase the surface sensible heat flux, resulting in a rise of surface Bowen ratio, which provides a physical basis forpredicting the distribution of urban artificial impervious surfaces through spatial differences of Bowen ratio. In this study, we selected Beijing as the experimental areaand appliedthe PCACA model and theoretical positioning algorithm to calculate the Bowen ratio of urban surfaces with Landsat TM satellite thermal infrared remote sensing data. Furthermore, based on the correlation between the spatial distribution of surface Bowen ratio and the proportion of urban impervious surfaces, a regression equation was built to estimatethe percentage of Beijing urban artificial impervious surfaces distribution. The result was tested and verifiedwith the artificial impervious surface ratio of the city extracted from high-resolution remote sensing data. The result shows that in the method which inverts urban surface Bowen ratio data using the PCACA model, and then estimates the ratio of urban artificial impervious surface percentage distribution based on the correlation between the surface Bowen ratio data and the proportion data of urban impervious surfaces, Bowen ratio can be used not only to qualitatively determine if a remote sensing pixel is the impermeable at a pixel level, but also to calculate with high accuracy the proportion of the impermeable part of a mixed pixel, and the correlation coefficient R² value between the estimated impervious surface ratio based on Bowen ratio and the real proportion was 0.731. This method reveals the mechanism of the impact of the urban impervious land surfaceson heat flux and their spatial quantitative relationship.

Key words: thermal infrared remote sensing Bowen ratio, surface temperature, Fluxes verification, impervious surfaces

刘越, 迟文峰, 匡文慧. 基于地表通量特征的城市不透水表面定量热红外遥感反演[J]. 地球信息科学学报, 2014, 16(4): 609-620.DOI:10.3724/SP.J.1047.2014.00609

LIU Yue,CHI Wenfeng,KUANG Wenhui. The Surface Flux Characteristics Based Quantitative Thermal Infrared Remote Sensing Inversion of Urban Impervious Surfaces[J]. Journal of Geo-information Science, 2014, 16(4): 609-620.DOI:10.3724/SP.J.1047.2014.00609

图/表 14

图1

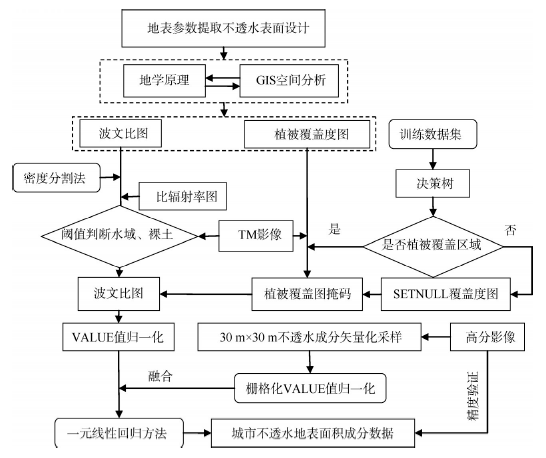

图2

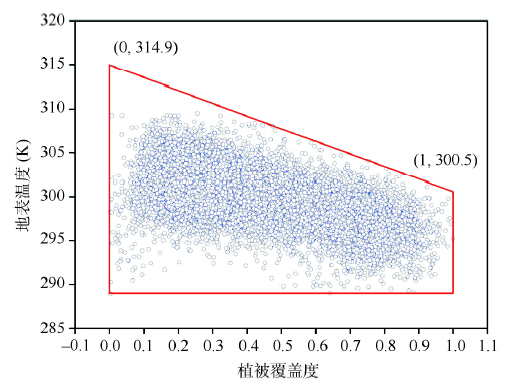

图3

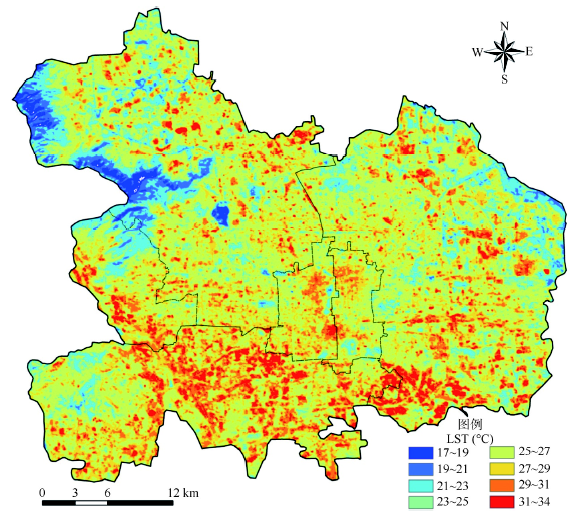

图4

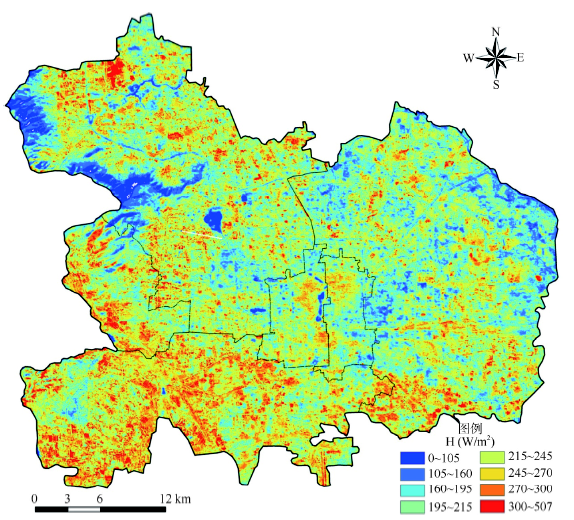

图5

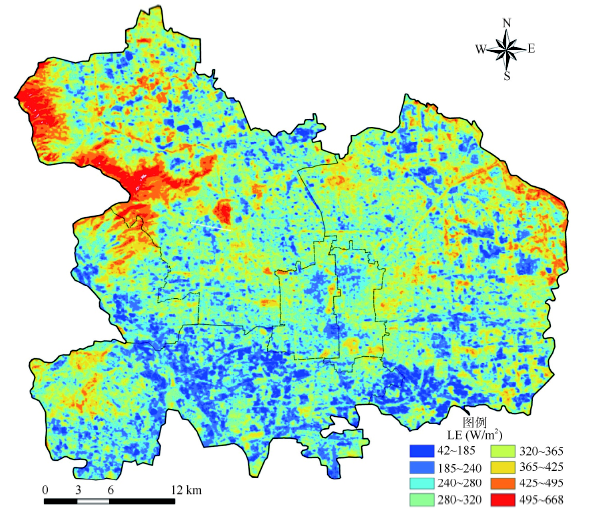

图6

图7

图8

图9

表1

图10

表2

表3

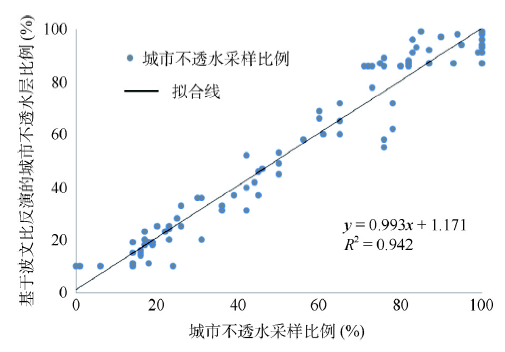

图11

参考文献 32

[1]	IHDP. Urbanization and global environmental change[J]. Bonn: International Human Dimensions Programme on Global Environmental Change, 2005,5:9-50.
[2]	McMahon G, Benjamin S P, Clarke K, et al. Geography for a changing world - A science strategy for the geographic research of the U.S[J]. Geological Survey, 2005-2015, Sioux Falls, SD: U.S. Geological Survey Circular, 2005,1281:1-76.
[3]	Rindfuss R, Walsh S, Turner B L, et al.Developing a science of land change: Challenges and methodological issues[J]. PNAS, 2004,101:13976-13981.
[4]	Foley A.Global consequences of land-use[J]. Science,2005,309:570-574.
[5]	Grimm N B, Faeth S H, Golubiewski N E, et al.Global change and the ecology of cities[J]. Science, 2008,319:756-760.
[6]	Alberti M.Advances in urban ecology integrating humans and ecological processes in urban ecosystems[M]. New York: Springer science + business media, 2009.
[7]	Pickett S A, Cadenasso M L, Grove J M, et al.Urban ecological systems: Scientific foundations and a decade of progress[J]. Journal of Environment Management, 2011,92:331-362.
[8]	IHDP. Science plan urbanize and global environment change[J]. Germany: International Human Dimensions Programme on Global Environmental Change, 2005,15:1-60.
[9]	Bierwagen B G, heobald D T, Pyke C R, et al. National housing and impervious surface scenarios for integrated climate impact assessments[J]. PNAS, 2010,10:1073-1078.
[10]	Parrish D, Zhu Tong.Clean air for megacities[J]. Science, 2009,326(30):674-675.
[11]	Batty. The Size, Scale, and Shape of Cities[J]. Science, 2008,319:769-771.
[12]	Kuang W H, Liu J Y, Zhang Z X, et al.Spatiotemporal dynamics of impervious surface areas across China during the early 21st century[J]. Chinese Science Bulletin,2013,58(14):1691-1701.
[13]	Kalnay E, Cai M.Impact of urbanization and land-use change on climate[J]. Nature, 2003,423:528-531.
[14]	Russell S V, Thomas R K, David R E, et al.Impact of land-use change on climate[J]. Nature, 2004,427:213-214.
[15]	Hansen J E.A closer look at United States and global surface temperature change[J]. Journal of Geophysical Research, 2001,106:23947-23963.
[16]	Gallo K P, Owen T W, Easterling D R, et al.Temperature trends of the US historical climatology network based on satellite-designated land use/land cover[J]. Journal of Climate, 1999,12(5):1344-1348.
[17]	David E P.Large-scale warming is not urban[J]. Nature, 2004, 432(7015):290-290.
[18]	Kuang W H.Evaluating impervious surface growth and its impacts on water environment in Beijing-Tianjin-Tangshan Metropolitan Area[J]. Journal of Geographical Sciences, 2012,22(3):535-547.
[19]	Elvidge C D, Tuttle B T, Sutton P C, et al.Global Distribution and Density of Constructed Impervious Surfaces[J]. Sensors, 2007,7:1962-1979.
[20]	Arnold C L, Gibbons C J.Impervious surface coverage: the emergence of a key environmental indicator[J]. J Am Plan ASSOC6, 1996,2(2):243-258.
[21]	Xiao R B, Ouyang Z Y, Zhang H, et al.Spatial pattern of impervious surfaces and their impacts on land surface temperature in Beijing[J]. Journal of Environmental Sciences, 2007,19:250-256.
[22]	Bastiaanssen W G M. Regionalization of surface flux densities and moisture indicators in composite terrain, a remote sensing approach under clear skies in Mediterranean climates[J]. The Netherlands, Wageningen: SC-DLO, 1995,109:271-271.
[23]	Su Z.The surface energy system (SEBS) for estimation of turbulent heat fluxes[J]. Hydrology and Earth System Sciences, 2002,6(1):85-99.
[24]	Norman J M, Kustas W P, Humes K S.Source approach for estimating soil and vegetation energy fluxes in observations of directional radiometric surface temperature[J]. Agricultural and Forest Meteorology, 1995,77:263-293.
[25]	Zhang R H.An operational two-layer remote sensing model to estimate surface flux in regional scale: Physical background. Science in China Series[J]. D Earth Sciences, 2005,48(Suppl. 1):225-244.
[26]	张仁华. 定量热红外遥感模型及地面实验基础[M].北京:科学出版社,2009:30-91.
[27]	ZhangR H, SunX M,Zh Z L u,et al. A remote sensing model for monitoring soil evaporation based on differential thermal inertia and its validation[J]. Science in China Series D: Earth Sciences, 2003,46(4):342-355.
[28]	Qin Z H, Li W J, Zhang M H, et al. Estimating of the essential atmospheric parameters of mono-window algorithm for land surface temperature retrieval from Landsat TM6[J]. Remote Sensing For Land & Resources, 2003(2):37-43
[29]	覃志豪,Zhang M H, Karnieli A, Berliner P. Mono-window Algorithm for Retrieving Land Surfacetemperature from Landsat TM data and its application to the Israel-Egypt border region[J]. International Journal of Remote Sensing, 2001,22(18):3719-3746.
[30]	覃志豪,李文娟,徐斌,等.陆地卫星TM6波段范围内地表比辐射率的估计[J].国土资源遥感,2004(3):28-32.
[31]	Liang S L.Narrowband to broadband conversions of land surface albedo algorithms[J]. Remote Sensing of Environment, 2000,76:213-238.
[32]	苗世光,窦军霞,李炬,等.北京城市地表能量平衡特征观测分析[J].中国科学地球科学,2012,42(9):1394-1402.

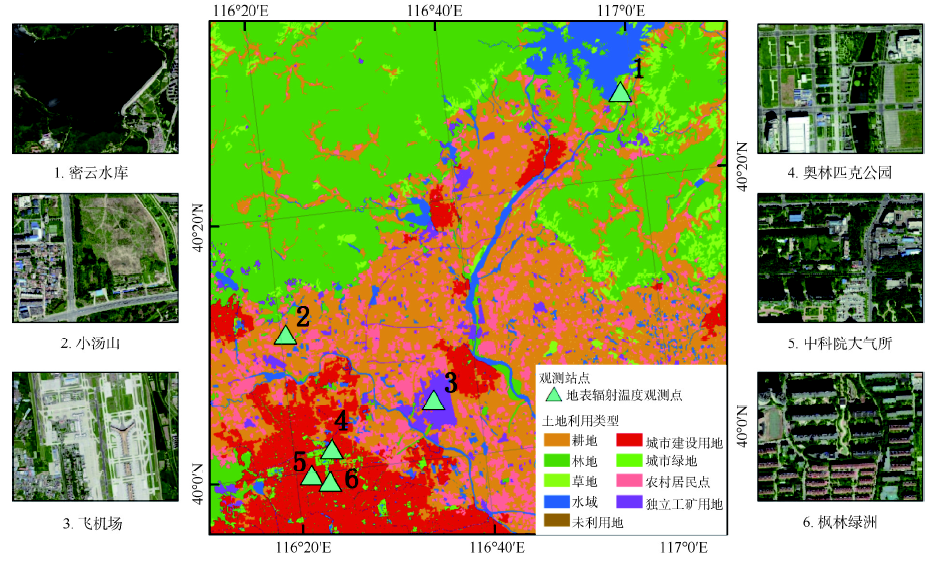

序号	区域名称	地理坐标	土地利用类型	实测值(℃)	反演值(℃)
1	国际机场区域	40°07′ N,116°59′E	水泥道路	30.64	29.09
2	国际机场区域	40°07′ N,116°59′E	草地	30.61	29.36
3	国际机场区域	40°06′ N,116°60′E	沥青道路	30.73	31.16
4	密云水库	40°45′ N,116°96′E	水域	20.86	19.30
5	密云水库	40°45′ N,116°98′E	灌木	24.37	23.67
6	密云水库	40°45′ N,116°98′E	裸土	28.10	25.64
7	小汤山区域	40°17′ N,116°34′E	草地	25.02	23.31
8	小汤山区域	40°18′ N,116°34′E	人工育苗林地	25.40	23.84
9	小汤山区域	40°18′ N,116°34′E	玉米地	21.06	21.98
10	小汤山区域	40°17′ N,116°34′E	人工草地	27.01	24.09
11	小汤山区域	40°17′ N,116°34′E	草地	25.61	22.30
12	小汤山区域	40°18′ N,116°34′E	林地	21.20	21.66
13	地理所东北侧	40°01′ N,116°38′E	沥青道路	34.10	28.42
14	中科联附近区域	40°00′ N,116°38′E	人工草地	26.50	26.97
15	地理所附近	40°01′ N,116°38′E	城市林地	25.30	24.97

区域名称	下垫面类型	实测值(W/m²)				反演值(W/m²)
区域名称	下垫面类型	R_n	H	LE	H/LE	R_n	H/LE
中科联楼顶	城市	460	186	53	3.51	535	1.78
森林公园	草地林地	491	85	109	0.78	581	0.79

城市	观测高度(m)	观测时段	比例(H/LE)	地表特征与参考文献编号
城市	观测高度(m)	观测时段	加拿大,温哥华 (49°16′N,123°06′W)	地表特征与参考文献编号	/	1992年8月	4.42	典型城区,[35]
法国,马赛 (43°17′N,5°23′E)	43.9, 34.6	2001年6-7月	4.27	典型城区,[36]
瑞士,巴塞尔(47°34′N,7°36′E)	32.0	2002年7-8月	2.50	典型城区,[37]
日本,COSMO实验(39°04′N,139°07′E)	3.0	2006年7月	1.90	典型城区,[38]
美国,图森 (32°07′N,110°56′W)	25.6	1990年6月	1.83	典型城区,[39]
日本,东京 (35°34′N,139°41′E)	29.0	2001年7月	1.77	典型城区,[40]
美国,洛杉矶 (34°08′N,118°03′W)	30.5	1993年7-8月	1.40	城区,较多绿地[39]
美国,萨克拉门托 (38°39′N,121°30′W)	29.0	1991年8月	1.37	城区,较多绿地,[39]
美国,芝加哥 (41°57′N,87°48′W)	18.0	1992年7月	0.78	城市绿地,[39]
中国,北京 (39°58′N,116°42′E)	140.0	2009年7-8月 2010年6月	0.82	城市绿地,[41]
中国,北京中科联楼顶(40°00′N,116°38′E)	15.0	2011年9月22日	3.51	典型居民区,本文实测
中国,北京森林公园(40°04′N,116°39′E)	3.0	2011年9月22日	0.78	城市绿地,本文实测
中国,北京风林绿洲小区(40°00′N,116°38′E)	/	2009年9月20日	1.78	典型居民区,本文反演
中国,北京森林公园(40°04′N,116°39′E)	/	2009年9月20日	0.79	城市绿地,本文反演
