基于摄影测量的ASTER影像云顶高度解算模型与实验

doi:10.3724/SP.J.1047.2015.00229

地球信息科学学报 ›› 2015, Vol. 17 ›› Issue (2): 229-235.doi: 10.3724/SP.J.1047.2015.00229

基于摄影测量的ASTER影像云顶高度解算模型与实验

何永健¹(), 张娅琳², 邱新法^1,^*(), 曹芸¹

1. 南京信息工程大学地理与遥感学院,南京 210044
2. 山西省气候中心,太原 030006

收稿日期:2014-06-03 修回日期:2014-08-14 出版日期:2015-02-10 发布日期:2015-02-10
通讯作者: 邱新法 E-mail:yongjian_he@163.com;xfqiu135@nuist.edu
作者简介:
作者简介：何永健(1977-),男,博士,讲师,研究方向为3S集成与气象应用。E-mail:yongjian_he@163.com
基金资助:
国家自然科学基金项目“复杂地形下月平均气温分布式模型研究”(41175077)

Study on Calculating Cloud-Top Height from ASTER Images Using Photogrammetry

HE Yongjian¹(), ZHANG Yalin², QIU Xinfa^1,^*(), CAO Yun¹

1. School of geography and Remote sensing, Nanjing University of Information Science and Technology, Nanjing 210044, China
2. Centre for Climate of ShanXi Province, Taiyuan 030006, China

Received:2014-06-03 Revised:2014-08-14 Online:2015-02-10 Published:2015-02-10
Contact: QIU Xinfa E-mail:yongjian_he@163.com;xfqiu135@nuist.edu
About author:
*The author: SHEN Jingwei, E-mail:jingweigis@163.com

摘要/Abstract

摘要：

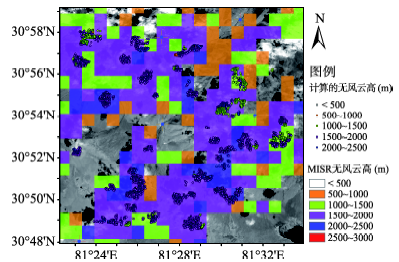

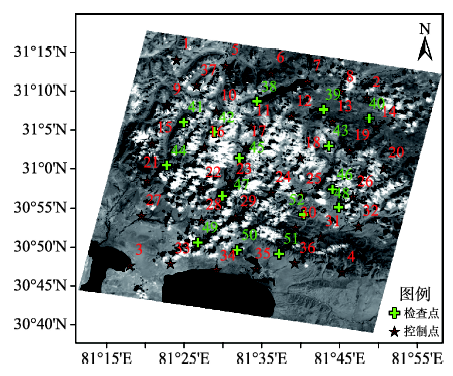

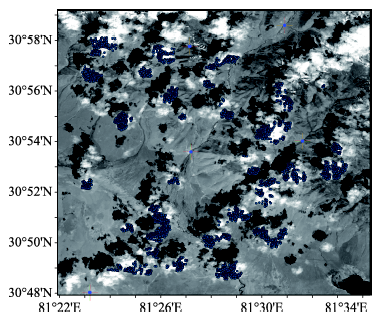

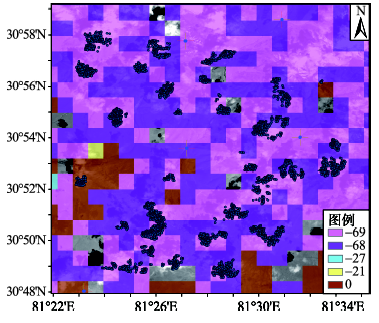

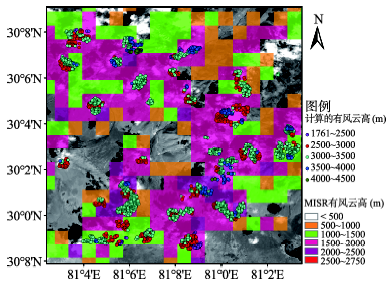

云顶高度是天气预报、天气监测的重要因子,准确的云顶高度对提高天气分析和数值预报的质量,具有重要的科学意义。立体几何法是公认云顶高度解算精度较高的方法,目前,普遍采用卫星-球心-投影云-真云的平面和球面三角几何关系,以及影像匹配技术解算云顶高度,由于采用了理想椭球体和重投影技术,以及对云移动考虑不足,因此误差较大。本文将数字摄影测量理论与遥感技术相结合,首次将摄影测量共线方程用于云顶高度解算。本文利用ASTER影像,依据相关系数法解求云迹风,并将其引入到摄影测量共线方程中,建立了ASTER影像的云顶高度解算模型,进行了未考虑和考虑风速的云顶高度解算,通过地面点计算,本文解算误差为2个像元（30 m）左右,经与MISR云顶高度产品对比分析,认为该模型解算的考虑风速的云顶高度精度优于MISR解算结果。

关键词: ASTER, 云顶高度, 云迹风, 云顶高度解算方法

Abstract:

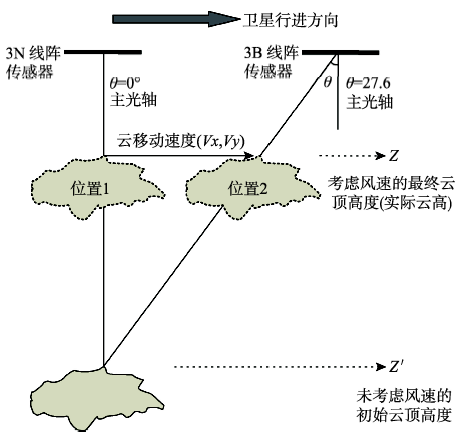

Cloud-top height is an important factor in weather forecasting and monitoring. Accurate cloud-top height has important scientific significance for improving the quality of both weather analyses and numerical weather prediction. The geometric method to calculate cloud-top height using stereo image pair obtained from meteorological satellites has been recognized as providing relatively high precision, and has practical importance. However, this method does not fully consider cloud movement and typically assumes ideal ellipsoids in theory. Thus, the calculated cloud-top height still has a relatively large error in practice. In this study, cloud-movement speed was introduced into the collinearity equation of photogrammetry. We established a model to calculate the cloud-top height from the ASTER images (3B and 3N) with digital photogrammetry and remote sensing technology. Firstly, we created a stereo pair from ASTER images obtained on 25^th September 2012. Then, the cloud-movement speed was calculated through matching cloud points. Finally, the cloud-top heights with and without consideration of wind speed were both calculated. Compared with ground control points, the model error is determined to be within two pixels (about 30 meter). We further compared our results with MISR products, and found that the cloud-top height determined without using wind speed is consistent with the height obtained from MISR, the difference between them is about 300 meters. Our cloud-top height determined with wind speed considered, however is about 1400 meters higher than that of MISR without wind considered. Marchand and Naud had identified in their research that the cloud-top height obtained from MISR is about 1000 meters lower than Lidar observation. This implies that our results with consideration of wind speed are closer to the Lidar observations. Due to the fact that our method for determining cloud-top height is dependent on the cloud moving speed, and the results with wind speed included have led to a good estimation of cloud-top height, we conclude that the wind speed should be included in algorithms for cloud-top height determination.

Key words: ASTER, cloud-top height, cloud winds, cloud-top height calculation

何永健, 张娅琳, 邱新法, 曹芸. 基于摄影测量的ASTER影像云顶高度解算模型与实验[J]. 地球信息科学学报, 2015, 17(2): 229-235.DOI:10.3724/SP.J.1047.2015.00229

HE Yongjian,ZHANG Yalin,QIU Xinfa,CAO Yun. Study on Calculating Cloud-Top Height from ASTER Images Using Photogrammetry[J]. Journal of Geo-information Science, 2015, 17(2): 229-235.DOI:10.3724/SP.J.1047.2015.00229

图/表 10

图1

图2

图3

表1

图4

图5

图6

图7

表2

图8

参考文献 29

[1]	林琳,黄思训,杜华栋.MODIS数据的云顶高度反演[J].地球信息科学,2006,8(2):106-109.
[2]	黄磊. 基于图像匹配和模式识别技术的卫星资料应用[D].北京:北京大学,2007:1-36.
[3]	Hasler A F.Stereographic observations from satellites: An important new tool for the atmospheric science[J]. Bulletin American Meteorological Society, 1981,62(2):194-212.
[4]	Minzner R A, Shenk W E, Steranka J, et al.Cloud heights determined stereographically from imagery recorded simultaneously by two synchronous meteorological satellites, SMS-1 and SMS-2[J]. EOS, 1976, 57(8): 593-593.
[5]	Minzner R A, Shenk W E, Steranka J, et al.Stereographic cloud heights from imagery of SMS/GOES satellites[J]. Geophisical Research letter, 1978,5(1):21-24.
[6]	Bryson W.Cloud height determination from geosynchronous satellite images[D]. Wisconsin: University of Wisconsin, 1978:1-32.
[7]	Hasler A F, Strong J, Woodward R H, et al.Automatic analysis of stereoscopic satellite image pairs for determination of cloud-top height and structure[J]. Journal of Applied Meteorology, 1991,30(3):257-281.
[8]	Wylie D P, Santek D, Starr D O.Cloud-Top heights from GOES-8 and GOES-9 stereoscopic imagery[J]. Journal of Applied Meteorology, 1998,37(4):405-413.
[9]	Takashima T, Takayama Y, Matsuura K, et al.Cloud height determination by satellite stereography[J]. Papers in Meteorology and Geophysics, 1982,33(2):65-78.
[10]	Campbell G G, Holmlund K.Geometric cloud heights from Meteosat and AVHRR[C]. Fifth International Winds Workshop,EUM, 2000:109-115.
[11]	Fujita T T.Principle of stereoscopic height computations and their applications to stratospheric cirrus over sever thunderstorms[J]. Journal of the Meteorological Society of Japan, 1982,60:355-368.
[12]	Wang H q, Lv S H, Zhang Y, et al. Determination of cloud-top height from stereoscopic observation[J]. Progress in Natural Science, 2002,12(9):689-694.
[13]	王洪庆,吕胜辉,张焱,等.双星立体观测的云顶高度反演//. 中国气象学会2003 年年会“地球气候和环境系统的探测与研究”分会论文集[M].北京:气象出版社,2003:107-110.
[14]	黄磊,吕胜辉,张焱,等.双星立体观测云顶高度几何反演方法[J].北京大学学报(自然科学版),2008,44(1):129-134.
[15]	Seiz G, Poli D, Gruen A.Stereo cloud-top heights from MISR and AATSR for validation of Eumetsat cloud-top height products[C]. Prague: Eumetsat Users, Conference, 2004:1-6.
[16]	Diner D J, Asner G P, Davies R, et al.New directions in Earth observing: Scientific applications of multiangle remote sensing[J]. Bulletin American Meteorological Society, 1999,80(11):2209-2228.
[17]	EU. CLOUDMAP-Cirrus and Contrail cloud-top maps from satellites for Weather Forecasting and Climate Change Analysis: Final Report[R].EU Contract no ENV4 CT97-0399, 2001.
[18]	Moroney C, Davies R, Muller J P.Operational retrieval of cloud-top heights using MISR data[J]. IEEE Transactions on Geoscience and Remote Sensing, 2002,40(7):1532-1540.
[19]	Mueller K, Garay M J, Girolamo L D, et al. MISR Cloud Motion Vector Product Algorithm Theoretical Basis[DB/OL]. , 2010-7-10.
[20]	Fujisada H, Sakuma H, Oilo A, et al.Design and preflight performance of ASTER instrument protoflight model[J]. IEEE Transactions on Geoscience and Remote Sensing, 1998,36(4):1152-1160.
[21]	Krupnik A.Accuracy assessment of automatically derived digital elevation models from spot images[J]. Photogrammetric Engineering and Remote Sensing, 2000,8:1017-1023.
[22]	张祖勋,张剑清.数字摄影测量学[M].武汉:武汉大学出版社,1997:1-141.
[23]	李德仁,周月琴,金为铣.摄影测量与遥感概论[M].北京:测绘科学出版社,2004:1-120.
[24]	陈华,许健民,张其松,等.用高度调整法进行云迹风高度的质量控制[J].气象科学,1999,19(l):20-25.
[25]	王振会,汤达章,傅德胜.图像相关分析法判别因子的比较与实验[J].气象科学,1992,l2(l):72-79.
[26]	Diner D J. MISR Experiment Overview[DB/OL]. , 2010-11-25
[27]	Moroney C, Mueller K. MISR Data Product Specification for the MISR Level 2 Cloud Product[DB/OL]. , 2012-4-5.
[28]	Marchand R T, Ackerman T P, Moroney C. An assessment of Multiangle Imaging Spectroradiometer (MISR) stereo-derived cloud top heights and cloud top winds using ground-based radar, lidar, microwave radiometers[J]. Journal of Geophysical Research, 2007 112:D06204(1-20).
[29]	Naud C, Muller J P,Haeffelin M, et al.Assessment of MISR and MODIS cloud top heights through intercomparison with a back-scattering lidar at SIRTA[J]. Geophysical Research Letters, 2004,31(L04114).

	最大值(m)	最小值(m)	平均值(m)	云高范围(m)	对应云点个数(个)
无风云高	2490.32	531.81	1715.53	500~1100	13
				1100~1600	778
				1600~2100	2040
				2100~2500	54
有风云高	4191.69	1936.0	3087.10	1900~2400	39
				2400~2900	725
				2900~3400	1671
				3400~3900	419
				3900~4200	31

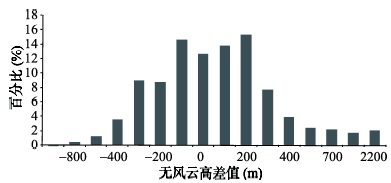

	云高差值 (m)	云高差值范围 (m)	对应云点比例(%)
最大值	2002.47	700~1000	2.98
最大值	2002.47	1000~1200	15.25
最小值	796.37	1200~1400	40.10
最小值	796.37	1400~1600	26.38
平均值	1431.41	1600~1800	12.65
平均值	1431.41	1800~2000	2.63
