基于Dyna-CLUE改进模型和SD模型耦合的山区城镇用地情景模拟研究——以岷江上游地区为例

doi:10.3724/SP.J.1047.2016.00514

摘要/Abstract

摘要：

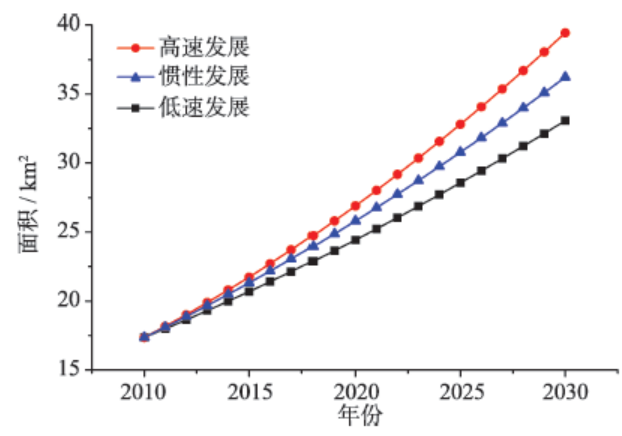

山区城镇扩张受山区地形和山地灾害等因素限制,而常用的土地利用模型难以有效表达这一特征。本文通过对Dyna-CLUE（Dynamic Conversion of Land Use and its Effects Model）模型进行改进并结合系统动力学（System Dynamic,SD）模型,充分发挥这2个模型在微观土地分配,及宏观情景模拟上的优势,很好地表达了山区地形和山地灾害等因素对山区城镇扩张的限制作用,为山区城镇扩张情景模拟提供了一个有效的方法。以岷江上游地区为例,根据研究区历史统计数据构建山区城镇用地SD模型,模拟低速发展、惯性发展和高速发展3种不同发展情景下城镇用地的需求,结合Dyna-CLUE改进模型,预测了对应情景下2011-2030年的城镇用地范围,并探究其对其他土地利用类型的影响。结果表明,发展速度越快,城镇主体越快达到地理限制区域的上限,并开始沿山间平地向两端扩张。耕地受山区城镇扩张的影响要远远超出其他土地利用类型,离城镇越近受影响越大。随着城镇扩张的加剧,其对自然环境的影响也逐渐增大。模型模拟结果能为山区城镇用地规划、评估由城镇扩张造成的生态环境问题和制定相应的对策提供有效的技术支撑。

关键词: Dyna-CLUE改进模型, SD模型, 山区城镇用地, 情景模拟

Abstract:

Urban land expansion in mountain area is constrained by the hill-shaped terrain, mountain hazards and some other geographic factors, making it difficult to be expressed by the commonly used land use models, thus the research in this area is relatively inadequate. By modifying the Dyna-CLUE model and combining it with the SDM, the advantages of land allocation in microcosmic aspect and scenario simulation in macroscopic aspect are well developed. Moreover, this method clearly expresses the constraining effect of the geographic constraint factors toward mountainous urban land expansion. Therefore, it provides an effective approach to the scenario simulation of urban land expansion in mountain area. This article takes the upper reaches of Minjiang River as the study area. The mountainous urban land SDM is built based on historical statistical data of the study area and is used to simulate urban land demands under three different developing scenarios, which are slow development, inertial development and fast development. Combining with the modified Dyna-CLUE model, the distributions of urban land from 2011 to 2030 for the corresponding developing scenarios are predicted respectively. The results indicate that, the faster the mountainous town develops, the faster it comes up to the upper limit of the geographic restricted filed for downtown areas, then it will expand toward both ends along the intermountain plain. The arable land is influenced by the urban land expansion much more evidently than the other land use types. The closer it is to the downtown areas, the more it is influenced. As the urban land expansion reaches a higher level, its influence to eco-environment is getting more intense. The simulation result of the model can offer effective technical support to mountainous urban planning, estimating the environmental problem caused by urban expansion and making relevant policy.

Key words: modified Dyna-CLUE model, System Dynamic model, urban land in mountain area, scenario simulation

严冬, 李爱农, 南希, 雷光斌, 曹小敏. 基于Dyna-CLUE改进模型和SD模型耦合的山区城镇用地情景模拟研究——以岷江上游地区为例[J]. 地球信息科学学报, 2016, 18(4): 514-525.DOI:10.3724/SP.J.1047.2016.00514

YAN Dong,LI Ainong,NAN Xi,LEI Guangbin,CAO Xiaomin. The Study of Urban Land Scenario Simulation in Mountain Area Based on Modified Dyna-CLUE Model and SDM: A Case Study of the Upper Reaches of Minjiang River[J]. Journal of Geo-information Science, 2016, 18(4): 514-525.DOI:10.3724/SP.J.1047.2016.00514

图/表 13

图1

图2

图3

表1

图4

表2

表3

图5

图6

图7

图8

图9

表4

参考文献 36

[1]	Xian G, Crane M.Assessments of urban growth in the Tampa Bay watershed using remote sensing data[J]. Remote Sensing of Environment, 2005,97(2):203-215. doi: 10.1016/j.rse.2005.04.017
[2]	许彦曦,陈凤,濮励杰.城市空间扩展与城市土地利用扩展的研究进展[J].经济地理,2007,27(2):296-301. doi: 10.3969/j.issn.1000-8462.2007.02.026
	[ Xu Y X, Chen F, Pu L J.A retrospect and prospect on research of urban spatial and land use expansion[J]. Economic Geography, 2007,27(2):296-301. ] doi: 10.3969/j.issn.1000-8462.2007.02.026
[3]	段增强,张凤荣,宇振荣.土地利用动态模拟模型的构建及其应用——以北京市海淀区为例[J].地理学报,2005,59(6):1037-1047. doi: 10.3321/j.issn:0375-5444.2004.06.028
	[ Duan Z Q, Zhang F R, Yu Z R.Construction of a land-use change simulation model and its application in Haidian district, Beijing[J]. Acta Geographica Sinica, 2005,59(6):1037-1047. ] doi: 10.3321/j.issn:0375-5444.2004.06.028
[4]	黎夏,叶嘉安.基于神经网络的单元自动机CA及真实和优化的城市模拟[J].地理学报,2002,57(2):159-166. doi: 10.3321/j.issn:0375-5444.2002.02.005
	[ Li X, Ye J A.Neural-network-based cellular automata for realistic and idealized urban simulation[J]. Acta Geographica Sinica, 2002,57(2):159-166. ] doi: 10.3321/j.issn:0375-5444.2002.02.005
[5]	陆汝成,黄贤金,左天惠,等.基于CLUE-S和Markov复合模型的土地利用情景模拟研究:以江苏省环太湖地区为例[J].地理科学,2009,29(4):577-581. doi: 10.3969/j.issn.1000-0690.2009.04.019
	[ Lu R C, Huang X J, Zuo T H, et al.Land use scenarios simulation based on clue-s and markov composite model: a case study of Taihu lake rim in Jiangsu province[J]. Scientia Geographica Sinica, 2009,29(4):577-581. ] doi: 10.3969/j.issn.1000-0690.2009.04.019
[6]	盛晟,刘茂松,徐驰,等.CLUE-S模型在南京市土地利用变化研究中的应用[J].生态学杂志,2008,27(2):235-239.
	[ Sheng S, Liu M S, Xu C, et al.Application of CLUE-S model in simulating land use changes in Nanjing metropolitan region[J]. Chinese Journal of Ecology, 2008,27(2):235-239. ]
[7]	魏伟,周婕,许峰.大城市边缘区土地利用时空格局模拟——以武汉市洪山区为例[J].长江流域资源与环境,2006,15(2):174-179. doi: 10.3969/j.issn.1004-8227.2006.02.009
	[ Wei W, Zhou J, Xu F.Modelling the spatio-temporal pattern of urban fringe: a case study on Hongshan district of Wuhan city[J]. Resources and Environment in the Yangtze Basin, 2006,15(2):174-179. ] doi: 10.3969/j.issn.1004-8227.2006.02.009
[8]	黎夏,杨青生,刘小平.基于CA的城市演变的知识挖掘及规划情景模拟[J].中国科学(D辑),2007,37(9):1242-1251. doi: 10.3321/j.issn:1006-9267.2007.09.012
	[ Li X, Yang Q S, Liu X P.Knowledge mining and planning scenario simulation of urban evolution based on cellular automata[J]. Science in China (Series D:Earth Sciences), 2007,37(9):1242-1251. ] doi: 10.3321/j.issn:1006-9267.2007.09.012
[9]	Jantz C A, Goetz S J, Donato D, et al.Designing and implementing a regional urban modeling system using the SLEUTH cellular urban model[J]. Computers, Environment and Urban Systems, 2010,34(1):1-16. doi: 10.1016/j.compenvurbsys.2009.08.003
[10]	Jantz C A, Goetz S J, Shelley M K.Using the SLEUTH urban growth model to simulate the impacts of future policy scenarios on urban land use in the Baltimore-Washington metropolitan area[J]. Environment and Planning B, 2004,31(2):251-272. doi: 10.1068/b2983
[11]	唐华俊. 中国土地利用/土地覆盖变化研究[M].北京:中国农业科学技术出版,2004.
	[ Tang H J.Research of land use/land cover change in China[M]. Beijing: China Agricultural Science and Technology Publishing, 2004 ]
[12]	Hellmann F, Verburg P H.Spatially explicit modelling of biofuel crops in Europe[J]. Biomass and Bioenergy, 2011,35(6):2411-2424. doi: 10.1016/j.biombioe.2008.09.003
[13]	Hu Y, Zheng Y, Zheng X.Simulation of land-use scenarios for Beijing using CLUE-S and Markov composite models[J]. Chinese Geographical Science, 2013,23(1):92-100. doi: 10.1007/s11769-013-0594-9
[14]	Veldkamp A, Fresco L.CLUE: A conceptual model to study the conversion of land use and its effects[J]. Ecological Modelling, 1996,85(2):253-270.
[15]	Verburg P H, Overmars K P.Combining top-down and bottom-up dynamics in land use modeling: exploring the future of abandoned farmlands in Europe with the Dyna-CLUE model[J]. Landscape Ecology, 2009,24(9):1167-1181. doi: 10.1007/s10980-009-9355-7
[16]	Verburg P H, Schot P P, Dijst M J, et al.Land use change modelling: Current practice and research priorities[J]. GeoJournal, 2004,61(4):309-324. doi: 10.1007/s10708-004-4946-y
[17]	Verburg P H, Soepboer W, Veldkamp A, et al.Modeling the spatial dynamics of regional land use: the CLUE-S model[J]. Environmental Management, 2002,30(3):391-405. doi: 10.1007/s00267-002-2630-x pmid: 12148073
[18]	黎夏,叶嘉安.知识发现及地理元胞自动机[J].中国科学(D辑),2004,34(9):865-872. doi: 10.3321/j.issn:1006-9267.2004.09.009
	[ Li X,Ye J A.Knowledge discovery and cellular automata[J]. Science in China (Series D:Earth Sciences), 2007,37(9):1242-1251. ] doi: 10.3321/j.issn:1006-9267.2004.09.009
[19]	王秀兰,包玉海.土地利用动态变化研究方法探讨[J].地理科学进展,1999,18(1):81-87. doi: 10.3969/j.issn.1007-6301.1999.01.012
	[ Wang X L, Bao Y H.Study on the methods of land use dynamic change research[J]. Progress in Geography, 1999,18(1):81-87. ] doi: 10.3969/j.issn.1007-6301.1999.01.012
[20]	Van Hulst R.On the dynamics of vegetation: Markov chains as models of succession[J]. Vegetatio, 1979,40(1):3-14. doi: 10.1007/BF00052009
[21]	Saysel A K, Barlas Y, Yenigün O.Environmental sustainability in an agricultural development project: a system dynamics approach[J]. Journal of Environmental Management, 2002,64(3):247-260. doi: 10.1006/jema.2001.0488 pmid: 12040958
[22]	Xu Z, Coors V.Combining system dynamics model, GIS and 3D visualization in sustainability assessment of urban residential development[J]. Building and Environment, 2012,47:272-287. doi: 10.1016/j.buildenv.2011.07.012
[23]	王其藩. 系统动力学理论与方法的新进展[J].系统工程理论方法应用,1995,4(2):6-12.
	[ Wang Q F.New progress in theory and methodology of system dynamics[J].Systems Enging-Theory Methodology Application,1995,4(2):6-12. ]
[24]	张波,虞朝晖,孙强,等.系统动力学简介及其相关软件综述[J].环境与可持续发展,2010(2):1-4. doi: 10.3969/j.issn.1673-288X.2010.02.001
	[ Zhang B, Yu C H, Sun Q, et al.Breaf introduction of system dynamic and review of the relating software[J]. Environment and Sustainable Development,2010,2:1-4. ] doi: 10.3969/j.issn.1673-288X.2010.02.001
[25]	张汉雄. 晋陕黄土丘陵区土地利用与土壤侵蚀动态机制仿真研究[J].科学通报,1997,42(7):743-746.
	[ Zhang H X.Research of the dynamic mechanism simulation of land use and soil erosion in Loess Hilly region of Jing,Shan Area[J]. Chinese Science Bulletin, 1997,42(7):743-746. ]
[26]	He C, Shi P, Chen J, et al.Developing land use scenario dynamics model by the integration of system dynamics model and cellular automata model[J]. Science in China Series D-Earth Sciences, 2005,48(11):1979-1989. doi: 10.1109/IGARSS.2004.1369843
[27]	He C, Okada N, Zhang Q, et al.Modeling urban expansion scenarios by coupling cellular automata model and system dynamic model in Beijing, China[J]. Applied Geography, 2006,26(3-4):323-345. doi: 10.1016/j.apgeog.2006.09.006
[28]	Han J, Hayashi Y, Cao X, et al.Application of an integrated system dynamics and cellular automata model for urban growth assessment: A case study of Shanghai, China[J]. Landscape and Urban Planning, 2009,91(3):133-141. doi: 10.1016/j.landurbplan.2008.12.002
[29]	Li A, Lei G, Zhang Z, et al.China land cover monitoring in mountainous regions by remote sensing technology—Taking the southwestern China as a case[J]. International Geoscience and Remote Sensing Symposium, 2014:4216-4219. doi: 10.1109/IGARSS.2014.6947418
[30]	廖顺宝,孙九林.基于GIS的青藏高原人口统计数据空间化[J].地理学报,2003,58(1):25-33. doi: 10.3321/j.issn:0375-5444.2003.01.004
	[ Liu S B, Sun J L.GIS based spatialization of population census data in Qinghai-Tibet Plateau[J]. Acta Geographica Sinica, 2003,58(1):25-33. ] doi: 10.3321/j.issn:0375-5444.2003.01.004
[31]	高克昌,崔鹏,赵纯勇,等.基于地理信息系统和信息量模型的滑坡危险性评价——以重庆万州为例[J].岩石力学与工程学报,2006,25(5):991-996. doi: 10.3321/j.issn:1000-6915.2006.05.020
	[ Gao K C, Cui P, Zhao C Y, et al.Landslide hazard evaluation of Wanzhou based on Gis information value method in the three gorges reservoir[J]. Chinese Journal of Rock Mechanics and Engineering, 2006,25(5):991-996. ] doi: 10.3321/j.issn:1000-6915.2006.05.020
[32]	Lambin E F, Turner B L, Geist H J, et al.The causes of land-use and land-cover change: moving beyond the myths[J]. Global environmental change, 2001,11(4):261-269. doi: 10.1016/S0959-3780(01)00007-3
[33]	Verburg P H, de Nijs T C M, van Eck J R, et al. A method to analyse neighborhood characteristics of land use patterns[J]. Computers, Environment and Urban Systems, 2004,28(6):667-690.
[34]	Monserud R A, Leemans R.Comparing global vegetation maps with the Kappa statistic[J]. Ecological Modelling, 1992,62(4):275-293. doi: 10.1016/0304-3800(92)90003-W
[35]	Hudson W D, Ramm C W.Correct formulation of the kappa-coefficient of agreement[J]. Photogrammetric Engineering and Remote Sensing, 1987,53(4):421-422. doi: 10.1016/0031-8663(87)90057-3
[36]	Lin Y P, Chu H J, Wu C F, et al.Predictive ability of logistic regression, auto-logistic regression and neural network models in empirical land-use change modeling: a case study[J]. International Journal of Geographical Information Science, 2011,25(1):65-87. doi: 10.1080/13658811003752332

发展情景	人口出生率/ (‰)	第一产业增长率 / (%)	第二产业增长率 / (%)	第三产业增长率 / (%)
低速发展	16.03	10.08	18.36	14.06
惯性发展	12.12	9.80	21.44	16.39
高速发展	9.39	14.02	32.39	16.47

	草地	城镇用地	耕地	灌木	荒地	林地	湿地	水体	乡村用地
城镇用地 / km²	0.63	0.00	7.06	1.52	0.15	0.32	0.00	0.58	0.06
Elas_lu	0.94	1.00	0.32	0.85	0.99	0.97	1.00	0.94	0.99

转移前	转移后
转移前	草地	城镇用地	耕地	灌木	荒地	林地	湿地	水体	乡村用地
草地	1	1	1	1	1	1	1	0	1
城镇用地	0	1	0	0	0	0	0	0	0
耕地	1	1	1	1	1	1	1	0	1
灌木	1	1	1	1	1	1	1	0	1
荒地	1	1	1	1	1	1	1	0	1
林地	1	1	1	1	1	1	1	0	1
湿地	1	1	1	1	1	1	1	0	1
水体	0	0	0	0	0	0	0	1	0
乡村用地	1	0	1	1	1	1	1	0	1

土地利用类型	草地	耕地	灌木	荒地	林地	湿地
低速发展 / km²	0.55	13.33	1.37	0.22	0.18	0.05
占转移面积比例 / （%）	3.52	84.86	8.70	1.42	1.16	0.34
惯性发展 / km²	0.92	15.33	2.06	0.29	0.30	0.08
占转移面积比例 / （%）	4.83	80.79	10.87	1.51	1.58	0.43
高速发展 / km²	1.44	16.85	2.91	0.38	0.44	0.08
占转移面积比例 / （%）	6.54	76.24	13.15	1.71	1.98	0.38
