MODIS_LST与AMSR-E_BT的相关性及地表温度反演

doi:10.3724/SP.J.1047.2016.00564

地球信息科学学报 ›› 2016, Vol. 18 ›› Issue (4): 564-574.doi: 10.3724/SP.J.1047.2016.00564

• • 上一篇

MODIS_LST与AMSR-E_BT的相关性及地表温度反演

时洪涛¹(), 宋冬梅^1,^2,*^*(), 单新建^2,³, 崔建勇¹, 臧琳¹, 沈晨⁴, 屈春燕^2,³, 任鹏⁵, 邵红梅⁴, 盛辉¹, 吴会胜¹, 宋先月⁶

1. 中国石油大学（华东）地球科学与技术学院,青岛 266580
2. 中国地震局地质研究所地震动力学国家重点实验室,北京 100029
3. 中国地震局地质研究所,北京 100029
4. 中国石油大学（华东）理学院,青岛 266580
5. 中国石油大学（华东）信息与控制工程学院,青岛 266580
6. 上海市地震局,上海 200062

收稿日期:2015-03-05 修回日期:2015-05-27 出版日期:2016-04-20 发布日期:2016-04-19
作者简介:
作者简介：时洪涛（1990-）,男,硕士生,研究方向为地震热红外异常信息提取。E-mail: shihongtaosg@163.com
基金资助:
地震动力学国家重点实验室资助项目（LED2012B02）;上海地区地壳活动图像天地联合监测分析资助项目（14231202600）

The Correlation Analysis Between MODIS_LST and AMSR-E_BT and Study of LST Retrieval Method

SHI Hongtao¹(), SONG Dongmei^1,^2,^*(), SHAN Xinjian^2,³, CUI Jianyong¹, ZANG Lin¹, SHEN Chen⁴, QU Chunyan^2,³, REN Peng⁵, SHAO Hongmei⁴, SHENG Hui¹, WU Huisheng¹, SONG Xiaoyue⁶

1. School of Geoscience, China University of Petroleum, Qingdao 266580, China
2. State Key Laboratory of Earthquake Dynamics, Institute of Geology, China Earthquake Administration, Beijing 100029, China
3. Institute of Geology, China Earthquake Administration, Beijing 100029, China
4. School of Science, China University of Petroleum, Qingdao 266580, China
5. College of Information and Control Engineering, China University of Petroleum, Qingdao 266580, China
6. Earthquake Adminstration of Shanghai Municipality, Shanghai 20062, China

Received:2015-03-05 Revised:2015-05-27 Online:2016-04-20 Published:2016-04-19
Contact: SONG Dongmei

摘要/Abstract

摘要：

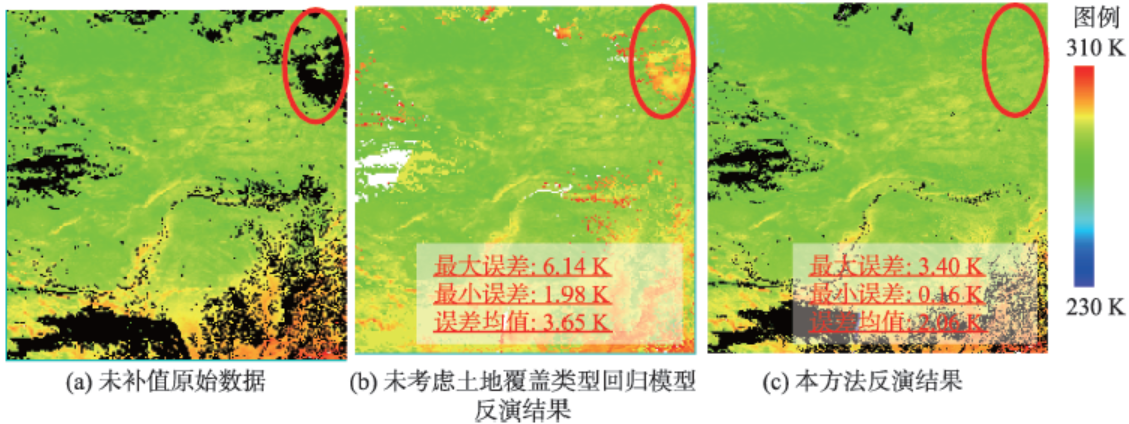

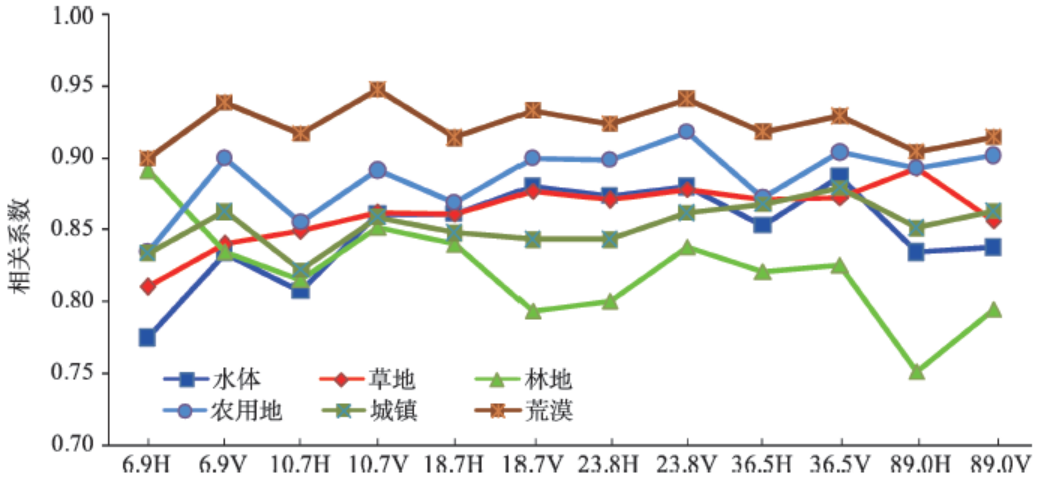

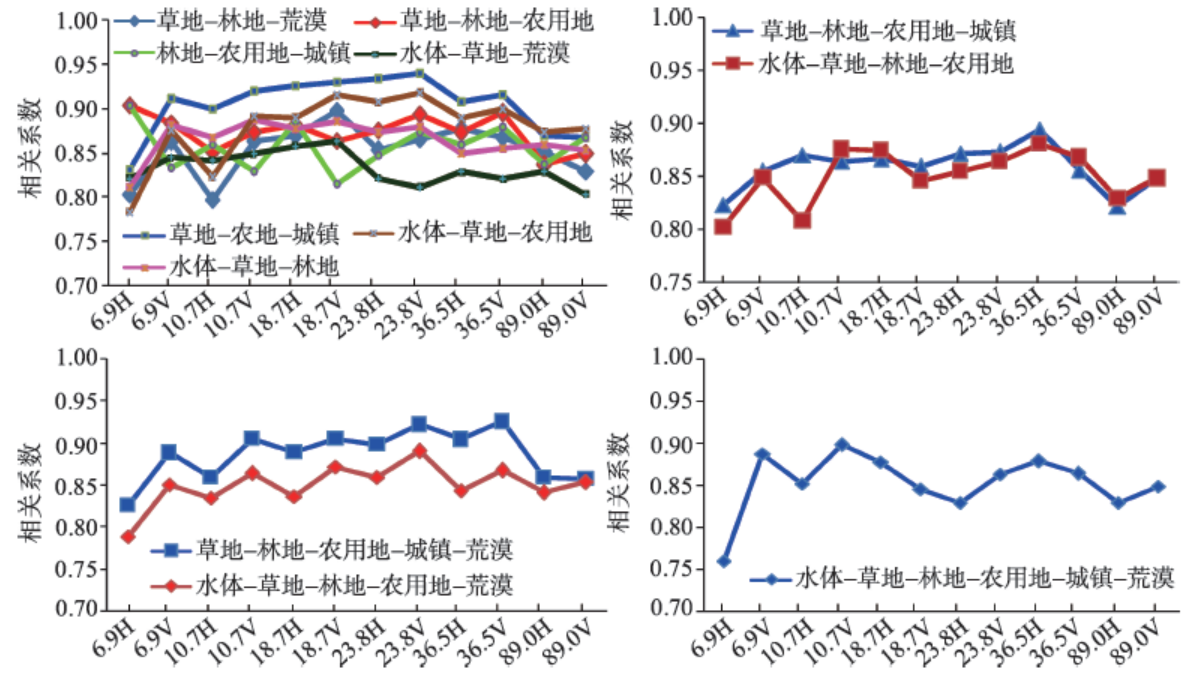

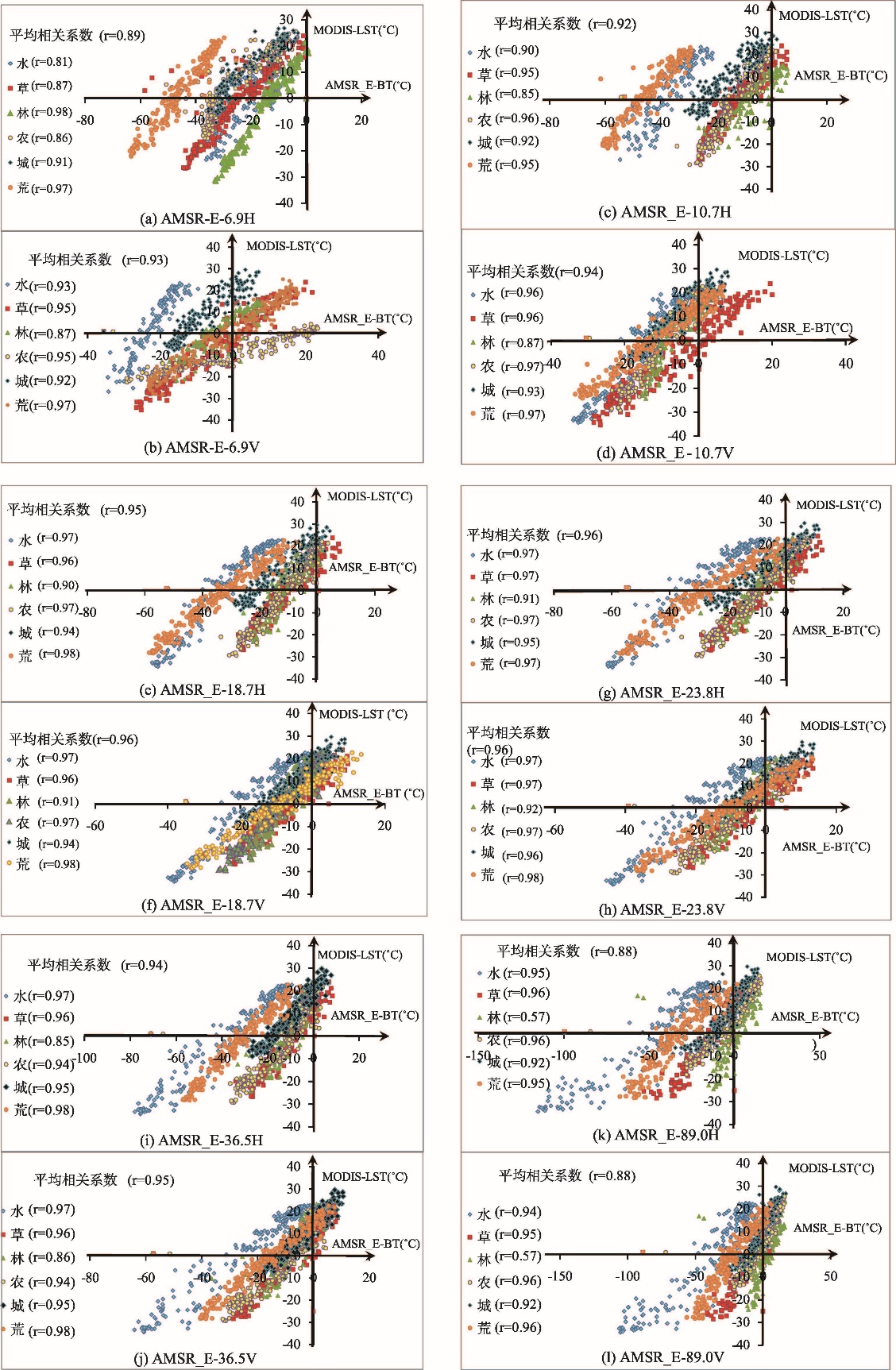

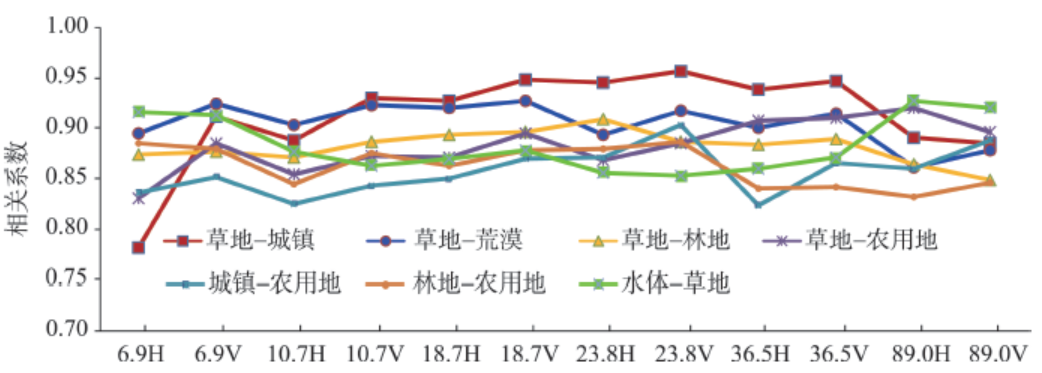

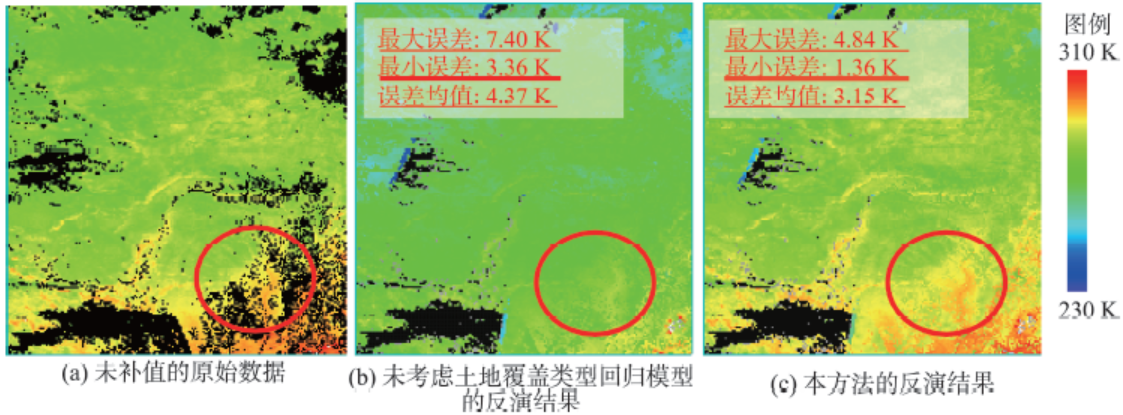

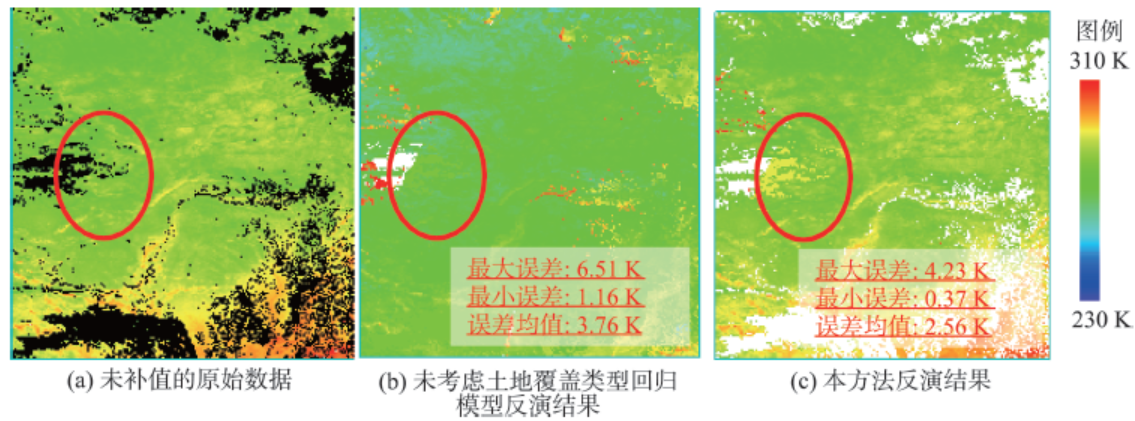

本文以2007年和2008年MODIS每日地表温度（LST）数据及AMSR-E地表亮温（BT）数据为研究对象,结合土地覆盖类型数据,统计分析MODIS_LST与AMSR-E_BT在不同土地覆盖类型、频率和极化方式条件下的相关性。结果表明,频率在18.7、23.8和36.5 GHz的AMSR-E-BT与MODIS_LST的相关性较大,且在垂直极化通道上的相关性较在水平极化上大;不同土地覆盖类型,与MODIS_LST相关性较大所对应的AMSR-E微波通道不同。同时,考虑混合像元问题对相关性的影响,对25种不同地物类型组合下MODIS_LST与AMSR-E-BT的相关性进行统计分析,发现混合像元中地物类型越多,则二者相关性越小。最后,采用多元线性回归分析法,根据不同土地覆盖类型建立反演回归模型,对部分研究区域MODIS-LST进行反演,误差平均在±3.15 K以内,与不考虑下垫面覆盖的模型比较,反演MODIS_LST精度平均提高了1.5 K。

关键词: MODIS地表温度, AMSR-E地表亮温, 相关性分析, 反演

Abstract:

By taking MODIS daily land surface temperature (LST) data and AMSR-E brightness temperature (BT) data from 2007 to 2008 as the input, combining with the land cover type data, the statistics and analysis of the relativity between MODIS_LST and AMSR-E_BT in different land cover types, channels and polarization ways are produced. Based on the International Geosphere-Biosphere Program (IGBP) vegetation classification scheme, land cover data is re-classified into seven types, including water, forest land, grass land, farmland, urban land, desert land and other land cover types. The statistical result shows that the correlation is apparent between MODIS_LST and AMSR-E_BT in 18.7 GHz, 23.8 GHz and 36.5 GHz channel, and it reveals a higher correlation in the vertical channel compared to the horizontal channel. Moreover, this paper finds out that the microwave channel of AMSR-E_BT, which has the highest relativity with MODIS-LST, is different with respect to different land cover types. In addition, by considering the impact of mixed pixel, this paper analyzes the correlation between MODIS_LST and AMSR-E_BT for 25 types of land cover type combinations. It is inferred that the correlation declines as the quantity of land cover types in the single mixed pixel increases. Finally, according to different land cover type combinations, the inversion model is established by adopting the multivariate linear regression method, and this model has been applied to inverse MODIS_LST in a part of the study area. Inversion results reveal that the error is limited in ±3.15 K in average, and the inversion accuracy is raised by 1.5 K successfully in comparison with the inversion model without considering land cover type combination. However, there are some problems with MODIS land surface temperature inversion by using AMSR-E brightness temperature, such as the space resolution variation between MODIS LST and AMSR-E_BT, changes of land cover type with changing seasons and the influence of relative humidity of land cover on the retrieval accuracy. Therefore, selecting land surface bright temperature with a high quality and space resolution, considering season variations and classification accuracy of land cover type factors are future research directions.

Key words: MODIS_LST, AMSR-E_BT, correlation analysis, retrieval

时洪涛, 宋冬梅, 单新建, 崔建勇, 臧琳, 沈晨, 屈春燕, 任鹏, 邵红梅, 盛辉, 吴会胜, 宋先月. MODIS_LST与AMSR-E_BT的相关性及地表温度反演[J]. 地球信息科学学报, 2016, 18(4): 564-574.DOI:10.3724/SP.J.1047.2016.00564

SHI Hongtao,SONG Dongmei,SHAN Xinjian,CUI Jianyong,ZANG Lin,SHEN Chen,QU Chunyan,REN Peng,SHAO Hongmei,SHENG Hui,WU Huisheng,SONG Xiaoyue. The Correlation Analysis Between MODIS_LST and AMSR-E_BT and Study of LST Retrieval Method[J]. Journal of Geo-information Science, 2016, 18(4): 564-574.DOI:10.3724/SP.J.1047.2016.00564

图/表 17

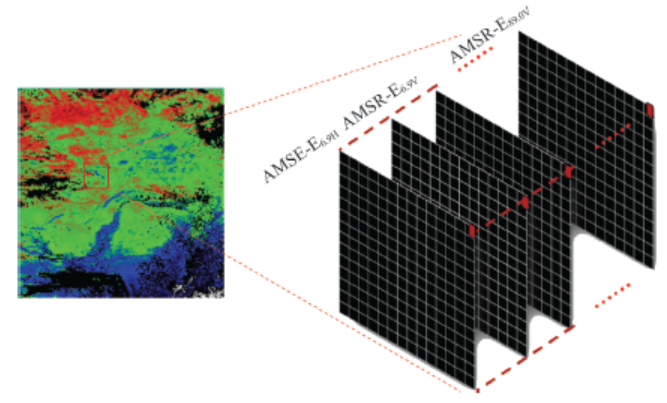

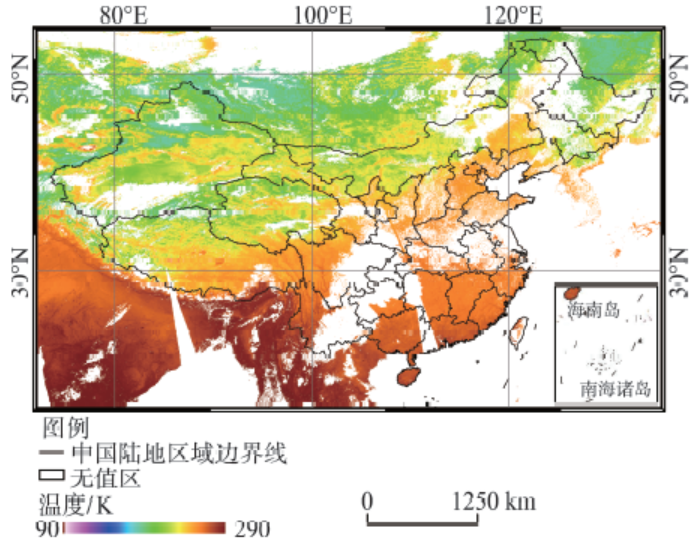

图1

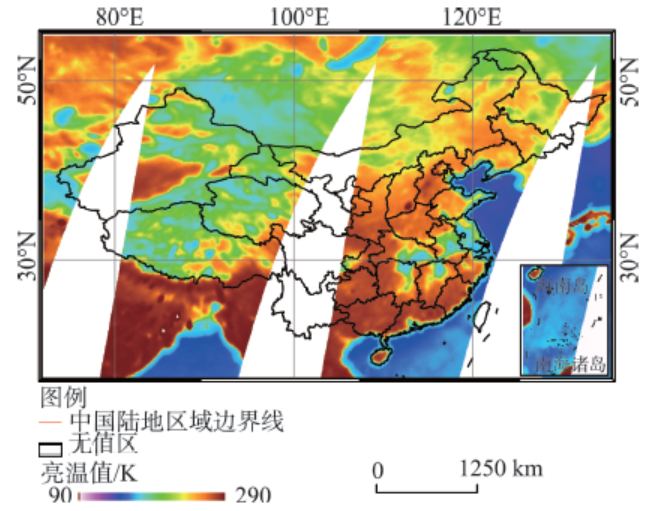

图2

表1

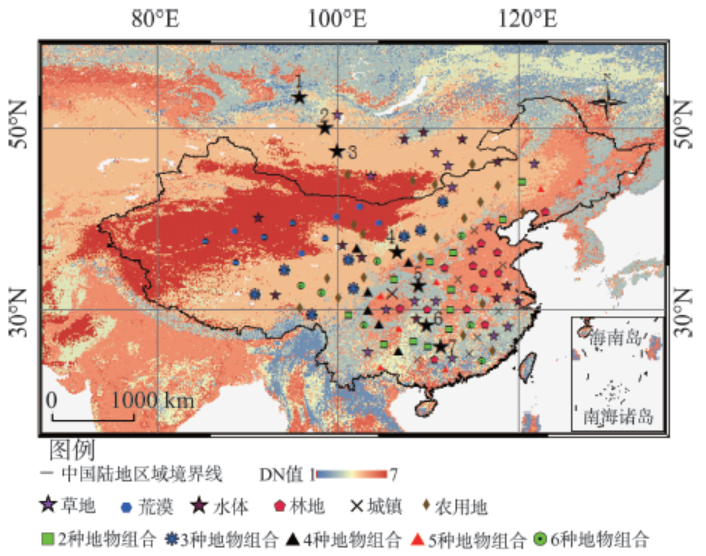

图3

表2

表3

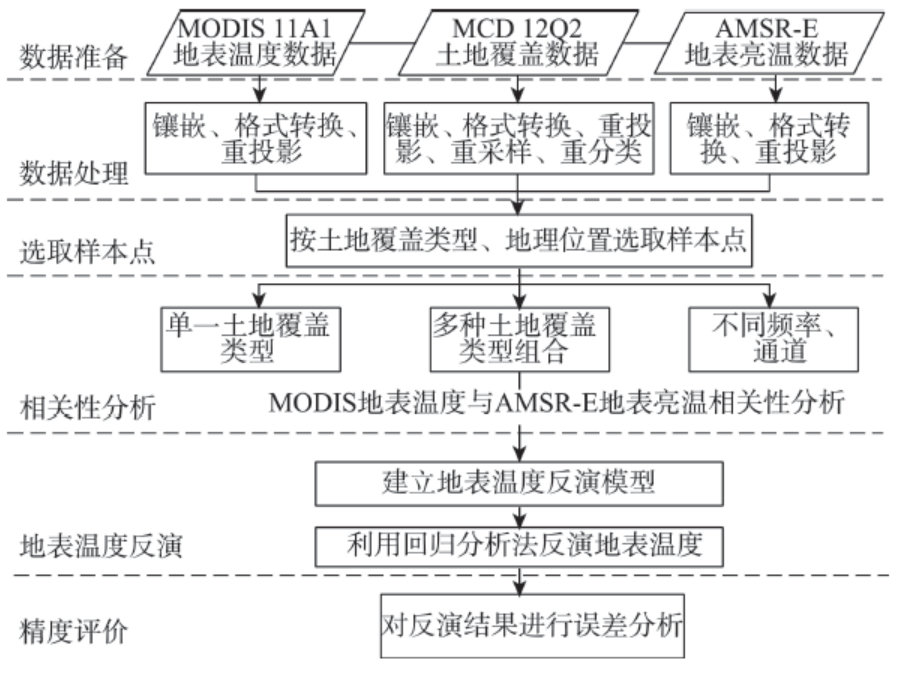

图4

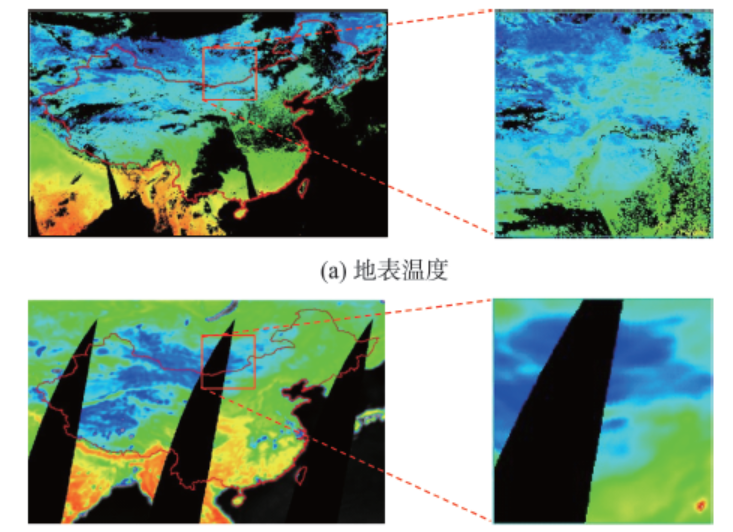

图5

图6

图7

图8

图9

图10

图11

图12

图13

图14

参考文献 21

[1]	郭广猛,杨青生.利用MODIS数据反演地表温度的研究[J].遥感技术与应用,2004,19(1):34-36. doi: 10.3969/j.issn.1004-0323.2004.01.008
	[ Guo G M, Yang Q S.Retrieving land surface temperature from MODIS data[J]. Remote Sensing Technology and Application, 2004,19(1):34-36. ] doi: 10.3969/j.issn.1004-0323.2004.01.008
[2]	朱怀松,刘晓锰,裴欢,等.热红外遥感反演地表温度研究现状[J].干旱气象,2007,20(2):17-21. doi: 10.3969/j.issn.1006-7639.2007.02.004
	[ Zhu H S, Liu X M,Pei H.Summary on retrieval of land surface temperature using thermal infrared remote sensing[J]. Journal of Arid Meteorology, 2007,20(2):17-21. ] doi: 10.3969/j.issn.1006-7639.2007.02.004
[3]	潘广东,王超,田国良.SSM/I微波辐射计数据陆面温度反演[J].遥感学报,2001,5(4):254-258. doi: 10.3321/j.issn:1007-4619.2001.04.003
	[ Pan G D,Wang C, Tian G L.Land surface temperature retrieval with SSM/I Data[J]. Journal of Remote Sensing, 2001,5(4):254-258. ] doi: 10.3321/j.issn:1007-4619.2001.04.003
[4]	毛克彪,施建成,李召良,等.用被动微波AMSR数据反演地表温度及发射率的方法研究[J].国土资源遥感,2005(3):14-17. doi: 10.3969/j.issn.1001-070X.2005.03.004
	[ Mao K B, Shi J C, Li Z L, et al.The land surface temperature and emissivity retrieved from the AMSR passive microwaved data[J]. Remote Sensing for Land & Resources, 2005,3:14-17. ] doi: 10.3969/j.issn.1001-070X.2005.03.004
[5]	Gloersen P, Barath F T.A scanning multichannel microwave radiometer for Nimbus-G and SeaSat-A[J]. IEEE Journal of Oceanic Engineering, 1977,2(2):172-178. doi: 10.1109/JOE.1977.1145331
[6]	Hollinger J P, Perice J L, Poe G A.SSM/I instrument evaluation[J]. IEEE Transactions on Geoscience and Remote Sensing, 1990,28(5):781-790. doi: 10.1109/36.58964
[7]	Kawanishi T, Sezai T, Ito Y, et al.The advanced microwave scanning radiometer for the earth observing system (AMSR-E), NASDA’s contribution to the EOS for global energy and water cycle studies[J]. IEEE Transactions on Geoscience and Remote Sensing, 2003,41(2):184-194.
[8]	Mcfarland M J, Miller R L, Neale C M U. Land surface temperature derived from the SSM/I passive microwave brightness temperatures[J]. IEEE Transactions on Geoscience and Remote Sensing, 1990,28(5):839-845. doi: 10.1109/36.58971
[9]	Holliger J.DMSP special sensor microwave / imager calibration/validation[R].Final Report, Vol II. Washington DC: NavalResearch Laboratory, 1991,5.
[10]	李万彪,朱元竞,洪刚,等.SSM / I遥感中国东部地面温度[J].自然科学进展,1998,8(3):305-313.
	[ Li W B, Zhu Y J,Hong G,et al.SSM/I remote sensing land surface temperature of eastern China[J]. Progress in Natural Science,1998,8(3):305-313. ]
[11]	Njoku E G, Li Li.Retrieval of land surface parameters using passive microwave measurements at 6-18GHz[J]. IEEE Transactions on Geoscience and Remote Sensing, 1999,37(1):79-93. doi: 10.1109/36.739125
[12]	毛克彪,施建成,李召良,等.一个针对被动微波AMSR-E数据反演地表温度的物理统计算法[J].中国科学:D辑,2006,36(12):1170-1176. doi: 10.3321/j.issn:1006-9267.2006.12.012
	[ Mao K B, Shi J C, Li Z L.A statistical physics algorithm for retrieving land surface temperature from AMSR-E passive microwave data[J]. Science in China(Series D), 2006,36(12):1170-1176. ] doi: 10.3321/j.issn:1006-9267.2006.12.012
[13]	武胜利,杨虎.AMSR-E亮温数据与MODIS地表分类产品结合反演全球地表温度[J].遥感技术与应用,2007,22(2):234-237.
	[ Wu S L,Yang H.Global land surface temperature retrieval with AMSR-E brightness temperature and MODIS land cover type products[J]. Remote Sensing Technology and Application, 2007,22(2):234-237. ]
[14]	陈圣波,张学红.利用MODIS热红外数据反演地表温度前应处理的几个问题[J].吉林大学学报(地球科学版),2004,34(3):476-480. doi: 10.3969/j.issn.1671-5888.2004.03.030
	[ Chen S B, Zhang X H.Several problems before inversion of surface temperatures by MODIS thermal infrared data[J]. Journal of Jilin University(Earth Science Edition), 2004,34(3):476-480. ] doi: 10.3969/j.issn.1671-5888.2004.03.030
[15]	杨鹏,杨世植,夏鹏.基于MODIS数据的地表温度反演[J].大气与环境光学学报,2011,6(4):287-293. doi: 10.3969/j.issn.1673-6141.2011.04.007
	[ Yang P, Yang S Z, Xia P.Land surface retrieved from MODIS data[J].Journal of Atmospheric and Environment Optics, 2011,6(4):287-293. ] doi: 10.3969/j.issn.1673-6141.2011.04.007
[16]	Chen S S, Chen X Z, Chen W Q, et al.A simple retrieval method of land surface temperature from AMSR-E passive microwave data-A case study over Southern China during the strong snow disaster of 2008[J]. International Journal of Applied Earth Observation and Geoinformation, 2011,13:140-151. doi: 10.1016/j.jag.2010.09.007
[17]	岳德君. 时间序列数据流中相关性分析技术研究[D].沈阳:东北大学,2008.
	[ Yue D J.Study on correlation analysis in time series data streams[D]. ShenYang:Northeastern University,2008. ]
[18]	荣媛,杨永民.地表辐射温度取代地表温度的可行性分析——以“风云2号”C 星与MODIS 数据为例[J].国土资源遥感,2011(4):14-19. doi: 10.6046/gtzyyg.2011.04.03
	[ Rong Y, Yang Y M.The feasibility of replacing surface temperature with surface radiation temperature: a case study of“FY-2C”and MODIS data[J]. Remote Sensing for Land & Resources, 2011,4:14-19. ] doi: 10.6046/gtzyyg.2011.04.03
[19]	Kohn J, Royer A.AMSR-E data inversion for soil temperature estimation under snow cover[J]. Remote Sensing of Environment, 2010,114:2951-2961. doi: 10.1016/j.rse.2010.08.002
[20]	郑文武,曾永年.地表温度的多源遥感数据反演算法对比分析[J].地球信息科学学报,2011,13(6):841-847. doi: 10.3724/SP.J.1047.2011.00840
	[ Zheng W W, Zeng Y N.Comparative analysis of two land surface temperature retrieval algorithms based on multi-source remote sensing data[J]. Journal of Geo-information Science, 2011,136(613):841-847. ] doi: 10.3724/SP.J.1047.2011.00840
[21]	毕晓丽,葛剑平.基于IGBP 土地覆盖类型的中国陆地生态系统服务功能价值评估[J].山地学报,2004,1(1):48-53. doi: 10.3969/j.issn.1008-2786.2004.01.009
	[ Hua X L, Ge J P.Evaluating ecosystem service valuation in China based on the IGBP Land cover datasets[J]. Journal of Mountain Science, 2004,1(1):48-53. ] doi: 10.3969/j.issn.1008-2786.2004.01.009

AMSR-E微波亮温数据				MODIS数据
频率/GHZ		极化方式	空间分辨率/ km	数据类型	空间分辨率/km	数据集
6.9	V\H	5.4		地表温度（MOD 11A1）	1	LST_Night_1 Km
10.7	V\H	5.4
18.7	V\H	5.4
23.8	V\H	5.4		土地覆盖类型（MCD 12Q2）	0.5	Land_Cover_Type_1
36.5	V\H	5.4
89.0	V\H	5.4

分类DN值	IGBP	重分类后	分类DN值	IGBP	重分类后
0	水体	水体	8	多树的草原	草地
1	常绿针叶林	林地	9	稀树草原
2	常绿阔叶林		10	草原
3	落叶针叶林		11	永久湿地
4	落叶阔叶林		12	作物	农用地
5	混交林		14	作物和自然植被的镶嵌体	农用地
6	郁闭灌丛		16	裸地或低植被覆盖地	荒漠
7	开放灌丛		15	雪、冰	其他未分类区
13	城市和建成区	城镇	254、255	未分类区填充值	其他未分类区

单一地物类型	两种地物类型	3种地物类型	4种地物类型	5种地物类型	6种地物类型
?	?〇	?☆△	?☆〇?	?☆△??	?☆△ 〇??
☆	?△	??〇
△	?☆	☆?〇
〇	??	?△?	?☆??	?☆△〇?
?	☆?	?△〇
?	??	?△?
	〇?	△〇?
