多源多时相遥感影像相对辐射归一化方法研究

doi:10.3724/SP.J.1047.2016.00606

地球信息科学学报 ›› 2016, Vol. 18 ›› Issue (5): 606-614.doi: 10.3724/SP.J.1047.2016.00606

多源多时相遥感影像相对辐射归一化方法研究

黄启厅^1,²(), 覃泽林³, 曾志康³

1. 中国科学院遥感与数字地球研究所遥感科学国家重点实验室,北京 100101
2. 中国科学院大学,北京 100049
3. 广西农业科学院农业科技信息研究所,南宁 310001

收稿日期:2015-12-16 修回日期:2016-04-06 出版日期:2016-05-10 发布日期:2016-05-10
作者简介:
作者简介：黄启厅（1983-）,男,广西南宁人,博士生,研究方向为遥感信息提取。E-mail:huangqiting830112@163.com
基金资助:
国家高技术研究发展计划项目（2015AA123901）;广西科学研究与技术开发计划项目（14125008-1-6）;国家高分辨率对地观测系统重大专项（03-Y30B06-9001-13/15-01）

A Study on the Relative Radiometric Normalization of Multi-sources and Multi-temporal Remote Sensing Data

HUANG Qiting^1,^2,^*(), QIN Zelin³, ZENG Zhikang³

1. State Key Laboratory of Remote Sensing Science, Institute of Remote Sensing and Digital Earth, Chinese Academy of Sciences, Beijing 100101, China
2. Graduate University of Chinese Academy of Sciences, Beijing 100049, China
3.Scientific and Technological Information Research Institute, Guangxi Academy of Agricultural Sciences, Nanning 530007, China

Received:2015-12-16 Revised:2016-04-06 Online:2016-05-10 Published:2016-05-10
Contact: HUANG Qiting

摘要/Abstract

摘要：

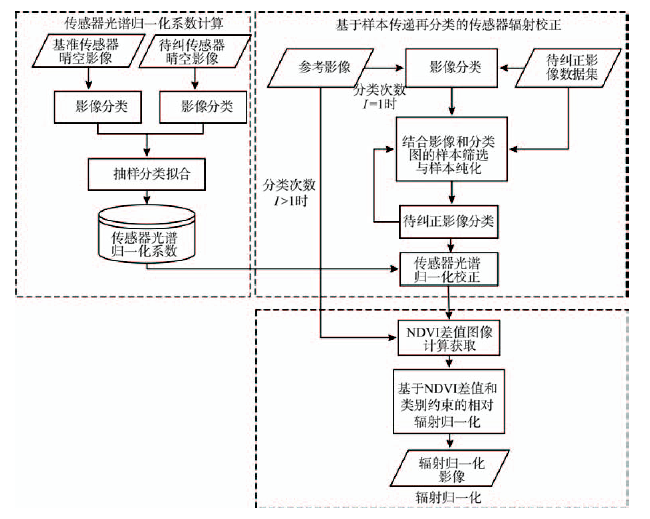

为满足多源、多时相遥感影像定量化信息提取的应用需求,本文发展了一种半自动化的相对辐射归一化方法。将多源遥感影像的相对辐射归一化分为传感器辐射校正与针对光照等外部因素的辐射归一化2个过程。首先,基于晴空影像,采用分类回归的方式获取传感器辐射校正系数;然后,利用样本传递再分类的方法实现多源影像的半自动分类和传感器辐射偏差校正;最后,基于NDVI差值直方图和类别约束的PIFs自动选取方法,实现影像的相对辐射归一化。采用准同期的GF1-WVF1和Landsat8-OLI影像以及多源时序影像对方法进行了验证,结果表明,本文方法可以对传感器间的辐射偏差进行有效纠正,并在整体上获得比传统方法更好的辐射归一化精度;同时,多源时序影像的辐射校正结果也表明,本文方法能够有效地消除时序影像间的辐射特征波动,使植被等地类的季相变化信息得到更准确地表达,为多源时序影像的协同利用提供了借鉴方法。

关键词: 时间序列, 多源影像, 辐射归一化, 半自动分类

Abstract:

In order to meet the demand for quantitative information extraction from multi-sources and multi-temporal satellite data, a semi-automatically relative radiometric normalization approach was developed in this paper. The relative radiometric normalization procedure of multi-sources image is divided into two parts: the first one is sensors’ radiometric correction and the other is the normalization of radiometric discrepancy caused by external factors such as the changes of illumination. Firstly, the radiometric correction coefficients of sensors were obtained by the classes-specified regression method based on clear-sky images. Secondly, by applying the sample transferring method, the multi-sources images were semi-automatically classified, and the radiometric deviations of the corresponding sensors were adjusted. Lastly, based on the images’ classification results, the PIFs were automatically chosen by combining the NDVI difference histogram with the class restraint, and the relative radiometric normalization of images was thereby accomplished. A pair of quasi-synchronous GF1-WVF1 and Landsat 8 images, and a set of multi-sources and time-series images were adopted to demonstrate the validity of the presented approach. The results showed that, this method can effectively correct sensors’ radiometric discrepancy and achieved a higher radiometric normalization accuracy when compared with the traditional method.Meanwhile, the results from time-series dataset also demonstrated that this method can effectively reduce the fluctuation of radiation features between time-series images, and the seasonal changes of vegetation were therefore accurately presented. It can thereby offer a reference to the synergic utilization of multi-sources and time-series images.

Key words: time series, multi-sources image, radiometric normalization, semi-automatic classification

黄启厅, 覃泽林, 曾志康. 多源多时相遥感影像相对辐射归一化方法研究[J]. 地球信息科学学报, 2016, 18(5): 606-614.DOI:10.3724/SP.J.1047.2016.00606

HUANG Qiting,QIN Zelin,ZENG Zhikang. A Study on the Relative Radiometric Normalization of Multi-sources and Multi-temporal Remote Sensing Data[J]. Journal of Geo-information Science, 2016, 18(5): 606-614.DOI:10.3724/SP.J.1047.2016.00606

图/表 9

图1

图2

表1

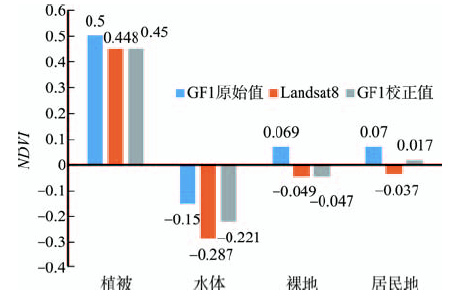

图3

表2

图4

表3

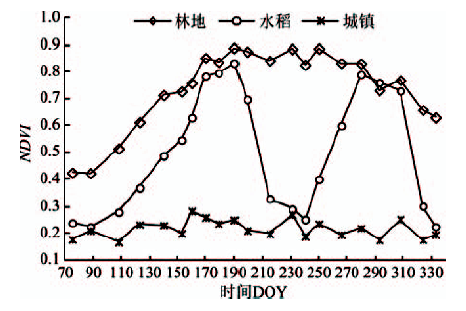

图5

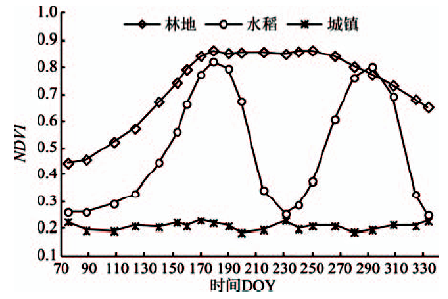

图6

参考文献 18

[1]	张友水,冯学智,周成虎.多时相TM影像相对辐射校正研究[J].测绘学报,2006,35(2):122-127. doi: 10.3321/j.issn:1001-1595.2006.02.006
	[ Zhang Y S, Feng X Z, Zhou C H.Relative radiometric correction for multitemporal TM Images[J]. Acta Geodaetica et Cartographica Sinica, 2006,35(2):122-127. ] doi: 10.3321/j.issn:1001-1595.2006.02.006
[2]	余晓敏,邹勤.多时相遥感影像辐射归一化方法综述[J].测绘与空间地理信息,2012,35(6):8-12. doi: 10.3969/j.issn.1672-5867.2012.06.003
	[ Yu X M, Zhou Q.Methods of radiometric normalization for multi-temporal remote sensing images: a review[J]. Geomatics & Spatial Information Technology, 2012,35(6):8-12. ] doi: 10.3969/j.issn.1672-5867.2012.06.003
[3]	Li C H, Xu H Q.Automatic absolute radiometric normalization of satellite imagery with ENVI /IDL programming[C]. Proceedings of the 2nd International Congress on Image and Signal Processing, 2009.
[4]	Du Y, Teillet P M, Cihlar J.Radiometric normalization of multi-temporal high resolution images with quality control for land cover change detection[J]. Remote Sensing of Environment, 2002,82:123-134.
[5]	Biday S G, Bhosle U.Radiometric correction of multi-temporal satellite imagery[J]. Journal of Computer Science, 2010,6(9):940-949.
[6]	Nelson T, Wilson H G, Boots B, et al.Use of ordinal conversion for radiometric normalization and change detection[J]. International Journal of Remote Sensing, 2005,26:535-541. doi: 10.1080/01431160512331314065
[7]	Elvidge C D, Yuan D, Ridgeway D W, et al.Relative radiometric normalization of Landsat Multispectral Scanner (MSS) data using automatic scattergram-controlled regression[J]. Photogrammetric Engineering & Remote Sensing, 1995,61(10):1255-1260.
[8]	余晓敏,陈云浩.基于改进的自动散点控制回归算法的遥感影像相对辐射归一化[J].光学技术,2007,33(2):185-188. doi: 10.3321/j.issn:1002-1582.2007.02.042
	[ Yu X M, Chen Y H.Relative radiometric normalization of remotely sensed images based on improved automatic scattergram-controlled regression[J]. Optical Technique, 2007,33(2):185-188. ] doi: 10.3321/j.issn:1002-1582.2007.02.042
[9]	Canty M J, Nielsen A A, Schmidt M.Automatic radiometric normalization of multitemporal satellite imagery[J]. Remote Sensing of Environment, 2004,91(3):441-451. doi: 10.1016/S0034-4257(04)00120-8
[10]	Canty M J, Nielsen A A.Automatic radiometric normalization of multitemporal satellite imagery with the iteratively re-weighted MAD transformation[J]. Remote Sensing of Environment, 2008,112(3):1025-1036. doi: 10.1016/j.rse.2007.07.013
[11]	Zhang L,Yang L, Lin H, et al.Automatic relative radiometric normalization using iteratively weighted least square regression[J]. International Journal of Remote Sensing, 2008,29:459-470. doi: 10.1080/01431160701271990
[12]	吴荣华. 光谱响应差异在高精度交叉定标中的影像分析——以FY-3/MERSI与EOS/MODIS为研究实例[D].北京:中国气象科学研究院,2010.
	[ Wu R H.Impacts of spectral response difference effects on SNO calibration study -the examples of FY-3A/MERSI with EOS/MODIS[D]. Beijing: Chinese Academy of Meteorological Sciences, 2010. ]
[13]	魏宏伟. HJ-1A卫星不同CCD数据比对及归一化研究[D].南京:南京大学,2013.
	[ Wei H W.The comparison and normalization between HJ-1A CCD1 and HJ-1A CCD2[D]. Nanjing: Nanjing University, 2013. ]
[14]	Tjishchenko A P.Effects of spectral response function on surface reflectance and NDVI measured with moderate resolution satellite sensors[J]. Remote Sensing of Environment, 2008,81(1):1-18.
[15]	汪小钦,叶炜,江洪.基于光谱归一化的阔叶林LAI遥感估算模型适用性分析[J].福州大学学报(自然科学版),2011,39(5):713-718.
	[ Wang X Q, Ye W, Jiang H.Applicability analysis on LAI estimation model from remote sensing data for broadleaf forest based on spectral normalization[J]. Journal of Fuzhou University(Natural Science Edition), 2011,39(5):713-718. ]
[16]	叶炜,江洪.基于光谱归一化的马尾松LAI遥感估算研究[J].遥感信息,2011(5):52-58. doi: 10.3969/j.issn.1000-3177.2011.05.009
	[ Ye W, Jiang H.Masson’s pine LAI estimation based on spectral normalization using remote sensing data[J]. Remote Sensing Information,2011,5:52-58. ] doi: 10.3969/j.issn.1000-3177.2011.05.009
[17]	张杰,郭铌,王介民.NOAA/AVHRR与EOS/MODIS遥感产品NDVI序列的对比及其校正[J].高原气象,2007,26(5):1097-1103.
	[ Zhang J, Guo N, Wang J M.Contrast and calibration of remote sensing production NDVI of NOAA/AVHRR and EOS/MODIS[J]. Plateau Meteorology, 2007,26(5):1097-1103. ]
[18]	Steven M D, Malthus T J, Baret F, et al.Inter-calibration of vegetation indices from different sensor systems[J]. Remote Sensing of Environment, 2003,88(12):412-422.

传感器	波段	回归方程
传感器	波段	植被	裸地	居民地	水体
GF1-WFV1	B1	Y =0.8620 X -1.5301	Y =0.8141 X +4.7266	Y =0.7349 X +11.473	Y =0.8109 X +10.305
	B2	Y =0.8440 X -3.7146	Y =0.8368 X +1.7295	Y =0.8038 X +0.4878	Y =0.9047 X +1.1441
	B3	Y =0.9149 X -1.4747	Y =0.8401 X +6.4448	Y =0.9203 X +0.4012	Y =0.8078 X +9.5268
	B4	Y =0.7066 X +4.3729	Y =0.6486 X +7.1556	Y =0.8062 X +3.9328	Y =0.6365 X +4.4763

波段	植被			裸地			居民地			水体
波段	GF1-WFV1	LT8-OLI	校正影像	GF1-WFV1	LT8-OLI	校正影像	GF1-WFV1	LT8-OLI	校正影像	GF1-WFV1	LT8-OLI	校正影像
B1	66.51	54.82	56.01	84.32	73.37	75.67	97.53	83.15	86.75	79.05	74.41	76.91
B2	57.33	43.68	45.47	76.22	65.35	66.95	82.43	66.74	70.63	65.06	60.01	62.14
B3	29.46	25.48	26.67	74.38	68.93	72.87	58.25	54.01	56.01	34.31	37.24	36.03
B4	88.47	66.87	70.25	85.32	62.49	65.64	67.02	50.11	57.97	25.36	20.62	22.97
Mean-Radiance	60.44	47.71	49.6	80.06	67.54	70.28	76.31	63.50	67.84	50.95	48.07	49.51

波段	植被			裸地			居民地			水体
波段	未校正前	IR	本文方法	未校正前	IR	本文方法	未校正前	IR	本文方法	未校正前	IR	本文方法
B1	10.79	3.52	1.44	11.40	13.35	2.86	15.26	17.64	4.44	5.51	4.92	2.88
B2	12.87	5.22	2.30	11.34	12.94	2.83	16.37	17.99	4.25	5.95	4.27	3.09
B3	4.25	2.64	1.48	7.22	9.27	4.21	6.51	9.33	4.87	4.44	4.12	3.24
B4	16.44	8.89	3.59	23.51	26.33	3.64	17.56	19.41	8.94	6.48	5.28	3.34
Mean-RMSE	11.09	5.07	2.20	13.37	15.47	3.39	13.93	16.09	5.62	5.6	4.65	3.15
