多尺度地名地址空间区位编码模型研究

doi:10.3724/SP.J.1047.2016.00727

地球信息科学学报 ›› 2016, Vol. 18 ›› Issue (6): 726-733.doi: 10.3724/SP.J.1047.2016.00727

• 地球信息科学理论与方法 • 上一篇下一篇

多尺度地名地址空间区位编码模型研究

陈东¹(), 程承旗², 童晓冲³, 原璟¹

1. 北京大学遥感与地理信息系统研究所,北京 100871
2. 北京大学工学院,北京 100871
3. 信息工程大学地理空间信息学院,郑州 450052

收稿日期:2015-10-23 修回日期:2015-12-06 出版日期:2016-06-10 发布日期:2016-06-10
作者简介:
作者简介：陈东(1990-),女,博士生,研究方向为空间数据模型及其应用。E-mail: chd_gis@pku.edu.cn
基金资助:
国家测绘公益项目“地名地址地理位置模型及可视化表达关键技术”(201512020)

Research on the Multi-scale Spatial Location Coding Model for Address

CHEN Dong^1,^*(), CHENG Chengqi², TONG Xiaochong³, YUAN Jing¹

1. Institute of Remote Sensing and Geographic Information System, Peking University, Beijing 100871, China
2. College of Engineering, Peking University, Beijing 100871, China
3. Institute of Geospatial Information, Information Engineering University, Zhengzhou 450052, China

Received:2015-10-23 Revised:2015-12-06 Online:2016-06-10 Published:2016-06-10
Contact: CHEN Dong E-mail:chd_gis@pku.edu.cn

摘要/Abstract

摘要：

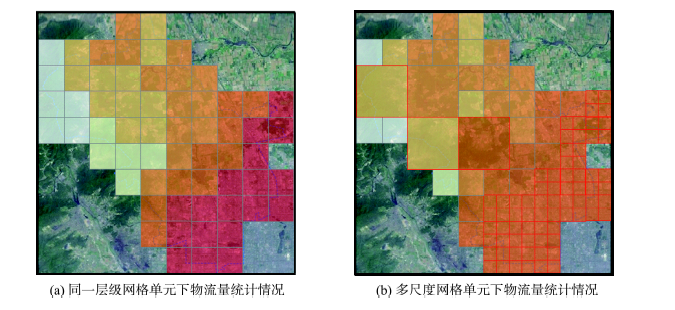

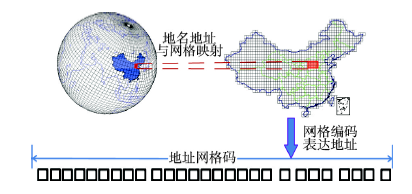

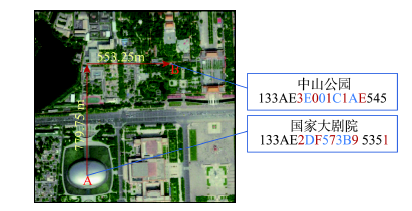

针对目前地名地址编码存在的区位信息缺乏、编码粒度较粗、稳定性和可读性较差等问题,本文提出了地名地址编码设计的3个原则：（1）每个地名地址的编码独立且稳定;（2）编码易于实现;（3）编码便于识读。基于地球剖分理论,设计了一种多尺度的地名地址空间区位编码模型,该编码模型以地球剖分网格作为基础单元,建立地名地址空间区位属性与球面网格的映射关系。进一步提出了地名地址空间区位编码方法,该编码是由定位码、层级码和半跨度码组成的一维定长组合码,并且从空间位置、区域范围和空间关系3个方面分析了对空间区位编码的识读方法。最后,以物流行业为例,探讨了地名地址空间区位编码模型的应用思路与前景。结果表明,该模型便于计算机存储与管理,能够为地名地址的网格化管理提供组织与表达基础,对智慧城市建设具有很强的理论和实用价值。

关键词: 地名地址, 空间区位, 地球剖分, 编码

Abstract:

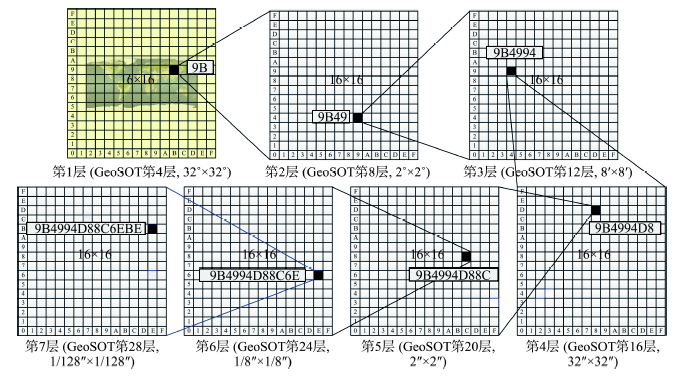

As a "bridge" connecting the information of various fields, such as politics, economy, society and culture, address is of significance in the exchange of multi-source information under the environment of big data. To solve the existing problems of address coding, such as the lack of location information, the coarse grain size, and the poor stability and readability, this paper proposes three principles for the design of new address coding models, including the independence and stability, the simplicity of realization, and the decipherability. Then, a multi-scale spatial location coding model for address is created, which is realized based on the global subdivision theory. This model takes the global subdivision grid as the basic unit, and builds the mapping rules from the address’s location to a set of grids. Furthermore, the structure of the spatial location code is provided in details. The spatial location code is developed by giving a unique sign to each of the address subdivision grid, which is the deformation of the global subdivision grid. It is described by a one-dimensional and fixed-length array, which is composed by the following four elements: the first one is C₀, which is named as the Location Code; the second one is L, which is named as the Level Code, and two half span codes are the last elements. The deciphering method of the spatial location code is analyzed based on three aspects: location, region and relation. It shows that the spatial location coding model for address has presented good independence, stability, readability and scalability. Finally, this paper discusses the applications and prospects of the spatial location coding model for address, by taking the logistics industry as an example. Generally, the proposed model has presented strong theoretical and practical values for the construction of smart city.

Key words: address, spatial location, global subdivision, coding

陈东, 程承旗, 童晓冲, 原璟. 多尺度地名地址空间区位编码模型研究[J]. 地球信息科学学报, 2016, 18(6): 726-733.DOI:10.3724/SP.J.1047.2016.00727

CHEN Dong,CHENG Chengqi,TONG Xiaochong,YUAN Jing. Research on the Multi-scale Spatial Location Coding Model for Address[J]. Journal of Geo-information Science, 2016, 18(6): 726-733.DOI:10.3724/SP.J.1047.2016.00727

图/表 5

参考文献 21

[1]	王际桐. 地名学概论[M].北京:中国社会科学出版社,1993.
	[ Wang J T.Introduction of toponymy[M]. Beijing: China Social Sciences Publishing, 1993. ]
[2]	张保钢. 地名与地址之比较[J].北京测绘,2009,1(2):34-35. doi: 10.3969/j.issn.1007-3000.2009.01.010
	[ Zhang B G.Comparing placename with address[J]. Beijing Surveying and Mapping, 2009,1(2):34-35. ] doi: 10.3969/j.issn.1007-3000.2009.01.010
[3]	唐静. 城市地名地址的编码匹配研究[D].昆明:昆明理工大学,2011.
	[ Tang J.Research on urban address matching and coding[D]. Kunming: Kunming University of Science and Technology, 2011. ]
[4]	Grayson T H.Address matching and geocoding[R]. Cambridge, MA: Massachusetts Institute of Technology Department of Urban Studies and Planning, 2000.
[5]	张雪英,闾国年,李伯秋,等.基于规则的中文地名地址要素解析方法[J].地球信息科学学报,2010,12(1):9-16.
	[ Zhang X Y, Lv G N, Li B Q, et al.Rule-based approach to semantic resolution of Chinese addresses[J]. Journal of Geo-Information Science, 2010,12(1):9-16. ]
[6]	Werner P A.National geocoding[J]. Annals of the Association of American Geographers, 1974,64(2):310-317.
[7]	江洲,李小林,刘碧松.地理信息系统地名地址编码技术标准化研究[J].标准化研究,2007(5):22-25.
	[ Jiang Z, Li X L, Liu B S.Geocoding technical standardization of geographic information system[J]. World Standardization & Quality Management, 2007,5:22-25. ]
[8]	叶嘉安,朱家松.智慧城市的邮政建筑物编码方法研究与应用[J].地理信息世界,2013,20(4):1-7. doi: 10.3969/j.issn.1672-1586.2013.04.001
	[ Ye J A, Zhu J S.The study and applications of postal building geocoding for smart cities[J]. Geomatics World, 2013,20(4):1-7. ] doi: 10.3969/j.issn.1672-1586.2013.04.001
[9]	张彦,徐占华,向煜.基于移动GIS技术的地名地址普查系统设计与实现[J].城市堪探,2014,4(5):59-62. doi: 10.3969/j.issn.1672-8262.2014.05.018
	[ Zhang Y, Xu Z H, Xiang Y.Design and implementation of address survey system based on mobile GIS[J]. Urban Geotechnical Investigation & Surveying, 2014,4(5):59-62. ] doi: 10.3969/j.issn.1672-8262.2014.05.018
[10]	Toll D G.Geo-engineering data: representation and standardisation[J]. Electronic Journal of Geotechnical Engineering, 2007:1-8.
[11]	Churdches T, Christen P, Lim K, et al.Preparation of name and address data for record linkage using hidden Markova models[J]. BMC MedicalInformatics and Decision Making, 2002. DOI:10.1186/1472-6947-2-9.
[12]	Zandbergen P A.A comparison of address point, parcel and street geocoding techniques[J]. Computers, Environment and Urban Systems, 2007,32(3):214-232. doi: 10.1016/j.compenvurbsys.2007.11.006
[13]	吕雪锋. 基于GeoSOT剖分编码的空间信息区位标识研究[D].北京:北京大学,2012.
	[ Lv X F.Spatial information location identification based on GeoSOT grid coding[D]. Beijing: Peking University, 2012. ]
[14]	程承旗,付晨.地球空间参考网格及应用前景[J].地理信息世界,2014,7(3):1-8. doi: 10.3969/j.issn.1672-1586.2014.03.001
	[ Cheng C Q, Fu C.Earth space reference grid and its application prospect[J]. Geomatics World, 2014,7(3):1-8. ] doi: 10.3969/j.issn.1672-1586.2014.03.001
[15]	李德仁,朱欣焰,龚健雅.从数字地图到空间信息网格—空间信息多级网格理论思考[J].武汉大学学报·信息科学版,2003,28(6):642-649.
	[ Li D R, Zhu X Y, Gong J Y.From digital map to spatial information multi-grid: a thought of spatial information multi-grid theory[J]. Geomatics and Information Science of Wuhan University, 2003,28(6):642-649. ]
[16]	程承旗,任伏虎,濮国梁,等.空间信息剖分组织导论[M].北京:科学出版社,2012.
	[ Cheng C Q, Ren F H, Pu G L, et al.Introduction of geospatial information subdivision organization[M]. Beijing: Science Publishing, 2012. ]
[17]	童晓冲. 空间信息剖分组织的全球离散格网理论与方法[D].郑州:信息工程大学,2010.
	[ Tong X C.The principles and methods of discrete global grid systems for geospatial information subdivision organization[D]. Zhengzhou: Information Engineering University, 2010. ]
[18]	Miller H J, Wentz E A.Representation and spatial analysis in geographic information systems[J]. Annals of the Association of American Geographers, 2003,93(3):574-594. doi: 10.1111/1467-8306.9303004
[19]	杨宇博,程承旗,董芳,等.基于GeoSOT剖分编码的多尺度空间信息区域包含关系计算方法[J].遥感技术与应用,2013,28(3):474-480. doi: 10.11873/j.issn.1004-0323.2013.3.474
	[ Yang Y B, Cheng C Q, Dong F, et al.Calculation method of area inclusion relationship of multi-scale spatial information based on GeoSOT subdivision codes[J]. Remote Sensing Technology and Application, 2013,28(3):474-480. ] doi: 10.11873/j.issn.1004-0323.2013.3.474
[20]	金安. 地球空间剖分编码代数模型及应用初探[D].北京:北京大学,2013.
	[ Jin A.Global subdivision code algebra model and its application[D]. Beijing: Peking University, 2013. ]
[21]	Chen D, Cheng C Q, Song S H, et al.Research of spatial topological relation model based on GeoSOT[C]. Geoscience and Remote Sensing Symposium (IGARSS), 2013:786-789.
