基于Coons曲面与约束三角网的区域地质调查三维建模方法

doi:10.3724/SP.J.1047.2016.00734

地球信息科学学报 ›› 2016, Vol. 18 ›› Issue (6): 734-741.doi: 10.3724/SP.J.1047.2016.00734

• 地球信息科学理论与方法 • 上一篇下一篇

基于Coons曲面与约束三角网的区域地质调查三维建模方法

周文辉¹(), 郭甲腾^1,^*(), 栗云峰¹, 吴立新^1,², 李超岭³

1. 东北大学资源与土木工程学院,沈阳 110819
2. 中国矿业大学环境与测绘学院,徐州 221008
3. 中国地质调查局发展研究中心,北京 100037

收稿日期:2015-10-12 修回日期:2015-11-18 出版日期:2016-06-10 发布日期:2016-06-10
通讯作者: 郭甲腾 E-mail:zhouwenhuimail@163.com;guojiateng@mail.neu.edu.cn
作者简介:
作者简介：周文辉（1992-）,男,江苏如皋人,硕士生,研究方向为三维地质建模。E-mail: zhouwenhuimail@163.com
基金资助:
中央高校基本科研业务费项目（N140104002）;辽宁省科学技术基金项目（2015020581）;中国地质调查局发展研究中心智能地质调查支撑平台建设与应用项目（12120115073201）;国家自然科学基金项目（41001228）

3D Regional Geological Modeling Based on Coons Surfaces and CD-TIN

ZHOU Wenhui¹(), GUO Jiateng^1,^*(), LI Yunfeng¹, WU Lixin^1,², LI Chaoling³

1. School of Resources & Civil Engineering, Northeastern University, Shenyang 110819, China
2. School of Environment Science and Spatial-Informatics, China University of Mining & Technology, Xuzhou 221008, China
3. Development and Research Center of China Geological Survey, Beijing 100037, China

Received:2015-10-12 Revised:2015-11-18 Online:2016-06-10 Published:2016-06-10
Contact: GUO Jiateng E-mail:zhouwenhuimail@163.com;guojiateng@mail.neu.edu.cn

摘要/Abstract

摘要：

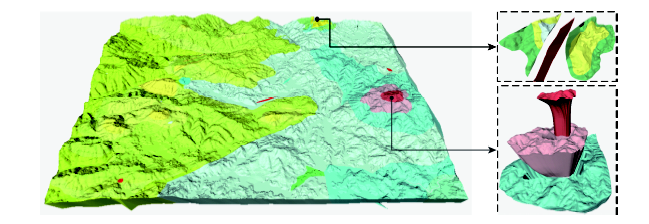

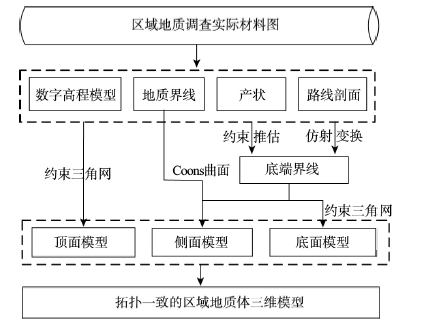

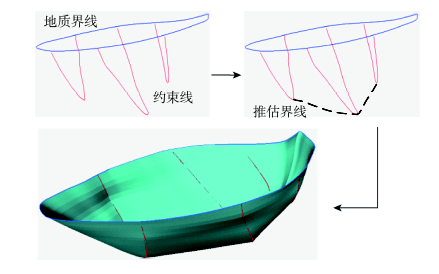

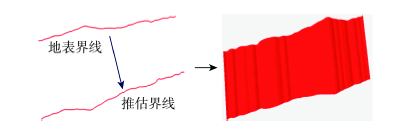

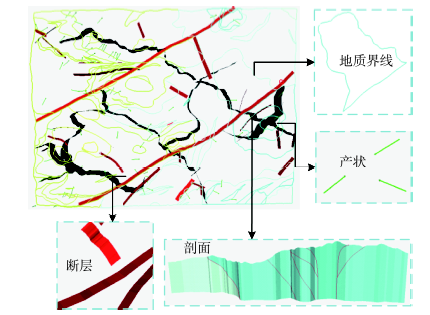

目前基于野外地质调查数据自动、快速地建立区域三维地质体模型是中国全面开展三维数字地质填图的迫切需求。本文基于产状、地质界线与路线剖面等野外区域地质调查要素,提出了一种二维平面地质图及路线剖面图向三维地质体模型的快速转换方法。该方法针对无剖面约束及含剖面约束2种情形,通过地质界线区域分割、多段线仿射变换等空间几何变换处理,推估出剖面线约束的地下地质界线,基于Coons曲面构建出地质体的侧面模型;然后,通过约束三角网算法构建地质体的顶、底面模型,最终建立拓扑一致的区域地质体三维模型。基于此方法,对中国1:2.5万区域地质调查试点区域进行了区域三维地质建模实践,实现了火山口、地层、岩体、断层等典型地质构造的快速三维重建。

关键词: 三维地质建模, 区域地质调查, 三维地质填图, Coons曲面, 约束三角网

Abstract:

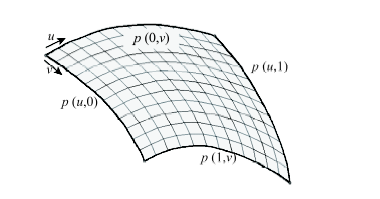

Automatic and efficient regional three-dimensional (3D) geological modeling based on the field geological survey data is the key issue of the nationwide 3D geological mapping nowadays. Based on the fundamental geological survey elements such as the attitudes, boundaries and sections, a method for transforming the two-dimensional (2D) geological maps and route section maps into the 3D geological models was proposed in this paper. The geological bodies that are both constrained and non-constrained by route sections were taken into consideration in this method. For the geological bodies that are constrained by sections, through the spatial geometrical processing, such as boundary regional division and polyline affine transformation, the underground boundary could be estimated using the surficial boundary constrained by the section lines. Then, based on the Coons surface, the side surfaces of the geological body were constructed by filling the areas between the top and bottom boundaries and the section lines. Afterwards, the top and bottom surfaces of the geological body were constructed by the constrained Delaunay triangulation network and the topologically consistent regional geological model was finally constructed. Based on this workflow, a 3D geological modeling practice was carried out in the domestic 1:25 000 regional geological survey experiment area. In the experiment, some typical and complex geological structures, including the volcanic edifice, stratum, rock and faults were efficiently reconstructed.

Key words: 3D geological modeling, regional geological survey, 3D geological mapping, Coons surface, constrain Delaunay triangulation

周文辉, 郭甲腾, 栗云峰, 吴立新, 李超岭. 基于Coons曲面与约束三角网的区域地质调查三维建模方法[J]. 地球信息科学学报, 2016, 18(6): 734-741.DOI:10.3724/SP.J.1047.2016.00734

ZHOU Wenhui,GUO Jiateng,LI Yunfeng,WU Lixin,LI Chaoling. 3D Regional Geological Modeling Based on Coons Surfaces and CD-TIN[J]. Journal of Geo-information Science, 2016, 18(6): 734-741.DOI:10.3724/SP.J.1047.2016.00734

图/表 9

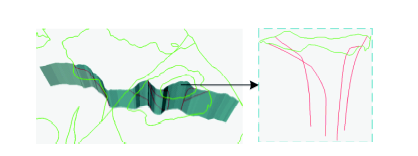

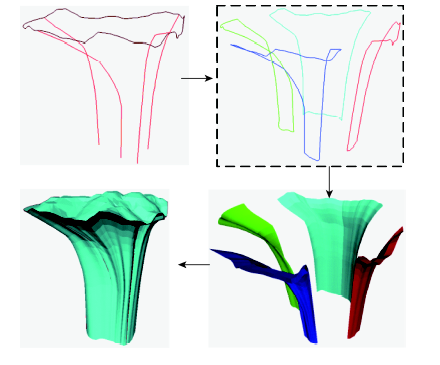

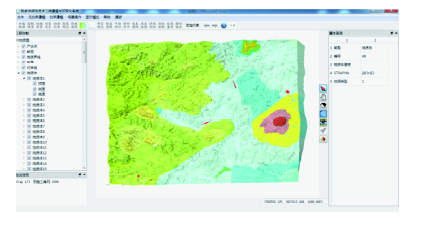

图1

图2

图3

图4

图5

图6

图7

图8

图9

参考文献 20

[1]	Thorleifson L H, Berg R C, Russell H A J. Geological mapping goes 3-D in response to societal needs[J]. GSA Today, 2010,20(8):27-29.
[2]	Turner A K.Challenges and trends for geological modelling and visualization[J]. Bulletin of Engineering Geology and the Environment, 2006,65(2):109-127. doi: 10.1007/s10064-005-0015-0
[3]	Kessler H, Mathers S, Sobisch H G.The capture and dissemination of integrated 3D geospatial knowledge at the British Geological Survey using GSI 3D software and methodology[J]. Computers & Geosciences, 2009,35(6):1311-1321.
[4]	陈国良,刘修国,盛谦,等.一种基于交叉剖面的地质模型构建方法[J].岩土力学,2011(8):2409-2415. doi: 10.3969/j.issn.1000-7598.2011.08.027
	[ Chen G L, Liu X G, Sheng Q, et al.A modeling method based on intersected geological sections[J]. Rock and Soil Mechanics, 2011,8:2409-2415. ] doi: 10.3969/j.issn.1000-7598.2011.08.027
[5]	吴立新,陈学习,车德福,等.一种基于GTP的地下真3D集成表达的实体模型[J].武汉大学学报·信息科学版,2007,32(4):331-335. doi: 10.3321/j.issn:1671-8860.2007.04.014
	[ Wu L X, Chen X X, Che D F, et al.A GTP-based entity model for underground real 3D integral representation[J]. Geomatics and Information Science of Wuhan University, 2007,32(4):331-335. ] doi: 10.3321/j.issn:1671-8860.2007.04.014
[6]	Amorim R, Brazil E V, Samavati F, et al.3D geological modeling using sketches and annotations from geologic maps[C]. Proceedings of the 4th Joint Symposium on Computational Aesthetics, Non-Photorealistic Animation and Rendering, and Sketch-Based Interfaces and Modeling, 2014:17-25.
[7]	侯卫生,吴信才,刘修国,等.基于线框模型的复杂断层三维建模方法[J].地质科技情报,2006(5):109-112. doi: 10.3969/j.issn.1000-7849.2006.05.021
	[ Hou W S, Wu X C, Liu X G, et al.3D complex fault modeling with wire frame model[J]. Geological Science and Technology Information, 2006,5:109-112. ] doi: 10.3969/j.issn.1000-7849.2006.05.021
[8]	周良辰,林冰仙,王丹,等.平面地质图的三维地质体建模方法研究[J].地球信息科学学报,2013,15(1):46-54. doi: 10.3724/SP.J.1047.2013.00046
	[ Zhou L C, Lin B X, Wang D, et al.3D geological modeling method based on planar geological map[J]. Journal of Geo-Information Science, 2013,15(1):46-54. ] doi: 10.3724/SP.J.1047.2013.00046
[9]	朱心雄,等.自由曲线曲面造型技术[M].北京:科学出版社,2000.
	[ Zhu X X.Free curve and surface modeling technology[M]. Beijing: Science Publishing Company, 2000. ]
[10]	邓飞,周亚同.基于曲面插值的剖面三维块状地质建模[A].中国计算机学会开放系统专业委员会,2009年全国开放式分布与并行计算机学术会议论文集(下册)[C].中国计算机学会开放系统专业委员会, 2009:4.
	[ Deng F, Zhou Y T.Section 3D geological block modeling based on surface interpolation[A]. In: China Computer Society Open System Professional Committee[C]. Proceedings of National Open Distributed and Parallel Computing Conference, 2009:4. ]
[11]	杨志高. 基于Nurbs曲面的地下三维数据模型研究[D].长沙:中南大学,2012.
	[ Yang Z G.Research on three-dimensional data model in underground environment based on Nurbs[D]. Changsha: Zhongnan University, 2012. ]
[12]	蒋有文. 基于边界约束的空间曲面细分方法研究[D].成都:电子科技大学,2013.
	[ Jiang Y W.Research on spatial curved surface subdivision method based on boundary constraints[D]. Chengdu: Electronic Science and Technology University, 2013. ]
[13]	Guo J T, Wu L x, Zhou X H, et al. Towards automatic and topologically consistent 3D regional geological modeling from boundaries and attitudes[J]. ISPRS International Joumal of Geo-information, 2016,5(2):17.
[14]	明镜,颜玫.基于Morphing的三维地质界面生成[J].地理与地理信息科学,2014,30(1):37-40. doi: 10.7702/dlydlxxkx20140108
	[ Ming J, Yan M.Three-dimensional geological surface creation based on morphing[J]. Geography and Geo-Information Science, 2014,30(1):37-40. ] doi: 10.7702/dlydlxxkx20140108
[15]	马洪滨,郭甲腾.一种新的多轮廓线重构三维形体算法:切开——缝合法[J].东北大学学报:自然科学版,2007,28(1):111-114.
	[ Ma H B, Guo J T.Cut-and-sew algorithm: a new multi-contour reconstruction algorithm[J]. Journal of Northeastern University (Natural Science), 2007,28(1):111-114. ]
[16]	马洪滨,郭甲腾,何群,等.带岛屿多边形Delaunay三角剖分算法[J].东北大学学报(自然科学版),2009,30(5):733-736. doi: 10.1360/972009-1549
	[ Ma H B, Guo J T, He Q, et al.Study on Delaunay triangulation algorithm for polygon with inside islets[J]. Journal of Northeastern University (Natural Science), 2009,30(5):733-736. ] doi: 10.1360/972009-1549
[17]	Zlatanova S, Rahman A, Shi W.Topological models and frameworks for 3D spatial objects[J]. Computers & Geosciences, 2004,30(4):419-428. doi: 10.1016/j.cageo.2003.06.004
[18]	李永军,梁积伟,杨高学,等.区域地质调查导论[M].北京:地质出版社,2014.
	[ Li Y J, Liang J W, Yang G X, et al.Introduction to regional geological survey[M]. Beijing: Geological Publishing House, 2014. ]
[19]	施法中. 计算机辅助几何设计与非均匀有理B样条[M].北京:高等教育出版社,2013.
	[ Shi F Z.Computer aided geometric design and non-uniform rational B-spline[M]. Beijing: Higher Education Press, 2013. ]
[20]	王佩军,徐亚明.摄影测量学[M].武汉:武汉大学出版社,2010.
	[ Wang P J, Xu Y M.Photographic survey[M]. Wuhan: Wuhan University Press, 2010. ]
