一种基于地球物理数据格网的三维地质填图方法及其实现

doi:10.3724/SP.J.1047.2016.00742

摘要/Abstract

摘要：

地球物理方法（重力、地震、电法等）是地质调查及填图工作中的重要手段。相对于二维地质填图,三维地质填图/建模更迫切地需要借助地球物理数据来获取大量与深度有关的地质信息,因此本文提出了一种基于地球物理数据的地质体三维填图方法。首先,将不同地球物理手段所获取到的数据格网进行可视化建模综合;然后,在有限的地质采样约束下进行解释并直接映射为地质三维模型。实践证明,该方法自动化程度较高,并能在地质调查工作中针对性地解决一些地球物理资料较丰富而地质采样相对匮乏的三维地质填图问题。此外,它也可应用于传统三维地质填图工作中,以极大地提高地球物理数据处理效率。

关键词: 三维地质填图, 地球物理资料解释, 数据可视化

Abstract:

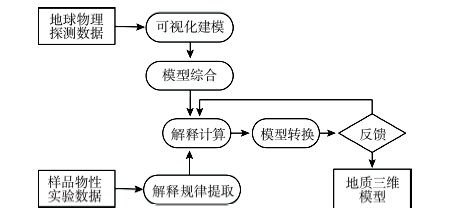

The geophysical methods (gravity, seismic, electric etc.) are the major tools used in geological investigation and mapping. From the 2D geological mapping to the 3D geological mapping, the amount of data and work has rapidly increased. This requires some improvements in processing the geophysical data interpretation to promote and strengthen its role in the 3D geological mapping works. Since the geophysical data are recorded in forms of data grids, traditionally, people need to extract the geological information from various data grids acquired from different geophysical methods, and then manually integrate the information to construct a 3D geological model. This usually causes inconveniences and inefficiencies. Therefore, this study proposes a methodology of 3D geological mapping with the geophysical data grids. It firstly constructs some visualization models from different geophysical data grids. Then, it subsequently integrates these models for interpretation using the mapping rules adopted from the physical properties of rock samples measured in laboratory. And finally, it converts the interpreted visualization model into the 3D geological model. Based on this methodology, we implement the corresponding system which accomplishes the above processes efficiently. As an example, we presented a detailed description for constructing the 3D lithological model using the methodology mentioned above with the geological survey data acquired in the geological investigation of western Jungger, Xinjiang in China. The practical application demonstrates that the methodology has a high degree of automation and it can effectively solve the problems of 3D geological mapping in cases such as the lack of sufficient geological sampling information while having enriched geophysical data.

Key words: 3D geological mapping, geophysical data interpretation, data visualization

余翔宇, 徐义贤. 一种基于地球物理数据格网的三维地质填图方法及其实现[J]. 地球信息科学学报, 2016, 18(6): 742-748.DOI:10.3724/SP.J.1047.2016.00742

YU Xiangyu,XU Yixian. A Methodology for 3D Geological Mapping Based on Geophysical Data Grids and Its Implementation[J]. Journal of Geo-information Science, 2016, 18(6): 742-748.DOI:10.3724/SP.J.1047.2016.00742

图/表 11

图1

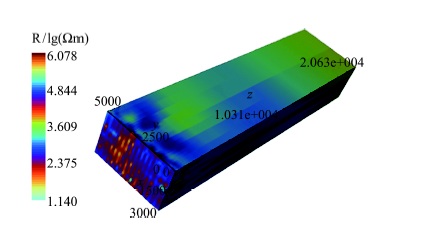

图2

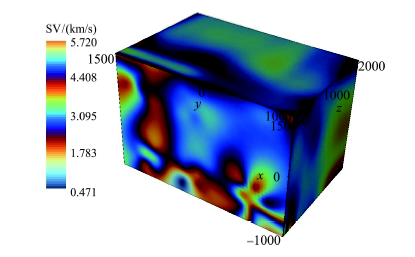

图3

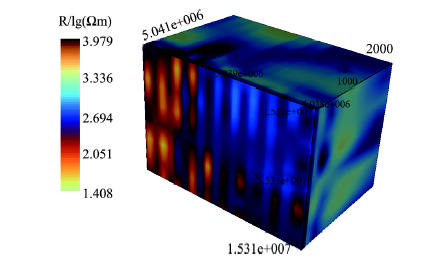

图4

表1

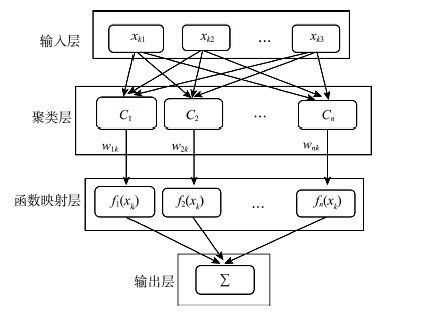

图5

表2

几种解释函数形式

函数类型	函数形式
常数型	$f i (x k, v i) = a i 0$
线性函数	$f i (x k, v i) = a i 0 + a i 1 (x k 1 - v i 1) + a i 2 (x k 2 - v i 2) + … + a il (x kl - v il)$
二次函数	$f i (x k, v i) = a i 0 + a i 1 (x k 1 - v i 1) + a i 2 (x k 2 - v i 2) + … + a il (x kl - v il) + a i (l + 1) (x k 1 - v i 1) 2 + a i (l + 2) (x k 2 - v i 2) 2 + … + a i (l + 2) (x k 2 - v i 2) 2 + a i 2 l + 1) (x k 1 - v i 1) (x k 2 - v i 2) + … + a i (l + 1) (l + 2) / 2) (x k (l - 1 - v i (l - 1) (x kl - v il)$
变形二次函数	$f i (x k, v i) = a i 0 + a i 1 (x k 1 - v i 1) + a i 2 (x k 2 - v i 2) + … + a il (x kl - v il) + a i (l + 1) (x k 1 - v i 1) (x k 2 - v i 2) + … + a i (l (l + 1) / 2) (x k (l - 1 - v i (l - 1) (x kl - v il)$

表2

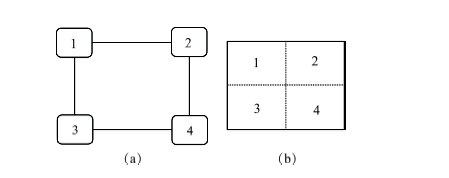

图6

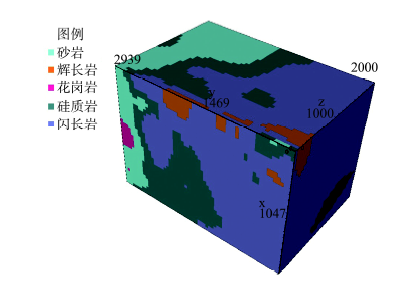

图7

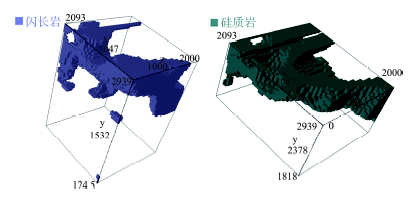

图8

图9

参考文献 24

[1]	王国灿,徐义贤,陈旭军,等.基于地表地质调查剖面网络基础上的复杂造山带三维地质调查与建模方法[J].地球科学:中国地质大学学报2015,40(3):397-406.
	[ Wang G C, Xu Y X, Chen X J, et al.Three-dimensional geological mapping and visualization of complex orogenic belts[J]. Earth Science-Journal of China University of Geosciences, 2015,40(3):397-406. ]
[2]	郁军建,王国灿,徐义贤,等.复杂造山带地区三维地质填图中深部地质结构的约束方法:西准噶尔克拉玛依后山地区三维地质填图实践[J].地球科学:中国地质大学学报,2015,40(3):407-418. doi: 10.3799/dqkx.2015.032
	[ Yu J J, Wang G C, Xu Y X, et al.Constraining deep geological structure in three-dimensional geological mapping of complicated orogenic belts: a case study from Karamay Region, Western Junggar[J]. Earth Science-Journal of China University of Geosciences, 2015,40(3):407-418. ] doi: 10.3799/dqkx.2015.032
[3]	Trampert J, Van Der Hilst R D. Towards a quantitative interpretation of global seismic tomography[J]. Geophysical Monograph Series, 2005,160:47-64.
[4]	McGaughey J, Milkereit B. Geological Models, Rock Properties, and the 3D Inversion of Geophysical Data[C]. In Proceedings of Exploration 07: Fifth Decennial International Conference on Mineral Exploration, 2007:473-483.
[5]	Gong J Y, Cheng P G, Wang Y D.Three-dimensional modeling and application in geological exploration engineering[J]. Computers&Geosciences, 2004,30(4):391-404. doi: 10.1016/j.cageo.2003.06.003
[6]	Brown C J, Collier J S.Mapping benthic habitat in regions of gradational substrata: An automated approach utilizing geophysical, geological, and biological relationships[J]. Estuarine. Coastal and Shelf Science, 2008,78(1):203-214.
[7]	Chalke T, Mcgaughey J, Perron G.3D software technology for structural interpretation and modeling[J]. Structural Geology and Resources, 2012:16-20.
[8]	余翔宇,徐义贤.一种基于物性数据的深部三维地质建模方法[J].地球科学:中国地质大学学报,2015,40(3):419-424. doi: 10.3799/dqkx.2015.033
	[ Yu X Y, Xu Y X.A methodology of deep 3D geological modeling based on the geophysical data[J]. Earth Science-Journal of China University of Geosciences, 2015,40(3):419-424. ] doi: 10.3799/dqkx.2015.033
[9]	Martelet G, Calcagno P, Gumiaux C.Integrated 3D geophysical and geological modeling of the Hercynian suture zone in the Champtoceaux area (South Brittany, France)[J]. Tectonophysics, 2004,382(1):117-128.
[10]	Russell H A J, Thorleifson L H, Berg R C. Overview-3D geological mapping: developing more widespread Adoption by Geological Survey Organizations[C]. In: Three-Dimensional Geological Mapping, 2013:7-14.
[11]	Dantas E L, Silva A M, Almeida L.Old geophysical data applied to modern geological mapping problems: A case-study in the Serid Belt, Ne Brazil[J]. Brazilian Journal of Geology, 2003,33(2):65-72.
[12]	Ning F, Wei J.3D visualization of stratum with faults based on VTK[C]. 2009 International Conference on Computational Intelligence and Software Engineering, 2009:1-3.
[13]	余翔宇,徐义贤,骆淼.应用信息粒方法构建测井岩性解释模型[J].物探化探计算技术,2012,34(6):703-707. doi: 10.3969/j.issn.1001-1749.2012.06.13
	[ Yu X Y, Xu Y X, Luo M.Use information granulation to construct the well-logging lithology interpret model[J]. Computing Techniques for Geophysicaland Geochemical Exploration, 2012,34(6):703-707. ] doi: 10.3969/j.issn.1001-1749.2012.06.13
[14]	Wu Q, Xu H, Zou X.An effective method for 3D geological modeling with multi-source data integration[J]. Computers& Geosciences, 2005,31(1):35-43.
[15]	宋亮,王秀闽,赵伟,等.岩性物性联合反演系统设计与实现[J].地球物理学进展,2011,26(4):1304-1311. doi: 10.3969/j.issn.1004-2903.2011.04.022
	[ Song L, Wang X M, Zhao W, et al.The design and implementation of the software package for lithology-petrophysical property joint inversion[J]. Progress in Geophysics, 2011, 26(4):1304-1311. ] doi: 10.3969/j.issn.1004-2903.2011.04.022
[16]	汪宏年,李舟波,杨善德,等.复杂岩性解释模型稳定性和可靠性评价[J].地球物理学报,1998,41(4):561-569. doi: 10.1088/0256-307X/16/9/027
	[ Wang H N, Li Z B, Yang S D, et al.Evaluation of stability and reliability of complex lithology interpreting models[J]. Chinese Journal of Geophysics, 1998,41(4):561-569. ] doi: 10.1088/0256-307X/16/9/027
[17]	徐海波,李瑞,邹炜,等.模糊聚类实现岩性自动划分[J]. 物探化探计算技术,2006,28(4):319-322. doi: 10.3969/j.issn.1001-1749.2006.04.008
	[ Xu H B, Li R, Zhou W, et al.Lithologic recognition with fuzzy clustering[J]. Computing Techniques for Geophysical and Geochemical Exploration, 2006,28(4):319-322. ] doi: 10.3969/j.issn.1001-1749.2006.04.008
[18]	Huang W, Ding L.Identification of fuzzy inference system based on information granulation[J]. KSII Transactions on Internet and Information Systems, 2010,4(4):575-594. doi: 10.3837/tiis.2010.08.008
[19]	Lim J.Reservoir properties determination using fuzzy logic and neural networks[J]. Journal of Petroleum Science and Engineering, 2005,49(3):182-192.
[20]	Yao Y Y.Information granulation and rough set approximation[J]. International Journal of Intelligent Systems, 2001,16(1):87-104. doi: 10.1002/1098-111X(200101)16:1<87::AID-INT7>3.0.CO;2-S
[21]	Yu X, Xu Y.Building a visual mapping system from the geophysical data to the geological property[C]. The 6th International Conference on Environmental and Engineering Geophysics, 2014:224:228.
[22]	Malehmir A, Hans T, Ari T. The paleoproterozoic Kristine-berg mining area, northern Sweden: Results from integrated 3D geophysical and geologic modeling,implications for targeting ore deposits[J]. Geophysics, 2008, 74(1):B9B22.
[23]	Jaques A L, Wellman P, Whitaker A, Wyborn D.High-resolution geophysics in modern geological mapping[J]. AGSO Journal of Australian Geology and Geophysics, 1997,17:159-174.
[24]	Jessell M.Three-dimensional geological modeling of potential-field data[J]. Computers & Geosciences, 2001,27(4):455-465.

模型名称	准确性/(%)	收敛能力	泛化能力
模糊神经网络(FNN)	85.4	好	很好
模糊聚类 (FCM)	76.6	很好	好
硬聚类(HCM)	68.8	很好	差
BP神经网络(BPNN)	81.6	差	差
支持向量机(SVM)	79.5	差	很好
