北极海冰范围时空变化及其与海温气温间的数值分析

doi:10.3724/SP.J.1047.2016.00797

摘要/Abstract

摘要：

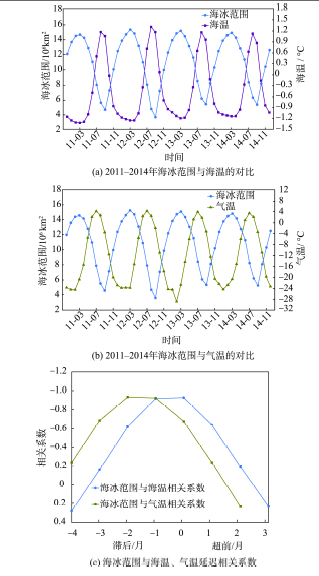

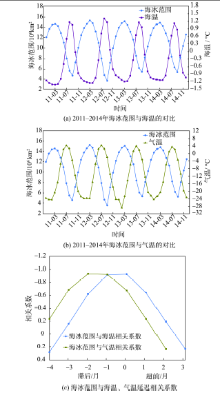

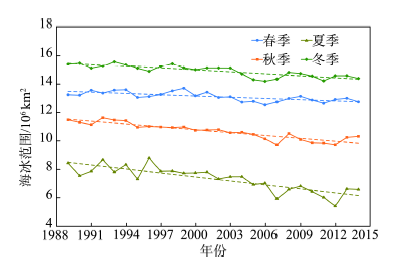

本文利用美国国家冰雪中心提供的1989-2014年海冰范围资料,分析了北极海冰范围的年际变化和季节变化规律。分析发现,北极海冰范围呈减少趋势,每年减小 $5.91 × 104 k m 2$ ,夏季减少趋势显著,冬季减少趋势弱。北极海冰范围显现相对稳定的季节变化规律,海冰的结冰和融化主要发生在各个边缘海,夏季期间的海冰具有融化快、冻结快的特征。结合海温、气温数据,进行北极海冰范围与海温、气温间的数值分析,结果表明北极海冰范围变化通过影响北极海温变化进而影响北极气温变化。海冰范围的季节变化滞后于海温和气温的季节变化。基于北极考察走航海温气温数据,进行楚科奇海海冰范围线与海温气温间的数值分析,发现楚科奇海海冰范围线所在区域的海温、气温与纬度高低、离陆地远近有关。

关键词: 北极, 海冰范围, 海温, 气温, 时空变化

Abstract:

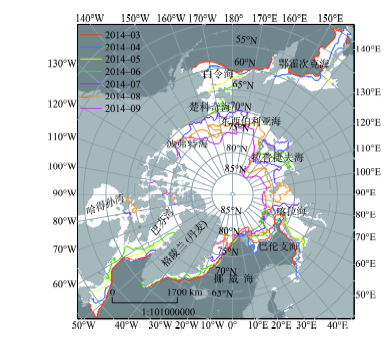

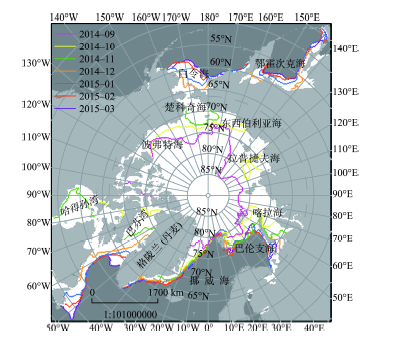

The annual and seasonal variability of Arctic sea ice extent was analyzed using of the sea ice extent data from 1989 to 2014, which was offered by the America National Snow and Ice Data Center. According to the data, it can be found that the Arctic sea ice extent decreases with an amplitude about 59 100 km² annually. Moreover, the fastest decline occurs in summer, while the slowest decrease appears in winter. In addition, the Arctic sea ice extent shows a relatively stable seasonal variation, which exhibit the same thawing and freezing period. Arctic sea ice extent reaches its maximum value in March, undergoing the ice thawing period from April to September. It has the minimum value in September. Subsequently, it is the ice freezing period from October to March. During the summer, the sea ice reveals some featured characteristics, such as the fast thawing and sudden freezing. The Arctic sea ice thaws quickly in July and August, and freezes fast in October and November. The freezing and thawing process maps of the Arctic sea ice were made by ArcGIS software. Then, the freezing and thawing processes of the sea ice were discussed in detail. The results show that the Arctic sea ice mainly freezes and thaws in various marginal seas, including the Bering sea, Okhotsk, Beaufort Sea, Chukchi Sea, East Siberian Sea, Laptev Sea, Kara Sea, Barents Sea, Hudson B. and Baffin Bay. Finally, according to the sea surface temperature and air temperature data, the relationships among Arctic sea ice extent, sea surface temperature and air temperature were preliminarily discussed here. The results show that a change of the Arctic sea ice which affects the sea surface temperature may cause a variation of the air temperature. However, the seasonal changes of sea ice extent occur later than the seasonal changes of sea surface temperature and air temperature. The relationships among Arctic sea ice extent, sea surface temperature and air temperature in Chukotskoye More were analyzed using the sea surface temperature data and air temperature data derived from the ship-based observations. The data show that when the sea ice extent gets closer to the North Pole, the sea surface temperature and air temperature will be lower. When the sea ice extent gets closer to the land, the sea surface temperature and air temperature will be higher.

Key words: Arctic, sea ice extent, sea surface temperature, air temperature, spatio-temporal variation

孔爱婷, 刘健, 余旭, 左菲. 北极海冰范围时空变化及其与海温气温间的数值分析[J]. 地球信息科学学报, 2016, 18(6): 797-804.DOI:10.3724/SP.J.1047.2016.00797

KONG Aiting,LIU Jian,YU Xu,ZUO Fei. Spatio-Temporal Variability of Arctic Sea Ice Extent and Its Numerical Analysis with Sea Surface Temperature and Air Temperature[J]. Journal of Geo-information Science, 2016, 18(6): 797-804.DOI:10.3724/SP.J.1047.2016.00797

图/表 12

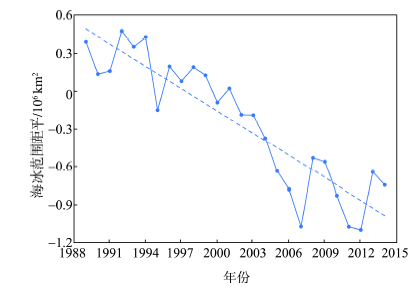

图1

图2

表1

图3

图4

表2

图5

图6

图7

图8

图9

表3

参考文献 17

[1]	Screen J A, Simmonds I.The central role of diminishing sea ice in recent Arctic temperature amplification[J]. Nature, 2010,464(7293):1334-1337. doi: 10.1038/nature09051 pmid: 20428168
[2]	李概. 海冰热力学系统解的稳定性及其最优化控制[D].大连理工大学,2009.
	[ Li K.The stability of solutions and optimal control of sea ice thermodynamic system[D]. Dalian University of Technology, 2009. ]
[3]	徐栋. 北极海冰变化与北半球海温关系研究[J].第31届中国气象学会年会S6大气成分与天气,气候变化,2014.
	[ Xu D.Study on the relationship between the variation of Arctic sea ice and Northern Hemisphere sea surface temperature[J]. The 31st Chinese Meteorological Society S6 Atmospheric Composition and Weather, Climate Change, 2014. ]
[4]	González M E P, Rodríguez M P G. Evolution in sea ice from 1978 to 2012[J]. Environmental Earth Sciences, 2014,72(9):3467-3477. doi: 10.1007/s12665-014-3254-1
[5]	耿家营,管磊,吴凡,等.基于卫星数据的北极海冰变化分析[J].海洋技术学报,2014,33(2):8-13.
	[ Geng J Y, Guan L, Wu F, et al.Analysis on the variation of Arctic sea ice using satellite data[J]. Journal of Ocean Technology, 2014,33(2):8-13. ]
[6]	康立廷. 基于卫星遥感数据的北极海冰覆盖范围和积雪深度变化的研究[D].中国海洋大学,2012.
	[ Kang L T.Study on the variation of Arctic sea ice extent and snow depth on sea ice using satellite remote sensing data[D]. Ocean University of China, 2012. ]
[7]	柯长青,彭海涛,孙波,等.2002年—2011年北极海冰时空变化分析[J].遥感学报,2013,17(2):459-466. doi: 10.11834/jrs.20132044
	[ Ke C Q, Peng H T, Sun B, et al.Spatio-temporal variability of Arctic sea ice from 2002 to 2011[J]. Journal of Remote Sensing, 2013,17(2):459-466. ] doi: 10.11834/jrs.20132044
[8]	Parkinson C L, Cavalieri D J, Gloersen P, et al.Arctic sea ice extents, areas, and trends, 1978-1996[J]. Journal of Geophysical Research: Oceans (1978-2012), 1999,104(C9):20837-20856.
[9]	Parkinson C L, Cavalieri D J.Arctic sea ice variability and trends, 1979-2006[J]. Journal of Geophysical Research: Oceans (1978-2012), 2008, 113(C7): C07003, DOI: 10.1029/2007JC004558.
[10]	Dong H J, Zou X L.Variations of sea ice in the Antarctic and Arctic from 1997-2006[J]. Frontiers of earth science, 2014,8(3):385-392. doi: 10.1007/s11707-014-0422-2
[11]	Serreze M C, Holland M M, Stroeve J.Perspectives on the Arctic's shrinking sea-ice cover[J]. science, 2007, 315(5818):1533-1536. doi: 10.1126/science.1139426 pmid: 17363664
[12]	Cavalieri D J, Parkinson C L.Arctic sea ice variability and trends, 1979-2010[J]. Cryosphere, 2012,6(4):881-889.
[13]	苏洁,徐栋,赵进平,等.北极加速变暖条件下西北航道的海冰分布变化特征[J].极地研究,2010,22(2):104-124. doi: 10.3724/SP.J.1084.2010.00104
	[ Su J, Xu D, Zhao J P, et al.Features of northwest passage sea ice's distribution and variation under Arctic rapidly warming condition[J]. Chinese Journal of Polar Research, 2010,22(2):104-124. ] doi: 10.3724/SP.J.1084.2010.00104
[14]	Goosse H, Gerdes R, Kauker F, et al.Influence of the exchanges between the Atlantic and the Arctic on sea ice volume variations during the period 1955-97[J]. Journal of climate, 2004,17(6):1294-1305.
[15]	Pavlova O, Pavlov V, Gerland S.The impact of winds and sea surface temperatures on the Barents Sea ice extent, a statistical approach[J]. Journal of Marine Systems, 2014,130:248-255.
[16]	陈锦年,褚健婷,许兰英.南极气候和海冰的时空变化特征及其与太平洋海温场的关系[J].海洋学报,2003,25(6):39-47. doi: 10.3321/j.issn:0253-4193.2003.06.005
	[ Chen J N, Chu J T, Xu L Y.Spatio-temporal characteristics of Antarctic temperature and sea ice and their relationship[J]. Acta Oceanologica Sinica, 2003,25(6):39-47. ] doi: 10.3321/j.issn:0253-4193.2003.06.005
[17]	武丰民,何金海,祁莉.北极海冰消融及其对欧亚冬季低温影响的研究进展[J].地球科学进展,2014,29(8):913-921. doi: 10.11867/j.issn.1001-8166.2014.08.0913
	[ Wu F M, He J H, Qi L.Arctic sea ice declining and its impact on the cold Eurasian winters: a review[J]. Advances in Earth Science, 2014,29(8):913-921. ] doi: 10.11867/j.issn.1001-8166.2014.08.0913

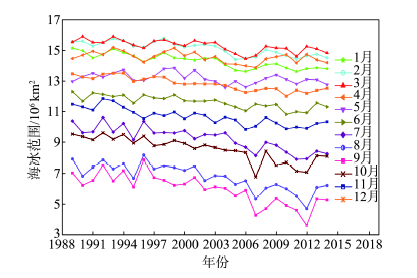

月份	斜率	相关系数	月份	斜率	相关系数
1	-0.0542	-0.8737	7	-0.0862	-0.8558
2	-0.0491	-0.8245	8	-0.0892	-0.7966
3	-0.0353	-0.6864	9	-0.1056	-0.7936
4	-0.0224	-0.4525	10	-0.0872	-0.8431
5	-0.0199	-0.4030	11	-0.0632	-0.8535
6	-0.0444	-0.8131	12	-0.0526	-0.9025

	月份
	1	2	3	4	5	6	7	8	9	10	11	12
差值	1.41	0.71	0.32	-0.63	-1.43	-1.47	-3.05	-2.03	-0.94	2.81	2.24	2.20

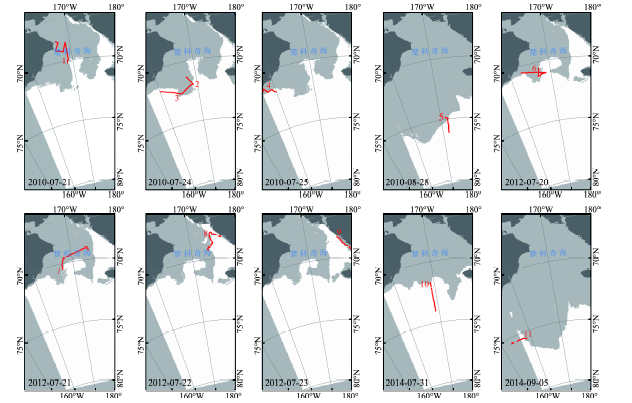

序号	时间	经度/°	纬度/°	海温/℃	气温/℃
1	2010-07-21	-168.96	69.99	1.675	5.4
2	2010-07-24	-168.43	71.97	0.971	3.1
3	2010-07-24	-164.53	72.42	1.017	1.9
4	2010-07-25	-158.20	71.58	2.175	5.5
5	2010-08-28	-172.05	75.04	-0.732	-1.0
6	2012-07-20	-167.94	70.92	0.801	0.8
7	2012-07-21	-167.30	70.40	0.594	0.6
8	2012-07-22	-174.39	68.05	2.251	6.1
9	2012-07-23	-176.92	68.28	4.223	11.7
10	2014-07-31	-169.01	72.23	1.100	2.6
11	2014-09-05	-157.52	75.48	-0.400	-2.5
