闽东南沿海地区景观指数粒度效应的高分辨率遥感分析

doi:10.3724/SP.J.1047.2016.00824

地球信息科学学报 ›› 2016, Vol. 18 ›› Issue (6): 824-832.doi: 10.3724/SP.J.1047.2016.00824

闽东南沿海地区景观指数粒度效应的高分辨率遥感分析

冉建波¹(), 陈兴伟^1,^2,^3,^*()

1. 福建师范大学地理科学学院,福州 350007
2. 湿润亚热带山地生态国家重点实验室培育基地,福州 350007
3. 福建省陆地灾害监测评估工程技术研究中心,福州 350007

收稿日期:2014-11-25 修回日期:2015-09-09 出版日期:2016-06-10 发布日期:2016-06-10
通讯作者: 陈兴伟 E-mail:ran_wl@163.com;cxwchen215@163.com
作者简介:
作者简介：冉建波（1989-）,男,重庆武隆人,硕士生,主要从事资源生态与遥感应用。E-mail: ran_wl@163.com
基金资助:
福建省高校产学合作项目（2015Y4002）

The Effects of Changing Grain on Landscape Metrics with High-resolution Image in the South-eastern Coastal Region of Fujian

RAN Jianbo¹(), CHEN Xingwei^1,^2,^3,^*()

1. College of Geographic Sciences, Fujian Normal University, Fuzhou 350007, China
2. Cultivation Base of State Key Laboratory of Humid Subtropical Mountain Ecology, Fuzhou 350007, China
3. Fujian Provincial Engineering Research Center for Monitoring and Assessing Terrestrial Disasters, Fuzhou 350007, China

Received:2014-11-25 Revised:2015-09-09 Online:2016-06-10 Published:2016-06-10
Contact: CHEN Xingwei E-mail:ran_wl@163.com;cxwchen215@163.com

摘要/Abstract

摘要：

以闽东南沿海地区3个流域SPOT 5影像解译所得的土地覆被类型分布图为原始矢量数据,通过优势规则聚合为一系列不同粒度大小的栅格类型图,统计各粒度下28种常用景观指数值;采用尺度检测图分析各种景观指数的粒度变化响应规律,对比中分辨率数据与高分辨率数据所建立尺度函数的差异,评价预测响应型指数尺度下推的相对误差。结果表明：闽东南沿海地区景观指数的粒度效应明显,可分为预测响应型、分段预测型、阶梯变化型和波动变化型4类,其中分段预测型指数由已有报道的预测响应型分化而来,其尺度转折点位于5 m 、7.5 m或10 m等粒度下,即高分辨率影像对景观指数粒度效应的分类有重要影响。在预测响应型指数中,高分辨率影像对ED、SHAPE_MN、CONTIG_MN和AI 4种指数的尺度函数影响较大,由中分辨率数据所建立的尺度函数进行尺度下推,会带来较大误差;这些指数的区域差异性也较大,对同一指数来说,不同区域可选用不同的尺度函数进行尺度下推。

关键词: 景观指数, 粒度效应, 尺度函数, SPOT 5, 闽东南沿海地区

Abstract:

The effects of changing grain on landscape metrics is an important topic in landscape ecology studies. The original data in the most previous studies were derived from moderate/low resolution data and how the high-resolution data could affect the grain effect has not yet been well investigated. Therefore, we selected the land cover datasets produced from SPOT 5 imagery (with a spatial resolution of 2.5 m) in three watersheds located in the south-eastern coastal region of Fujian Province, China. We examined the behaviors of 28 landscape metrics in varying the range of grain size varing from 2.5 m to 150 m, where the grains coarser than 2.5 m were aggregated through majority filters. We then compared the differences between scaling functions fitted with the data from 2.5 m to 150 m and 30 m to 150 m. The results show that the effects of changing grain on 28 landscape metrics are obvious in the three watersheds examined. The responses of the metrics to changing grain size can be divided into four categories, while previous studies reported only three categories. The newly category is named as TypeⅡ including eight metrics that behaved split-up predictable responses with scale inflexion at 5 m, 7.5 m or 10 m respectively. This indicates that the high-resolution data can reveal more detailed effects of changing grain on landscape metrics. The results also show that the scaling functions for ED, SHAPE_MN, CONTIG_MN and AI, are sensitive to the spatial resolution of the raw data. Those scaling functions obtained from the moderate-resolution data may not be applicable to estimating the landscape metrics for grains finer than 10 m.

Key words: landscape metrics, grain effect, scaling functions, SPOT5, south-eastern coast region of Fujian

冉建波, 陈兴伟. 闽东南沿海地区景观指数粒度效应的高分辨率遥感分析[J]. 地球信息科学学报, 2016, 18(6): 824-832.DOI:10.3724/SP.J.1047.2016.00824

RAN Jianbo,CHEN Xingwei. The Effects of Changing Grain on Landscape Metrics with High-resolution Image in the South-eastern Coastal Region of Fujian[J]. Journal of Geo-information Science, 2016, 18(6): 824-832.DOI:10.3724/SP.J.1047.2016.00824

图/表 7

图1

表1

景观水平上所用到的28种指数"

	景观指数	英文名称	缩写	单位
组成特征	斑块密度	Patch density	PD	个/100 hm2
	边界密度	Edge density	ED	m/hm2
	最大斑块指数	Largest patch index	LPI	%
	平均斑块面积	Patch area distribution_Mean	AREA_MN	hm2
	加权平均斑块面积	Patch area distribution_Area-weighted Mean	AREA_AM	hm2
	斑块面积标准差	Patch area distribution_Standard Deviation	AREA_SD	hm2
	斑块面积变异系数	Patch area distribution_Coeffient of Variation	AREA_CV	%
	平均斑块回旋半径	Radius of gyration	GYRATE_MN	m
	加权平均斑块回旋半径		GYRATE_AM	m
形状特征	平均斑块形状指数	Shape index distribution_Mean	SHAPE_MN
	加权平均斑块形状指数	Shape index distribution_Area-weighted Mean	SHAPE_AM
	平均斑块邻近指数	Contiguity index distribution_Mean	CONTIG_MN
	加权平均斑块邻近指数	Contiguity index distribution_Area-weighted Mean	CONTIG_AM
	周长面积分维数	Perimeter-area fractal dimension index	PAFRAC
	平均周长面积比值	Perimeter-area ratio distribution_Mean	PARA_MN
	加权平均周长面积比值	Perimeter-area ratio distribution_Area-weighted Mean	PARA_AM
	平均斑块分维数	Patch fractal dimension distribution_Mean	FRAC_MN
	加权平均斑块分维数	Patch fractal dimension distribution_Area-weighted Mean	FRAC_AM
	斑块分维数标准差	Patch fractal dimension distribution_Standard Deviation	FRAC_SD
	斑块分维数数变异系数	Patch fractal dimension distribution_Coeffient of Variation	FRAC_CV	%
聚散性特征	蔓延度	Contagion index	CONTAG	%
	聚合度	Aggregation index	AI	%
	散布与并列指数	Interspersion and juxtaposition index	IJI	%
	分离度	Landscape division index	DIVISION	%
	破碎度	Splitting index	SPLIT
多样性特征	香农多样性指数	Shannon's diversity index	SHDI
	辛普森多样性指数	Simpson's diversity index	SIDI
	香农均匀度指数	Shannon's evenness index	SHEI

表1

图2

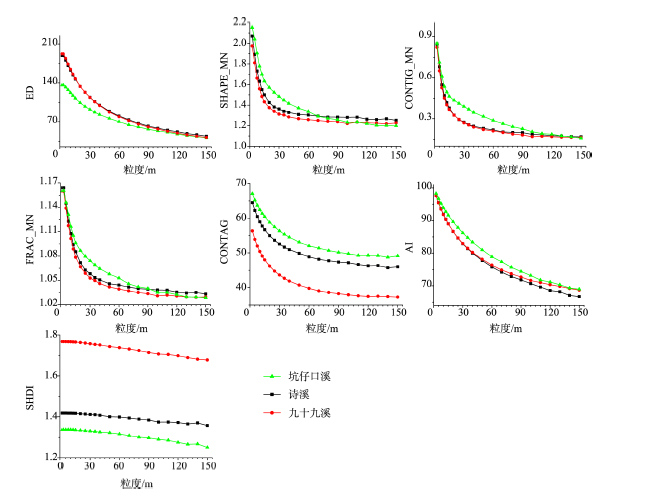

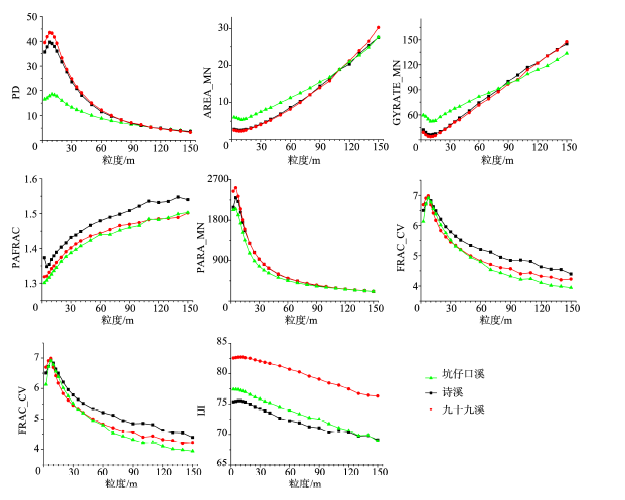

图3

图4

表2

表3

参考文献 32

[1]	邬建国. 景观生态学:格局、过程、尺度与等级(第二版)[M].北京:高等教育出版社,2007.
	[ Wu J G.Landscape ecology:pattern, process, scale and hierarchy(2nd ed.)[M]. Beijing: Higher Education Press, 2007. ]
[2]	刘宇,吕一河,傅伯杰.景观格局——土壤侵蚀研究中景观指数的意义解释及局限性[J].生态学报,2011,31(1):267-275.
	[ Liu Y, Lv Y H, Fu B J.Implication and limitation of landscape metrics in delineating relationship between landscape pattern and soil erosion[J]. Acta Ecologica Sinca ,2011,31(1):267-275. ]
[3]	林炳青,陈兴伟,陈莹,等.流域景观格局变化对洪枯径流影响的SWAT模型模拟分析[J].生态学报,2014,34(7):1772-1780. doi: 10.5846/stxb201304220769
	[ Lin B Q, Chen X W, Chen Y, et al.Simulations and analysis on the effects of landscape pattern change on flood and low flow based on SWAT model. Acta Ecologica Sinica, 2014,34(7):1772-1780. ] doi: 10.5846/stxb201304220769
[4]	李娜,闫冬梅,张丽.天津滨海新区——曹妃甸典型地区土地利用演变分析[J].遥感技术与应用,2012,27(2):289-295.
	[ Li N, Yan D M, Zhang L.Analysis of the evolution of land use in Tianjin Binhai new area and Caofeidian region[J]. Remote Sensing Technology and Application, 2012,27(2):289-295. ]
[5]	Diaz-Varela E R, Marey-Perez M F, Rigueiro-Rodriguez A, et al. Landscape metrics for characterization of forest landscapes in a sustainable management framework: potential application and prevention of misuse[J]. Annals of Forest Science, 2009,66(3):1-10.
[6]	Schindler S, Poirazidis K, Wrbka T.Towards a core set of landscape metrics for biodiversity assessments: a case study from Dadia National Park, Greece[J]. Ecological Indicators, 2008,8(5):502-514. doi: 10.1016/j.ecolind.2007.06.001
[7]	Uuemaa E, Roosaare J, Mander U.Landscape metrics as indicators of river water quality at catchment scale[J]. Nordic Hydrology, 2007,38(2):125-138.
[8]	Uuemaa E, Antrop M, Roosaare J, Marja R, et al.Landscape metrics and indices: an overview of their use in landscape research[J]. Living Reviews in Landscape Research, 2009,3(1):1-28.
[9]	Turner M G, O'Neill R V, Gardner R H, et al. Effects of changing spatial scale on the analysis of landscape pattern[J]. Landscape Ecology, 1989,3(3-4):153-162.
[10]	Simova P, Gdulova K.Landscape indices behavior: a review of scale effects[J]. Applied Geography, 2012,34: 385-394.
[11]	Baldwin D J B, Weaver K, Schnekenburger F, et al. Sensitivity of landscape pattern indices to input data characteristics on real landscapes: Implications for their use in natural disturbance emulation[J]. Landscape Ecology, 2004,19(3):255-271. doi: 10.1023/B:LAND.0000030442.96122.ef
[12]	Wu J G, Shen W J, Sun W Z, et al.Empirical patterns of the effects of changing scale on landscape metrics[J]. Landscape Ecology, 2002,17:761-782. doi: 10.1023/A:1022995922992
[13]	赵文武,傅伯杰,陈利顶.景观指数的粒度变化效应[J].第四纪研究,2003,23(3):326-333. [ Zhao W W, Fu B J, Chen L D. The effects of grain change on landscape indices. Quaternary Sciences, 2003,23(3):326-333. ] doi: 10.3321/j.issn:1001-7410.2003.03.011
[14]	Li X Z, He H C, Bu R C, et al.The adequacy of different landscape metrics for various landscape patterns[J]. Pattern Recognition, 2005,38:2626-2638. doi: 10.1016/j.patcog.2005.05.009
[15]	Benson B J, MacKenzie M D. Effects of sensor spatial resolution on landscape structure parameters[J]. Landscape Ecology, 1995,10(2):113-120.
[16]	Wu J G.Effects of changing scale on landscape pattern analysis: scaling relations[J]. Landscape Ecology, 2004,19(2):125-138. doi: 10.1023/B:LAND.0000021711.40074.ae
[17]	Uuemaa E, Roosaare J, Mander U.Scale Dependence of landscape metrics and their indicatory value for nutrient and organic matter losses from catchments[J]. Ecological Inicators, 2005,5:350-369. doi: 10.1016/j.ecolind.2005.03.009
[18]	Buyantuyev A, Wu J G, Gries C.Multiscale analysis of the urbanization pattern of Phoenix Metropolitan landscape of USA: Time, space, and thematic resolution[J]. Landscape and Urban Planning, 2010,94:206-217.
[19]	Alhamad M N, Alrababah M A, Feagin R A, et al.Mediterranean drylands: The effect of grain size and domain of scale on landscape metrics[J]. Ecological Indicators, 2011,11:611-621.
[20]	孟陈,李俊祥,朱颖,等.粒度变化对上海市景观格局分析的影响[J].生态学杂志,2007,26(7):1138-1142.
	[ Meng C, Li J X, Zhu Y, et al.Effects of changing grain size on urban landscape pattern analysis of Shanghai[J]. Chinese Journal of Ecology, 2007,26(7):1138-1142. ]
[21]	朱明,濮励杰,李建龙.遥感影像空间分辨率及粒度变化对城市景观格局分析的影响[J].生态学报,2008,28(6):2753-2763.
	[ Zhu M, Pu L J, Li J L.Effects of varied remote sensor spatial resolution and grain size on urban landscape pattern analysis[J]. Acta Ecologica Sinica, 2008,28(6):2753-2763. ]
[22]	游丽平,林广发,杨陈照,等.景观指数的空间尺度效应分析——以厦门岛土地利用格局为例[J].地球信息科学,2008,10(1):74-79.
	[ You L P, Lin G F, Yang C Z, et al.The effects of spatial scales on landscape indices: a case study of landuse pattern of Xiamen Island[J]. Geo-information Science, 2008,10(1):74-79. ]
[23]	Saura S, Castro S.Scaling functions for landscape pattern metrics derived from remotely sensed data: Are their subpixel estimates really accurate?[J]. ISPRS Journal of Photogrammetry and Remote Sensing, 2007,62(3):201-216. doi: 10.1016/j.isprsjprs.2007.03.004
[24]	张娜. 生态学中的尺度问题——尺度上推[J].生态学报,2007,27(10):4252-4265.
	[ Zhang N.Scale issues in ecology:upscaling[J]. Acta Ecologica Sinica, 2007,27(10):4252-4265. ]
[25]	Arganaraz J P, Entraigas I.Scaling functions evaluation for estimation of landscape metrics at higher resolutions[J]. Ecological Informatics, 2014,22:1-12.
[26]	高燕. 云蒙湖流域土地利用变化的尺度效应研究[D].济南:山东师范大学, 2014.
	[ Gao Y.Scale effect research on land use change in Yunmeng Lake Watershed[D]. Jinan: Shandong Normal University, 2014. ]
[27]	郑达贤,陈佳源,吴幼恭,等.闽东南沿海一些地理环境特征的再认识[J].地理学报,1991,46(4):405-414. doi: 10.11821/xb199104003
	[ Zheng D X, Chen J Y, Wu Y G, et al.Reconsideration on characters of geographical environmrnt in the South-Eastern Coast Region of Fujian[J]. Acta Geographical Sinica. 1991,46(4):405-414. ] doi: 10.11821/xb199104003
[28]	黄彩霞,李小梅,沙晋明.主题分辨率对NDVI空间格局的影响[J].生态学报,2011,31(18):5414-5420.
	[ Huang C X, Li X M, Sha J M.The impact of thematic resolution on NDVI spatial pattern. Acta Ecologica Sinica, 2011,31(18):5414-5420. ]
[29]	McGarigal K. Fragstats: Spatial pattern analysis program for categorical maps[EB/OL]. www.umass.edu/landeco/2014.
[30]	布仁仓,胡远满,常禹,等.景观指数之间的相关分析[J].生态学报,2005,25(10):2764-2775. doi: 10.3321/j.issn:1000-0933.2005.10.044
	[ Bu R C, Hu Y M, Chang Y, et al.A correlation analysis on landscape metrics[J]. Acta Ecologica Sinica, 2005,25(10):2764-2775. ] doi: 10.3321/j.issn:1000-0933.2005.10.044
[31]	Saura S.Effects of minimum mapping unit on land cover data spatial configuration and composition[J]. International Journal of Remote Sensing, 2002,23(22):4853-4880.
[32]	Comber A, Fisher P, Wadsworth R.You know what land cover is but does anyone else? an investigation into semantic and ontological confusion[J]. International Journal of Remote Sensing, 2005,26(1):223-228.

景观指数	拟合函数	粒度分析范围/m	坑仔口溪			诗溪				九十九溪
景观指数	拟合函数	粒度分析范围/m	a		b	R2	a	b	R2	a	b	R2
ED	对数	30~150	-31.889	200.463	1.000	-43.729	260.818	0.996		-44.987	264.643	0.996
		2.5~150	-26.682	178.560	0.972	-40.624	248.552	0.982		-42.196	253.778	0.983
SHAPE_MN	幂函数	30~150	2.339	-0.136	0.987	1.577	-0.046	0.960		1.517	-0.045	0.936
		2.5~150	2.517	-0.153	0.993	2.129	-0.115	0.909		2.024	-0.111	0.907
CONTIG_MN	幂函数	30~150	2.907	-0.575	0.990	0.750	-0.301	0.994		0.799	-0.326	0.982
		2.5~150	1.436	-0.414	0.972	1.165	-0.402	0.985		1.151	-0.409	0.990
FRAC_MN	幂函数	30~150	1.179	-0.028	0.992	1.104	-0.013	0.968		1.102	-0.014	0.969
		2.5~150	1.197	-0.031	0.993	1.181	-0.029	0.936		1.176	-0.029	0.938
CONTAG	幂函数	30~150	75.679	-0.090	0.972	69.552	-0.085	0.986		59.985	-0.098	0.965
		2.5~150	75.487	-0.088	0.985	71.891	-0.092	0.993		64.261	-0.113	0.989
AI	对数	30~150	-11.019	123.938	0.999	-10.178	117.515	1.000		-8.946	113.148	0.998
		2.5~150	-8.147	111.623	0.956	-8.452	110.197	0.977		-7.925	108.905	0.983
SHDI	线性	30~150	-0.001	1.352	0.986	0.000	1.424	0.973		-0.001	1.778	0.997
		2.5~150	-0.001	1.345	0.977	0.000	1.422	0.985		-0.001	1.775	0.995

景观指数	研究区	估计值			实测值				相对误差/（%）
景观指数	研究区	2.5 m		5 m	10 m	2.5 m	5 m	10 m	2.5 m	5 m	10 m
ED	坑仔口溪	171.243	149.140	127.036	136.167	132.554	122.277		25.8	12.5	3.9
	诗溪	220.756	190.451	160.147	189.370	180.905	162.781		16.6	5.3	-1.6
	九十九溪	223.422	192.239	161.057	192.410	184.338	164.612		16.1	4.3	-2.2
SHAPE_MN	坑仔口溪	2.065	1.879	1.710	2.153	2.041	1.778		-4.1	-7.9	-3.8
	诗溪	1.512	1.464	1.419	2.071	1.893	1.632		-27.0	-22.7	-13.1
	九十九溪	1.456	1.411	1.368	1.976	1.811	1.559		-26.3	-22.1	-12.3
CONTIG_MN	坑仔口溪	1.716	1.152	0.773	0.851	0.713	0.537		101.7	61.6	44.2
	诗溪	0.569	0.462	0.375	0.847	0.679	0.470		-32.8	-32.0	-20.2
	九十九溪	0.593	0.473	0.377	0.823	0.650	0.452		-28.0	-27.3	-16.5
FRAC_MN	坑仔口溪	1.149	1.127	1.105	1.161	1.146	1.116		-1.0	-1.6	-1.0
	诗溪	1.091	1.081	1.071	1.164	1.145	1.108		-6.3	-5.6	-3.3
	九十九溪	1.088	1.077	1.067	1.160	1.139	1.102		-6.2	-5.4	-3.1
CONTAG	坑仔口溪	69.688	65.474	61.514	67.065	65.209	62.410		3.9	0.4	-1.4
	诗溪	64.341	60.659	57.189	64.493	62.219	58.945		-0.2	-2.5	-3.0
	九十九溪	54.833	51.232	47.868	56.338	53.893	50.406		-2.7	-4.9	-5.0
AI	坑仔口溪	113.841	106.204	98.566	98.305	96.698	93.905		15.8	9.8	5.0
	诗溪	108.189	101.134	94.079	97.642	95.492	91.883		10.8	5.9	2.4
	九十九溪	104.951	98.750	92.549	97.605	95.409	91.799		7.5	3.5	0.8
SHDI	坑仔口溪	1.350	1.347	1.342	1.337	1.337	1.337		0.9	0.7	0.4
	诗溪	1.424	1.424	1.424	1.418	1.418	1.418		0.4	0.4	0.5
	九十九溪	1.776	1.773	1.768	1.768	1.768	1.767		0.4	0.3	0.0
