ESTARFM模型在西藏色林错湖面积时空变化中的应用分析(1976-2014年)

doi:10.3724/SP.J.1047.2016.00833

地球信息科学学报 ›› 2016, Vol. 18 ›› Issue (6): 833-846.doi: 10.3724/SP.J.1047.2016.00833

ESTARFM模型在西藏色林错湖面积时空变化中的应用分析(1976-2014年)

郝贵斌^1,²(), 吴波¹, 张立福^2,^*(), 付东杰², 李瑶²

1. 福州大学空间数据挖掘和信息共享教育部重点实验室,福建省空间信息工程研究中心,福州 350002
2. 中国科学院遥感与数字地球研究所遥感科学国家重点实验室,北京 100101

收稿日期:2015-07-09 修回日期:2015-09-18 出版日期:2016-06-10 发布日期:2016-06-10
作者简介:
作者简介：郝贵斌（1990-）,男,硕士生,研究方向为时空数据融合与长时间序列分析。E-mail: haoguibin2009@126.com
基金资助:
国家自然科学基金项目（41201348、41371359、41571330）;高分水利遥感应用示范系统(08-Y30B07-9001-13/15-01);福建省科学基金项目（2015J01163）

Temporal and Spatial Variation Analysis of the Area of Siling Co Lake in Tibet Based on ESTARFM (1976-2014)

HAO Guibin^1,²(), WU Bo¹, ZHANG Lifu^2,^*(), FU Dongjie², LI Yao²

1. Key Laboratory of Spatial Data Mining and Information Sharing of Ministry of Education, Spatial Information Research Center of Fujian Province, Fuzhou University, Fuzhou 350002, China
2. State Key Laboratory of Remote Sensing Science, Institute of Remote Sensing and Digital Earth, Chinese Academy of Sciences, Beijing 100101, China

Received:2015-07-09 Revised:2015-09-18 Online:2016-06-10 Published:2016-06-10
Contact: ZHANG Lifu

摘要/Abstract

摘要：

湖泊（特别是内陆湖）作为全球气候变化的敏感区域,是气候变化与环境变异的指示器,其面积变化在一定程度上可反映区域的气候变化。因此,精确监测湖泊面积的时空变化,对分析区域生态环境变化具有重要的意义。本文基于ESTARFM时空数据融合模型,利用MODIS数据模拟了2000年后无法得到的Landsat数据;利用NDWI和MNDWI 2种水体指数并辅以DEM数据分析了1976-2014年西藏色林错湖湖面面积的时空变化;综合湖区周围6个气象站点的气象数据(1970-2014年),探究了湖面面积变化的原因及其对气候变化的响应。结果表明：(1)利用ESTARFM时空融合模型得到的Landsat-Like数据与真实的Landsat数据在水体信息提取方面具有较高的相关性,R²可达0.93,时空数据融合的结果可用于湖泊水体的信息提取;(2)近40年来（1976-2014年）,色林错湖处于持续扩张状态,面积呈较显著的增长趋势,增加了近711.652 km²,增幅为42.36%,年平均增长速率约为18.728 km²a^-1,增长最快时可达55.954 km²a^-1;湖面面积变化先后经历了平稳变化-迅速变化-平稳变化3个阶段;北部湖区在40年间变化最为明显,向北扩展了约22.812 km;2003-2005年,南部湖区已与雅根错湖连为一体,随后二者共同扩张;(3)气温的持续升高造成的冰雪融水补给增加可能是导致湖泊面积扩张的主要因素,风速的降低为次要因素,湖面的面积变化与降水量、日照时数的变化相关性不明显。

关键词: 时空融合, ESTARFM, MODIS, Landsat, 西藏色林错, 时空分析

Abstract:

Lakes, especially the inland lakes, are sensitive to global climate change, which are the indicator of environmental variation. The area of lakes can reflect local climate change information. Thus, the rapid and accurate monitor of the dynamic change of the lake area is of great significance to analyze regional ecological environment. Based on MODIS data, this study used ESTARFM to simulate the Landsat data which are unavailable after 2000, and utilized two types of water index assisted by DEM data to analyze the dynamic area change of Siling Co Lake in Tibet from 1976 to 2014. Then, we analyzed the reasons of lake area change and its respond to climate change using the meteorological data acquired by six adjacent meteorological stations from 1976 to 2014. Conclusions can be made according to the results as the following statements. (1) The Landsat-like data acquired by ESTARFM was consistent to the real Landsat data in water information extraction, whose determination coefficient can reach a value of greater than 0.93. So, the fused data can be applied to extract the information of lakes. (2) Siling Co kept expanding from 1976 to 2014, the area of which increased approximately 711.652 km², which is 42.36% larger. The average annual growth was about 18.728 km², and the largest annual increase was up to 55.954 km². The whole process of lake area change can be divided into three stages: the smooth change, the rapid change, and the smooth change again. The northern region changed most obviously, extending northward for about 22.812 km². From 2003 to 2005, the southern region was integrated with Ya Gencuo Lake, and then they expanded together. (3) The snow-ice melting water supply caused by global warming might be the main reason for lake spread, and the decrease of wind speed was the secondary factor. However, the amount of precipitation and sunshine duration were poorly related to the lake area change.

Key words: temporal-spatial fusion, ESTARFM, MODIS, Landsat, Siling Co, temporal and spatial variation analysis

郝贵斌, 吴波, 张立福, 付东杰, 李瑶. ESTARFM模型在西藏色林错湖面积时空变化中的应用分析(1976-2014年)[J]. 地球信息科学学报, 2016, 18(6): 833-846.DOI:10.3724/SP.J.1047.2016.00833

HAO Guibin,WU Bo,ZHANG Lifu,FU Dongjie,LI Yao. Temporal and Spatial Variation Analysis of the Area of Siling Co Lake in Tibet Based on ESTARFM (1976-2014)[J]. Journal of Geo-information Science, 2016, 18(6): 833-846.DOI:10.3724/SP.J.1047.2016.00833

图/表 16

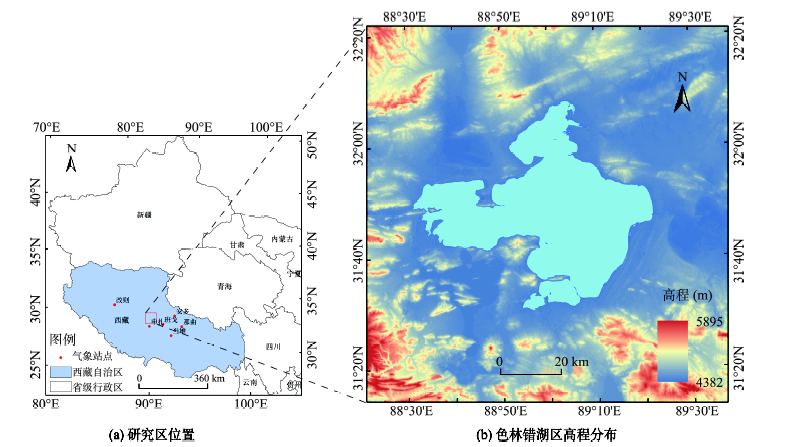

图1

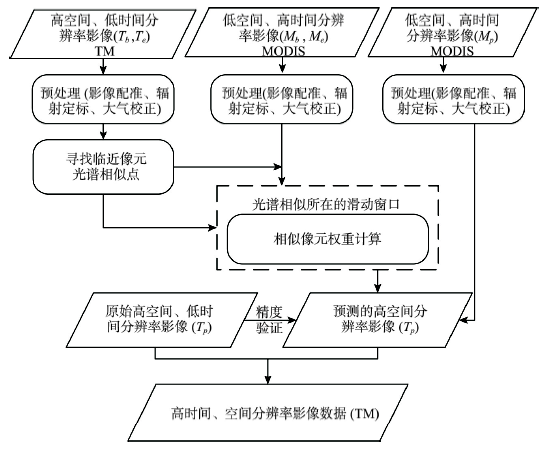

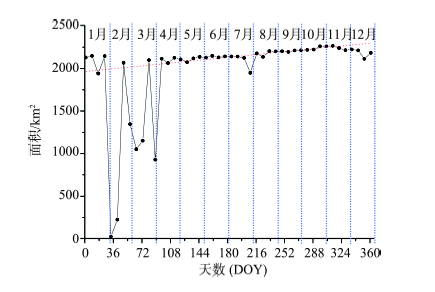

图2

表1

表2

表3

图3

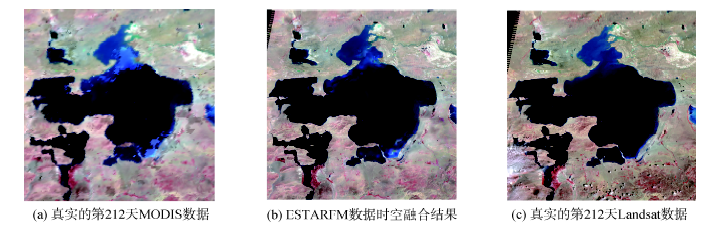

图4

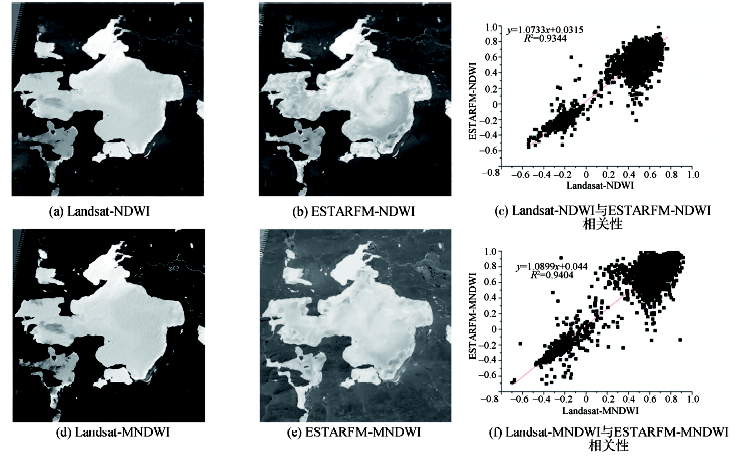

图5

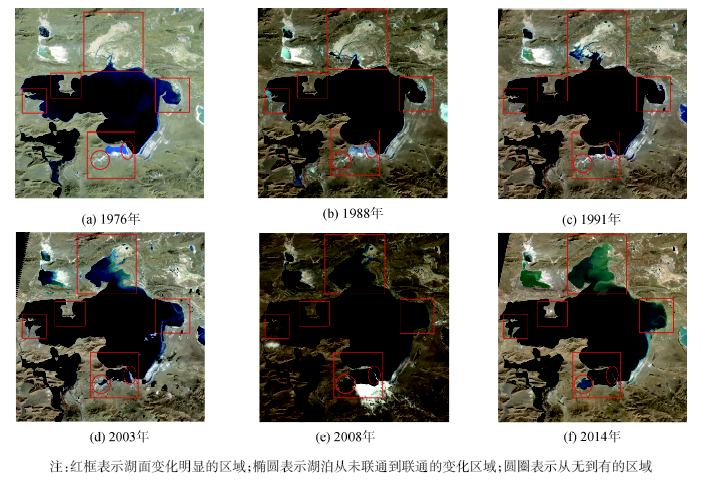

图6

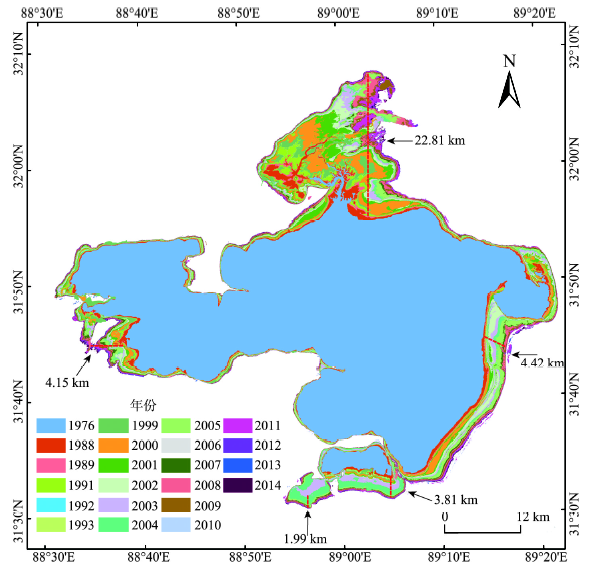

图7

图8

表4

图9

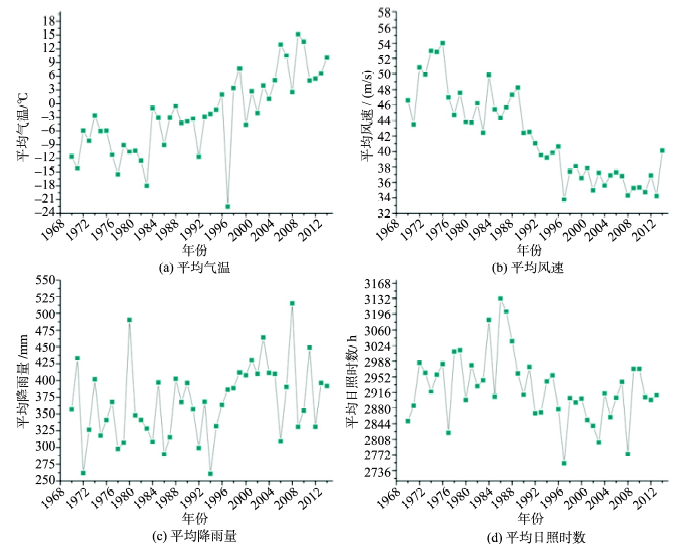

图10

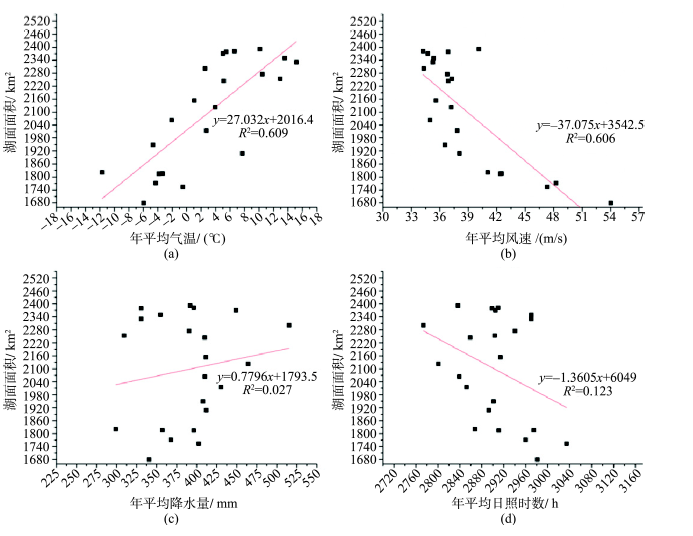

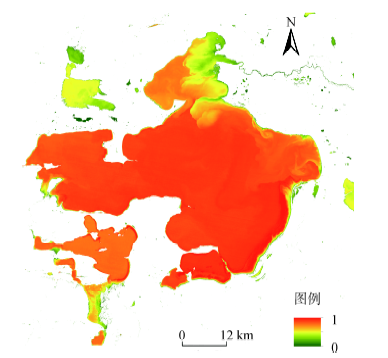

图11

图12

参考文献 37

[1]	Aerts R, Cornelissen J H C, Dorrepaal E. Plant performance in a warmer world: general responses of plants from cold, northern biomes and the importance of winter and spring events[J]. Plant Ecology, 2006,182(1-2):65-77. doi: 10.1007/s11258-005-9031-1
[2]	Yu G E, Harrison S P.Holocene changes in atmospheric circulation patterns as shown by lake status changes in northern Europe[J]. Boreas, 1995,24(3):260-268.
[3]	Song C Q, Huang B, Ke L H.Modeling and analysis of lake water storage changes on the Tibetan Plateau using multi-mission satellite data[J]. Remote Sensing of Environment, 2013,135:25-35. doi: 10.1016/j.rse.2013.03.013
[4]	杨日红,于学政,李玉龙.西藏色林错湖面增长遥感信息动态分析[J].国土资源遥感,2004(2):64-67. doi: 10.3969/j.issn.1001-070X.2003.02.015
	[ Yang R H, Yu X Z, Li Y L, et al.The dynamic analysis of remote sensing information for monitoring the expansion of the Selincuo lake in Tibet[J]. Remote Sensing For Land & Resources, 2004,2:64-67. ] doi: 10.3969/j.issn.1001-070X.2003.02.015
[5]	边多,杨志刚,李林,等.近30年来西藏那曲地区湖泊变化对气候波动的响应[J].地理学报,2006,61(5):510-518.
	[ Bian D, Yang Z G, Chu D, et al.The response of lake area change to climate variations in the north Tibetan Plateau during last 30 years[J]. Acta Geographica Sinica, 2006,61(5):510-518. ]
[6]	赵元艺,赵希涛,郑绵平,等.西藏班戈错近50年来的湖面变化[J].地质学报,2006,80(6):876-884.
	[ Zhao Y Y, Zhao X T, Zheng M P, et al.The denivellation of Bankog Co in the past 50 years,Tibet[J]. Acta Geologica Sinica, 2006,80(6):876-884. ]
[7]	除多,普穷,朱立平,等.近40a 西藏羊卓雍错湖泊面积变化遥感分析[J].湖泊科学,2012,24(3):494-502.
	[ Chu D, Pu Q, LABA Z M, et al.The denivellation of Bankog Co in the past 50 years,Tibet[J]. Journal of Lake Sciences, 2012,24(3):494-502. ]
[8]	Kutzbach J E, Guetter P J, Ruddiman W F, et al.Sensitivity of climate to late Cenozoic uplift in southern Asia and the American west: numerical experiments[J]. Journal of Geophysical Research: Atmospheres (1984-2012), 1989,94(D15):18393-18407.
[9]	闫立娟,齐文.青藏高原湖泊遥感信息提取及湖面动态变化趋势研究[J].地球学报,2015(1):67-76.
	[ Yan L J, Qi W.Lakes in Tibetan Plateau extraction from remote sensing and their dynamic changes[J]. Acta Geographica Sinica, 2015,1:67-76. ]
[10]	车向红,冯敏,姜浩,等.2000-2013 年青藏高原湖泊面积MODIS遥感监测分析[J].地球信息科学学报 STIC, 2015,17(1):99-107.
	[ Che X H, Feng M, Jiang H, et al.Detection and analysis of Qinghai-Tibet Plateau lake area from 2000 to 2013[J]. Journal of Geo-information Science, 2015,17(1):99-107. ]
[11]	秦伯强. 近百年来亚洲中部内陆湖泊演变及其原因分析[J].湖泊科学,1999,11(1):11-19.
	[ Qin B Q.Spreliminary investigation of lake evolution in 20-century in inland mainland Asia with relation to the global warming[J]. Journal of Lake Sciences, 1999,11(1):11-19. ]
[12]	边多,拉巴,王彩云,等.1975-2008年西藏色林错湖面变化对气候变化的响应[J].地理学报,2010,65(3):313-319. [ Bian D, La B, Wang C Y, et al. The response of level of Selin Co to climate change during 1975-2008[J]. Acta Geographica Sinica, 2010,65(3):313-319. ]
[13]	孟恺,石许华,王二七,等.青藏高原中部色林错湖近10年来湖面急剧上涨与冰川消融[J].科学通报,2012,57(7):571-579. doi: 10.1360/csb2012-57-7-571
	[ Meng K, Shi X H, Wang E, et al.High-altitude salt lake elevation changes and galcial ablation in central Tibet, 2000-2010[J]. Chinese Science Bulletin, 2012,57(7):571-579. ] doi: 10.1360/csb2012-57-7-571
[14]	杜鹃,杨太保,何毅.1990-2011年色林错流域湖泊-冰川变化对气候的响应[J].干旱区资源与环境,2014,28(12):88-93. [ Du J, Yang T B, He Y, et al. Glaciers and lakes changes and climate response in the Slin Co basin from 1990 to 2011[J]. Journal of Arid Land Resource and Environment, 2014,28(12):88-93. ]
[15]	拉巴,陈涛.基于MODIS 影像的西藏典型内陆湖泊变化研究及成因分析[J].气象与环境科学,2011,34(3):37-40.
	[ La B, Chen T.Change research and cause analysis of inland lakes in Tibet based on MODIS image[J]. Meteorological and Environmental Sciences, 2011,34(3):37-40. ]
[16]	Meng K, Shi X H, Wang E, et al.High-altitude salt lake elevation changes and glacial ablation in Central Tibet, 2000-2010[J]. Chinese Science Bulletin, 2012,57(5):525-534. doi: 10.1007/s11434-011-4849-5
[17]	Zhu X L, Chen J, Gao F, et al.An enhanced spatial and temporal adaptive reflectance fusion model for complex heterogeneous regions[J]. Remote Sensing of Environment, 2010,114(11):2610-2623.
[18]	邵兆刚,朱大岗,孟宪刚,等.青藏高原近25年来主要湖泊变迁的特征[J]. 地质通报, 2007,26(12):1633-1645.
	[ Shao Z G, Zhu D G, Meng X G,et al.Characteristics of the change of major lakes on the Qinghai-Tibet Plateau in the last 25 years[J]. Geological Bulletin of China, 2007,26(12):1633-1645. ]
[19]	Bian D, Yang Z G, Li L, et al.The response of lake area change to climate variations in north Tibetan Plateau during last 30 years[J]. Acta Geographica Sinica, 2006,5(7):510-518.
[20]	王昆,张丽,王志勇,等.基于半方差函数的STARFM改进模型[J].测绘科学,2013(3):140-142.
	[ Wang K, Zhang L, Wang Z Y, et al.Research of improved STARFM based on spatial structure variation[J]. Science of Surveying and Mapping, 2013,3:140-142. ]
[21]	Frazier P S, Page K J.Water body detection and delineation with Landsat TM data[J]. Photogrammetric Engineering and Remote Sensing, 2000,66(12):1461-1468.
[22]	Maier H R, Dandy G C.Neural networks for the prediction and forecasting of water resources variables: a review of modelling issues and applications[J]. Environmental modelling & software, 2000,15(1):101-124.
[23]	Sohn Y, Rebello N S.Supervised and unsupervised spectral angle classifiers[J]. Photogrammetric Engineering and Remote Sensing, 2002,68(12):1271-1282. doi: 10.1016/S0031-0182(02)00531-X
[24]	Mouchot M C, Alföldi T, De Lisle D, et al.Monitoring the water bodies of the Mackenzie Delta by remote sensing methods[J]. Arctic, 1991,44:21-28.
[25]	徐涵秋. 利用改进的归一化差异水体指数 (MNDWI) 提取水体信息的研究[J].遥感学报, 2005,9(5):589-595. doi: 10.3321/j.issn:1007-4619.2005.05.012
	[ Xu H Q.A study on information extraction of water body with the Modified Normalized Difference Water Index(MNDWI)[J]. Journal of Remote Sensing, 2005,9(5):589-595. ] doi: 10.3321/j.issn:1007-4619.2005.05.012
[26]	Xu H Q.Modification of normalised difference water index (NDWI) to enhance open water features in remotely sensed imagery[J]. International Journal of Remote Sensing, 2006,27(14):3025-3033.
[27]	Ouma Y O, Tateishi R.A water index for rapid mapping of shoreline changes of five East African Rift Valley lakes: An empirical analysis using Landsat TM and ETM+ data[J]. International Journal of Remote Sensing, 2006,27(15):3153-3181.
[28]	闫霈,张友静,张元.利用增强型水体指数(EWI)和GIS去噪音技术提取半干旱地区水系信息的研究[J].遥感信息,2008(6):62-67.
	[ Yan P, Zhang Y J, Zhang Y, et al.A study on information extraction of water system in semi-arid regions with the Enhanced Water Index(EWI) and GIS based noise remove techniques[J]. Remote Sensing Information, 2008,6:62-67.]
[29]	丁凤. 基于新型水体指数(NWI)进行水体信息提取的实验研究[J].测绘科学,2009,34(4):155-157.
	[ Ding F.Study on information extraction of water body with a new water index(NWI)[J]. Science of Surveying and Mapping, 2009,34(4):155-157. ]
[30]	莫伟华,孙涵,钟仕全,等.MODIS水体指数模型(ClWI)研究及其应用[J].遥感信息,2007(5):16-21.
	[ Mo W H, Sun H, Zhong S Q, et al.Research on the CIWI model and its application[J]. Remote Sensing Information, 2007,5:16-21. ]
[31]	McFeeters S K. The use of the Normalized Difference Water Index (NDWI) in the delineation of open water features[J]. International Journal of Remote Sensing, 1996,17(7):1425-1432.
[32]	Tang B H, Shrestha B, Li Z L, et al.Determination of snow cover from MODIS data for the Tibetan Plateau region[J]. International Journal of Applied Earth Observation and Geoinformation, 2013,21:356-365.
[33]	蒲健辰,姚檀栋,王宁练,等.近百年来青藏高原冰川的进退变化[J].冰川冻土,2004,26(5):517-522.
	[ Pu J C, Yao T D, Wang N L, et al.Fluctuations of the glaciers on the Qinghai-Tibetan Plateau during the past century[J]. Journal of Glaciology and Geocryology, 2004,26(5):517-522. ]
[34]	金会军,李述训,王绍令,等.气候变化对中国多年冻土和寒区环境的影响[J].地理学报, 2000,55(2):161-173.
	[ Jin H J, Li S X, Wang S L, et al.Impacts of climatic change on permafrost and cold region environments in China[J]. Acta Geographica Sinica, 2000,55(2):161-173. ]
[35]	鲁安新,姚檀栋,刘时银,等.青藏高原各拉丹冬地区冰川变化的遥感监测[J].冰川冻土, 2002,24(5):559-562.
	[ Lu A X, Yao T D, Liu S Y, et al.Glacier change in the Geladandong area of the Tibetan Plateau monotored by remote sensing[J]. Journal of Glaciology and Geocryology, 2002,24(5):559-562. ]
[36]	李林,朱西德,汪青春,等.青海高原冻土退化的若干事实揭示[J].冰川冻土,2005(3):320-328.
	[ Li L, Zhu X D, Wang Q C, et al.Mapping and analyses of permafrost change in the Qinghai Plateau using GIS[J]. Journal of Glaciology and Geocryology, 2005,3:320-328. ]
[37]	鲁安新,姚檀栋,王丽红,等.青藏高原典型冰川和湖泊变化遥感研究[J].冰川冻土,2005,27(6):783-792.
	[ Lu A X, Yao T D, Wang L H, et al.Study on the fluctuations of typical glaciers and lakes in the Tibetan Plateau using remote sensing[J]. Journal of Glaciology and Geocryology, 2005,27(6):783-792. ]

年份	日期(DOY)	传感器类型	行号/列号	空间分辨率/m
1976	11-13(318)	MSS	150/38	60
1988	11-30(335)	TM	139/38	30
1989	11-18(322)	TM	139/38	30
1991	11-08(312)	TM	139/38	30
1992	11-10(315)	TM	139/38	30
1993	11-13(317)	TM	139/38	30
1999	11-06(310)	ETM+	139/38	30
2000	11-08(313)	ETM+	139/38	30
2001	11-11(315)	ETM+	139/38	30
2002	11-30(334)	ETM+	139/38	30
2003	11-09(313)	TM	139/38	30
2004	11-02(307)	TM	139/38	30
2005	11-14(318)	TM	139/38	30
2009	10-31(308)	TM	139/38	30
2014	11-07(311)	OLI	139/38	30

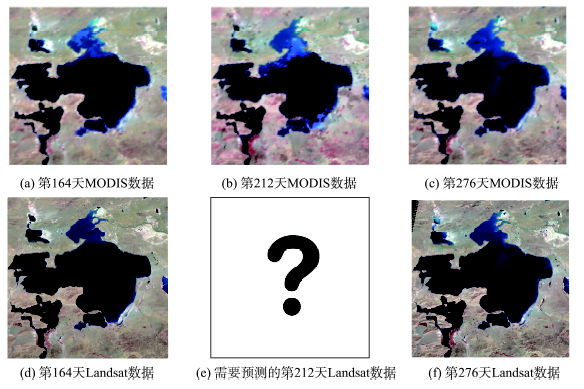

年份	预测日期(DOY)	利用的TM数据日期(DOY)	利用的MODIS数据日期(DOY)
2006	313	273 337	273 337
2007	313	276	273
2008	313	279	281
2010	313	220 364	217 361
2011	313	239	241
2012	313	282 346	281 345
2013	313	212 340	209 337

光谱范围	Landsat TM波段(分辨率/m)	波段范围/μm	MODIS波段(分辨率/m)	波段范围/μm
可见光(蓝)	B1(30)	0.450~0.520	B3(500)	0.459~0.479
可见光(绿)	B2(30)	0.520~0.600	B4(500)	0.545~0.565
可见光(红)	B3(30)	0.620~0.690	B1(250)	0.620~0.670
近红外	B4(30)	0.760~0.900	B2(250)	0.841~0.876
中红外	B5(30)	1.550~1.750	B6(500)	1.628~1.652
热红外	B6(60)	1.040~1.250	B5(500)	1.230~1.250
中红外	B7(30)	2.080~2.350	B7(500)	2.105~2.155

年份	Landsat面积	MODIS面积	年份	Landsat面积	MODIS面积
1976	1679.911	-	2004	2153.267	2139
1988	1753.616	-	2005	2244.368	2245.5
1989	1771.530	-	2006	2254.180	2258.5
1991	1814.634	-	2007	2275.484	2272
1992	1815.849	-	2008	2301.161	2294
1993	1821.047	-	2009	2330.384	2308
1999	1908.646	-	2010	2349.389	2336.75
2000	1948.622	1955	2011	2370.803	2370.25
2001	2014.540	2011.5	2012	2379.063	2385
2002	2063.507	2053.5	2013	2381.619	2383.75
2003	2122.813	2122	2014	2391.563	2392.75
