基于多源数据的青藏高原雪深重建

doi:10.3724/SP.J.1047.2016.00941

摘要/Abstract

摘要：

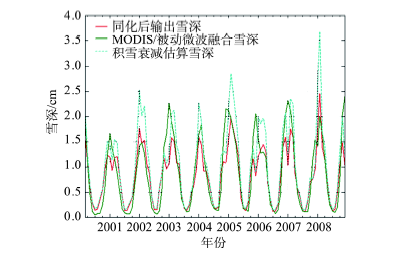

青藏高原地形复杂,积雪时空分布异质性较强且大部分地区积雪较薄,而被动微波遥感因其空间分辨率低以及雪深反演中的不确定性,极大地限制了其反演青藏高原雪深的精度。本文尝试将多源遥感数据以及与积雪模型（SnowModel）相结合,来重建更高质量的青藏高原雪深数据。首先,利用MODIS积雪面积比例产品,根据构建的积雪衰减曲线以及经验的融合规则对低分辨率被动微波雪深进行了降尺度;然后,结合MODIS/被动微波融合雪深数据和SnowModel对研究区进行雪深数据同化实验;最后,利用地面站实测雪深数据对MODIS/被动微波融合雪深以及同化输出雪深的精度进行了分析和对比。结果表明,基于数据同化方法得到的雪深数据更接近地面观测雪深值,通过均方根误差以及相关系数的对比,同化雪深结果优于MODIS/被动微波融合雪深结果。

关键词: 青藏高原, 多源遥感数据, 雪深, 重建

Abstract:

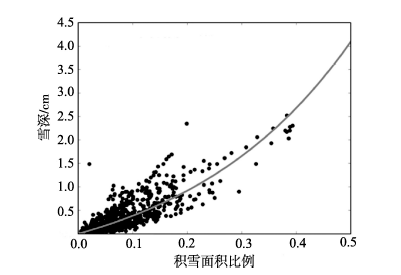

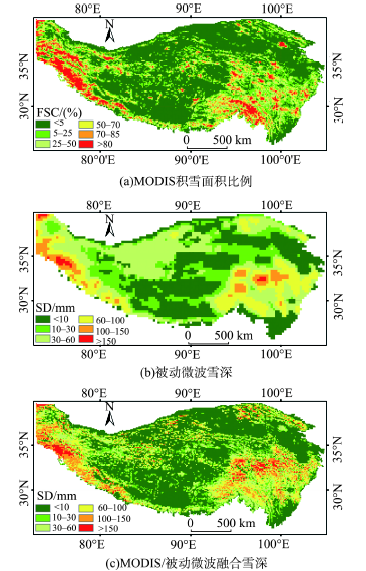

Due to the variability and complexity of the topography in the Tibetan Plateau, the snow cover over most area of Tibetan Plateau is thin and revealing a high temporal and spatial heterogeneity. The passive microwave remote sensing greatly limits the precision of retrieved snow depth over the Tibetan Plateau, on account of its low spatial resolution and the uncertainty existed during snow depth retrieval. This paper attempts to reconstruct higher quality of snow depth data over the Tibetan Plateau through the fusion of multi-source remote sensing data, combining with a physic based snow model (SnowModel). This research mainly includes the following aspects: first of all, using the in-situ observed snow depth data and corresponding MODIS fractional snow cover data, the snow depletion curve of the study area is established. The MODIS fractional snow cover products (500 m) and passive microwave snow depth products (0.25°) are combined to produce the downscaled snow depth data (0.1°) using an empirical combination rule and the established snow depletion curve. Then, the downscaled snow depth data are assimilated into the SnowModel using the ensemble Kalman filter (EnKF) method. The accuracy of the downscaled snow depth data and the assimilated snow depth are analyzed through comparing them with the in situ observed snow depth data. The results show that there is an obvious depletion curving relationship between the snow depth and fractional snow cover area in the Tibetan Plateau. Using the root mean square error (RMSE) and correlation coefficients (R) as the evaluation standard, the assimilated snow depth is evaluated to be closer to the in-situ observed snow depth than the downscaled snow depth data.

Key words: Tibet Plateau, muti-source remote sensing data, snow depth, reconstruction

唐志光, 李弘毅, 王建, 梁继, 李朝奎, 车涛, 王欣. 基于多源数据的青藏高原雪深重建[J]. 地球信息科学学报, 2016, 18(7): 941-950.DOI:10.3724/SP.J.1047.2016.00941

TANG Zhiguang,LI Hongyi,WANG Jian,LIANG Ji,LI Chaokui,CHE Tao,WANG Xin. Reconstruction of Snow Depth over the Tibetan Plateau Based on Muti-source Data[J]. Journal of Geo-information Science, 2016, 18(7): 941-950.DOI:10.3724/SP.J.1047.2016.00941

图/表 11

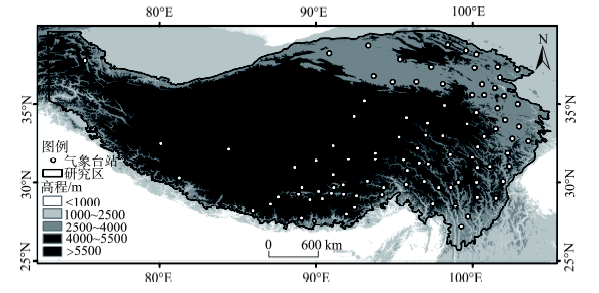

图1

图2

图3

表1

图4

图5

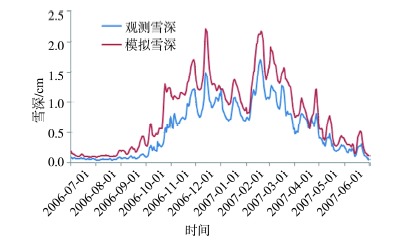

图6

表2

图7

表3

图8

参考文献 34

[24]	De Lannoy G ., Reichle R ., Arsenault K ., et al. Multiscale assimilation of advanced microwave scanning radiometer-EOS snow water equivalent and moderate resolution imaging spectroradiometer snow cover fraction observations in northern Colorado[J]. Water Resources Research, 2012,48(1):182-205.
[25]	Liu ., Peters-Lidard C D, Kumar S, et al. Assimilating satellite-based snow depth and snow cover products for improving snow predictions in Alaska[J]. Advances in Water Resources, 2013,54:208-227.
[26]	Evensen G.The ensemble Kalman filter: Theoretical formulation and practical implementation[J]. Ocean Dynamics, 2003,53(4):343-367. doi: 10.1007/s10236-003-0036-9
[27]	唐志光,王建,李弘毅,等.青藏高原MODIS积雪面积比例产品的精度验证与去云研究[J].遥感技术与应用,2013,28(3):423-430.
	[ Tang Z ., Wang ., Li H ., et al.Accuracy validation and cloud obscuration removal of MODIS fractional snow cover products over Tibetan Plateau[J]. Remote Sensing Technology and Application, 2013,28(3):423-430. ]
[28]	Pan ., Li ., Shi ., et al.Dynamic downscaling of near-surface air temperature at the basin scale using WRF-a case study in the Heihe River Basin, China[J]. Frontiers of Earth Science, 2012,6(3):314-323.
[29]	Pan X ., Li X.Validation of WRF model on simulating forcing data for Heihe River Basin[J]. Science in Cold and Arid Regions, 2011,3(4):344-357. doi: 10.3724/SP.J.1226.2011.00344
[30]	Donald ., Soulis ., Kouwen ., et al.A land cover-based snow cover representation for distributed hydrologic models[J]. Water Resources Research, 1995,31(4):995-1009. doi: 10.1029/94WR02973
[31]	Liston G ., Elder K.A distributed snow-evolution modeling system (SnowModel)[J]. Journal of Hydrometeorology, 2006,7(6):1256-1276.
[32]	Evensen G.Sequential data assimilation with a nonlinear quasi-geostrophic model using Monte Carlo methods to forecast error statistics[J]. Journal of Geophysical Research: Oceans (1978-2012), 1994,99(C5):10143-10162. doi: 10.1029/94JC00572
[33]	Burgers ., Van Leeuwen P J, Evensen G. Analysis scheme in the ensemble Kalman filter[J]. Monthly Weather Review, 1998,126(6):1719-1724.
[34]	梁顺林,李新,谢先红.陆面观测、模拟与数据同化[M].北京:高等教育出版社,2013:97-100.
[1]	胡汝骥. 中国积雪与雪灾防治[M].北京:中国环境出版社,2013.
	[ Hu R J.Snow and its disaster control in china[M]. Beijing: China Environmental Press, 2013. ]
[2]	Foster J ., Sun ., Walker J ., et al.Quantifying the uncertainty in passive microwave snow water equivalent observations[J]. Remote Sensing of Environment, 2005,9(2):187-203. doi: 10.1016/j.rse.2004.09.012
[3]	Groisman P ., Karl T ., Knight R W.Observed impact of snow cover on the heat-balance and the rise of continental spring temperatures[J]. Science, 1994,263(5144):198-200. doi: 10.1126/science.263.5144.198 pmid: 17839175
[4]	Pu ., Xu L.MODIS/Terra observed snow cover over the Tibet Plateau: distribution, variation and possible connection with the East Asian Summer Monsoon (EASM)[J]. Theoretical and Applied Climatology, 2009,97(3-4):265-278.
[5]	Zhao ., Moore G W K. On the relationship between Tibetan snow cover, the Tibetan plateau monsoon and the Indian summer monsoon[J]. Geophysical Research Letters, 2004,31(14):101-111.
[6]	Seol K-., Hong S-Y.Relationship between the Tibetan snow in spring and the East Asian summer monsoon in 2003: a global and regional modeling study[J]. Journal of Climate, 2009,22(8):2095-2110. doi: 10.1175/2008JCLI2496.1
[7]	Immerzeel W ., Bierkens M F P. Seasonal prediction of monsoon rainfall in three Asian river basins: the importance of snow cover on the Tibetan Plateau[J]. International Journal of Climatology, 2010,30(12):1835-1842.
[8]	Gao ., Williams M ., Fu ., et al.Spatiotemporal distribution of snow in eastern Tibet and the response to climate change[J]. Remote Sensing of Environment, 2012,121(138):1-9. doi: 10.1016/j.rse.2012.01.006
[9]	Tang ., Wang ., Li ., et al.Spatiotemporal changes of snow cover over the Tibetan plateau based on cloud-removed moderate resolution imaging spectroradiometer fractional snow cover product from 2001 to 2011[J]. Journal of Applied Remote Sensing, 2013,1:073582-073582.
[10]	Hall D ., Riggs G ., Salomonson V V.Development of methods for mapping global snow cover using moderate resolution imaging spectroradiometer data[J]. Remote Sensing of Environment, 1995,54(2):127-140. doi: 10.1016/0034-4257(95)00137-P
[11]	Salomonson ., Appel I.Estimating fractional snow cover from MODIS using the normalized difference snow index[J]. Remote Sensing of Environment, 2004,89(3):351-360. doi: 10.1016/j.rse.2003.10.016
[12]	Riggs G, Hall D, Salomonson V. MODIS snow products user guide to collection 5[EB/OL]. .
[13]	Chang ., Foster ., Hall ., et al.Snow water equivalent estimation by microwave radiometry[J]. Cold Regions Science and Technology, 1982,5(3):259-267. doi: 10.1016/0165-232X(82)90019-2
[14]	Armstrong R ., Brodzik M J.Hemispheric-scale comparison and evaluation of passive-microwave snow algorithms[J]. Annals of Glaciology, 2002,34(1):38-44. doi: 10.3189/172756402781817428
[15]	车涛,李新.利用被动微波遥感数据反演我国积雪深度及其精度评价[J].遥感技术与应用,2004,19(5):301-306.
	[ Che ., Li X.Retrieval of snow depth in china by passive microwave remote sensing data and its accuracy assessment[J]. Remote Sensing Technology and Application, 2004,19(5):301-306. ]
[16]	车涛,李新,高峰.青藏高原积雪深度和雪水当量的被动微波遥感反演[J].冰川冻土,2004,26(3):363-368.
	[ Che ., Li ., Gao F.Estimation of snow water equivalent in the Tibetan Plateau using passive microwave remote sensing data[J]. Journal of Glaciology and Geocryology, 2004,26(3):363-368. ]
[17]	车涛. 积雪属性非均匀性对被动微波遥感积雪的影响[J].遥感技术与应用,2013,28(1):27-33.
	[ Che T.Impacts on passive microwave remote sensing of snow from heterogeneities of snow properties[J]. Remote Sensing Technology and Application, 2013,28(1):27-33. ]
[18]	Frei ., Tedesco ., Lee ., et al.A review of global satellite-derived snow products[J]. Advances in Space Research, 2012,50(8):1007-1029. doi: 10.1016/j.asr.2011.12.021
[19]	李弘毅,王建.积雪水文模拟中的关键问题及其研究进展[J].冰川冻土,2013,35(2):430-437. doi: 10.7522/j.issn.1000-0240.2013.0051
	[ Li H ., Wang J.Key research topics and their advances on modeling snow hydrological processes[J]. Journal of Glaciology and Geocryology, 2013,35(2):430-437. ] doi: 10.7522/j.issn.1000-0240.2013.0051
[20]	Clark M ., Slater A ., Barrett A ., et al.Assimilation of snow covered area information into hydrologic and land-surface models[J]. Advances in water resources, 2006,29(8):1209-1221. doi: 10.1016/j.advwatres.2005.10.001
[21]	Su ., Yang Z ., Niu G ., et al.Enhancing the estimation of continental-scale snow water equivalent by assimilating MODIS snow cover with the ensemble Kalman filter[J]. Journal of Geophysical Research: Atmospheres, 2008,113(D8):693-702.
[22]	Andreadis K ., Lettenmaier D P.Assimilating remotely sensed snow observations into a macroscale hydrology model[J]. Advances in water resources, 2006,29(6):872-886. doi: 10.1016/j.advwatres.2005.08.004
[23]	Dong ., Walker J ., Houser P ., et al.Scanning multichannel microwave radiometer snow water equivalent assimilation[J]. Journal of Geophysical Research: Atmospheres, 2007,112(D7):277-287. doi: 10.1029/2006JD007209
[34]	[ Liang S ., Li ., Xie X H. Land Surface Observation, Modeling and Data Assimilation[M]. Beijing: Higher Education Press, 2013:97-100. ]

年份	MAE/cm	RMSE/cm	R
2001	0.31	0.77	0.74
2003	0.27	0.63	0.81
2005	0.37	0.95	0.67
平均值	0.32	0.78	0.74

	变量	扰动方法	标准差	相关系数矩阵
驱动	气温	加法	0.5	1.0	-0.5	0.3	0.6
	降水	乘法	0.5	-0.5	1.0	-0.5	0.5
	短波辐射	乘法	0.1	0.3	-0.5	1.0	-0.3
	长波辐射	加法	15	0.6	0.5	-0.3	1.0
模型状态	雪深	乘法	0.01	-	-	-	-
观测	融合雪深	乘法	0.2	-	-	-	-

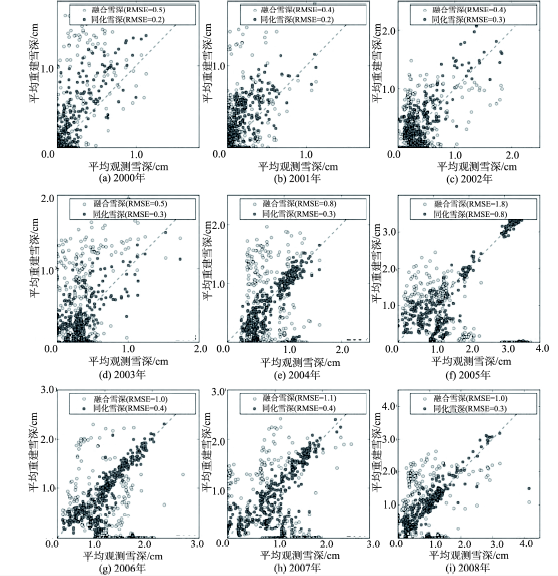

年份	融合雪深			同化雪深
年份	RMSE/cm		R	RMSE/cm	R
2000	0.51	0.51		0.20	0.73
2001	0.43	0.45		0.23	0.66
2002	0.40	0.47		0.35	0.81
2003	0.50	0.55		0.31	0.61
2004	0.80	0.40		0.34	0.79
2005	1.79	0.27		0.82	0.79
2006	1.02	0.34		0.44	0.82
2007	1.11	0.37		0.42	0.76
2008	1.05	0.41		0.34	0.87
