基于IC卡综合换乘信息的公交乘客上车站点推算

doi:10.3724/SP.J.1047.2016.01060

地球信息科学学报 ›› 2016, Vol. 18 ›› Issue (8): 1060-1068.doi: 10.3724/SP.J.1047.2016.01060

• 地球信息科学理论与方法 • 上一篇下一篇

基于IC卡综合换乘信息的公交乘客上车站点推算

宋晓晴¹(), 方志祥^1,^*(), 尹凌², 刘立寒¹, 杨喜平¹, 萧世伦^1,³

1. 武汉大学测绘遥感信息工程国家重点实验室,武汉 430079
2. 中国科学院深圳先进技术研究院,深圳 5180553. Department of Geography, University of Tennessee, Knoxville 379960925, USA

收稿日期:2015-08-05 修回日期:2015-11-14 出版日期:2016-08-10 发布日期:2016-08-10
作者简介:
作者简介：宋晓晴（1991-）,女,硕士生,研究方向为时空数据挖掘与交通地理信息系统。E-mail:xqsong@whu.edu.cn
基金资助:
国家自然科学基金项目（41231171、41371420）;中国科学院资源与环境信息系统国家重点实验室开放基金（2013）;武汉大学自主科研项目拔尖创新人才类资助项目（2042015KF0167）

A Method of Deriving the Boarding Station Information of Bus Passengers Based on Comprehensive Transfer Information Mined from IC Card Data

SONG Xiaoqing¹(), FANG Zhixiang^1,^*(), YIN Ling², LIU Lihan¹, YANG Xiping¹, Shih-Lung Shaw^1,³

1. State Key Laboratory of Information Engineering in Surveying, Mapping, Remote and Sensing, Wuhan University, Wuhan 430079, China
2. Shenzhen Institutes of Advanced Technology, Chinese Academy of Sciences, Shenzhen 518055, China 3. Department of Geography, University of Tennessee, Knoxville 379960925, USA

Received:2015-08-05 Revised:2015-11-14 Online:2016-08-10 Published:2016-08-10
Contact: FANG Zhixiang

摘要/Abstract

摘要：

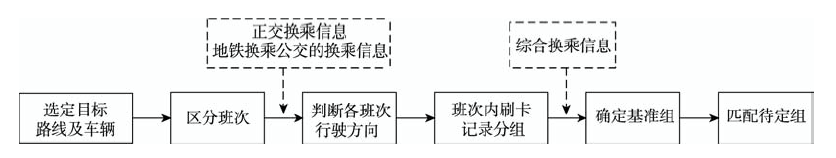

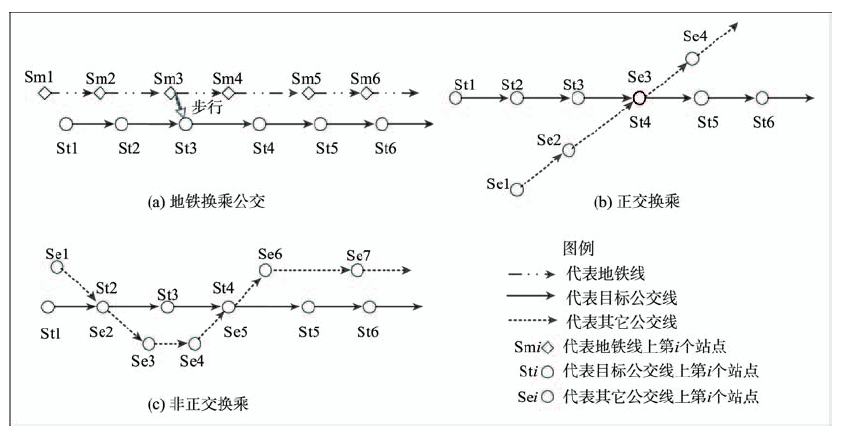

现有研究在缺少公交车运营信息的情况下,利用公交线间正交换乘信息的方法来识别公交车持卡乘客的上车站点,但在实际运用中很多班次无正交换乘的乘客,容易导致公交乘客上车站点匹配困难。因此,本文提出了一种基于IC卡综合换乘信息的公交乘客上车站点推算方法,该方法充分利用IC卡数据中的综合换乘信息（公交线间的正交和非正交换乘信息、地铁和公交线间的换乘信息）与公交网数据确定班次行驶方向,对班次内的乘客进行分组,充分利用综合换乘信息确定基准组及其对应的上车站点;然后,通过最小偏差规则匹配待定组的上车站点,实现公交乘客上车站点的推估。利用换乘信息确定班次行驶方向弥补了现有研究无法确定班次行驶方向的不足,使公交乘客上车站点推算方法更科学;最后,基于2011年8月的“深圳通”IC卡数据进行实例分析,对比只利用正交换乘信息确定的基准组数量和利用综合换乘信息确定的基准组数量,结果表明：该方法可使确定上车站点的组数占总组数的比值提高,克服了只利用正交换乘信息推算上车站点方法中存在的单个班次无基准组从而无法进行站点匹配的困难。本文方法比只利用正交换乘信息匹配站点,具有更高的可行性与准确率。

关键词: IC卡数据, 公交数据挖掘, 换乘信息, 上车站点

Abstract:

Due to the lack of bus operating data, some scholars put forward a method, which uses the orthogonal transfer information between different bus routes, to derive the boarding station information of bus passengers. However, a lot of the bus single trips lack the orthogonal transfer information in practical applications, which lead to the difficulty in deriving the boarding station information of bus passengers. To solve this issue, based on the existing research, this paper put forward a method for deriving the boarding station information of bus passengers based on the comprehensive transfer information mined from IC card data. This method uses the comprehensive transfer information between the subways and buses information mined from the IC card data to confirm the driving direction of buses, and then, divide the passengers of the same single trip into groups. These groups would match the corresponding boarding stations more accurately. We fully take use of the orthogonal transfer information and non-orthogonal transfer information between different bus routes and the transfer information between subways and buses to recognize the fiducial groups and their boarding station information, then, we use the minimum error rule to derive the pending groups′ boarding stations. Using the transfer information to confirm the driving direction could enlarge existing research on how to determine a single trip's driving direction, which makes the method of driving the boarding station information of bus passengers more complete and scientific. In the end, through example analysis, this study greatly increases the number of fiducial groups. This method has a higher reliability and accuracy compared to the method which only uses the orthogonal transfer information between different bus routes to derive the boarding station information of bus passengers. In this study, we use the transfer information to confirm the driving direction of some single trips with the absence of the location data. In addition, we use the transfer information mined from three transfer approaches to derive the boarding station information of bus passengers as well as put forward a series of constraint rules to make the result more accurate and feasible, which are considered to be the most significant innovation and contribution. Deriving the boarding station information of bus passengers is the up-front work in getting the bus passengers' demands and the bus service ability data, which has a guiding significance to urban planning.

Key words: IC Card data, traffic data mining, transfer information, boarding station

宋晓晴, 方志祥, 尹凌, 刘立寒, 杨喜平, 萧世伦. 基于IC卡综合换乘信息的公交乘客上车站点推算[J]. 地球信息科学学报, 2016, 18(8): 1060-1068.DOI:10.3724/SP.J.1047.2016.01060

SONG Xiaoqing,FANG Zhixiang,YIN Ling,LIU Lihan,YANG Xiping,Shih-Lung Shaw. A Method of Deriving the Boarding Station Information of Bus Passengers Based on Comprehensive Transfer Information Mined from IC Card Data[J]. Journal of Geo-information Science, 2016, 18(8): 1060-1068.DOI:10.3724/SP.J.1047.2016.01060

图/表 12

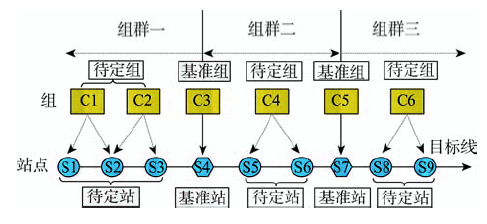

图1

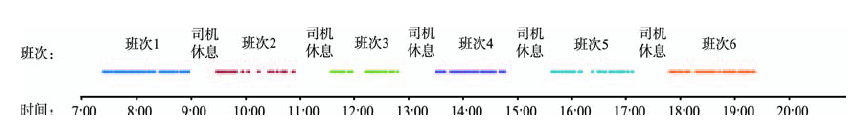

图2

表1

表2

表3

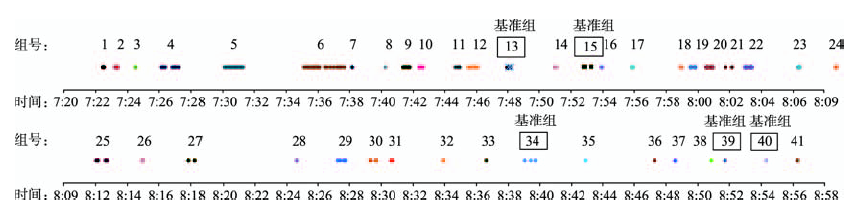

图3

表4

表5

表6

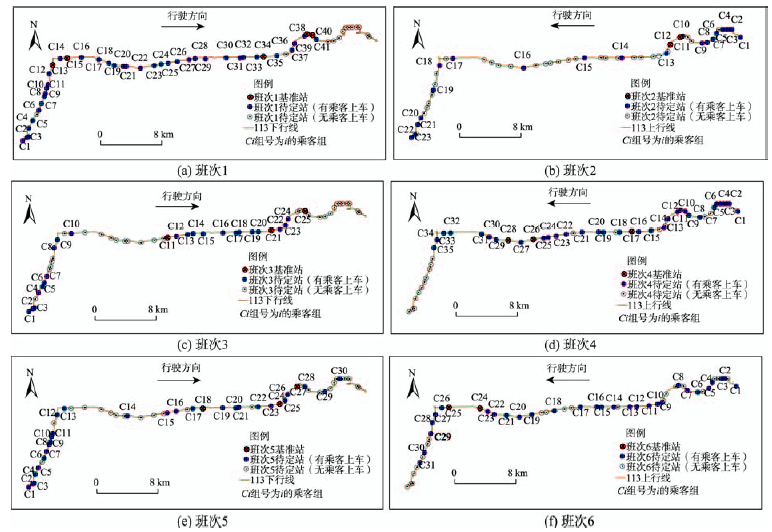

图4

图5

图6

参考文献 18

[1]	Attewell P B, Yeates J, Selby A R.Soil movements induced by tunneling and their effects on pipelines and structures[M]. London: Blackie and Son Ltd, 1986.
[2]	Bagchi M, White P R.What role for smart-card data from bus systems[J]. Proceedings of the Institution of Civil Engineers Municipal Engineer, 2004,157(1):39-46.
[3]	闫磊,李津.基于公交IC卡数据的乘客出行时空推算研究[D].长春:吉林大学,2012.
	[ Yan L, Li J.The calculate research on trip temporal of passenger based on the data of bus intelligent card[D]. Changchun: Jinlin University, 2012. ]
[4]	Pelletier M P, Trépanier M, Morency C.Smart card data use in public transit: A literature review[J]. Transportation Research Part C, 2011,19(4): 557-568. doi: 10.1016/j.trc.2010.12.003
[5]	吕慎,田锋,王京元.基于DEA的接运公交运营绩效评价[J].公路交通科技,2010,27(8):96-102. doi: 10.3969/j.issn.1002-0268.2010.08.019
	[ Lv S, Tian F, Wang J Y.Assessment of performance of feeder buses based on DEA technique[J]. Journal of Highway and Transportation Research and Development, 2010,27(8):96-102. ] doi: 10.3969/j.issn.1002-0268.2010.08.019
[6]	于勇,邓天民,肖裕民.一种新的公交乘客上车站点确定方法[J].重庆交通大学学报:自然科学版,2009,28(2):121-125. doi: 10.3969/j.issn.1674-0696.2009.01.31
	[ Yu Y, Deng T M, Xiao Y M.A novel method of confirming the boarding station of bus holders[J]. Journal of Chongqing Jiaotong University (Natural Science), 2009,28(2):121-125. ] doi: 10.3969/j.issn.1674-0696.2009.01.31
[7]	戴霄,陈学武.基于公交IC信息的公交数据分析方法研究[D].南京:东南大学,2006.
	[ Dai X, Chen X W.Approach on the information analysis of urban public traffic base on the data of bus intelligent card[D]. Nanjing: Southeast University, 2006. ]
[8]	吴美娥,杨浩.对公交IC卡数据处理分析应用的探索[D].北京:北京交通大学,2010.
	[ Wu M E, Yang H.The exploration of data processing and analysis application on the bus intelligent card[D]. Beijing: Beijing Jiaotong University, 2010. ]
[9]	陈绍辉,陈艳艳,赖见辉.基于GPS与IC卡数据的公交站点匹配方法[J].公路交通科技,2012,29(5):102-108. doi: 10.3969/j.issn.1002-0268.2012.05.017
	[ Chen S H, Chen Y Y, Lai J H.An approach on station ID and trade record match based on GPS and IC card data[J]. Journal of Highway and Transportation Research and Development, 2012,29(5):102-108. ] doi: 10.3969/j.issn.1002-0268.2012.05.017
[10]	徐建闵,熊文华,游峰.基于GPS和IC卡的单线公交OD生成方法[J].微计算机信息,2008,24(22):221-222. doi: 10.3969/j.issn.1008-0570.2008.22.091
	[ Xu J M, Xiong W H, You F.The method of singal-line public transportation OD based on GPS and intelligent card[J]. Microcomputer Information, 2008,24(22):221-222. ] doi: 10.3969/j.issn.1008-0570.2008.22.091
[11]	张颂,陈学武,陈峥嵘.基于公交IC卡数据的公交站点OD矩阵推导方法[J].武汉理工大学学报:交通科学与工程版,2014,38(2):333-337. doi: 10.3963/j.issn.2095-3844.2014.02.021
	[ Zhang S, Chen X W, Chen Z R.A method of deriving bus stops O-D matrix based on bus IC card data[J]. Journal of Wuhan University Technology (Transportation Science & Engineering), 2014,38(2):333-337. ] doi: 10.3963/j.issn.2095-3844.2014.02.021
[12]	李海波,陈学武,陈峥嵘.基于公交IC卡数据的乘客出行时间特征研究[A].新型城镇化与交通发展——2013年中国城市交通规划年会暨第27次学术研讨会论文集[C].北京:中国建筑工业出版社,2014.
	[ Li H B, Chen X W, Chen Z R.Approach on the travel time characteristic of passengers based on IC card[A]. In: A New Type of Urbanization and Transportation Development-2013 China City Traffic Planning Conference and the Proceedings of the 27th Symposium[C]. Beijing:China Architecture & Building Press, 2014. ]
[13]	侯艳,何民,张生斌.基于公交IC卡刷卡记录的居民出行OD推算方法研究[J].交通信息与安全,2012,30(6):109-114. doi: 10.3963/j.issn1674-4861.2012.06.023
	[ Hou Y, He M, Zhang S B.Origin-destination matrix estimation method based on bus smart card records[J]. Journal of Transport Information and Safety, 2012,30(6):109-114. ] doi: 10.3963/j.issn1674-4861.2012.06.023
[14]	孙旭. 公交IC卡数据分析与数据仓库构建研究[D].长春:吉林大学,2007.
	[ Sun X.Research on data analysis and data warehouse construction on the data of bus intelligent card[D]. Changchun: Jilin University, 2007. ]
[15]	Robinson S, Narayanan B, Toh N, et al.Methods for pre-processing smartcard data to improve data quality[J]. Transportation Research Part C, 2014,49:43-58. doi: 10.1016/j.trc.2014.10.006
[16]	王若琳,赵娅丽,谭永凯.基于IC卡数据的公共交通换乘识别方法[J].城市轨道交通研究,2014(2): 76-85. doi: 10.3969/j.issn.1007-869X.2014.02.017
	[ Wang R L, Zhao Y L, Tan Y K.Recognition method of transit based on intelligent card data[J]. Urban Mass Transit, 2014,2,76-85. ] doi: 10.3969/j.issn.1007-869X.2014.02.017
[17]	张孜,邹亮,朱玲湘.基于公交IC卡的公交换乘数据获取方法研究[J].交通信息与安全,2011,29(6):21-24. doi: 10.3963/j.ISSN1674-4861.2011.06.005
	[ Zhang Z, Zou L, Zhu L X.Method to collect public transportation transfer data of urban road intersection based on IC card[J]. Journal of Transport Information and Safety, 2011,29(6):21-24. ] doi: 10.3963/j.ISSN1674-4861.2011.06.005
[18]	徐文远,邓春瑶,刘宝义.基于公交IC卡数据的公交客流统计方法[J].中国公路学报,2013,26(5):158-163. doi: 10.3969/j.issn.1001-7372.2013.05.021
	[ Xu W Y, Deng C Y, Liu B Y.Approach on public traffic passenger flow statistics based on IC data[J]. China Journal of Highway and Transport, 2013,26(5):158-163. ] doi: 10.3969/j.issn.1001-7372.2013.05.021

乘客编号	卡编号	上车站点	上行编号（U）	下行编号（D）	上车时间（T）	班次号
1	0235***91	科技园②	38	16	07:53:03	1
2	3243***02	竹园宾馆①	13	41	08:51:53	1
…

乘客编号	卡编号	换乘前路线	班次号（tr）	分组号（j）	可能的换乘站点序号（i）
1	0203***54	80路	1	5	8、9、10、11、12
2	3266***86	74路	1	13	9、10、14

乘客编号	卡编号	换乘前路线	班次号（tr）	分组号（j）	可能的换乘站点序号（i）
1	3252***49	211路	2	12	13、14、15
2	0208***83	82路	2	12	15、16

班次数	班次号	本研究确定的基准组数量	本研究确定的基准组组号	正交换乘确定的基准组数量	正交换乘确定的基准组组号
6	1	5	13、15、34、39、40	2	15、39
	2	2	11、12	1	11
	3	3	11、21、25	0
	4	3	17、26、28	1	28
	5	3	18、24、27	0
	6	2	24、25	1	24

基于IC卡综合换乘信息的公交乘客上车站点推算

A Method of Deriving the Boarding Station Information of Bus Passengers Based on Comprehensive Transfer Information Mined from IC Card Data

RichHTML

PDF (PC)

赞

可视化

被引次数

摘要/Abstract

引用本文

使用本文

图/表 12

参考文献 18

相关文章 0

Metrics

本文评价

推荐阅读 0

线路名	班次数	基准组数量	正交换乘基准组数量	非正交换乘基准组数量	地铁换乘目标车基准组数量
79路	4	13	2	2	9
101路	3	6	0	1	5
113路	6	18	5	3	10
223路	10	19	7	2	10
311路	6	11	4	0	7
320路	6	23	10	6	7
323路	4	12	4	4	4
338路	6	19	4	3	12
383路	8	15	2	4	9
395路	4	13	5	1	7
