大连市城区绿地时空特征的热环境效应研究

doi:10.3724/SP.J.1047.2016.01087

摘要/Abstract

摘要：

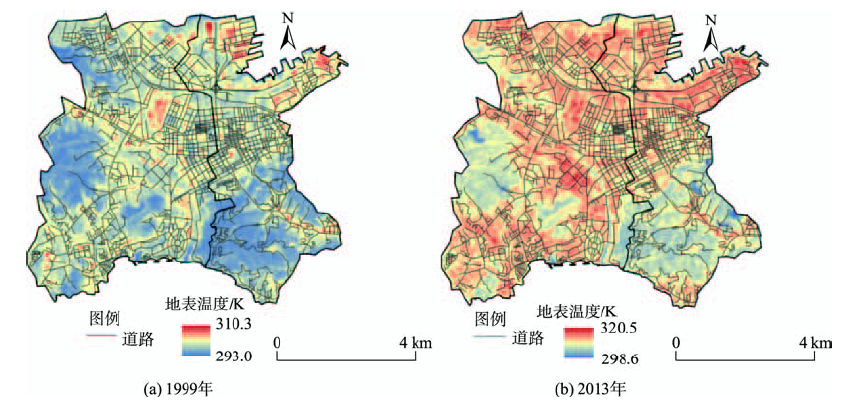

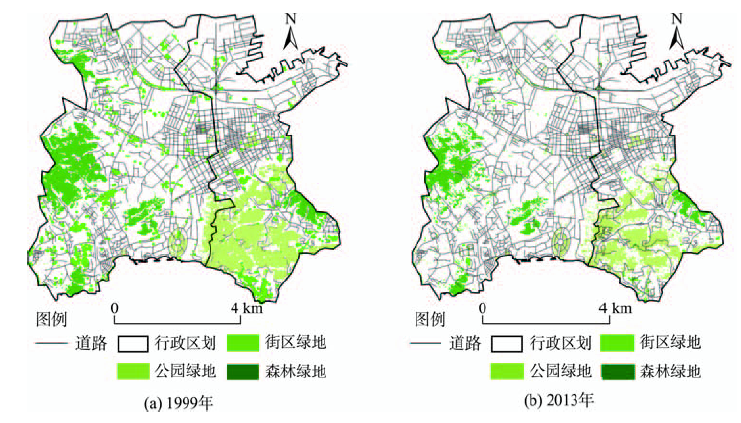

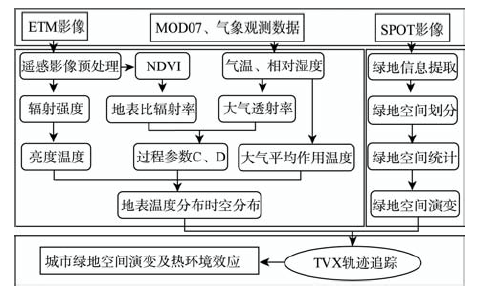

本文选择大连市沙河口和西岗区为研究区,以Landsat ETM、SPOT等数据为基础,通过遥感解译和反演得到1999年和2013年研究区内绿地及地表温度空间分布及演变特征,结合温度-植被指数（TVX）空间分析法测度城区发展过程中绿色空间减退所引起的热环境效应,以提出更有针对性的城市气候变化适应性规划。研究结果表明：（1）1999-2013年,研究区绿地面积减少43.8%,绿地斑块增加42.9%,城市绿地呈现面积减少、空间分布碎化的演变特征。其中,森林绿地、公园绿地和街区绿地转化为建设用地的贡献率分别为43.8%、42.9%和13.3%,街区绿地因原始面积小且转化率高,被建设用地侵占最为严重。（2）1999-2013年,研究区地表温度最高值上升5.2 K,地表温差增加1.7 K,地温聚集区间由301.6 ~304.7 K上升至306.5~310.9 K,热环境效应加剧。（3）TVX模型追踪结果显示,快速城市化过程中研究区内城市绿地转化为建设用地引起植被覆盖度下降和地表温度上升,其中街区绿地被侵占造成的地表热环境效应大于公园绿地和森林绿地。

关键词: TVX, 绿地空间, 热环境效应, 地表温度, 空间演变

Abstract:

Shahekou and Xigang District of Dalian was the subject of this study. Based on remote sensing images of SPOT5 and ETM7 sensors, we obtained the spatial pattern and evolution characteristics of green space and surface temperature in this area from 1999 to 2013 by remote sensing interpretation and inversion. This work adopted the TVX Model to accurately measure evolution of green space and thermal environmental effects in order to put forward a more targeted climate change adaptation planning for urban. The results showed that: (1) in 1999-2013, the greenbelt area decreased 43.8% and greenbelt patch increased 42.86%. The urban green space has evolution characteristic of decreasing area and the spatial distribution fragmentation. The contribution of forest green land, park green land and neighborhood green land transformation into construction is 43.8%, 42.9% and 13.3%, respectively. The occupation of neighborhood green land for construction is the most serious because the original neighborhood green land area is small and the conversion rate high; (2) in 1999-2013, the highest rise of surface temperature is 5.2 K and the surface temperature difference increased 1.7 K. The geothermal aggregation interval increased from 301.6~304.7 K to 306.5~310.9 K and the thermal environmental effects deteriorated. (3) During the period studied, the landscape of land cover and land surface temperature changed significantly. TVX model tracking results indicated that urban green space transformation into urban construction land caused vegetation coverage decreased and surface temperature raised due to the rapid urbanization. Neighborhood green land encroachment caused more serious surface thermal environmental effects than park and forest green land.

Key words: TVX, green space, thermal environmental effects, surface temperature, spatial evolution

杨俊, 孙静, 葛全胜. 大连市城区绿地时空特征的热环境效应研究[J]. 地球信息科学学报, 2016, 18(8): 1087-1093.DOI:10.3724/SP.J.1047.2016.01087

YANG Jun,SUN Jing,GE Quansheng. Study on Thermal Environmental Effect of Spatial-temporal Characteristics of Urban Green Space in the City of Dalian[J]. Journal of Geo-information Science, 2016, 18(8): 1087-1093.DOI:10.3724/SP.J.1047.2016.01087

图/表 8

图1

表1

图2

图3

图4

表2

图5

图6

参考文献 28

[1]	杨振山,张慧,丁悦.城市绿色空间研究内容与展望[J].地理科学进展. 2015,34(1):18-29. doi: 10.11820/dlkxjz.2015.01.003
	[ Yang Z S, Zhang H, Ding Y.Progress and prospect on urban green space research[J]. Progress in Geography, 2015,34(1):18-29. ] doi: 10.11820/dlkxjz.2015.01.003
[2]	Carranza M L, Hoyos L, Frate L.Measuring forest fragmentation using multitemporal forest cover maps: Forest loss and spatial pattern analysis in the Gran Chaco, central Argentina[J]. Landscape Urban Plan, 2015,143:238-247. doi: 10.1016/j.landurbplan.2015.08.006
[3]	Feizizadeh B, Blaschke T.Examining urban heat island relations to land use and air pollution: multiple endmember spectral mixture analysis for thermal remote sensing[J]. Researchgate, 2013,3(6):1-8. doi: 10.1109/JSTARS.2013.2263425
[4]	Howard L. The elimate of London,vols[D]. London: Harvey and Dorton, 1833.
[5]	Manley G.On the frequency of snowfall in metropolitan England[J]. Quarterly Journal of the Royal Meteorological Society, 1958,84:70-72. doi: 10.1002/qj.49708435910
[6]	Rao P.Remote sensing of urban heat islands from an environmental satellite[J]. Bulletin of the American Meteorological Society, 1972,53(7):647-648.
[7]	Gallo K P, Tarpley J D, McNab A L. Assessment of urban heat islands: a satellite perspective[J]. Atmospheric Research, 1995,37:37-43. doi: 10.1016/0169-8095(94)00066-M
[8]	Declet-Barreto J, Brazel AJ, Martin CA.Creating the park cool island in an inner-city neighborhood: heat mitigation strategy for Phoenix, AZ[J]. Urban Ecosyst, 2013,16(3):617-635. doi: 10.1007/s11252-012-0278-8
[9]	Rotem-Mindali O, Michael Y, Helman D.The role of local land-use on the urban heat island effect of Tel Aviv as assessed from satellite remote sensing[J]. Applied Geography, 2015,56:145-153. doi: 10.1016/j.apgeog.2014.11.023
[10]	周淑贞,张超.上海城市热岛效应[J].地理学报,1988,37(4):372-382. doi: 10.11821/xb198204004
	[ Zhou S Z, Zhang C.On The Shanghai urban heat island effect[J]. Acta Geographica Sinica, 1988,37(4):372-382. ] doi: 10.11821/xb198204004
[11]	Kuang W, Dou Y, Zhang C.Quantifying the heat flux regulation of metropolitan land use/land cover components by coupling remote sensing modeling with in situ measurement[J]. Journal of Geophysical Research: Atmospheres, 2015,120:113-130.
[12]	陈云浩,李晓兵,史培军.上海城市热环境的空间格局分析[J].地理科学,2002,22(3):317-323. doi: 10.1002/mop.10502
	[ Chen Y H, Li X B, Shi P J.Study on spatial pattern of urban heat environment in Shanghai City[J]. Scientia Geographica Sinica, 2002,22(3):317-323. ] doi: 10.1002/mop.10502
[13]	冯悦怡,胡潭高,张力小.城市公园景观空间结构对其热环境效应的影响[J].生态学报,2014,34(12):3179-3187. doi: 10.5846/stxb201306101641
	[ Feng Y Y, Hu T G, Zhang L X.Impacts of structure characteristics on the thermal environment effect of city parks[J].Acta Ecologica Sinica, 2014,34(12):3179-3187. ] doi: 10.5846/stxb201306101641
[14]	江学顶,夏北成,郭泺.快速城市化区域城市热岛及其环境效应研究[J].生态科学,2006,25(2):171-175.
	[ Jiang X D, Xia B C, Guo L.Research on urban heat Island and its environmental effects of rapidly urbanized regions[J]. Ecological science, 2006,25(2):171-175. ]
[15]	Xiong Y, Huang S, Chen F.The impacts of rapid urbanization on the thermal environment: a remote sensing study of Guangzhou, South China[J]. Remote Sensing, 2012,4(12):2033-2056. doi: 10.3390/rs4072033
[16]	甘甫平,陈伟涛,张绪教,等.热红外遥感反演陆地表面温度研究进展[J].国土资源遥感,2006,67(1):6-11. doi: 10.3969/j.issn.1001-070X.2006.01.002
	[ Gan F P, Chen W T, Zhang X J, et al.The progress in the study of thermal infrared remote sensing for retrieving land surface temperature[J]. Remote Sensing for Land & Resources, 2006,67(1):6-11. ] doi: 10.3969/j.issn.1001-070X.2006.01.002
[17]	Lv Z,Zhou Q.Utility of landsat image in the study of land cover and land surface temperature change[J]. Procedia Environmental Sciences, 2011,10:1287-1292. doi: 10.1016/j.proenv.2011.09.206
[18]	Touchaei AG, Hosseini M, Akbari H.Energy savings potentials of commercial buildings by urban heat island reduction strategies in Montreal (Canada)[J]. Energy and Buildings, 2016,110:41-48. doi: 10.1016/j.enbuild.2015.10.018
[19]	Zhang Y, Odeh IOA, Han C.Bi-temporal characterization of land surface temperature in relation to impervious surface area, NDVI and NDBI, using a sub-pixel image analysis[J]. International Journal of Applied Earth Observation and Geoinformation, 2009,1(4):256-264. doi: 10.1016/j.jag.2009.03.001
[20]	黄丽明,陈健飞.城市景观格局时空特征的热环境效应研究——以广州市花都区为例[J].自然资源学报,2015,30(3):480-490. doi: 10.11849/zrzyxb.2015.03.011
	[ Huang L M, Chen J F.Study on thermal environment effect of urban landscape pattern: a case study on Huadu district, Guangzhou[J]. Journal of Natural Resources, 2015,30(3):480-490. ] doi: 10.11849/zrzyxb.2015.03.011
[21]	Carranza M L, Hoyos L, Frate L.Measuring forest fragmentation using multitemporal forest cover maps: Forest loss and spatial pattern analysis in the Gran Chaco, central Argentina[J]. Landscape Urban Plan, 2015,143:238-247. doi: 10.1016/j.landurbplan.2015.08.006
[22]	Saaroni H, Ben-Dor E, Bitan A.Spatial distribution and microscale characteristics of the urban heat island in Tel-Aviv, Israel[J]. Landscape Urban Plan, 2000,48(1-2):1-18. doi: 10.1016/S0169-2046(99)00075-4
[23]	彭光雄,李京,陈云浩.利用MODIS大气廓线产品计算空气相对湿度的方法研究[J].热带气象学报,2007(6):611-616. doi: 10.3969/j.issn.1004-4965.2007.06.013
	[ Peng G X, Li J, Chen Y H.A method of estimating relative humidity from MODIS atmospheric profile products[J]. Journal of Tropical Meteorology, 2007,6:611-616. ] doi: 10.3969/j.issn.1004-4965.2007.06.013
[24]	唐世浩,刘荣高.卫星气候数据集的应用研究与发展分析[J].地球信息科学学报,2015,17(11):1278-1285. doi: 10.3724/SP.J.1047.2015.01278
	[ Tang S H, Liu R G.Research progress of satellite-based climate dataset[J]. Journal of Geo-information Science, 2015,17(11):1278-1285. ] doi: 10.3724/SP.J.1047.2015.01278
[25]	覃志豪, Zhang M, Arnon K.用陆地卫星TM6数据演算地表温度的单窗算法[J].地理学报,2001,56(4):456-466. doi: 10.1142/S0252959901000401
	[ Qin Z H, Zhang M, Arnon K.Mono-window algorithm for retrieving land surface temperature from Landsat TM 6 Data[J]. Acta Geographica Sinica, 2001,56(4):456-466. ] doi: 10.1142/S0252959901000401
[26]	覃志豪, LI W J, Zhang M H.单窗算法的大气参数估计方法[J].国土资源遥感,2003,56(2):37-43. doi: 10.3969/j.issn.1001-070X.2003.02.010
	[ Qin Z H, LI W J, Zhang M H.Estimating of the essential atmospheric parameters of Mono-window algorithm for land surface temperature retrieval from Landsat TM6[J]. Remote Sensing for Land & Resources, 2003,56(2):37-43. ] doi: 10.3969/j.issn.1001-070X.2003.02.010
[27]	Jiang J, Tian G.Analysis of the impact of Land use/Land cover change on land surface temperature with remote sensing[J]. Procedia Environmental Sciences, 2010,2:571-575. doi: 10.1016/j.proenv.2010.10.062
[28]	钱敏蕾,徐艺扬,李响.上海市城市化进程中热环境响应的空间评价[J].中国环境科学,2015,35(2):624-633.
	[ Qian M L, Xu Y Y, Li X, et al.An assessment of spatial thermal environmental response to rapid urbanization of Shanghai[J]. China Environmental Science, 2015,35(2):624-633. ]

时间	数据类型	分辨率	来源
1999-08-19	Landsat7 ETM	30 m	地理空间数据云
	Landsat7 ETM	30 m	地理空间数据云
	MOD07 大气廓线产品	5 km	NASA 网站下载
2013-08-29	Landsat7 ETM	30 m	地理空间数据云
	SPOT5	10 m	国家海洋监测中心
	MOD07 大气廓线产品	5 km	NASA 网站下载

	森林绿地		公园绿地		街区绿地		合计
	斑块数	面积/km²	斑块数	面积/km²	斑块数	面积/km²	斑块数	面积/km²
1999年	2489	9.6	901	12.4	842	3.6	4232	25.6
2013年	2806	4.7	1728	7.6	1512	2.1	6046	14.4
1999-2013年变化量	317	-4.9	827	-4.8	670	-1.5	1814	-11.2
