2000-2014年中国重特大煤矿事故时空分布分形特征

doi:10.3724/SP.J.1047.2016.01191

摘要/Abstract

摘要：

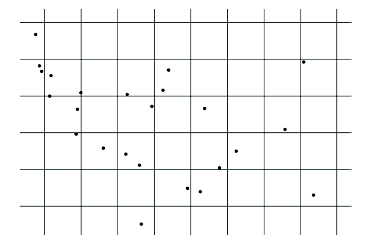

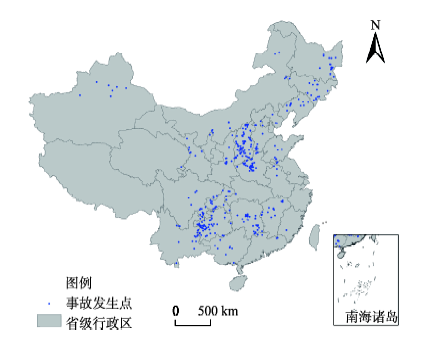

本文汇总整理了2000-2014年中国发生的472起重特大煤矿事故,获得其空间分布状况;基于分形理论,利用网格法统计不同网格尺度下覆盖重特大煤矿事故的非空网格中的事故数量,计算煤矿事故的全国、三大自然地理区以及干湿分区的分维值,分析其空间分布分形特征;利用R/S方法研究15年来重特大煤矿事故发生的时间分形特征。研究表明,从全国范围来看,重特大煤矿事故具有较好的空间分形特性,但不同区域的重特大煤矿事故的分形特性却具有很大差别。15年来发生重特大事故数量及事故死亡人数逐年下降,由R/S分析得到的Hurst指数表明事故时间序列的分形特征客观存在,并且年发生事故数量及事故死亡人数量减少趋势。

关键词: 重特大煤矿事故, 时空分布, 分形, 分维值, Hurst指数

Abstract:

The frequent occurrence of coal mine accidents has brought great losses to people's lives and threatened the safety of our country and residents. The fractal theory is a newly developed subject in recent years, and it has been turned into a powerful tool to describe the nonlinear problems. In this paper, analyses and discussions on the fractal characteristics of the temporal-spatial distribution and relativity as well as the regularity of the temporal distribution of the national catastrophic coal mine accidents from 2000 to 2014 in China have been calculated using the relevant methods of fractal theory. Firstly, based on previous studies, this paper summarized the coal mine accidents occurred between 2000 and 2014 in China and obtained the time of occurrence, latitude and longitude for each coal mine accident. Secondly, the grid method is used to measure the number of accidents in grids which cover the area of the coal mine accidents at different grid scale levels, including scales for the national wide region, the three dominating physical geographical regions and the arid and humid regions. We firstly numerate the accidents in every grid and calculate the information content for different grid scales. Then, a linear fit for the logarithms of the information content and grid scale is calculated, and as a result the absolute value of the line slope is taken as the fractal dimension. Finally, the Hurst exponent of the time series of the coal mine accidents is obtained by adopting the method of resealed range analysis (R/S Analysis). Results show that the fractal characteristics of the spatial distribution of China's coal mine accidents are objectively existent. But the fractal dimension values of the spatial distribution of the coal mine accidents in different regions are significantly different. Between 2000 and 2014, the number of total accidents and deaths peaked at 2005, and then it decreased gradually indicating that the safety situation of China's coal mine production keeps improving. The Hurst exponent of the time series obtained from the R/S analysis indicates that the fractal characteristics of the time series objectively exist and the decreasing trend is enhanced. Some opinions regarding the applications of fractal theory in coal mine accidents are put forward in the end.

Key words: coal mine accident, temporal-spatial distribution, fractal theory, fractal dimension, Hurst exponent

张英慧, 王伟, 高星, 伍宇明. 2000-2014年中国重特大煤矿事故时空分布分形特征[J]. 地球信息科学学报, 2016, 18(9): 1191-1198.DOI:10.3724/SP.J.1047.2016.01191

ZHANG Yinghui,WANG Wei,GAO Xing,WU Yuming. The Fractal Characteristics of the Temporal-Spatial Distribution of Coal Mine Accidents in China from 2000 to 2014[J]. Journal of Geo-information Science, 2016, 18(9): 1191-1198.DOI:10.3724/SP.J.1047.2016.01191

图/表 13

图1

图2

图3

图4

表1

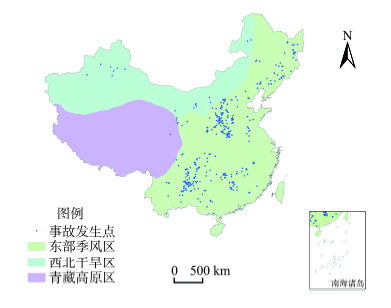

三大自然地理区重特大煤矿事故空间分布分维值"

	线性回归方程	R	是否通过显著性检验	D
东部季风区	$ln I = - 0.8491 ln r + 8.3172$	0.9821	是	0.8491
西北干旱区	$ln I = - 0.1817 ln r + 3.2823$	0.8854	是	0.1817
青藏高原区	$ln I = - 0.2226 ln r + 1.9167$	0.6837	否	-

表1

图5

图6

图7

表2

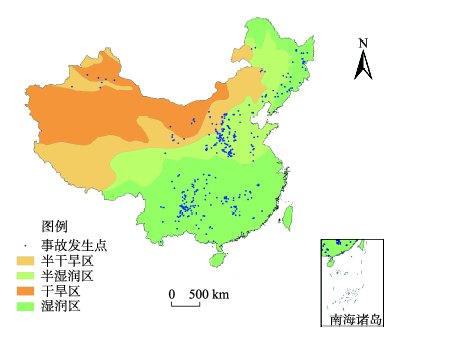

干湿分区重特大煤矿事故空间分布分维值"

	线性回归方程	R	是否通过显著性检验	D
半干旱区	$ln I = - 0.5121 ln r + 4.9568$	0.9699	是	0.5121
半湿润区	$ln I = - 0.7782 ln r + 7.4979$	0.9810	是	0.7782
干旱区	$ln I = - 0.1604 ln r + 2.5473$	0.8547	是	0.1604
湿润区	$ln I = - 0.7766 ln r + 7.4893$	0.9811	是	0.7766

表2

表3

表4

图8

图9

参考文献 20

[1]	苏苗罕. 美国联邦政府的煤矿安全生产监管制度研究[J].南京大学法律评论,2014(1):315-330.
	[ Su M H.On the federal coal mine safety regulation in the United States[J]. Nanjing University Law Review, 2014,1:315-330. ]
[2]	薛振华. 煤矿安全事故致因因素研究[D].西安:西北大学,2010.
	[ Xue Z H.Study on causation factors of coal mine accidents[D]. Xi′an: Northwest University, 2010. ]
[3]	肖素丽. 分形理论在煤矿安全事故分析中的应用[D].衡阳:南华大学,2011.
	[ Xiao X L.Application of fractal theory of analysis on accident of coal mine[D]. Hengyang: University of South China, 2011. ]
[4]	王修才,谢焱石,邓文辉,等.基于分形理论的煤矿透水事故空间分布规律研究[J].煤炭与化工,2014,37(1):20-23.
	[ Wang X C, Xie Y S, Deng W H, et al.Study on spatial distribution regularities flooding accident of coal mines based on fractal theory[J]. Coal and Chemical Industry, 2014,37(1):20-23. ]
[5]	郝仲熙. 基于分形理论的煤矿瓦斯涌出规律预测研究[D].太原:太原理工大学,2006.
	[ Hao Z X.Study about gas emission law based on fractal theory[D]. Taiyuan: Taiyuan University of Technology, 2006. ]
[6]	李润求,施式亮,伍爱友,等.煤矿瓦斯灾害事故的分形特性[J].中国安全生产科学技术,2014,10(9):25-29. doi: 10.11731/j.issn.1673-193x.2014.09.003
	[ Li R Q, Shi S L, Wu A Y, et al.Research on fractal characteristics of gas accident in coal mine[J]. Journal of Safety Science and Technology, 2014,10(9):25-29. ] doi: 10.11731/j.issn.1673-193x.2014.09.003
[7]	王汉斌. 煤与瓦斯突出的分形预测理论及应用[D].太原:太原理工大学矿业工程学院,2009.
	[ Wang H B.Fractal forecast theory and its application of coal and gas outburst[D]. Taiyuan: Taiyuan University of Technology, 2009. ]
[8]	刘明举,刘希亮.煤与瓦斯突出分形预测研究[J].煤炭学报,1998,23(6):616-619.
	[ Liu M J, Liu X L.Fractal prediction research of coal and gas outburst[J]. Journal of China Coal Society, 1998,23(6):616-619. ]
[9]	施式亮,李润求,何利文,等.基于分形学的瓦斯爆炸事故时序数据分析模型及应用[J].中国安全科学学报,2011,21(10):10-15.
	[ Shi S L, Li R Q, He L W, et al.Time series analysis model for gas explosion accidents based on fractal theory and its application[J]. China Safety Science Journal, 2011,21(10):10-15. ]
[10]	Mandelbrot B B.How long is the coast of Britain? statistical self-similarity and fractional dimension[J]. Science, 1967,165:636-638. doi: 10.1126/science.156.3775.636 pmid: 17837158
[11]	朱华,姬翠翠.分形理论及其应用[M].北京:科学出版社,2011.
	[ Zhu H, Ji C C.Fractal theory and its applications[M]. Beijing: Science Press, 2011. ]
[12]	谢嘉琼,易顺明.滑坡活动空间分布的多重分形特征及其预测意义[J].四川大学学报(工程科学版),2000,32(64):4-6. doi: 10.3969/j.issn.1009-3087.2000.06.002
	[ Xie J Q, Yi S M.Study on the multifractal of the spatial distribution of landslides activities and its significances[J]. Journal of Sichuan University (Engineering Science Edition), 2000,32(64):4-6. ] doi: 10.3969/j.issn.1009-3087.2000.06.002
[13]	王忠志. 基于GIS的重庆市地质灾害空间分布的分形分维研究[D].重庆:西南大学,2014.
	[ Wang Z Z.Study on the fractal dimension of spatial distribution of geological disasters in Chongqing based on GIS[D]. Chongqing: Southwest University, 2014. ]
[14]	马克明,祖元刚.兴安落叶松种群格局的分形特征信息维数[J].生态学报,2000,20(2):187-192.
	[ Ma K M, Zu Y G.Fractal properties of the spatial pattern of Larix gmelini population--Information dimension[J]. Acta Ecologica Sinica, 2000,20(2):187-192. ]
[15]	Rasheed B Q K, Qian B. Hurst exponent and financial market predictability[C]. IASTED Conference on Financial Engineering and Applications (FEA 2004), 2004:203-209.
[16]	Yang Y G, Yuan J F, Chen S Z.R/S analysis and its application in the forecast of mine inflows[J]. Journal of China University of Mining and Technology, 2006,16(4):425-428. doi: 10.1016/S1006-1266(07)60040-6
[17]	国家安全生产监督管理总局.煤矿生产安全事故报告和调查处理规定[Z].2008-12-11.
	[ State Administration of Work Safety. Coal mine production safety accident report and the investigation and handling [Z].2008-12-11. ]
[18]	陈波. 煤矿灾害时空序列特征分析[J].地学前缘,2009,16(5):273-280. [ Chen B. Analysis on time-space characteristics of coalmine accidents[J]. Earth Science Frontiers, 2009,16(5):273-280. ]
[19]	汪恩满,胡社荣,赵光杰,等.煤矿井下类泥石流灾害形成机理研究[J].煤炭科学技术,2014,42(9):130-133.
	[ Wang E G, Hu S R, Zhao G J, et al.Study on mechanism of similar debris flow disasters underground coal mine[J]. Coal Science and Technology, 2014,42(9):130-133. ]
[20]	王永红,沈文.中国煤矿水害预防及治理[M].北京:煤炭工业出版社:1996,24-28
	. [ Wang Y H, Shen W.Prevention and control of coal mine water disaster in China[M]. Beijing: China Coal Industry Publishing House, 1996:24-28. ]

年份	2000	2001	2002	2003	2004	2005	2006	2007	2008	2009	2010	2011	2012	2013	2014
数量	59	44	49	46	36	56	35	31	28	22	14	22	12	13	5
死亡人数	1188	1006	1157	1211	934	1716	732	617	518	509	328	342	216	225	84

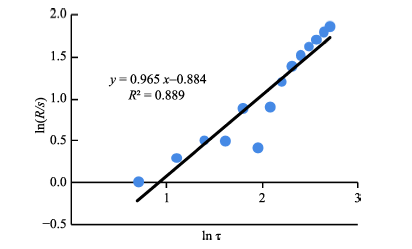

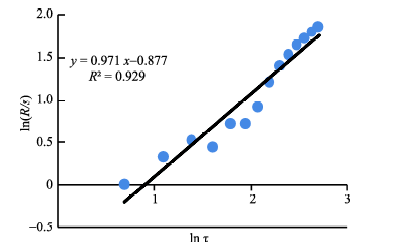

时间序列	年份	R_事故次数	S_事故次数	R_死亡人数	S_死亡人数	ln(R/S)_事故次数	ln(R/S)_死亡人数
1	2000	-	-	-	-	-	-
2	2001	7.50	7.50	91	91	0	0
3	2002	8.33	6.24	111	79.50	0.2899	0.3337
4	2003	9.50	5.77	134.5	79.98	0.4993	0.5198
5	2004	12.20	7.47	169.6	109.27	0.4909	0.4396
6	2005	18.33	7.63	514.0	250.58	0.8766	0.7185
7	2006	12.71	8.47	581.1	284.37	0.4067	0.7147
8	2007	23.00	9.42	791.3	316.37	0.8926	0.9167
9	2008	34.00	10.28	1159.3	345.08	1.1957	1.2118
10	2009	46.40	11.56	1459.2	360.07	1.3897	1.3993
11	2010	60.90	13.42	1803.3	388.26	1.5130	1.5357
12	2011	69.00	13.60	2083.0	402.61	1.6240	1.6436
13	2012	80.54	14.65	2377.8	422.62	1.7045	1.7275
14	2013	91.50	15.20	2626.7	433.84	1.7949	1.8008
15	2014	104.73	16.30	2911.9	452.17	1.8602	1.8625
